INSTALLATION INSTRUCTIONS

FS037A

Page 1 of 2

Panduit QuickNet MPO Fiber Optic Cassettes are designed to reduce the installation time and effort associated with

connecting a fiber optic network, as well as, improve overall network reliability through factory tested terminations. These

cassettes are compatible with the Panduit Opticom product line and can be selected with LC or SC connectors for the front

ports and an MPO connector for the rear port.

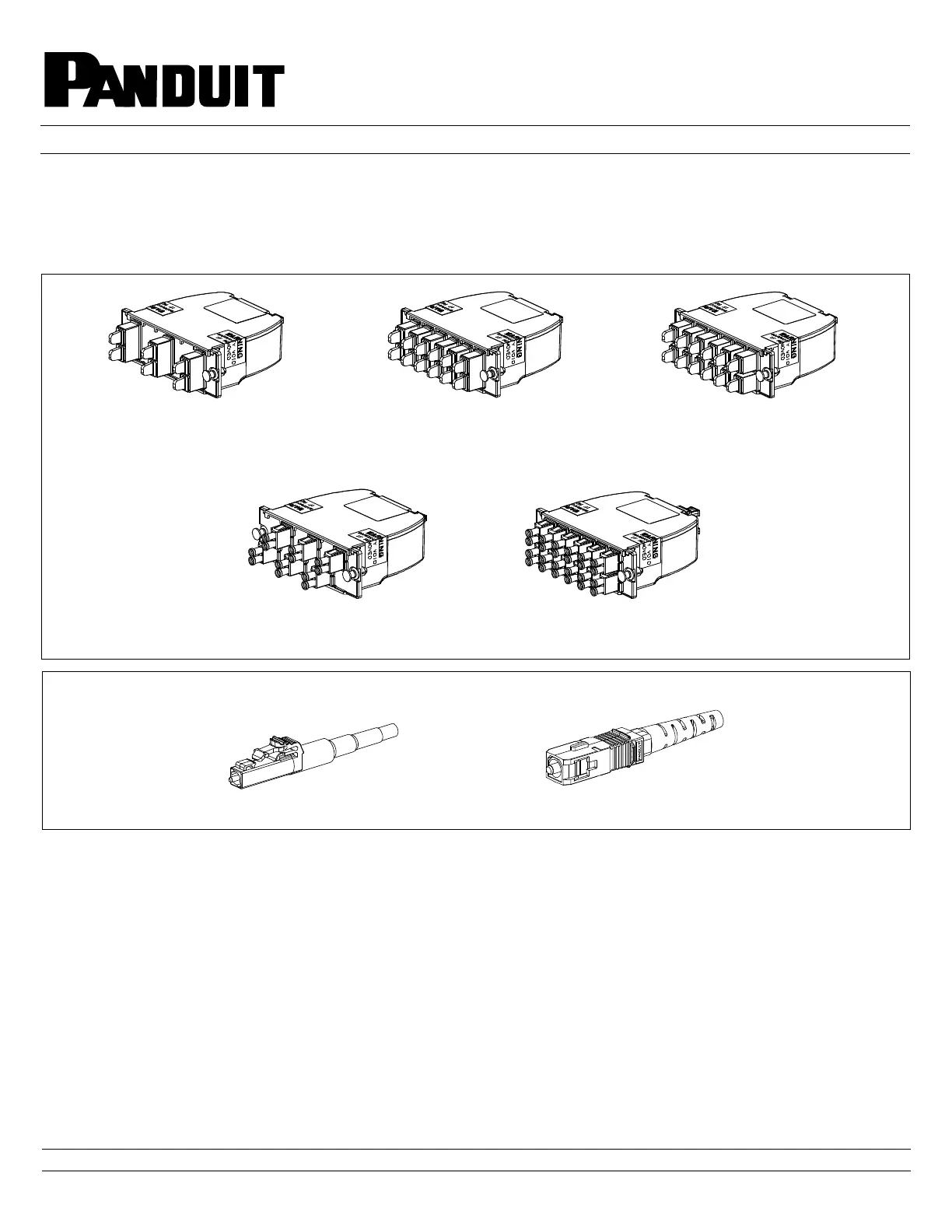

1.0 Component Identification

2.0 Precautions

2.1 It is strongly recommended that safety glasses be worn when handling bare optical fiber. Bare optical fiber is very sharp

and can easily damage the eye.

2.2 Pick up and discard all pieces of bare fiber with sticky tabs. Do not let cut pieces of fiber stick to clothing or drop in the

work area where they are hard to see and can cause injury.

2.3 Laser light is invisible. The invisible light is powerful enough to damage your eyes. Serious damage to the retina of the

eye is possible. Never look into the end of a fiber that may have a laser coupled into it. Should accidental eye exposure

to laser light be suspected, arrange for an eye examination immediately.

2.4 Excessive pulling, twisting, crushing, or bending stresses can damage fiber optic cable. Any damage may result in

decreased optical performance.

2.5 Use dry swab (Panduit part number FSWB-C) to clean the inside of the fiber adapters and the ferrule face of the internal

connectors. Insert and rotate the swab until it contacts the ferrule face. Repeat as needed.

2.6 Should internal connectors require a more thorough cleaning, consult Panduit.

Connector Selection

LC Connector

FC2**-06-03AS

FC2**-06-03AF

SC Connector

QuickNet MPO Fiber Optic Cassettes

For use with Panduit Pan-Net Opticom Network Cabling System

FC2**-12-03AS

FC2**-12-03AF

FC2**-12-3SAS

FC2**-12-10AS

FC2**-12-10AF

FC2**-24-10AS

FC2**-24-10AF

** Fourth position asterisk denotes fiber type, fifth position asterisk denotes fiber performance.

Produkt Specifikationer

Mærke:	Panduit
Kategori:	Ikke kategoriseret
Model:	FC2ZO-24-10AF
Bredde:	89 mm
Dybde:	125 mm
Højde:	35 mm
Antal pr. pakke:	1 stk
Bæredygtighedscertifikater:	RoHS
Antal forbindelser:	24
Stiktype:	LC/MPO
Kategori:	OM4
Dupleks:	Ja
