OPERATING AND ASSEMBLY INSTRUCTIONS
BBQ PATRON series
BBQ PATRON cabinet
BBQ PATRON build-in
PATTON B.V. Postbox 299 NL-2740 AG Waddinxveen Holland
Website: www.patton.eu
1
IE, GB
CH, FR
AT, CH, DE
CH, IT
NL, BE, LU
ES
PT
DK
NO
SE
FI
Operating instructions
Notice d’emploi
Gebrauchsanweisung
Instruzioni d’uso
Gebruiksaanwijzing
Instrucciones de servicio
Manual de instruçoes
Betjeningcvjledning
Brukerveiledningen
Bruksanvisning
Käyttöohje!
www.patton.eu
IE, GB
2
WARNING
Do not light this appliance before reading the “LIGHTING INSTRUCTIONS” of this manual.
x BBQ SPECIFICATIONS CAN BE FOUND ON THE LABEL APPLIED TO THE BACK OF THE FRONT
PANEL.
x THIS IS A LIQUID PROPANE/BUTANE CONFIGURED GRILL. DO NOT USE A NATURAL GAS
SUPPLY UNLESS THE GRILL HAS BEEN PRE-CONFIGURED FOR NATURAL GAS USE.
x DO NOT ALLOW CHILDREN TO OPERATE THE BBQ.
x ACCESIBLE PARTS MAY BE VERY HOT, KEEP CHILDREN AWAY.
x ANY MODIFICATION OF THIS BBQ MAY PROVE DANGEROUS.
x NEVER ALTER OR MODIFY THE REGULATOR OR GAS SUPPLY ASSEMBLY.
x DO NOT MOVE THIS BBQ WHEN IN USE.
x VISUALLY INSPECT HOSE PRIOR TO EACH USE FOR CUTS, CRACKS, EXCESSIVE WEAR OR
OTHER DAMAGE.
x DO NOT ATTEMPT TO LIGHT THE GRILL IF YOU SMELL GAS.
x PARTS SEALED BY THE MANUFACTURER OR THEIR AGENT SHOULD NOT BE MANIPULATED
BY THE USER.
x PUT THE LG TANK NEXT TO THE BBQ, NOT UNDER THE BBQ NOR IN THE BBQ TROLLEY.
x DO NOT STORE EMPTY OR FULL SPARE GAS CYLINDERS IN, UNDER OR NEAR BBQ.
x DO NOT STORE OR USE PETROL OR OTHER FLAMMABLE VAPOROUS LIQUIDS IN
THE VICINITY OF THE BBQ.
x KEEP THE GAS HOSE AND ANY ELECTRICAL CORD AWAY FROM HOT SURFACES.
x AVOID ANY TWISTING OF THE GAS HOSE.
x THE HOSE MUST BE REPLACED IF DAMAGED AND WHEN NATIONAL CONDITIONS REQUIRE IT.
x DO NOT LIGHT BBQ WITH HOOD CLOSED.
x FLAMES SHOULD BE BLUE AND STABLE WITH NO YELLOW TIPS.
x NEVER LEAN OVER COOKING SURFACE WHILE LIGHTING BBQ.
x USE BBQ TOOLS OF GOOD QUALITY.
x WEAR DRY OVEN GLOVES WHEN OPERATING THE BBQ.
x NEVER FULLY COVER FLAME TAMERS/GRILL RACKS/GRILL PLATES OR GRILL BOTTOM WITH
ALUMINIUM FOIL. THIS CAN SEVERELY UPSET COMBUSTION AIR FLOW OR TRAP EXCESSIVE
HEAT IN THE CONTROL AREA.
x MAKE SURE ALL PACKING MATERIALS HAVE BEEN REMOVED FROM THE GRILL, INCLUDING
THE BURNER TIE DOWN STRAPS.
x GREASE IS FLAMMABLE. LET HOT GREASE COOL BEFORE HANDLING IT. DO NOT ALLOW
GREASE DEPOSITS TO COLLECT IN THE GREASE TRAY AT THE BOTTOM OF THE GRILL’S
FIREBOX. CLEAN THE GREASE TRAY FREQUENTLY (AFTER EVERY 4-5 USES).
x TURN OFF ALL CONTROL KNOBS AND MAKE CERTAIN THE GRILL IS COOL BEFORE USING
ANY TYPE OF AEROSOL CLEANER ON OR AROUND IT.
THE CHEMICAL THAT PRODUCES THE SPRAYING ACTION COULD, IN THE PRESENCE OF
HEAT, IGNITE OR CAUSE METAL PARTS TO CORRODE.
x NEVER USE ANY ACCESSORIES OR PARTS FROM OTHER MANUFACTURERS OR THAT HAVE
NOT BEEN SPECIFICALLY ADVISED BY PATTON. YOUR GUARANTEE WILL BECOME INVALID IF
SUCH ACCESSORIES OR PARTS HAVE BEEN USED.
x TURN OFF THE GAS SUPPLY AT THE GAS CYLINDER AFTER USE.
IE, GB
3
SAFETY INFORMATION
x Never use the “Two burner” with the lid closed, this will bring serious damage to your
bbq.
x The “Two burner” is not a bbq grill, only use this “Two burner” for cooking.
x Never operate this BBQ without a pressure regulator.
x If the regulator is not supplied with your barbecue - depending on which gas you
decide to use – turn to your local gas dealer for a regulator.

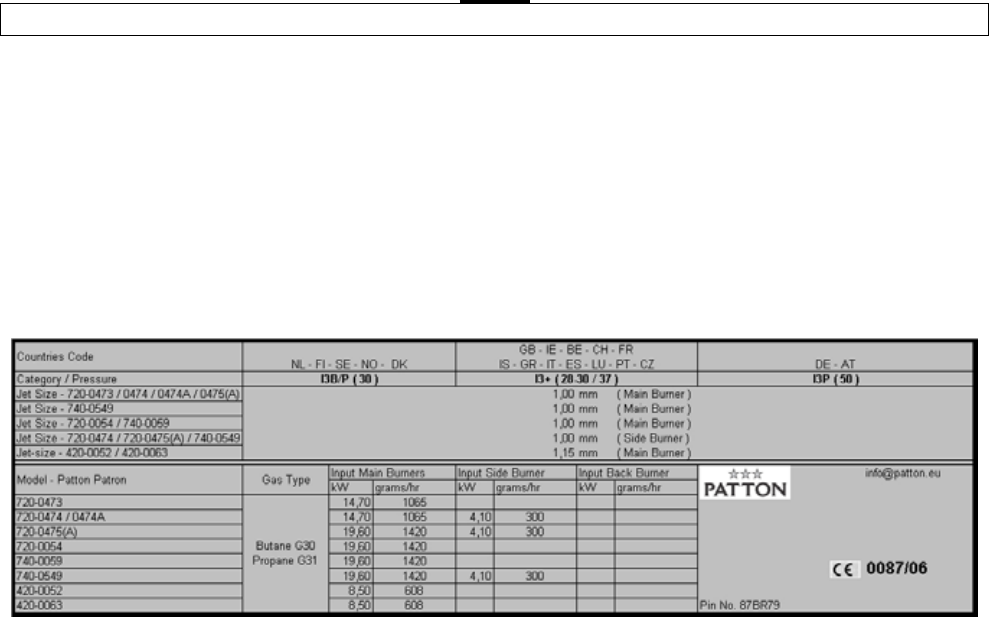

x The following supply pressures are a guide only.
REGULATOR AND HOSE ASSEMBLY:
x Must be suitable for Liquid Petrol Gas (LPG).
x Must withstand the above-mentioned pressures.
x May not exceed 1.5 metres in length.
x The flexible hose should be a hose connected with an adaptor.
x Use an appropriate Jubilee clip or twin-eared fastener to connect the hose to the BBQ
adaptor to secure the hose/regulator connection.
x After the assembly has been secured, turn on the gas and check for leaks. See
Checking For Gas Leaks. Make certain this procedure is carried out in a well
ventilated area and never in the presence of a flame, spark or heat source.
x Never use a dented or rusty LG tank.
IE, GB
4
GENERAL INFORMATION
LOCATION OF YOUR BBQ
x This barbecue must only to be used outdoors.
x Do not use this barbecue inside recreational vehicles.
x Do not obstruct the flow or combustion and ventilation air around the BBQ.
CHECKING FOR GAS LEAKS
NOTE: Never test for leaks with an open flame.
If you smell gas, do not attempt to light the BBQ, close the valve of the gas cylinder,
extinguish naked flames.
Check for gas leaks prior to first use, and at the beginning of each new season (or, whenever
gas cylinder is changed).
1. Make a soap solution of one part liquid detergent and one part water.
2. Turn burner control(s) to ‘’’OFF’’, then turn on gas at the source.
3. Apply the soap solution to all gas connections. Bubbles will appear in the soap solution
if connections are not properly sealed. Tighten or repair if necessary.
4. If you observe a gas leak you cannot repair, turn off gas cylinder valve, disconnect
hose and seek advice from your BBQ dealer or supplier.
GAS CYLINDER SAFETY
x Close the gas cylinder valve after use.
x If you store the barbecue indoors, disconnect the gas cylinder and store the cylinder
outdoors. Never store gas cylinder indoors.
x Keep gas cylinder in an upright position.
x Do not subject gas cylinder to excessive heat.
x Replace cylinder away from any naked flames, sparks and heat sources.
BUTANE OR PROPANE?
There are two different types of gas that can be used on your gas BBQ. It is important that
you use the correct regulator for the types of gas you buy.
Up to 10 kg. gas cylinder sizes are recommended:
IE, GB
5
MAINTENANCE
BACKLASH
x Turn off gas at its source and turn the burner control(s) to “OFF”.
Wait until cooled, then clean burner tubes and burner ports.
CLEANING THE GRILL PLATES
x Close the gas cylinder valve.
x Allow the grill plates to cool down before washing them in a warm soapy solution.
Use a moist dish cloth, nylon scourer or brass wire brush.
CLEANING THE FLAME TAMER
x Periodically wash the flame tamer in a warm soapy solution. Use a brass wire brush to
remove stubborn caked or cooking residue if necessary. Dry thoroughly before re-
installing in the BBQ body.
CLEANING THE GREASE RECEPTACLE
x Allow contents to cool before emptying and washing in liquid detergent.
ANNUAL CLEANING OF BBQ
Cleaning the grill and hot plate after each use will keep it ready for instant use. Once a year,
give the entire BBQ a thorough cleaning.
INTERIOR
x Turn the burner controls to “OFF” position, close the gas cylinder valve and
disconnect gas supply.
x Detach the hose/regulator assembly from BBQ .
x Remove and clean the cooking plates, flame tamers and burners.
x Cover gas valve orifices with aluminum foil.
x Brush the inside and bottom of the BBQ body with a brass wire brush. Wash with a
mild soap (soda) and warm water solution. Rinse thoroughly and dry.
x Remove the aluminum foil from the orifices and check for obstruction.
x Clear clogged ports with a straightened paper clip. Never use a wooden toothpick.
It may break off and clog the port.
x Check spark electrode, adjust if necessary.
x Replace burners and other components.
x Reconnect gas hose and test ignition.
x Proper care and maintenance will keep your BBQ in top condition and prolong its life.
x Store the appliance in a dry place.
IE, GB
8
COOKING WITH HOOD DOWN
IMPORTANT: Never use all burners on “HI” when cooking with hood down.
x Only use burners as shown in the diagram when cooking with the hood down.
x Position the flame tamer, grill plate or cooking pan over centre burners.
Close hood and adjust burners to “LO”.
x Always open the hood before lighting.
x Check progress periodically.
IF BBQ FAILS TO OPERATE PROPERLY
x Do not smoke while checking!
x Turn off the gas at source, turn burner control to “OFF”.
x Wait five minutes before trying again.
x Check gas supply / connections.
x Repeat lighting procedure and, if BBQ still fails to operate properly, TURN OFF GAS
AT SOURCE, TURN BURNER CONTROLS TO “OFF”. Wait for BBQ to cool and
check the following:
a) Misalignment of burner tube(s) over orifice(s).
CORRECTION: Reposition burner tube to properly sit over orifice.
b) Obstruction in gas line.
CORRECTION: Remove hose from BBQ.
Open gas supply for one second to clear any obstruction from hose. Close off gas supply
at source and reconnect hose to BBQ.
c) Blocked orifice
CORRECTION: Remove loose items from inside BBQ body. Remove burners by pulling
cotter pin from beneath burner “foot” using a screwdriver or needle-nose pliers. Lift each
burner away from gas valve orifice, clear any obstruction with a fine wire.
Re-install burners over orifices and seat each burner “foot” into mounting bracket at
bottom of BBQ body. Replace cotter pins. Replace cooking components.
d) Misalignment of igniter on burner
CORRECTION: The tip of the electrode should be pointing towards the collector box. The
gap between the spark electrode and the tip of the collector box should be 3-5 mm. Adjust
if necessary by bending carefully.
If re-ignition is necessary while the BBQ is still hot, wait for a at least of five minutes
before commencing to re-ignite. (This allows accumulated gas to clear).
If all checks/corrections have been made and BBQ still fails to operate properly, consult
your BBQ dealer or gas appliance service person.
