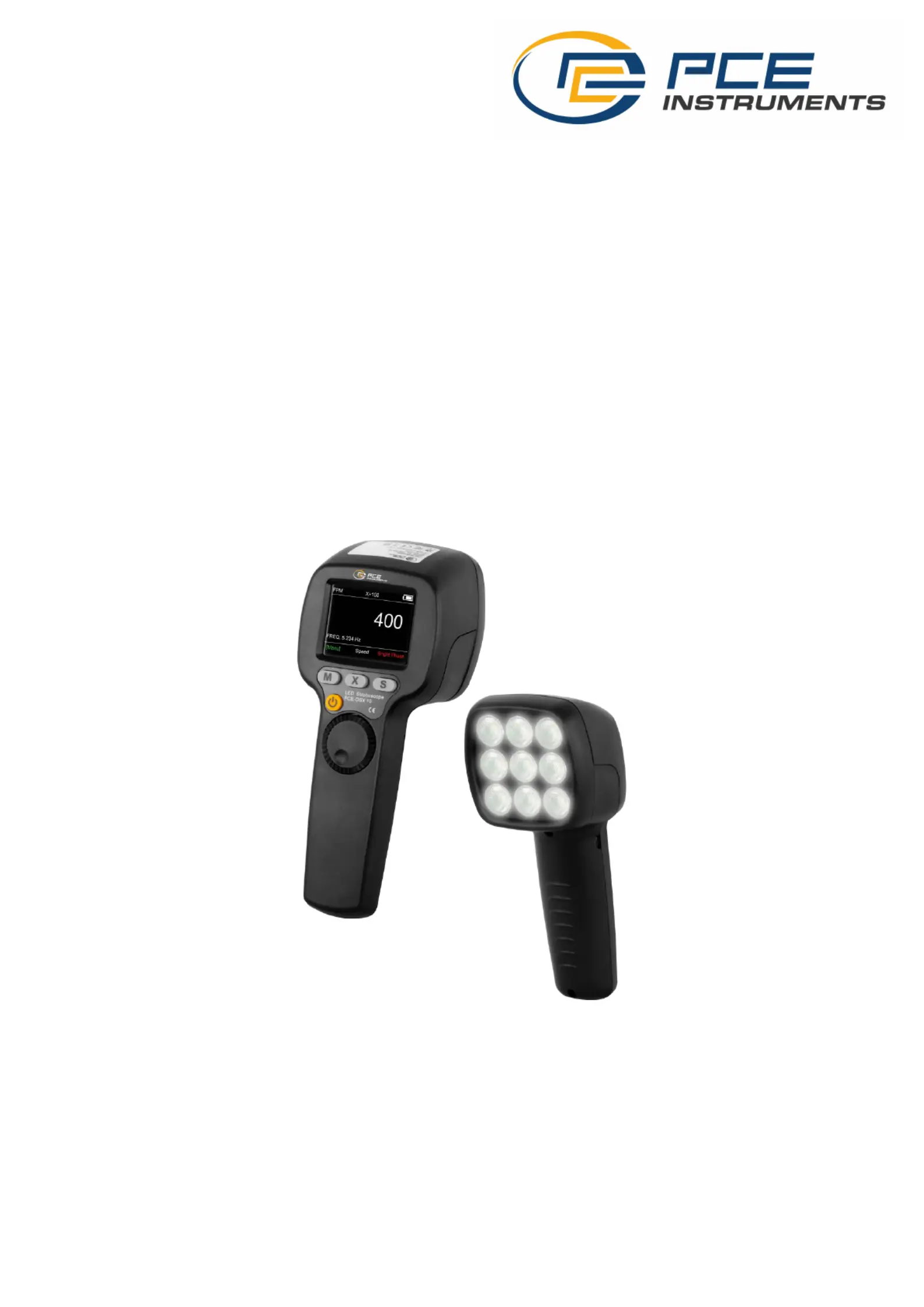

This instrument is a new LED light source that flashes at a certain frequency. When observing a high-speed
rotating or moving object with this instrument, the flashing frequency of the LED lamp is adjusted to be
close to or synchronized with the rotation or movement speed of the measured object. Although the measured
object is moving at a high speed, it seems to be moving slowly or stationary. Therefore, the instrument will
detect the rotation speed of the object or the surface quality or movement condition of the high-speed moving
This instrument uses the latest imported LED as light source, which has many advantages over traditional
Xenon lamp, such as high brightness, long life, reliable triggering and so on. The latest digital frequency
synthesis technology is applied in th instrument, and the flash frequency output is more accurate, stable is
and reliable. The stroboscopic output adjustment uses a 360 degree rotating dial and a combination rate shift
switch. It can rotate left or right without limits and adjust the stroboscopic rate quickly or slowly. The
numerical increase or decrease operation is lightweight and convenient. This instrument uses LCD as display.
The reading is clearer than previous generation products, and the display information of operation interface
is intuitive. This instrument is compact, light, easy to carry, easy to hold and read, and has a beautiful
appearance. Its biggest feature is that the speed measurement accuracy is in the leading level of similar
instruments in global. Because of the non-contact speed measurement, the operation is simple and easy, and
it has the unique superiority of flash speed measurement.
Therefore, this instrument is especially suitable for rotating speed measurement of motors, fans, pumps, gears,
product quality detection of high-speed production line, product vibration diagnosis and so on. It can be used
in Heating Ventilation Air Conditioning ( ), printing, paper making, textile, medicine, light industry, HVAC
mechanical processing and other industries.
Main Technical Parameters
2. Speed measurement accuracy: 0.001%
3. Illumination: 1500 LUX
5. Power supply: 7.4V/2200mA lithium battery
6. Power consumption: When working 0.2 W, it can work for 8 hours continuously and standby time is 3≤
7. Operating environment temperature: - - 10℃55℃
8. Size: 210 × 90 × 57 (mm)
9. Weight: 320g (with battery)
As the following diagram shows
1. rate adjustment rotary dialStroboscopic
2. multiplier/Zero buttonX Stroboscopic
3. Phase adjustment buttonS
4. rate increase/decrease digital bit rate displayStroboscopic
5. Current remaining power display
