Side 1/28
1
2020-07-13 #:146-9054-2 (2020-08-03)
ENG
DS-LEDTK Series
*Actual conguration may vary
2
2020-07-13 #:146-9054-2 (2020-08-03)

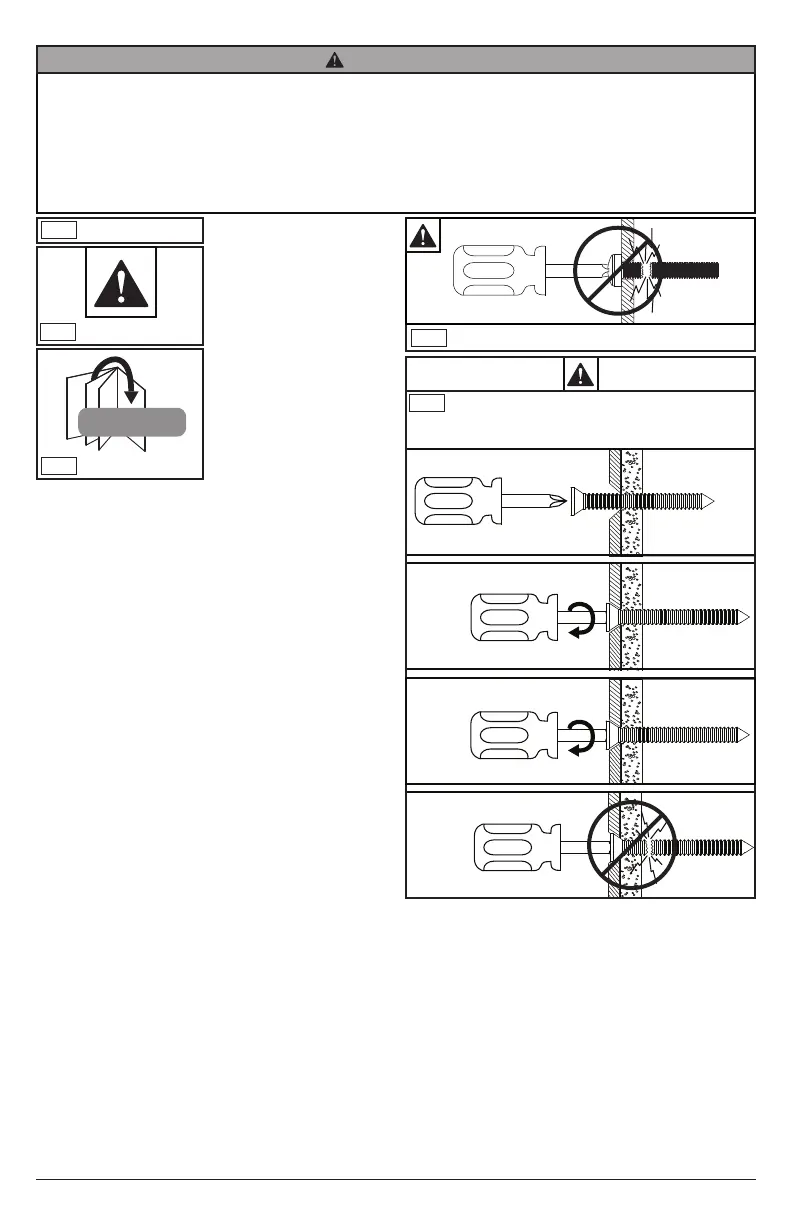

ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation.
This product is designed to be installed on at, unobstructed, vertical walls. Do not install on curved or angled
walls. Before installing make sure the supporting surface will support the combined load of the equipment and
hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.
Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift
and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to
product failure or personal injury. Be careful not to pinch ngers when operating the mount. For support please
call customer care at 1-800-865-2112.
WARNING
Symbols
ENG
WARNING
ENG
#
Skip to step.
ENG
Do not overtighten screws.
ENG
1
2
ENG
To properly tighten screws: Tighten until screw
head makes contact, then tighten another 1/2
turn. Do not overtighten screws.
4
+1/2
3
3
2020-07-13 #:146-9054-2 (2020-08-03)

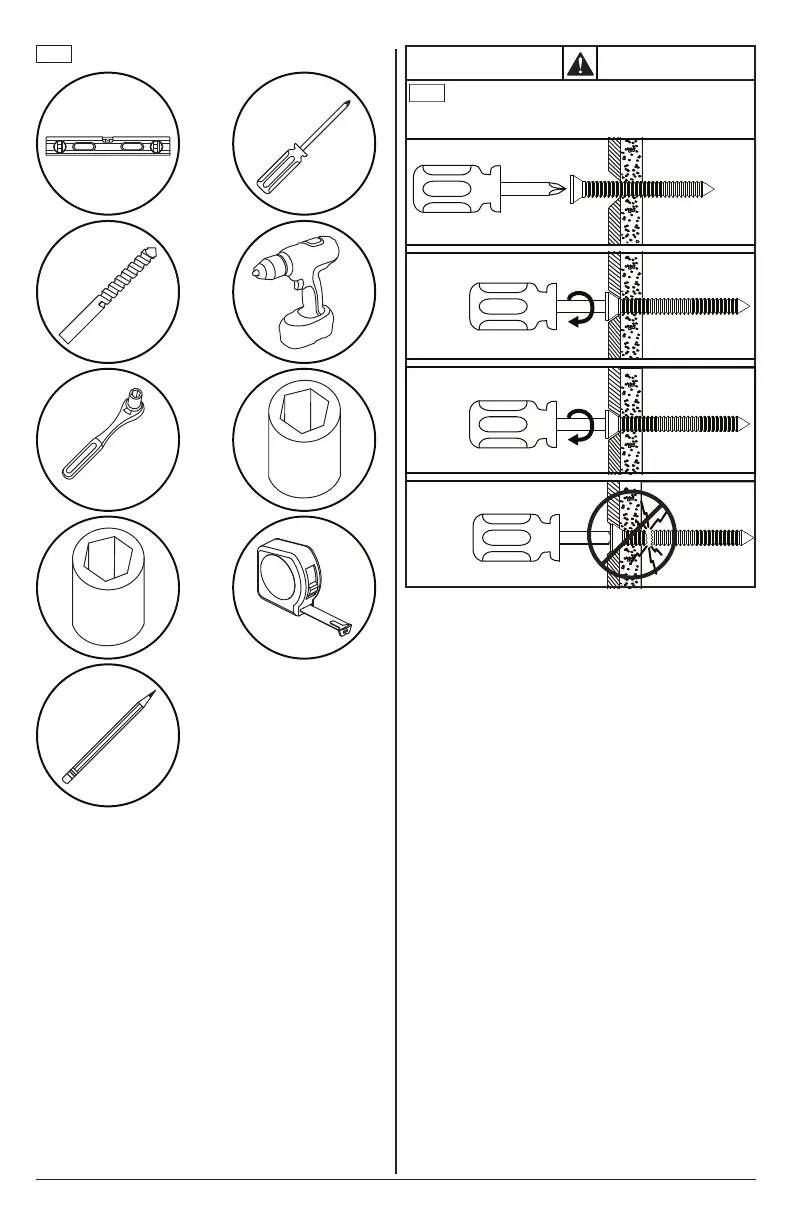

Tools Needed for Assembly.
ENG
5/32"
(4mm)
3/8"
(10mm)
1
2
ENG
To properly tighten screws: Tighten until screw
head makes contact, then tighten another 1/2
turn. Do not overtighten screws.
4
+1/2
3
1/4"
(6mm)
4
2020-07-13 #:146-9054-2 (2020-08-03)
A
F
B
C
solid cover
nut bar
perforated cover
solid wall bracket

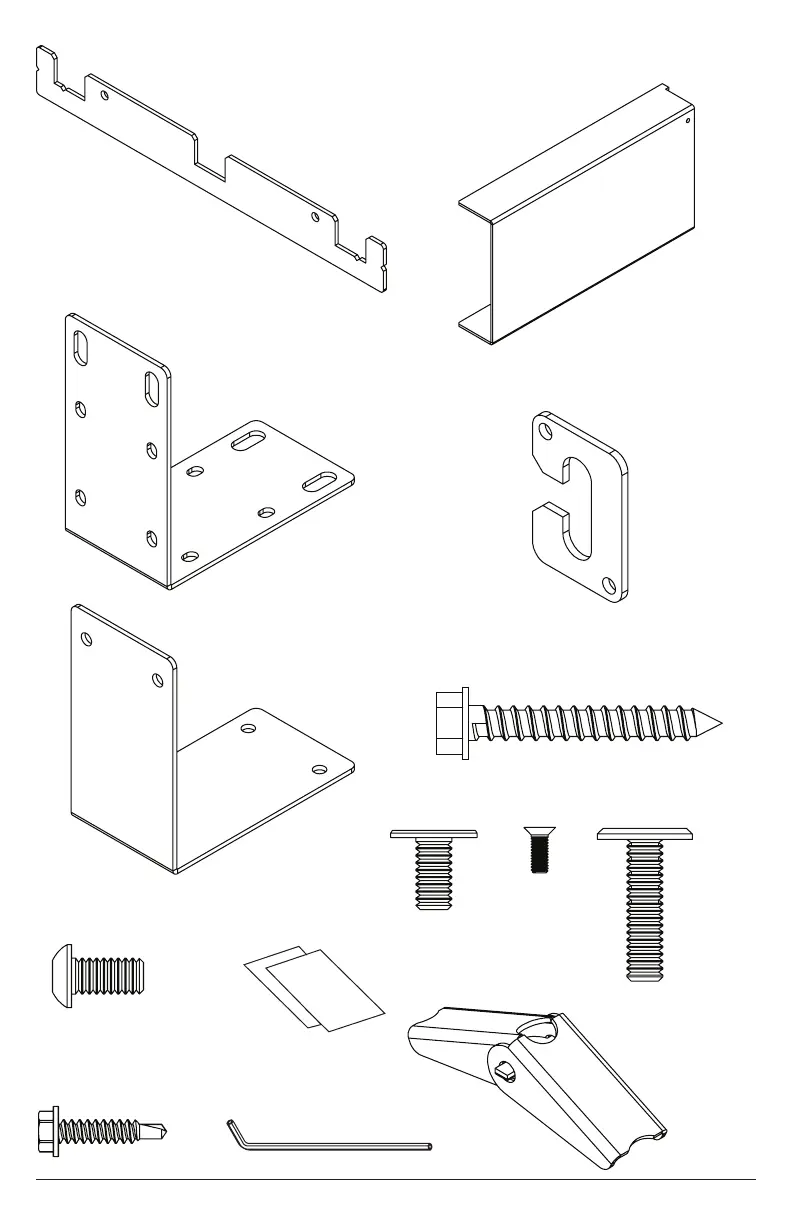

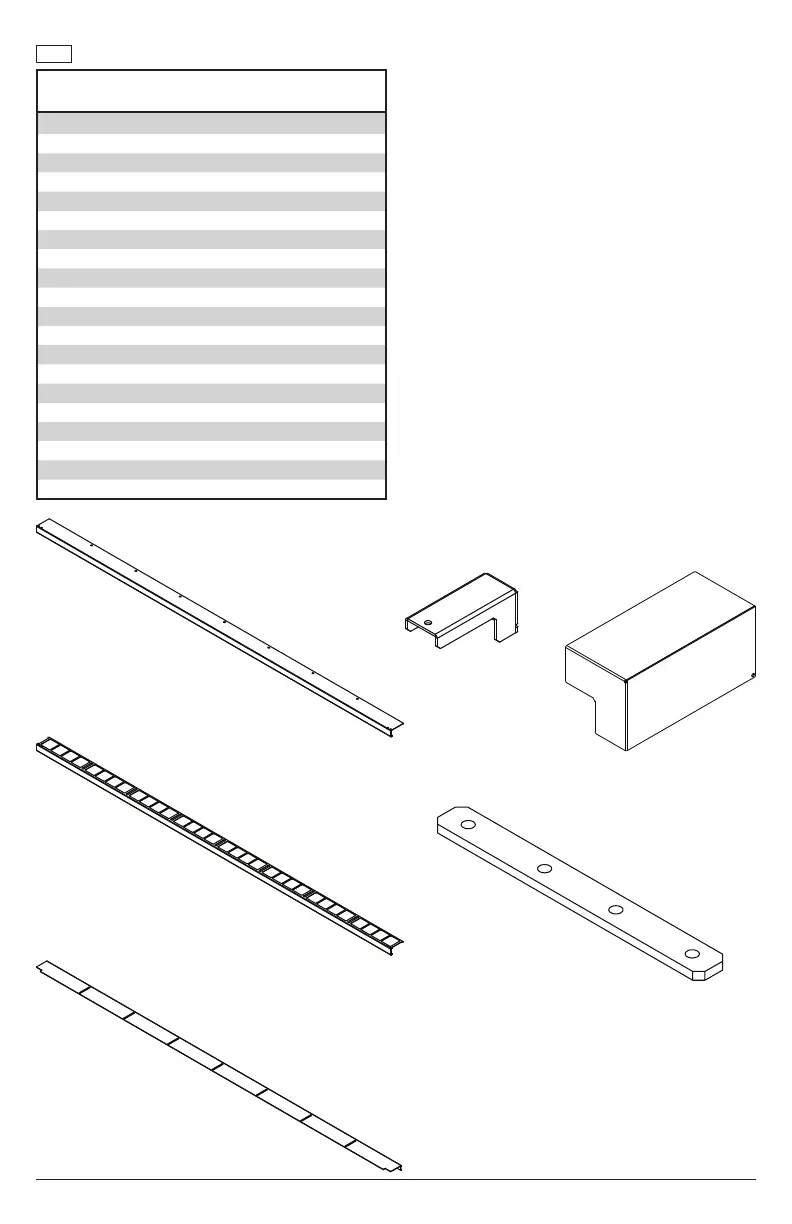

Parts List
Description Part #
A solid cover -
B perforated cover -
C solid wall bracket -
D wall-side bracket 147-1859
E corner cover assembly 147-1876
F nut bar 147-T1881
G wall-side bracket spacer 147-T1879
H solid wall bracket spacer 147-T1880
I outer cutting jig 147-T1882
J inner cutting jig 147-T1883
K wall plate shim 147-1891
L 1/4-20 x 25mm screw 521-0710
M #14-10 x 1.75 wood screw 521-1688
N M3 x 8mm phillips 521-0711
O 1/4-20 x 1/2 btn skt scr 520-1169
P vinyl sticker 580-0535
Q toggler 590-1093
R #8-18 X 3/4" self drilling screw 521-0714
S 4mm allen wrench 560-9646
T 1/4-20 x 12mm screw 520-2325
Parts (Before beginning, make sure you have all parts shown below).
ENG
D E
wall-side bracket corner cover
5
2020-07-13 #:146-9054-2 (2020-08-03)
K
J
T L
H
I
G
wall plate shim
inner cutting jig
1/4-20 x 12mm 1/4-20 x 25mm
N
M3 x 8mm
Q
toggler
O
1/4-20 x 1/2
R
#8-18 X 3/4"
P
vinyl sticker
solid wall bracket
spacer
outer cutting jig
wall-side bracket
spacer
M
#14-10 x 1.75 wood screw
S (1)
4mm allen
wrench
6

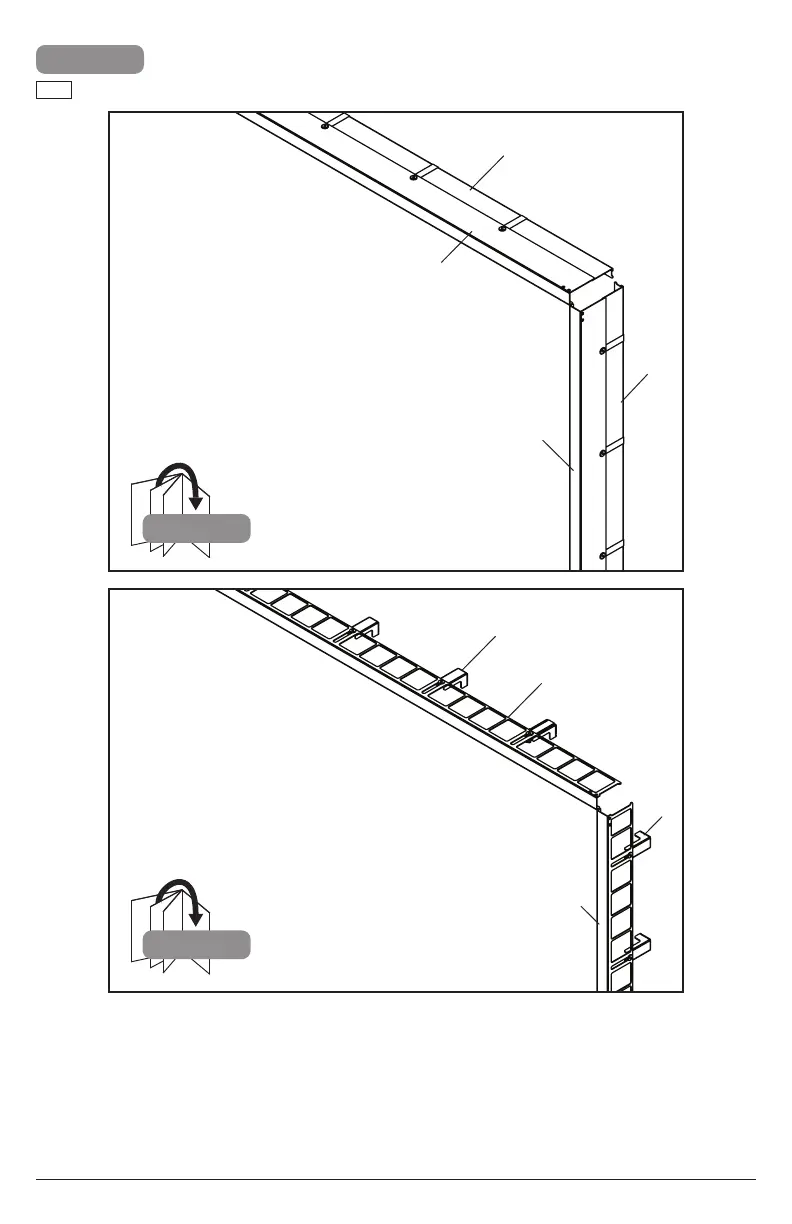

2020-07-13 #:146-9054-2 (2020-08-03)
1
Follow steps for solid or perforated trim kits.
ENG
Alternate steps for Unilumin UpanelS sides with bump-outs
start on page 22.
C
C
A
A
B
B
D
D
2-1
6-1
7

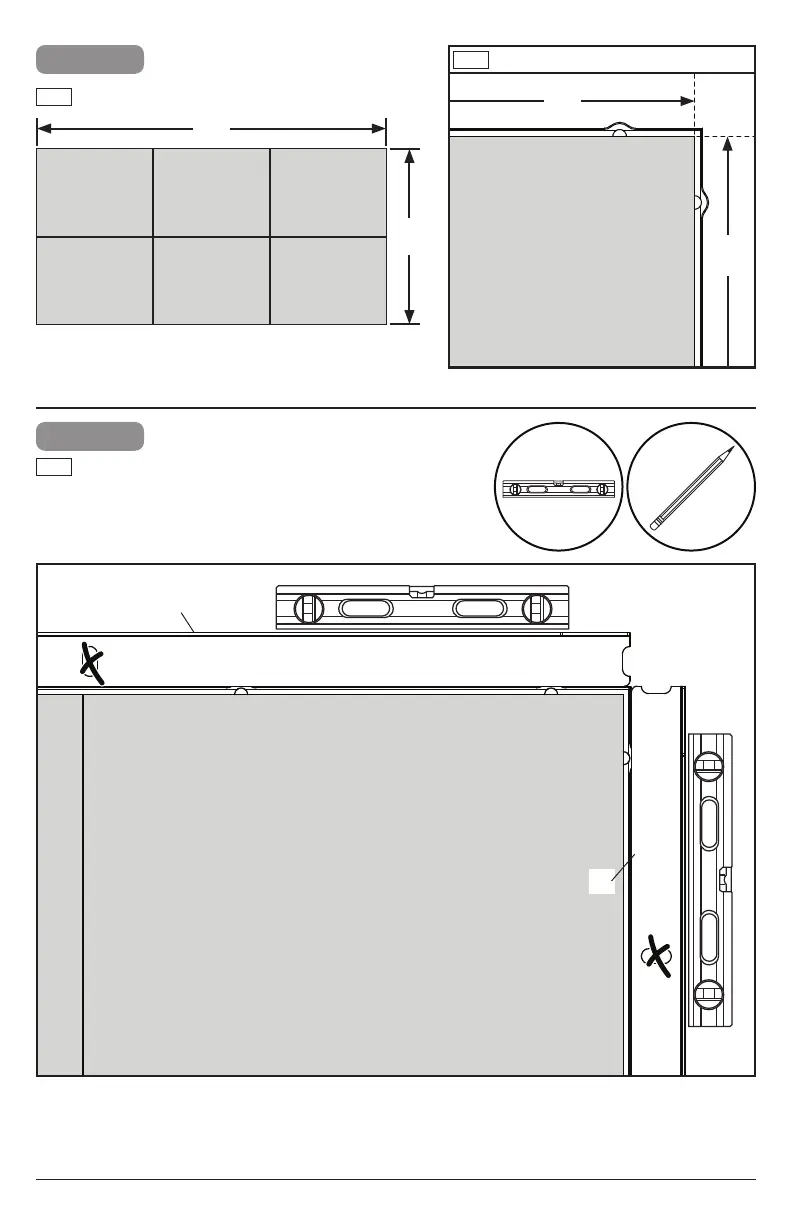

2020-07-13 #:146-9054-2 (2020-08-03)
2-1

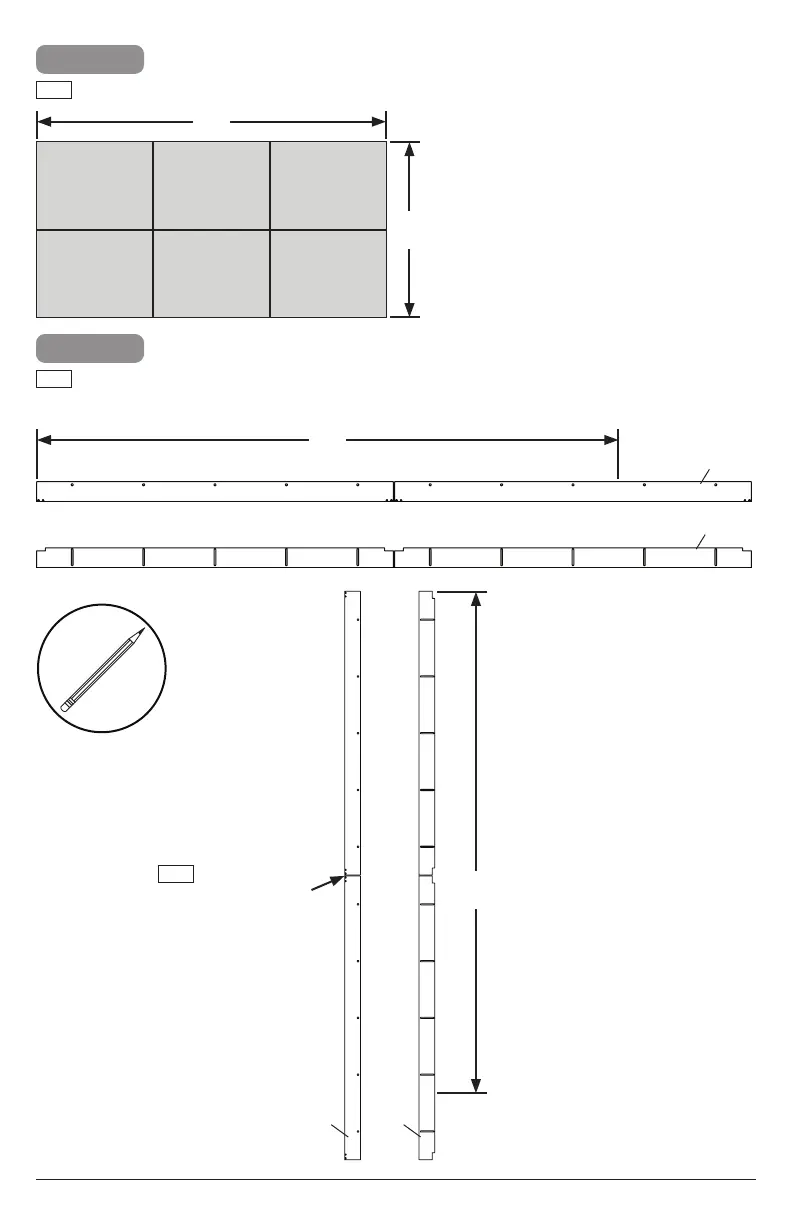

Measure video wall dimensions.
ENG
2-2

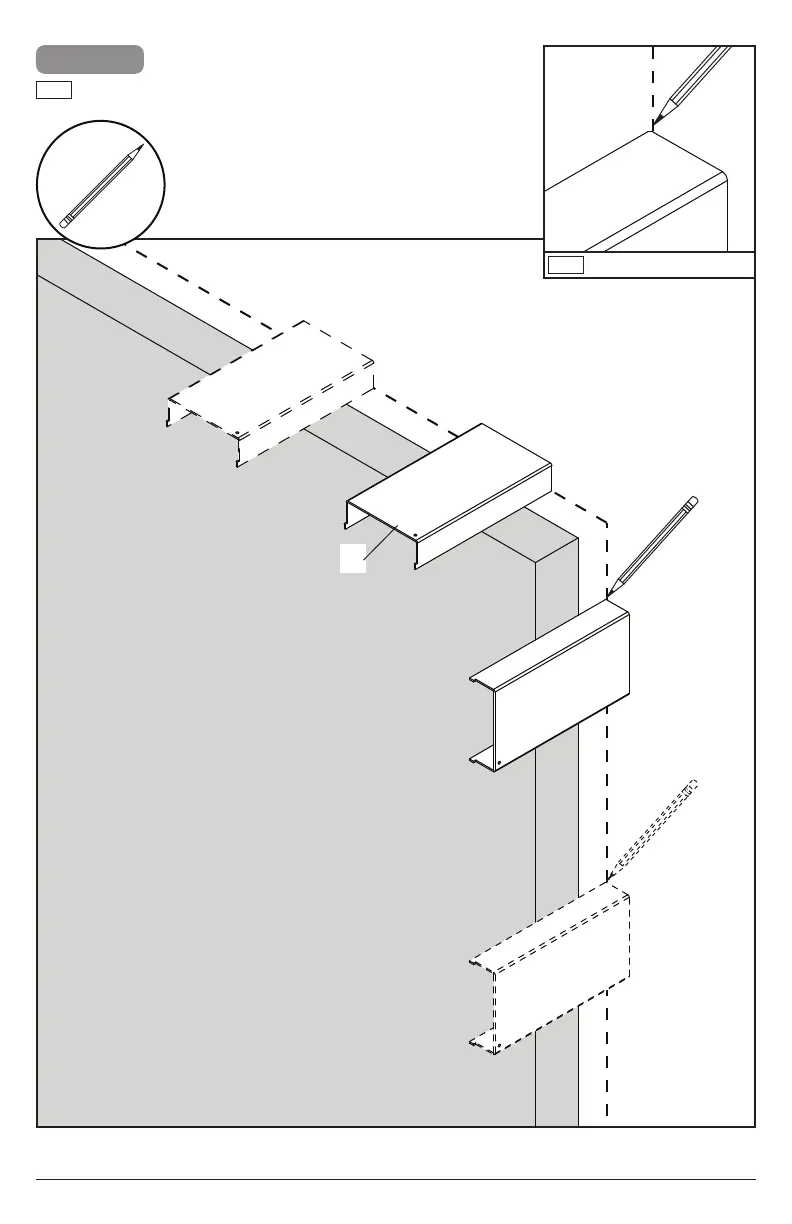

Mark cutting line on wall plates and covers. Do not
join covers until installing covers to the wall.
ENG
Uncut edges must
form inside seam.
ENG
x"
C
A
y"
A C
x"
y"
8
2020-07-13 #:146-9054-2 (2020-08-03)

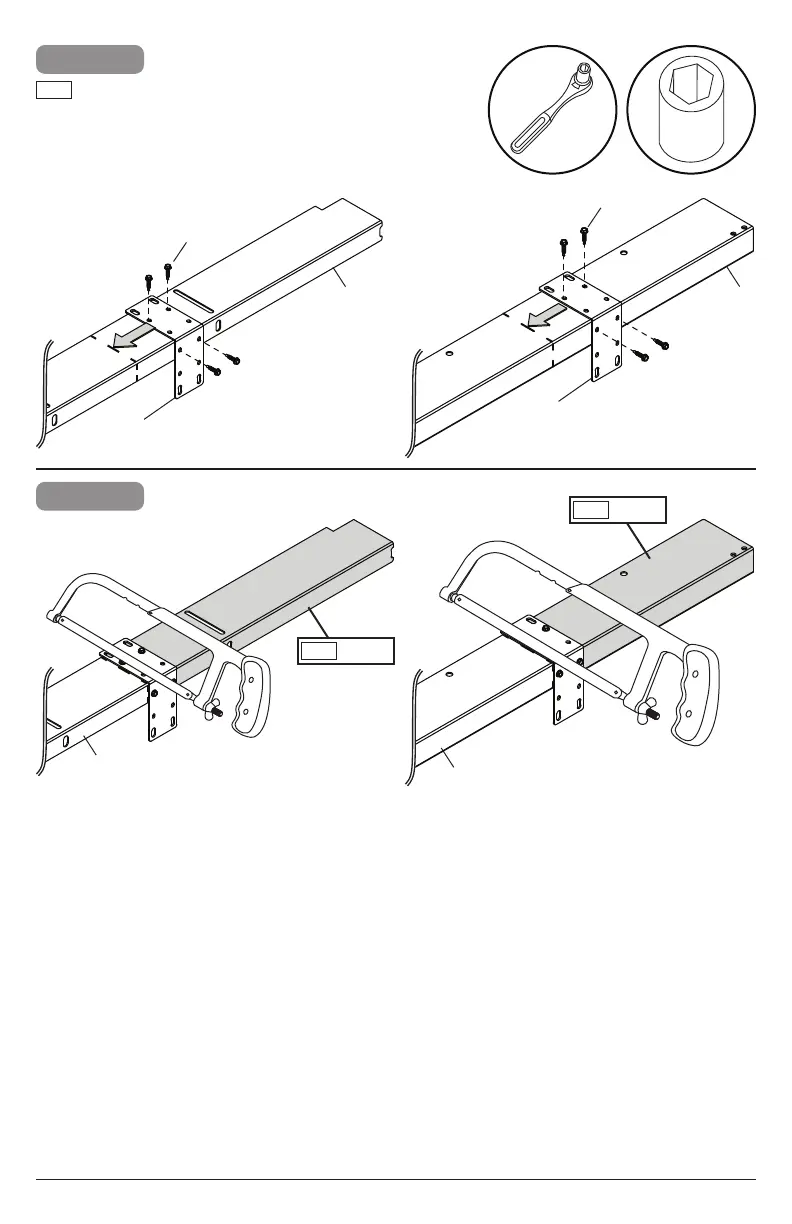

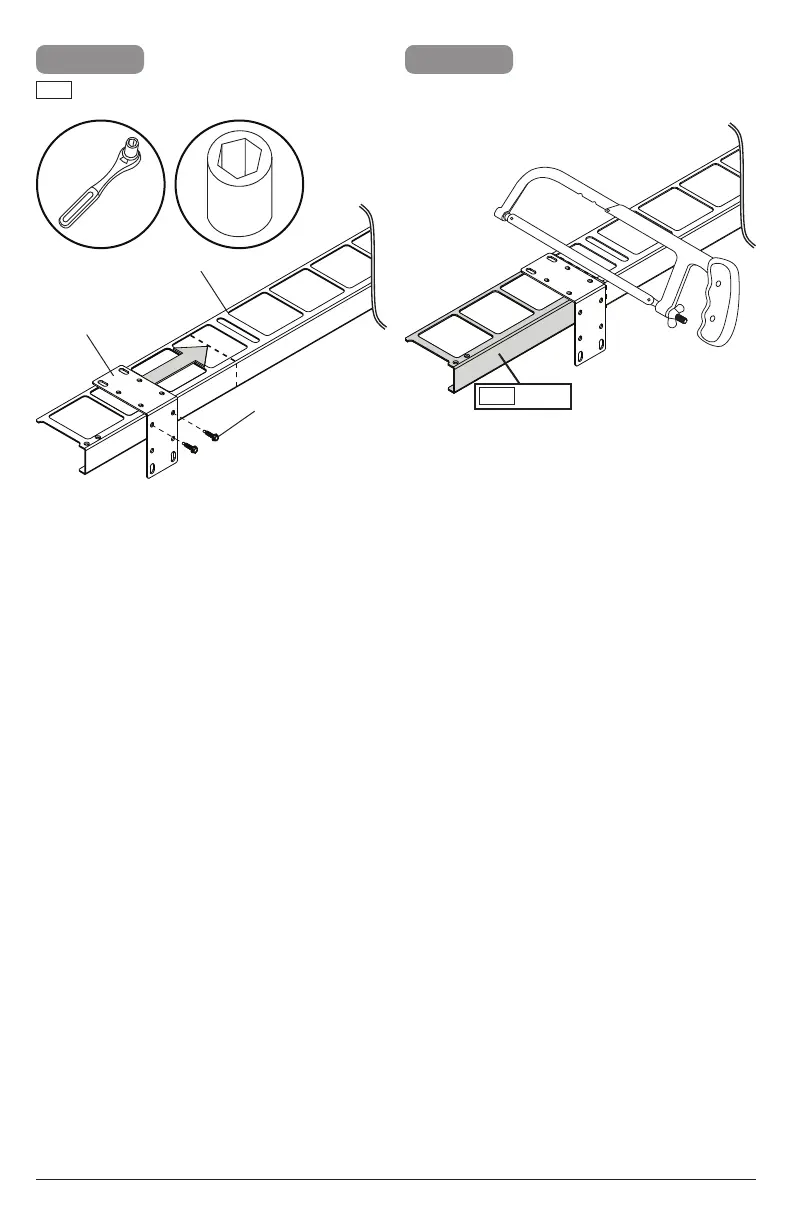

3-1
3-2
Optional: Clamp or fasten cutting xture to side of
cover being discarded.
ENG
C A
C
A
I
I
R (4)
R (4)
Discard
ENG
Discard
ENG
1/4"
(6mm)
9
2020-07-13 #:146-9054-2 (2020-08-03)

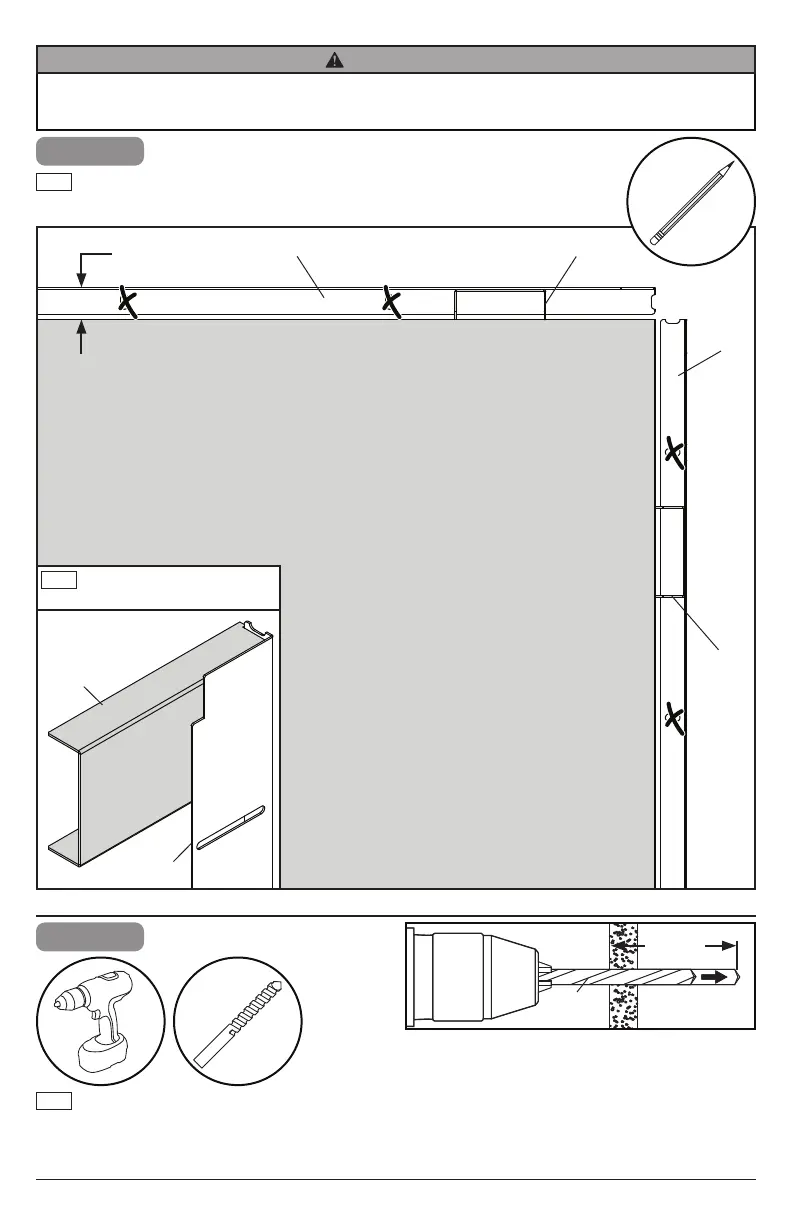

ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood
studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13 mm) thick. Plywood
may be covered by gypsum board (drywall) up to 5/8" thick.
WARNING
4-1
Align wallplates with edge of video wall, using spacer to set nal position.
ENG
C
C
H
H
4-2
Drill mounting holes into supporting surface
(1.75" (44mm) minimum depth required).
ENG
5/32"
(4mm)
1.75"
(44mm)
5/32"
(4mm)
1.375" (35mm)
Spacer oriented so notch faces
wall and solid covers.
ENG
C
H
10

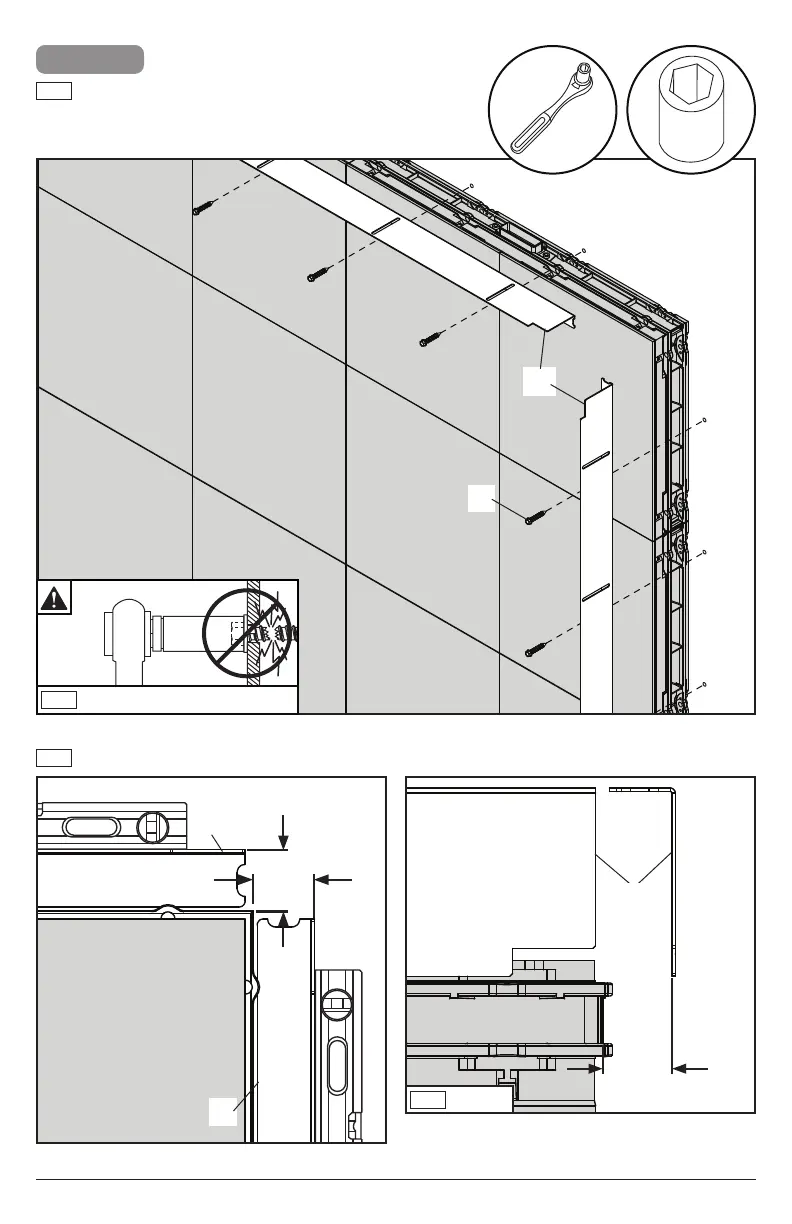

2020-07-13 #:146-9054-2 (2020-08-03)

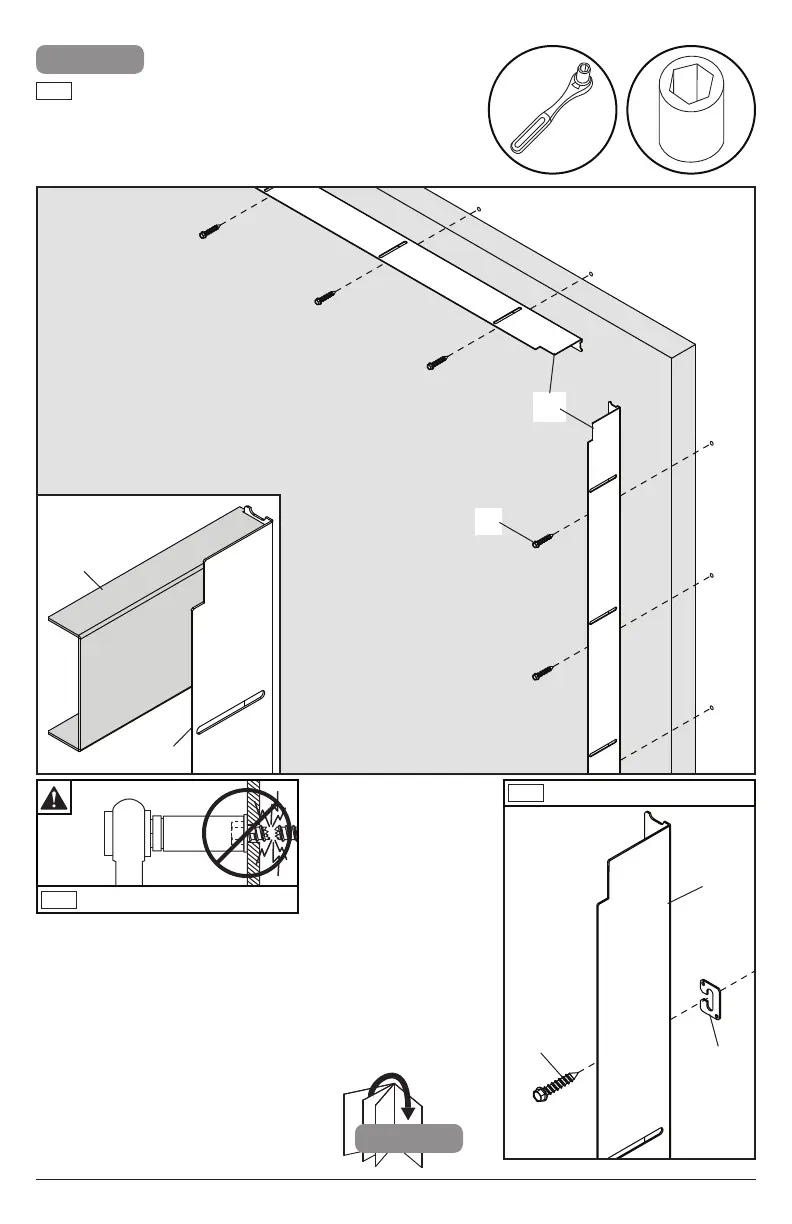

4-3
Install using wood screws provided.
Use spacer to set nal position of wall
bracket.
ENG
3/8"
(10mm)
Maximum 80 in. • lb (9 N.M.).
ENG
C
C
H
M
M
K
C
Optional shim for leveling.
ENG
5-1
11

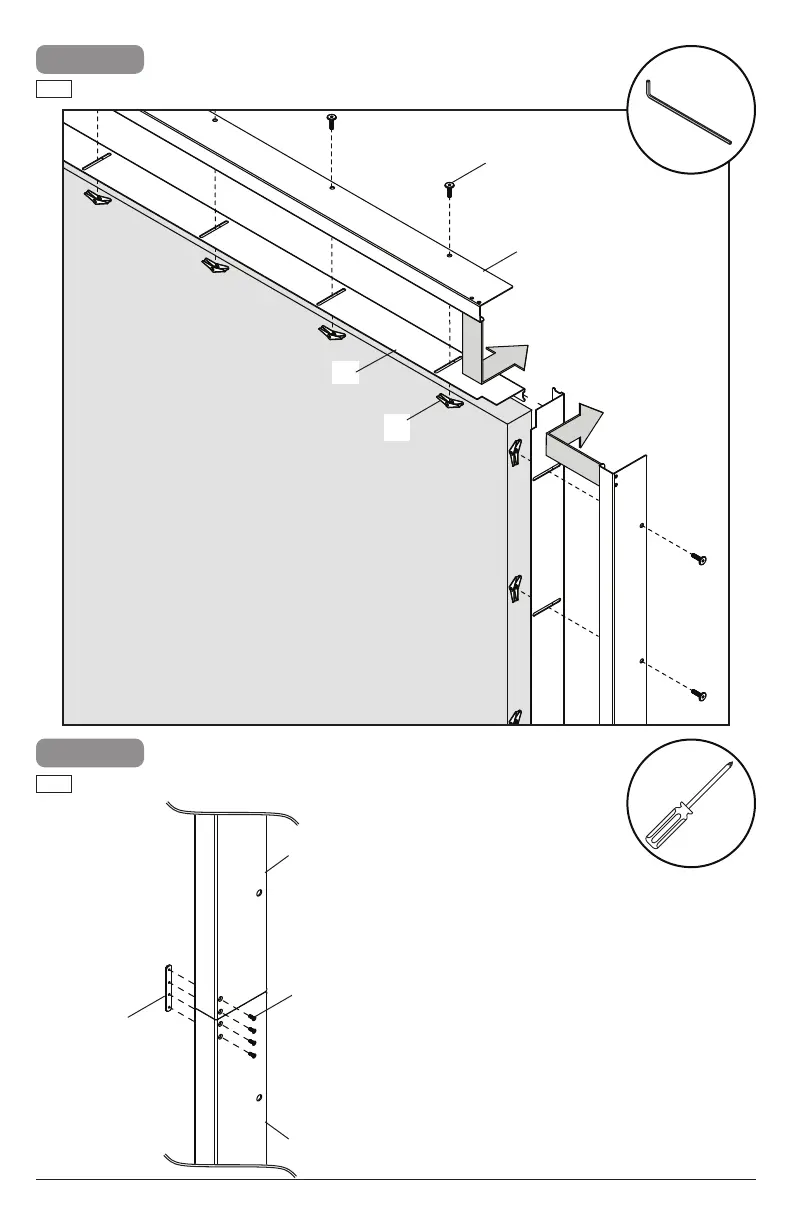

2020-07-13 #:146-9054-2 (2020-08-03)
5-1

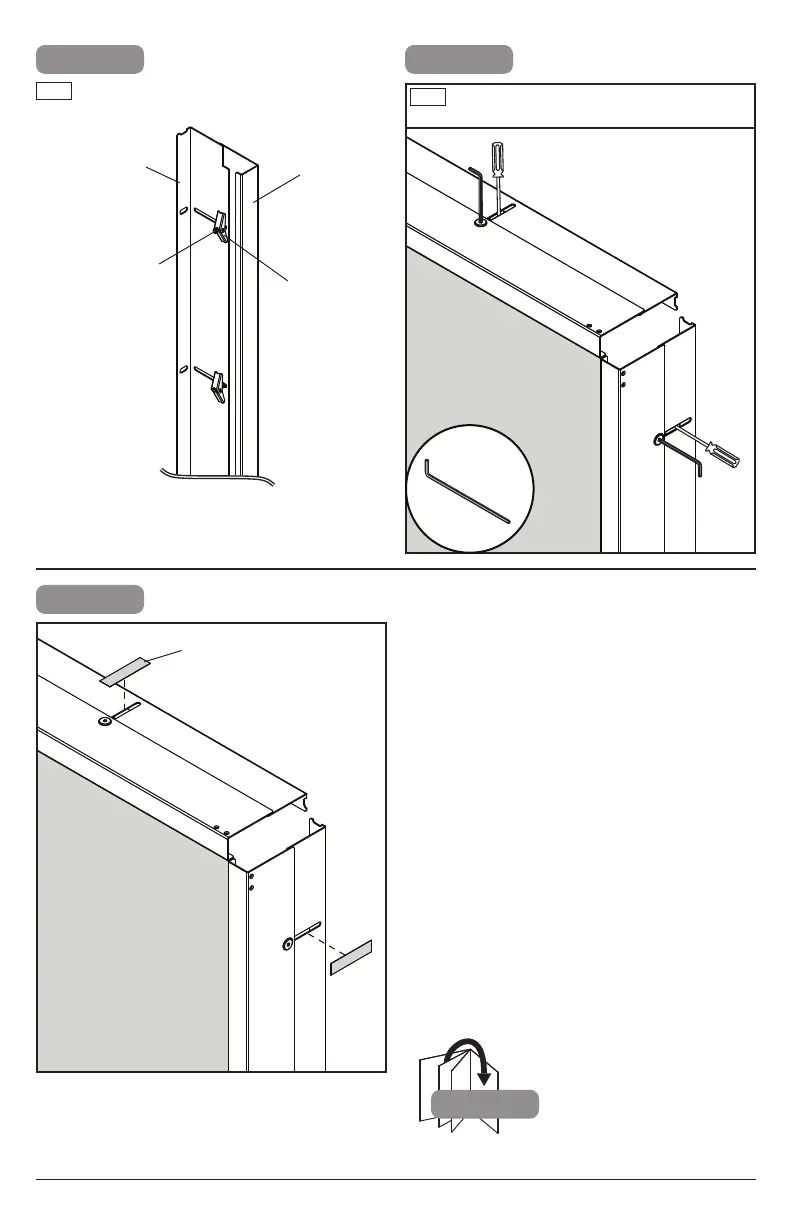

Place wall plate cover over wall plate. Slide back until ush with front of video wall.
ENG
Q
A
T
C
S
5-2
Attach covers with nut bar inside cover. Displays not shown for clarity.
ENG
A
A
N (4)
F
12
2020-07-13 #:146-9054-2 (2020-08-03)
5-4
5-5
P
10-1
Use screwdriver to hold toggler in place while
tightening toggler screws.
ENG
5-3
Attach tooglers loosely, one at a time.Then,
tighten all. Displays not shown for clarity.
ENG
Q
T
A
C
S
13
2020-07-13 #:146-9054-2 (2020-08-03)
6-1
To begin installing perforated trim, create guiding
line around unit using spacer provided.
ENG
H
Use end without notch.
ENG
14
2020-07-13 #:146-9054-2 (2020-08-03)
x"
B
y"
B
Uncut edges must
form inside seam.
ENG
Leave top edge
uncut
ENG
Leave right edge
uncut
ENG

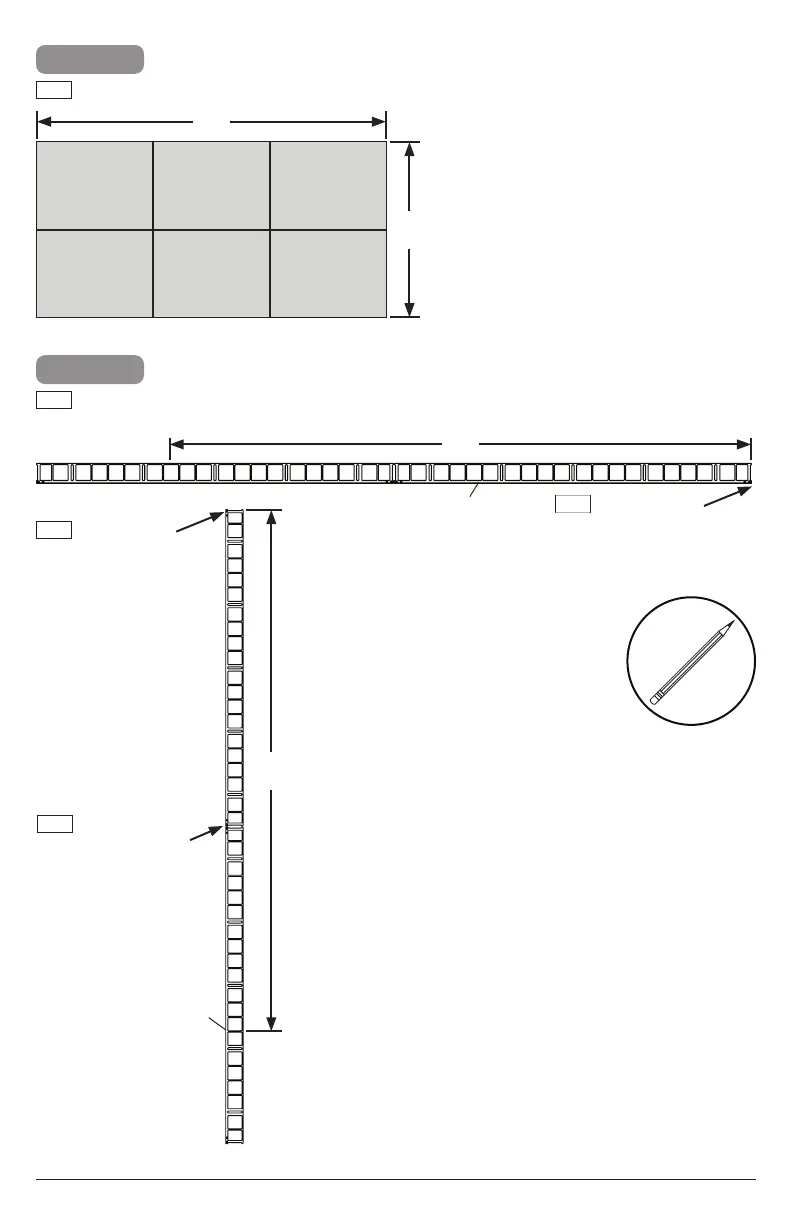

6-3

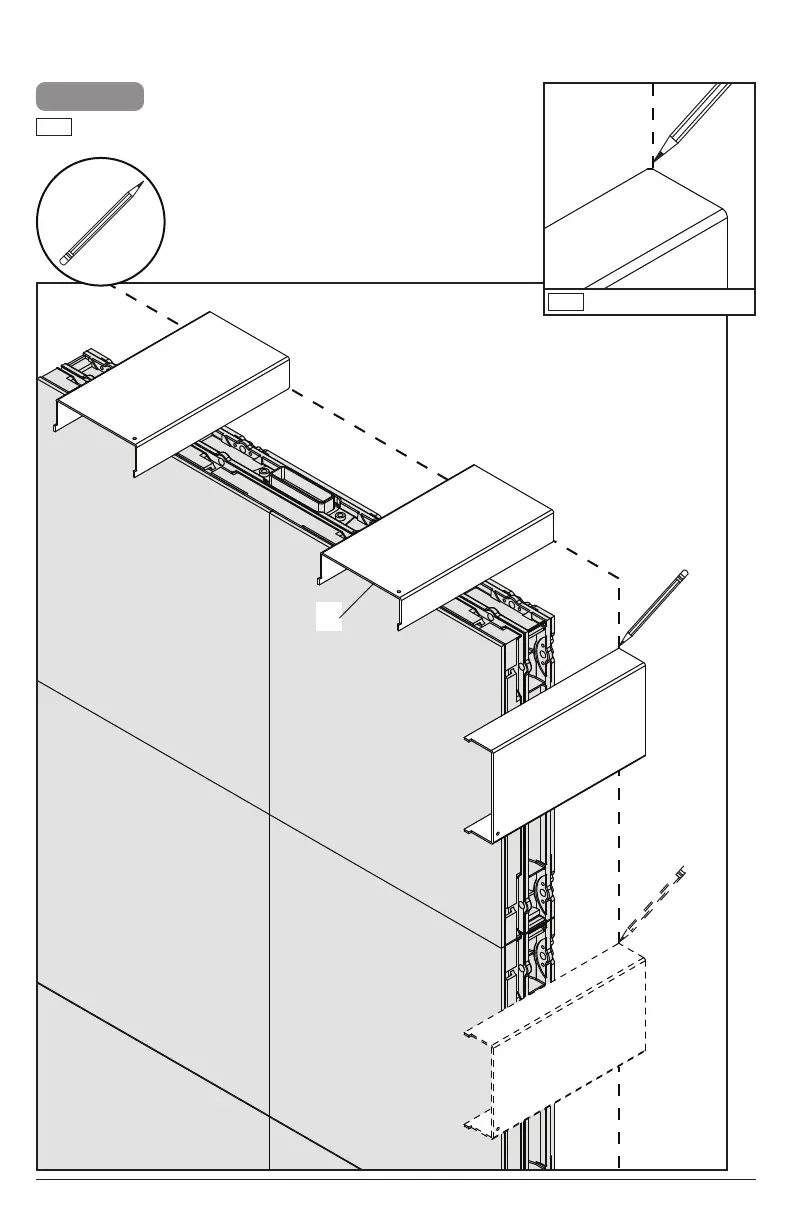

Mark cutting line on covers. Do not join covers until installing covers to the wall. Leave top and right
cover edges uncut for proper alignment.
ENG
6-2
Measure video wall dimensions.
ENG
x"
y"
15
2020-07-13 #:146-9054-2 (2020-08-03)
7-1 7-2
B
I
R (2)
Optional: Clamp or fasten cutting xture to side of
cover being discarded.
ENG
1/4"
(6mm)
Discard
ENG
16
2020-07-13 #:146-9054-2 (2020-08-03)
8-2
M
M
D
D

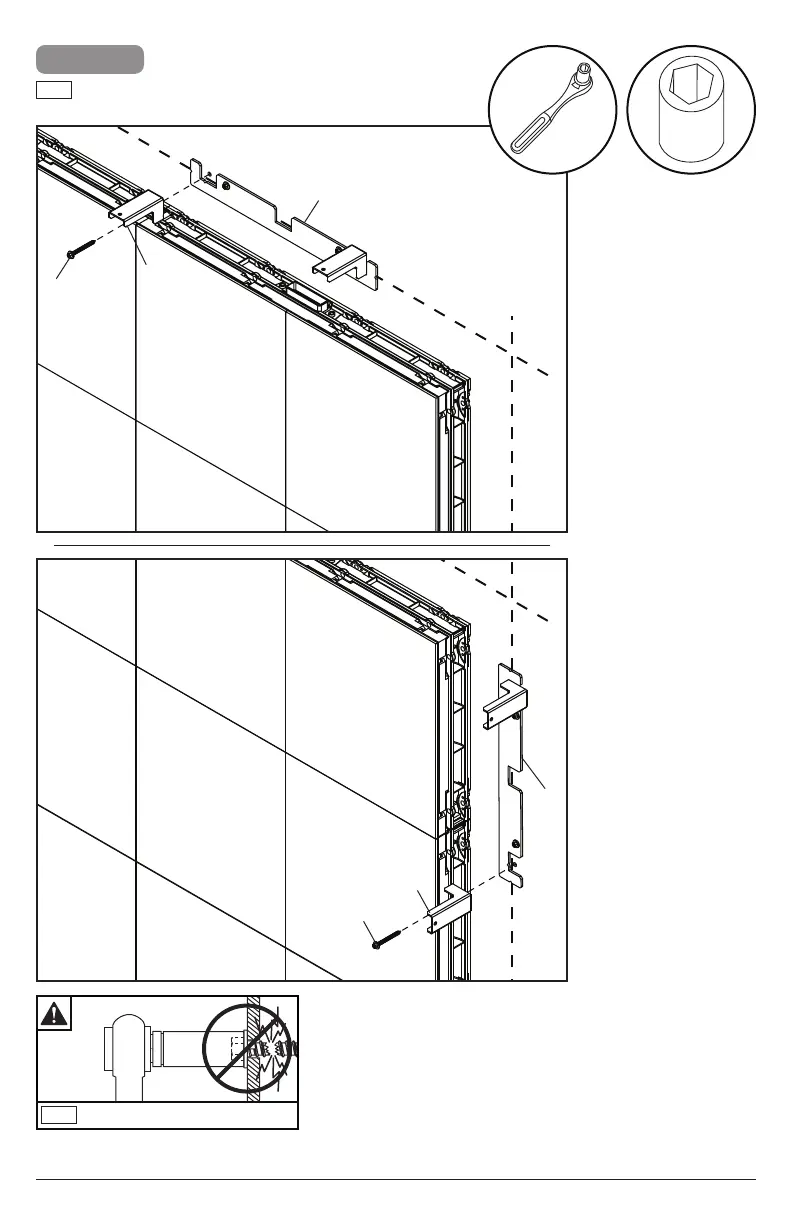

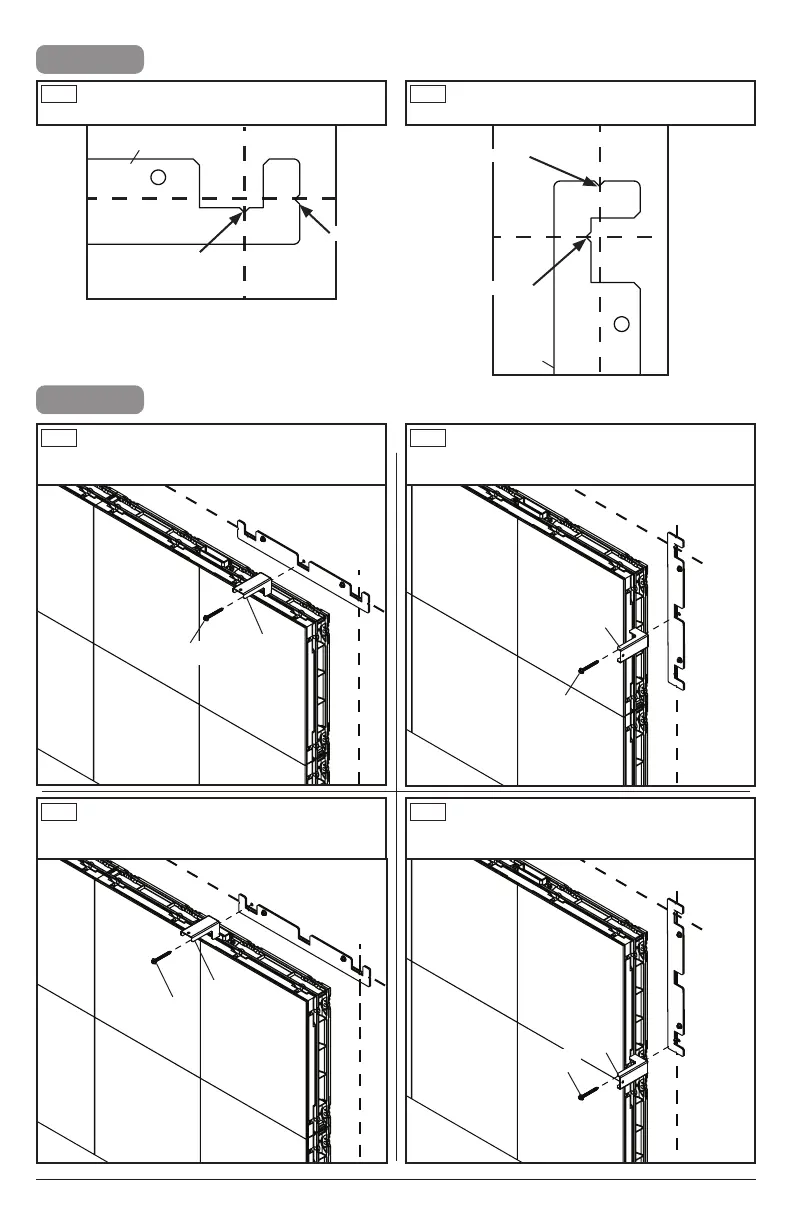

For 5 ft. covers, install rst bracket in the middle
space, then every 12". Optional: Use wood
screws to hold spacer in place.
ENG
For 6 - 8 ft. covers, install rst bracket at the
end space, then every 12". Optional: Use wood
screws to hold spacer in place.
ENG

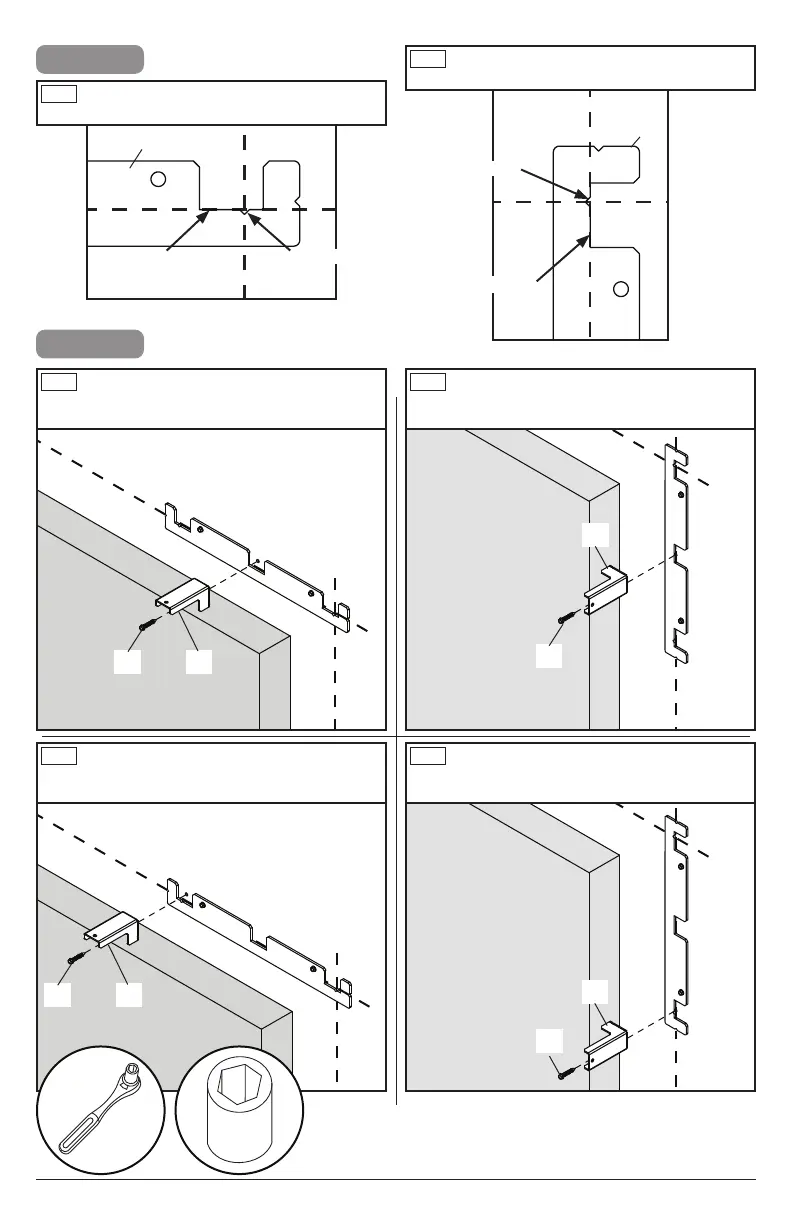

Align bottom of spacer cutout and horizontal
notch with guiding lines.
ENG
D
M
bottom cutout
M
D
For 5 ft. covers, install rst bracket in the middle
space, then every 12". Optional: Use wood
screws to hold spacer in place.
ENG
For 6 - 8 ft. covers, install rst bracket at the
end space, then every 12". Optional: Use wood
screws to hold spacer in place.
ENG
3/8"
(10mm)
8-1
Align bottom of spacer cutout and vertical notch
with guiding lines.
ENG
G
G
horizontal notch
vertical notch
bottom cutout
17
2020-07-13 #:146-9054-2 (2020-08-03)
M D
G
Maximum 80 in. • lb (9 N.M.).
ENG
8-3

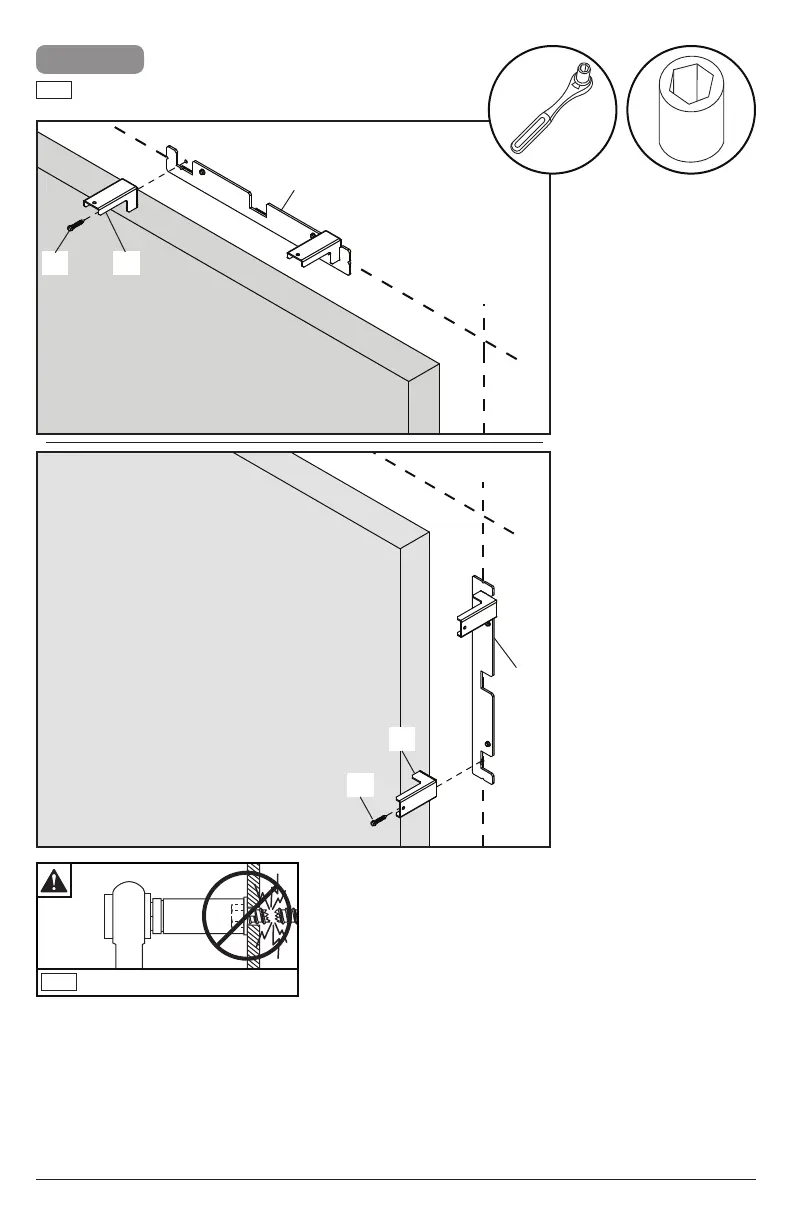

Keep wallplates level using spacer. Install every 12"
with wood screws provided.
ENG
M
D
G
3/8"
(10mm)
18
2020-07-13 #:146-9054-2 (2020-08-03)
9-1

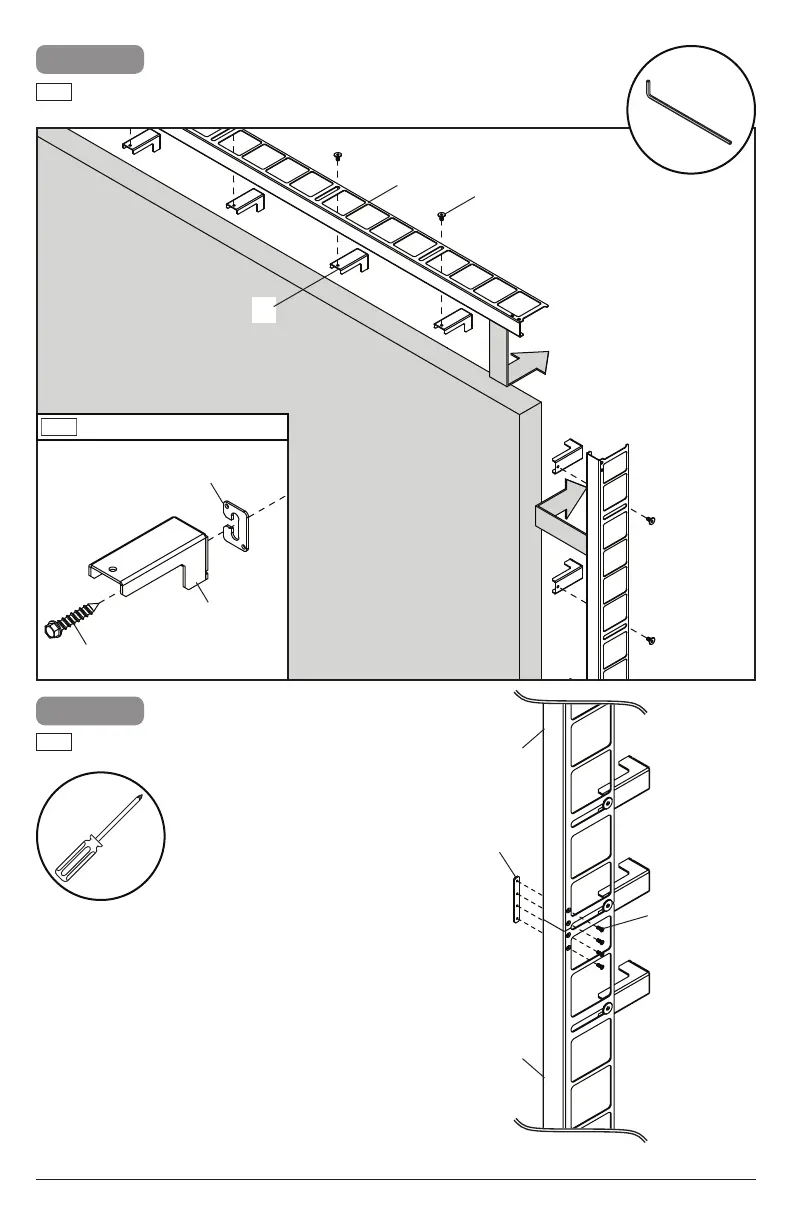

Place top wall plate. Slide back until ush with front of video wall.
Secure with hardware.
ENG
L
D
B
S
9-2
Attach covers with nut bar inside cover.
Displays not shown for clarity.
ENG
B
B
N (4)
F
D
M
K
Optional shim for leveling.
ENG
19
2020-07-13 #:146-9054-2 (2020-08-03)
E
J
O (4)
I
E
10-1

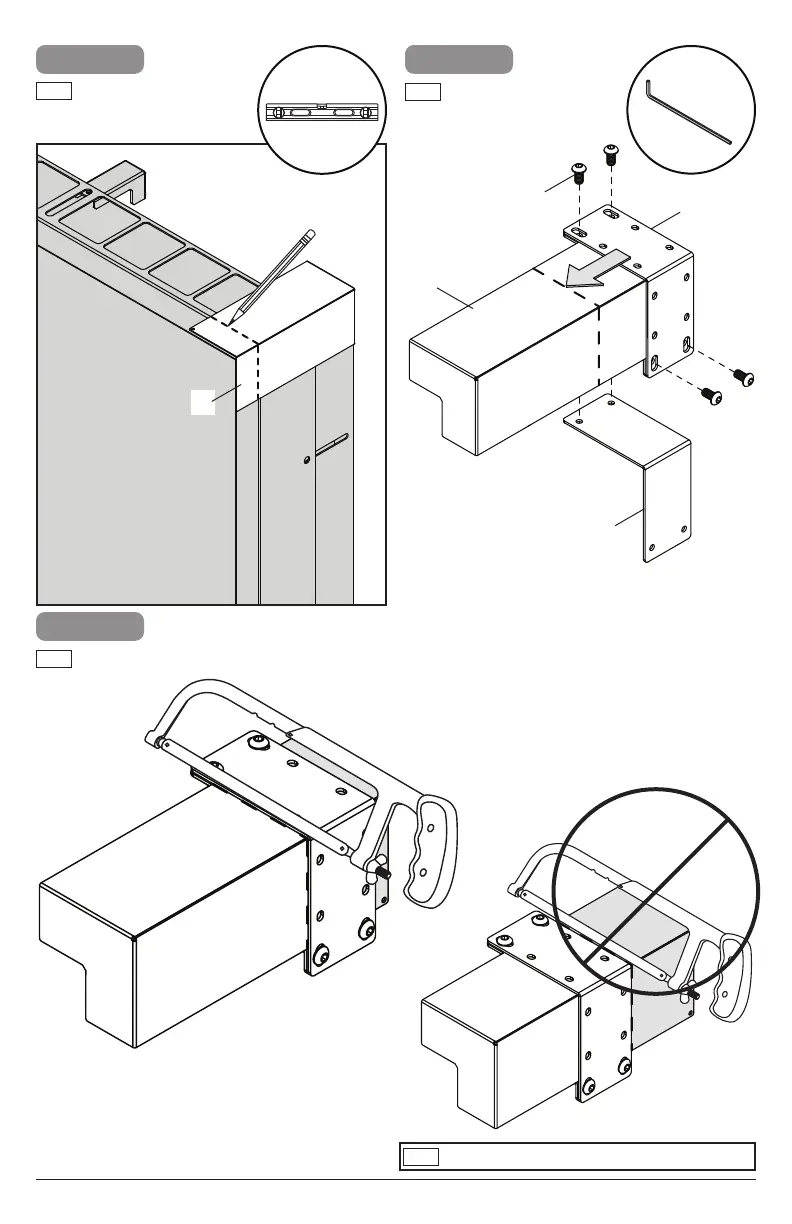

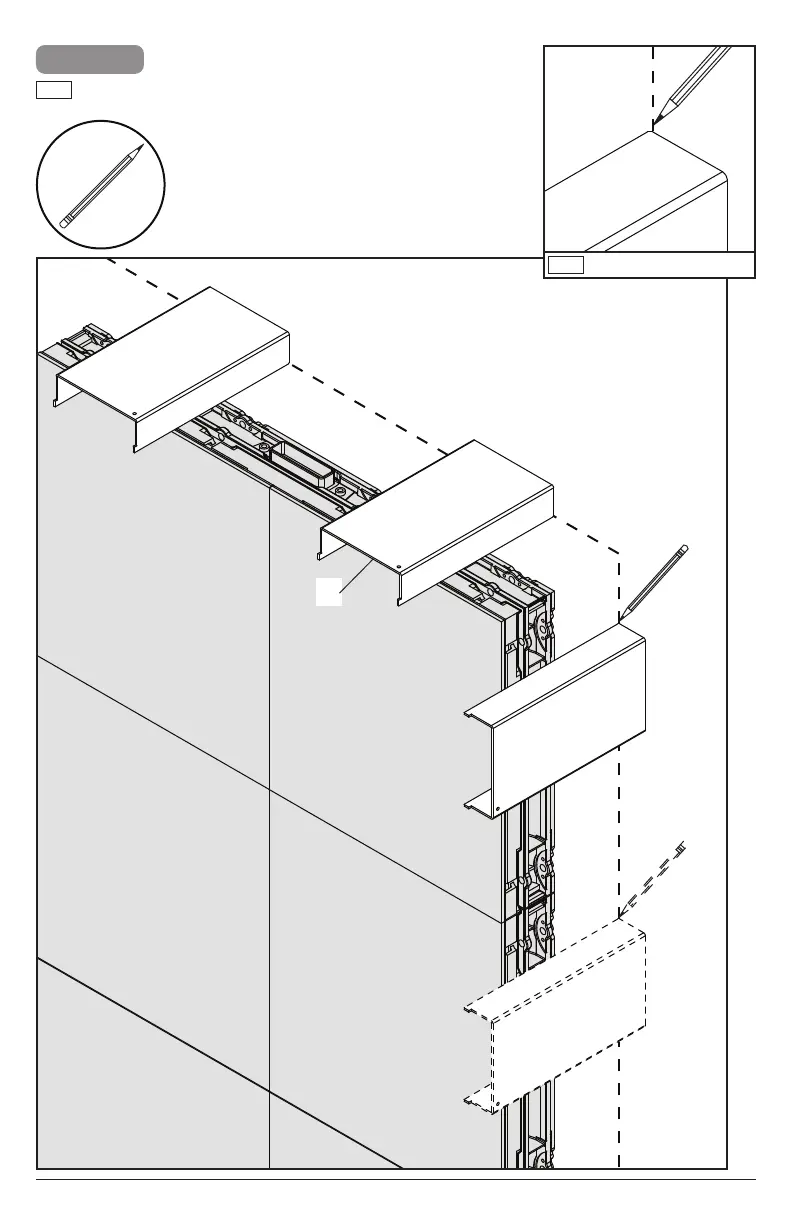

Place corner cover against
wall and mark cutting line.
ENG
10-2
10-3
Slide corner cutting xture
into place and clamp on side
of cover being discarded.
ENG
Cut excess corner cover o󰀨.
ENG
Do not clamp xture on wrong side of cutting line.
ENG
S
20

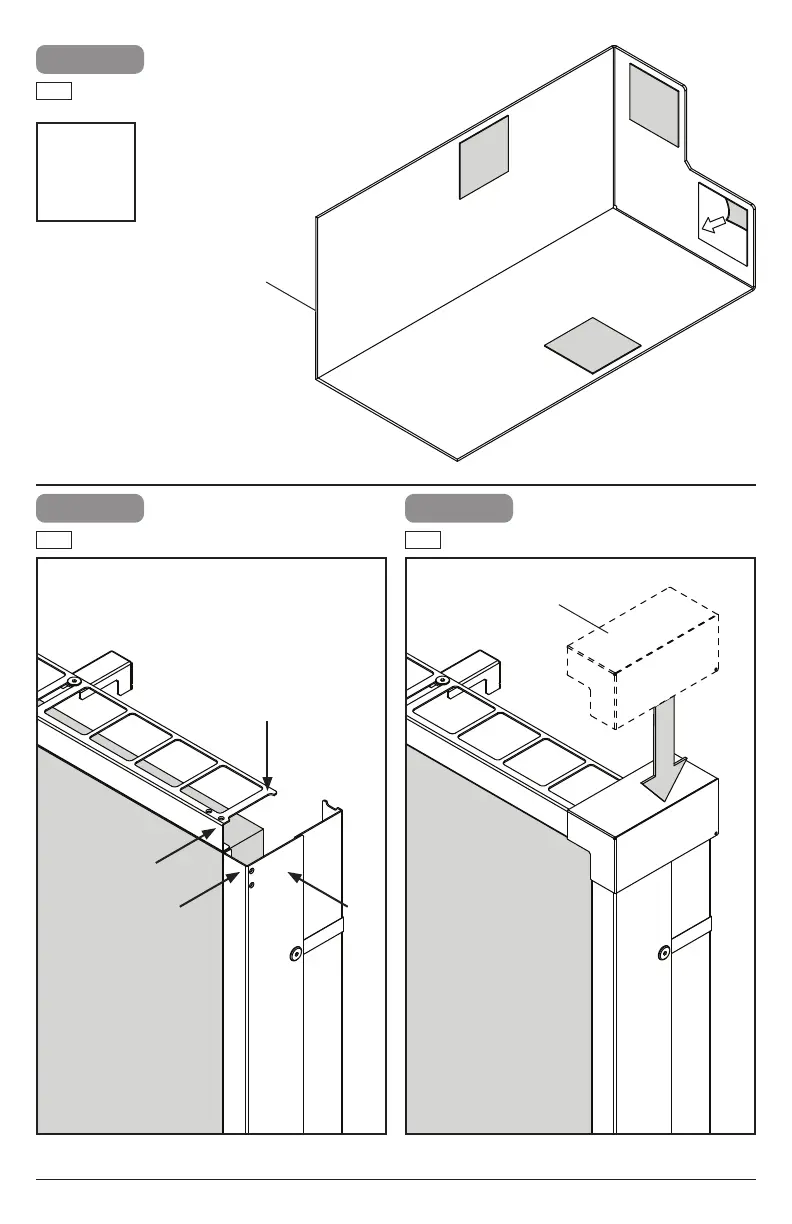

2020-07-13 #:146-9054-2 (2020-08-03)
10-4
10-5 10-6
Remove sharp edges of corner cover by ling.
Remove adhesive backing.
ENG
Clean surfaces before applying VHB.
ENG
Attach (4) corner covers with VHB.
ENG
E (4)
E
x4
21
2020-07-13 #:146-9054-2 (2020-08-03)
2
To begin installing solid trim on Unilumin UpanelS edges with bump-
outs, create guiding line around unit using spacer provided.
ENG
H
Use end without notch.
ENG
Alternate steps for Unilumin UpanelS sides with bump-outs
22
2020-07-13 #:146-9054-2 (2020-08-03)
2-1
Measure video wall dimensions
ENG
x"
y"
x"
y"
4-1
Align wall plates with display guiding lines. Mark
mounting holes.
ENG
C
C
Measure to the pixel, not bump-outs.
ENG
23
2020-07-13 #:146-9054-2 (2020-08-03)
4-3
Install using wood screws provided.
ENG
3/8"
(10mm)
Maximum 80 in. • lb (9 N.M.).
ENG
C
M
Slide wall brackets in slot until they sit 1.25" from display guiding lines. Level and tighten wood screws.
ENG
1.25"
C
C
C
1.25"
Top View
ENG
24
2020-07-13 #:146-9054-2 (2020-08-03)
6-1
To begin installing perforated trim on Unilumin UpanelS edges with
bump-outs, create guiding line around unit using spacer provided.
ENG
H
Use end without notch.
ENG
25
2020-07-13 #:146-9054-2 (2020-08-03)

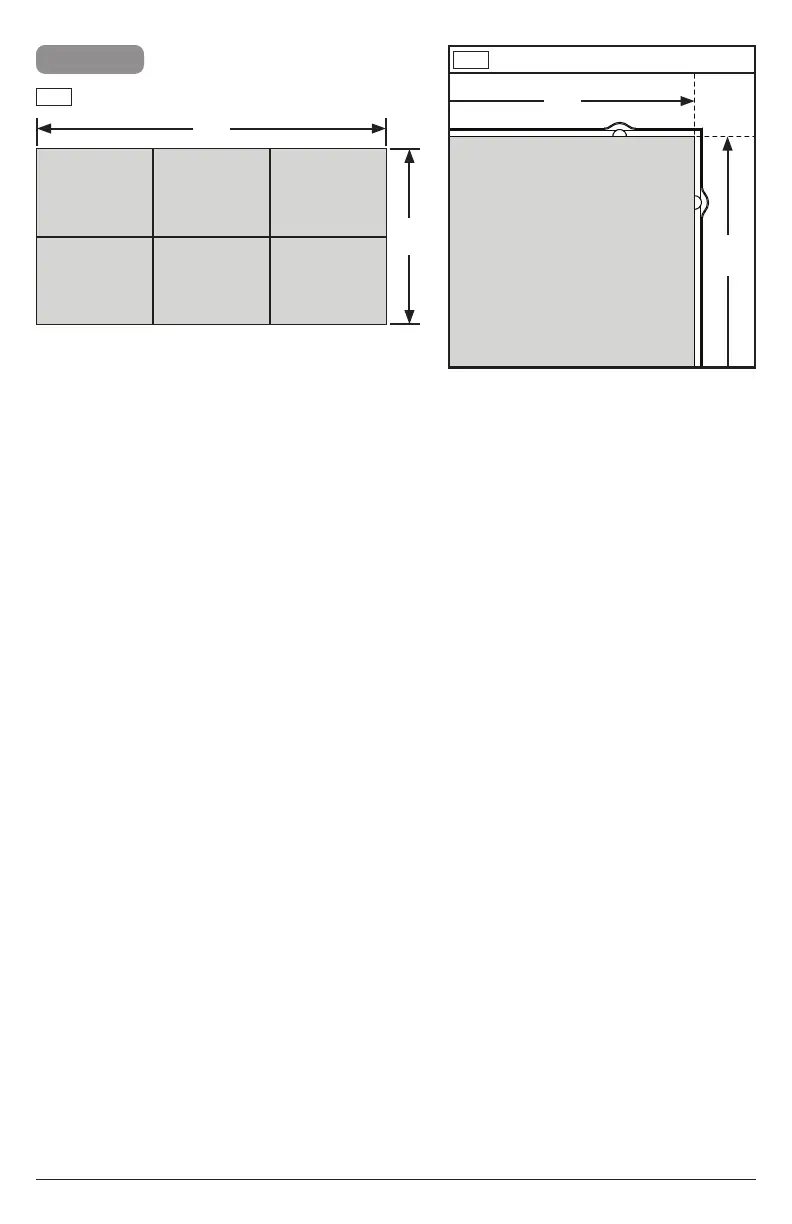

6-2
Measure video wall dimensions
ENG
x"
y"
x"
y"
Measure to the pixel, not bump-outs.
ENG
26
2020-07-13 #:146-9054-2 (2020-08-03)
8-1
8-2
M
M
D
D
For 5 ft. covers, install rst bracket in the middle
space, then every 12". Optional: Use wood
screws to hold spacer in place.
ENG
For 6 - 8 ft. covers, install rst bracket at the
end space, then every 12". Optional: Use wood
screws to hold spacer in place.
ENG
To avoid the display bump-outs, align vertical
and horizontal notch with guiding lines.
ENG
G
vertical notch
To avoid the display bump-outs, align vertical
and horizontal notch with guiding lines.
ENG
D
M
G
vertical cutout
M
D
For 5 ft. covers, install rst bracket in the middle
space, then every 12". Optional: Use wood
screws to hold spacer in place.
ENG
For 6 - 8 ft. covers, install rst bracket at the
end space, then every 12". Optional: Use wood
screws to hold spacer in place.
ENG
horizontal notch
horizontal notch
27
2020-07-13 #:146-9054-2 (2020-08-03)
M
D
G
Maximum 80 in. • lb (9 N.M.).
ENG
8-3
Keep wallplates level using spacer. Install every 12"
with wood screws provided.
ENG
M
D
G
3/8"
(10mm)
