1. Rod Connections:
a. Thread the fixture wire from the fixture through the lower rod, then
secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, and then secure the
middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, and then secure the
upper rod onto the middle rod using the threaded pipe.
Note: Length adjustable fr
om 17-3/4" to 65-3/4". Use
fewer rods if shorter length is desired.
2.
Thread the fixture wire through the canopy kit, then secure the rod
assembly to the set nipple of the canopy kit.
3. Attach the mounting strap to outlet box by using two mounting screws.
4. Pull out the source wires from the outlet box. Make wire connections
using wire nuts as follows:
---Connect the smooth-coated wire (marked) from the fixture to the
black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the
white wire from the power source.
---Attach the fixture grounding wire to the mounting strap with the green
grounding screw. Then connect it to the house grounding wire with a
wire nut.
Carefully put the wires back into the outlet box.
5. Attach the canopy kit to the mounting strap by inserting the fixture
mounting screws, then secure it with two bolt nuts.
6.
Attach the glass shade to fixture, then secure it with the socket
ring.
7. Install bulb (not included). See relamping label at socket area or
packaging for maximum allowed wattage.
8. Angled mounting recommended for a vaulted or angled ceiling.
(See Fig. 1)

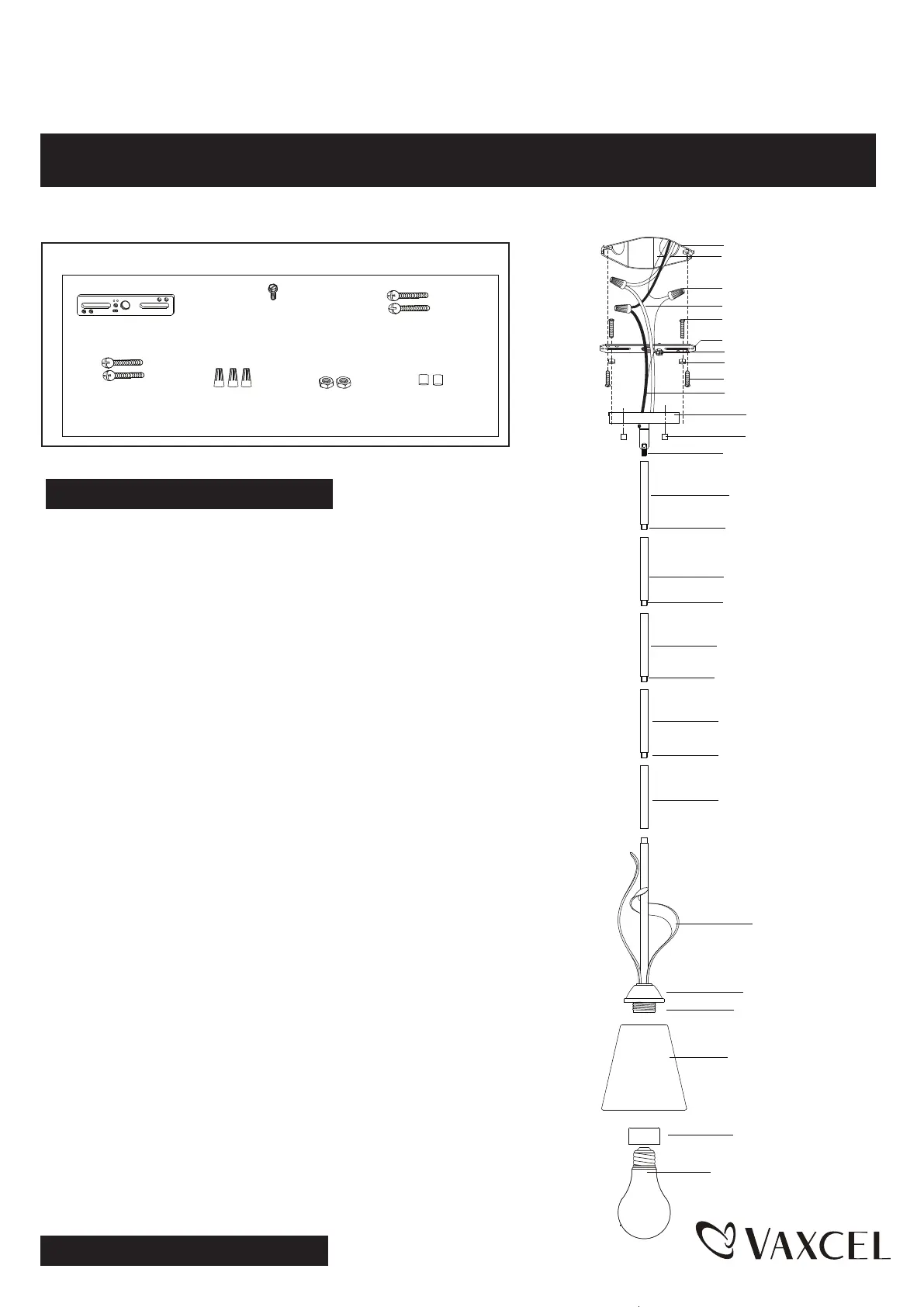

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
P0236
171030
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Mounting Screw (C)
Lock Nut (F)
Wire Nut (E)
Mounting Strap (A)
Fixture Mounting
Screw (D)
Green Grounding
Screw (B)
Canopy Kit
Outlet Box
House Grounding Wire
Wire Nut (E)
Lock Nut(F)
Mounting Strap (A)
Green Grounding Screw (B)
Mounting Screw (C)
Upper Rod
Middle Rod
Middle Rod
Middle Rod
Lower Rod
Socket
Fixture
Fixture body
Glass Shade
Socket Ring
Threaded Pipe
Threaded Pipe
Threaded Pipe
Threaded Pipe
Fixture Wire
Fixture Mounting Screw(D)
Fixture Grounding Wire
Bulb Type A Max.60W
(Not Included)
Set Nipple
Bolt Nut(G)
Bolt Nut(G)
Turn on the power at fuse or circuit box.
