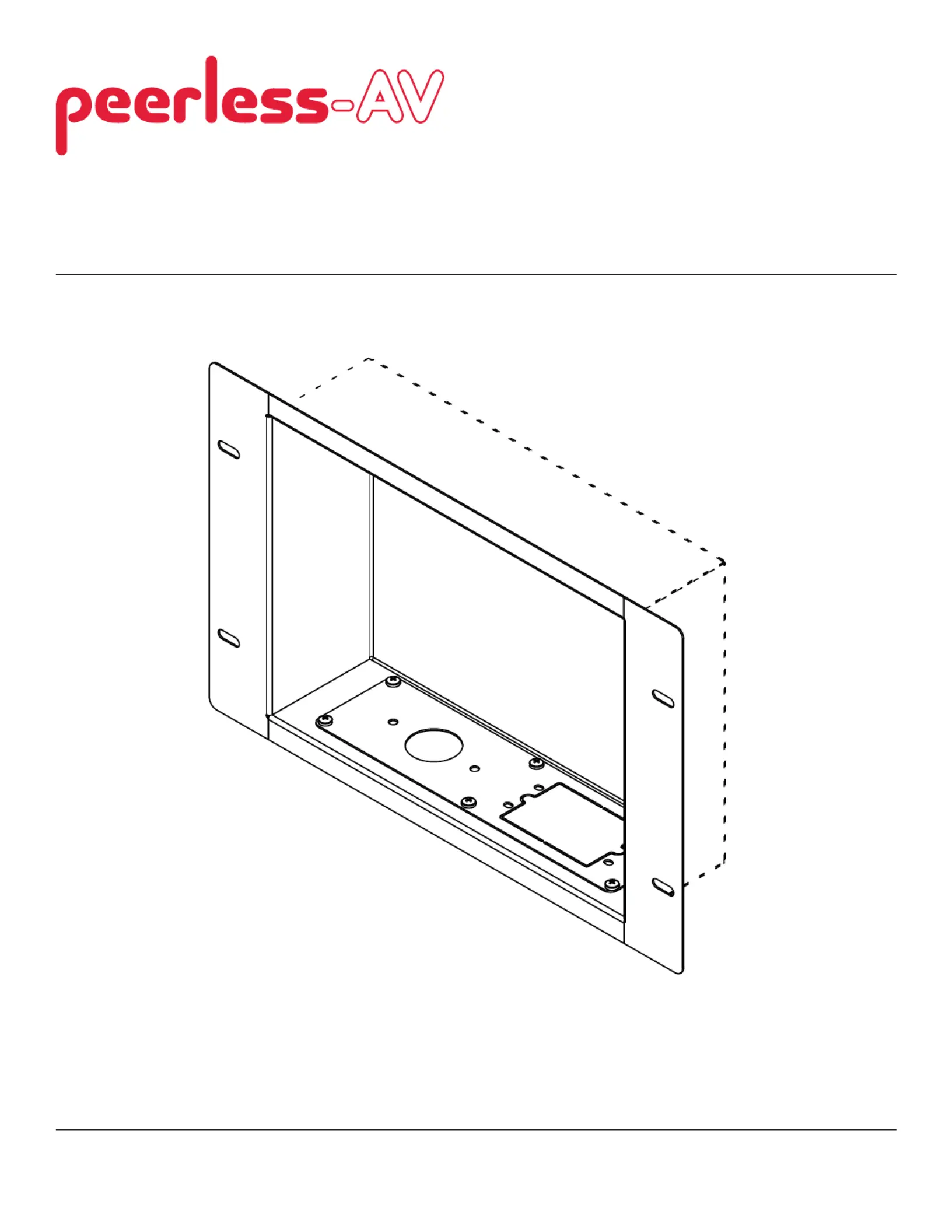

Installation and Assembly:

Recessed Cable Management and Power Storage

Accessory Box

Models: IBA2AC, IBA2AC-W

ISSUED: 01-15-11 SHEET #: 120-9104-2 06-13-11

2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com

2 of 7

ISSUED: 01-15-11 SHEET #: 120-9104-2 06-13-11

Visit the Peerless Web Site at www.peerlessmounts.com

For customer care call 1-800-865-2112

Note: Read entire instruction sheet before you start installation and assembly.

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US

customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact

your local distributor.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of

an "edge to edge" stud ﬁ nder is highly recommended.

• Tighten screws ﬁ rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal

injury.

WALL CONSTRUCTION HARDWARE REQUIRED

• Wood Stud Included

•Metal Stud Do not attach except with Peerless accessory kit ACC415;

Contact Customer Service for Peerless accessory kit ACC415

•Brick Contact Qualiﬁ ed Professional

•Drywall Do not attach except with Peerless accessory kit ACC415;

Contact Customer Service for Peerless accessory kit ACC415

•Other or unsure? Contact Qualiﬁ ed Professional

WARNING

Table of Contents

Parts List.................................................................................................................................................................................3

Installation to Wood Wall ........................................................................................................................................................ 4

Electrical Outlet Installation ....................................................................................................................................................5

Cable Management ................................................................................................................................................................6

Tools Needed for Assembly

• stud ﬁ nder ("edge to edge" stud ﬁ nder is recommended)

• phillips screwdriver

• drill

• 3/16" (5mm) drill bit for wood studs

• level

Produkt Specifikationer

Mærke:	Peerless-AV
Kategori:	Stikkontakt
Model:	IBA2AC-W
Bredde:	442 mm
Dybde:	96 mm
Højde:	279 mm
Vægt:	2940 g
Produktfarve:	Hvid
Produkttype:	Kabelhåndteringsboks
Pakkevægt:	3170 g
Pakkedybde:	114 mm
Pakkebredde:	520 mm
Pakkehøjde:	317 mm
Husmateriale:	Stål
Certificering:	UL 2416
Monteringstype:	Væg
Bæredygtighedscertifikater:	RoHS
Maksimal vægtkapacitet:	11.33 kg
Skruer inkluderet:	Ja
