ISSUED: 06-17-08 SHEET #: 202-9276-2

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.

1 of 1

Installation and Assembly - Adapter Bracket for VESA

300 x 300 Screens

Model: PLP-V3X3

Before you start make sure all parts listed are included with your product.

IMPORTANT! Read instruction sheet before you start installation and assembly.

•Do not overtighten. Overtightening may cause permanent damage to the screen. Torque to 26-35 in • lb (30-40 kg • cm).

WARNING

All other brand and product names are trademarks or registered trademarks of their respective owners.

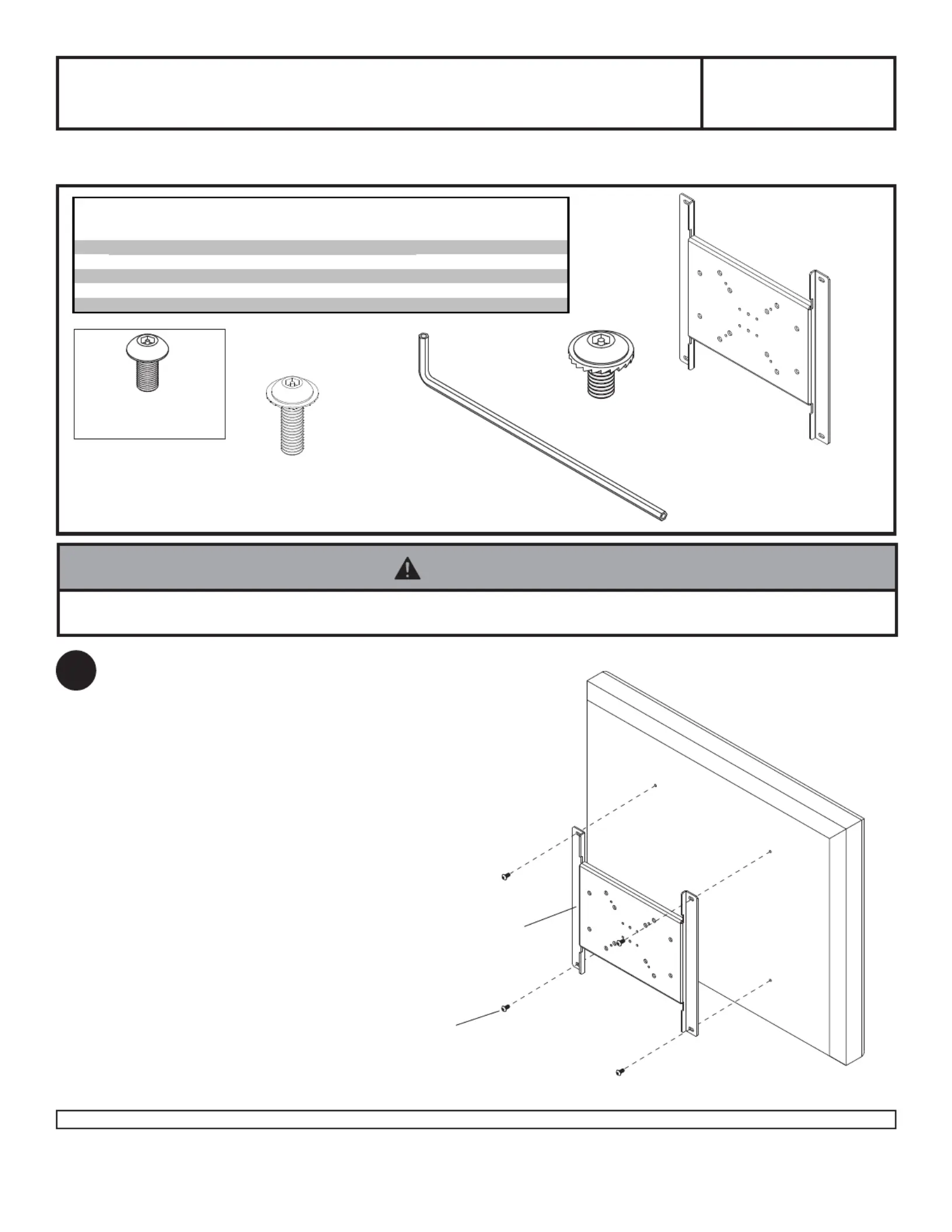

Using 5/32" (4mm) security allen wrench (DD), attach

adapter plate (AA) to screen using four M5 x 16 mm

serrated washer head socket pin screws (CC) or four

M6 x 12 mm serrated washer head socket pin screws

(EE).

NOTE: Screw must make at least three full

turns into the mounting hole and fit snug into

place. If you have any questions, please call

Peerless customer care at 1-800-865-2112.

CC or EE

Some parts may appear slightly different than illustrated.

Used with specified

mounts only.

Description Qty. Part #

adapter bracket 1 201-1590

BB M5 x 10 mm socket pin screw

4 520-1063

M5 x 16 mm socket pin serrated washer head screw 4 510-1161

4 mm allen wrench 1 560-9646

M6 x 12 mm socket pin serrated washer head screw 4 510-1050

Parts List
