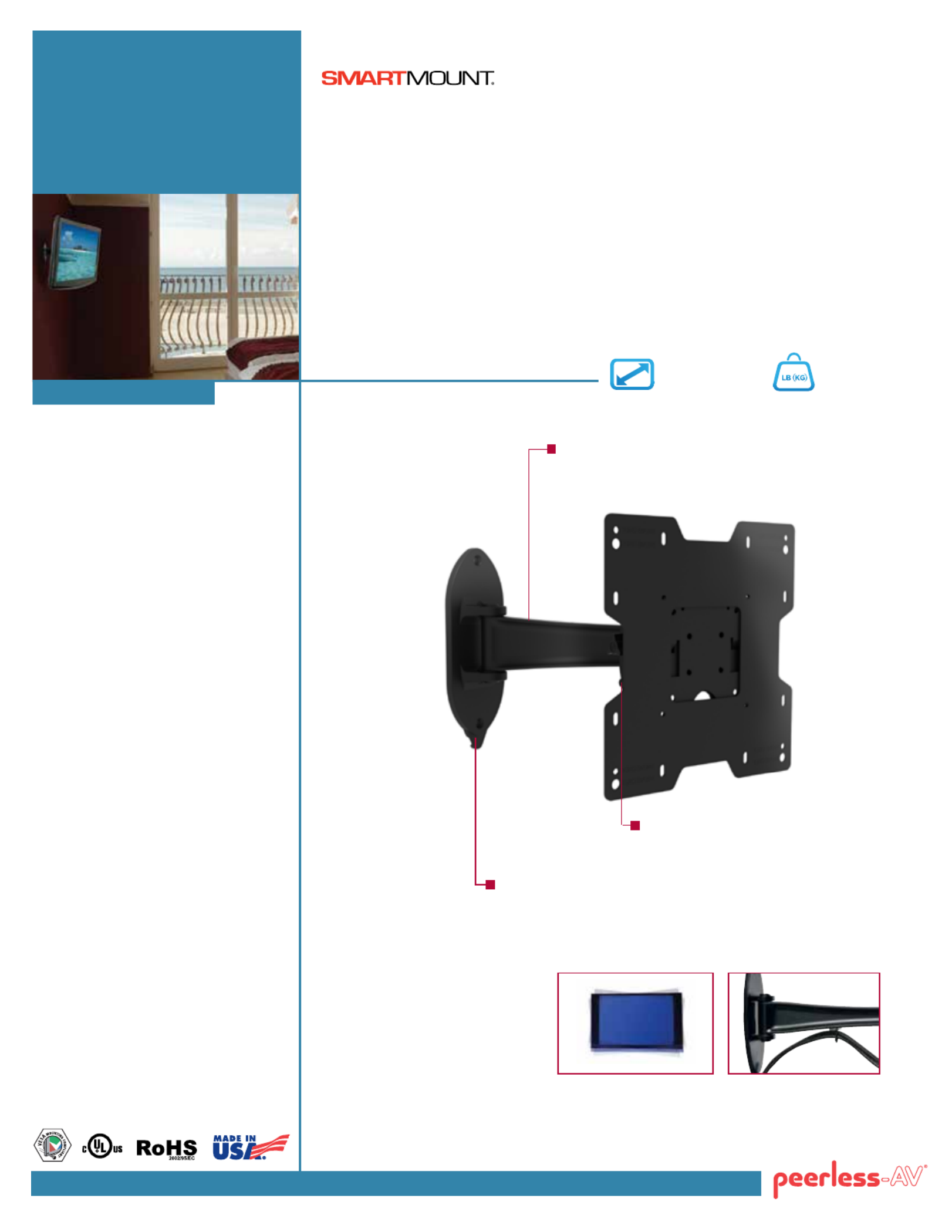

Pivot Wall Mount

For 22"-40" Displays

Matching elements of easy installation and user-friendliness are found in this pivot mount. It

boasts a low-prole wall plate design that easily attaches to the wall with only two screws.

This pivot arm extends away from the wall with ease and closes back up to save space. The

arm’s multiple pivot points allow the display to pivot, tilt and roll for the perfect viewing angle

adjustment and display leveling. Its fully integrated cable management system eliminates

unsightly cable clutter and provides a safeguard. Designed and built in the USA, this mount

maintains the same brilliant look as the entire SmartMount® 700 Series line of Articulating and

Pivot Wall Arm Mounts.

Display size: 22"-40" Max load: 55lb (25kg)

SP740P

 Compatible with

22" to 40" displays with

mounting hole patterns of

75,100, 200 x 100, and 200

x 200mm

 Display can be held as

close to the wall as 2.99"

(76mm) or be extended

as far as 11.80" (299mm)

 One-TouchTM tilt

mechanism allows

adjustment of +15°/-5°

without the use of tools

 ±5° of roll allow for

post-installation display

leveling

 Display can be pivoted

a full ±90° for obtaining

ideal viewing direction

 Integrated cable

management system

makes running cables

simple while keeping the

cables protected

 UL Listed

FeatureS

Cable management from the

display to the wall plate for

an organized, clean look

Viewing Flexibility

Arm extends up to 11.80"

(299mm) from wall

ideal tilt with

JuSt a touch

One-TouchTM tilt allows

adjustment of +15° /-5°

without the use of tools

remarkable Form

Single stud mounting

for a low-prole and

fast installation

Post-installation leveling

* OSHPD Approval Pending

click: call: Fax: peerless-av.com 800.865.2112 800.359.6500

Patented. Design Patent No. D666,180; D631,038; D640,673; D633,484; D634,739; D643,835.

Utility Patent No. 8,028,964 .

A R C H I T E C T S S P E C I F I C A T I O N S

The SmartMount® Pivot Wall Mount shall be a Peerless-AV model SP740P and shall be located where indicated on the plans.

Assembly and installation shall be done according to instructions provided by the manufacturer.

Mount is made of clear anodized aluminum and adapter bracket is made of steel with a scratch resistant epoxy nish.

LIT-0444 rev.5

Model Numbers WARRANTY: Limited 5-year

SmartMountSP740P ® Pivot Wall Mount for 22"-40" Displays

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE

SP740P 13" x 10" x 4"

(330 x 250 x 101mm) 6.7lb (3kg) 735029237341

Mount, wall and display

attachment hardware,

installation instructions

Package Speciﬁcations

Accessories

DImENSIONS (W x H x D) LOAD CAPACITy FINISH AVAILABLE COLORSPRODUCT WEIGHT

SP740P 14.31" x 9.35" x 2.99"-11.80"

(364 x 237 x 76-299mm) 5.5lb(2.5kg) 55lb (25kg)

Scratch

resistant

fused

epoxy

Gloss Black

Product Speciﬁcations

All dimensions = (mm)inch

Security FastenersACC919:

Metal Stud Wall Plate for 16" Center Metal StudsWSP700:

Metal Stud Wall Plate for 20" and 24" Center Metal StudsWSP701:

Peerless Industries, Inc. 2300 White Oak Circle Aurora, IL 60502 (800) 865-2112 (630) 375-5100 Fax: (800) 359-6500 peerless-av.com     

Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, display cleaners and a full assortment of accessories.
