PFA SERIES MODELS
OWNER’S MANUAL
PHONE: 603-225-6684
MAILING ADDRESS: P.O. Box 501, Concord, NH 03302-0501
SHIPPING ADDRESS: 10 Ferry St., Concord, NH 03301
FAX: 603-225-8472
GENERAL INFORMATION: profits@perfectfry.com
CUSTOMER SUPPORT: service@perfectfry.com
WEB: www.perfectfry.com
©2012 PERFECT FRY COMPANY
L20-391 R0
Be sure ALL operators read, understand and
have access to this manual at all times.

OWNER’S MANUAL FOR ALL PFA MODELS
II
TABLE OF CONTENTS
THANK YOU FOR PURCHASING A PERFECT FRYER! ...............................................................................................................................1
W
ARRANTY REGISTRATION ...........................................................................................................................................................................1
F
RYER ACTIVATION ......................................................................................................................................................................................1
OWNERS RESPONSIBILITIES ......................................................................................................................................................................2
REGULATIONS & RECYCLING .....................................................................................................................................................................3
SAFETY FIRST ..............................................................................................................................................................................................4
INSTALLATION..............................................................................................................................................................................................5
E
LECTRICAL POWER SUPPLY (NORTH AMERICAN MODELS) .............................................................................................................................5
E
LECTRICAL SPECIFICATIONS (NORTH AMERICAN MODELS) ............................................................................................................................5
E
LECTRICAL POWER SUPPLY (INTERNATIONAL MODELS) .................................................................................................................................6
E
LECTRICAL SPECIFICATIONS (INTERNATIONAL MODELS) ................................................................................................................................6
A
CCESSORY OUTLETS (NORTH AMERICAN MODELS) .......................................................................................................................................7
P
REPARE COUNTER-TOP AREA .....................................................................................................................................................................8
U
NPACK.......................................................................................................................................................................................................8
ASSEMBLY .................................................................................................................................................................................................. 11
COOKING .................................................................................................................................................................................................... 17
CLEANING ................................................................................................................................................................................................... 18
D
AILY MAINTENANCE .................................................................................................................................................................................. 18
W
EEKLY MAINTENANCE .............................................................................................................................................................................. 18
P
ERIODIC MAINTENANCE ............................................................................................................................................................................. 20
TIPS ON DEEP FRYING .............................................................................................................................................................................. 21
OIL FACTS ................................................................................................................................................................................................... 22
OPERATING INSTRUCTIONS ..................................................................................................................................................................... 25
S
TARTING UP ............................................................................................................................................................................................. 26
M
ANUAL MODE ........................................................................................................................................................................................... 26
P
RESET TIMES ........................................................................................................................................................................................... 27
P
RESET MODE ........................................................................................................................................................................................... 27
P
RESET LOCKED MODE .............................................................................................................................................................................. 28
R
APIDFRY
TM
MODE..................................................................................................................................................................................... 28
R
APIDFRY
TM
2GO ...................................................................................................................................................................................... 29
D
UAL LOAD ................................................................................................................................................................................................ 30
C
OOKING TIME CORRECTION....................................................................................................................................................................... 31
O
PEN DRAWER LID – PAUSED COOK CYCLE ................................................................................................................................................. 31
S
TANDBY MODE ......................................................................................................................................................................................... 32
S
HUTTING DOWN ........................................................................................................................................................................................ 32
USER DEFINED OPTIONS .......................................................................................................................................................................... 33
B
ACKGROUND MENU - ACCESSING .............................................................................................................................................................. 34
CTS
TM
(COOK TIME SENSITIVITY) ................................................................................................................................................................ 34
B
ACKGROUND MENU - MAP ......................................................................................................................................................................... 34
O
PTION CHANGES ...................................................................................................................................................................................... 39
C
USTOMIZING PRESETS .............................................................................................................................................................................. 40
C
USTOMIZING PRESETS ON THE FRONT LABEL ............................................................................................................................................. 41
HELP ............................................................................................................................................................................................................ 42
S
YSTEM ERROR CONDITIONS ...................................................................................................................................................................... 42
T
ROUBLE-SHOOTING TABLE ........................................................................................................................................................................ 44
PFS AUTOMATIC EXTINGUISHER ............................................................................................................................................................. 45
BLOW-APART DIAGRAM & PARTS LIST ................................................................................................................................................... 47
DECLARATION OF CONFORMITY ............................................................................................................................................................. 48
THE PERFECT FRY 1 2 3 WARRANTY ..................................................................................................................................................... 49

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 1 of 49
Thank You for Purchasing a Perfect Fryer!
Warranty Registration
To ensure that you receive the highest quality service & support;
1) Simply fill out the online warranty registration form anytime at
www.perfectfry.com and automatically receive your warranty activation code.
OR
2) Fill out the enclosed warranty registration form and mail or fax it to Perfect Fry
Company then phone Toll Free 603-225-6684 (Monday-Friday 8:00-5:00 EST) to
receive your warranty activation code.
Fryer Activation
For temporary access, enter 123456 then press .
Temporary access is valid for 90 days.
Now that you have registered and activated your fryer;
• Take advantage of our food program partners whose rebates help offset the cost of your
newly purchased Perfect Fryer. Food program rebates will be sent to you, however if you
wish to view our current partners immediately, please visit www.perfectfry.com.
• Take comfort in knowing that your Perfect Fryer is backed by an industry leading 1..2..3
warranty (see page 49 for further details).
• Take comfort in knowing that the management and staff at Perfect Fry Company are
dedicated to ensure that you, the owner and operator of a Perfect Fryer, receive a top
quality product that is thoroughly inspected and tested prior to shipment.
• Take comfort in knowing that our local distribution network is committed to supplying your
service and warranty needs. Each distributor has dedicated service staff that is able to
answer any questions you may have regarding the operation of your Perfect Fryer. We
also have an online knowledgebase available 24/7/365 at perfectfry.com with many great
tips and solutions.

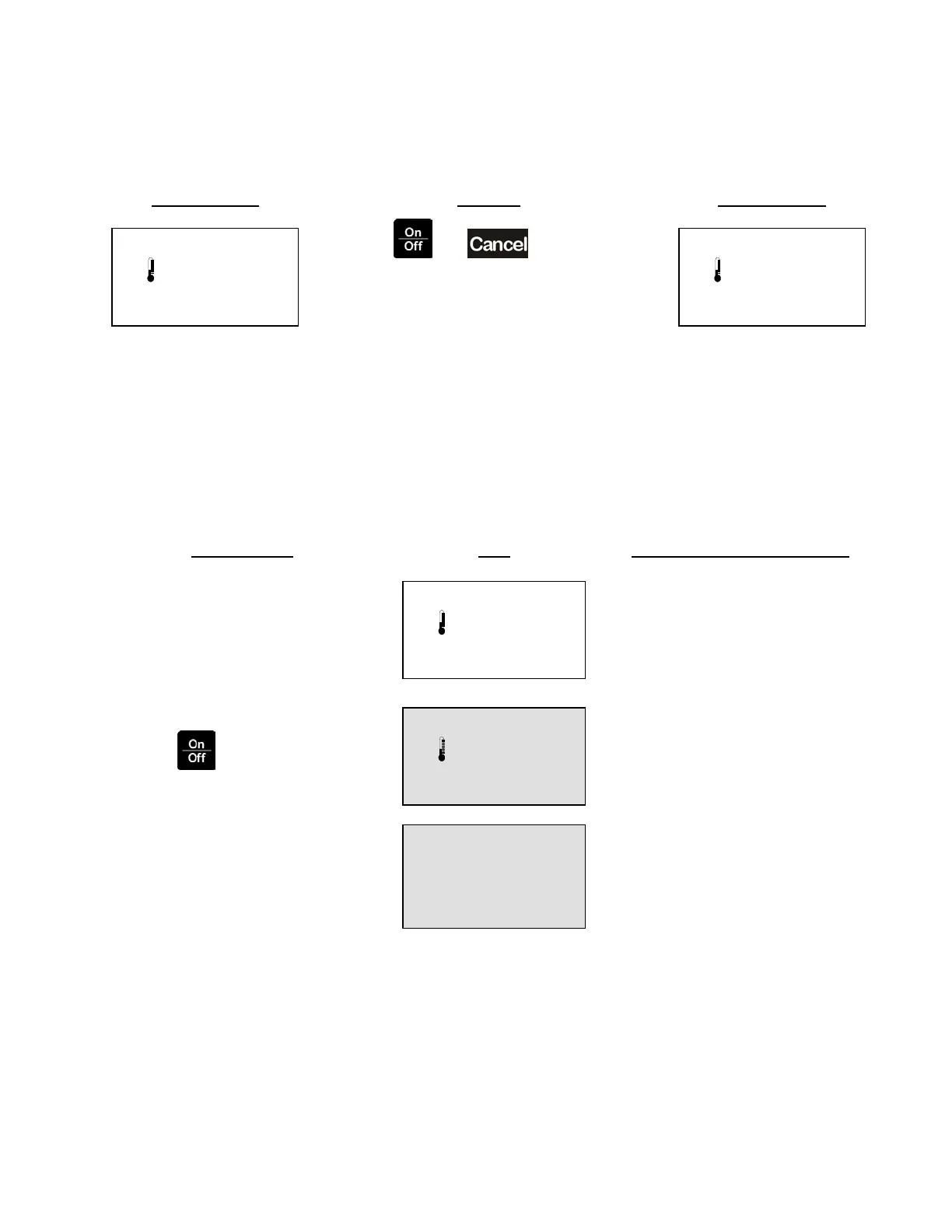

SEE THIS LCD DO THIS GET THIS LCD
THANK YOU FOR
PURCHASING A PERFECT
FRYER SN# XXXXX
CALL OR GO ONLINE
ENTER WARRANTY CODE
AND PRESS START:
1) Enter your warranty activation code
2) Press
3) Your Perfect Fryer is now permanently
activated
HEATING
70
ºF

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 3 of 49

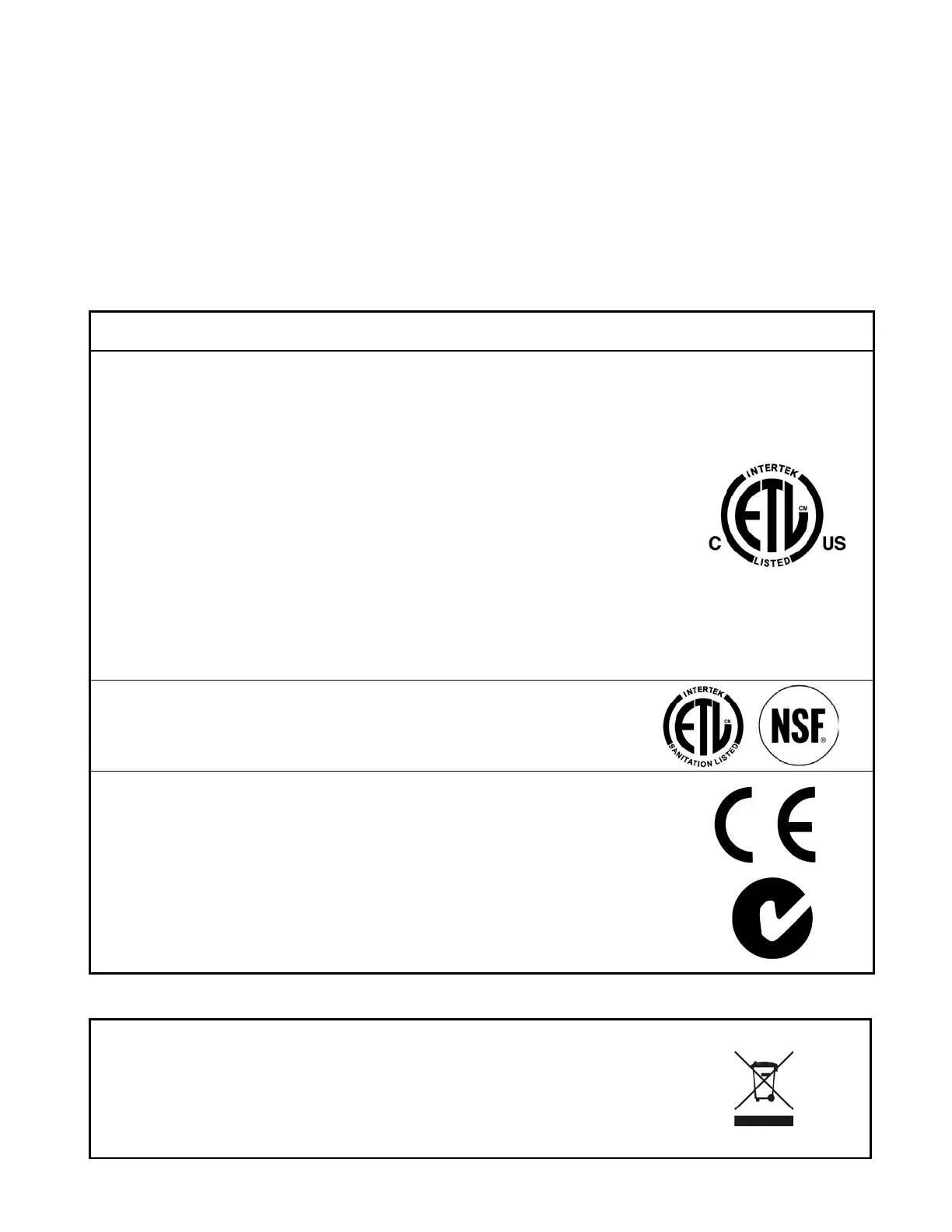

REGULATIONS & RECYCLING
Installation of your PERFECT FRYER must conform to all local fire and health regulations
and building codes. The installation use and maintenance is to be in accordance with the
Standard for Ventilation Control and Fire Protection of Commercial Cooking Operations,
NFPA 96 - 2004.
The table below describes the standards that your PERFECT FRYER has been tested to and
the corresponding listing marks depending on your region.
STANDARD DESCRIPTION LISTING MARK
UL 197
UL 197 SB
(UL 710B)
Commercial electric cooking appliances.
Commercial electric cooking appliances with recirculating systems.
UL 197 & UL 197 SB supplement also reference the following
standards which your PERFECT FRYER meets applicable parts thereof:
• UL 1046: Grease Filters for Exhaust Ducts.
• UL 300: Fire Testing of Fire Extinguishing Systems for Protection
of Restaurant Cooking Areas.
• NFPA 17A: Wet Chemical Extinguishing Systems.
• NFPA 96: Standard for Ventilation Control and Fire Protection of
Commercial Cooking Operations.
• EPA 202: Determination of Condensable Particulate Emissions for
Stationary Sources.
CSA 22.2
No. 109-M1981
Commercial Cooking Appliances forming part of
Canadian Electrical Code, Part 2 Safety Standards
for Electrical Equipment.
NSF 4
Commercial Cooking, Rethermalization, and Powered Hot Food
Holding and Transport Equipment.
EN60335-1
EN60335-2-37
EN61000-6-1
EN61000-6-3
Safety of Household and Similar Electrical Appliances Part 1.
General Requirements
Amendment 8913 - October 1995
Amendment 9475 - May 1997
Safety of Household and Similar Electrical Appliances Part 2.
Commercial Electric Deep Fat Fryers
Electromagnetic Compatibility (EMC) – Emissions & Immunity for
Light Industrial Environments
The table below describes the recycling procedures for your PERFECT FRYER.
WEEE
(Waste Electrical &
Electronic
Equipment)
2002/96/EC
When your PERFECT FRYER has reached end of life, please
deliver the fryer to your local distributor. They will prepare and
deliver the fryer for recycling to the WEEE collection system in
your country. Most of the fryer’s materials can be recycled.
DO NOT DISPOSE OF THE FRYER IN MUNICIPAL WASTE!

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 4 of 49
SAFETY FIRST
LIFTING & MOVING:
Your PERFECT FRYER’s gross shipping weight is 125 lb. (57 kg). Net weight = 110 lb.
(50 kg). DO NOT LIFT THE FRYER BY YOURSELF. ALWAYS REMOVE OIL BEFORE
MOVING FRYER.
DEEP FRYING:
Cooking oil is very hot ~350ºF (177ºC). Hot oil can cause severe burns. DO NOT TOUCH
THE COOKING OIL UNLESS YOU ARE SURE IT HAS COOLED.
HEATER MODULE:
DO NOT DROP
DO NOT IMMERSE IN WATER
CLEANING:
DO NOT OPEN DRAWER LID OR FRONT PANEL WHEN PRODUCT IS LOADING
Before cleaning fryer or removing oil, let fryer cool to 122ºF (50ºC). DO NOT TOUCH
HEATER MODULE, VAT OR OIL UNLESS YOU ARE SURE IT HAS COOLED.
Lubricate rails of shovel and bottom of drawer using an approved food grade grease or
silicone lubricant
COOKING OIL MAINTENANCE:
For sanitation and safety, we recommend that the cooking oil is replaced once a week,
more often for higher volume usage. Use a commercial grade deep-fryer formulated
cooking oil. OLD OIL HAS A REDUCED FLASHPOINT. OLD OIL AND OVER-WET
FOOD ARE PRONE TO SURGE BOILING.
SERVICING:
DISCONNECT THE POWER SOURCE BEFORE SERVICING THE FRYER. There is no
need to unplug your PERFECT FRYER for normal cleaning or maintenance.
STORAGE:
Do not store your PERFECT FRYER below 32°F (0°C)

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 5 of 49
INSTALLATION
Electrical Power Supply (North American Models)
•
Your PERFECT FRYER must be connected to a dedicated electrical circuit that meets
your fryer’s requirements (see table below).
Improper Installation may damage the fryer and void your warranty
• If your PERFECT FRYER’s plug does not fit your wall outlet receptacle, have an
electrician install the appropriate NEMA receptacle within 4 feet of the fryer.
•
See the manufacturer’s label on your PERFECT FRYER for the electrical Model No.
PFAXXX, then check off your Model Number.
•
Your PERFECT FRYER
is equipped with a heat lamp outlet for an optional PFW heat
lamp rated at 500W (240V/2A).
Electrical Specifications (North American Models)
PERFECT FRY
MODEL
VOLTS
AMPS
CIRCUIT
AMPS
WATTS
NEMA
NUMBER
NEMA
RECEPTACLE
Put a check mark
in the box beside the Model Number of your PERFECT FRYER.
□
PFA720
240
32.0
Fryer 30
Acc. 2
Minimum
40
7600
Fryer 7200
Acc. 400
For use on an individual branch circuit
rated 40A minimum. For supply
connectors, use minimum no. 8 AWG
wire (40
A rated). This fryer must be
properly connected to a grounded,
dedicated 240 VAC single phase circuit
according to local installation standards
and codes.
□
PFA570
240
26.0
Fryer 24
Acc. 2
Minimum
30
6100
Fryer 5700
Acc. 400
For use on an individual branch circuit
rated 40A minimum. For supply
connectors,
use minimum no. 8 AWG
wire (40A rated). This fryer must be
properly connec
ted to a grounded,
dedicated 240 VAC single phase circuit
according to local installation standards
and codes.
□
PFA570
208
28.5
Fryer 27
Acc. 1.5
Minimum
30
6000
Fryer 5700
Acc. 300
For use on an individual branch circuit
rated 40
A minimum. For supply
connectors, use minimum no. 8 AWG
wire (40
A rated). This fryer must be
properly connected to a grounded,
dedicated 208 VAC single phase circuit
according to local installation standards
and codes.
□
PFA375
240
18.0
Fryer 16
Acc. 2
20
4150
Fryer 3750
Acc. 400
For use on an individual branch circuit
rated 30A minimum. For supply
connectors, use minimum no. 10 AWG
wire (30A rated). This fryer must be
properly connected to a grounded,
dedicated 240 VAC single phase circuit
according to local installation standards
and codes.
All models are single phase; 50/60 hertz.

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 6 of 49
Electrical Power Supply (International Models)
•
Your PERFECT FRYER must be connected to a dedicated electrical circuit that meets
your fryer’s requirements (see table below).
Improper Installation may damage the fryer and void your warranty
• If your PERFECT FRYER’s plug does not fit your wall outlet receptacle, have an
electrician install the appropriate receptacle within 1.25 meters of the fryer.
•
See the manufacturer’s label on your PERFECT FRYER for the electrical Model No.
PFAXXXX, then check off your Model Number.
• Heat lamp requires a standard 240 VAC receptacle located within 1.5 meters of the fryer.
Electrical Specifications (International Models)
PERFECT FRY
MODEL
VOLTS
AMPS
CIRCUIT
AMPS
WATTS
Put a check mark
in the box beside the Model Number of your PERFECT
FRYER.
□
PFA720
240 30.0
Minimum
30
7200
□
PFA570
240 24.0
Minimum
30
5700
□
PFA375
240 16.0 20 3750

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 7 of 49
INSTALLATION (Continued)

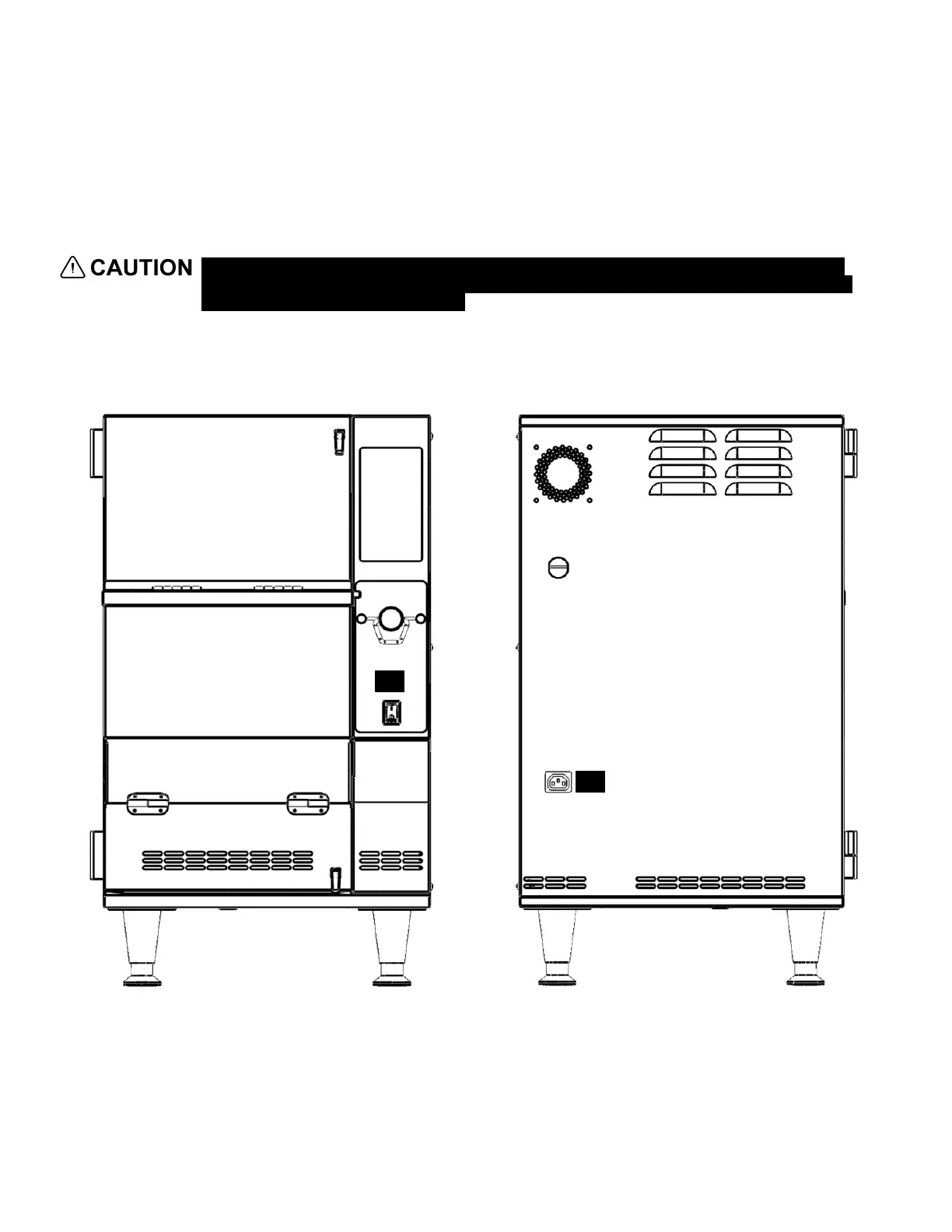

Accessory Outlets (North American Models)
Your PERFECT FRYER
is equipped with 1 heat lamp outlet (North American models only)
that can accept a Perfect Fry approved heat lamp only. The front heat lamp for the PFA is
rated at 500W (240V/2A).
Disconnect the fryer from the electrical supply before attempting the installation of any
Perfect Fry heat lamp. The heat lamp is for use only on Perfect Fry equipment equipped
and marked with a heat lamp outlet.
A front panel mount switch controls the power to the heat lamp.
1
1

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 8 of 49
INSTALLATION (Continued)
Prepare Counter-top Area
Unpack

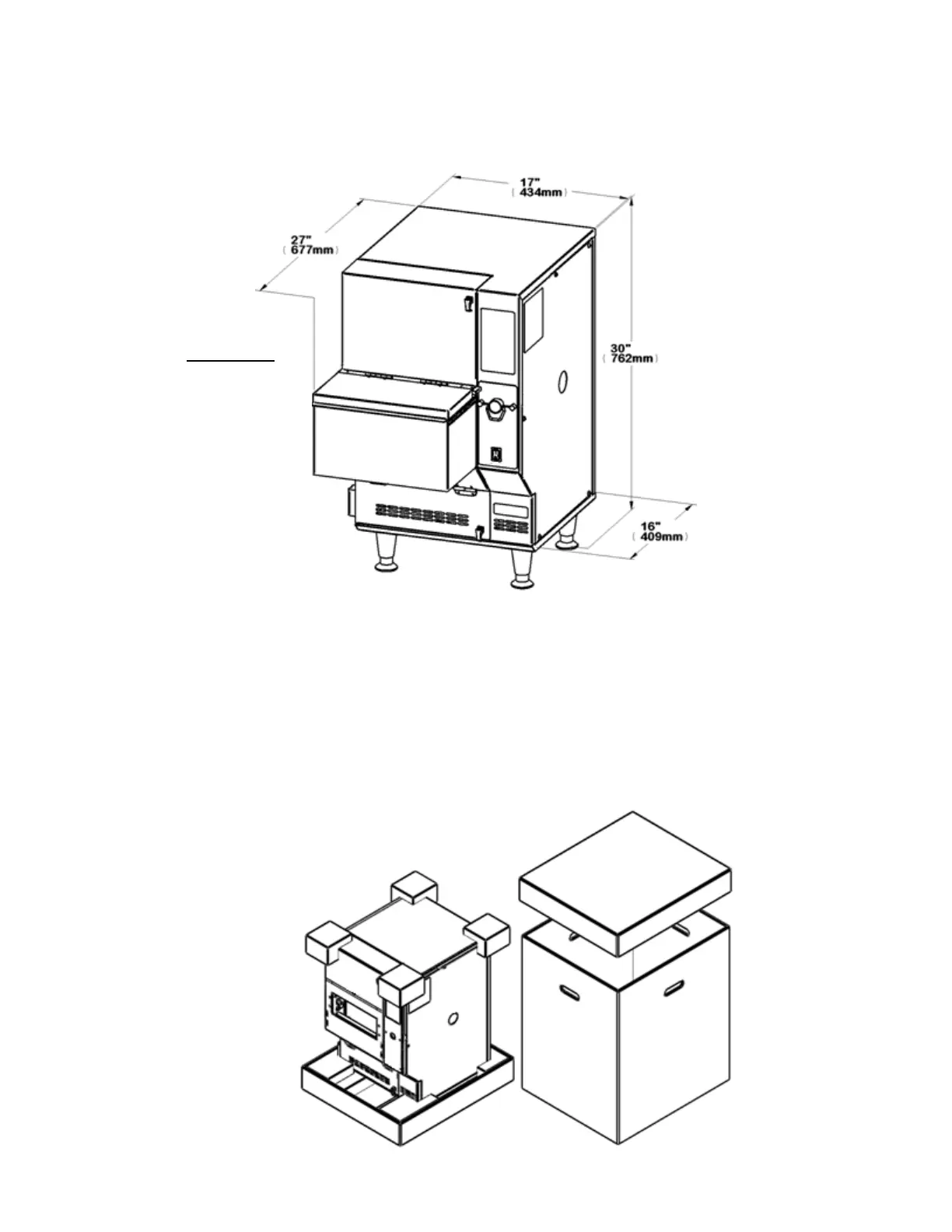

1) Cut straps on shipping box
2) Remove box top and body
3) Remove outer plastic wrapping and keep box along with foam corners and
sides
Clearances:
1” on sides
2” on back
0” on top

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 9 of 49

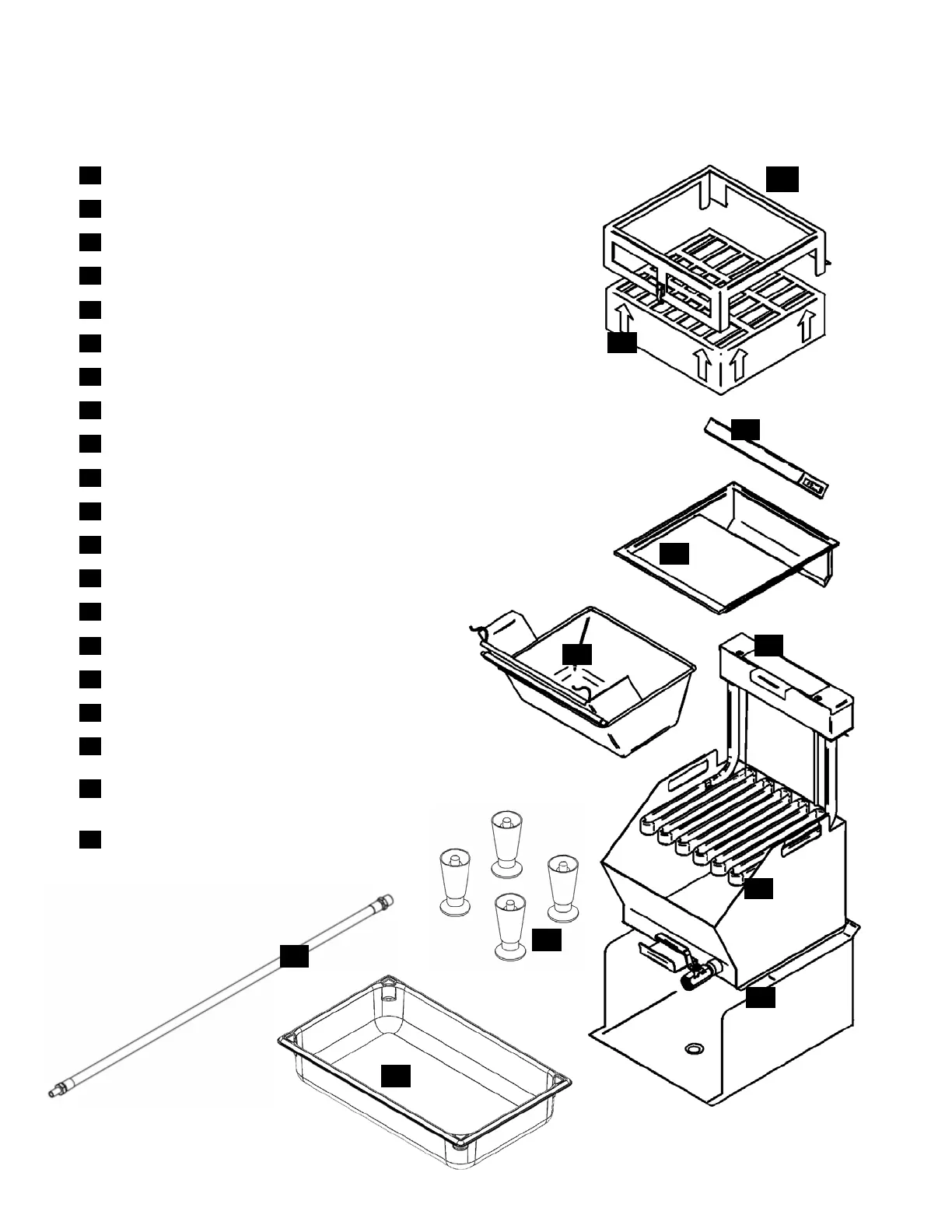

4) Remove all foam stuffing and parts
5) Put check mark in box once the part is removed
1 Air Filter Cage
2 Air Filter Cartridge
3 Grease Filter
4 Grease Filter Tray
5 Basket
6 Heater Module
7 Oil Vat
8 Oil Spill Tray
9 Oil Hose
10 Leg (x4)
11 Front Panel
12 Shovel
13 Drawer Cover
14 Drawer Sleeve
15 Drawer Ramp
16 Heat Lamp (optional)
17 Basket Ramp
18 Basket Ramp Spring (x2)
19
Receiving Tray (not included)
4” high full size pan recommended
20 Heat Lamp Cordset (not shown)
2
3
4
5
6
7
8
10
9
19
1

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 10 of 49
6) Tilt PERFECT FRYER to one side and install 2 adjustable legs, repeat
process for other side
Do not operate your PERFECT FRYER without legs.
7) Lift your PERFECT FRYER onto countertop and adjust legs as necessary
Your PERFECT FRYER weighs 110 lb. (50 kg). Lift it carefully with your legs or with the
help of another person and place it in its final location.
8) Ensure that blow-off caps on fire extinguisher nozzles are kept in place
9) Go to ASSEMBLY section (next page)
13
15
11
14
12
16
17
18

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 12 of 49

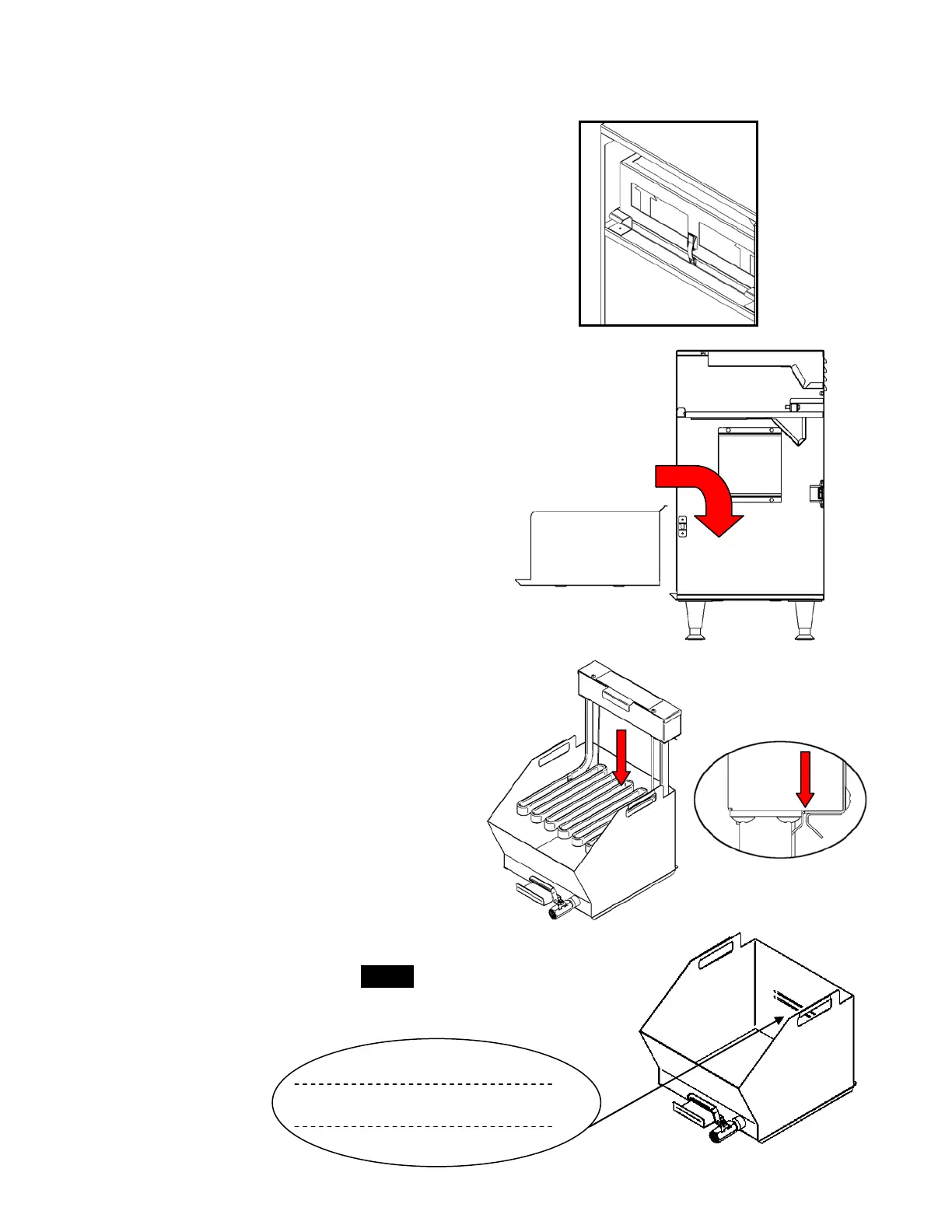

ASSEMBLY (Continued)

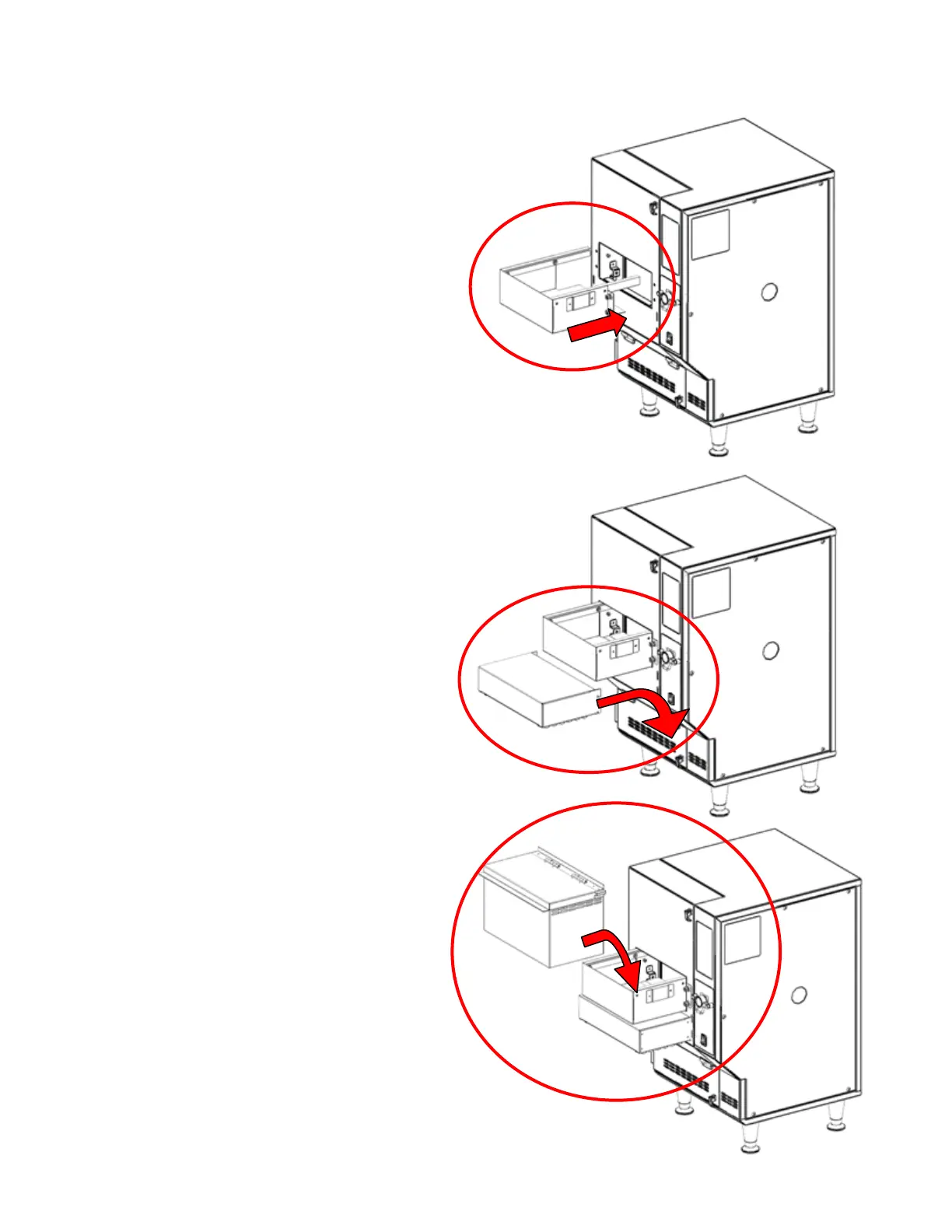

5) Slide air filter cartridge firmly back into
filter compartment and fasten down with
latch.
6) Install spill tray into bottom cooking
compartment
Note: Indents on bottom of spill tray
should fit into indents on bottom of
cabinet
7) Set heater module onto vat
Note: “^” grooves on bottom of heater
module should fit onto back of vat
8) Pour frying oil into vat. Fill to COLD
level mark. Use commercial grade deep
fryer cooking oil. DO NOT OVERFILL.
COLD
HOT

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 13 of 49
ASSEMBLY (Continued)
9) Slide heater module/vat into cooking
compartment and push in all the way.
Ensure electrical connection is complete
with firm push on heater module.

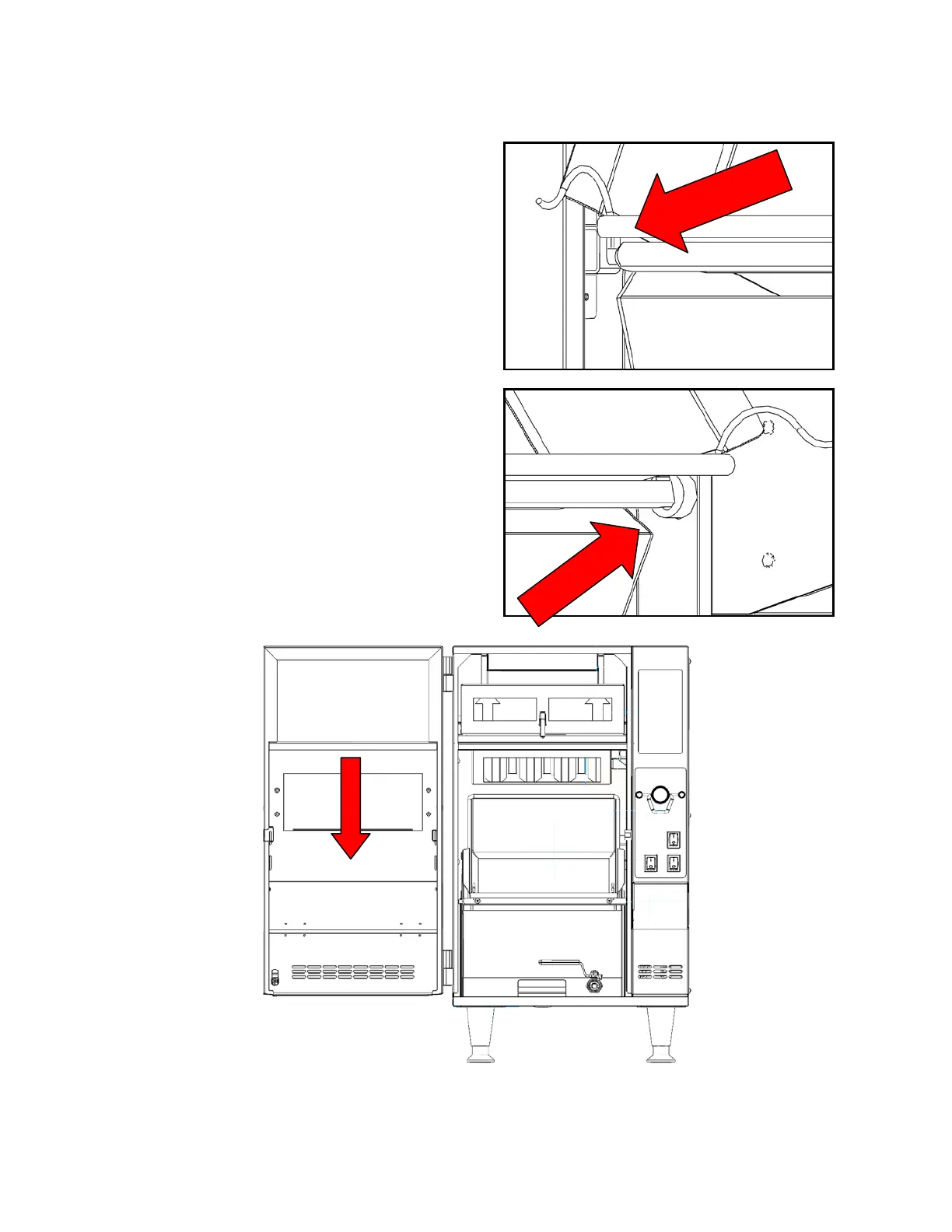

10) Install basket
a) Tilt basket bottom forward and
maneuver rod past cabinet
flanges

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 14 of 49
ASSEMBLY (Continued)
b) Install rod into pivot slot – left side
c) Install rod into motor coupler –
right side
11) Install front panel using lift off hinges and close front panel. Turn latches ¼ turn clockwise
and press down.

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 15 of 49
ASSEMBLY (Continued)
12) Install drawer sleeve using 4 captive
screws. Tighten securely.
Note: Bottom of drawer sleeve should sit
tight on front panel.
13) Install heat lamp. Connect cordset to
connectors on left side of heat lamp
and back of fryer (accessory outlet 1).
Refer to Accessories on page 7 for
more information. To change the 100W
halogen bulb, remove cover and
replace bulb with a similarly rated
(correct voltage ) bulb. Be sure not to
touch the bulb with bare hands.
Note: Tabs on back of heat lamp should
fit into slots on front panel
14) Install drawer cover
Note: Tabs on inside of cover should fit
into slots on sides of drawer
sleeve

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 16 of 49
ASSEMBLY (Continued)

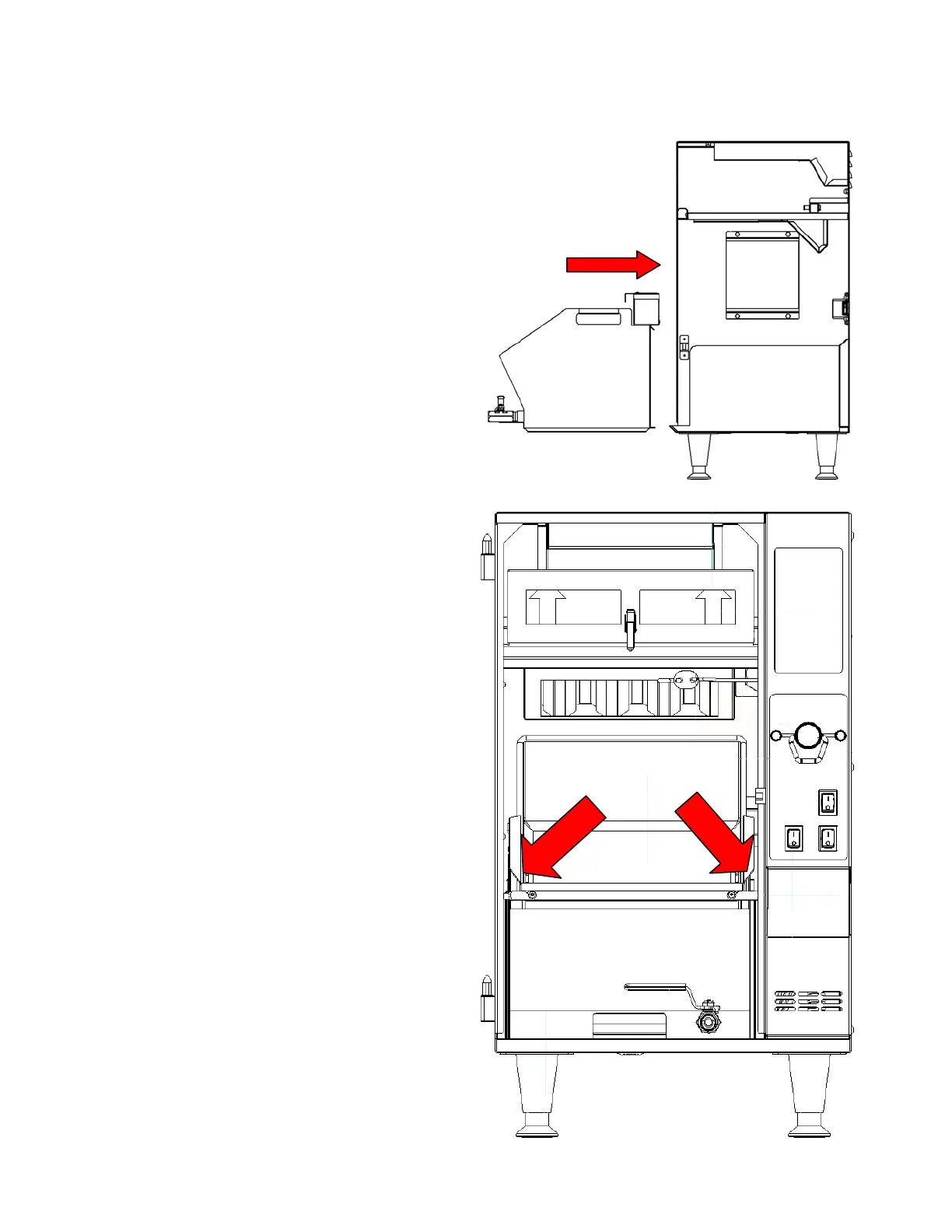

15) Install basket ramp using hinges. Install
basket ramp springs onto mounts
provided. For proper airflow and
sanitation, basket ramp must always be
installed.

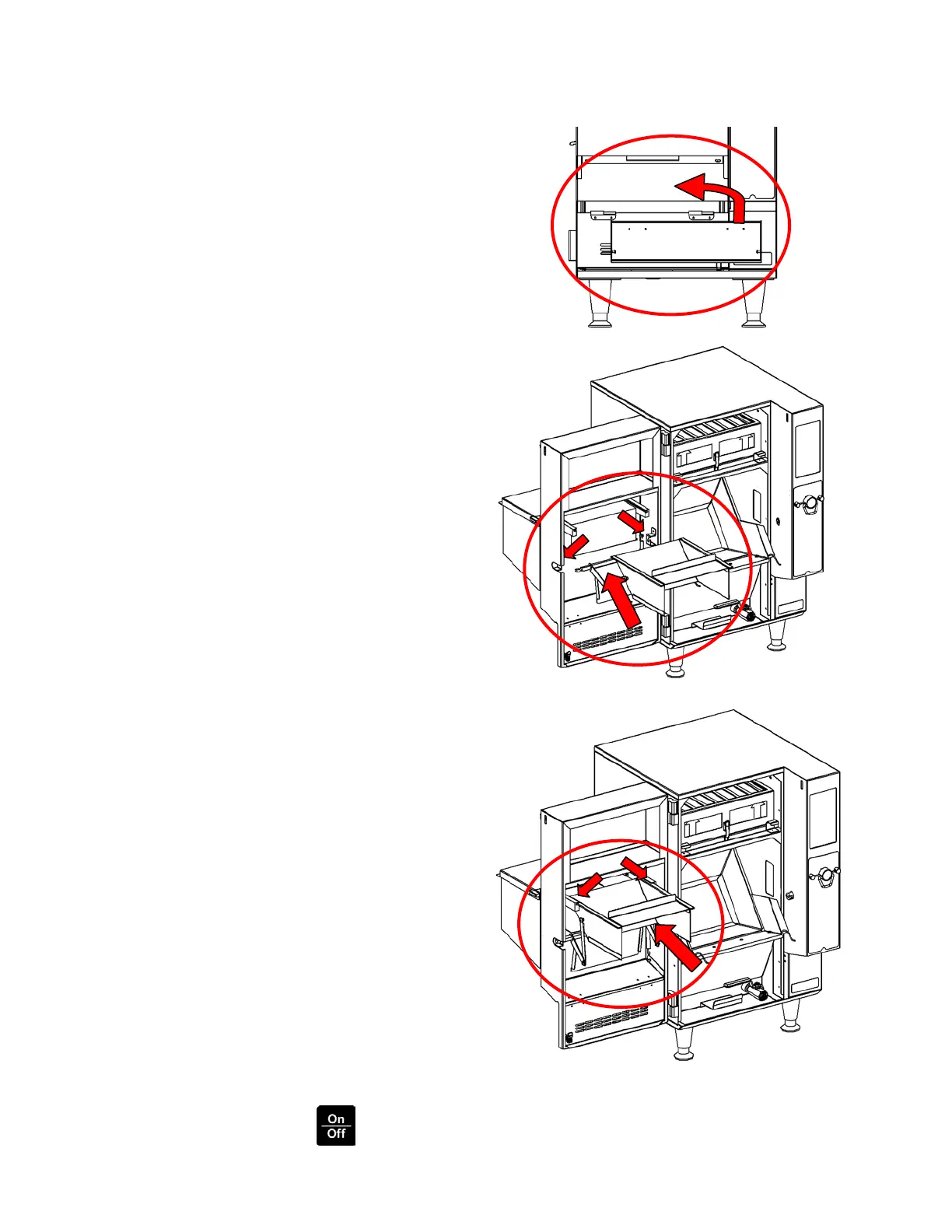

16) Install drawer ramp into hole on right
side and slots on left side of inside of
front panel.
17) Install drawer shovel into guides and
push shovel in completely.
18) Close and lock the front panel by turning latches ¼ turn clockwise and pressing down.
Plug in fryer and press . The fryer will now begin heating. In a few minutes, you will
be ready to start cooking!

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 17 of 49

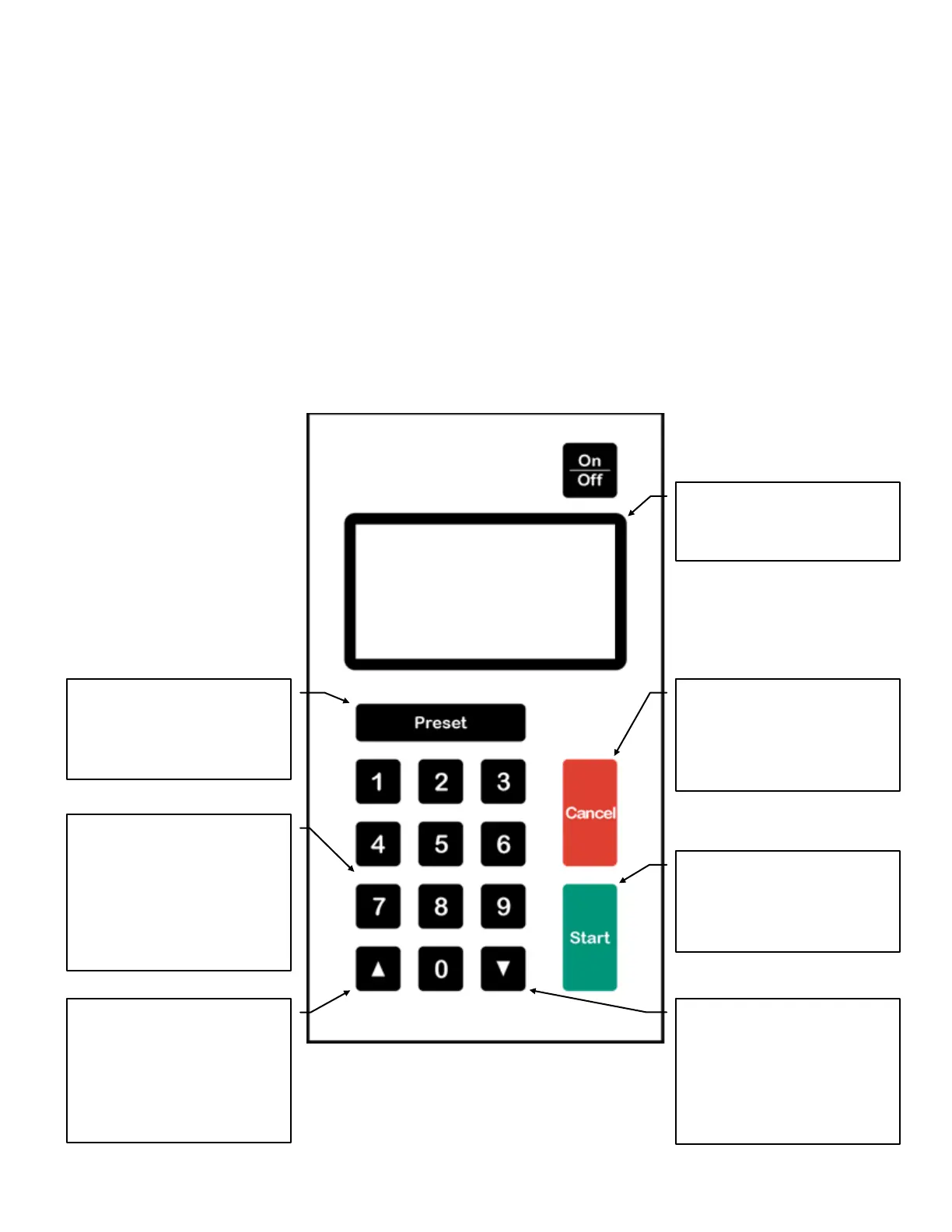

COOKING
Press to toggle between modes
Manual Mode Preset Mode Preset Locked Mode RapidFry
TM
Mode
Load Food Load Food Load Food Load Food
Select Time
Press Select #
Press
Select #
Manual Mode shown below

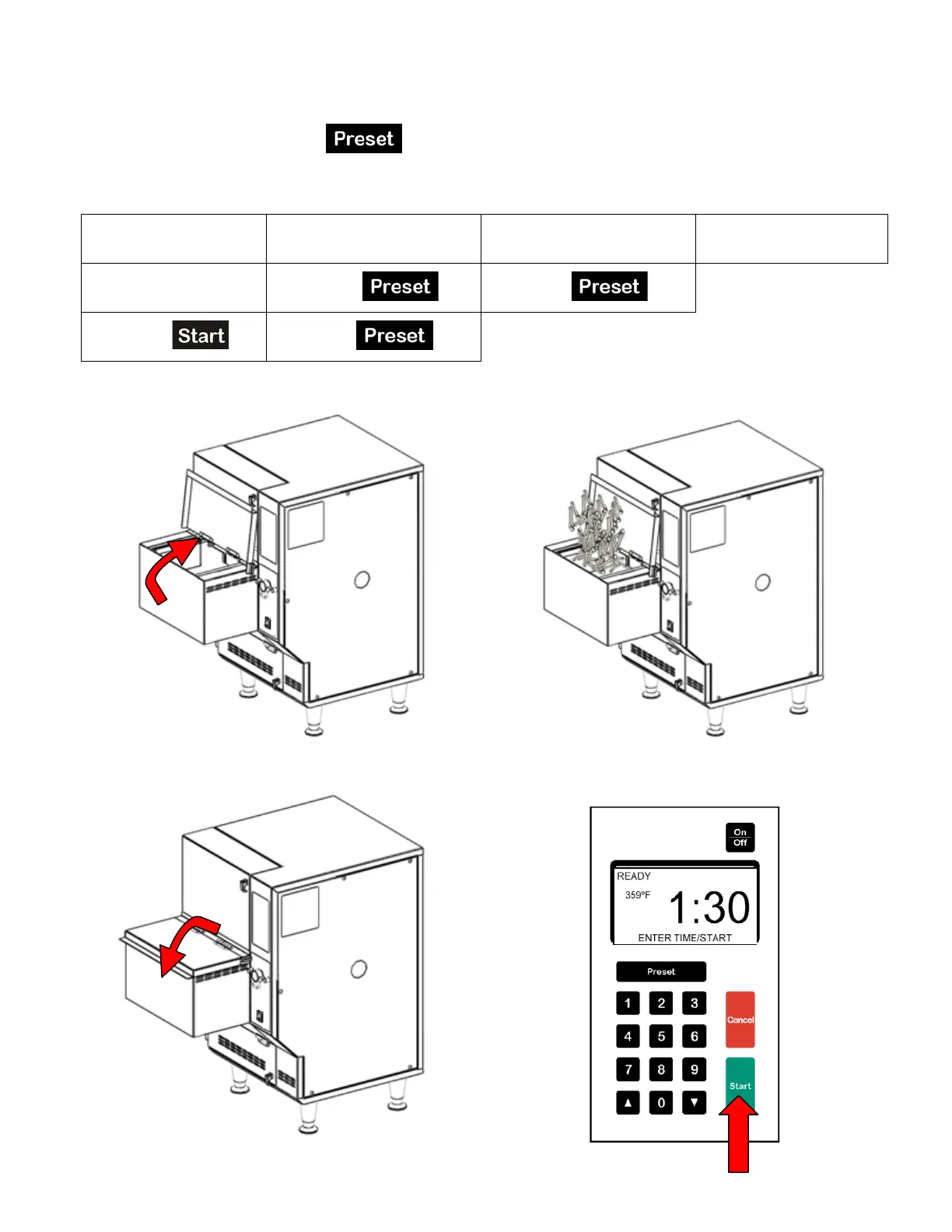

1. Open Drawer Lid 2. Fill Drawer
3. Close Drawer Lid 4. Enter Time/Press Start

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 18 of 49
CLEANING
Daily Maintenance
Do not unplug the fryer and always make sure the fryer is turned off
Do not touch heater module, oil vat or oil unless you are sure it has cooled
1) Wipe basket with paper towel to remove crumbs and food particles
2) Wipe crumbs, oil and any other food matter from inside of drawer
using a paper towel
3) Clean outside of fryer with a good stainless steel cleaner and wipe
dry
4) Lubricate rails of shovel and bottom of drawer using an approved
food grade grease or silicone lubricant
Do not clean the outside or any other stainless steel part using abrasive
cleaners
5) Check oil level on the back of vat to make sure it is up to cold line (at
room temperature). If not, add oil as necessary. Replace the cooking
oil once a week or more often if necessary. Use a COMMERCIAL
GRADE DEEP FRY COOKING OIL.
Weekly Maintenance
Do not unplug the fryer and always make sure the fryer is turned off
Do not touch heater module, oil vat or oil unless you are sure it has cooled
1) Open front panel by lifting and turning latches. Remove drawer parts and wash in soap
and hot water. Rinse well in hot water and dry.
2) Remove air filter cartridge and set aside (for replacement, see page 20).
Do not wash air filter cartridge
3) Remove grease filter tray from cabinet. Remove grease filter
from tray and drain any oil that has accumulated. Wash both
parts in soap and hot water. Rinse well in hot water and dry.

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 19 of 49
CLEANING (Continued)
4) Attach oil hose and drain cooking oil from vat into
containers for disposal. Have empty containers
handy for proper disposal of used cooking oil. A
rendering company can help with proper disposal.
5) Remove basket lift, oil vat and heater module
(picture right). Spray parts with oven cleaner,
enclose with plastic bag for at least one hour or
leave overnight if possible. Wash in soap and hot
water and rinse well in hot water. Rinse parts in a
solution of: 1 part white vinegar [5% acetic acid]
and 2 parts water. The vinegar rinse is very
important. It neutralizes soap residue that causes
oil breakdown foaming. Soap residue turns oil
dark and reduces its performance significantly.
Clear water rinse parts. Clean the male and
female terminals on connectors with rubbing
alcohol and cotton swab.
The heater box must NOT be immersed in water or other liquid.
Do not spray male connector
6) Remove spill tray and drain any oil that has accumulated. Wash
in soap and hot water. Rinse well in hot water and dry.
7) With internal components removed, clean cooking and filter
compartments with grease cutting soap or oven cleaner if
necessary. Rinse with damp cloth and dry.
Do not spray female connector
8) Clean countertop and external surfaces.
9) Ensure that blow-off caps on fire extinguisher nozzles are kept in place
10) Re-install all parts (see ASSEMBLY page 11)

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 21 of 49
TIPS ON DEEP FRYING
Great Food in Less Time
•
Use premium quality commercial deep frying oil. Canola and Soybean oils are
recommended. Do not use household cooking oils from your local supermarket. Poor
quality oils may shorten the life of the air filter cartridge.
• Keep food frozen until ready to fry. Frozen product will absorb less oil during the
cooking process.
• Remove ice from food. Ice results in excess bubbling and spillage of oil out of the
vat.
• Minimize the moisture. Excess moisture extends the
cooking time. Water, ice, sugar and breading all
contribute to shortening the life of the oil.
• Try to reduce the amount of breading that falls off of the food. Breading often has
sugar and other ingredients that will reduce the oil’s life and darken the appearance of
food. Consider filtering the oil to remove the breading particles.
•
Do not overfill the drawer. Excess food may not be cooked properly.
Common Questions
•
How Much Oil to Use?
The PERFECT FRY has a capacity of 2.75 gallons(11L) of oil. Fill the oil vat to the
cold line only.
• How Much to Fry?
Fill the drawer to the top only. The drawer has an approximate capacity of 3 lbs (1.5
kg) of product per cycle. Whatever you can fit in the drawer is what you can fry.
• What is the Ideal Temperature Range for Cooking?
The ideal temperature range for cooking product is between 350°F and 360°F (177°C
and 182°C). The factory default setting for cooking temperature is 350°F (177°C).
• Should Frozen Food Be Defrosted?
DO NOT THAW FROZEN FOOD! Frozen foods only should be put directly into the
fryer in order to minimize moisture.
• Can I Refreeze Frozen Foods?
NO, do not refreeze frozen foods. Foods that are refrozen can absorb more oil, which
will result in a dry, brittle and tasteless product.
MINIMIZE THE MOISTURE
REDUCE THE COOKING TIME
MAXIMIZE THE PROFIT

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 22 of 49
OIL FACTS
Frying oil is especially formulated to withstand high temperatures. For this reason, you must ensure you are
using the right product. Liquid vegetable shortening is produced by several companies; the oil has an additive
and/or has been formulated to increase the performance during high temperature usage.
DO NOT USE OIL THAT IS RECOMMENDED BOTH FOR SALAD AND FRYING!
Fill the oil vat to the cold line only. The oil expands as it heats and if overfilled, the bottom of the basket will
remain in the oil when in the up/serve position.
How Much to Fry?
• Fill the drawer no higher than the top. Do not overfill the drawer.
• Keep drawer and basket clean and free of breading/batter build up.
• Remove ice crystals or excess water before frying.
• Do not salt or season before frying.
• Remove surplus and/or batter before frying.
• Do not allow frozen food to thaw before frying.
• Drain fried foods before serving.
How Hot is TOO Hot?
Ideal frying temperature range is between 350°F and 360°F (177°C and 182°C). Factory default setting is
350°F (177°C). When frying at too low a temperature, food absorbs more oil which increases oil consumption.
Excessive Oil Usage?
The fried product is absorbing oil. Possible reasons for this include:
• Excess breading or batter, shake off excess before frying.
• Allow basket to drain longer, adjust the drain time.
• Food is being allowed to thaw before frying.
Cleaning Your Fryer?
• Refer to the Cleaning section of this owner’s manual. Remember to clean the basket and drawer daily.
Filtering Your Oil?
The most important procedure you can do is to maintain the oil, extending its life:
• Filter at least once a day, preferably first thing in the morning when the oil is at room temperature.
• Filtering removes all the contaminants from the previous days cooking.
• Clean the oil vat.
Points to Remember:
• Clean the cooking chamber at least once a week and rinse thoroughly.
• Filter oil daily.
• Do not overheat oil.
• Use the standby mode when possible.
• Do not salt product prior to frying.
• Remove ice crystals and moisture before frying.
• Maintain oil level in vat, check to ensure it is at the hot line often.
• The oil is dead when foaming appears continuously on the oil surface
Your oil, product taste, and customers depend on you.

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 23 of 49
OIL FACTS (Continued)
If the oil temperature is set too high, the food will cook on the exterior and the interior will be undercooked.
When the interior is cooked completely, the exterior will be overdone or burnt. The higher temperature will also
cause the oil to break down faster and smoke.
During slow periods, take advantage of the standby mode which allows the oil to cool down to 275°F (135°C),
prolonging the oil life and reducing energy costs while allowing quick recover time when required.
The oil temperature should not be adjusted when cooking different products. Adjust the cooking time instead.
Frozen Foods
Put frozen foods directly into the fryer. DO NOT THAW FROZEN FOODS! Blot excess water from food before
frying. Remove ice crystals that may be at the bottom of the product bag.
OIL AND WATER DO NOT MIX! Water reacts with oil and makes it break down rapidly resulting in darkening,
smoking and foaming (a process called hydrolysis). Excess water in the oil can cause the following problems:
• Unnecessary temperature drop meaning longer cooking times.
• More energy usage to maintain cooking temperature.
• Excessive splattering inside the fryer resulting in a mess to clean up.
• Decreased life of the air filter and the oil.
Refreezing Frozen Foods?
Frozen foods should be fried frozen. Foods that are refrozen can absorb more oil and make your fried foods
taste greasy. Refrozen food forms excessive ice and these ice crystals can bond food pieces together causing
clumping. Remember:
• Always FRY FOOD FROZEN.
• NEVER REFREEZE thawed food.
• REMOVE ice crystals from product before frying.
• DO NOT accept thawed or refrozen product from supplier.
Excessive Foaming?
The main reason for foaming is improper rinsing of oil vat after cleaning:
• To remove soap residue, rinse 3 times with water after cleaning or neutralize with a water and vinegar
solution (1 part white vinegar to 2 parts water).
• Take care of your oil; use standby mode during slow periods. High temperature and oxygen contribute
to oil breakdown. Filter oil and clean vat at least once a day when using heavily breaded products.
Excessive Smoking/Oil Darkening?
• Oil is too hot, check temperature.
• Inadequate filtering, breading or batter build-up in vat causes oil breakdown, giving food a bitter taste.
• Moisture content is too high. Use precooked frozen products only. Remember to remove ice crystals.
Grease Soaked Food?
• Frozen food is being allowed to thaw before frying.
• Oil is in the advanced stages of breakdown, replace immediately.
• Oil temperature is too low, check temperature.
• Product has too much breading or batter, remove excess.

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 24 of 49
OIL FACTS (Continued)
Food Not Browning Properly?
• New oil may not brown the product; check color again after a few basket loads.
• Too much product is in the basket; fill no higher than the fill line.
• Product is not frying long enough, follow manufacturers suggested cooking times.
• Oil temperature is too low, check oil temperature.
• Product is frying in excess foam.
• Oil level is too low, check the oil level.
Premature Oil Breakdown?
• Oil is at full temperature during slow periods, use standby mode.
• Oil is contaminated. Never use wire brushes, copper pads or steel wool for cleaning. Use a hard
bristle brush and filter oil regularly. Rinse with water vinegar solution.
• Also, see section; HOW HOT IS TOO HOT?
Statements used in OIL FACTS section are taken from:
• NAFEM Food Service Industry
• Canola Research Foundation
• Sysco Oil Publication

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 26 of 49
OPERATING INSTRUCTIONS (Continued)
Starting Up
YOU DO THIS LCD PERFECT FRYER DOES THIS
1) Press for ½ second.
HEATING MANUAL
70
ºF
OPEN LID/LOAD FOOD
1) Now in HEATING mode
2) Oil temperature rising to operating
temperature
2) Allow 10 to 15 minutes for oil to
reach operating temperature
(
350ºF or 177ºC).
READY MANUAL
350
ºF
OPEN LID/LOAD FOOD
3) Once operating temperature is
reached, now READY to start
cooking.
Manual Mode
1) Open drawer lid
2) Fill drawer with food product
READY MANUAL
350
ºF
OPEN LID/LOAD FOOD
1) LCD displays OPEN LID/LOAD
FOOD
3) Close drawer lid
READY MANUAL
350
ºF
CLOSE LID
2) Basket lowers into oil
3) LCD displays CLOSE LID
4) Enter cook time and press
ex:
1
1
3
3
0
0
Note: DO NOT OPEN DRAWER LID
OR FRONT PANEL WHEN
PRODUCT IS LOADING
READY MANUAL
1:30
SELECT TIME/START
READY MANUAL
1:30
LOADING
4) LCD displays SELECT
TIME/START
5) Drawer loads food into oil
6) COOKING cycle begins
7) Fryer counts down time remaining
8) Basket raises out of oil
9) Food drains (time adjustable)
10) Fryer “beeps” to let you know that
food is cooked
11) Fryer dumps food into warming
tray
5) Serve food from warming tray
COOKING MANUAL
0:00
12) COOKING cycle is complete
350ºF
350ºF
350ºF

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 27 of 49
OPERATING INSTRUCTIONS (Continued)

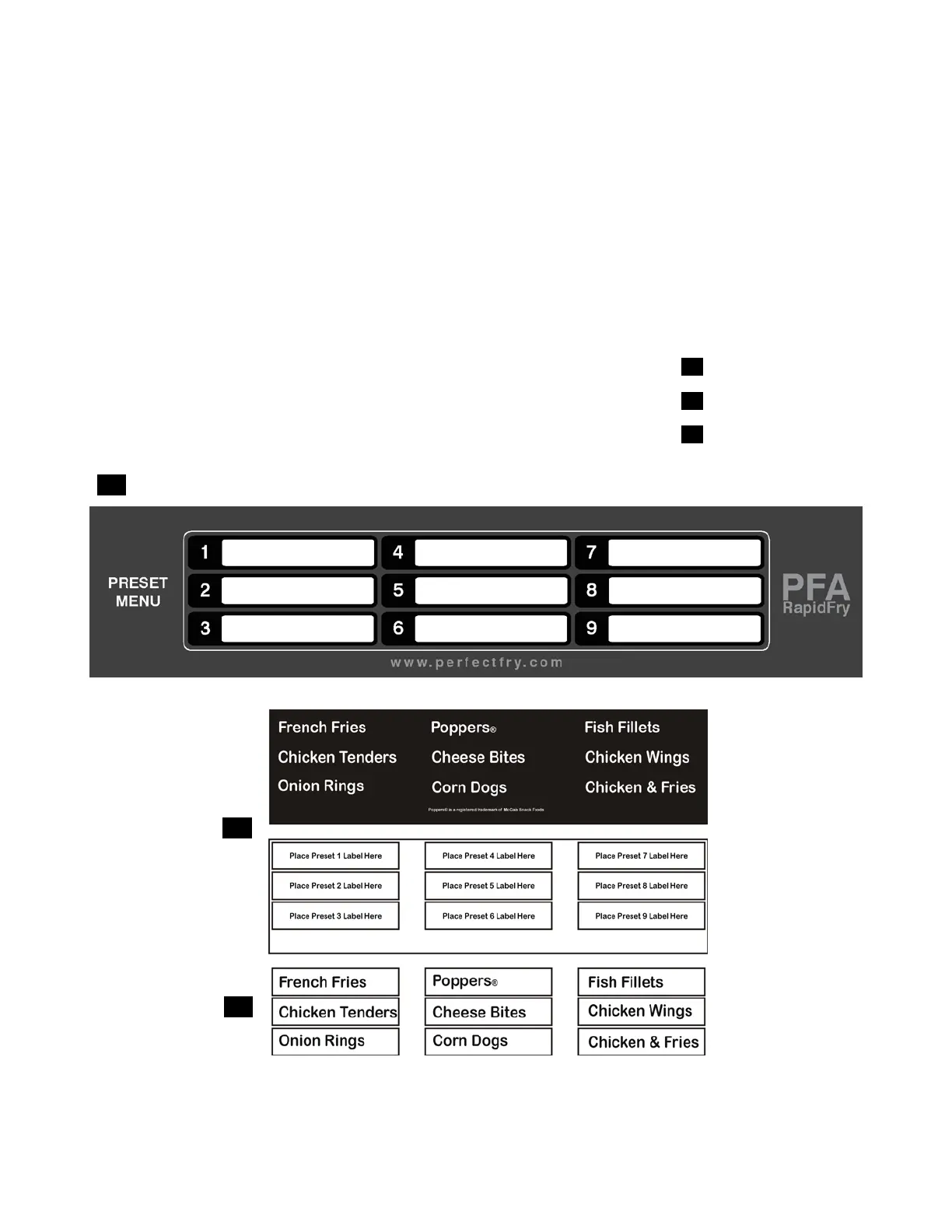

Preset Times
Cooking Times & Names (factory defaults)
Name
Time
Name
Time
Name
Time
1
1
FRENCH FRIES
3:00
4
4
POPPERS
3:00
7
7
FISH FILLETS
4:00
2
2
CHICKEN TENDERS
4:00
5
5
CHEESE BITES
2:00
8
8
CHICKEN WINGS
4:00
3
3
ONION RINGS
2:30
6
6
CORN DOGS
3:00
9
9
CHICKEN & FRIES
4:00
NOTE: Pressing
repetitively will toggle between MANUAL mode, PRESET mode
PRESET LOCKED mode and RAPIDFRY
TM
mode.
NOTE: The default presets are programmed and displayed to show you the PERFECT
FRYER’s capabilities. We recommend that you change the presets to match your
own requirements. Please refer to pages 40 and 41.
Preset Mode
YOU DO THIS
LCD
PERFECT FRYER DOES THIS
1) Open drawer lid
2) Fill drawer with food product
3) Close drawer lid
4) Press
READY PRESET
350
ºF
OPEN LID/LOAD FOOD
1) Now in PRESET mode
2)
LCD displays PRESET
3) Basket lowers into oil
5) Press
1
1
(for example)
Cook cycle starts automatically
Note: You can choose between 9
different presets
Note: DO NOT OPEN DRAWER LID
OR FRONT PANEL WHEN
PRODUCT IS LOADING
COOKING PRESET
3:00
FRENCH FRIES
4) LCD displays FRENCH FRIES
(default is 3:00)
5) Drawer loads food into oil
6) COOKING cycle begins
7) Fryer counts down time remaining
6) Serve food from warming tray
READY MANUAL
350
ºF
OPEN LID/LOAD FOOD
8) Basket raises out of oil
9) Food drains (time adjustable)
10) Fryer “beeps” to let you know that
food is cooked
11) Fryer dumps food into warming
tray
12) COOKING cycle is complete
13) Fryer returns to READY mode
14) Fryer returns to MANUAL mode
350ºF

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 28 of 49
OPERATING INSTRUCTIONS (Continued)
Preset Locked Mode
YOU DO THIS
LCD
PERFECT FRYER DOES THIS
1) Open drawer lid
2) Fill drawer with food product
3) Close drawer lid
4) Press
+
READY PRESET
350
ºF
OPEN LID/LOAD FOOD
1) Now in PRESET LOCK mode
2) PRESET
is displayed on LCD
5) Press
2
2
(for example)
Cook cycle starts automatically
Note: You can choose between 9
different presets
Note: DO NOT OPEN DRAWER LID
OR FRONT PANEL WHEN PRODUCT
IS LOADING
COOKING PRESET
4:00
CHICKEN TENDERS
3) LCD displays CHICKEN
TENDERS (default is 4:00)
4) Drawer loads food into oil
5) COOKING cycle begins.
6) Fryer counts down time remaining
6) Serve food from warming tray
7) Follow steps 1 through 3 and press
desired preset number to cook
another order this way
READY PRESET
350
ºF
OPEN LID/LOAD FOOD
7) COOKING cycle is complete
8) Basket raises out of oil
9) Food drains (time adjustable)
10) Fryer “beeps” to let you know that
food is cooked
11) Fryer dumps food into warming
tray
12) COOKING cycle is complete
Note: Still in PRESET mode
RapidFry
TM
Mode
1) Open drawer lid
2) Fill drawer with food product
3) Close drawer lid
4) Press
3 times
READY RAPIDFRY
350
ºF
OPEN LID/LOAD FOOD
1) Now in RAPIDFRY mode
2) RAPIDFRY is displayed on LCD
5) Press
2
2 (for example)
Cook cycle starts automatically
Note: You can choose between 9
different presets
Note: DO NOT OPEN DRAWER LID
WHEN PRODUCT IS LOADING
COOKING RAPIDFRY
4:00
CHICKEN TENDERS
3) LCD displays CHICKEN
TENDERS (default is 4:00)
4) Drawer loads food into oil
5) COOKING cycle begins.
6) Fryer counts down time remaining
6) Serve food from warming tray
7) Follow steps 1 through 3
Note: If you are using the same preset
repetitively, there is no need to
use the keypad. The movement
of the drawer lid controls the cook
cycle.
COOKING RAPIDFRY
4:00
CHICKEN TENDERS
7) Basket raises out of oil
8) Food drains (time adjustable)
9) Fryer “beeps” to let you know that
food is cooked
10) Fryer dumps food into warming
tray
11) COOKING cycle is complete
8) Press to change the
preset used for RAPIDFRY
9) Press
1
1 (for example)
COOKING RAPIDFRY
3:00
FRENCH FRIES
Note: Still in RAPIDFRY mode and a
new cook cycle time for existing
preset. The existing preset remains
until it is cancelled and changed.
350ºF
350ºF
350ºF
350ºF

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 30 of 49
OPERATING INSTRUCTIONS (Continued)
Dual Load
YOU DO THIS
LCD
PERFECT FRYER DOES THIS
1) Open drawer lid
2) Fill drawer with first food product
(ex: chicken)
3) Close drawer lid
4) Press
READY PRESET
350
ºF
OPEN LID/LOAD FOOD
1) Basket lowers into oil
5) Press
9
9
(for example)
Cook cycle starts automatically
Note: Preset 9 has been programmed
for dual load time (refer to page
40)
Note: DO NOT OPEN DRAWER LID
OR FRONT PANEL WHEN PRODUCT
IS LOADING
COOKING PRESET
4:00
CHICKEN & FRIES
2) LCD displays CHICKEN & FRIES
(default is 4:00 for chicken)
3) LCD displays 2:00DL and WAIT
(default is 2:00 for fries)
4) Drawer loads chicken into oil
5) COOKING cycle begins.
6) Fryer counts down time remaining
COOKING PRESET
3:45
CHICKEN & FRIES
7) LCD displays 2:00DL and LOAD
8) Fryer “beeps” every 10 seconds
to remind you to load second
product (ex: fries).
6) Open drawer lid
7) Fill drawer with second food
product (ex: fries)
8) Close drawer lid
COOKING PRESET
3:30
CHICKEN & FRIES
9) LCD displays 2:00DL and READY
COOKING PRESET
2:00
CHICKEN & FRIES
10) At 2:00 drawer loads fries into oil
11) Time and status of dual load
disappears
9) Serve food from warming tray
READY MANUAL
350
ºF
OPEN LID/LOAD FOOD
12) Basket raises out of oil
13) Food drains (time adjustable)
14) Fryer “beeps” to let you know that
food is cooked
15) Fryer dumps both food products
into warming tray
16) COOKING cycle is complete
DUAL LOAD TIME
works with all the preset modes (regular preset mode, preset locked mode and
RAPIDFRY
TM
mode) and behaves according to the mode. To program a preset DUAL LOAD TIME, please
refer to page 40. Example: for RAPIDFRY
TM
mode, simply opening and closing the drawer lid will display the
time and status for a preloaded cooking cycle.
THE COMBINATION OF BOTH LOADS SHOULD NOT BE GREATER THAN A
DRAWER FULL. ONE DRAWER FULL IS EXACTLY HOW MUCH THE BASKET CAN
ACCEPT.
350ºF
350ºF
2:00DL
WAIT
350ºF
2:00DL
LOAD
350ºF
2:00DL
READY

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 31 of 49
OPERATING INSTRUCTIONS (Continued)
Cooking Time Correction
YOU DO THIS LCD PERFECT FRYER DOES THIS
1) Enter incorrect cooking time
(4:30 instead of 3:30 for example)
2) Press
4
4
3
3
0
0
COOKING MANUAL
4:30
1) Drawer loads food into oil
2) COOKING cycle begins
3) Fryer counts down time remaining
3)
Press
PAUSE MANUAL
4:29
PRESS START/CANCEL
4) COOKING cycle PAUSE
5) Basket raises out of oil
6) LCD displays PRESS
START/CANCEL
4) Press
3
3
3
3
0
0
PAUSE MANUAL
3:30
PRESS START/CANCEL
7) LCD displays new time
8) Basket lowers into oil
9) Fryer counts down new time
remaining
Note: Pressing
instead of
entering a new time will complete the
cook cycle and dump the food product
into the warming tray
READY MANUAL
350
ºF
OPEN LID/LOAD FOOD
Open Drawer Lid – Paused Cook Cycle
1) Open drawer lid during product
loading
READY MANUAL
1:24
CLOSE LID
1) COOKING cycle PAUSE
2) Basket raises out of oil
2) Close drawer lid to continue
cooking cycle
COOKING MANUAL
1:24
3) Brief pause, basket lowers into oil
4) Drawer completes loading product
5) COOKING cycle begins
6) Fryer counts down time remaining
DO NOT OPEN DRAWER LID OR FRONT PANEL WHEN PRODUCT IS LOADING
350ºF
350ºF
350ºF
350ºF
350ºF

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 32 of 49
OPERATING INSTRUCTIONS (Continued)
Standby Mode
SEE THIS LCD
DO THIS
GET THIS LCD
READY MANUAL
350
ºF
OPEN LID/LOAD FOOD
1) Press and together
2) Release both
Note: Temperature will decrease to 275ºF
(to set default standby temperature,
see page 34 for more information)
STANDBY MANUAL
275
ºF
PRESS (ON) TO RESUME
Note: During slow periods, using standby mode reduces energy costs, allows a quick
recovery and minimizes oil breakdown.
Shutting Down
YOU DO THIS LCD PERFECT FRYER DOES THIS
TURN YOUR PERFECT FRY OFF:
• At end of day
• To replace deep fry oil
• To clean
• For other service or maintenance
READY MANUAL
350
ºF
OPEN LID/LOAD FOOD
1) Now in READY mode
1) Press
READY COOLDOWN
350
ºF
OPEN LID/LOAD FOOD
2) Now in COOLDOWN mode
3) No power to heater element
4) Fans continue to cool fryer
5) Fryer counts down temperature
6) LCD backlighting goes off
DO NOT UNPLUG FRYER
Fans must remain ON
during COOLDOWN mode
7) Temperature decreases to
122 ºF (50ºC)
8) Fans stop
9) LCD goes blank
10) Your PERFECT FRYER is off

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 33 of 49
USER DEFINED OPTIONS
CUSTOMIZE YOUR PERFECT FRYER WITH YOUR OWN SETTINGS
• CTS
TM
Cook Time Sensitivity
• Temperature read-out: ºC or ºF
• Preset Cooking Times
•
Cooking Oil Standby Temperature
• Count of Cook Cycles
• Cooking Oil Temperature
• Basket Drain Time
• Sound Volume
• And Much More
MAIN MENU
LANGUAGE
OPERATION OPTIONS
PRESETS
USER COUNTERS
PRESET COUNTERS
<MORE ▼>
▲,
▼
START TO SELECT
PRESET KEY
• Use in combination with
START & CANCEL to
access background menu
CANCEL KEY
• Goes back a screen
• Resets the screen
• Acts like an “escape” key
START KEY
• Goes forward a screen
• Selects an option
•
Acts like an “enter” key
NUMBER KEYS
• Use to enter password
(See page 34)
• Use to enter cook or
standby temperature
• Use to enter preset times
RIGHT ARROW KEY
• Moves menu selection
down
• Toggles character selection
down in making preset
names
LEFT ARROW KEY
• Moves menu selection up
• Toggles character selection
up in making preset names
MAIN MENU SCREEN
• Home screen

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 34 of 49
USER DEFINED OPTIONS (Continued)
Background Menu - Accessing
SEE THIS LCD
DO THIS
GET THIS LCD
READY MANUAL
350
ºF
OPEN LID/LOAD FOOD
1) Press
together
2) Release together
PFC VER.: 6.X.X
FRYER SN# XXXXX
ENTER PASSWORD:
PFC VER.: 6.X.X
FRYER SN# XXXXX
ENTER PASSWORD:
3) Press
4
4
7
7
5
5
0
0
MAIN MENU
LANGUAGE
OPERATION OPTIONS
PRESETS
USER COUNTERS
PRESET COUNTERS
<MORE
▼
>
▲,
▼
START TO SELECT
MAIN MENU
LANGUAGE
OPERATION OPTIONS
PRESETS
USER COUNTERS
PRESET COUNTERS
<MORE
▼
>
▲,
▼
START TO SELECT
4) Scroll down to the desired menu
selection and press
OPERATION OPTIONS
WAIT MODE
STANDBY MODE
PRESET MODE
BUZZER VOLUME 9
KEY VOLUME 4
<MORE
▼
>
▲,
▼
START TO SELECT
CTS
TM
(Cook Time Sensitivity)
• CTS
TM
adjusts cooking time to compensate for the drop in cooking
oil temperature when a basket of product is placed into the fryer.
CTS
TM
increases cooking time to accommodate for differences in
product moisture content, basket-load size, and initial temperature.
• A proper CTS
TM
setting will ensure a high quality product. For
example; 2 lbs of French fries will cook to the same quality as only
6 ounces of French Fries.
• In addition to having a “global” CTS
TM
setting under the Operation
Options menu for manually entered cook cycles, each preset can
be programmed with its own individual setting. This provides for a
lot of flexibility among different food products.
• Some experimenting with the range of 1 to 9 may be required to achieve optimum quality. A
value of 5 is a good place to start and is the default.
• A setting of 0 means no CTS
TM
whatsoever.
Background Menu - Map
LANGUAGE
ENGLISH (factory default)
ESPANOL
FRANCAIS
OPERATION OPTIONS
CTS
5
MELT CYCLE
HOLD TIME
0M
FTS
3
MANUAL DRAWER
<MORE
▼
>
▲,
▼
START TO SELECT
FRENCH FRIES
TIME
: 3:00
TEMPERATURE
: 350ºF
NAME:
FRENCH FRIES
<MORE
▼
>
▲,
▼
START TO SELECT
LANGUAGE
ENGLISH
ESPANOL
FRANCAIS
▲,
▼
START TO SELECT

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 36 of 49
USER DEFINED OPTIONS (Continued)
CTS
TM
COOK TIME SENSITIVITY
Adjusts cooking time to compensate for drop in cooking oil
temperature when basket of product is placed into fryer. Refer to
page 34 for more information.
MELT CYCLE
When , fryer will gradually melt solid blocks of shortening until temperature reaches 212ºF
(100ºC). It is designed to prevent scorching shortening and overheating element.
Press
to cancel and heat regularly. DO NOT CANCEL IF USING SOLID
SHORTENING!
Default is
HOLD TIME
Time elapsed after cook cycle is finished
Allows operator to monitor time since product has finished cooking
“Beeps” and flashes hold time elapsed on LCD
Choose between 0 and 99 minutes
Default is 0 (disabled)
FTS
TM
FOOD TYPE SENSITIVITY
Adjusts cook cycle loading and unloading sequences to compensate for differences among
food products being cooked.
In addition to having a “global” FTS
TM
setting under the Operation Options menu for manually
entered cook cycles, each preset can be programmed with its own individual setting. This
provides for a lot of flexibility among different food products.
Some experimenting with the range of 1 (normal) to 9 (very battered) may be required to
achieve optimum performance. For example, chicken tenders will work well under a setting
of 1 since they don’t tend to stick together. However, battered french fries will need to set to
5 as they tend to stick together when they’re cooked.
3 is the default. Please refer to chart.
MANUAL DRAWER
When , will allow drawer to load during cook cycle simply by pressing
When , will disable RAPIDFRY
TM
2GO
Default is
OPERATION OPTIONS
CTS
5
MELT CYCLE
HOLD TIME
0M
FTS
3
MANUAL DRAWER
<MORE▲>
▲,
▼
START TO SELECT
Table 2 – FTS Values
FTS Value
Basket Start
# of Shakes
# of Unloads
1
In Oil
0
1
2
In Oil
0
2
3
In Oil
1 (15 seconds in)
2
4
In Oil
1 (45 seconds in)
2
5
In Oil
2 (15 & 45 in)
3
6
Drain position
0
1
7
Drain position
0
2
8
Drain position
1 (15 seconds in)
2
9
Drain position
1 (45 seconds in)
2

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 37 of 49
USER DEFINED OPTIONS (Continued)
PRESETS
1: FRENCH FRIES
2: CHICKEN TENDERS
3: ONION RINGS
4: POPPERS
5: CHEESE BITES
6: CORN DOGS
7: FISH FILLETS
8: CHICKEN WINGS
9: CHICKEN & FRIES
Preset properties that can be changed (refer to page 40)
TIME
Cook Cycle Time
TEMP
Cook Cycle Temperature
NAME
Preset Name
CTS
Cook Time Sensitivity (refer to page 34)
FTS
Food Type Sensitivity (see above)
DUAL LOAD TIME
Dual Load Time (refer to page 30)
PRESETS
1: FRENCH FRIES
3:00
2: CHICKEN TENDERS
4:00
3: ONION RINGS
2:30
4: POPPERS
3:00
5: CHEESE BITES
2:00
<MORE
▼
>
▲,
▼
START TO SELECT
PRESETS
6: CORN DOGS
3:00
7: FISH FILLETS
4:00
8: CHICKEN WINGS
4:00
9:
CHICKEN & FRIES 4:00
<MORE ▲>
▲,
▼
START TO SELECT
FRENCH FRIES
TIME:
3:00
TEMP
: 350ºF
NAME:
FRENCH FRIES
<MORE
▼
>
▲,
▼
START TO SELECT
RRRRRRRRR
FRENCH FRIES
CTS:
5
FTS:
3
DUAL LOAD TIME:
0:00
<MORE ▲>
▲,
▼
START TO SELECT

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 38 of 49
USER DEFINED OPTIONS (Continued)
USER COUNTERS
COOK TIME
Accumulated cook cycle time in hours
NUMBER OF CYCLES
Accumulated number of cook cycles
ON TIME
Accumulated on time in hours
RESET ALL
To reset all values to 0
PRESET COUNTERS
NUMBER OF CYCLES
Accumulated number of cook cycles
RESET ALL
To reset all values to 0
TOTAL COUNTERS
COOK TIME
Accumulated cook cycle times in hours, cannot be
reset
NUMBER OF CYCLES
Accumulated number of cook cycles, cannot be reset
ON TIME
Accumulated on time in hours, cannot be reset
USER COUNTERS
COOK TIME:
0HR
NO. CYCLES:
0
ON TIME:
0HR
RESET ALL
▲,
▼
START TO SELECT
PRESET COUNTERS
1: FRENCH FRIES
115
2: CHICKEN TENDERS
230
3: ONION RINGS
138
4: POPPERS
221
5: CHEESE BITES
121
<MORE
▼
>
▲,
▼
START TO SELECT
PRESET COUNTERS
6: CORN DOGS
32
7:
FISH FILLETS 56
8: CHICKEN WINGS
223
9: CHICKEN & FRIES
61
RESET ALL
<MORE ▲>
▲,
▼
START TO SELECT
TOTAL COUNTERS
COOK TIME:
0HR
NO. CYCLES:
0
ON TIME:
0HR
▲,
▼
START TO SELECT

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 40 of 49
USER DEFINED OPTIONS (Continued)
Customizing Presets
SEE THIS LCD DO THIS GET THIS LCD
MAIN MENU
LANGUAGE
OPERATION OPTIONS
PRESETS
USER COUNTERS
PRESET COUNTERS
<MORE
▼
>
▲,
▼
START TO SELECT
10) From main menu, scroll down to
PRESETS using
key
11) Press
PRESETS
1:FRENCH FRIES 3:00
2:CHICKEN TENDERS 4:00
3:ONION RINGS 2:30
4:POPPERS 3:00
5:CHEESE BITES 2:00
<MORE
▼
>
▲,
▼
START TO SELECT
PRESETS
1:FRENCH FRIES 3:00
2:CHICKEN TENDERS 4:00
3:ONION RINGS 2:30
4:POPPERS 3:00
5:CHEESE BITES 2:00
<MORE
▼
>
▲,
▼
START TO SELECT
12) Change PRESET 1’s settings by scrolling
down using the
key
13) Press
FRENCH FRIES
TIME: 3:00
TEMP: 350ºF
NAME:
FRENCH FRIES
<MORE
▼
>
▲,
▼
START TO SELECT
FRENCH FRIES
TIME: 3:00
TEMP: 350ºF
NAME:
FRENCH FRIES
<MORE
▼
>
▲,
▼
START TO SELECT
14) Change PRESET 1’s cook time by
scrolling down using the
key
15) Press
FRENCH FRIES
TIME:
3:00
TEMP: 350ºF
NAME:
FRENCH FRIES
<MORE
▼
>
▲,
▼
START TO SELECT
FRENCH FRIES
TIME:
0:55
TEMP: 350ºF
NAME:
FRENCH FRIES
<MORE
▼
>
▲,
▼
START TO SELECT
16) Set new COOK TIME (ex:: 55 seconds)
17) Press
5
5
5
5
FRENCH FRIES
TIME: 0:55
TEMP: 350ºF
NAME:
FRENCH FRIES
<MORE
▼
>
▲,
▼
START TO SELECT
FRENCH FRIES
TIME: 0:55
TEMP: 350ºF
NAME:
FRENCH FRIES
<MORE
▼
>
▲,
▼
START TO SELECT
18) Change PRESET 1’s name by scrolling
down with the
key
19) Press
(A small cursor appears under
first letter of the name
PRESET 1.)
FRENCH FRIES
TIME: 0:55
TEMP: 350ºF
NAME:
FRENCH FRIES
<MORE
▼
>
▲,
▼
START TO SELECT
FRENCH FRIES
TIME: 0:55
TEMP: 350ºF
NAME:
FRENCH FRIES
<MORE
▼
>
▲,
▼
START TO SELECT
20) To change character above small cursor,
use the
and keys
21) Press
to move forward
22) Press
to move back
FRENCH FRIES
TIME: 0:55
TEMP: 350ºF
NAME:
FRENCH FRIES _
<MORE
▼
>
▲,
▼
START TO SELECT
QUICK FRIES
TIME: 0:55
TEMP: 350ºF
NAME:
QUICK FRIES
<MORE
▼
>
▲,
▼
START TO SELECT
23) To enter your selection, press
after underscore mark ( _ ) appears
24) “QUICK FRIES” will now appear on
bottom left of LCD during PRESET
modes
Note: maximum 20 characters
COOKING PRESET
0:55
QUICK FRIES

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 41 of 49
USER DEFINED OPTIONS (Continued)
Customizing Presets on the Front Label
Used in conjunction with your custom programmed presets (please refer to page 40),
easily identify your own custom presets by using the supplied label page. Simply follow
the steps below:
1) Remove preset slider (default presets are located on front and custom preset label
template is located on back).
2) Choose preprinted labels or create your own label from supplied label sheet.
3) Apply labels to preset slider in proper preset box (up to 9
labels corresponding to 9 programmed presets may be used
on preset slider).
4) Install preset slider under preset menu label by starting from
bottom.
1 Preset Label Menu
2 Preset Slider
3 Preset Labels
2
3
1
Front
Back

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 44 of 49
HELP (Continued)
Trouble-shooting Table
“PROBLEM”
PROBABLE CAUSE
PROBABLE SOLUTION
Won’t turn ON when you
press the
key
1) Not plugged in
2) Circuit breaker or fuse
3) Wiring
1) Plug in fryer
2) Check circuit breaker or replace fuse
3) Make sure PERFECT FRYER is
plugged in according to its electrical
specifications (see page 5)
ON but will not heat
1) Connector on heater module
2) Electronics box module
1) Replace heater module
2) Replace electronics box module
Motors will not move
drawer or basket.
1) Basket not installed properly
2) Front panel/drawer not
installed properly
3) Basket motor not working
4) Drawer motor not working
1) Make sure that the basket is installed
properly (see page 13)
2) Check wiring
3) Replace motor
Outer surface is unusually
hot
1) Dirty grease filter
2) Air filter cartridge plugged
3) Fans not operating
1) Remove and clean grease filter
2) Replace air filter cartridge
3) Check rear of fryer for air flow
Cooking oil spills into spill
tray, excessively
1) Too much oil in vat
2) Too much ice or water in
food
3) Too much food in basket
4) Oil has reached end of its life
5) Drain valve is open
1) Remove some oil (when oil is cold it
should not be above cold oil line inside
vat)
2) Cook only frozen foods recommended
for use in deep fryers; remove excess
ice from food before placing food in
basket
3) Do not fill food above top of basket
4) Change oil
5) Close valve
Food floats out of basket
1) Too much cooking oil in vat.
1) Remove some oil; do not fill above cold
oil line.
Excessive smoking
1) Oil has “broken down”
2) Moisture
1) Replace the cooking oil
2) Too much moisture or ice crystals
Excessive foaming
1) Soap residue
2) Oil has “broken down”
1) Rinse parts with vinegar solution
2) Replace the cooking oil
Food does not come out
1) Too much food was inserted
using a dual load or manual
drawer
2) The basket was not installed
or installed correctly
3) Large volume of heavily
battered product was cooked
1) Only enter the amount of food that totals
one drawer full per cook cycle
2) Make sure that the basket is installed
properly (see page 13)
3) Try adjusting FTS value to 5 (see page
36)
Food does not go in
1) Too much food was inserted
2) Front panel is not closed
properly
3) Drawer shovel was not
installed correctly
1) Do not overfill the drawer
2) Close front panel fully and latch closed
3) Install drawer shovel properly (see page
16)

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 45 of 49
PFS AUTOMATIC EXTINGUISHER
Note: Please refer to the PFS Automatic Extinguisher Installation, Inspection,
Maintenance & Recharge Manual (L20-361) for more detailed information.
1. GENERAL DESCRIPTION
The PFS consists of a cylinder assembly (with
pressure switch and gauge), actuating lever,
fusible link assembly, manual pull station, and
two nozzles. It is designed and acceptable for
use in areas that have ambient conditions
between 32°F (0°C) and 50°C (120°F).
2. OPERATION
Automatic Operation
Upon the detection of a fire, the PFS will
automatically operate. The fusible link rated
at 280ºF (138ºC) will operate when exposed
to the fire and operate the PFS automatic
extinguisher unit. When operated, the PFS
unit will discharge wet chemical agent through
the provided discharge piping and distribution
nozzles.

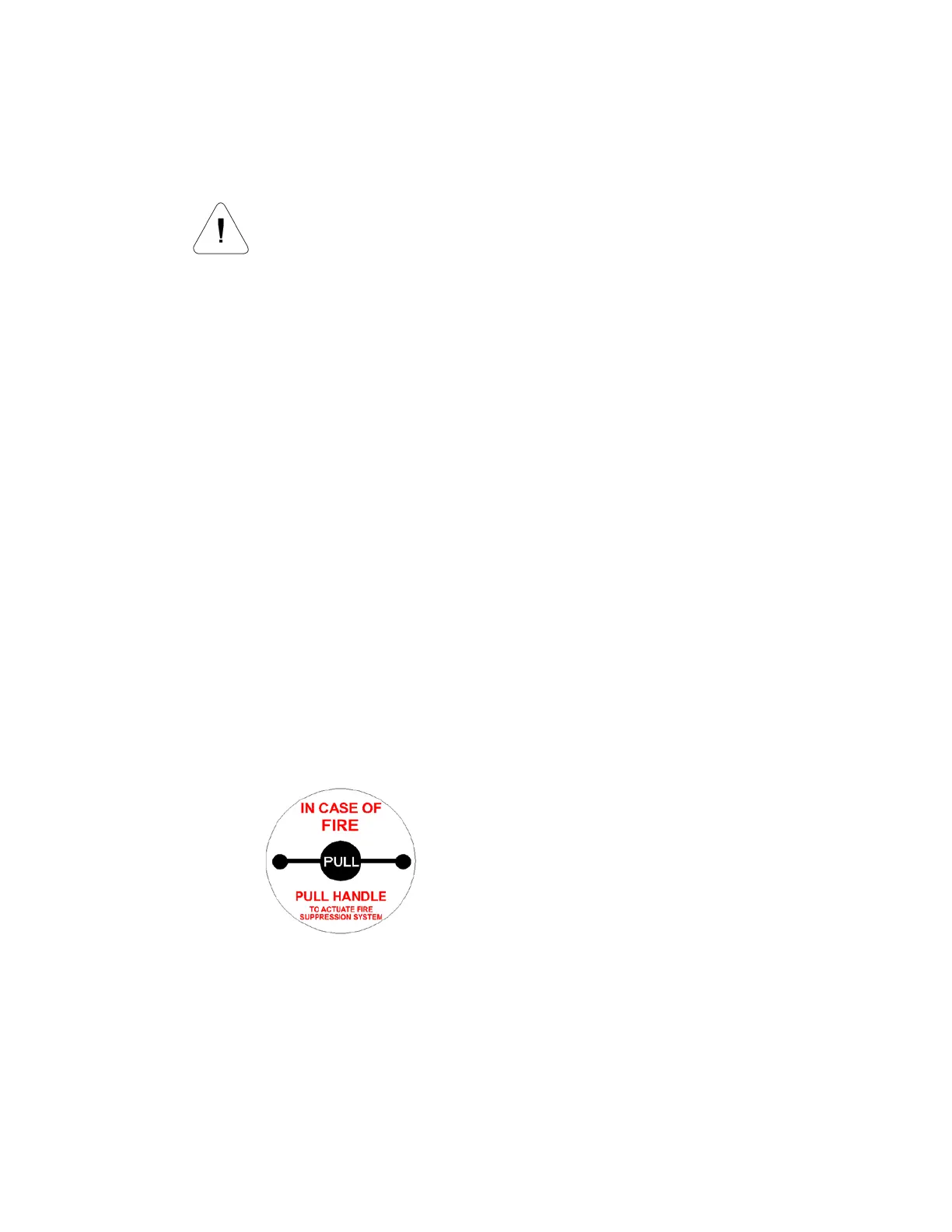

Manual Operation
The PFS unit can also be operated manually
by pulling the remote lever (to be mounted on
the front of the cooking appliance) that is
clearly marked “In Case Of Fire - PULL”.
IMPORTANT:
The manual pull
handle is to be
pulled ONLY IN
CASE OF FIRE in
the PERFECT
FRYER (use
when the
automatic system
has failed).
NOTE: Power shut-off is also achieved by
system operation. If the pressure in the
cylinder(s) drops below 92 psi (6.3 bar), the
pressure switch opens, deactivating the power
relay causing the appliance to de-energize.
3. INSPECTION & MAINTENANCE
The PFS must be serviced on a regular basis.
Three types of servicing are required:
Monthly
An inspection or “quick check” must be
conducted by the owner/operator and include
verification of the following:
1) The PFS is in its proper location.
2) The PFS shows no physical damage or
condition that might prevent operation.
3) The pressure gauge is in the green
operating range.
4) The maintenance tag is in place and is up
to date.
5) The manual pull is unobstructed.
6) The nozzle blow-off caps are intact and
undamaged.
Semi-Annually
The system must be inspected by authorized
service personnel, as per NFPA 17A and
include the following:
1) A check to see that the hazard has not
changed.
2) Examination of the fusible link, cylinder,
tubing, nozzles and all auxiliary equipment.
3) Fusible links must be replaced at least
annually from the date of installation. They
must be destroyed when removed. They
need to be replaced with the proper rated
link (6GT587). A fusible link loaded with
grease or other material can result in an
excessive delay in actuation.
4) Verification that the agent distribution
piping is not obstructed. Remove the blow-
off caps (6GT014) from the nozzles to
ensure that they are free of grease build-up
and inspect them for deterioration.
Replace them as necessary.
The PFS must be stored above 32°F (0°C)

OWNER’S MANUAL FOR ALL PFA MODELS – 7/11/2012
Page 48 of 49
DECLARATION OF CONFORMITY
(FOR CE PERFECT FRYERS ONLY)
Application of Council Directive(s): Low Voltage Directive (93/68/EEC & 72/23/EEC)
EMC Directive (2004/108/EC & 89/336/EEC)
WEEE Directive (2002/96/EC)
RoHS Directive (2002/95/EC)
Standard(s) to which Conformity is Declared: EN 60335-1, EN 60335-2-37
EN 61000-6-1, EN 61000-6-3
Manufacturer’s Name: Perfect Fry Company LLC
Manufacturer’s Address: P.O. Box 501
Concord, NH, USA
03302-0501
Importer’s Name: ________________________________
Importer’s Address: ________________________________
________________________________
Type of Equipment: Commercial Electric Deep Fat Fryer
Model Number: ________________________________
Serial Number: ________________________________
Year of Manufacture: ________________________________
I, the undersigned, hereby declare that the equipment specified above conforms
to the above Directive(s) and Standard(s)
Place: Perfect Fry Company LLC.
Concord, NH, USA
Date: ___/___/___ ________________________________(Signature)
________________________________(Full Name)
________________________________(Position)
Produkt Specifikationer
Mærke: | Perfect Fry |
Kategori: | Frituregryde |
Model: | PFA5700 |
Har du brug for hjælp?
Hvis du har brug for hjælp til Perfect Fry PFA5700 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Frituregryde Perfect Fry Manualer
16 August 2024
15 August 2024
15 August 2024
15 August 2024
14 August 2024
14 August 2024
Frituregryde Manualer
- Khind
- Hamilton Beach
- WestBend
- Eta
- Bestron
- CaterChef
- Tower
- Roller Grill
- BEKO
- Rival
- Casselin
- Baccarat
- Buffalo
- Ariete
- Comfee
Nyeste Frituregryde Manualer
12 Marts 2025
12 Marts 2025
10 Marts 2025
10 Marts 2025
10 Marts 2025
10 Marts 2025
10 Marts 2025
10 Marts 2025
5 Marts 2025
19 Februar 2025
