Installation & Operation Manual
Commercial Back Bar
• Remote & Self-Contained Standard height and low height Models BBR, BBS,
BBRLP & BBSLP Series
• Remote & Self-Contained Narrow Door Models BBRN & BBRSN Series
• Remote & Self-Contained Pass Thru Models PTR & PTS Series
• Remote & Self-Contained Sliding Door Models SDB & SDP Series
• Self-Contained Dual-Zone DZS Series Concessionaire
• Direct Draw DDC & DDS Series
Form No. Z2604
Rev A 11.24.2020

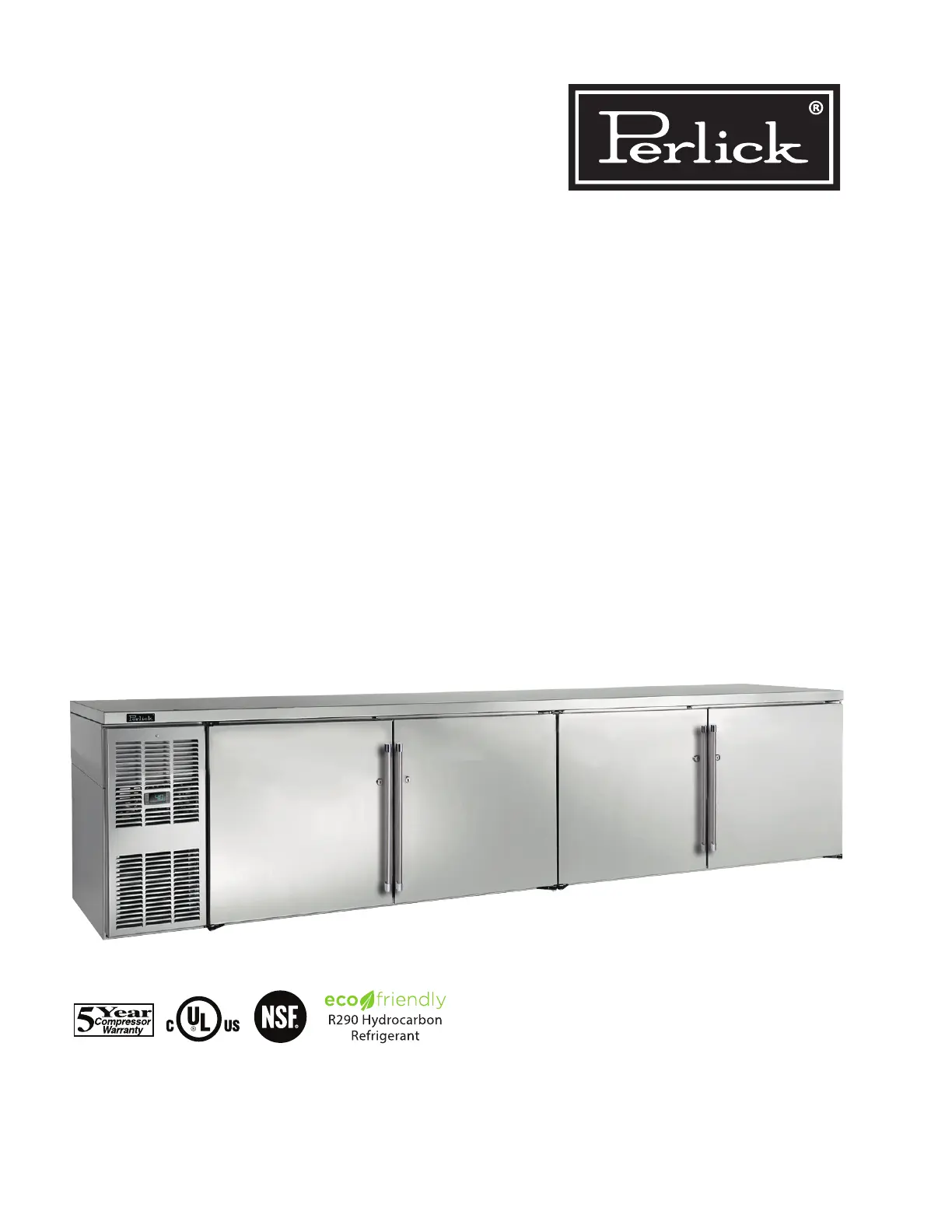

Model BBSLP108 Shown
Commercial Back B Installation & Operation Manualar
Form No. Z2604
Rev A 11.24.2020
PRIOR TO INSTALLATION
Uncrating and Inspection
Remove all crating material. Carefully inspect
cabinet for hidden damage. If damage is
discovered, le your claim immediately with the
transport company. Perlick is not responsible for
damage in transit.
W GARNIN
Ta k e c a u t i o n w h e n
handling, moving and
using the product to avoid damaging the
refrigerant tubing or increasing the risk of a
leak.
DANGER
All service work shall be
p erf o r med b y fact o ry
authorized service personnel and all
component parts shall be replaced with like
components to minimize the risk of possible
ignition due to incorrect parts or improper
service.
CAU NTIO
If service is necessary,
repair work mu st be
performed by a Perlick authorized servicer.
Work done by unqualied individuals could
potentially be dangerous and will void the
warranty.
CAU NTIO
Do not cut cardboard
sleeve covering the unit.
Cutting may result in damage to the exterior
of the cabinet. Failure to follow this procedure
may damage the compressor and void
warranty.
1. Uncrate the unit on at, level surface. Remove
the cardboard sleeve by removing the banding
securing the sleeve to the shipping base.
Carefully lift the cardboard sleeve up over the
top of the unit.
2. Carefully lift unit o󰀨 the base and onto a hand
truck or dolly. Make sure unit is balanced
on transporting device using soft, exible
strapping. Protect unit surfaces with cloth
material where strapping contacts unit.
CAU NTIO
Do not lift unit by drawer,
shelving or door handles
or damage to the unit could occur.
W GARNIN
To prevent personal injury,
two people minimum
required to lift the unit. Larger units may
require additional personnel.
3. Before moving unit, secure door(s) to unit with
tape to prevent from opening.
4. Carefully move unit to installation site and
place in front of opening.
CAU NTIO
Finished ooring should
b e p r o t e c t e d w i t h
appropriate material to avoid damage from
moving the unit.
Plumbing
CAU NTIO
Do not over-tighten drain
tting or damage to the
threads could occur.
Plumbing
Self-Contained
Condensate from the cooling coil is automatically
evaporated from the condensate pan located in
the condensing unit housing on self-contained
models.
Self-Contained & Remote
Each unit is equipped with a oor drain located
in the right rear corner of the cabinet. The drain
can be plumbed to an external oor drain by
connecting to the 3/4” NPT thread connection on
the side, or the 1” NPS thread connection out the
bottom, of the unit. Both drain ports come plugged
from the factory and can be removed if needed.
Remotes
Dispensing head drainers should be plumbed to
a dump tank or oor drain. Always rinse drainer
with su󰀩cient amounts of water daily to prevent
drain from clogging.
Remote evaporator condensate plumbing should
be routed out on of the cabinet side access holes
or to one of the oor drains and should always
be sloped to the drain with no rise to prevent
drainage. A trap should be used, however, trap
peak must be below condensate drain pan nipple.
Electrical
The cabinet must be connected to a separately
fused power source (see Electrical Specication
Plate a󰀩xed to unit) in accordance with National
and Local electrical codes.
Self-contained Perlick units come equipped with
a NEMA 5-15P 90° plug with an 8’ cord extending
beyond the rear of the cabinet. The electrical
outlet must be ush with, or recessed into, the
wall surface.
NOTE: Never use an extension cord to extend the
power cord to the electrical receptacle.
