Philips 49BDL2105X Manual

Philips Skærm 49BDL2105X

Læs gratis den danske manual til Philips 49BDL2105X (53 sider) i kategorien Skærm. Denne vejledning er vurderet som hjælpsom af 3 personer og har en gennemsnitlig bedømmelse på 4.4 stjerner ud af 2 anmeldelser. Har du et spørgsmål om Philips 49BDL2105X, eller vil du spørge andre brugere om produktet?

Download PDF

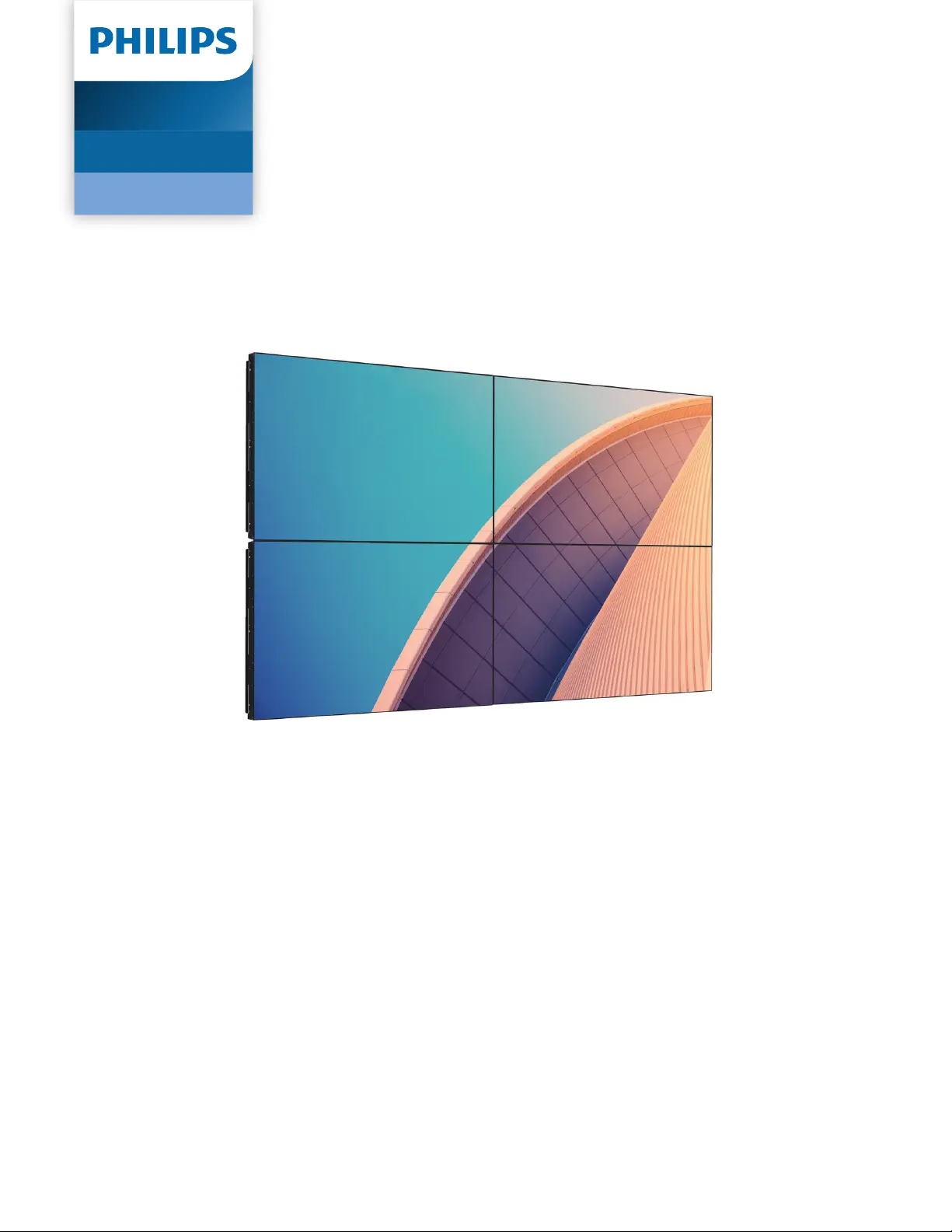

Side 1/53

Professional

Display Solutions

X Line

49BDL2105X

55BDL2105X

User Manual (English)

www.philips.com/ppds

49BDL2105X/55BDL2105X

Table Of Contents

1. Safety Instructions ......................................................... 1

2. Unpacking and Installation .......................................10

2.1. Unpacking ..........................................................10

2.2. Package Contents .............................................12

2.3. Installation Notes .............................................12

2.4. Mounting on a Wall ........................................13

2.4.1. VESA Grid .............................................13

2.5. Mounting in Portrait Orientation ...............14

2.6. Operating Instructions of Edge Alignment

Kit ..........................................................................15

2.6.1. Installing the Edge Alignment Kit .15

2.7. Using the Edge Finishing Kit (Optional) .... 16

2.8. Using the gap pad ........................................... 17

3. Parts and Functions .....................................................18

3.1. Control Panel ..................................................... 18

3.2. Input/Output Terminals ................................. 20

3.3. Remote Control.................................................22

3.3.1. General functions ...............................22

3.3.2. ID Remote Control .............................23

3.3.3. Inserting the batteries in the remote

control ...................................................24

3.3.4. Handling the remote control ..........24

3.3.5. Operating range of the remote

control ...................................................24

4. Connecting External Equipment .............................25

4.1. Connecting External Equipment

(Multimedia Player) .........................................25

4.1.1. Using HDMI video input ...................25

4.2. Connecting a PC ................................................25

4.2.1. Using VGA input ................................. 25

4.2.2. Using DVI input ...................................25

4.2.3. Using HDMI input ..............................26

4.2.4. Using DisplayPort input ....................26

4.3. Connecting Audio Equipment......................26

4.3.1. Connecting an external audio

device .....................................................26

4.4. Connecting Multiple Displays in a Daisy-

chain Conguration ........................................27

4.4.1. Display control connection..............27

4.4.2. Digital video connection ..................27

4.5. IR connection .....................................................29

5. Operation .......................................................................30

5.1. Watch the Connected Video Source ...........30

5.2. Change Picture Format ................................... 30

6. OSD Menu ......................................................................30

6.1. Navigating the OSD Menu ...........................30

6.1.1. Navigating the OSD menu using the

remote control .................................... 30

6.1.2. Navigating the OSD menu using the

display’s control buttons .................. 30

6.2. OSD Menu Overview .......................................30

6.2.1. Picture menu .......................................30

6.2.2. Screen menu ........................................31

6.2.3. Audio menu ......................................... 32

6.2.4. PIP menu ............................................... 33

6.2.5. Conguration 1 menu ......................34

6.2.6. Conguration 2 menu ......................35

6.2.7. Advanced option menu ...................36

7. Input Mode ....................................................................40

8. Pixel Defect Policy ........................................................42

8.1. Pixels and Sub-Pixels ........................................42

8.2. Types of Pixel Defects + Dot Denition ......42

8.3. Bright Dot Defects ............................................42

8.4. Dark Dot Defects ..............................................43

8.5. Proximity of Pixel Defects ..............................43

8.6. Pixel Defect Tolerances ...................................43

8.7. MURA ...................................................................43

9. Cleaning and Troubleshooting ................................44

9.1. Cleaning ..............................................................44

9.2. Troubleshooting ...............................................45

10. Technical Specications ..............................................46

Warranty policy for Philips Professional Display

Solutions .........................................................................48

Index ..........................................................................................50

Produkt Specifikationer

Mærke:	Philips
Kategori:	Skærm
Model:	49BDL2105X
Bredde:	1077.6 mm
Dybde:	93.3 mm
Højde:	607.8 mm
Vægt:	21700 g
Produktfarve:	Sort
Skærm diagonal:	49 "
Skærmopløsning:	1920 x 1080 pixel
USB-port:	Ja
HD-type:	Fuld HD
Skærmteknologi:	IPS
Naturligt aspektforhold:	16:9
Skærmens lysstyrke:	500 cd/m²
Responstid:	8 ms
Synsvinkel, horisontal:	178 °
Synsvinkel, vertikal:	178 °
Skærm diagonal (metrisk):	123 cm
LED-baggrundsbelysning type:	Direct-LED
Indbyggede højttaler(e):	Ja
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 95 %
Udgangseffekt (RMS):	20 W
Antal HDMI-porte:	2
DVI-port:	Ja
Ethernet LAN-porte (RJ-45):	2
Ethernet LAN:	Ja
OSD-sprog:	ARA, CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, POL, RUS, TUR
VESA montering:	Ja
Panel montering grænseflade:	400 x 400 mm
Strømforbrug (standby):	0.5 W
Strømforbrug (typisk):	100 W
Driftstemperatur (T-T):	0 - 40 °C
Kabler inkluderet:	DisplayPort, AC, IR sensor, LAN (RJ-45)
Batterier inkluderet:	Ja
Fjernbetjening inkluderet:	Ja
Certificering:	CE\nFCC Class A\nRestriction of Hazardous Substances (ROHS)\nCB\nETL\nBSMI
Monteringstype:	Væg
Antal indbyggede højttalere:	2
USB version:	2.0
Understøttet placering:	Indendørs
Antal USB-porte:	1
Vis antal farver:	1,07 milliarder farver
Lyd (L, R) indgang:	1
Kontrastforhold (typisk):	1100:1
Kontrastforhold (dynamisk):	500000:1
Pixel pitch:	0.55926 x 0.55926 mm
HDMI-version:	2.0
Antal DisplayPorts:	2
USB-stik type:	USB Type-A
Lyd (L, R) udgang:	1
Gennemsnitstid mellem fejl (MTBF):	50000 t
VGA (D-Sub) indgangsporte:	1
Fjernbetjening (IR) indgang:	1
Fjernbetjening (IR) udgang:	1
Driftstimer (timer/dage):	24/7
Antal HDMI-indgangsporte:	2
Antal DVI-D-porte:	1
Orientering:	Horisontal/vertikal
DisplayPorts indgang:	1
DisplayPorts udgang:	1
OPS modul slot:	Ja
Gennemsigtighed:	3 %
