Philips 86BDL3511Q Manual

Philips Skærm 86BDL3511Q

Læs gratis den danske manual til Philips 86BDL3511Q (47 sider) i kategorien Skærm. Denne vejledning er vurderet som hjælpsom af 13 personer og har en gennemsnitlig bedømmelse på 4.9 stjerner ud af 7 anmeldelser. Har du et spørgsmål om Philips 86BDL3511Q, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/47

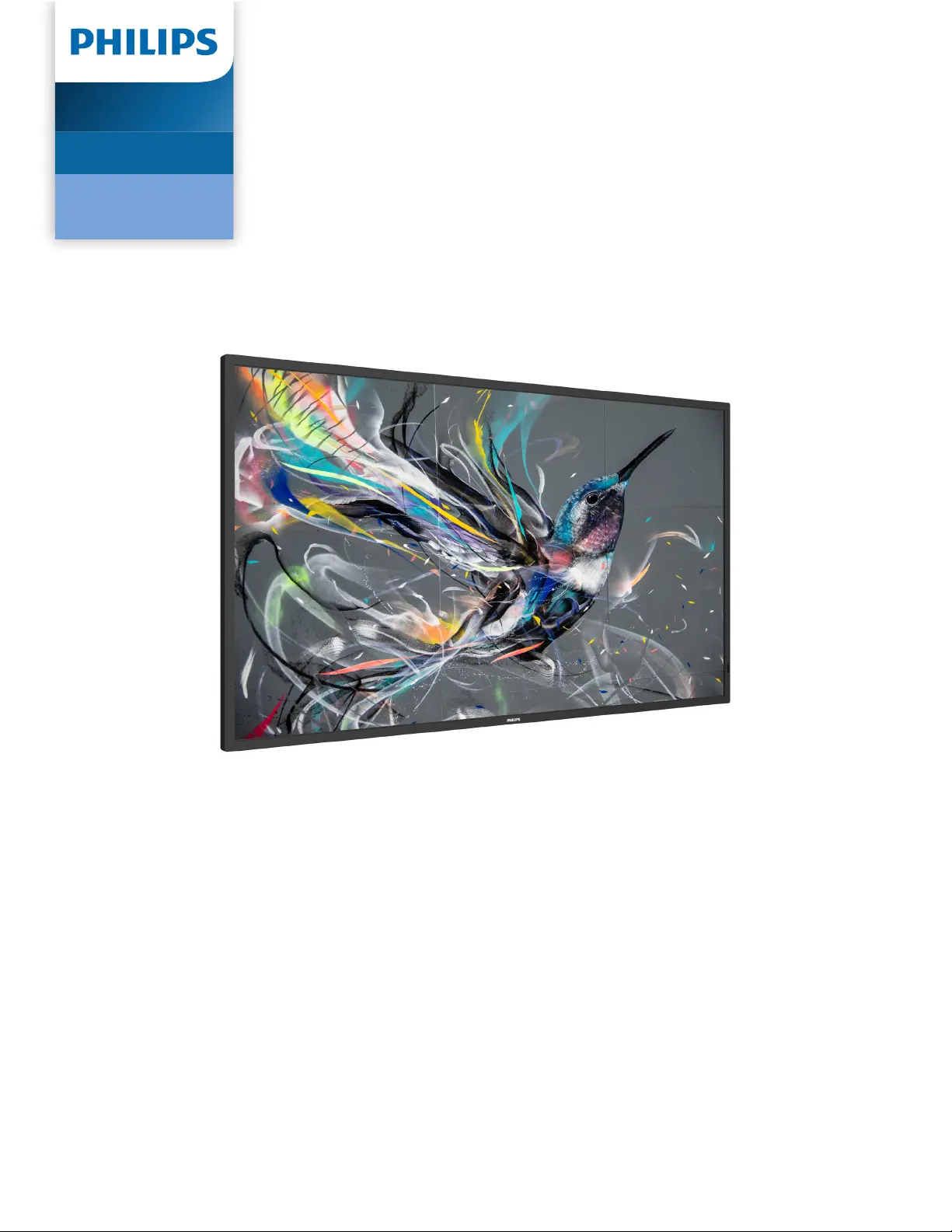

User Manual (English)

www.philips.com/welcome

Professional

Display Solutions

Q Line

65BDL3511Q

75BDL3511Q

86BDL3511Q

65BDL3511Q/75BDL3511Q/86BDL3511Q

Table Of Contents

1. Safety Instructions ......................................................... 1

2. Unpacking and Installation .......................................10

2.1. Unpacking ..........................................................10

2.2. Package Contents .............................................12

2.3. Installation Notes .............................................12

2.4. Mounting on a Wall ........................................13

2.4.1. VESA Grid .............................................13

2.5. Mounting in Portrait Orientation ...............14

2.5.1. How to remove the logo .................. 14

3. Parts and Functions .....................................................15

3.1. Control Panel ..................................................... 15

3.2. Input/Output Terminals ................................. 16

3.3. Remote Control.................................................17

3.3.1. General functions ...............................17

3.3.2. ID Remote Control .............................18

3.3.3. Inserting the batteries in the remote

control ...................................................19

3.3.4. Handling the remote control ..........19

3.3.5. Operating range of the remote

control ...................................................19

3.4. USB Cover ...........................................................20

3.5. AC Switch Cover ................................................21

4. Connecting External Equipment .............................22

4.1. Connecting External Equipment (DVD/VCR/

VCD) ......................................................................22

4.1.1. Using HDMI video input ...................22

4.2. Connecting a PC ................................................22

4.2.1. Using DVI input ...................................22

4.2.2. Using HDMI input ..............................22

4.3. Connecting Multiple Displays in a Daisy-

chain Conguration ........................................23

4.3.1. Display control connection..............23

4.4. IR connection .....................................................23

4.5. IR Pass-through Connection ..........................23

4.6. Wire-connecting to Network ........................24

5. Operation .......................................................................25

5.1. Play multimedia les from USB device .......25

6. OSD Menu ......................................................................26

6.1. Navigating the OSD Menu ............................26

6.1.1. Navigating the OSD menu using the

remote control .................................... 26

6.1.2. Navigating the OSD menu using the

display’s control buttons .................. 26

6.2. OSD Menu Overview .......................................26

6.2.1. Picture menu .......................................26

6.2.2. Screen menu ........................................27

6.2.3. Audio menu ......................................... 28

6.2.4. Tiling menu .......................................... 28

6.2.5. Network menu .................................... 29

6.2.6. Conguration menu ..........................29

6.2.7. Option menu .......................................30

7. Supported Media Formats .........................................34

8. Input Mode ....................................................................35

9. Pixel Defect Policy ........................................................36

9.1. Pixels and Sub-Pixels ........................................36

9.2. Types of Pixel Defects + Dot Denition ......36

9.3. Bright Dot Defects ............................................36

9.4. Dark Dot Defects ..............................................37

9.5. Proximity of Pixel Defects ..............................37

9.6. Pixel Defect Tolerances ...................................37

9.7. MURA ...................................................................37

10. Cleaning and Troubleshooting ................................38

10.1. Cleaning ..............................................................38

10.2. Troubleshooting ...............................................39

11. Technical Specications ..............................................40

Warranty policy for Philips Professional Display

Solutions .........................................................................42

Index ..........................................................................................44

Produkt Specifikationer

Mærke:	Philips
Kategori:	Skærm
Model:	86BDL3511Q
Vekselstrømsindgangsspænding:	100–240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Produktfarve:	Sort
Skærm diagonal:	86 "
Skærmopløsning:	3840 x 2160 pixel
Berøringsskærm:	Ingen
USB-port:	Ja
HD-type:	4K Ultra HD
Skærmteknologi:	IPS
Naturligt aspektforhold:	16:9
Skærmens lysstyrke:	400 cd/m²
Responstid:	8 ms
Synsvinkel, horisontal:	178 °
Synsvinkel, vertikal:	178 °
Skærm diagonal (metrisk):	217.4 cm
Indbyggede højttaler(e):	Ja
Opbevaringstemperatur (T-T):	-20 - 60 °C
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 95 %
Udgangseffekt (RMS):	10 W
Antal HDMI-porte:	3
DVI-port:	Ja
Ethernet LAN-porte (RJ-45):	1
Ethernet LAN:	Ja
Skærmvisning (OSD):	Ja
Antal OSD sprog:	12
OSD-sprog:	ARA, CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, POL, RUS, TUR
Understøttede videoformater:	H.264, M-JPEG, WMV3
Understøttede lydformater:	AAC, HE-AAC, WMA
VESA montering:	Ja
Panel montering grænseflade:	600 x 400 mm
Strømforbrug (standby):	0.5 W
Strømforbrug (typisk):	360 W
Driftstemperatur (T-T):	0 - 40 °C
Kabler inkluderet:	AC, RS-232
Understøttede billedformater:	BMP, JPEG, PNG
Energiforbrug (SDR) pr. 1000 timer:	355 kWh
Certificering:	CEosd\nFCC, Class A\nCB\nBSMI\nVCCI\nCU\nETL\nEMF\nPSB
Energieffektivitetsklasse (SDR):	G
Energieffektivitetsskala:	A til G
Harmoniseret systemkode (HS):	85285210
Antal indbyggede højttalere:	2
USB version:	2.0
Understøttet placering:	Indendørs
Antal USB-porte:	2
Formål:	Universel
Vis antal farver:	1,07 milliarder farver
Kontrastforhold (typisk):	1200:1
Kontrastforhold (dynamisk):	500000:1
Pixel pitch:	0.4935 x 0.4935 mm
HDMI-version:	2.0
Infrarød dataport:	Ja
Produktdesign:	Digital fladpaneldisplay
Antal DVI-I-porte:	1
RS-232C:	Ja
Facet bredde (øverste):	15.5 mm
OPS modul slot:	Ja
Skærmbredde:	1929 mm
Skærm, dybde:	69.5 mm
Skærm, højde:	1100 mm
Skærm, vægt:	49500 g
