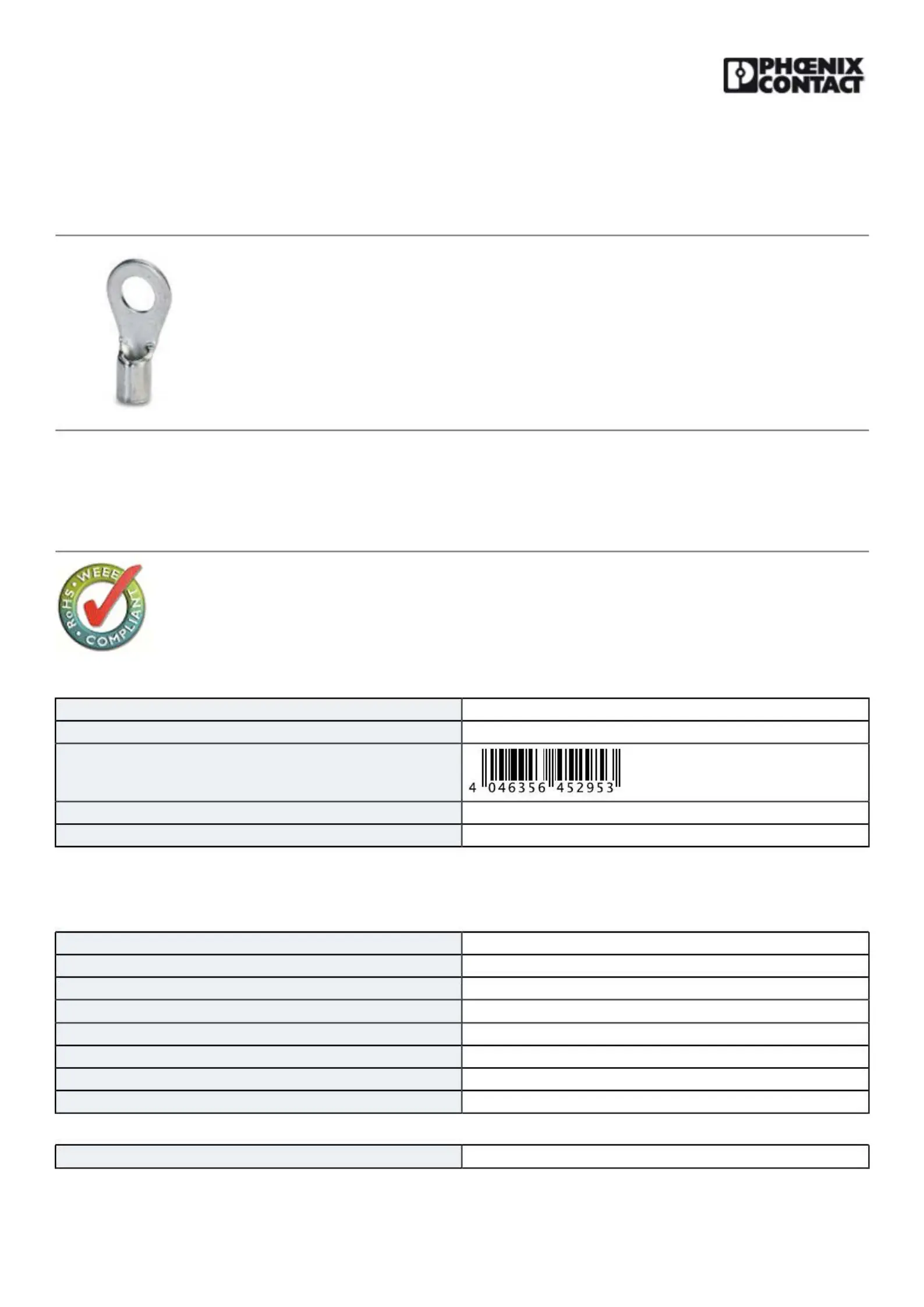

Ring cable lug-C-RC 2,5/M4 DIN-3240078

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Ring cable lug, non-insulated, 1.1 ... 2.5 mm², M4

Why buy this product

■

The CRIMPFOX-RC... tools from our CRIMPFOX range of crimping pliers are available for optimum crimping

■

The hard-soldered press zone enables maximum conductor pull-out values to be achieved

■

The ring cable lugs without plastic sleeve are made from high-quality tin-plated electrolytic copper for maximum protection against corrosion

Key Commercial Data

Packing unit 100 STK

Minimum order quantity 100 STK

GTIN

Weight per Piece (excluding packing) 0.73 g

Country of origin China

Technical data

Dimensions

Length (b) 16 mm

Width (a) 8 mm

Maximum stripping length 8 mm

Length of insulation sleeve (c) 5 mm

Inner dimension of the insulating collar (d) 2.3 mm

Distance between the center and the insulation sleeve (e) 7 mm

Inner diameter (f) 4.3 mm

Material thickness (g) 0.8 mm

Ambient conditions

Ambient temperature (operation) 110 °C

https://www.phoenixcontact.com/gb/products/3240078

06/29/2016Page2/3

Ring cable lug-C-RC 2,5/M4 DIN-3240078

Technical data

General

Color silver

Stripping length 8 mm

Material Copper

Coating Tin-plated

Drawings

Dimensional drawing

Classifications

eCl@ss

eCl@ss 4.0 27060701

eCl@ss 4.1 27060701

eCl@ss 5.0 27400201

eCl@ss 5.1 27400201

eCl@ss 6.0 27400201

eCl@ss 7.0 27400201

eCl@ss 8.0 27400204

eCl@ss 9.0 27400204

ETIM

ETIM 2.0 EC000005

ETIM 3.0 EC000005

ETIM 4.0 EC001052

ETIM 5.0 EC001052

UNSPSC

UNSPSC 6.01 30211923

UNSPSC 7.0901 27121703

UNSPSC 11 27121703

UNSPSC 12.01 27121703

UNSPSC 13.2 27121703

Produkt Specifikationer

Mærke:	Phoenix
Kategori:	Ikke kategoriseret
Model:	3240078
Højde:	16 mm
Vægt:	0.73 g
Antal pr. pakke:	100 stk
Produktfarve:	Sølv
Materiale:	Kobber
Stikforbindelse kontakter plettering:	Tin
Afisoleringslængde:	8 mm
Maksimal kabelsektion:	2.5 mm²
Minimum kabelsektion:	1.1 mm²
