2-DIN 12.301170-11
* Mount the plates.
Use this hole
Use this hole
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 10 & 12 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 2 marked with a cross.
Use position 8 & 10 marked with an arrow
Measured from left to right.
Installation kit includes the following items:
* 1X 2-ISO 100 mm. metal bracket
* 1X Radio trim
* 1X Replacement panel
* 2X Mounting plates
* 2X Mounting spacers
* 2X Radio removal keys
* 4X Screws
Installation manual for:

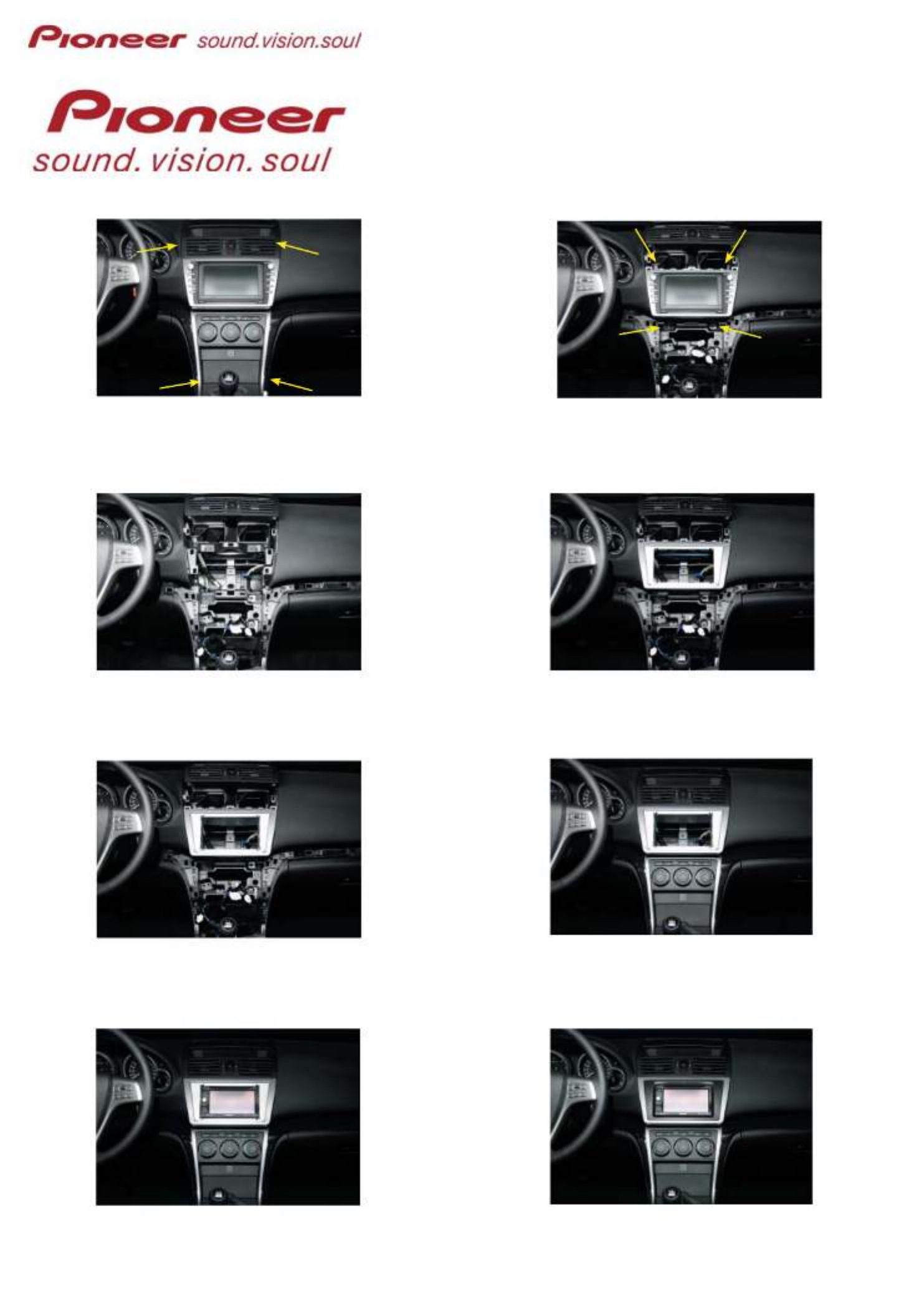

Mazda 6 2008-->
Remove the surrounding around the
gear leveler.
Remove the air shafts above the OEM
radio.
Remove the original radio.
This is thighten by four screws
Connect all of the needed wiring harnesses and check the connections carefully.
1 2
3
Place the replacement panel
4
Place the metal bracket
5
2-DIN 12.301170-11
6
7
Place the oem panels back in reverse
order.
Place the new headunit
8
Place the radiotrim.
