A-70-K/-S
A-50-K/-S
Integrated Amplifier | Amplificateur Intégré |
Eingebauter Verstärker | Amplificatore Integrato |
Geïntegreerde versterker | Amplificador integrado |
Operating Instructions | Mode d’emploi | Bedienungsanleitung |
Istruzioni per I’uso | Handleiding | Manual de instrucciones |
Инструкции по эксплуатации
ME06
Интегральный усилитель
A70_SYXE8.book 1 ページ 2012年7月27日 金曜日 午後6時53分

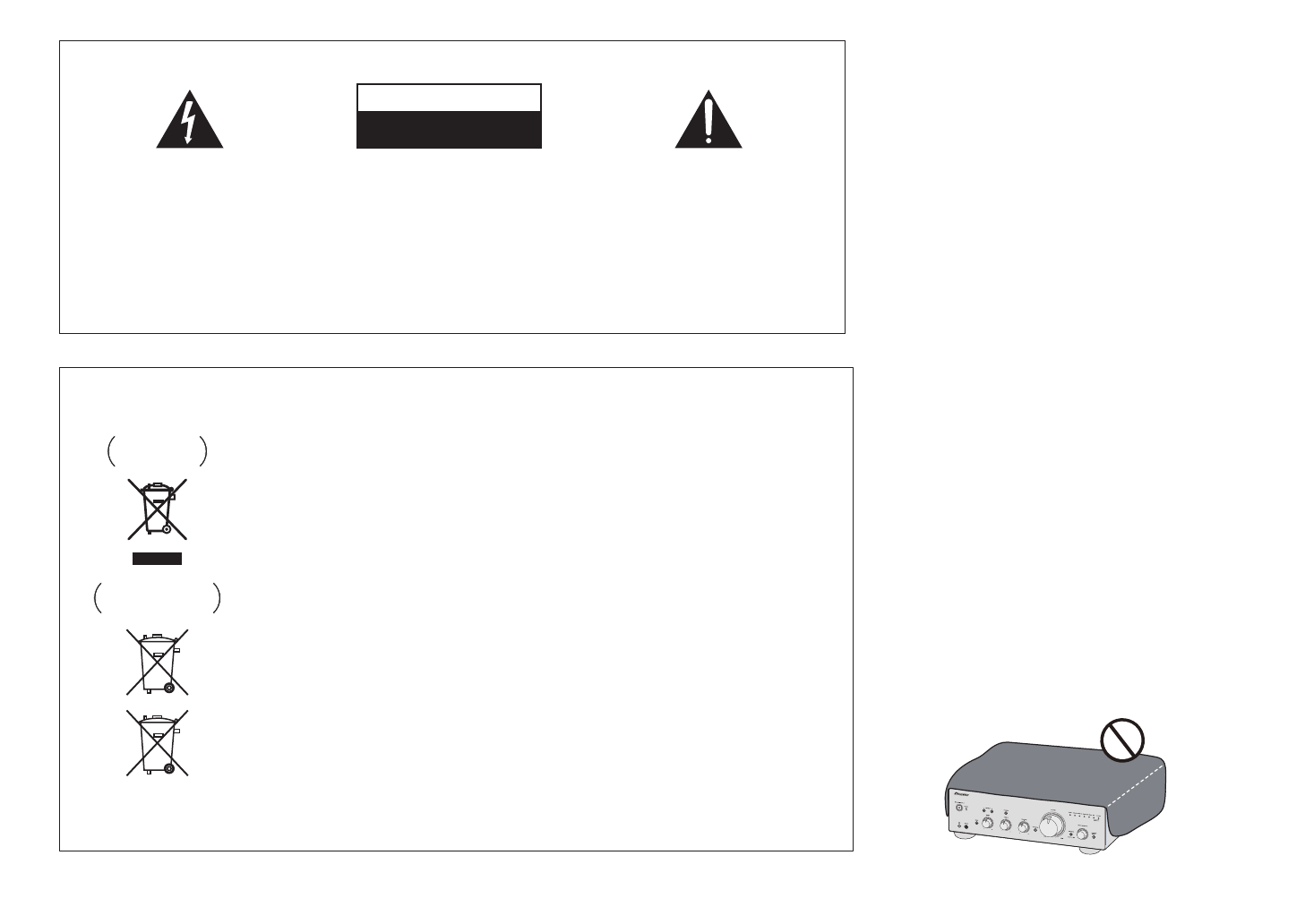

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT
D3-4-2-1-1_A1_En
WARNING
This equipment is not waterproof. To prevent a fire or
shock hazard, do not place any container filled with
liquid near this equipment (such as a vase or flower
pot) or expose it to dripping, splashing, rain or
moisture.
D3-4-2-1-3_A1_En
WARNING
Before plugging in for the first time, read the following
section carefully.
The voltage of the available power supply differs
according to country or region. Be sure that the
power supply voltage of the area where this unit
will be used meets the required voltage (e.g., 230 V
or 120 V) written on the rear panel.
D3-4-2-1-4*_A1_En
WARNING
To prevent a fire hazard, do not place any naked flame
sources (such as a lighted candle) on the equipment.
D3-4-2-1-7a_A1_En
VENTILATION CAUTION
When installing this unit, make sure to leave space
around the unit for ventilation to improve heat radiation
(at least 30 cm at top, 10 cm at rear, and 10 cm at each
side).
WARNING
Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the product,
and to protect it from overheating. To prevent fire
hazard, the openings should never be blocked or
covered with items (such as newspapers, table-cloths,
curtains) or by operating the equipment on thick carpet
or a bed.
D3-4-2-1-7b*_A1_En
Information for users on collection and disposal of old equipment and used batteries
These symbols on the products, packaging, and/or accompanying documents mean
that used electrical and electronic products and batteries should not be mixed with
general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points in accordance with your national
legislation.
By disposing of these products and batteries correctly, you will help to save valuable
resources and prevent any potential negative effects on human health and the
environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries,
please contact your local municipality, your waste disposal service or the point of sale
where you purchased the items.
These symbols are only valid in the European Union.
For countries outside the European Union:
If you wish to discard these items, please contact your local authorities or dealer and
ask for the correct method of disposal.
K058a_A1_En
Symbol examples
for batteries
Symbol for
equipment
Pb
A70_SYXE8.book 2 ページ 2012年7月27日 金曜日 午後6時53分

3
If the AC plug of this unit does not match the AC
outlet you want to use, the plug must be removed
and appropriate one fitted. Replacement and
mounting of an AC plug on the power supply cord of
this unit should be performed only by qualified
service personnel. If connected to an AC outlet, the
cut-off plug can cause severe electrical shock. Make
sure it is properly disposed of after removal.
The equipment should be disconnected by removing
the mains plug from the wall socket when left unused
for a long period of time (for example, when on
vacation).
D3-4-2-2-1a_A1_En
CAUTION
The /I STANDBY/ON switch on this unit will not
completely shut off all power from the AC outlet.
Since the power cord serves as the main disconnect
device for the unit, you will need to unplug it from the
AC outlet to shut down all power. Therefore, make
sure the unit has been installed so that the power
cord can be easily unplugged from the AC outlet in
case of an accident. To avoid fire hazard, the power
cord should also be unplugged from the AC outlet
when left unused for a long period of time (for
example, when on vacation).
D3-4-2-2-2a*_A1_En
Operating Environment
Operating environment temperature and humidity:
+5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH
(cooling vents not blocked)
Do not install this unit in a poorly ventilated area, or in
locations exposed to high humidity or direct sunlight (or
strong artificial light)
D3-4-2-1-7c*_A1_En
This product is for general household purposes. Any
failure due to use for other than household purposes
(such as long-term use for business purposes in a
restaurant or use in a car or ship) and which requires
repair will be charged for even during the warranty
period.
K041_A1_En
POWER-CORD CAUTION
Handle the power cord by the plug. Do not pull out the
plug by tugging the cord and never touch the power
cord when your hands are wet as this could cause a
short circuit or electric shock. Do not place the unit, a
piece of furniture, etc., on the power cord, or pinch the
cord. Never make a knot in the cord or tie it with other
cords. The power cords should be routed such that they
are not likely to be stepped on. A damaged power cord
can cause a fire or give you an electrical shock. Check
the power cord once in a while. When you find it
damaged, ask your nearest PIONEER authorized
service center or your dealer for a replacement.
S002*_A1_En
Thank you for buying this Pioneer
product.
Please read through these operating instructions so that
you will know how to operate your model properly. After
you have finished reading the instructions, put them in a
safe place for future reference.
Contents
01 Before you start
What’s in the box. . . . . . . . . . . . . . . . . . . . . . . . . .4
Loading the batteries in the remote control . . . . . .4
Using the remote control. . . . . . . . . . . . . . . . . . . . .4
Installing the amplifier. . . . . . . . . . . . . . . . . . . . . .4
02 Connecting up
Making cable connections. . . . . . . . . . . . . . . . . . .5
About “Bi-wiring” . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connecting speaker cables . . . . . . . . . . . . . . . . . . 6
Connecting audio cables . . . . . . . . . . . . . . . . . . . .6
Using centralized control with other Pioneer
components . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Digital audio input connections (A-70 only) . . . . . .6
Using a USB cable to connect to a computer
(A-70 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Plugging in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
03 Controls and displays
Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . .10
04 Operation
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Set the power to Standby. . . . . . . . . . . . . . . . . . . .11
When using the unit as a power amplifier . . . . . . .11
Playing music from a digital audio component
(A-70 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Playing music from a computer (A-70 only) . . . . . .12
Making an audio recording . . . . . . . . . . . . . . . . .12
To set for automatic standby status
(Auto Power Down) . . . . . . . . . . . . . . . . . . . . . . . 13
Restoring all the settings to the factory default
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
05 Additional information
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . .14
Cleaning the unit . . . . . . . . . . . . . . . . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .15
A70_SYXE8.book 3 ページ 2012年7月27日 金曜日 午後6時53分

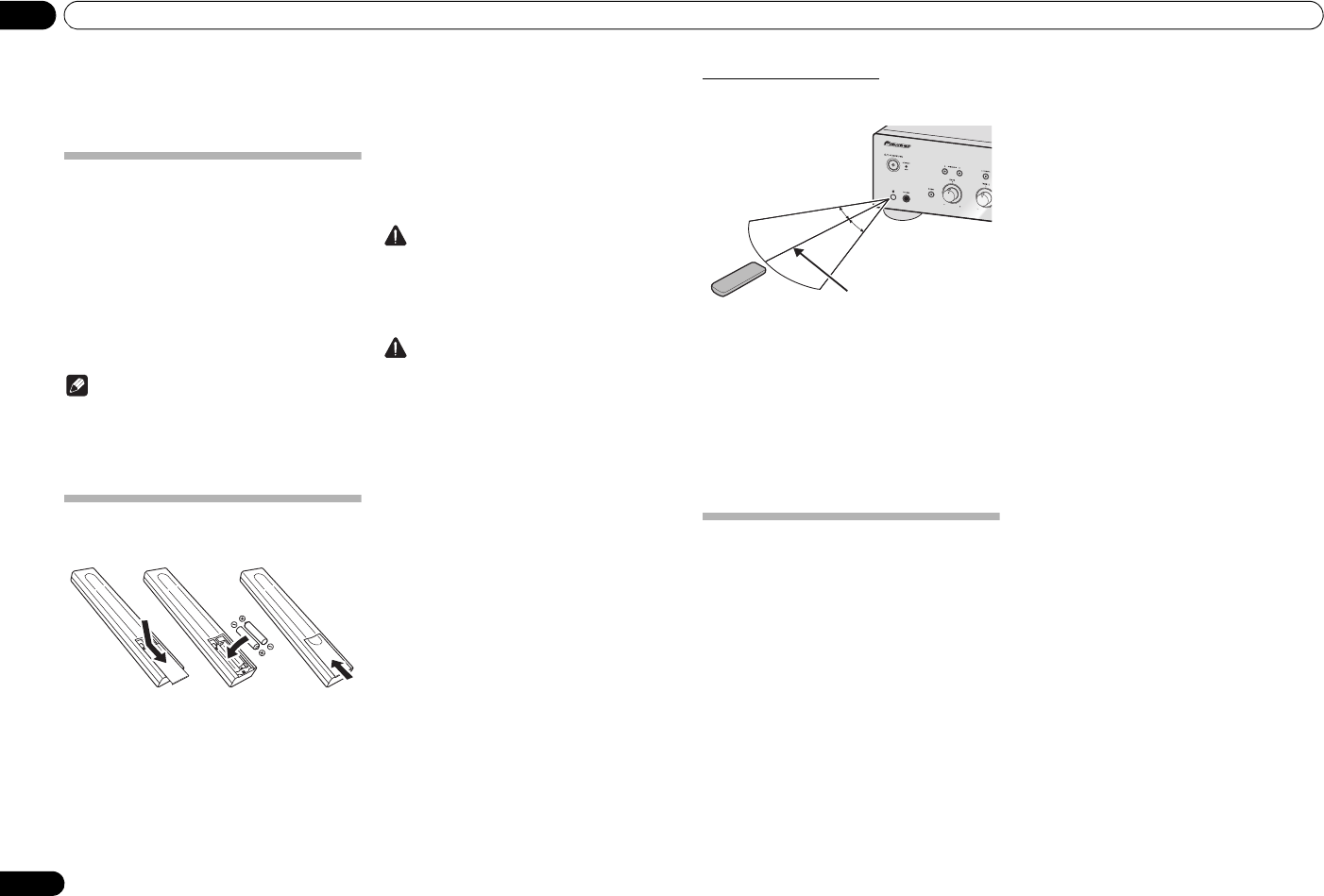

01 Before you start
4
En
Chapter 1:
Before you start
What’s in the box
Please confirm that the following accessories are in the
box when you open it.
•Remote control
• AAA/IEC R03 dry cell batteries x2
• Short pin plug x 2
(At time of purchase, these plugs have been factory
installed in the rear panel’s PHONO IN terminals.)
• Power cord (Length: 1.8 m)
• Warranty card
•Caution sheet (To first-time users)
• Operating instructions (This document)
Note
• Illustrations featured in the Operating Instructions
may have been modified or simplified for ease of
explanation, and may therefore differ from the
actual product appearance.
• The illustrations used here are mainly of the A-70.
Loading the batteries in the remote
control
1 Open the rear lid.
2 Insert the new batteries, matching the
polarities as indicated inside the case.
3 Close the rear lid.
The batteries included with the unit have been provided
to allow you check product operation and may not last
long. We recommend using alkaline batteries that have
a longer life.
WARNING
• Do not use or store batteries in direct sunlight or
other excessively hot place, such as inside a car or
near a heater. This can cause batteries to leak,
overheat, explode or catch fire. It can also reduce
the life or performance of batteries.
Caution
Incorrect use of batteries may result in such hazards as
leakage and bursting. Observe the following
precautions:
• When inserting the batteries, make sure not to
damage the springs on the battery’s terminals.
This can cause batteries to leak or overheat.
• Do not use any batteries other than the ones
specified. Also, do not use a new battery together
with an old one.
• When loading the batteries into the remote control,
set them in the proper direction, as indicated by the
polarity marks ( and ).
• Do not heat batteries, disassemble them, or throw
them into flames or water.
• Batteries may have different voltages, even if they
are the same size and shape. Do not use different
types of batteries together.
• To prevent leakage of battery fluid, remove the
batteries if you do not plan to use the remote
control for a long period of time (1 month or more).
If the fluid should leak, wipe it carefully off the
inside of the case, then insert new batteries. If a
battery should leak and the fluid should get on your
skin, flush it off with large quantities of water.
• When disposing of used batteries, please comply
with governmental regulations or environmental
public institution’s rules that apply in your country/
area.
12
3

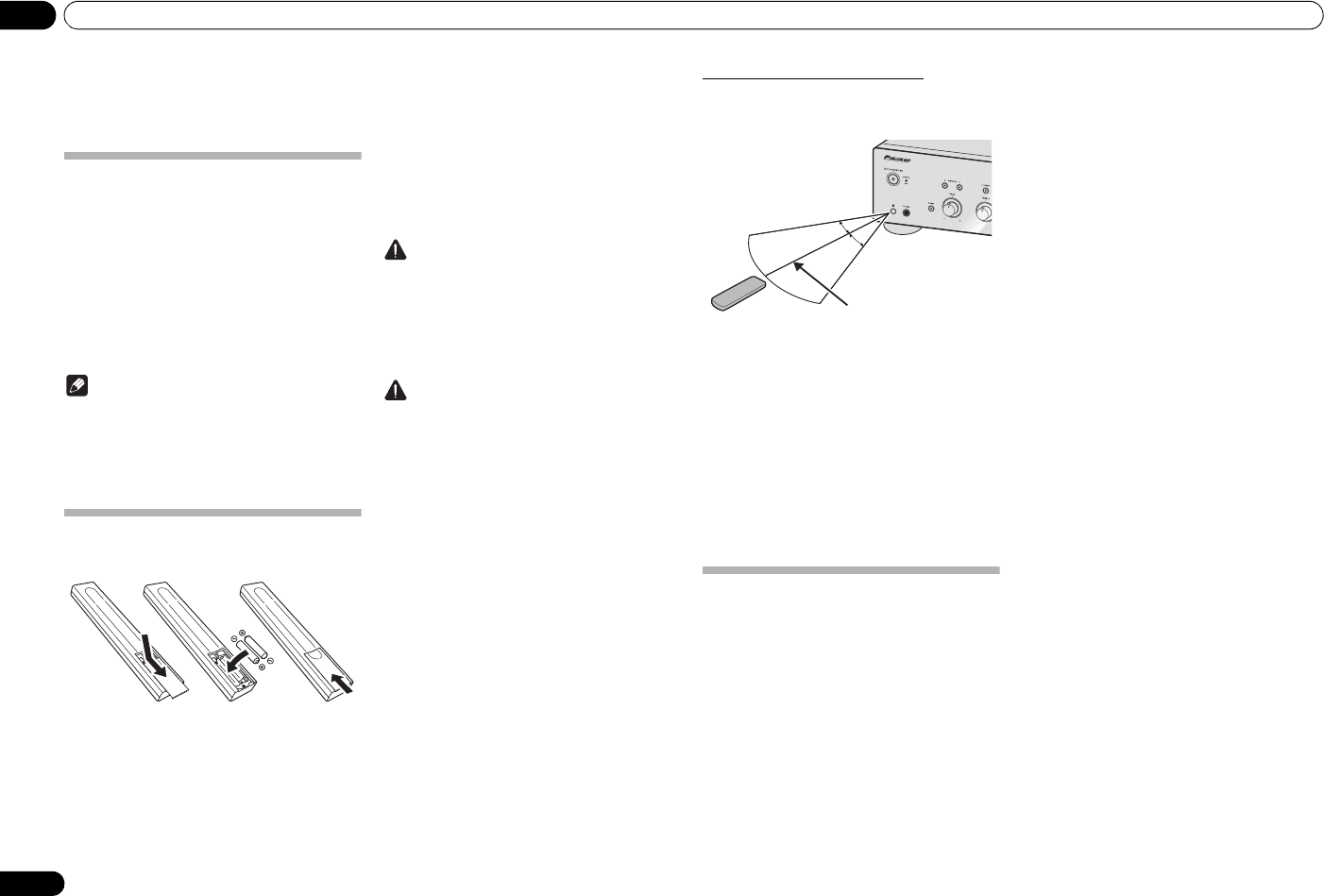

Using the remote control
The remote has a range of about 7 m at an angle of about
30º from the remote sensor.
Keep in mind the following when using the remote
control:
• Make sure that there are no obstacles between the
remote and the remote sensor on the unit.
• Remote operation may become unreliable if strong
sunlight or fluorescent light is shining on the unit’s
remote sensor.
• Remote controllers for different devices can
interfere with each other. Avoid using remotes for
other equipment located close to this unit.
• Replace the batteries when you notice a fall off in
the operating range of the remote.
Installing the amplifier
When installing this unit, make sure to put it on a level
and stable surface.
• Don’t install it on the following places:
– on a color TV (the screen may distort)
– near a cassette deck (or close to a device that
gives off a magnetic field). This may interfere with
the sound.
– in direct sunlight
– in damp or wet areas
– in extremely hot or cold areas
– in places where there is vibration or other
movement
– in places that are very dusty
– in places that have hot fumes or oils (such as a
kitchen)
• Do not mount the unit on a sofa or other object or
material with absorbent qualities, since sound
quality may be adversely affected.
7 m
30 °
30 °
A70_SYXE8.book 4 ページ 2012年7月27日 金曜日 午後6時53分

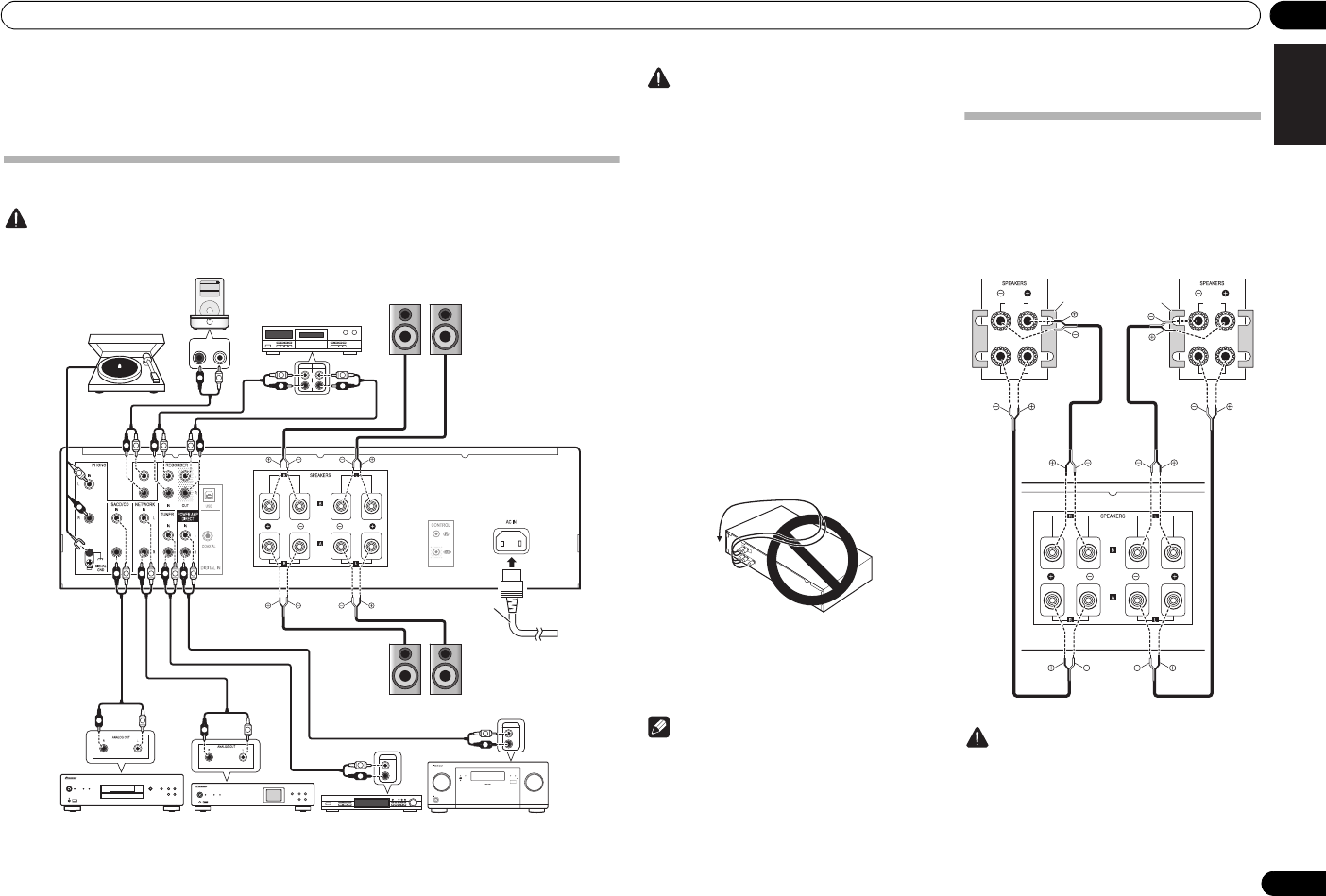

Connecting up 02
5
En
English DeutschFrançais
Nederlands
Italiano Español Русский

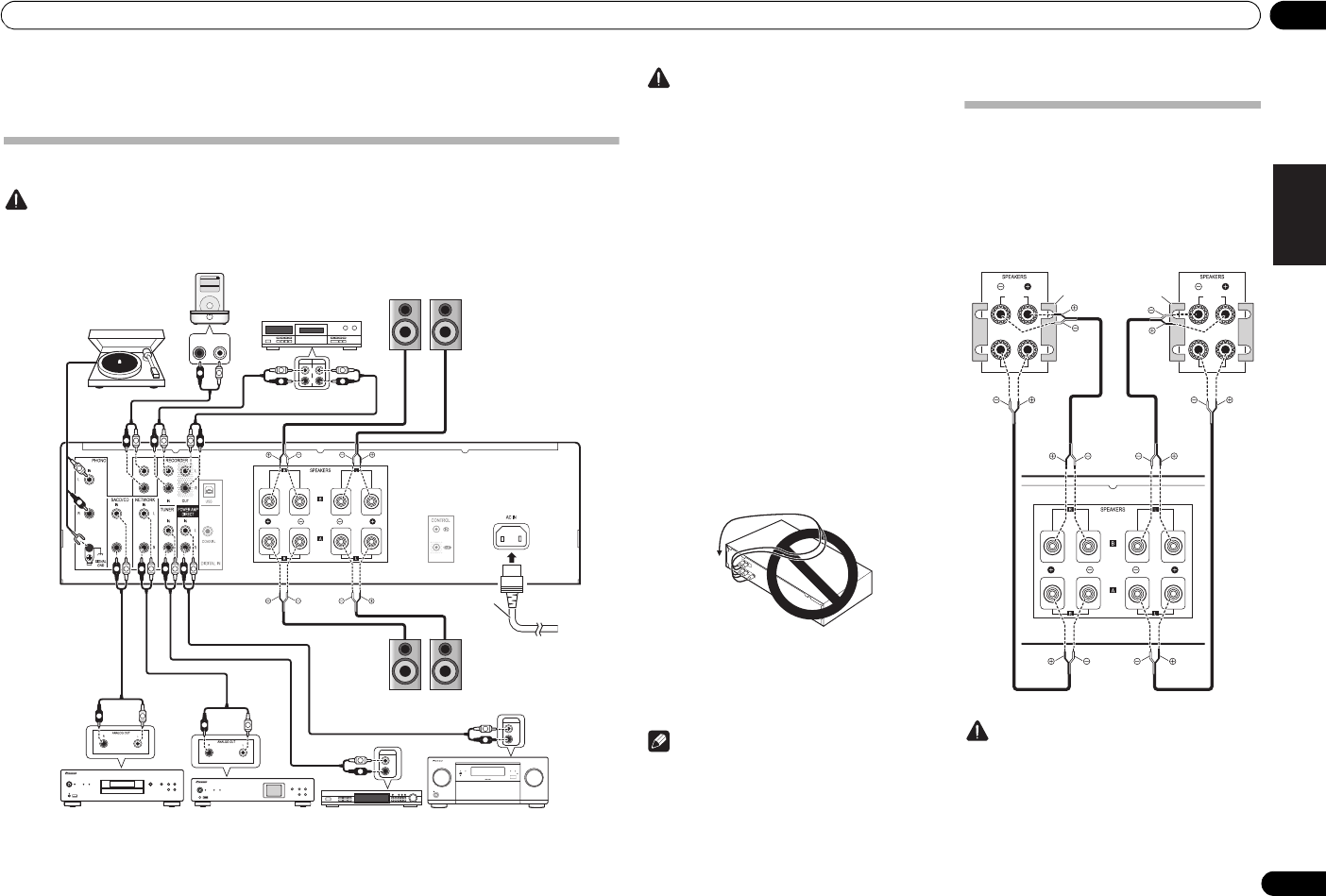

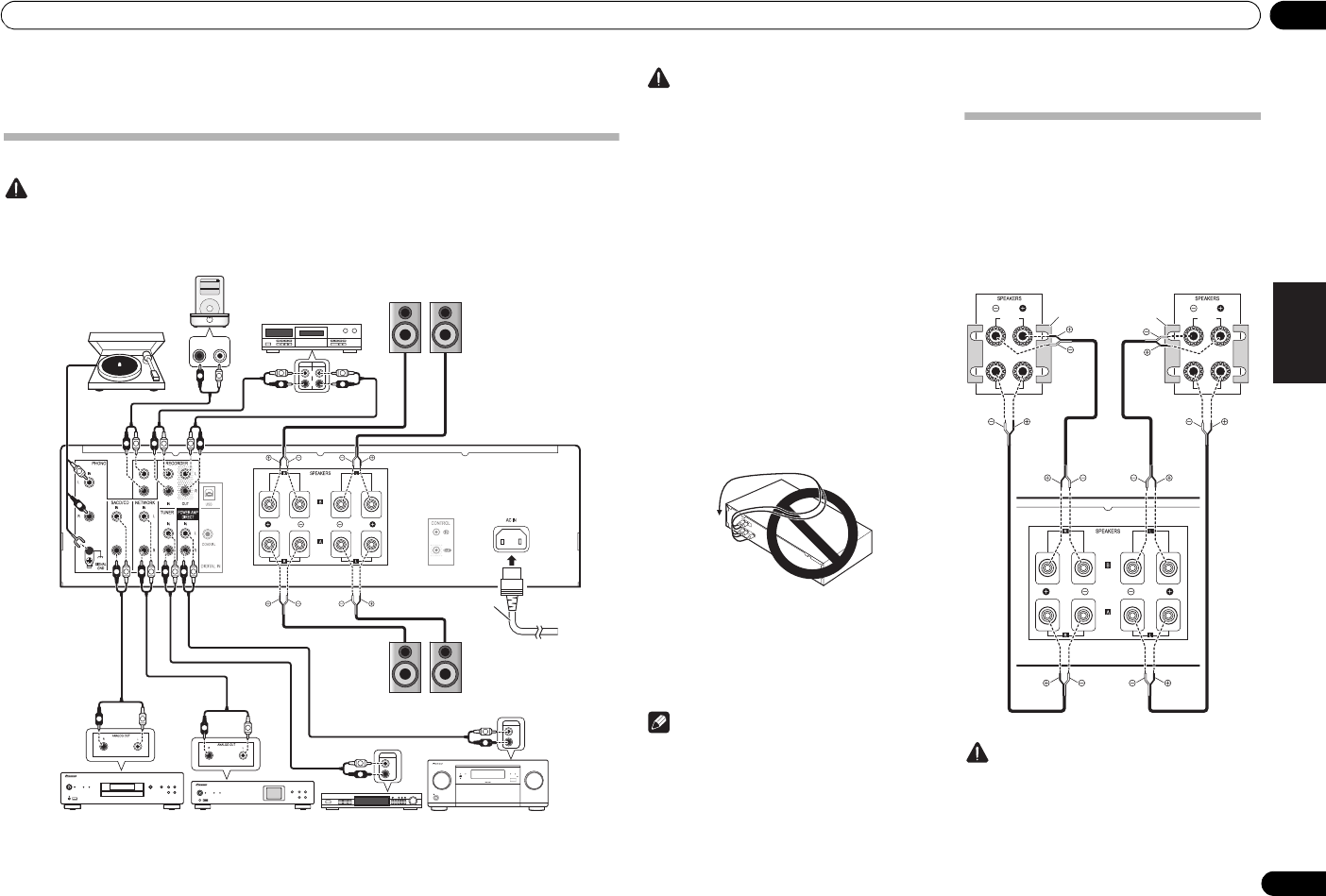

Chapter 2:
Connecting up
Making cable connections
Caution
• Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.
• Connect the power cord after all the connections between devices have been completed.
AUX IN
REC
R
L
OUTPUT
R
L
PLAY
RL
AUDIO
OUTPUT
PRE OUT
R
L
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
MENU
iPod
Music>
Extras>
Settings>
Shuffle Songs
Backlight
MASTER
VOLUME
STANDBY/ON
INPUT
SELECTOR
iPod iPhone iPadHDMI
ADVANCED
MCACC FL OFF
SACD/CD player Network audio player PRE OUT jacks on pre-
amplifier or AV amplifier
Speaker system B
Speaker system A
Turntable
Tuner
iPod dock, etc
(AUX IN terminals are
furnished on the A-50 only) CD recorder or
tape deck
Right Left
Right Left
Power cord
(included)
This unit’s
rear panel
Caution
•The SIGNAL GND terminal is provided to reduce
noise when connecting the unit to components
such as an analog turntable.
•The PHONO IN terminals are factory equipped with
short pin plugs. These should not be removed
except when connecting a turntable. Be sure to
save the short pin plugs in a safe place.
• Do not insert the short pin plugs in any connectors
other than the PHONO IN terminals. Connecting
them to any other terminals may cause
malfunctions.
• Do not connect the PHONO IN terminals to any
component other than a turntable; also, do not
connect to a turntable equipped with built-in
equalizer. An excessively high sound output may be
produced, resulting in damage to your speakers or
other devices.
• The A-50’s PHONO IN terminals are designed to be
used only with turntables equipped with MM
(moving-magnet) type cartridges. Turntables
equipped with MC (moving-coil) cartridges cannot
be used.
• Make sure not to bend the cables over the top of
this unit (as shown in the illustration). If this
happens, the magnetic field produced by the
transformers in this unit may cause a humming
noise from the speakers.
• The unit’s POWER AMP DIRECT terminals should
never be connected to any other component’s
connectors except PRE-AMP OUT.
• If your turntable has a grounding wire, secure it to
the ground terminal on this amplifier.
Note
• When connecting a tape cassette deck, playback
noise may be heard, depending on the installation
location. This noise is caused by leakage flux from
the amplifier’s transformer. In this event, change
the installation location, or move the deck farther
from the amplifier.
• iPod is a trademark of Apple Inc., registered in the
U.S. and other countries.
About “Bi-wiring”
This unit can be used with speakers that support bi-
wiring. Be sure to connect the high-frequency and
low-frequency connections correctly.
• During playback, be sure that both the SPEAKERS
A button and SPEAKERS B button are set to ON
(page 8).
Caution
• When using bi-wiring to connect speakers, avoid
adverse affects on the amplifier by being sure to
remove the HIGH and LOW short bars provided
with the speakers. For detailed information, consult
the instructions provided with the speakers.
HIGH
LOW
HIGH
LOW
Speaker system
Left
Speaker system
Right
This unit’s
rear panel
Remove the shorting
bar between the +
and – terminals.
A70_SYXE8.book 5 ページ 2012年7月27日 金曜日 午後6時53分

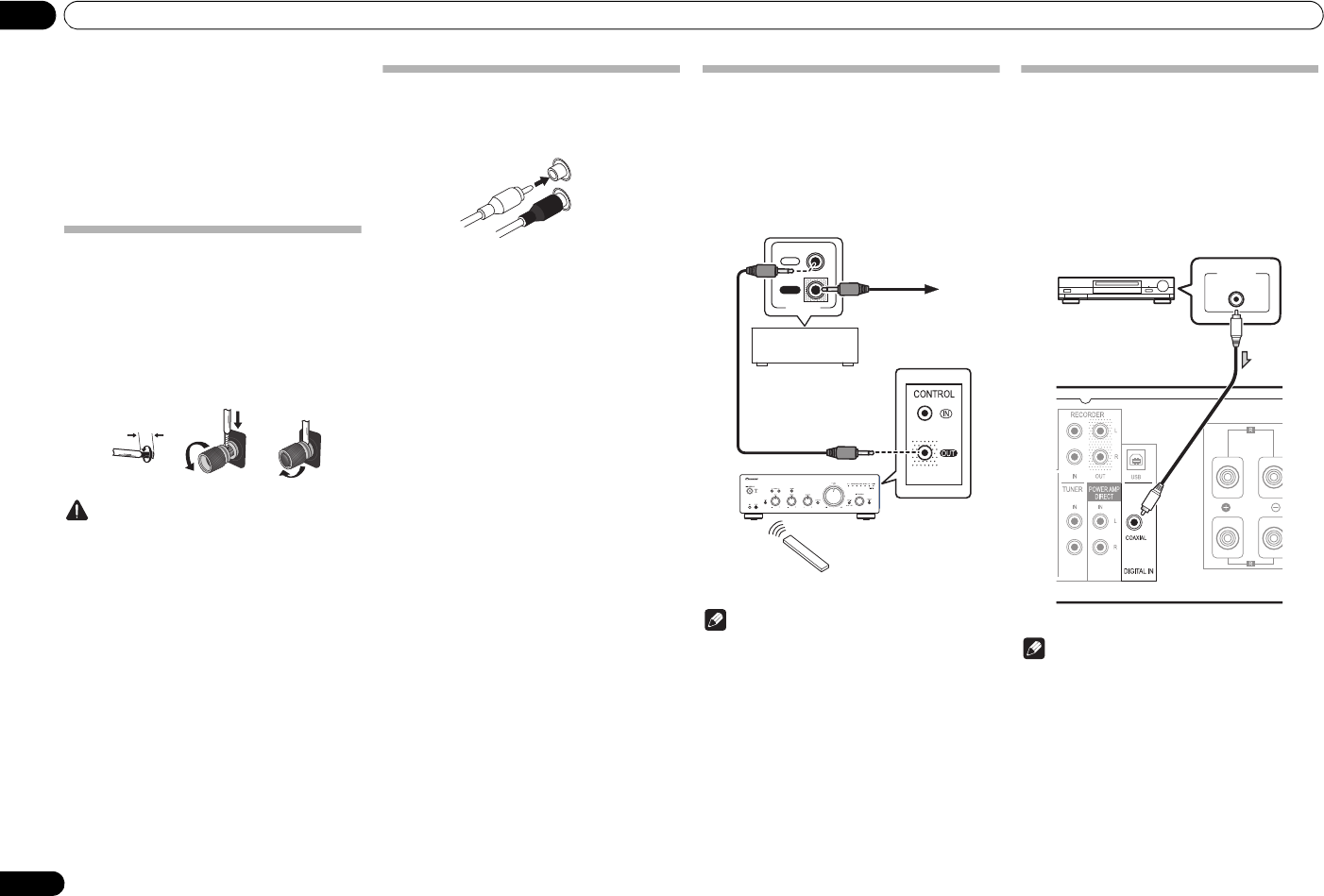

02 Connecting up
6
En
• When using speakers with removable network
circuits, note that if the network is removed, no
effect will be produced and damage may be caused
to the speaker.
• Another method of connection is to connect the
SPEAKERS A terminals to HIGH and the SPEAKERS
B terminals to LOW (reverse that shown in the
illustration).

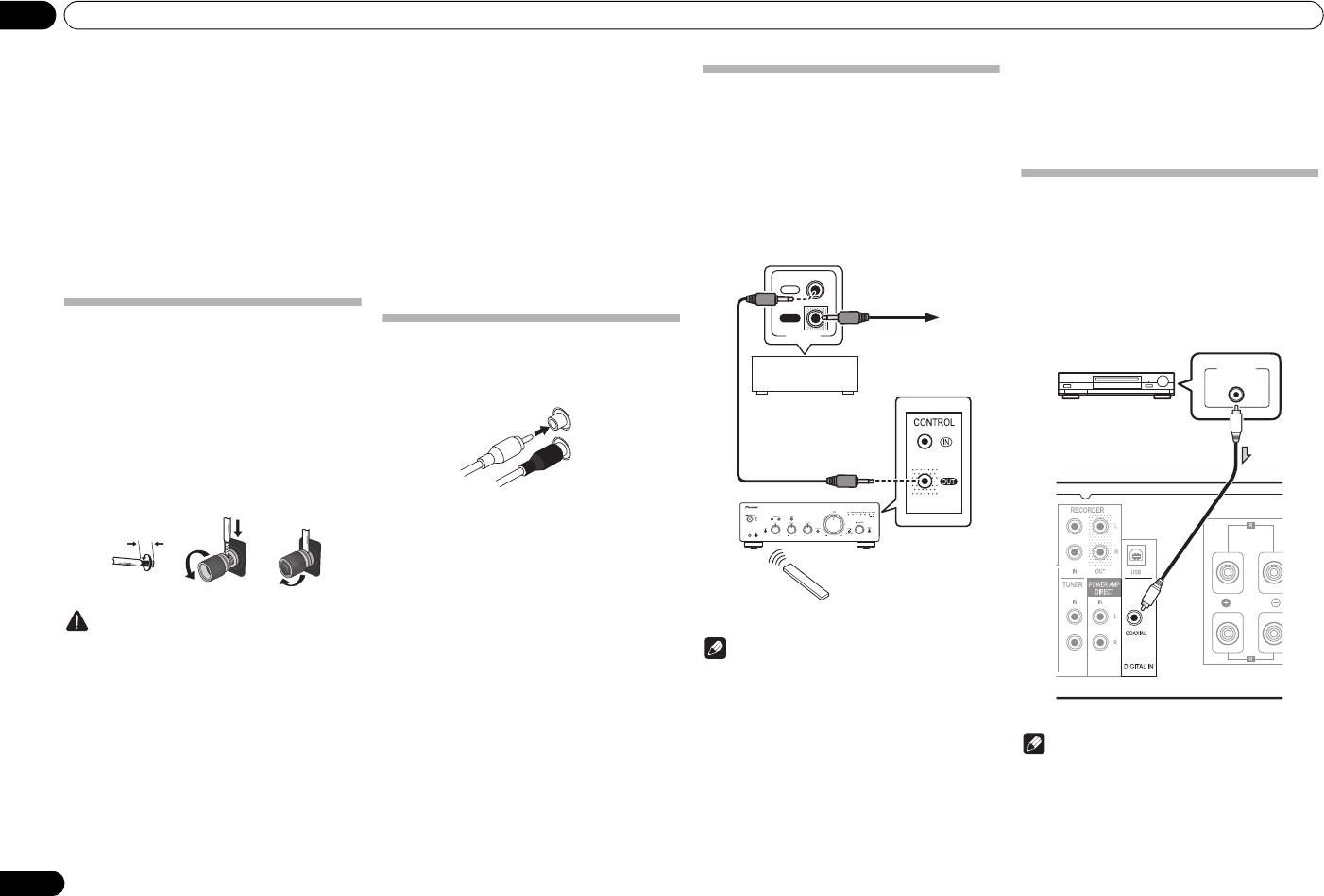

Connecting speaker cables
1 Twist the cable cores.
2 Loosen the nut on the
SPEAKERS
terminal, and insert the speaker cable into
the exposed hole in the terminal shaft.
3 Retighten the terminal nut.
Caution
• When using only one set of speaker terminals
(SPEAKERS A or SPEAKERS B), or when utilizing
bi-wiring connections, the speaker used should
have a nominal impedance between 4 Ω and
16 Ω. When using both sets of terminals, the
connected speakers should have nominal
impedance between 8 Ω and 32 Ω. Consult the
instructions accompanying your speakers for
details regarding the impedance value.
• Make sure the positive and negative (+/–) terminals
on the amplifier match those on the speakers.
• These speaker terminals carry HAZARDOUS live
voltage. To prevent the risk of electric shock when
connecting or disconnecting the speaker cables,
disconnect the power cord before touching any
uninsulated parts.
• Make sure that all the bare speaker wire is twisted
together and inserted fully into the speaker
terminal. If any of the bare speaker wire touches the
back panel it may cause the power to cut off as a
safety measure.
Connecting audio cables
Connect the white plug to the left (L) jack, and the red
plug to the right (R) jack. Be sure to insert the plugs fully
into the jacks.
123
10 mm
Left (white)
Right (red)
Using centralized control with other
Pioneer components
Multiple Pioneer components equipped with CONTROL
IN/OUT jacks can be connected to the unit, allowing
centralized control of the components via the remote
sensor on the unit. This also allows remote control of
components not equipped with a remote sensor, or
installed in places where the component’s remote
sensor cannot be accessed.
Note
• For connections use a commercially available
monaural miniplug cord (without resistor).
• When connecting the CONTROL IN/OUT jacks,
commercially available audio cords must also be
used to make analog connections. Merely
connecting the CONTROL IN/OUT jacks alone will
not allow proper system control.
• When a control cord is connected to the unit’s
CONTROL IN jack, the unit cannot be controlled by
pointing the remote control at the unit (the remote
sensor is automatically disabled).
Digital audio input connections (A-70
only)
If a coaxial digital cable (sold separately) is used to
connect this unit’s DIGITAL IN COAXIAL terminal to the
digital audio output connector of a digital audio playback
component, the playback component can be used to
play music through this unit.
For more information regarding the output of audio
signals input to the DIGITAL IN COAXIAL terminal,
consult page 12.
Note
• Digital signal formats that can be input to this unit
include linear PCM signals with sampling rate and
quantitative bits up to 192 kHz/32 bits. (Depending
on the connected device and environment,
operation may not be successful).
IN
OUT
CONTROL
Other Pioneer
component equipped
with CONTROL IN/
OUT jacks
To other Pioneer
component
equipped with
CONTROL IN jack
A-70
Aim remote control
at the sensor on the
unit.
Remote
control
DIGITAL OUT
COAXIAL
Digital audio
equipment, etc.
Coaxial digital audio cable
(sold separately)
A-70’s rear panel
A70_SYXE8.book 6 ページ 2012年7月27日 金曜日 午後6時53分

Connecting up 02
7
En
English DeutschFrançais
Nederlands
Italiano Español Русский

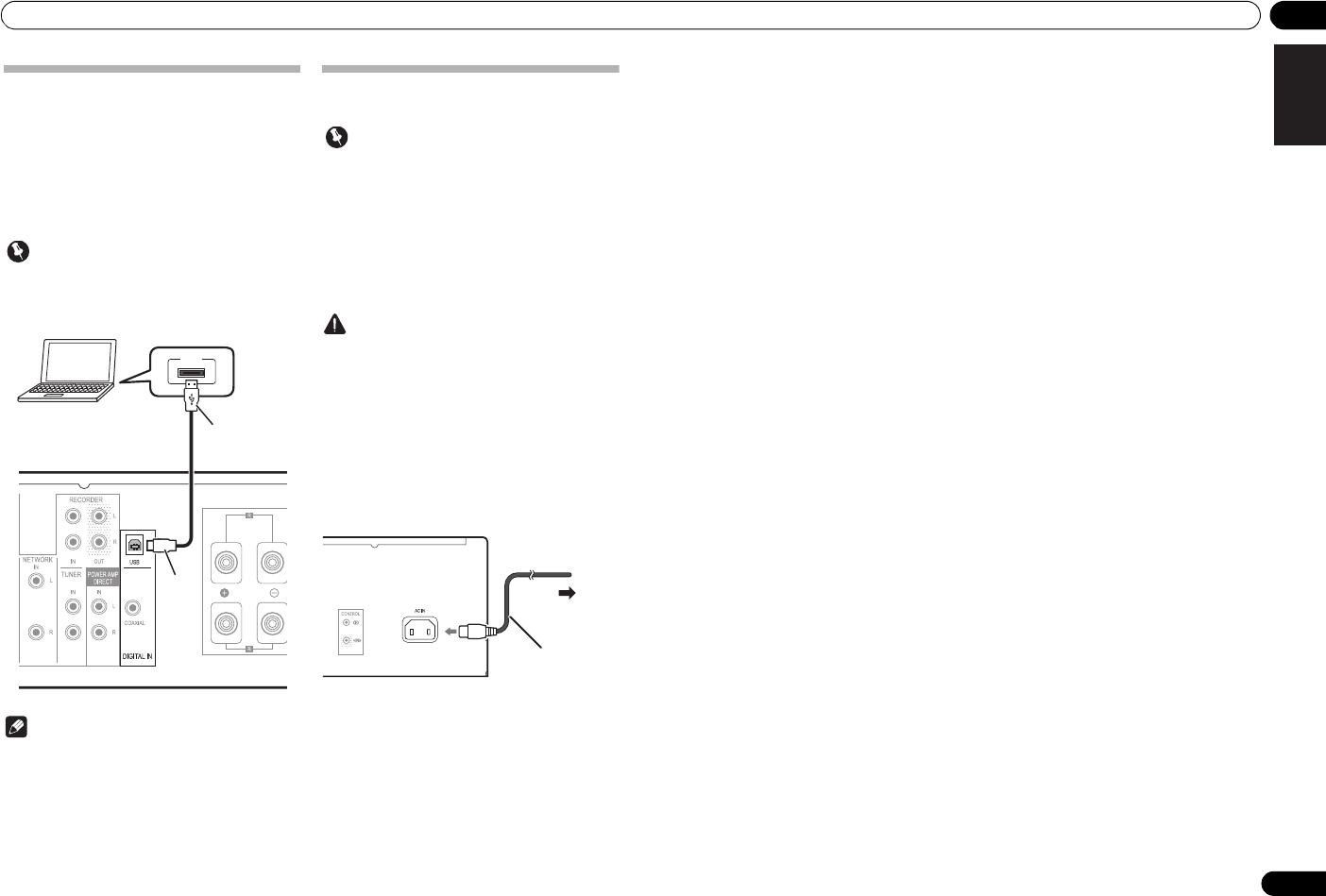

Using a USB cable to connect to a
computer (A-70 only)
If a USB cable (sold separately) is used to connect this
unit’s DIGITAL IN USB terminal to a computer’s USB
port, music files located on the computer can be played
through this unit.
For more information regarding the output of audio
signals input to the DIGITAL IN USB terminal, consult
page 12.
Important
• When using this connection to input audio files
from a computer to this unit, it may be necessary to
install a special driver on the computer. For details,
see the website of Pioneer.
Note
• This unit cannot be used to play audio files from a
computer unless Media Player is installed on the
connected computer.
Plugging in
Important
• When going on a trip or otherwise not using the
unit for an extended period, always disconnect the
power cord from its outlet. Note that various
internal settings will not be lost even if the power
cord is disconnected from its outlet for an extended
time.
• If it is necessary to detach the power cord, first be
sure to press the
/I
STANDBY/ON button on the
front panel of the unit so the unit is turned OFF
before detaching the cord.
Caution
• The use of a power cord other than the one provided
will invalidate the warranty, since Pioneer will not
be responsible for any damage incurred. (The
power cord provided with the unit has a rated
current capacity of 10 A.)
• Do not use any power cord other than the one
supplied with this unit.
• Do not use the supplied power cord for any purpose
other than that described below.
After you’ve finished making all connections, plug the
unit into an AC outlet.
1 Plug the supplied power cord into the
AC IN
socket on the rear panel of the unit.
2 Plug the other end into an AC outlet.
USB
USB cable
(sold separately)
A-type
B-type
PC
A-70’s rear panel
To AC outlet
This unit’s rear panel
Power cord
(included)
A70_SYXE8.book 7 ページ 2012年7月27日 金曜日 午後6時53分

03 Controls and displays
8
En
Chapter 3:
Controls and displays

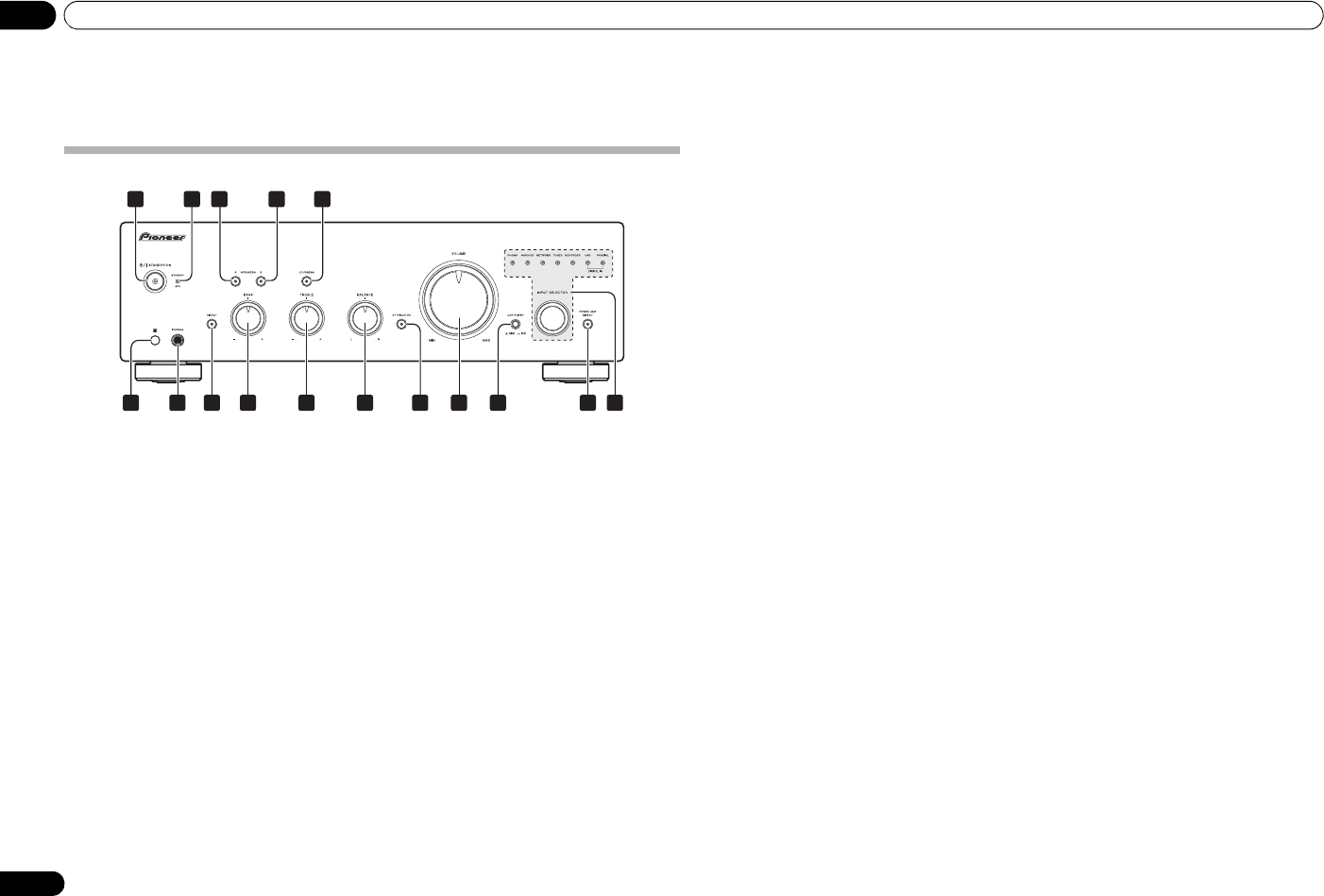

Front panel
1
/I
STANDBY/ON
Switches the amplifier between off and on.
When power is turned on, the power indicator in the
center of the button will light.
2
STANDBY/APD
indicator
When power is set to standby, the indicator lights red.
When the Auto Power Down (APD) function is on, the
indicator lights green (page 13).
3
SPEAKERS A
button/indicator
Use this button to listen to the speaker system
connected to SPEAKERS A terminals.
On : The indicator lights. Sound is heard from the
speaker system. (Sound will also be produced from the
PHONES jack.)
Off : The indicator goes off. No sound is heard from the
speaker system. Set to this position when listening with
headphones.
4
SPEAKERS B
button/indicator
Use this button to listen to the speaker system
connected to SPEAKERS B terminals.
On : The indicator lights. Sound is heard from the
speaker system. (Sound will also be produced from the
PHONES jack.)
Off : The indicator goes off. No sound is heard from the
speaker system. Set to this position when listening with
headphones.
5
LOUDNESS
button/indicator
Use when listening at low volume levels.
On : The indicator lights: Boosts low and high
frequencies to give added punch to playback even at a
low volume level.
Off : The indicator goes off: Should normally be left in
this position.
• This button does not operate when the DIRECT
button is in the on position.
• When sound volume is raised, the amount of
change produced by the LOUDNESS circuit is
reduced.
A-70
31
6
2 54
7
14 1612
9
10 11 13 15
8
6 Remote sensor
Receives the signals from the remote control (page 4).
7
PHONES
jack
Use to connect headphones. No sound is produced
when the POWER AMP DIRECT button is ON.
8 DIRECT button/indicator
On : The indicator lights: When this button is set to ON,
sound signals are output directly, without being passed
through the various adjustment circuits (BASS, TREBLE,
BALANCE, LOUDNESS). This allows reproduction of the
signals with greater fidelity, but it disables any settings
made with the BASS, TREBLE, BALANCE or LOUDNESS
controls.
Off : The indicator goes off: The signal passes through
the various frequency adjusting circuits. When the
indicator is OFF, adjustments can be made with the
BASS, TREBLE, BALANCE, and LOUDNESS controls.
9
BASS
tone control
Use to adjust the low-frequency tone. The center position
is the flat (normal) position. When turned to the right,
low-frequency tones are emphasized; when turned to the
left, low-frequency tones are de-emphasized.
• This button does not operate when the DIRECT
button is in the on position.
10
TREBLE
tone control
Use to adjust the high-frequency tone. The center
position is the flat (normal) position. When turned to the
right, high-frequency tones are emphasized; when
turned to the left, high-frequency tones are de-
emphasized.
• This button does not operate when the DIRECT
button is in the on position.
11
BALANCE
control
Should normally be left in the center position. Adjust
balance if the sound is louder from one of the speakers.
If the right side is louder, turn toward the L (left) position
and if the left side is louder, turn toward the R (right)
position.
• This button does not operate when the DIRECT
button is in the on position.
12
ATTENUATOR
button (A-70 only)
Press when you wish to make fine adjustments to the
sound volume when playing at very low sound volume
levels.
13 VOLUME control
Use to adjust the volume level. (Also allows adjustment
of the headphone sound volume.)
14
CARTRIDGE
select switch (A-70 only)
Select the type of cartridge used with your turntable.
15
POWER AMP DIRECT
button/indicator
Press this button when the unit is to be used as a power
amplifier (page 11).
16
INPUT SELECTOR
knob/indicators
Turn the knob clockwise or counterclockwise so that the
indicator lights for your desired input source. Turning
the knob clockwise causes the lit indicator to right.
Turning counterclockwise causes it to left. When the
remote control’s MUTE button is pressed to mute the
sound, the indicator for the input source selected with
the INPUT SELECTOR knob flashes.
A70_SYXE8.book 8 ページ 2012年7月27日 金曜日 午後6時53分

Controls and displays 03
9
En
English DeutschFrançais
Nederlands
Italiano Español Русский

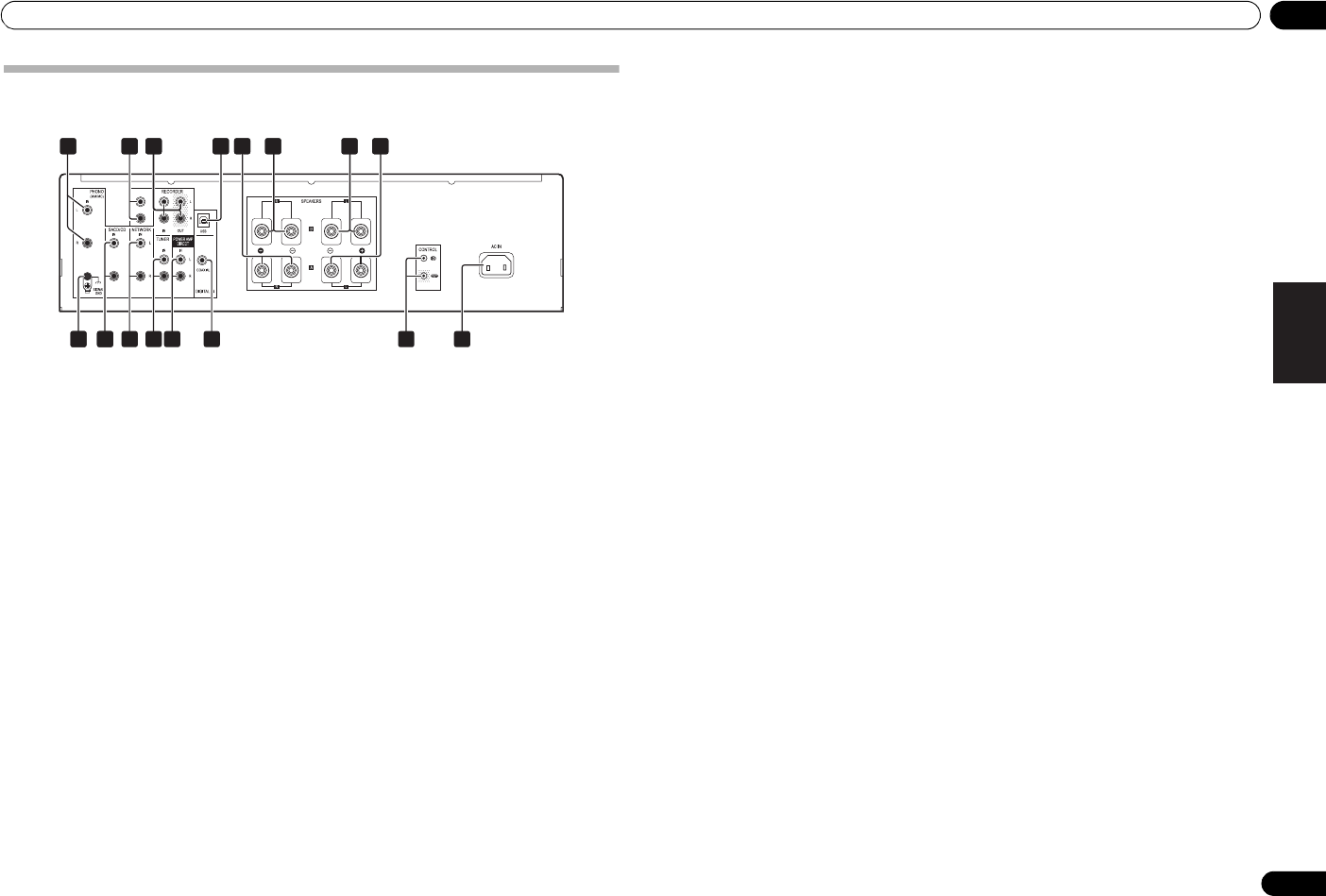

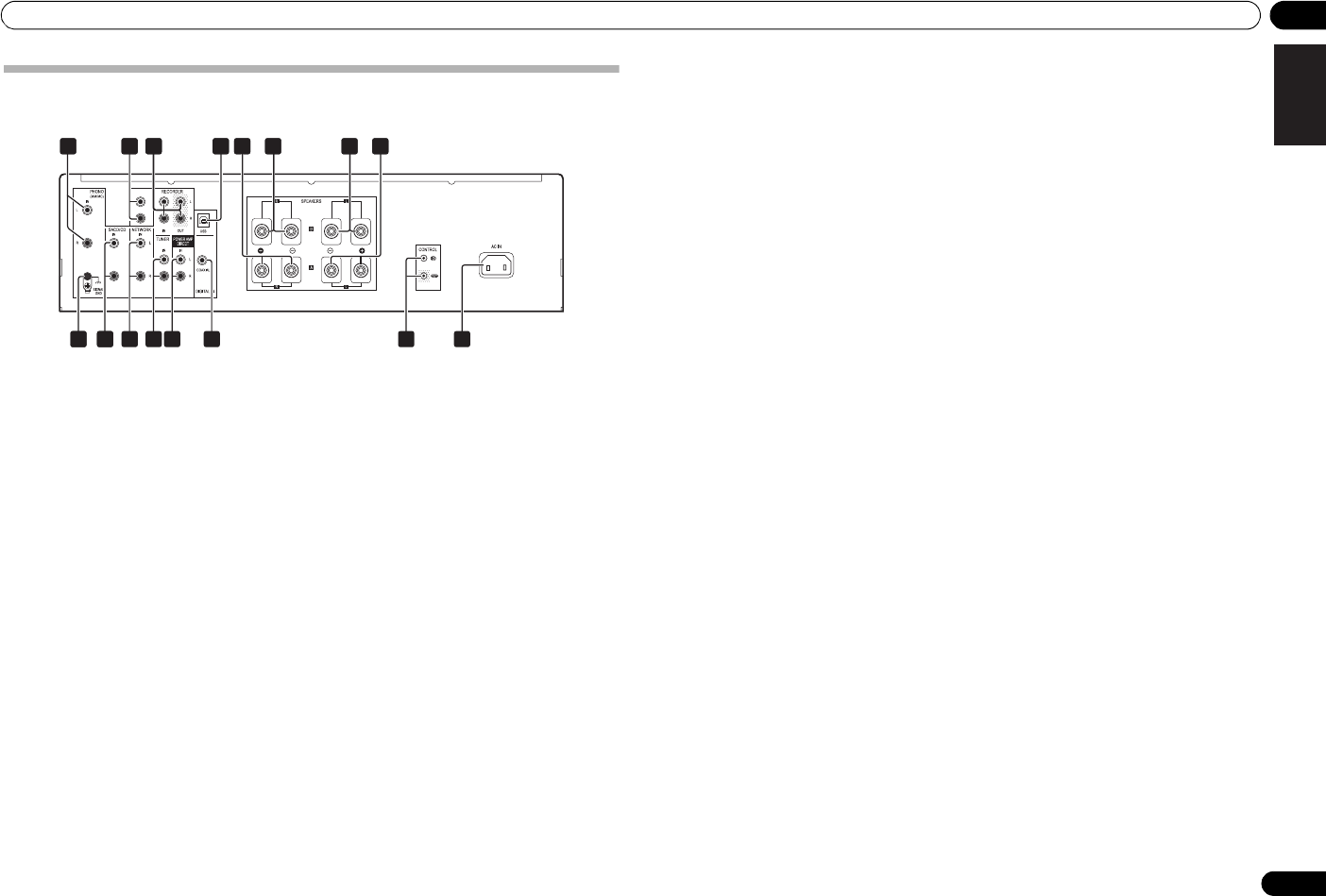

Rear panel
See pages 5-7 for details regarding connections.
1
PHONO IN (MM/MC)
terminals (A-70)
PHONO IN (MM) terminals (A-50)
2
AUX
IN
terminals (A-50 only)
3
RECORDER IN/OUT
terminals
4
DIGITAL IN USB
terminal (A-70 only)
5
SPEAKERS A
terminals (Right channel)
6
SPEAKERS B
terminals (Right channel)
7
SPEAKERS B
terminals (Left channel)
8
SPEAKERS A
terminals (Left channel)
9 GND (Turntable ground) terminal
This ground terminal is designed to help reduce noise
when a turntable is connected. It is not a safety ground.
10
SACD/CD
IN
terminals
11
NETWORK
IN
terminals
12
TUNER
IN
terminals
13
POWER AMP DIRECT
IN
terminals
When using the unit as a power amplifier, connect the
pre-amplifier here (page 11).
14
DIGITAL IN COAXIAL
terminal (A-70
only)
15
CONTROL IN/OUT
jack
16
AC IN
jack
Connect power cord to here and an AC wall socket.
AUX IN
52221 2623 27 2824
2
10 11 12 13 1514 16
29
A70_SYXE8.book 9 ページ 2012年7月27日 金曜日 午後6時53分

03 Controls and displays
10
En

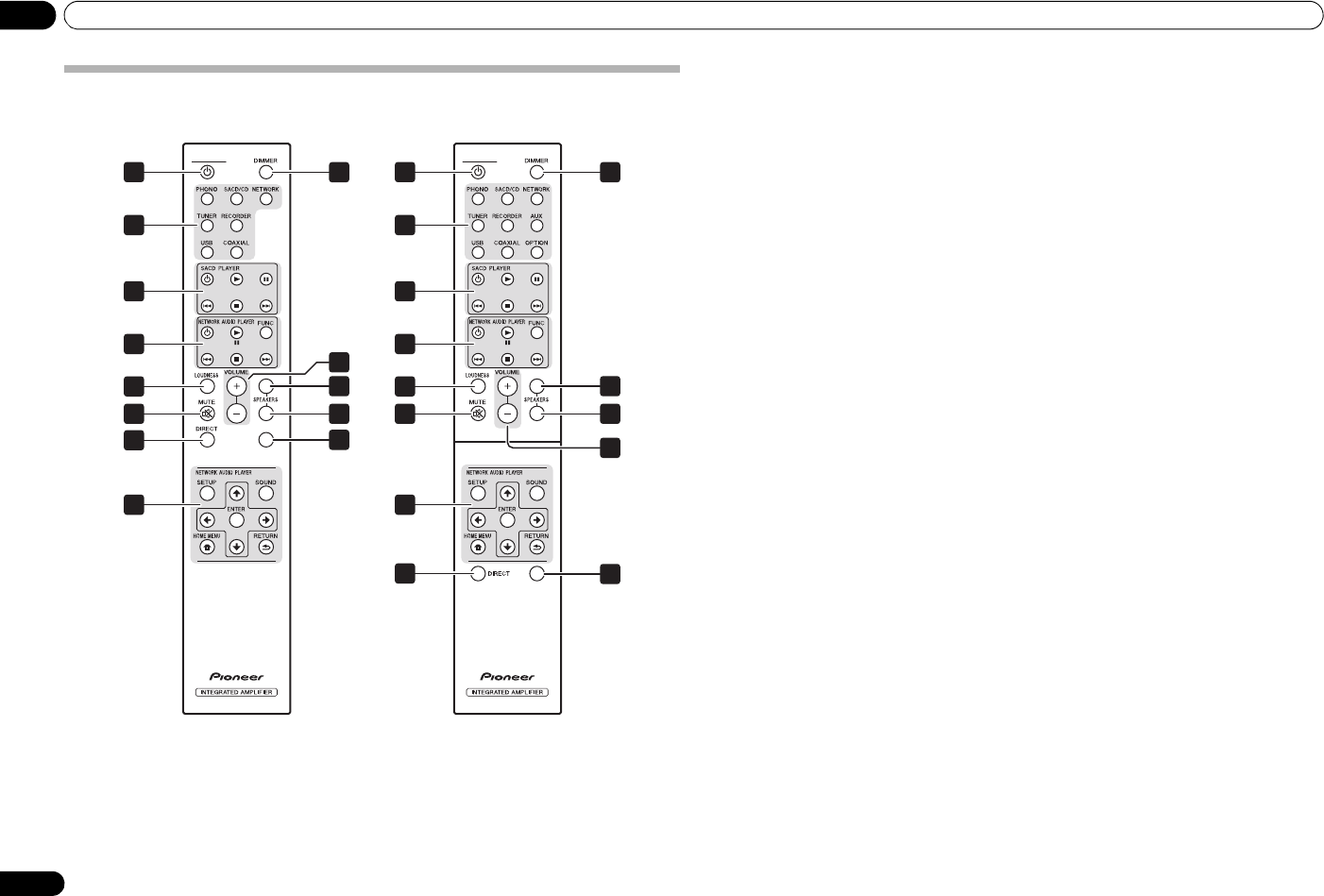

Remote control
STANDBY/ON
A
B
APD
STANDBY/ON
A
B
APD
18
10
9
11
12
2
3
4
6
4
7
5
A-50
18
9
10
11
12
2
3
4
6
4
7
5
A-70
1
STANDBY/ON
Switches the amplifier between standby and on.
2 Input selector buttons
Press to select an input source. These select the
component connected to the corresponding input on the
rear panel.
• When the A-50 is connected, the USB, COAXIAL,
and OPTION buttons are disabled.
3 SACD PLAYER control buttons
Use to control Pioneer SACD player.
4 NETWORK AUDIO PLAYER control
buttons
Use to control Pioneer network audio player.
5
LOUDNESS
Use to set the loudness circuit ON/OFF (page 8).
6
MUTE
Mutes/unmutes the sound.
7
DIRECT
Press to access Direct listening (page 8).
8
DIMMER
This button allows the illumination of the unit's front
panel indicators to be set in three levels (does not affect
the STANDBY indicator).
9
VOLUME +/–
Use to set the listening volume.
10
SPEAKERS A
button/indicator
Use this button to listen to the speaker system
connected to SPEAKERS A terminals.
11
SPEAKERS B
button/indicator
Use this button to listen to the speaker system
connected to SPEAKERS B terminals.
12
APD
Use to set the Auto Power Down function to ON/OFF
(page 13).
A70_SYXE8.book 10 ページ 2012年7月27日 金曜日 午後6時53分

04 Operation
12
En
Playing music from a digital audio
component (A-70 only)
Outputs digital signals input to the DIGITAL IN
COAXIAL connectors.
1 Make a digital input connection.
• See Digital audio input connections on page 6.
2 Press
COAXIAL
to select
DIGITAL IN
COAXIAL
as the input source.
• When using the front panel controls, rotate the
INPUT SELECTOR knob.
• Sound is produced from the RECORDER OUT
terminals.
Note
• Digital signal formats that can be input to this unit
include linear PCM signals with sampling rates and
quantitative bits up to 192 kHz/32 bits (Depending
on the connected device and environment,
operation may not be successful).
Playing music from a computer (A-70 only)
Use this function to play digital audio input to the unit's
rear panel DIGITAL IN USB port.
1 Connect the unit to a computer via USB
cable
• See Using a USB cable to connect to a computer on
page 7.
2 Press
USB
to select
DIGITAL IN USB
as
the input source.
• When using the front panel controls, rotate the
INPUT SELECTOR knob.
• Sound is produced from the RECORDER OUT
terminals.
3 Begin playback on the computer.
Note
• When using a USB cable to connect this unit to a
computer for playing music files, the following
linear PCM digital signals are supported:
– Quantitative bits: 16 bit, 24 bit, 32 bit
– Sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz,
96 kHz, 176.4 kHz, 192 kHz
• Playback cannot be controlled from this unit during
use of this function; use your computer to control
playback.
• When disconnecting the USB cable, always stop
playback on the computer first.
• Sound may not be produced if your computer does
not support USB 2.0 HS.
• This unit does not support use of a USB hub.
Always use a USB cable to connect the unit directly
to the computer.
Important
• When using the DIGITAL IN USB port to input
audio files from a computer to this unit, it may be
necessary to install a special driver on the
computer. For details, see the website of Pioneer.

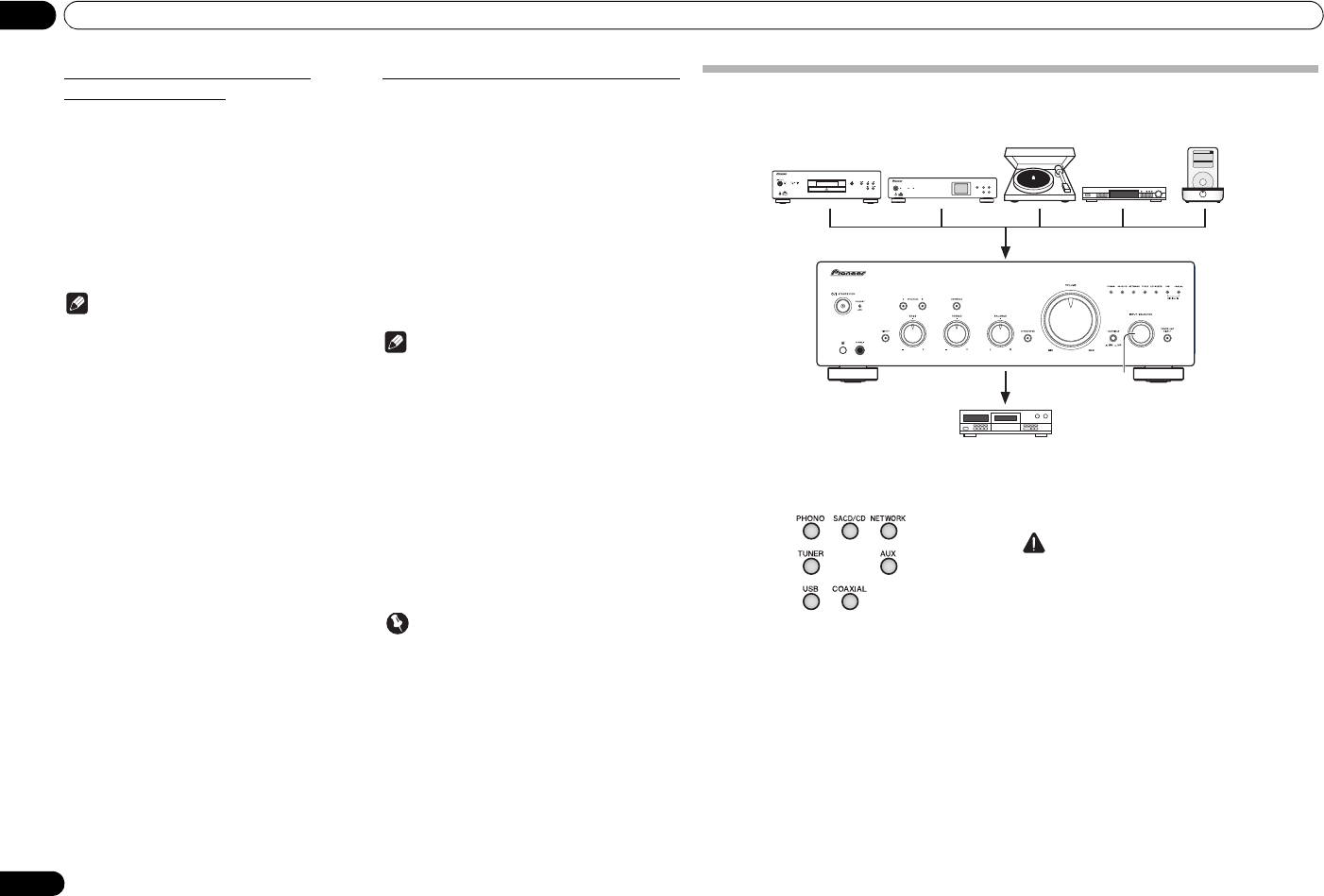

Making an audio recording
You can make an audio recording from any audio source connected to the amplifier.
1 Select the source you want to record. 2 Start recording, then start playback of
the source component.
Caution
• Confirm that the short pin plugs are not inserted in
the RECORDER OUT terminals, since malfunction
will result if they are inserted.
1
MENU
iPod
Music>
Extras>
Settings>
Shuffle Songs
Backlight
/I STANDBY/ON
STANDBY
iPod/USB
5V 2.1A
PURE AUDIO Hi-Bit 32
FUNCTION
NETWORK AUDIO PLAYER N-50
SACD/CD player Network audio player
Turntable
Tuner
iPod dock, etc
Audio recording component
(CD recorder, tape deck, etc.)
Playback
Recording
A70_SYXE8.book 12 ページ 2012年7月27日 金曜日 午後6時53分

Operation 04
13
En
English DeutschFrançais
Nederlands
Italiano Español Русский
To set for automatic standby status (Auto Power Down)
This function automatically switches the unit to standby mode if no signal or switch operation is detected for 30
minutes.
1 If the unit’s power is ON, press the
APD
button on the remote control.
When this condition is set to ON, the STANDBY/APD indicator on the unit’s front panel will light green. Press the
buttons again to disable the setting.
• This setting can also be made by pressing the front panel LOUDNESS button and POWER AMP DIRECT button
simultaneously and holding them depressed for 3 seconds.
• The factory default setting is ON.
•Rotating the TREBLE, BASS, BALANCE, or VOLUME controls will not be counted as a control operation for
purposes of resetting the Automatic Power-Down 30-minute timer.
Note
• Depending on the device connected, excessive noise produced by the device may be interpreted as an audio
signal, thus preventing the Automatic Power-Down function from operating.

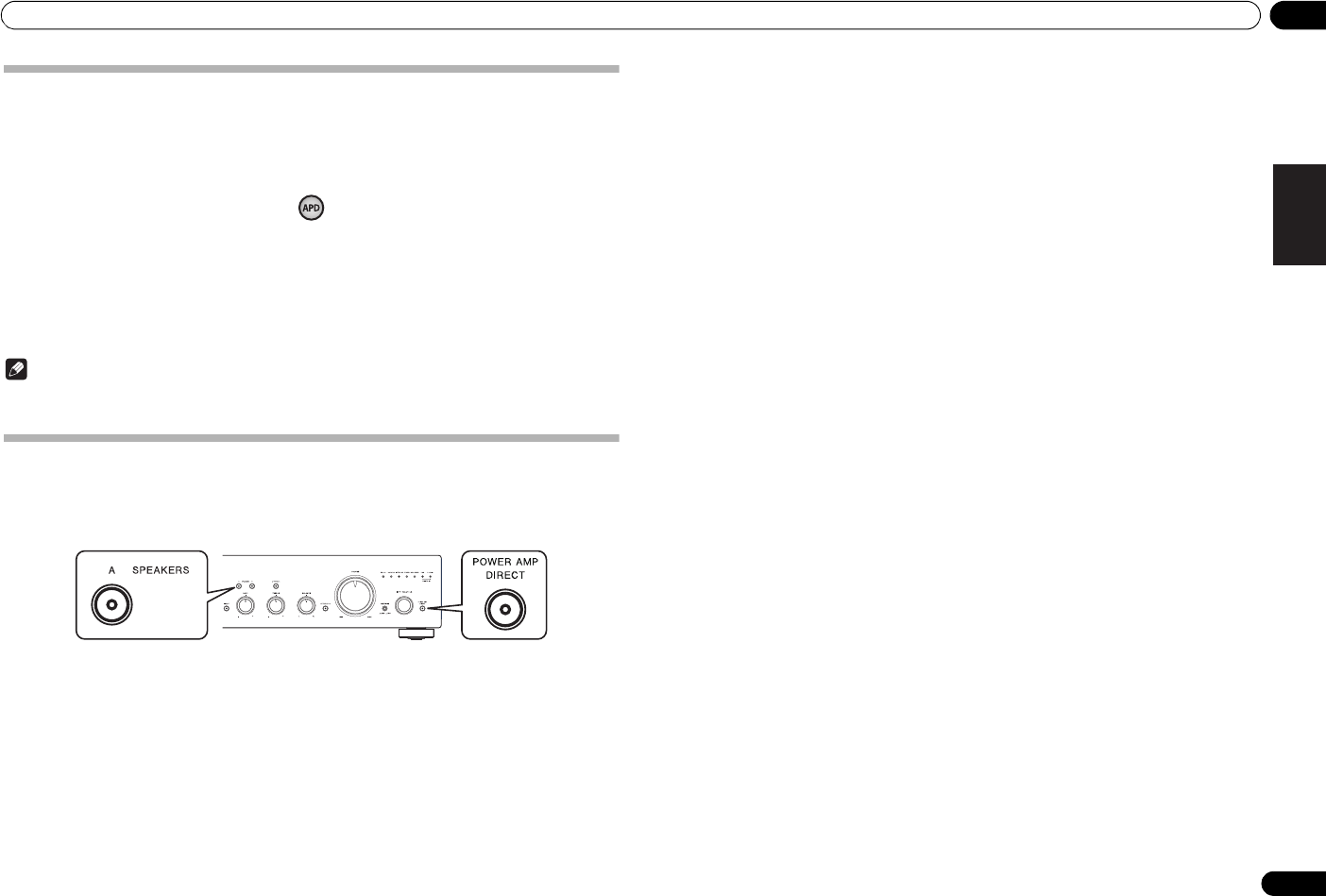

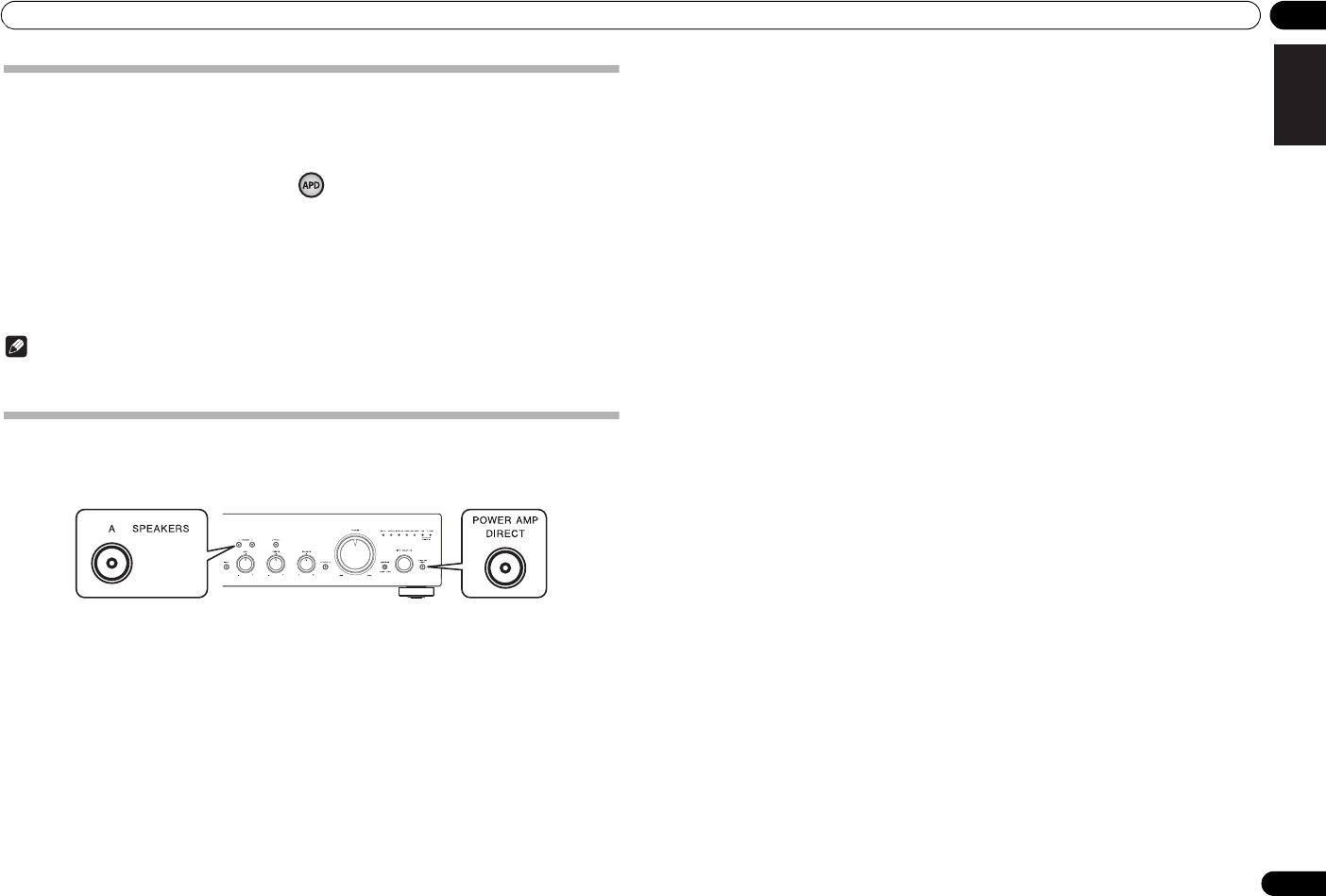

Restoring all the settings to the factory default settings
1 When power is in standby mode, hold the front-panel’s SPEAKERS A button and
POWER AMP DIRECT button depressed simultaneously for five seconds.
2 Turn power ON to the unit.
A70_SYXE8.book 13 ページ 2012年7月27日 金曜日 午後6時53分

05 Additional information
14
En
Chapter 5:
Additional information
Troubleshooting
Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with
this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other
components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks
listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.
• If the unit does not operate normally due to external effects such as static electricity disconnect the power plug
from the outlet and insert again to return to normal operating conditions.
Problem Remedy
The power does not turn on. • Is the power plug disconnected from the power outlet? Connect the power plug
correctly to its outlet (page 7).
•Is the power cord disconnected from the AC IN connector? Connect the power cord
correctly (page 7).
Power turns off. •Is the Auto Power Down function turned ON? If you do not want the power to turn off
automatically, disable the Auto Power Down function (page 13).
During playback, sound stops, and
the
STANDBY/APD
indicator flashes
red at about 0.5 second intervals.
•The protection circuit has been activated. This condition will result if a very low-
frequency sound is played at a high sound volume level.
- Turn the power OFF and wait for at least one minute, then turn the power ON again;
play the music at a lower sound volume level.
- When power is turned ON again, if the
STANDBY/APD
indicator flashes red at
irregular intervals, the unit’s circuitry may be damaged. Disconnect the power cord
and consult your dealer or nearest Pioneer service station.
During playback, sound stops, and
the
STANDBY/APD
indicator flashes
red at about 1 second intervals.
•The unit’s internal temperature has risen and the safety circuit has operated.
- Turn power OFF and wait for a minute or more, allowing the unit’s temperature to
cool before turning the power ON again.
- Install the unit in a location with better ventilation.
- Confirm that the unit is installed correctly; if the unit is turned on again without
being allowed to cool, the same symptoms may appear (page 4).
During playback, sound stops, and
the
STANDBY/APD
indicator flashes
red at about 2 second intervals.
•Are you using speakers with impedance values not supported by this unit? Confirm
the speaker’s nominal impedance value (page 6).
•Are any speaker cables loose from the
SPEAKERS
terminals and touching other
wires or the surface of the rear panel? Disconnect the power cord and reconnect the
speaker cables correctly (page 6).
During playback, sound stops, and
the
STANDBY/APD
indicator flashes
red at about 3 second intervals.
•The protection circuit has been activated. This condition will result if a very high-
frequency sound is played at a high sound volume level.
- Lower the sound volume and try playing again.
- If the same symptom appears when the power is turned OFF then ON again, the
unit’s circuitry may be damaged. Disconnect the power cord and consult your
dealer or nearest Pioneer service station.
When power is turned on, the
STANDBY/APD
indicator flashes at
irregular intervals.
•The unit’s circuitry is damaged. Disconnect the power cord and consult your dealer
or nearest
Pioneer authorized service center
.
Cleaning the unit
• Use a polishing cloth or dry cloth to wipe off dust
and dirt.
• When the surface is dirty, wipe with a soft cloth
dipped in some neutral cleanser diluted five or six
times with water, and wrung out well, and then
wipe again with a dry cloth. Do not use furniture
wax or cleansers.
• Never use thinners, benzine, insecticide sprays or
other chemicals on or near this unit, since these
will corrode the surface.
No sound is output when a function is
selected. •A connection cable is disconnected or connected improperly. Check your
connections (page 5).
•Connectors or pin plugs on a cable are dirty. Wipe off any dirt from connectors and
pin plugs.
•Confirm that the unit’s input selector is set to the desired playback component. Set
selector correctly (page 11).
•Press
MUTE
on the remote control to turn muting off (page 10).
No sound from one speaker. •Are the connection cables or speaker cables disconnected on one side? Reconnect
securely (page 5).
Can’t operate the remote
control. •Replace the battery (page 4).
•Operate within 7 m, 30° of the remote sensor on the front panel (page 4).
•Remove the obstacle or operate from another position.
•Avoid exposing the remote sensor on the front panel to direct light.
•Is the control cord for one component connected improperly? Confirm correct
connections (page 6).
Can’t change input source. •Check whether
POWER AMP DIRECT
function is ON. If so, press the front panel’s
POWER AMP DIRECT
button to turn the function OFF (page 11).
No sound is heard when a linear PCM
signal with frequency of 96 kHz or
more is input to the
DIGITAL IN
COAXIAL
terminal.
•Sound may not be output properly depending on the digital coaxial cable used; try
replacing the cable (sold separately) with another.
When the
DIGITAL IN USB
port is
connected to a computer via USB
cable, audio files on the computer
cannot be played.
•Has the proper device driver been installed on the computer? When using a USB
cable to connect the unit's
DIGITAL IN USB
port to a computer in order to play audio
files on the computer, the proper device driver must be downloaded from the Pioneer
website and installed on your computer. Consult the Pioneer website for instructions
on installing the driver.
No sound is produced when
attempting to play files on a computer. •Are volume settings correct for the OS and application program? Raise the volume
settings as required.
•Is the OS audio output set to MUTE? Cancel the MUTE setting.
•Are multiple applications running simultaneously? Try closing applications that are
not in use.
•Has the audio output been set properly within the OS or application used? For audio
device select "Pioneer USB Audio Device".
Problem Remedy
A70_SYXE8.book 14 ページ 2012年7月27日 金曜日 午後6時53分

Additional information 05
15
En
English DeutschFrançais
Nederlands
Italiano Español Русский
Specifications
Amplifier section
Power output specification is for when power supply is 230 V.
• Continuous power output (both
channels driven at 20 Hz to 20 kHz)
A-70/A-50. . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 W + 90 W
(THD 0.5 %, 4 Ω)
A-70/A-50. . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 W + 65 W
(THD 0.5 %, 8 Ω)
Audio section
• Input (Sensitivity/Impedance)
SACD/CD, NETWORK, TUNER, RECORDER, AUX (A-50
only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 mV/50 kΩ
POWER AMP DIRECT . . . . . . . . . . . . . . . . . . . . 1 V/10 kΩ
PHONO (MM) . . . . . . . . . . . . . . . . . . . . . . . .2.8 mV/50 kΩ
PHONO (MC) . . . . . . . . . . . . . 0.24 mV/100 Ω (A-70 only)
COAXIAL . . . . . . . . . . . . . . . . 500 mVp-p/75 Ω (A-70 only)
• Output (Level/Impedance)
RECORDER OUT . . . . . . . . . . . . . . . . . . . . 200 mV/2.2 kΩ
• Frequency response
SACD/CD, NETWORK, TUNER, RECORDER, AUX (A-50
only) . . . . . . . . . . . . . . . . . . . . . . . . 5 Hz to 20 kHz ±2 dB*
PHONO (MM) . . . . . . . . . . . . . .20 Hz to 20 kHz ±0.5 dB*
PHONO (MC) . . . . 20 Hz to 20 kHz ±0.5 dB* (A-70 only)
* Measured with DIRECT button switched on.
• Tone control
(When VOLUME is set to
-
30 dB)
Bass. . . . . . . . . . . . . . . . . . . . . . . . . . . . .± 10 dB (100 Hz)
Treble. . . . . . . . . . . . . . . . . . . . . . . . . . . .± 10 dB (10 kHz)
• Signal-to-Noise Ratio (IHF SHORTED,
A-NETWORK)
SACD/CD, NETWORK, TUNER, RECORDER, AUX (A-50
only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 dB*
PHONO (MM, 5 mV input). . . . . . . . . . . . . . . . . . . 89 dB*
PHONO (MC, 0.5 mV input). . . . . . . . .74 dB* (A-70 only)
* Measured with DIRECT button switched on.
• Speaker load impedance
A, B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Ω to 16 Ω
A+B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Ω to 32 Ω
Bi-wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Ω to 16 Ω
Miscellaneous
Power requirements
. . . . . . . . . . . . . . . . . . . . . . . . . . AC 220 V to 230 V, 50 Hz
Power consumption
A-70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74 W
A-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72 W
In standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.2 W
Dimensions
A-70 . . . . . . 435 mm (W) x 141.5 mm (H) x 361.5 mm (D)
A-50 . . . . . . . 435 mm (W) x 138.5 mm (H) x 357 mm (D)
Weight (without package)
A-70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17.1 kg
A-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.1 kg
Accessories
Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
AAA/IEC R03 dry cell batteries . . . . . . . . . . . . . . . . . . . . 2
Short pin plug. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Power cord
Warranty card
Caution sheet
Operating instructions (This document)
Note
• Specifications and the design are subject to
possible modifications without notice, due to
improvements.
• Corporation and product names mentioned herein
are trademarks or registered trademarks of the
respective corporations.
© 2012 PIONEER CORPORATION.
All rights reserved.
A70_SYXE8.book 15 ページ 2012年7月27日 金曜日 午後6時53分

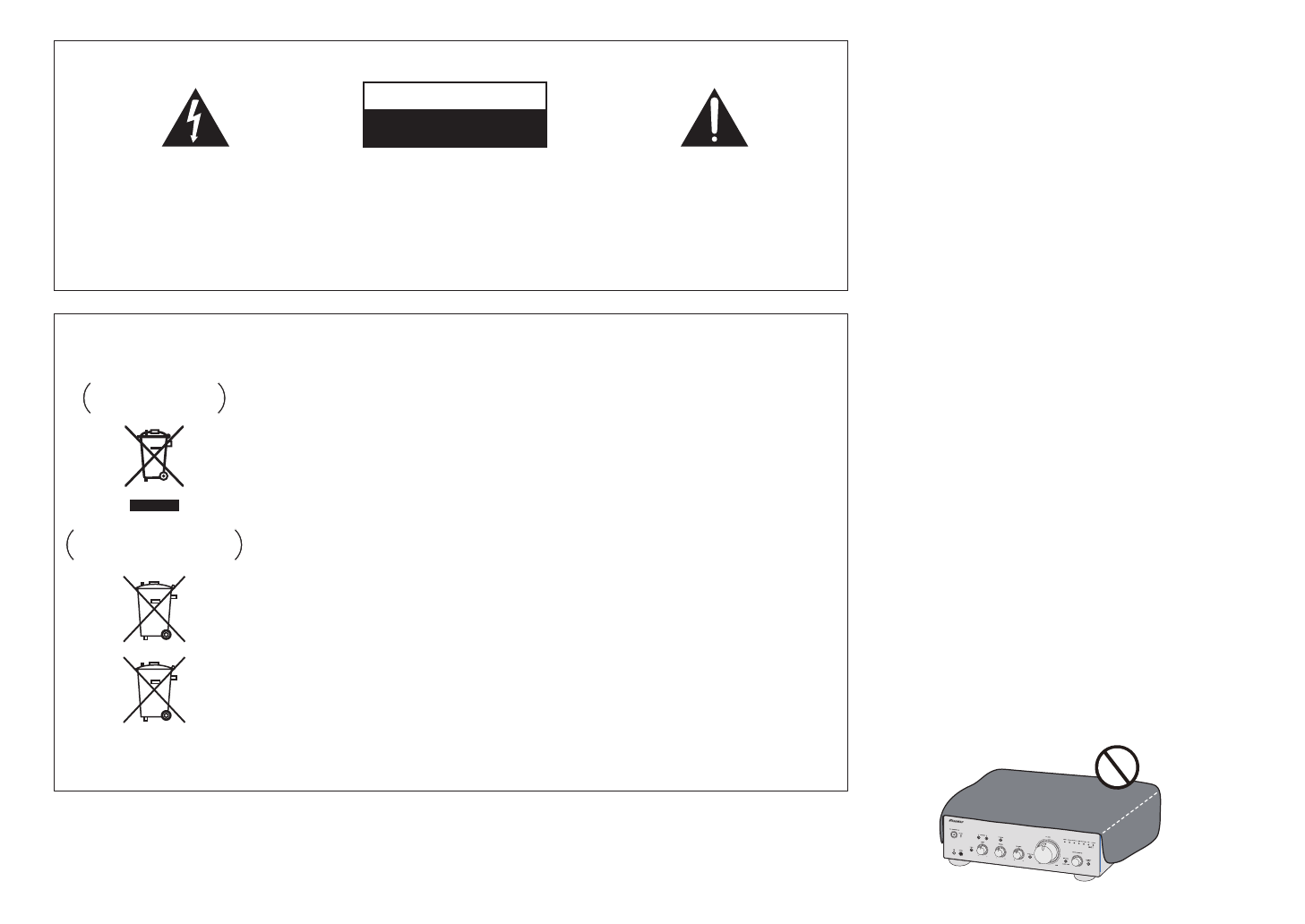

Ce point d’exclamation, placé dans un
triangle équilatéral, a pour but d’attirer
l’attention de l’utilisateur sur la présence,
dans les documents qui accompagnent
l’appareil, d’explications importantes du
point de vue de l’exploitation ou de
l’entretien.
Ce symbole de l’éclair, placé dans un
triangle équilatéral, a pour but d’attirer
l’attention de l’utilisateur sur la présence, à
l’intérieur du coffret de l’appareil, de
“tensions dangereuses” non isolées d’une
grandeur suffisante pour représenter un
risque d’électrocution pour les êtres
humains.
ATTENTION :
POUR ÉVITER TOUT RISQUE
D’ÉLECTROCUTION, NE PAS ENLEVER LE
COUVERCLE (NI LE PANNEAU ARRIÈRE).
AUCUNE PIÈCE RÉPARABLE PAR
L’UTILISATEUR NE SE TROUVE À
L’INTÉRIEUR. CONFIER TOUT ENTRETIEN À
UN PERSONNEL QUALIFIÉ UNIQUEMENT.
ATTENTION
DANGER D´ELECTROCUTION
NE PAS OUVRIR
IMPORTANT
D3-4-2-1-1_A1_Fr
AVERTISSEMENT
Cet appareil n’est pas étanche. Pour éviter les risques
d’incendie et de décharge électrique, ne placez près de
lui un récipient rempli d’eau, tel qu’un vase ou un pot
de fleurs, et ne l’exposez pas à des gouttes d’eau, des
éclaboussures, de la pluie ou de l’humidité.
D3-4-2-1-3_A1_Fr
AVERTISSEMENT
Avant de brancher l’appareil pour la première, lisez
attentivement la section suivante.
La tension de l’alimentation électrique disponible
varie selon le pays ou la région. Assurez-vous que
la tension du secteur de la région où l’appareil sera
utilisé correspond à la tension requise (par ex. 230
V ou 120 V), indiquée sur le panneau arrière.
D3-4-2-1-4*_A1_Fr
AVERTISSEMENT
Pour éviter les risques d’incendie, ne placez aucune
flamme nue (telle qu’une bougie allumée) sur
l’appareil.
D3-4-2-1-7a_A1_Fr
PRÉCAUTION DE VENTILATION
Lors de l’installation de l’appareil, veillez à laisser un
espace suffisant autour de ses parois de manière à
améliorer la dissipation de chaleur (au moins 30 cm sur
le dessus, 10 cm à l’arrière et 10 cm de chaque côté).
AVERTISSEMENT
Les fentes et ouvertures du coffret sont prévues pour la
ventilation, pour assurer un fonctionnement stable de
l’appareil et pour éviter sa surchauffe. Pour éviter les
risques d’incendie, ne bouchez jamais les ouvertures et
ne les recouvrez pas d’objets, tels que journaux, nappes
ou rideaux, et n’utilisez pas l’appareil posé sur un tapis
épais ou un lit.
D3-4-2-1-7b*_A1_Fr
K058a_A1_Fr
Pb
Information à destination des utilisateurs sur la collecte et l’élimination des
équipements et batteries usagés
Ces symboles qui figurent sur les produits, les emballages et/ou les documents
d’accompagnement signifient que les équipements électriques et électroniques et
batteries usagés ne doivent pas être jetés avec les déchets ménagers et font l’objet
d’une collecte sélective.
Pour assurer l’enlèvement et le traitement appropriés des produits et batteries
usagés, merci de les retourner dans les points de collecte sélective habilités
conformément à la législation locale en vigueur.
En respectant les circuits de collecte sélective mis en place pour ces produits, vous
contribuerez à économiser des ressources précieuses et à prévenir les impacts
négatifs éventuels sur la santé humaine et l’environnement qui pourraient résulter
d’une mauvaise gestion des déchets.
Pour plus d’information sur la collecte et le traitement des produits et batteries
usagés, veuillez contacter votre municipalité, votre service de gestion des déchets
ou le point de vente chez qui vous avez acheté ces produits.
Ces symboles ne sont valables que dans les pays de l’Union Européenne.
Pour les pays n’appartenant pas à l’Union Européenne :
Si vous souhaitez jeter ces articles, veuillez contacter les autorités ou revendeurs
locaux pour connaître les méthodes d’élimination appropriées.
Exemples de marquage
pour les batteries
Marquage pour les
équipements
A70_SYXE8-FR.book Page 2 Monday, July 30, 2012 9:07 AM

3
Si la fiche d’alimentation secteur de cet appareil ne
convient pas à la prise secteur à utiliser, la fiche doit
être remplacée par une appropriée. Ce
remplacement et la fixation d’une fiche secteur sur le
cordon d’alimentation de cet appareil doivent être
effectués par un personnel de service qualifié. En cas
de branchement sur une prise secteur, la fiche de
coupure peut provoquer une sérieuse décharge
électrique. Assurez-vous qu’elle est éliminée
correctement après sa dépose.
L’appareil doit être déconnecté en débranchant sa
fiche secteur au niveau de la prise murale si vous
prévoyez une période prolongée de non utilisation
(par exemple avant un départ en vacances).
D3-4-2-2-1a_A1_Fr
ATTENTION
L’interrupteur /I STANDBY/ON de cet appareil ne
coupe pas complètement celui-ci de sa prise secteur.
Comme le cordon d’alimentation fait office de
dispositif de déconnexion du secteur, il devra être
débranché au niveau de la prise secteur pour que
l’appareil soit complètement hors tension. Par
conséquent, veillez à installer l’appareil de telle
manière que son cordon d’alimentation puisse être
facilement débranché de la prise secteur en cas
d’accident. Pour éviter tout risque d’incendie, le
cordon d’alimentation sera débranché au niveau de
la prise secteur si vous prévoyez une période
prolongée de non utilisation (par exemple avant un
départ en vacances).
D3-4-2-2-2a*_A1_Fr
Milieu de fonctionnement
Température et humidité du milieu de fonctionnement :
De +5 °C à +35 °C (de +41 °F à +95 °F) ; Humidité
relative inférieure à 85 % (orifices de ventilation non
obstrués)
N’installez pas l’appareil dans un endroit mal ventilé ou
un lieu soumis à une forte humidité ou en plein soleil
(ou à une forte lumière artificielle).
D3-4-2-1-7c*_A1_Fr
Ce produit est destiné à une utilisation domestique
générale. Toute panne due à une utilisation autre qu'à
des fins privées (comme une utilisation à des fins
commerciales dans un restaurant, dans un autocar
ou sur un bateau) et qui nécessite une réparation
sera aux frais du client, même pendant la période de
garantie.
K041_A1_Fr
NOTE IMPORTANTE SUR LE CABLE D’ALIMENTATION
Tenir le câble d’alimentation par la fiche. Ne pas
débrancher la prise en tirant sur le câble et ne pas
toucher le câble avec les mains mouillées. Cela risque de
provoquer un court-circuit ou un choc électrique. Ne pas
poser l’appareil ou un meuble sur le câble. Ne pas pincer
le câble. Ne pas faire de noeud avec le câble ou l’attacher
à d’autres câbles. Les câbles d’alimentation doivent être
posés de façon à ne pas être écrasés. Un câble abîmé
peut provoquer un risque d’incendie ou un choc
électrique. Vérifier le câble d’alimentation de temps en
temps. Contacter le service après-vente PIONEER le plus
proche ou le revendeur pour un remplacement.
S002*_A1_Fr
Nous vous remercions pour cet
achat d’un produit Pioneer.
Nous vous demandons de lire soigneusement ce mode
d’emploi ; vous serez ainsi à même de faire fonctionner
l’appareil correctement. Après avoir bien lu le mode
d’emploi, le ranger dans un endroit sûr pour pouvoir s’y
référer ultérieurement
.
Table des
matières
01 Préparatifs
Contenu de la boîte . . . . . . . . . . . . . . . . . . . . . . . .4
Chargement des piles dans la télécommande . . . . 4
Utilisation de la télécommande . . . . . . . . . . . . . . . .4
Installation de l’amplificateur . . . . . . . . . . . . . . . .4
02 Raccordement
Raccordements des câbles . . . . . . . . . . . . . . . . . .5
A propos de “bi-câblage (bi-wiring)”. . . . . . . . . . . .5
Connexion des câbles d’enceinte. . . . . . . . . . . . . .6
Raccordement des câbles audio . . . . . . . . . . . . . .6
Utilisation de la commande centralisée avec
d’autres composants Pioneer . . . . . . . . . . . . . . . .6
Connexions d’entrée audio numérique
(uniquement A-70). . . . . . . . . . . . . . . . . . . . . . . . .6
Utilisation d’un câble USB pour brancher un
ordinateur (uniquement A-70) . . . . . . . . . . . . . . . .7
Branchement. . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
03 Commandes et afficheur
Panneau avant. . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Panneau arrière. . . . . . . . . . . . . . . . . . . . . . . . . . .9
Télécommande . . . . . . . . . . . . . . . . . . . . . . . . . .10
04 Fonctionnement
Lecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Réglage de la puissance sur la mise en veille . . . .11
Lorsque vous utilisez l’appareil comme
amplificateur de puissance . . . . . . . . . . . . . . . . . .11
Lecture de musique depuis un composant audio
numérique (uniquement A-70). . . . . . . . . . . . . . . .12
Lecture de musique depuis ordinateur
(uniquement A-70). . . . . . . . . . . . . . . . . . . . . . . . .12
Réalisation d’un enregistrement audio . . . . . . . .12
Pour régler un statut de veille automatique
(fonction de mise hors tension automatique). . . .13
Pour restaurer tous les réglages sur les valeurs par
défaut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
05 Informations supplémentaires
Guide de dépannage . . . . . . . . . . . . . . . . . . . . . . 14
Nettoyage de l’unité. . . . . . . . . . . . . . . . . . . . . . .14
Spécifications . . . . . . . . . . . . . . . . . . . . . . . . . . .15
A70_SYXE8-FR.book Page 3 Monday, July 30, 2012 9:07 AM

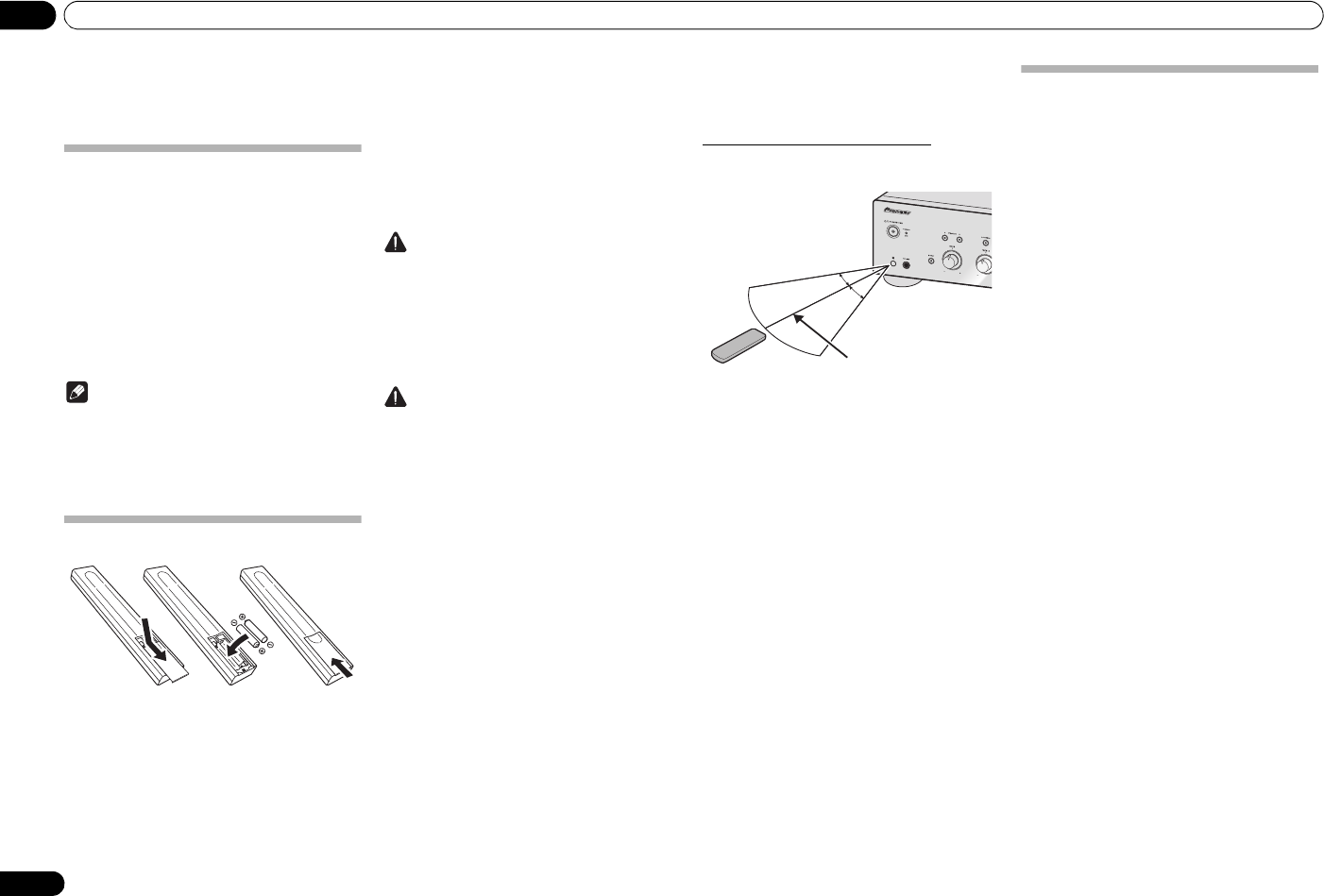

01 Préparatifs
4
Fr
Chapitre 1 :
Préparatifs
Contenu de la boîte
Veuillez confirmer que les accessoires suivants sont
présents dans la boîte quand vous l’ouvrez.
•Télécommande
• Piles sèches AAA/IEC R03 x 2
• Fiches à broche courte x 2
(Lors de l’achat, ces fiches sont déjà installées sur
les bornes PHONO IN du panneau arrière.)
• Cordon d’alimentation (Longueur : 1,8 m)
• Carte de garantie
•Feuille d’avertissements (pour la première utilisation)
• Mode d’emploi (ce document)
Remarque
• Les illustrations des instructions opérationnelles
peuvent avoir été modifiées ou simplifiées dans le
but de clarification et en conséquence peuvent
différer de l’apparence actuelle du produit.
• Les illustrations utilisées ici représentent
principalement l’A-70.
Chargement des piles dans la
télécommande
1 Ouvrez le couvercle arrière.
2 Placez les piles neuves, en faisant
correspondre la polarité à celle du boîtier.
3 Fermez le couvercle arrière.
Les piles incluses avec l’unité ont été fournies pour
permettre de contrôler le fonctionnement du produit et
ne dureront pas longtemps. Nous recommandons
d’utiliser des piles alcalines qui ont une durée de vie
utile plus longue.
AVERTISSEMENT
• N’utilisez ni ne conservez les piles sous la lumière
directe du soleil ou dans un endroit excessivement
chaud, comme une voiture ou à proximité d’un
appareil de chauffage. Les piles risqueraient de
fuir, de surchauffer, d’exploser ou de s’enflammer.
Leur durée de vie ou leur performance pourrait
également être réduite.
Attention
Toute utilisation incorrecte des piles peut entraîner des
accidents, par exemple une fuite ou une explosion.
Respectez les précautions suivantes :
• Lorsque vous placez les piles, prenez soin de ne pas
endommager les ressorts des bornes des piles .
Ceci peut entraîner la fuite ou la surchauffe des
piles.
• Ne pas utiliser de piles autres que celles qui sont
indiquées. Ne pas utiliser non plus une pile neuve
avec une pile usée.
• Lorsque vous installez les piles dans la
télécommande, orientez-les batteries dans la
bonne direction en respectant la polarité ( et ).
• Ne pas chauffer, ni démonter, ni ne jeter les piles
dans le feu ou l’eau.
• La tension des piles peut différer l’une de l’autre et
cela même si leur type et forme sont identiques.
Utiliser ensemble uniquement des piles du même
type.
• Pour éviter que les piles ne fuient, enlever les piles
lorsque le produit n’est pas censé être utilisé
pendant une période prolongée (à savoir 1 mois ou
plus). Si les piles ont fuit, nettoyer soigneusement
l’intérieur du compartiment et placer ensuite les
piles. Si une pile fuit et que du liquide entre en
contact avec votre peau, nettoyer à grande quantité
d’eau.
• Lorsque vous jetez des piles usées, veuillez vous
conformer aux normes gouvernementales ou à la
réglementation des institutions publiques
environnementales en vigueur dans votre pays ou
région.
12
3
Utilisation de la télécommande
La télécommande a une portée d’environ 7 mètres avec
un angle de 30° par rapport au capteur de
télécommande.
Gardez à l’esprit ce qui suit lorsque vous utilisez la
télécommande :
• Assurez-vous de l’absence d’obstacles entre la
télécommande et le capteur de l’appareil.
• La télécommande risque de ne pas fonctionner
correctement si la lumière du soleil ou une lampe
fluorescente puissante éclaire le capteur de
l’appareil.
• Les télécommandes de différents appareils
peuvent interférer entre elles. Evitez d’utiliser des
télécommandes commandant d’autres
équipements situés à proximité de cet appareil.
• Remplacez les piles lorsque vous constatez une
diminution de la portée de fonctionnement de la
télécommande.
Installation de l’amplificateur
Lors de l’installation de l’appareil, assurez-vous que ce
dernier est posé sur une surface plane et stable.
•
N’installez pas l’appareil dans les endroits suivants :
– sur un téléviseur couleur (les images à l’écran
pourraient être déformées)
– à proximité d’une platine à cassettes (ou d’un
appareil qui produit un champ magnétique). Le son
pourrait s’en trouver affecté.
– à la lumière directe du soleil
– à l’humidité
– à des températures extrêmes
– en présence de vibrations ou autres mouvements
– à la poussière
– à la fumée ou aux émanations graisseuses
(cuisine par ex.)
• Ne pas installer l’unité sur un divan ou tout autre
objet/matériau ayant des caractéristiques
absorbantes sous risque d’affecter la qualité du
son.
7 m
30 °
30 °
A70_SYXE8-FR.book Page 4 Monday, July 30, 2012 9:07 AM

Raccordement 02
5
Fr
English DeutschFrançais
Nederlands
Italiano Español Русский
Chapitre 2:
Raccordement
Raccordements des câbles
Attention
• Avant d’effectuer ou de modifier les raccordements, mettez l’appareil hors tension et débranchez le cordon
d’alimentation de la prise secteur.
• Connectez le cordon d’alimentation après avoir effectué toutes les connexions entre les appareils.
AUX IN
REC
R
L
OUTPUT
R
L
PLAY
RL
AUDIO
OUTPUT
PRE OUT
R
L
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
MENU
iPod
Music>
Extras>
Settings>
Shuffle Songs
Backlight
MASTER
VOLUME
STANDBY/ON
INPUT
SELECTOR
iPod iPhone iPadHDMI
ADVANCED
MCACC FL OFF
Lecteur SACD/CD Lecteur audio réseau Prises PRE OUT sur le
pré-amplificateur ou
amplificateur AV
Système d’enceinte B
Système d’enceinte A
Platine
Syntoniseur
Station d’accueil iPod, etc.
(Les bornes AUX IN
n’équipent que
le modèle A-50)
Enregistreur CD
ou à bande
Droite Gauche
Droite Gauche
Cordon d’alimentation
(fourni)
Panneau
arrière de cet
Attention
•La borne SIGNAL GND est fournie pour réduire le
bruit lors de la connexion de l’unité aux
composants, tels que la platine analogique.
• Les bornes PHONO IN sont installées en usine,
dotées de fiches à broche courte. Elles ne doivent
pas être retirées, sauf en cas de branchement
d’une platine. Assurez-vous de conserver les fiches
à broche courte en lieu sûre.
• N’insérez pas les fiches à broche courte dans des
connecteurs autres que les bornes PHONO IN.
Leur branchement sur d’autres bornes pourrait
entraîner un dysfonctionnement.
• Ne pas connecter les bornes PHONO IN à un autre
composant qu’une platine ; ne pas connecter non
plus une platine doté d’un égalisateur intégré. Un
son émis trop fort peut se produire, ce qui
endommagerait les enceintes ou les autres
appareils.
• Les bornes PHONO IN de l’unité A-50 ont été
conçues pour être utilisées avec des platines
dotées de cartouches de type MM (à aimant
mobile). Ne pas utiliser les platines dotées de
cartouches MC (à bobine mobile).
• Assurez-vous de ne pas plier les câbles par dessus
cette unité (comme indiqué dans l’illustration). Si
cela se produit, le champ magnétique produit par
les transformateurs dans cette unité peut
provoquer un ronflement des enceintes.
• Les bornes POWER AMP DIRECT de l’unité ne
doivent jamais être branchées à des connecteurs
autres que PRE-AMP OUT.
• Si votre platine dispose d’un fil de mise à la terre,
fixez-le à la borne de terre de cet amplificateur.
Remarque
• Lors de la connexion d’un enregistreur à bande, le
bruit de fond peut être perçu, selon l’emplacement
de l’installation. Ce bruit provient d’une fuite du
transformateur de l’amplificateur. Dans ce cas,
changez l’emplacement de l’installation ou
distancez davantage la platine de l’amplificateur.
• iPod est une marque commerciale d’Apple Inc.,
enregistrées aux états-Unis et dans d’autres pays.
A propos de “bi-câblage (bi-wiring)”
Cette unité peut être utilisée avec des enceintes
prenant en charge le bi-câblage. Toujours raccorder
correctement la haute fréquence et la basse
fréquence.
• Au cours de la lecture, assurez-vous que les
boutons SPEAKERS A et SPEAKERS B sont sur
Marche (ON) (page 8).
Attention
• Lorsque vous utilisez un bi-câblage pour connecter
les enceintes, assurez-vous d’enlever les tiges de
court-circuit HIGH et LOW fournies avec les haut-
parleurs pour ne pas créer d’effets adverses sur
l’amplificateur. Pour de plus amples informations,
consultez les instructions fournies avec les
enceintes.
HIGH
LOW
HIGH
LOW
Système des enceintes
Gauche
Système des enceintes
Droite
Panneau
arrière de cet
appareil
Enlevez la tige de
court-circuit entre
les bornes + et –.
A70_SYXE8-FR.book Page 5 Monday, July 30, 2012 9:07 AM

02 Raccordement
6
Fr
• Lorsque vous utilisez des enceintes avec des
circuits de réseau amovibles, si le réseau est
enlevé, aucun effet ne se produira et les enceintes
peuvent subir des dommages.
• Vous pouvez alternativement connecter les bornes
SPEAKERS A sur HIGH et celles sur LOW
SPEAKERS B (à l’inverse de ce qui est illustré).
Connexion des câbles d’enceinte
1 Entortillez l’âme des câbles.
2 Desserrez l’écrou sur la borne
SPEAKERS
et introduisez le câble de l’enceinte dans le
trou exposé dans la borne.
3 Resserrez l’écrou de la borne.
Attention
• Lorsque vous utilisez uniquement un jeu de
bornes de l’enceinte (SPEAKERS A ou SPEAKERS
B), ou lorsque vous utilisez des connexions bi-
câblage, l’enceinte utilisée doit disposer d’une
impédance nominale entre 4 Ω et 16 Ω. Lorsque
vous utilisez des jeux de bornes, les enceintes
connectées doivent disposer d’une impédance
nominale entre 8 Ω et 32 Ω. Pour de plus
amples informations sur la valeur de
l’impédance, consultez les instructions jointes
aux enceintes.
• Vérifiez que les bornes positive et négative (+/–) sur
l’amplificateur correspondent à celles des
enceintes.
• Les bornes des haut-parleurs sont sous une
tension ACTIVE DANGEREUSE. Pour éviter tout
risque de décharge électrique lors du branchement
et du débranchement des câbles d’enceinte,
débranchez le cordon d’alimentation avant de
toucher des parties non isolées.
• Assurez-vous que tous les fils dénudés d’enceinte
sont entortillés ensemble et totalement introduits
dans la borne de l’enceinte. Si l’un des fils dénudés
entre en contact avec le panneau arrière,
l’alimentation sera automatiquement coupée par
mesure de sécurité.
Raccordement des câbles audio
Connectez la fiche blanche à la prise gauche (L) et la
fiche rouge à la prise droite (R). Assurez-vous de bien
brancher les fiches dans les prises.
123
10 mm
Gauche (blanche)
Droite (rouge)
Utilisation de la commande centralisée
avec d’autres composants Pioneer
De nombreux composants Pioneer dotés de prises
CONTROL IN/OUT peuvent être connectés à l’unité,
centralisant la commande des composants via le
télécapteur sur l’appareil. Cette centralisation permet
d’utiliser une télécommande dont les composants ne
sont pas munis d’un télécapteur ou sont installés à des
emplacements inaccessibles par le télécapteur.
Remarque
• Pour établir la connexion, utilisez un cordon mini-
fiche mono en vente dans le commerce (sans
résistance).
• Lors de la connexion des prises CONTROL IN/OUT,
des cordons audio en vente dans le commerce
doivent être utilisés pour établir les connexions
analogiques. La connexion des prises CONTROL
IN/OUT ne suffit pas à à assurer un contrôle
adéquat du système.
• Lorsqu’un cordon de commande est connecté à la
prise CONTROL IN de l’appareil, il est impossible
de contrôler l’unité en pointant la télécommande
sur l’appareil (le télécapteur est automatiquement
désactivé).
Connexions d’entrée audio
numérique (uniquement A-70)
Si un câble numérique coaxial (vendu séparément) est
utilisé pour connecter la borne DIGITAL IN COAXIAL de
l’unité au connecteur de sortie audio numérique d’un
lecteur audio numérique, le lecteur peut être utilisé pour
lire la musique via cet appareil.
Pour plus d’informations sur la récupération de l’entrée
des signaux audio par la borne DIGITAL IN COAXIAL,
consultez la page 12.
Remarque
• Les signaux PCM linéaire font partie des formats de
signaux numériques pouvant être transmis à cette
unité Leurs taux d’échantillonnage et bits
quantitatifs peuvent atteindre les 192 kHz/32 bits.
(Selon l’appareil connecté et l’environnement, il est
possible que cela ne fonctionne pas).
IN
OUT
CONTROL
Vers d’autres
composants Pioneer
munis de prises
CONTROL IN/OUT
Vers d’autres
composants
Pioneer munis
d’une prise
CONTROL IN
A-70
Dirigez la
télécommande sur le
capteur de l’unité.
Télécommande
DIGITAL OUT
COAXIAL
Équipement audio
numérique, etc.
Câble audio numérique coaxial
(vendu séparément)
Panneau arrière A-70
A70_SYXE8-FR.book Page 6 Monday, July 30, 2012 9:07 AM

Raccordement 02
7
Fr
English DeutschFrançais
Nederlands
Italiano Español Русский
Utilisation d’un câble USB pour
brancher un ordinateur
(uniquement A-70)
Les fichiers de musique stockés dans un ordinateur
peuvent se lire via cet appareil si un câble USB (vendu
séparément) est utilisé pour relier la borne DIGITAL IN
USB de l’appareil au le port USB de l’ordinateur.
Pour plus d’informations sur la récupération de l’entrée
des signaux audio par la borne DIGITAL IN USB,
consultez la page 12.
Important
• Lorsque vous utilisez cette connexion pour lire les
fichiers audio d’un ordinateur sur cet appareil, il
peut s’avérer nécessaire d’installer un pilote
particulier sur l’ordinateur. Pour plus de détail,
visitez le site Internet de Pioneer.
Remarque
• Cette unité peut être utilisé pour lire les fichiers
audio d’un ordinateur si Media Player est installé
sur l’ordinateur relié.
Branchement
Important
• Lorsque vous devez vous absenter ou quelle que
soit la situation où l’unité ne sera pas utilisée
pendant une longue durée, toujours déconnecter le
cordon d’alimentation de ses prises. Les réglages
internes sont toujours conservés et cela même si le
cordon d’alimentation est déconnecté de sa prise
pendant une longue période.
• Si le cordon d’alimentation doit être déconnecté,
assurez-vous d’appuyer sur le bouton
/I
STANDBY/ON sur le panneau avant de l’unité
de manière à ce que cette dernière soit sur Arrêt
(OFF) avant de retirer le cordon.
Attention
• L’utilisation d’un cordon électrique autre que celui
fourni invalide la garantie, Pioneer n’étant pas
responsable des éventuels dommages subis.
(Le cordon d’alimentation fourni avec l’unité
présente une capacité nominale de 10 A.)
• Ne pas utiliser de cordon d’alimentation autre que
celui fourni avec cette unit.
• Ne pas utiliser le cordon d’alimentation fourni pour
un usage que celui qui est décrit ci-dessous.
Après avoir effectué toutes les connexions, branchez
l’unité dans une prise CA.
1 Branchez le cordon d’alimentation dans
la prise
AC IN
située sur le panneau arrière
de l’unité.
2 Branchez l’autre extrémité dans la prise
CA.
USB
Câble USB
(vendu séparément)
Type A
Type B
PC
Panneau arrière A-70
Vers la prise CA
Panneau arrière de cet appareil
Cordon d’alimentation
(inclus)
A70_SYXE8-FR.book Page 7 Monday, July 30, 2012 9:07 AM

03 Commandes et afficheur
10
Fr
Télécommande
STANDBY/ON
A
B
APD
STANDBY/ON
A
B
APD
18
10
9
11
12
2
3
4
6
4
7
5
A-50
18
9
10
11
12
2
3
4
6
4
7
5
A-70
1
STANDBY/ON
Cette touche permet d’allumer l’amplificateur et de le
mettre en veille.
2 Touches de sélection des entrées
Appuyez sur l’une de ces touches pour sélectionner une
source d’entrée. Elles sélectionnent le composant
raccordé à l’entrée correspondante sur le panneau
arrière.
• Lorsque l’A-50 est connecté, le bouton USB,
COAXIAL, et OPTION sont désactivés.
3 Boutons de commande du SACD PLAYER
Permet de contrôler le lecteur SACD Pioneer.
4 Boutons de commande du NETWORK
AUDIO PLAYER
Permet de contrôler le lecteur Pioneer audio en réseau.
5
LOUDNESS
Utilisez pour activer/désactiver (ON/OFF) (page 8) le
circuit de la puissance sonore.
6
MUTE
Permet de couper/restaurer le son.
7
DIRECT
Permet d’accéder à la fonction d’écoute en mode direct
(page 8).
8
DIMMER
Ce bouton permet d’allumer les indicateurs du panneau
avant de l’unité pour régler les trois niveaux (aucune
incidence sur l’indicateur STANDBY).
9
VOLUME +/–
Permet de régler le volume d’écoute.
10
SPEAKERS A
bouton/indicateur
Ce bouton permet d’écouter le système d’enceinte
connecté aux bornes SPEAKERS A.
11
SPEAKERS B
bouton/indicateur
Ce bouton permet d’écouter le système d’enceinte
connecté aux bornes SPEAKERS B.
12
APD
Permet d’activer/désactiver la fonction de hors tension
automatique (page 13).
A70_SYXE8-FR.book Page 10 Monday, July 30, 2012 9:07 AM

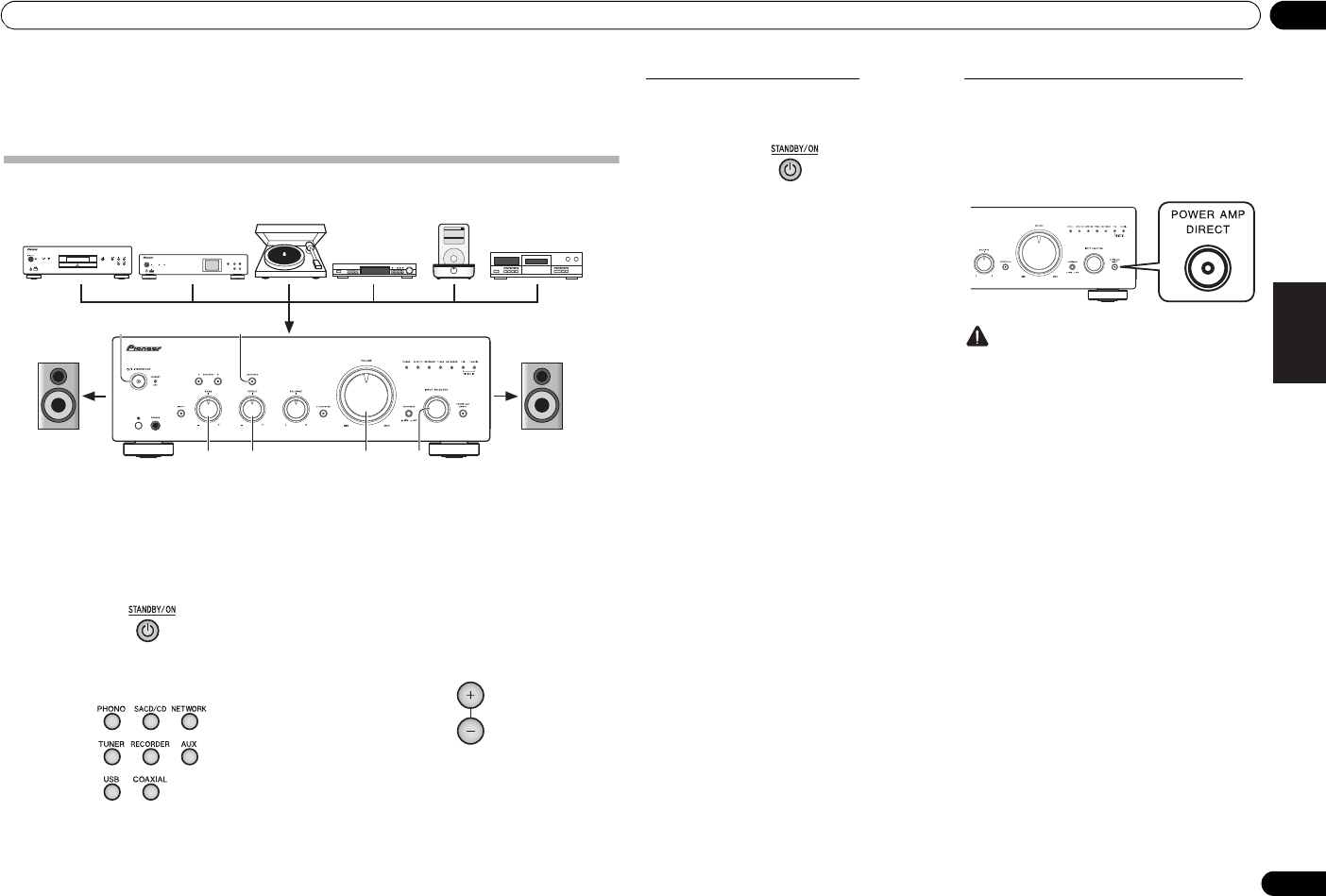

Fonctionnement 04
11
Fr
English DeutschFrançais
Nederlands
Italiano Español Русский
Chapitre 4:
Fonctionnement
Lecture
1 Mettez sous tension le composant de
lecture.
2 Mettez l’unité sous tension.
• Si l’unité est en mode de veille, appuyez sur le
bouton de la télécommande STANDBY/ON.
3 Sélectionnez la source que vous
souhaitez lire.
Sélectionnez le composant de lecture.
• Lorsque vous utilisez les commandes du panneau
avant, tournez le bouton INPUT SELECTOR.
• Dans le cas du A-70, si PHONO est sélectionné,
utilisez le sélecteur CARTRIDGE pour désigner le
type de cartouche utilisé avec votre platine, soit MM
() ou MC ().
4 Débutez la lecture du composant que
vous avez sélectionné dans l’étape 1.
5 Réglez le volume de la lecture avec la
commande
VOLUME
.
6 Ajustez la tonalité à votre choix à l’aide
des commandes
BASS
et
TREBLE
et du
bouton
LOUDNESS
.
Si le bouton DIRECT a été réglé sur ON, ces commandes
sont désactivées.
3566
62
MENU
iPod
Music>
Extras>
Settings>
Shuffle Songs
Backlight
/I STANDBY/ON
STANDBY
iPod/USB
5V 2.1A
PURE AUDIO Hi-Bit 32
FUNCTION
NETWORK AUDIO PLAYER N-50
Lecteur SACD/CD Lecteur audio réseau
Platine
Syntoniseur
Station d’accueil iPod, etc.
Enregistreur CD
ou à bande
Lecture Lecture
VOLUME
Réglage de la puissance sur la mise en
veille
1 Appuyez sur le bouton
STANDBY/ON
de la télécommande.
La prochaine fois que vous remettrez sous tension,
appuyez sur le bouton STANDBY/ON de la
télécommande.
• Si vous appuyez sur le bouton /I STANDBY/ON
du panneau avant, l’appareil se met hors tension.
Dans ce cas, si l’alimentation est coupée, vous ne
pourrez pas remettre sous tension en appuyant sur
le bouton de la télécommande STANDBY/ON.
Pour remettre sous tension, appuyez sur le bouton
/I STANDBY/ON.
Lorsque vous utilisez l’appareil comme
amplificateur de puissance
Lorsqu’un pré-amplificateur est connecté aux bornes
POWER AMP DIRECT IN de l’unité, l’unité peut être
utilisée comme amplificateur de puissance.
1 Appuyez sur le bouton
POWER AMP
DIRECT
situé sur le panneau avant de
l’unité.
L’indicateur POWER AMP DIRECT s’allume.
Attention
• Lorsque l’indicateur POWER AMP DIRECT
s’allume, les opérations changent comme suit:
– Le commandes VOLUME, BASS, TREBLE, et
BALANCE du panneau avant de l’unité sont
désactivés. Ces réglages sont contrôlés par le
composant connecté aux bornes POWER AMP
DIRECT IN de l’unité.
–Les boutons LOUDNESS et ATTENUATOR (A-70
uniquement) sont désactivés.
– Lorsque le voyant POWER AMP DIRECT
s’allume, le volume audio de l’unité se met
automatiquement à son niveau maximum.
Lorsque vous utilisez cette unité comme
amplificateur de puissance, vérifiez le niveau de
sortie du composant connecté aux bornes
POWER AMP DIRECT IN et paramétrez-le au
niveau le plus bas avant d’allumer le voyant
POWER AMP DIRECT. Si le volume audio du
composant connecté aux bornes POWER AMP
DIRECT IN est initialement paramétré sur un
niveau de sortie élevé, vous risquez d’obtenir
une sortie audio soudainement forte lorsque le
voyant POWER AMP DIRECT s’allume.
– Le son n’est pas produit par la prise PHONES ni
les bornes RECORDER OUT.
• Pour de plus amples informations, consultez les
instructions sur le fonctionnement du composant
connecté aux bornes POWER AMP DIRECT IN de
l’appareil.
A70_SYXE8-FR.book Page 11 Monday, July 30, 2012 9:07 AM

Fonctionnement 04
13
Fr
English DeutschFrançais
Nederlands
Italiano Español Русский
Pour régler un statut de veille automatique (fonction de mise hors tension
automatique)
Cette fonction fait automatiquement passer l’unité en mode veille si aucun signal ou opération du sélecteur n’est
détecté pendant 30 minutes.
1 Si l’appareil est sous tension, appuyez sur le bouton
APD
de la télécommande.
Lorsque cette fonction est définie sur ON, l’indicateur STANDBY/APD situé sur le panneau avant de l’unité s’allume
en vert. Appuyez à nouveau sur le bouton pour désactiver le réglage.
• Ce réglage peut également s’effectuer en appuyant simultanément et pendant 3 secondes sur les boutons
LOUDNESS et POWER AMP DIRECT du panneau avant.
• Par défaut, cette option est activée.
• Le fait de tourner les commandes TREBLE, BASS, BALANCE, ou VOLUME ne sera pas interprété comme une
opération de contrôle pour redéfinir la minuterie de 30 minutes de la mise hors tension automatique.
Remarque
• Selon le type d’appareil branché, un bruit excessif produit par l’appareil peut être interprété comme un signal
audio, empêchant ainsi l’activation de la fonction de mise hors tension automatique.
Pour restaurer tous les réglages sur les valeurs par défaut
1 Lorsque l’unité est en mode de veille, appuyez simultanément les boutons sur le
panneau avant SPEAKERS A et POWER AMP DIRECT que vous maintenez enfoncés
pendant cinq secondes.
2 Mettez l’unité sous tension.
A70_SYXE8-FR.book Page 13 Monday, July 30, 2012 9:07 AM

05 Informations supplémentaires
14
Fr
Chapitre 5:
Informations supplémentaires
Guide de dépannage
Des opérations incorrectes sont souvent interprétées comme des problèmes et des mauvais fonctionnements. Si
vous pensez qu’il y a un problème avec ce composant, vérifiez les points ci-dessous. Parfois le problème peut se
trouver dans un autre composant. Examinez les autres composants et les appareils électriques en usage. Si le
problème ne peut pas se résoudre malgré les indications ci-dessous, consultez votre service après-vente Pioneer le
plus proche pour le faire réparer.
• Si l’unité ne fonctionne pas normalement en raison d’effets externes comme l’électricité statique, débranchez
la fiche d’alimentation de la prise de courant et insérez-la de nouveau pour rétablir les conditions normales de
fonctionnement.
Problèmes Solutions
Impossible de mettre sous tension. •La fiche est déconnectée de la prise ? Connectez correctement la fiche à la prise
(page 7).
•Le cordon d’alimentation est déconnecté du connecteur AC IN (Entrée CA) ?
Connectez correctement le cordon d’alimentation (page 7).
L’unité s’éteint. •La fonction de mise hors tension automatique est activée ? Si vous ne voulez pas que
l’alimentation soit coupée automatiquement, désactivez la fonction Auto Power Down
(mise hors tension automatique) (page 13).
Au cours de la lecture, le son s’arrête
et l’indicateur
STANDBY/APD
clignote en rouge à environ 0,5
seconde d’intervalle.
•Le circuit de protection a été activé. Cette condition se rencontre en cas de lecture
d’un son de très basse fréquence lorsque le niveau audio est élevé.
- Mettez l’appareil hors tension et patientez au moins une minute. Remettez
l’appareil sous tension ; lisez le morceau de musique à un niveau de volume plus
faible.
- Lorsque l’appareil est remis sous tension, et si l’indicateur
STANDBY/APD
clignote rouge de façon régulière, cela indique que le circuit de l’unité peut être
endommagé. Déconnectez le cordon d’alimentation et consultez votre revendeur
ou le centre de service Pioneer le plus proche.
Au cours de la lecture, le son s’arrête
et l’indicateur
STANDBY/APD
clignote en rouge à environ 1 seconde
d’intervalle.
•La température interne de l’unité a augmenté et le circuit de sécurité s’est
déclenché.
- Mettez l’appareil hors tension et patientez au moins une minute. La température de
l’unité se refroidit. Remettez ensuite l’appareil sous tension.
- Installez l’unité dans un endroit mieux ventilé.
- Confirmez l’installation appropriée de l’unité; si vous remettez l’unité en marche
sans attendre qu’elle ait refroidi, les mêmes symptômes peuvent se reproduire
(page 4).
Au cours de la lecture, le son s’arrête
et l’indicateur
STANDBY/APD
clignote en rouge à environ 2 seconde
d’intervalle.
•Utilisez-vous des enceintes avec des valeurs d’impédance non prise en charge par
cette unité ? Confirmez la valeur d’impédance nominale de l’enceinte (page 6).
•Des câbles d’enceinte sont desserrés des bornes
SPEAKERS
et touchent d’autres fils
ou la surface du panneau arrière ? Déconnectez le cordon d’alimentation et
reconnectez correctement les câbles d’enceinte (page 6).
Au cours de la lecture, le son s’arrête
et l’indicateur
STANDBY/APD
clignote en rouge à environ 3 seconde
d’intervalle.
•Le circuit de protection a été activé. Cette condition se rencontre en cas de lecture
d’un son de haute basse fréquence lorsque le niveau audio est élevé.
- Baissez le son et relancez la lecture.
- Si le même symptôme apparaît lorsque vous remettez à nouveau l’appareil sous
tension, cela indique que le circuit de l’unité peut être endommagé. Déconnectez le
cordon d’alimentation et consultez votre revendeur ou le centre de service Pioneer
le plus proche.
Nettoyage de l’unité
• Utilisez un chiffon sec pour essuyer la poussière et
la saleté.
• Lorsque le surface est sale, essuyez avec un chiffon
doux trempé dans un nettoyant neutre dilué dans
une dose cinq ou six fois supérieure d’eau, et bien
essoré. Essuyez encore avec un chiffon sec. Ne pas
utiliser de cire ou nettoyant pour meubles.
• Ne jamais utiliser de diluants, benzine, insecticides
en bombe ou autres produits chimiques sur ou
près de cet appareil au risque d’entraîner une
corrosion.
Lorsque l’unité est mise sous tension,
l’indicateur
STANDBY/APD
se met à
clignoter à intervalles réguliers.
•La circuitrie de l’unité est endommagée. Déconnectez le cordon d’alimentation et
consultez votre revendeur ou le
centre de service agréé par Pioneer
le plus proche.
Aucun son n’est fourni quand une
fonction est sélectionnée. •Un câble de raccordement est déconnecté ou connecté incorrectement. Vérifiez vos
connexions (page 5).
•Les connecteurs ou les fiches à broche du câble sont sales. Nettoyez les impuretés
des connecteurs et des fiches à broche.
•Vérifiez que le sélecteur d’entrée de l’unité est réglé au composant de lecture
souhaité. Réglez le sélecteur correctement (page 11).
•Appuyez sur
MUTE
de la télécommande pour désactiver la sourdine (page 10).
Aucun son n’est entendu d’une
enceinte. •Les câbles de raccordement ou des enceintes sont déconnectés sur un côté ?
Reconnectez fermement (page 5).
Impossible de faire fonctionner la
télécommande. •Remplacez les piles (page 4).
•Utilisez à moins de 7 m, 30° du capteur de télécommande du panneau avant (page 4).
•Eliminez tout obstacle ou utilisez dans une autre position.
•Ne pas exposer le capteur de télécommande du panneau avant à la lumière directe.
•Le cordon de commande d’un composant est connecté incorrectement ? S’assurer
que les connexions sont correctes (page 6).
Impossible de modifier la source
d’entrée. •Vérifiez si la fonction
POWER AMP DIRECT
est activée. Si c’est le cas, appuyez sur le
bouton du panneau avant
POWER AMP DIRECT
pour désactiver la fonction (page 11).
Aucun son n’est perceptible lorsqu’un
signal PCM linéaire de fréquence
96 kHz ou plus est soumis à la borne
DIGITAL IN COAXIAL
.
•Le son peut ne pas être correctement reproduit selon le câble coaxial numérique
utilisé. Essayez de remplacer le câble (vendu séparément).
Lorsque le port
DIGITAL IN USB
est
relié à un ordinateur via un câble
USB, les fichiers audio de l’ordinateur
ne peuvent pas être lus.
•Le pilote correspondant à l’appareil a-t-il bien été installé sur l’ordinateur ? Lorsque
vous utilisez un câble USB pour relier le port
DIGITAL IN USB
de l’unité à un
ordinateur, de façon à pouvoir lire les fichiers audio de l’ordinateur, il faut installer le
pilote adéquat sur l’ordinateur, après l’avoir téléchargé depuis le site Internet de
Pioneer. Consultez le site Internet de Pioneer pour obtenir les informations sur
l’installation du pilote.
Aucun son n’est produit lorsque vous
essayez de lire des fichiers d’un
ordinateur.
•Les paramètres de volume correspondent-ils au programme du système
d’exploitation et de l’application ? Augmentez les réglages du volume.
•La sortie audio du système d’exploitation est-elle mise sur MUET ? Annulez le réglage
MUET.
•Plusieurs applications sont-elles simultanément en cours d’exécution ? Fermez les
applications qui ne sont pas utilisées.
•La sortie audio a-t-elle été correctement configurée dans le système d’exploitation ou
l’application utilisée ? Pour l’appareil audio, sélectionnez "Pioneer USB Audio Device".
Problèmes Solutions
A70_SYXE8-FR.book Page 14 Monday, July 30, 2012 9:07 AM

Informations supplémentaires 05
15
Fr
English DeutschFrançais
Nederlands
Italiano Español Русский
Spécifications
Section amplificateur
La spécification pour la puissance de sortie concerne les
cas où l’alimentation électrique est de 230 V.
• Puissance de sortie continue (les deux
canaux fonctionnant entre 20 Hz et 20 kHz)
A-70/A-50. . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 W + 90 W
(THD 0,5 %, 4 Ω)
A-70/A-50. . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 W +65 W
(THD 0,5 %, 8 Ω)
Section audio
• Entrée (Sensibilité/impédance)
SACD/CD, NETWORK, TUNER, RECORDER, AUX (A-50
uniquement) . . . . . . . . . . . . . . . . . . . . . . . . 200 mV/50 kΩ
POWER AMP DIRECT . . . . . . . . . . . . . . . . . . . . 1 V/10 kΩ
PHONO (MM) . . . . . . . . . . . . . . . . . . . . . . . .2,8 mV/50 kΩ
PHONO (MC) . . . . . . 0,24 mV/100 Ω (A-70 uniquement)
COAXIAL . . . . . . . . . 500 mVp-p/75 Ω (A-70 uniquement)
• Sortie (Niveau/impédance)
RECORDER OUT . . . . . . . . . . . . . . . . . . . . 200 mV/2.2 kΩ
• Réponse en fréquence
SACD/CD, NETWORK, TUNER, RECORDER, AUX (A-50
uniquement) . . . . . . . . . . . . . . de 5 Hz à 20 kHz ± 2 dB*
PHONO (MM) . . . . . . . . . . . . . . 20 Hz à 20 kHz ±0,5 dB*
PHONO (MC)
. . . . . . . de 20 Hz à 20 kHz ±0,5 dB* (A-70 uniquement)
* Mesure effectuée avec la touche DIRECT activée.
• Commande de la tonalité
(Lorsque le VOLUME est réglé sur
-
30 dB)
Graves . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 dB (100 Hz)
Aigus . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 dB (10 kHz)
• Rapport signal/bruit
(IHF COURT-CIRCUITÉ,RÉSEAU A)
SACD/CD, NETWORK, TUNER, RECORDER, AUX (A-50
uniquement) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 dB*
PHONO (MM, entrée de 5 mV) . . . . . . . . . . . . . . . 89 dB*
PHONO (MC, entrée 0,5 mV)
. . . . . . . . . . . . . . . . . . . . . . . . .74 dB* (A-70 uniquement)
* Mesure effectuée avec la touche DIRECT activée.
• Impédance charge haut-parleur
A, B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Ω à 16 Ω
A+B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Ω à 32 Ω
Bi-câblage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Ω à 16 Ω
Divers
Conditions d’alimentation requises
. . . . . . . . . . . . . . . . . . . . . . . . . . . 220 VCA à 230 V, 50 Hz
Consommation électrique
A-70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74 W
A-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72 W
En mode veille. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0,2 W
Dimensions
A-70 . . . . . . . 435 mm (L) x 141,5 mm (H) x 361,5 mm (P)
A-50 . . . . . . . . 435 mm (L) x 138,5 mm (H) x 357 mm (P)
Poids (sans emballage)
A-70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17,1 kg
A-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11,1 kg
Accessoires
Télécommande. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Piles sèches AAA/IEC R03. . . . . . . . . . . . . . . . . . . . . . . . 2
Fiche à broche courte . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Cordon d’alimentation
Carte de garantie
Feuille d’avertissements
Mode d’emploi (ce document)
Remarque
• Les spécifications et la conception sont sujettes à
de possibles modifications sans préavis, suite à des
améliorations.
• Les noms d’entreprise et de produit mentionnés
dans les présentes sont des marques de commerce
ou des marques déposées de leur propriétaire
respectif.
© 2012 PIONEER CORPORATION.
Tous droits de reproduction et de traduction
réservés.
A70_SYXE8-FR.book Page 15 Monday, July 30, 2012 9:07 AM

WARNUNG
Dieses Gerät ist nicht wasserdicht. Zur Vermeidung der
Gefahr von Brand und Stromschlag keine Behälter mit
Flüssigkeiten (z.B. Blumenvasen und -töpfe) in die
Nähe des Gerätes bringen und dieses vor Tropfwasser,
Spritzwasser, Regen und Nässe schützen.
D3-4-2-1-3_A1_De
WARNUNG
Vor dem erstmaligen Anschluss des Gerätes an das
Stromnetz bitte den folgenden Hinweis sorgfältig
beachten.
Die Netzspannung ist je nach Land verschieden.
Vor der Inbetriebnahme des Gerätes sicherstellen,
dass die örtliche Netzspannung mit der auf dem
Typenschild an der Rückwand des Gerätes
angegebenen Nennspannung (z.B. 230 V oder 120
V) übereinstimmt.
D3-4-2-1-4*_A1_De
VORSICHTSHINWEIS ZUR BELÜFTUNG
Bei der Aufstellung dieses Gerätes muss für einen
ausreichenden Freiraum gesorgt werden, um eine
einwandfreie Wärmeabfuhr zu gewährleisten
(mindestens 30 cm oberhalb des Gerätes, 10 cm hinter
dem Gerät und jeweils 10 cm an der Seite des Gerätes).
WARNUNG
Im Gerätegehäuse sind Ventilationsschlitze und andere
Öffnungen vorgesehen, die dazu dienen, eine
Überhitzung des Gerätes zu verhindern und einen
zuverlässigen Betrieb zu gewährleisten. Um
Brandgefahr auszuschließen, dürfen diese Öffnungen
auf keinen Fall blockiert oder mit Gegenständen (z.B.
Zeitungen, Tischdecken und Gardinen) abgedeckt
werden, und das Gerät darf beim Betrieb nicht auf
einem dicken Teppich oder Bett aufgestellt sein.
D3-4-2-1-7b*_A1_De
Ein Ausrufezeichen in einem Dreieck weist
den Benutzer auf wichtige Bedienungs- und
Wartungsanweisungen in den Dokumenten
hin, die dem Gerät beiliegen.
Das Blitzsymbol in einem Dreieck weist den
Benutzer darauf hin, dass eine
Berührungsgefahr mit nicht isolierten Teilen
im Geräteinneren, die eine gefährliche
Spannung führen, besteht. Die Spannung
kann so hoch sein, dass sie die Gefahr eines
elektrischen Schlages birgt.
ACHTUNG:
UM SICH NICHT DER GEFAHR EINES
ELEKTRISCHEN SCHLAGES
AUSZUSETZEN, DÜRFEN SIE NICHT DEN
DECKEL (ODER DIE RÜCKSEITE)
ENTFERNEN. IM GERÄTEINNEREN
BEFINDEN SICH KEINE VOM BENUTZER
REPARIERBAREN TEILE. ÜBERLASSEN SIE
REPARATUREN DEM QUALIFIZIERTEN
KUNDENDIENST.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WICHTIG
D3-4-2-1-1_A1_De
K058a_A1_De
Pb
Informationen für Anwender zur Sammlung und Entsorgung von Altgeräten und
gebrauchten Batterien
Diese Symbole auf den Produkten, der Verpackung und/oder Begleitdokumenten
bedeuten, dass gebrauchte elektrische und elektronische Produkte und Batterien
nicht über den Haushaltsmüll entsorgt werden dürfen.
Zur richtigen Handhabung, Rückgewinnung und Wiederverwertung von Altprodukten
und gebrauchten Batterien bringen Sie diese bitte zu den gemäß der nationalen
Gesetzgebung dafür zuständigen Sammelstellen.
Mit der korrekten Entsorgung dieser Produkte und Batterien helfen Sie dabei,
wertvolle Ressourcen zu schonen und vermeiden mögliche negative Auswirkungen
auf die Gesundheit und die Umwelt, die durch eine unsachgemäße Behandlung des
Abfalls entstehen könnten.
Weitere Informationen zur Sammlung und Wiederverwertung von Altprodukten und
Batterien erhalten Sie von Ihrer örtlichen Gemeindeverwaltung, Ihrem Müllentsorger
oder dem Verkaufsort, an dem Sie die Waren erworben haben.
Diese Symbole gelten ausschließlich in der Europäischen Union.
Für Länder außerhalb der Europäischen Union:
Wenn Sie diese Gegenstände entsorgen wollen, wenden Sie sich bitte an Ihre
lokalen Behörden oder Händler und fragen Sie dort nach der korrekten
Entsorungsweise.
Symbolbeispiele
für Batterien
Symbol für
Geräte
A70_SYXE8-DE.book Page 2 Friday, July 27, 2012 6:02 PM

3
ACHTUNG
Der /I STANDBY/ON-Schalter dieses Gerätes
trennt das Gerät nicht vollständig vom Stromnetz. Um
das Gerät vollständig vom Netz zu trennen, muss der
Netzstecker aus der Netzsteckdose gezogen werden.
Daher sollte das Gerät so aufgestellt werden, dass
stets ein unbehinderter Zugang zur Netzsteckdose
gewährleistet ist, damit der Netzstecker in einer
Notsituation sofort abgezogen werden kann. Um
Brandgefahr auszuschließen, sollte der Netzstecker
vor einem längeren Nichtgebrauch des Gerätes,
beispielsweise während des Urlaubs, grundsätzlich
von der Netzsteckdose getrennt werden.
D3-4-2-2-2a*_A1_De
Betriebsumgebung
Betriebstemperatur und Betriebsluftfeuchtigkeit:
+5 °C bis +35 °C, 85 % rel. Feuchte max.
(Ventilationsschlitze nicht blockiert)
Eine Aufstellung dieses Gerät an einem unzureichend
belüfteten, sehr feuchten oder heißen Ort ist zu
vermeiden, und das Gerät darf weder direkter
Sonneneinstrahlung noch starken Kunstlichtquellen
ausgesetzt werden.
D3-4-2-1-7c*_A1_De
Dieses Gerät ist für den Heimgebrauch vorgesehen.
Falls bei Einsatz zu einem anderem Zweck (z.B.
Langzeitgebrauch zu gewerblichen Zwecken in einem
Restaurant oder Betrieb in einem Fahrzeug bzw.
Schiff) eine Funktionsstörung auftritt, die eine
Reparatur des Gerätes erforderlich macht, werden
die Reparaturkosten dem Kunden selbst dann in
Rechnung gestellt, wenn die Garantiefrist noch nicht
abgelaufen ist.
K041_A1_De
Falls der Netzstecker des Netzkabels dieses Gerätes
nicht in die Zusatzsteckdose einer anderen
Komponente passt, muss er gegen einen Netzstecker
der geeigneten Ausführung ausgewechselt werden.
Ein derartiger Austausch des Netzsteckers muss vom
Kundendienstpersonal vorgenommen werden. Wenn
der vom Netzkabel abgeschnittene ursprüngliche
Netzstecker in eine Netzsteckdose eingesteckt wird,
besteht akute Stromschlaggefahr! Daher ist
unbedingt dafür zu sorgen, dass der abgeschnittene
Netzstecker sofort vorschriftsmäßig entsorgt wird.
Vor einem längeren Nichtgebrauch des Gerätes,
beispielsweise während des Urlaubs, sollte der
Netzstecker aus der Netzsteckdose gezogen werden,
um das Gerät vollständig vom Netz zu trennen.
D3-4-2-2-1a_A1_De
WARNUNG
Keine Quellen offener Flammen (z.B. eine brennende
Kerze) auf dieses Gerät stellen.
D3-4-2-1-7a_A1_De
VORSICHT MIT DEM NETZKABEL
Fassen Sie das Netzkabel immer am Stecker. Ziehen Sie
nicht am Kabel selbst, und fassen Sie das Netzkabel
niemals mit nassen Händen an, da dies einen
Kurzschluss oder elektrischen Schlag verursachen kann.
Stellen Sie nicht das Gerät, Möbelstücke o.ä. auf das
Netzkabel; sehen Sie auch zu, dass es nicht eingeklemmt
wird. Machen Sie niemals einen Knoten in das Netzkabel,
und binden Sie es nicht mit anderen Kabeln. Das
Netzkabel sollte so gelegt werden, dass niemand darauf
tritt. Ein beschädigtes Netzkabel kann einen Brand oder
elektrischen Schlag verursachen. Prüfen Sie das
Netzkabel von Zeit zu Zeit. Sollte es beschädigt sein,
wenden Sie sich an Ihre nächste autorisierte
PIONEER-Kundendienststelle oder Ihren Händler, um
es zu ersetzen.
S002*_A1_De
Wir danken lhnen für den Kauf
dieses Pioneer-Produkts.
Lesen Sie sich bitte diese Bedienungsanleitung durch.
Dann wissen Sie, wie Sie lhr Gerät richtig bedienen.
Bewahren Sie sie an einem sicheren Platz auf, um auch
zukünftig nachschlagen zu können.
Inhalt
01 Bevor Sie beginnen
Prüfung des Kartoninhalts. . . . . . . . . . . . . . . . . . .4
Batterien in Fernbedienung einlegen. . . . . . . . . . .4
Verwendung der Fernbedienung . . . . . . . . . . . . . . .4
Aufstellung des Verstärkers. . . . . . . . . . . . . . . . . .4
02 Anschlüsse
Anschließen der Kabel. . . . . . . . . . . . . . . . . . . . . .5
“Bi-wiring” (Doppelverkabelung) . . . . . . . . . . . . . .5
Lautsprecherkabel anschließen. . . . . . . . . . . . . . .6
Audiokabel anschließen. . . . . . . . . . . . . . . . . . . . .6
Zentrale Steuerung mit anderen Pioneer-
Komponenten verwenden . . . . . . . . . . . . . . . . . . . 6
Digitale Audioeingänge (nur A-70). . . . . . . . . . . . .6
Einen Computer per USB-Kabel anschließen
(nur A-70). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Anschließen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
03 Bedienelemente und Anzeigen
Vorderseite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Rückwand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Fernbedienung . . . . . . . . . . . . . . . . . . . . . . . . . .10
04 Bedienung
Wiedergabe . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Bereitschaftsmodus einstellen . . . . . . . . . . . . . . .11
Beim Einsatz des Gerätes als Verstärker . . . . . . . .11
Musik von einer digitalen Audiokomponenten
wiedergeben (nur A-70) . . . . . . . . . . . . . . . . . . . . .12
Musik von einem Computer wiedergeben
(nur A-70) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Vornahme eine Audioaufnahme . . . . . . . . . . . . .12
Automatisch in den Bereitschaftsmodus wechseln
(Auto-Abschaltung) . . . . . . . . . . . . . . . . . . . . . . .13
Alle Einstellungen auf die Werkseinstellungen
rücksetzen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
05 Zusätzliche Informationen
Fehlerbehandlung . . . . . . . . . . . . . . . . . . . . . . . .14
Reinigung des Geräts . . . . . . . . . . . . . . . . . . . . .14
Technische Daten . . . . . . . . . . . . . . . . . . . . . . . .15
A70_SYXE8-DE.book Page 3 Friday, July 27, 2012 6:02 PM

01 Bevor Sie beginnen
4
De
Kapitel 1:
Bevor Sie beginnen
Prüfung des Kartoninhalts
Achten Sie bitte darauf, dass sich beim Öffnen des
Kartons folgendes Zubehör darin befindet:
• Fernbedienung
• AAA/IEC R03-Trockenbatterien x2
• Stecker mit kurzem Stift x2
(Diese Stecker wurden zum Zeitpunkt des Kaufs
werkseitig an den PHONO IN-Anschlüssen an der
Rückblende angebracht.)
• Netzkabel (Länge: 1,8 m)
• Garantiekarte
•Sicherheitsblatt (für Einsteiger)
• Bedienungsanleitung (dieses Dokument)
Hinweis
• Die Abbildungen in der Bedienungsanleitung
wurden zur besseren Erkennbarkeit vereinfacht,
können daher etwas vom Aussehen des
tatsächlichen Produktes abweichen.
• Bei den Illustrationen wird meist die A-70
dargestellt.
Batterien in Fernbedienung einlegen
1 Öffnen Sie den Deckel an der Rückseite.
2 Legen Sie neue Batterien richtig herum
ein; orientieren sich dabei an den
Polaritätskennzeichnungen im Inneren des
Batteriefachs.
3 Schließen Sie den Deckel an der
Rückseite.
Die mit dem Gerät gelieferten Batterien dienen in erster
Linie zur Überprüfung, ob das Gerät richtig funktioniert;
dürften daher auch nicht übermäßig lange halten. Wir
empfehlen Alkalibatterien, die deutlich länger
durchhalten.
WARNUNG
• Vermeiden Sie Gebrauch und Lagerung von
Batterien unter direkter Sonneneinstrahlung oder
an einem anderen sehr heißen Ort, z.B. im Inneren
eines Fahrzeugs oder in der Nähe eines
Heizkörpers. Dadurch können die Batterien
auslaufen, sich überhitzen, explodieren oder in
Brand geraten. Auch kann dies die Lebensdauer
der Batterien verringern.
Vorsicht
Eine unsachgemäße Verwendung der Batterien kann zu
Gefährdungen durch Auslaufen oder Explosion führen.
Beachten Sie die folgenden Vorsichtsmaßnahmen:
• Achten Sie beim Einlegen der Batterien darauf, die
Federn an den Batteriekontakten nicht zu
beschädigen. Andernfalls können die Batterien
auslaufen oder überhitzen.
• Verwenden Sie ausschließlich Batterien vom
angegebenen Typ. Mischen Sie keine frischen mit
älteren Batterien.
• Achten Sie beim Einlegen der Batterien in die
Fernbedienung darauf, dass diese richtig herum
eingelegt werden. Orientieren Sie sich dabei an den
Polaritätsmarkierungen und .
• Batterien nicht erhitzen, nicht zerlegen, nicht
verbrennen, nicht mit Wasser in Berührung
kommen lassen.
• Batterien können auch bei identischer Größe und
Form unterschiedliche Spannungen aufweisen.
Verwenden Sie unterschiedliche Batterietypen
niemals gleichzeitig.
• Zum Schutz vor auslaufender Batterieflüssigkeit
nehmen Sie die Batterien heraus, wenn Sie die
Fernbedienung längere Zeit (länger als einen
Monat) nicht benutzen. Falls Batterieflüssigkeit
auslaufen sollte, wischen Sie diese sorgfältig und
restlos aus dem Inneren des Gehäuses,
anschließend legen Sie neue Batterien ein. Falls
auslaufende Batterieflüssigkeit an Ihre Haut
gelangen sollte, spülen Sie diese sofort mit viel
Wasser ab.
12
3
• Bei der Entsorgung von verbrauchten Batterien
sind die einschlägigen gesetzlichen Vorschriften
und Umweltschutzbestimmungen strikt
einzuhalten.
Verwendung der Fernbedienung
Die Fernbedienung hat einen Wirkungsbereich von ca.
7 m bei einem Winkel von ca. 30º zu ihrem Sensor.
Beachten Sie bei der Verwendung der Fernbedienung
folgende Punkte:
• Achten Sie darauf, dass sich keine Hindernisse
zwischen der Fernbedienung und ihrem Sensor am
Gerät befinden.
• Die Fernbedienung arbeitet nicht zuverlässig, wenn
ihr Sensor am Gerät starker Sonneneinstrahlung
oder dem Licht einer Leuchtstofflampe ausgesetzt
wird.
• Fernbedienungen verschiedener Geräte können
sich gegenseitig beeinflussen. Vermeiden Sie den
Gebrauch anderer Fernbedienungen in der Nähe
dieses Geräts.
• Wechseln Sie die Batterien aus, wenn die
Reichweite der Fernbedienung merklich nachlässt.
Aufstellung des Verstärkers
Achten Sie bei der Aufstellung des Geräts darauf, dass
es auf einer ebenen und stabilen Oberfläche steht.
• Stellen Sie das Gerät nicht an folgenden Orten auf:
– auf einem Farbfernsehgerät (das Bild könnte
infolgedessen verzerrt sein)
– in der Nähe eines Kassettenrekorders (oder eines
anderen Gerätes, das ein magnetisches Feld
erzeugt). Dadurch kann der Klang beeinträchtigt
werden.
– in direktem Sonnenlicht
– in feuchten oder nassen Bereichen
– in sehr heißen oder kalten Bereichen
– an Orten mit starken Vibrationen oder
Erschütterungen
– an staubigen Orten
– an Orten mit heißen Dämpfen oder Öldämpfen
(wie z. B. in einer Küche)
• Installieren Sie das Gerät nicht auf Sofas oder
anderen schallschluckenden Objekten; andernfalls
kann die Klangqualität leiden.
7 m
30 °
30 °
A70_SYXE8-DE.book Page 4 Friday, July 27, 2012 6:02 PM

Anschlüsse 02
5
De
English DeutschFrançais
Nederlands
Italiano Español Русский
Kapitel 2:
Anschlüsse
Anschließen der Kabel
Vorsicht
• Bevor Sie Anschlüsse vornehmen oder abtrennen, schalten Sie das Gerät aus und ziehen Sie das Netzkabel aus der
Netzsteckdose.
• Schließen Sie erst dann das Netzteil an, wenn sämtliche Verbindungen zwischen den Geräten hergestellt
wurden.
AUX IN
REC
R
L
OUTPUT
R
L
PLAY
RL
AUDIO
OUTPUT
PRE OUT
R
L
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
L
R
MENU
iPod
Music>
Extras>
Settings>
Shuffle Songs
Backlight
MASTER
VOLUME
STANDBY/ON
INPUT
SELECTOR
iPod iPhone iPadHDMI
ADVANCED
MCACC FL OFF
SACD/CD-Player Netzwerk-Audioplayer Vorverstärker-Buchsen (PRE
OUT) am Vorverstärker oder
AV-Verstärker
Lautsprechersystem B
Lautsprechersystem A
Plattenspiele
Tuner
iPod-Dock etc.
(AUX IN-Anschlüsse
befinden sich nur am A-50) CD-Recorder oder
Cassettenlaufwerk
Rechts Links
Rechts Links
Netzkabel
(mitgeliefert)
Rückwand des
Gerätes
Vorsicht
•Der SIGNAL GND-Anschluss reduziert
Störgeräusche, wenn das Gerät an Komponenten
wie analoge Plattenspieler angeschlossen wird.
• Die PHONO IN-Anschlüsse sind werkseitig mit
kurzen Stiften ausgestattet. Sie sollten außer bei
Anschließen eines Plattenspielers nicht entfernt
werden. Denken Sie daran, die kurzen Stifte an
einem sicheren Ort aufzubewahren.
• Stecken Sie die Stecker mit kurzen Stiften
ausschließlich in PHONO IN-Anschlüsse. Wenn
Sie an andere Anschlüsse angeschlossen werden,
kann dies Fehlfunktionen verursachen.
• Schließen Sie die PHONO IN-Anschlüsse
ausschließlich an Plattenspieler an; schließen Sie
keine Plattenspieler mit integriertem Equalizer an.
Andernfalls kann es zu extrem lauter, verzerrter
Tonausgabe kommen, die Lautsprecher und
andere Geräte beschädigen kann.
• Die PHONO IN-Anschlüsse des A-50 sind nur zum
Anschluss von Plattenspielern mit MM-
Tonabnehmern (Moving Magnet) vorgesehen.
Plattenspieler mit MC-Tonabnehmern (Moving
Coil) können nicht angeschlossen werden.
• Achten Sie darauf, die Kabel nicht über die
Oberseite des Geräts zu führen (wie auf der
Abbildung gezeigt). In diesem Fall kann das von
den Transformatoren in diesem Gerät erzeugte
magnetische Feld ein Brummen in den
Lautsprechern hervorrufen.
•Mit den POWER AMP DIRECT-Anschlüssen des
Gerätes sollten niemals andere Komponenten
verbunden werden; Ausnahme:
Vorverstärkerausgänge (PRE-AMP OUT).
• Falls Ihr Plattenspieler über ein geerdetes Kabel
verfügt, schließen Sie dieses an den
Erdungsanschluss dieses Verstärkers an.
Hinweis
• Beim Anschluss eines Cassettenlaufwerks kann es
je nach Aufstellungsort zu Störgeräuschen bei der
Wiedergabe kommen. Solche Störgeräusche
entstehen durch Einstrahlungen durch das
Verstärkernetzteil. In solchen Fällen ändern Sie den
Ausstellungsort oder sorgen für mehr Abstand
zwischen Cassettenlaufwerk und Verstärker.
• iPod ist ein in den USA und anderen Ländern
eingetragenes Warenzeichen der Apple Inc.
“Bi-wiring” (Doppelverkabelung)
Das Gerät kann mit Bi-wiring-fähigen Lautsprechern
eingesetzt werden. Achten Sie darauf, die
Verbindungen zum Hochtöner und Tieftöner korrekt
herzustellen.
• Achten Sie bei der Wiedergabe darauf, dass die
Tasten SPEAKERS A und SPEAKERS B beide
EINgeschaltet sind (Seite 8).
Vorsicht
• Bei Bi-wiring-Anschluss der Lautsprecher achten
Sie unbedingt darauf, dass die mit den
Lautsprechern gelieferten und vermutlich
angebrachten HIGH- und LOW-
HIGH
LOW
HIGH
LOW
Lautsprechersystem
Links
Lautsprechersystem
Rechts
Rückwand
des Gerätes
Entfernen Sie die
Kurzschlussbrücke
zwischen den
Anschlüssen + und –.
A70_SYXE8-DE.book Page 5 Friday, July 27, 2012 6:02 PM

02 Anschlüsse
6
De
Kurzschlussbrücken entfernt werden, damit der
Verstärker nicht beeinträchtigt wird. Detaillierte
Hinweise finden Sie in der mit den Lautsprechern
gelieferten Dokumentation.
• Wenn Lautsprecher mit trennbaren
Netzwerkschaltungen verwendet werden, beachten
Sie bitte, dass nach Netztrennung kein Ton
ausgegeben wird und die Lautsprecher beschädigt
werden können.
• Eine weitere Anschlussvariante besteht darin, die
SPEAKERS A-Anschlüsse mit HIGH und die
SPEAKERS B-Anschlüsse mit LOW zu verbinden
(entgegengesetzt zur Abbildung).
Lautsprecherkabel anschließen
1 Verdrillen Sie die Seele (den Kern aus
Metalladern) des Kabels.
2 Lösen Sie die Klemmmutter am
SPEAKERS
-Anschluss, führen Sie das
Lautsprecherkabel in die nun sichtbare
Öffnung am Anschluss.
3 Ziehen Sie die Klemmmutter wieder an.
Vorsicht
• Wenn Sie nur ein einziges
Lautsprecheranschlusspaar (SPEAKERS A oder
SPEAKERS B) oder eine Bi-wiring-Verbindung
nutzen, sollte der Lautsprecher eine
Nennimpedanz zwischen 4 Ω und 16 Ω
aufweisen. Wenn Sie beide
Lautsprecheranschlusspaare nutzen, sollten die
angeschlossenen Lautsprecher eine
Nennimpedanz zwischen 8 Ω und 32 Ω
aufweisen. Hinweise zur Impedanz finden Sie
in der mit den Lautsprechern gelieferten
Dokumentation.
• Achten Sie darauf, dass die positiven und
negativen Anschlüsse am Verstärker (+/–) mit den
richtigen Anschlüssen an den Lautsprechern
verbunden werden.
• An den Lautsprecherklemmen dieses Gerätes liegt
eine potentiell GEFÄHRLICHE Spannung an. Zur
Vermeidung von Stromschlaggefahr ist unbedingt
darauf zu achten, den Netzstecker beim
Anschließen und Abtrennen der Lautsprecherkabel
von der Netzsteckdose zu trennen, bevor
irgendwelche nicht isolierten Teile berührt werden.
• Sorgen Sie dafür, dass sämtliche blanken
Lautsprecheradern gut verdrillt und vollständig in
den Lautsprecheranschluss eingeführt werden.
Falls blanke Adern an die Rückwand geraten, kann
sich das Gerät aus Sicherheitsgründen abschalten.
Audiokabel anschließen
Schließen Sie den weißen Stecker an die linke Buchse
(L), den roten Stecker an die rechte Buchse (R) an.
Stecken Sie die Stecker bis zum Anschlag ein.
123
10 mm
Links (weiß)
Rechts (rot)
Zentrale Steuerung mit anderen
Pioneer-Komponenten verwenden
Mehrere mit CONTROL IN/OUT-Anschlüssen
ausgestattete Pioneer-Komponenten lassen sich mit
dem Gerät verbinden; dadurch können diese
Komponenten zentral über den Fernbedienungssensor
des Gerätes gesteuert werden. Auf diese Weise können
auch Komponenten ohne Fernbedienungssensor
gesteuert oder Komponenten an Stellen platziert
werden, die nicht mit der regulären Fernbedienung
erreicht werden.
Hinweis
• Zur Verbindung verwenden Sie ein
handelsübliches Mono-Klinkensteckerkabel (ohne
Widerstand).
• Wenn die CONTROL IN/OUT-Anschlüsse
verwendet werden, müssen analoge Verbindungen
ebenfalls über handelsübliche Audiokabel
hergestellt werden. Wenn lediglich die CONTROL
IN/OUT-Verbindungen hergestellt werden, lässt
sich das System nicht richtig steuern.
• Wenn ein Fernbedienungskabel am CONTROL IN-
Anschluss des Gerätes angeschlossen ist, kann
das Gerät nicht durch Richten der Fernbedienung
auf das Gerät gesteuert werden (der
Fernbedienungssensor wird automatisch
deaktiviert).
Digitale Audioeingänge (nur A-70)
Falls der DIGITAL IN COAXIAL-Anschluss dieses
Gerätes über ein digitales Koaxialkabel (separat
erhältlich) mit dem digitalen Audioausgang eines
digitalen Audiowiedergabegerätes verbunden wird,
kann das Wiedergabegerät zur Wiedergabe von Musik
über dieses Gerät verwendet werden.
Weitere Informationen zur Ausgabe von Audiosignalen
an den DIGITAL IN COAXIAL-Anschluss finden Sie auf
Seite 12.
Hinweis
• Digitale Signalformate können an diesem Gerät
eingegeben werden, inklusive linearer PCM-
Signale mit Abtastrate und quantitativen Bits bis
192 kHz/32 bit. (Je nach angeschlossenem Gerät
und Umgebung kann der Betrieb fehlschlagen.)
IN
OUT
CONTROL
Andere Pioneer-
Komponente mit
CONTROL IN/OUT-
Anschlüssen
Zu anderen
Pioneer-
Komponenten mit
CONTROL IN-
Anschluss
A-70
Richten Sie die
Fernbedienung auf
den Gerätesensor.
Fernbedienung
DIGITAL OUT
COAXIAL
Digitales
Audiogerät etc.
Digitales Koaxial-Audiokabel
(separat erhältlich)
A-70-Rückwand
A70_SYXE8-DE.book Page 6 Friday, July 27, 2012 6:02 PM

03 Bedienelemente und Anzeigen
8
De
Kapitel 3:
Bedienelemente und Anzeigen
Vorderseite
1
/I
STANDBY/ON
Schaltet den Verstärker ein und aus.Im Betrieb leuchtet
die Betriebsanzeige in der Mitte der Taste auf.
2
STANDBY/APD
-Anzeige
Diese Anzeige leuchtet im Bereitschaftsmodus rot. Bei
aktiver Auto-Abschaltung (APD) leuchtet die Anzeige
grün (Seite 13).
3
SPEAKERS A
-Taste/Anzeige
Mit dieser Taste schalten Sie zu den mit den
SPEAKERS A-Anschlüssen verbundenen Lautsprechern
um.
On : Die Anzeige leuchtet auf. Ton wird über das
Lautsprechersystem ausgegeben. (Der Ton wird
zusätzlich über den PHONES-Anschluss
wiedergegeben.)
Off : Die Anzeige erlischt. Die Tonausgabe über das
Lautsprechersystem ist abgeschaltet. Diese Einstellung
wählen Sie zum Hören mit Kopfhörern.
4
SPEAKERS B
-Taste/Anzeige
Mit dieser Taste schalten Sie zu den mit den
SPEAKERS B-Anschlüssen verbundenen Lautsprechern
um.
On : Die Anzeige leuchtet auf. Ton wird über das
Lautsprechersystem ausgegeben. (Der Ton wird
zusätzlich über den PHONES-Anschluss
wiedergegeben.)
Off : Die Anzeige erlischt. Die Tonausgabe über das
Lautsprechersystem ist abgeschaltet. Diese Einstellung
wählen Sie zum Hören mit Kopfhörern.
5
LOUDNESS
-Taste/Anzeige
Zum Hören bei geringer Lautstärke.
On : Die Anzeige leuchtet auf: Betont die Wiedergabe
niedriger und hoher Frequenzen zum Ausgleich von
Klangverlusten bei geringer Lautstärke.
Off : Die Anzeige erlischt: Diese Einstellung empfiehlt
sich im Normalbetrieb.
• Diese Taste ist ohne Funktion, wenn die DIRECT-
Taste betätigt wurde.
• Je höher die Lautstärke, desto weniger wirkt sich
die LOUDNESS-Schaltung aus.
A-70
31
6
2 54
7
14 1612
9
10 11 13 15
8
6 Fernbedienungssensor
Empfängt Signale von der Fernbedienung (Seite 4).
7
PHONES
-Buchse
Zum Anschluss von Kopfhörern. Bei gedrückter POWER
AMP DIRECT-Taste wird kein Ton ausgegeben.
8 DIRECT-Taste/Anzeige
On : Die Anzeige leuchtet auf: Wenn die Funktion dieser
Taste aktiv ist, wird der Klang direkt ausgegeben, ohne
zuvor durch diverse Klangeinstellungsschaltungen
(BASS, TREBLE, BALANCE, LOUDNESS) geleitet zu
werden. Dies erlaubt eine möglichst naturgetreue
Wiedergabe, setzt jedoch sämtliche BASS-, TREBLE-,
BALANCE- und LOUDNESS-Regelungen außer Kraft.
Off : Die Anzeige erlischt: Das Signal wird durch die
verschiedenen Klangeinstellungsschaltungen geleitet.
Wenn die Anzeige nicht leuchtet, können Anpassungen
über die BASS-, TREBLE-, BALANCE- und LOUDNESS-
Regler vorgenommen werden.
9
BASS
-Tonsteuerung
Zum Anpassen der Wiedergabe niederfrequenter Töne.
In der mittleren Position (Normal) wird der Klang nicht
beeinflusst. Bei Drehung nach rechts werden
niederfrequente Töne betont, bei Drehung nach links
entsprechend reduziert.
• Diese Taste ist ohne Funktion, wenn die DIRECT-
Taste betätigt wurde.
10
TREBLE
-Tonsteuerung
Zum Anpassen der Wiedergabe hochfrequenter Töne. In
der mittleren Position (Normal) wird der Klang nicht
beeinflusst. Bei Drehung nach rechts werden
hochfrequente Töne betont, bei Drehung nach links
entsprechend reduziert.
• Diese Taste ist ohne Funktion, wenn die DIRECT-
Taste betätigt wurde.
11
BALANCE
-Regler
Dieser Regler sollte gewöhnlich in der mittleren Position
verbleiben. Zum Anpassen der Balance, falls der Ton
eines Lautsprechers oder Lautsprecherpaares lauter
wiedergegeben wird. Wenn die rechte Seite lauter
erscheint, drehen Sie den Regler nach links; falls die
linke Seite lauter erscheint, entsprechend nach rechts.
• Diese Taste ist ohne Funktion, wenn die DIRECT-
Taste betätigt wurde.
12
ATTENUATOR
-Taste (nur A-70)
Drücken Sie diese Taste, wenn Sie Feineinstellungen an
der Lautstärke bei Wiedergabe von sehr leisen Tönen
vornehmen möchten.
13
VOLUME
-Regler
Zum Einstellen der Lautstärke. (Auch zum Einstellen der
Kopfhörerlautstärke.)
14
CARTRIDGE
-Auswahlschalter (nur A-70)
Wählen Sie den Tonabnehmer, der mit Ihrem
Plattenspieler verwendet werden soll.
15
POWER AMP DIRECT
-Taste/Anzeige
Diese Taste drücken Sie, wenn das Gerät als Verstärker
eingesetzt wird (Seite 11).
16
INPUT SELECTOR
-Knöpfe/Anzeigen
Drehen Sie den Knopf im oder gegen den Uhrzeigersinn,
bis die Anzeige der gewünschten Eingangsquelle
aufleuchtet. Wenn Sie den Knopf im Uhrzeigersinn
drehen, leuchtet die Anzeige rechts, bei Drehung gegen
den Uhrzeigersinn die Anzeige links. Wenn der Ton über
die Fernbedienungstaste MUTE stummgeschaltet wird,
blinkt die Anzeige der mit dem Knopf INPUT SELECTOR
ausgewählten Eingangsquelle.
A70_SYXE8-DE.book Page 8 Friday, July 27, 2012 6:02 PM

Bedienelemente und Anzeigen 03
9
De
English DeutschFrançais
Nederlands
Italiano Español Русский
Rückwand
Detaillierte Hinweise zu Anschlüssen finden Sie auf den Seiten 5 – 7.
1
PHONO IN (MM/MC)
-Anschlüsse (A-70)
PHONO IN (MM)
-
Anschlüsse (A-50)
2
AUX
IN
-Anschlüsse (nur A-50)
3
RECORDER IN/OUT
-Anschlüsse
4
DIGITAL IN USB
-Anschluss (nur A-70)
5
SPEAKERS A
-Anschlüsse (rechter Kanal)
6
SPEAKERS B
-Anschlüsse (rechter Kanal)
7
SPEAKERS B
-Anschlüsse (linker Kanal)
8
SPEAKERS A
-Anschlüsse (linker Kanal)
9 GND-Anschluss (Plattenspieler-Masse)
Dieser Masseanschluss vermindert Störgeräusche beim
Anschluss eines analogen Plattenspielers. Es handelt
sich nicht um Schutzerde.
10
SACD/CD
IN
-Anschlüsse
11
NETWORK
IN
-Anschlüsse
12
TUNER
IN
-Anschlüsse
13
POWER AMP DIRECT
IN
-Anschlüsse
Hier schließen Sie den Vorverstärker an, wenn Sie das
Gerät als Verstärker einsetzen (Seite 11).
14
DIGITAL IN COAXIAL
-Anschluss
(nur A-70)
15
CONTROL IN/OUT
-Buchse
16
AC IN
-Buchse
Diesen Anschluss verbinden Sie über das Netzkabel mit
der Steckdose.
AUX IN
52221 2623 27 2824
2
10 11 12 13 1514 16
29
A70_SYXE8-DE.book Page 9 Friday, July 27, 2012 6:02 PM

03 Bedienelemente und Anzeigen
10
De
Fernbedienung
STANDBY/ON
A
B
APD
STANDBY/ON
A
B
APD
18
10
9
11
12
2
3
4
6
4
7
5
A-50
18
9
10
11
12
2
3
4
6
4
7
5
A-70
1
STANDBY/ON
Umschalten des Verstärker zwischen Bereitschaft und
Einschalten.
2 Funktionswahltasten
Zur Wahl einer Signalquelle drücken. Auswahl des an
den entsprechenden Eingang an der Rückseite
angeschlossenen Geräts.
• Wenn der A-50 angeschlossen ist, sind die Tasten
USB, COAXIAL und OPTION ohne Funktion.
3 SACD PLAYER-Bedienungstasten
Zum Steuern eines Pioneer-SACD-Players.
4 NETWORK AUDIO PLAYER-Bedientasten
Zum Steuern eines Pioneer-Netzwerk-Audioplayers.
5
LOUDNESS
Zum Ein- und Ausschalten der Loudness-Schaltung
(Seite 8).
6
MUTE
Stumm-/Einschalten des Tons.
7
DIRECT
Zum Umschalten auf Direktes Hören drücken (Seite 8).
8
DIMMER
Mit dieser Taste stellen Sie die Helligkeit der
Anzeigeleuchten an der Vorderseite des Gerätes in drei
Stufen ein (die STANDBY-Anzeige wird nicht
beeinflusst).
9
VOLUME +/–
Einstellung der Hörlautstärke.
10
SPEAKERS A
-Taste/Anzeige
Mit dieser Taste schalten Sie zu den mit den SPEAKERS
A-Anschlüssen verbundenen Lautsprechern um.
11
SPEAKERS B
-Taste/Anzeige
Mit dieser Taste schalten Sie zu den mit den
SPEAKERS B-Anschlüssen verbundenen Lautsprechern
um.
12
APD
Zum Ein- und Ausschalten der Auto-Abschaltung
(Seite 13).
A70_SYXE8-DE.book Page 10 Friday, July 27, 2012 6:02 PM

Bedienung 04
11
De
English DeutschFrançais
Nederlands
Italiano Español Русский

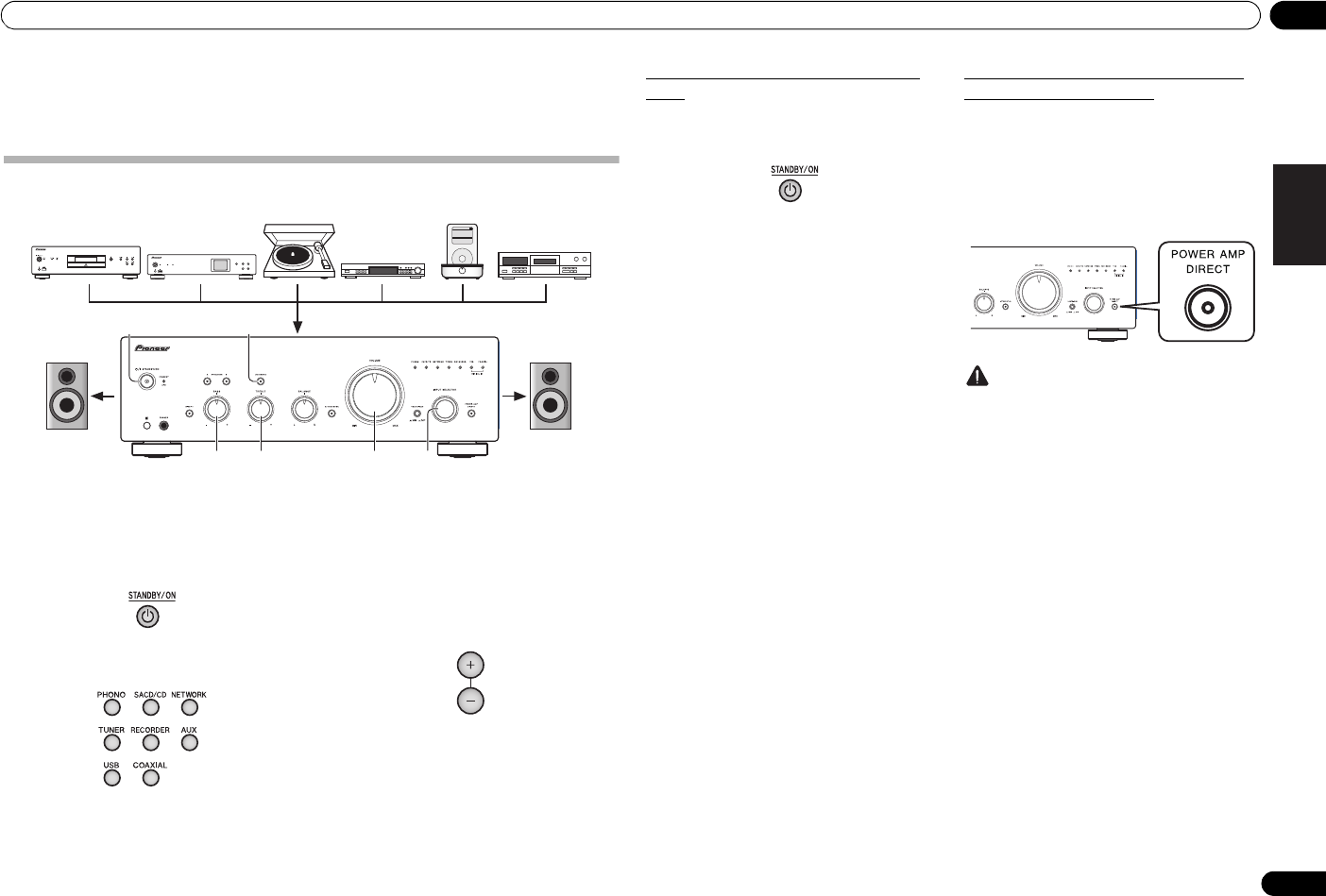

Kapitel 4:
Bedienung
Wiedergabe
1 Schalten Sie den Strom des
Wiedergabegeräts ein.
2 Schalten Sie das Gerät EIN.
• Falls sich das Gerät im Bereitschaftsmodus
befindet, drücken Sie die Fernbedienungstaste
STANDBY/ON.
3 Wählen Sie die gewünschte
Wiedergabequelle.
Wählen Sie die gewünschte Wiedergabekomponente
aus.
• Zur Auswahl an der Frontblende drehen Sie den
Knopf INPUT SELECTOR.
• Wenn beim A-70 PHONO ausgewählt ist, legen Sie
mit dem CARTRIDGE-Auswahlschalter die Art des
Tonabnehmers Ihres Plattenspielers fest: MM ()
oder MC ().
4 Starten Sie die Wiedergabe des in Schritt
1 gewählten Geräts.
5 Stellen Sie die Wiedergabelautstärke
mit dem
VOLUME
-Regler ein.
6 Passen Sie den Klang mit den
BASS
- und
TREBLE
-Reglern sowie mit der
LOUDNESS
-
Taste an Ihren persönlichen Geschmack an.
Bei aktiver DIRECT-Taste sind diese Regler ohne
Funktion.
3566
62
MENU
iPod
Music>
Extras>
Settings>
Shuffle Songs
Backlight
/I STANDBY/ON
STANDBY
iPod/USB
5V 2.1A
PURE AUDIO Hi-Bit 32
FUNCTION
NETWORK AUDIO PLAYER N-50
SACD/CD-Player Netzwerk-Audioplayer
Plattenspieler
Tuner
iPod-Dock etc.
CD-Recorder oder
Cassettenlaufwerk
Wiedergabe Wiedergabe
VOLUME
Bereitschaftsmodus einstellen
1 Drücken Sie die Fernbedienungstaste
STANDBY/ON
.
Zum nächsten Einschalten drücken Sie die
Fernbedienungstaste STANDBY/ON.
• Wenn die Taste /I STANDBY/ON an der
Frontblende gedrückt wird, schaltet sich das Gerät
aus. In diesem Fall lässt sich das Gerät nicht mehr
mit der Fernbedienungstaste STANDBY/ON
einschalten. Zum Einschalten drücken Sie bitte die
Taste /I STANDBY/ON an der Frontblende.
Beim Einsatz des Gerätes als Verstärker
Wenn ein Vorverstärker an die POWER AMP DIRECT IN-
Anschlüsse angeschlossen wird, lässt sich das Gerät als
Verstärker einsetzen.
1 Drücken Sie die Taste
POWER AMP
DIRECT
an der Frontblende des Gerätes.
Die POWER AMP DIRECT-Anzeige leuchtet auf.
Vorsicht
• Wenn die POWER AMP DIRECT-Anzeige leuchtet,
ändert sich die Bedienung wie folgt:
– Die Frontblendenbedienelemente VOLUME,
BASS, TREBLE und BALANCE werden außer
Kraft gesetzt. Diese Einstellungen werden nun
durch die Komponente gesteuert, die mit den
Anschlüssen POWER AMP DIRECT IN
verbunden wurde.
– Die Tasten LOUDNESS und ATTENUATOR (nur
A-70) werden deaktiviert.
– Wenn die POWER AMP DIRECT-Anzeige
leuchtet, wird die Audiolautstärke vom Gerät
automatisch auf die höchste Stufe festgelegt.
Beim Einsatz des Gerätes als Verstärker prüfen
Sie bitte die Ausgabestufe der an den POWER
AMP DIRECT IN-Anschlüssen
angeschlossenen Komponente und stellen sie
auf einen geeigneten geringen Wert ein, bevor
Sie die POWER AMP DIRECT-Anzeige
einschalten. Falls die Audiolautstärke der mit
den POWER AMP DIRECT IN-Anschlüssen
verbundenen Komponente auf einen hohen
Wert eingestellt ist, kann plötzlich lauter Ton
ausgegeben werden, wenn die POWER AMP
DIRECT-Anzeige leuchtet.
– Über die Anschlüsse PHONES und RECORDER
OUT wird kein Ton ausgegeben.
• Weitere Informationen finden Sie in der
Bedienungsanleitung des Gerätes, das mit den
POWER AMP DIRECT IN-Anschlüssen des Geräte
verbunden wurde.
A70_SYXE8-DE.book Page 11 Friday, July 27, 2012 6:02 PM
Produkt Specifikationer
Mærke: | Pioneer |
Kategori: | forstærker |
Model: | A70-S |
Har du brug for hjælp?
Hvis du har brug for hjælp til Pioneer A70-S stil et spørgsmål nedenfor, og andre brugere vil svare dig
forstærker Pioneer Manualer
6 Juli 2024
6 Juli 2024
6 Juli 2024
5 Juli 2024
5 Juli 2024
5 Juli 2024
5 Juli 2024
5 Juli 2024
5 Juli 2024
5 Juli 2024
forstærker Manualer
- Naim
- Power Dynamics
- Randall
- Peavy
- Sherwood
- Thorens
- Marquant
- Velodyne
- UPC
- Reloop
- HUMANTECHNIK
- Hartke
- Skytec
- Alto Professional
- Arcam
Nyeste forstærker Manualer
19 Januar 2025
15 Januar 2025
14 Januar 2025
11 Januar 2025
22 September 2024
18 September 2024
29 August 2024
26 August 2024
26 August 2024
26 August 2024
