INSTRUCTION MANUAL
CTUAR01
ALFA ROMEO INFODAPTER
www.connects2.com
ABOUT
The Connects2 Infodapter for Alfa Romeo vehicles allows vehicle setting and parking
sensor information to be displayed on any aftermarket head unit with rear camera input.
The Infodapter also allows the use of the steering wheel controls with almost every
steering wheel control compatible head unit on the market.
DIP SWITCH SETTINGS
See Fig 1.
Up = Off, Down = On
1: On = Pioneer head units. Off = All other head units
2: Setting for reverse camera. On = PAL, Off = NTSC. The default setting is Off (NTSC).
3: Resets the display settings back to default. If the display settings have been
manipulated in a way that it is no longer possible to make adjustments, change the
DIP switch #3 from Off to On and back. This will reset the screen settings to the factory
defaults. During this procedure the screen background will change to red. While the
background is red, no settings can be made.
4: Not applicable

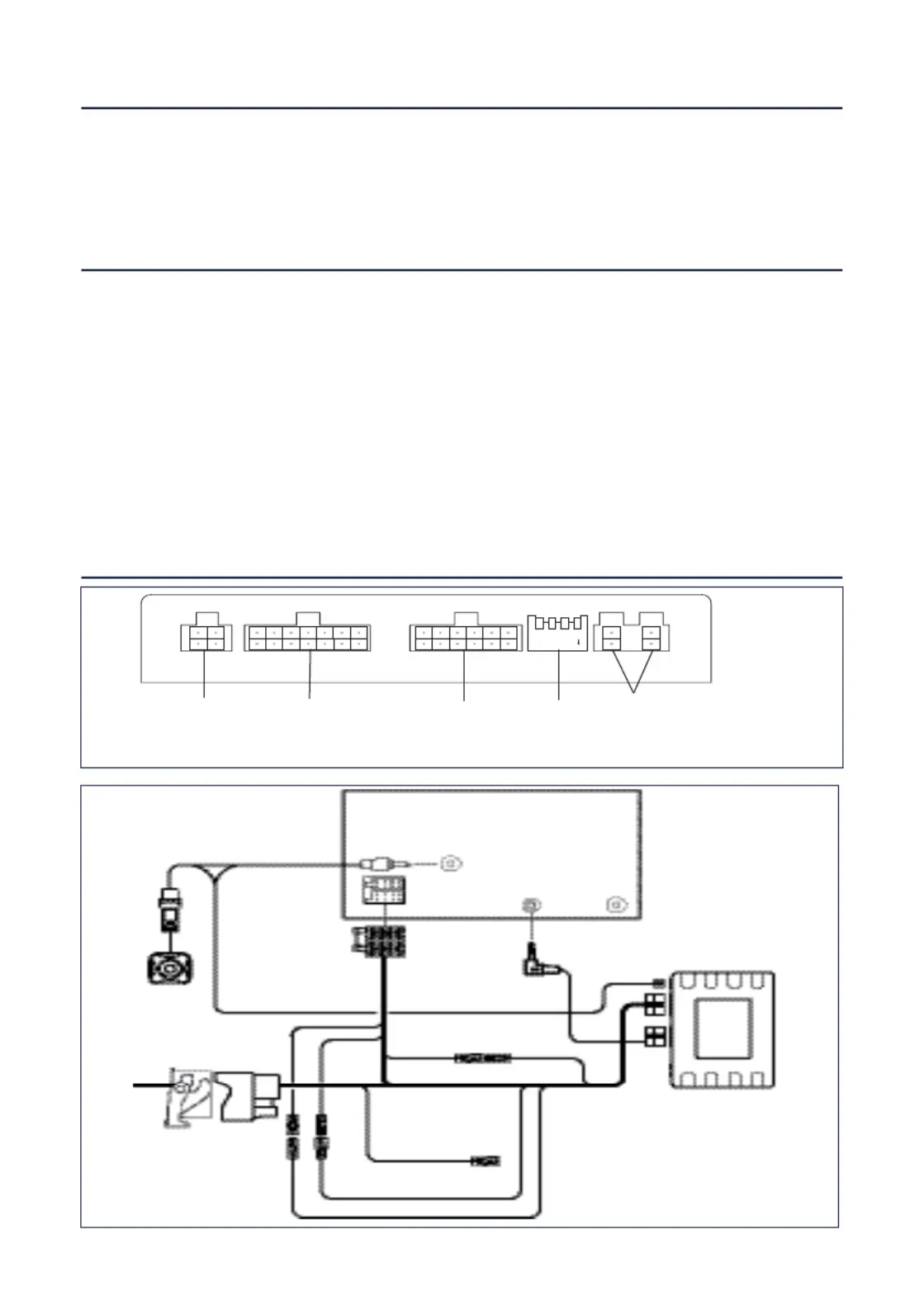

Interface Connections
Fig 1.
1
2 3 4
DI ONP
Reverse Camera output
to head unit and reverse
camera input from
optional camera
Power Harness Steering Wheel
Remote control
connector to
head unit
Dip Switches Not Used
Fig 2.
Park Brake
(Green)
Mute(Grey)
Speed Pulse (Pink)
Reverse (Purple)
Aftermarket head
Alfa Romeo Infodapter
Steering Wheel
Control Input
ISO
Connector
Reverse Camera Input
10
11
Reverse camera
(optional)
To car connector
