Side 1/10

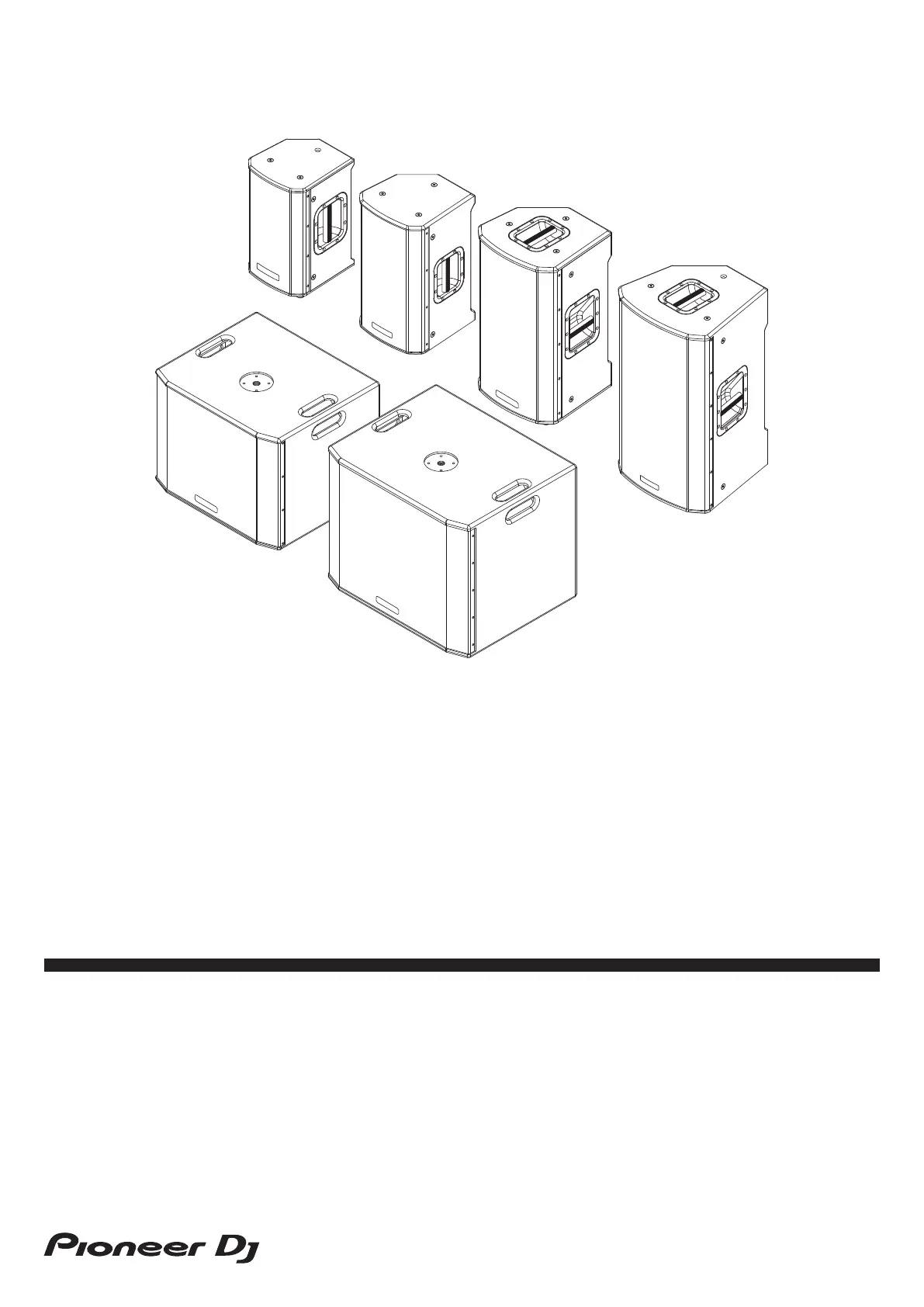

Instruction Manual
XPRS2 Series
XPRS82 / XPRS102 /
XPRS122 / XPRS152 /
XPRS1152ST / XPRS1182ST
Active Loudspeaker / Active Subwoofer
pioneerdj.com/support/
For other support information for this product, visit the above site.
How to read this manual
Thank you for choosing this speaker. To make sure you get the most from
its functions and use them effectively, please read the Instruction manual
and Precautions for Use carefully.
Please keep the Instruction manual and Precautions for Use together
with the Warranty.
Main features
2 000-W high output and high sound quality are achieved by mounting
a D-class amplier module in a wooden cabinet featuring outstanding
acoustic characteristics. The XPRS2 can be used not only as a stationary
sound system in a stationary facility but also as sound equipment for
events as it can be easily transported and set up quickly.
•
System type: Multi-purpose, active loudspeaker with DSP controls
•
Transducer driver: 1-inch exit compression driver, 1.75-inch voice coil
•
Subwoofer: ferrite woofer, 3-inch (76 mm) voice coil with long excursion
•
Power rating: Class D 2 000 W (peak)
•
4 DSP modes: LIVE/MUSIC/SPEECH/MONITOR
•
Subwoofer: 80 Hz, 100 Hz, 120 Hz (NORMAL, BOOST, EXTENDED
LF)
•
Electronic protections: Thermal/overload/digital limiter/compressor
•
Power supply: AC 110 V – 240 V (50 Hz / 60 Hz)
•
Enclosure construction: Plywood cabinet, black paint, rubber feet,
metal handle
•
Mounting: One metal standard pole-mount, 10 x M10 threaded inserts
plus integrated pull-back cover
Rear panel
(full-range models)
INPUT
MI C/LIN E
STEREO
HI-Z
POWER
HI -Z/LIN E
SIGSIG
MIC
SIG
SIG/LI MITER
OFF
MAX
OFF
MAX
OFF
MAX
DI GITAL S IGNAL PR OCESSING
DS P
DISPLAY
MASTER
VO L
1 2 3
MIX OU T
2
e
5
d
c
b
a
9
8
3
4
1
6
7
1
AC INPUT
Connect the power cord to AC IN and then to the power outlet.
2
POWER
AC switch for turning the power on or off. When POWER is turned ON,
the POWER LED and the LCD screen both light up.
3
INPUT1
Level control for the LINE/MIC INPUT 1.
INPUT
Balanced input for sources such as mixing consoles, instruments, or
microphones. Connections can be made via a 1/4-inch TRS or XLR
connector.
4
INPUT2
Level control for the Hl-Z/LINE INPUT 2.
INPUT
Balanced input for sources such as mixing consoles, instruments, or
microphones. Connections can be made using a 1/4-inch TRS or XLR
connector.
5
STEREO LEVEL
Line input level control for STEREO.
6
INPUT LEVEL
Level control of the individual input.
7
Hl-Z signal light
When sound from a guitar is input, the system setting changes to Hl-Z
sensitivity and the signal light turns on.
8
MIC signal light
When sound from a microphone is input, the light turns on when the
system setting changes to MIC sensitivity.
9
SIG single channel signal light
When there is a signal, the signal light turns on.
a
LCD
DSP control and monitoring interface.
b
MASTER VOL
Total volume adjustment range: -60 dB – +10 dB.
DSP
Scroll through the menus and choose from the options. Press the
MASTER VOL knob to select an item on a menu.
c
SIG/LIMITER signal light
Lights up green when there is a signal, and red when the amplifier
starts to compress.
d
POWER indicators
Llights up when the speaker is turned on.
e
MIX OUT
The XLR output sends mixed input signals to other speakers or
subwoofers. INPUT LEVEL controls the level of the signal sent to the
MIX OUT. The MASTER VOL or DSP control settings do not affect the
mixed output.
