FS3-3 Assembly May 2013
Page 1 of 16
FS3 Fleet™ Series
Fresh Flush Model
Assembly Manual
U.S. PATENTS: 5,500,960 - 5,500,962 - 5,560,050 - 6,199,222 D 360,471
Exterior Height 91 in 231 cm
Interior Height 83 in 211 cm
Exterior Width 47 in 119 cm
Interior Width 45.7 in 116 cm
Exterior Length (Runner Base) 48 in 122 cm
Exterior Length (Optional
Signature Style Handle Base) 47 in 119 cm
Interior Length 43 in 109 cm
Weight - Flush 243 lb. 110 kg
Door Frame Height (ID) 75 in 191 cm
Door Frame Width (ID) 26 in 66 cm
Side Panel Decal Area 6 in X 37 in 15 cm X 94 cm
Door Decal Area 22.5 in X 29 in 57 cm X 74 cm
Seat Height 19.5 in 49.5 cm
POLYJOHN
USA
PolyJohn Enterprises Corp.
2500 Gaspar Ave.
Whiting, IN 46394
Phone: 800-292-1305
Fax: 219-659-0625
www.polyjohn.com
info@polyjohn.com
POLYJOHN
WORLDWIDE
PolyJohn (UK) Ltd.
Equinox 1 Audby Lane
Wetherby, England LS22 7RD
Phone: 44 (0) 1937-583333
Fax: 44 (0) 1937-583322
www.polyjohn.co.uk
sales@polyjohn.co.uk
POLYJOHN
CANADA
PolyJohn Canada
P.O. Box 2300
199 Forest Plain Rd.
Orillia, Ontario LV3 6S2
Phone: 800-465-9590
Fax: 705-325-8250
www.polyjohncanada.ca
info@polyjohncanada.ca
SPECIFICATIONS
DIMENSION IMPERIAL METRIC
TD04-1000 Paper
Towel Dispenser
(4) PC-000102 Rivet
(4) PC-000106 Washer
LS04-0001 Soap
Dispenser
(3) PC-000102 Rivet
(3) PC-000106 Washer
PC-000490 T.P. Dispenser
PC-000760 Rod
PC-000205M Lock
(4) PC-000100 Rivet
(4) PC-000106 Washer
FS3-0002* Side w/Hatch
PC-100451 Hatch w/Cover
(4) PC-000102 Rivet
(3) PC-000106 Washer
(1) PC-000110 Rivet
(1) PC-000111 Washer
(5) PC-000192 Sems Screw
PC-100146 Cable Tether
FS1-0062 Left Rear Extrusion
(9) PC-000104 Rivet
FS1-0061 Top Rear Extrusion
(5) PC-000104 Rivet
(3) SG1-0037 Inner Screen
(3) SG1-0038 Outer Screen
(6) PC-000102 Rivet
(6) PC-000106 Washer
FS1-0063 Right Rear Extrusion
(9) PC-000104 Rivet
FS1-0007* Roof Panel
(4) PC-000100 Rivet
(4) PC-000106 Washer
(4) PC-000121 Washer
FS3-0026*F Fresh Flush Sink
(2) PC-000103 Rivet
(2) PC-000106 Washer
(1) PC-000158 Screw
FS3-0025*C Flush Waste Tank
(4) PC-000103 Rivet
(4) PC-000106 Washer
FS3-0018FC Base Complete
FS3-0018 Handle/Runner Base
FS3-0019 Handle Signature Style Base (Optional)
FS3-0085F Flush Style Floor
(8) PC-000117 Rivet
(2) SG1-0035 Large Screen
(2) PC-000102 Rivet
(2) PC-000106 Washer
PC-000204 Toilet Seat
PJN3-0009* Urinal
(2) PC-000101 Rivet
(2) PC-000106 Washer
SG1-0080G Vent Stack
(1) PC-000117 Rivet
FS3-0003* Front Assembly
(17) PC-000104 Rivet
(4) PC-000159 1/4-20 x 3-1/2” Bolt
(4) PC-000123 Washer
(4) PC-000140 Nylock Nut
-FS3-0060 Door Jamb
-PC-100787 Serial I.D. Plate
-(2) PC-000108 Rivet
-FS1-0005*C Complete Door
--FS1-0005* Fleet Door
--(3)PC-100170 Hinge Assembly
--(6) PC-000116 Rivet
--(3) PC-000160 5/16” x 3/4” Bolt
--(3) PC-000161 5/16” Flat Washer
--(3) SG1-0037 Inner Screen
--(3) SG1-0038 Outer Screen
--(6) PC-000104 Rivet
--(6) PC-000106 Washer
TM01-0003 Mirror
PC-000367 Push-In Fastener
SG1-0032 Retain Plate
FS1-0034* Door Panel Cover
(4) PC-000158 Screw
(2) PC-000147 Screw
SG1-0030 Slide Latch
PC-000604 Rubber Cover
PC-000606 Foot Pump
(6) PC-000106 Washer
(6) PC-000231 Screw
PC-000181S Spring Clip
(2) PC-000104 Rivet
SG1-0031C Slide Latch Cover Plate
SG1-0031 Slide Cover Plate
SA1-0017 Handle U Bolt
(2) PC-100796 Grommet
FS1-0004* Rear Panel
(4) PC-000192 Sems Screw
PC-000223 Hover Handle
(2) PC-000104 Rivet
FS1-0002* Side Panel
(5) PC-000192 Lag Screw
* Must Specify Color
PC-000800 Spring Assembly

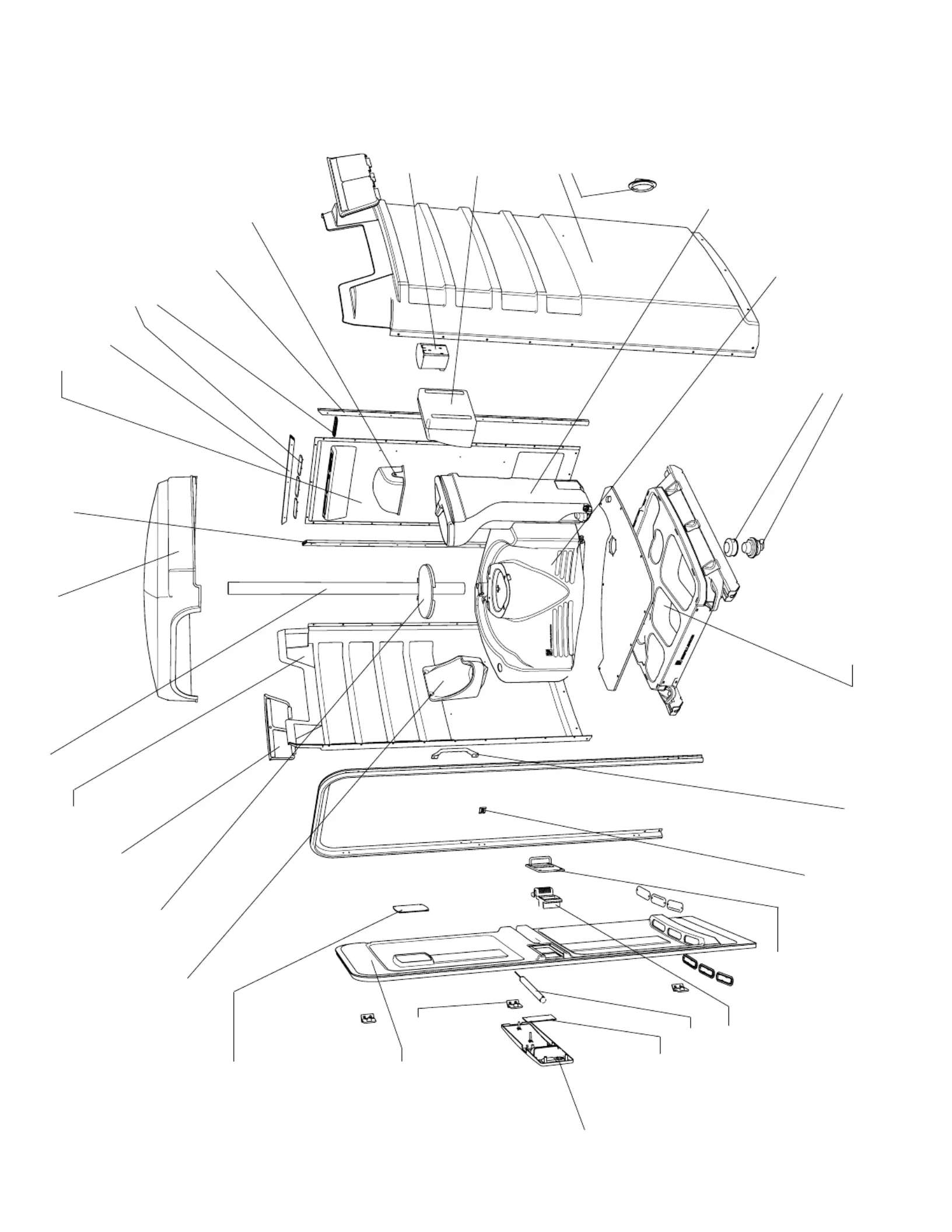

FS3-3000
Fresh Flush Tank
Exploded View
