Side 1/12
PH03 Comfort XL - October 2016
Page 1 of 12

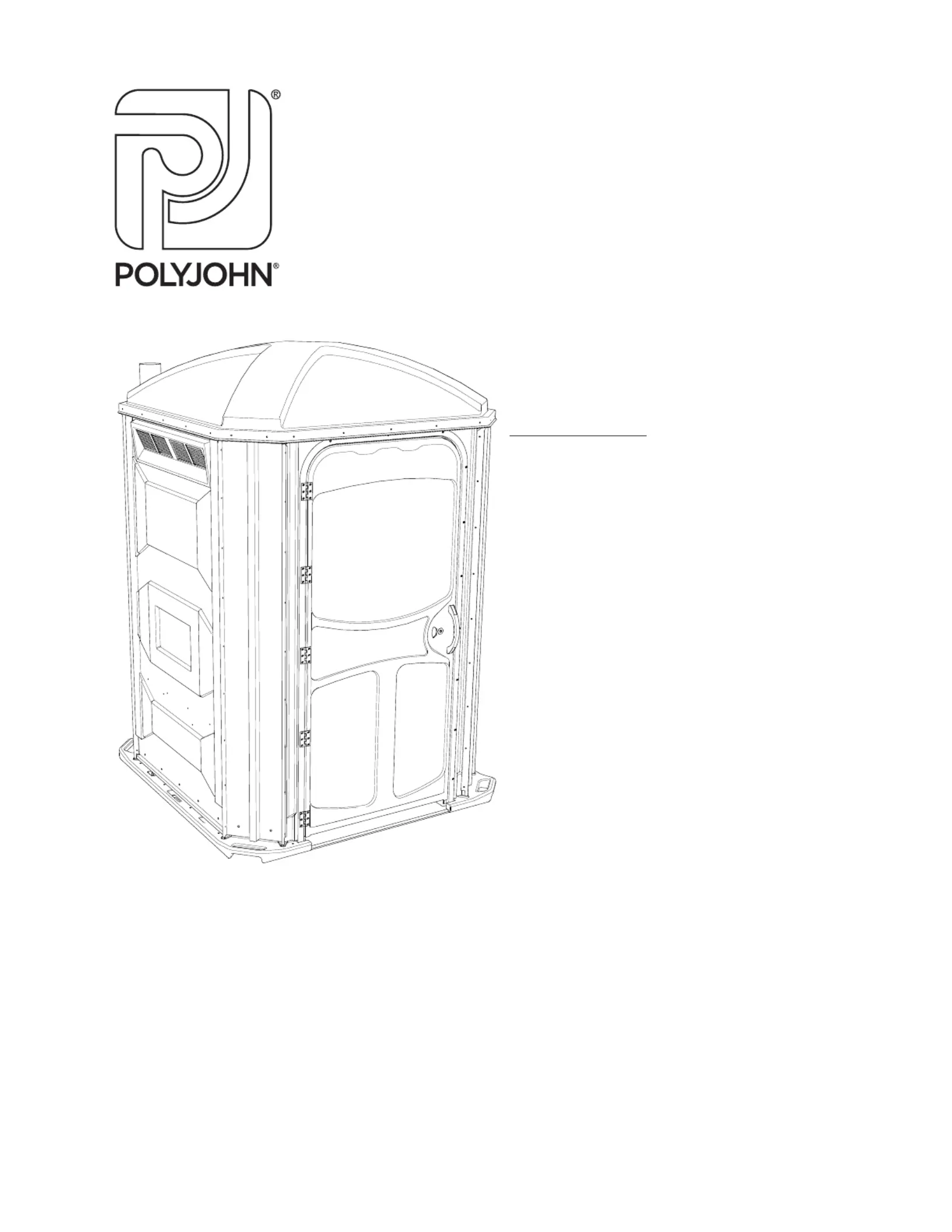

PH03 Comfort XL™
Assembly Instructions
USA PATENTS: 4,577,351, 4,637,299, 4,793,100, 4,831,671, 4,895,400, 4,918,765
Des. 304,082 CANADIAN PATENT: 1311898
POLYJOHN
USA
PolyJohn Enterprises Corp
2500 Gaspar Ave.
Whiting, IN 46394
Phone: 800-292-1305
Fax: 219-659-0625
www.polyjohn.com
info@polyjohn.com
POLYJOHN
WORLDWIDE
PolyJohn (UK) Ltd.
Equinox 1 Audby Lane
Wetherby, England LS22 7RD
Phone: 44 (0) 1937-583333
Fax: 44 (0) 1937-583322
sales@polyjohn.co.uk
POLYJOHN
CANADA
PolyJohn Canada
P.O. Box 2300
199 Forest Plain Rd.
Orillia, Ontario LV3 6S2
Phone: 800-465-9590
Fax: 705-325-8250
info@polyjohncanada.ca
SPECIFICATIONS
DIMENSION IMPERIAL METRIC
Exterior Height 91 in 231 cm
Exterior Width 62 in 157 cm
Exterior Length 62 in 157 cm
Door Frame Height(I.D.) 74 in 188 cm
Door Frame Width(I.D.) 32 in 81 cm
Tank Seat Height 19 in 48 cm
Weight 240 lb 108 kg
Static Tank Capacity 33 gal 125 L
Recirc Tank Capacity 22 gal 83.6 L
Side Panel Decal Area 12” x 23” 30cm x 58cm
Door Panel Decal Area 27” x 27” 68cm x 68cm
We recommend reading through the entire Assembly Instructions prior to
proceeding with installation, service or maintenance. All references to left
and right throughout this guide are as viewed from the front.
PH03 Comfort XL - October 2016
Page 2 of 12
PH03-0008R - Roof
(28) PC-000100 - Rivet
(28) PC-000106 - Washer
(3) PJ03-0002 - Side Panel
(15) PC-000121 - Washer
(15) PC-000123 - Washer
(15) PC-000139 - Bolt
(15) PC-000140 - Nut
PC-000490 - T.P. Dispenser
PC-000760 - Rod
PC-000205M - Lock
(4) PC-000100 - Rivet
(4) PC-000106 - Washer
PH01-0010 - Corner Panel
(72) PC-000100 - Rivet
(72) PC-000106 - Washer
(8) PC-000121 - Washer
(8) PC-000123 - Washer
(8) PC-000139 - Bolt
(8) PC-000140 - Nut
(6) PC-000570 - Fly Screen
(9) PC-000100 - Rivet
(9) PC-000106 - Washer
PH03-0001C - Floor Complete
PH03-0001R - Right Base Surround
PH03-0001L - Left Base Surround
PH03-0002 - Floor Plate
(21) PC-000117 - Rivet
(23) PC-000121 - Washer
(2) PC-000174 - Bolt
(2) PC-000123 - Washer
(2) PC-000140 - Nylon Lock Nut
PH01-0003 - Comfort XL Front Assembly
(See Front Assembly Exploded View)
PH03-0009 - Waste Holding Tank
(4) PC-000103 - Rivet
(
4
)
PC-000106 - Washer
PC-000204
Toilet Seat
PC-000531 - Vent Stack
(1) PC-000117 - Rivet
(3) PH03-0020 - Heavy Duty Grab Bar
(24) PC-000105 - Rivet
(24) PC-000106 - Washer
