Side 1/4
PJG3 - Exterior Assembly
July - 2009
Page 1 of 4
POLYJOHN
USA
PolyJohn Enterprises Corp
2500 Gaspar Ave.
Whiting, IN 46394
Phone: 800-292-1305
Fax: 219-659-0625
www.polyjohn.com
info@polyjohn.com
POLYJOHN
WORLDWIDE
PolyJohn (UK) Ltd.
Equinox 1 Audby Lane
Wetherby, England LS22 7RD
Phone: 44 (0) 1937-583333
Fax: 44 (0) 1937-583322
www.polyjohn.co.uk
sales@polyjohn.co.uk
POLYJOHN
CANADA
PolyJohn Canada
P.O. Box 2300
199 Forest Plain Rd.
Orillia, Ontario LV3 6S2
Phone: 800-465-9590
Fax: 705-325-8250
www.polyjohncanada.ca
info@polyjohncanada.ca
PJG3 Exterior Components
Installation Instructions
Full Size Scale Fasteners
(7) PC-000106 Washer (6) PC-000123 Washer (2) PC-000140 Nylon Lock Nuts
(7) PC-000102 Rivet (2) PC-000142 Hex Head Bolt (2) PC-000175 Screws
(2) PC-000156 - Self-Tapping Screw
• Marker
• 1-1/8” Hole Saw
• Drill w/13/64” bit
• Slotted Screw Driver
• 7/16” Socket Wrench
• Rivet Gun w/3/16” tip
~~Tools Required~~
*GAP Compliant Unit
* Good Agricultural Practices
PJG3-1006 - *GAP Tan Unit
PJG3 - Exterior Assembly
July - 2009
Page 2 of 4
NOTE: The PJG3-1006 Unit must already be mounted on the TU01-1000 - PJ Single Trailer Chassis In order to install the exterior components.
STEP 1: MOUNT PJG3-0020 BRACKET
Remove the (2) PC-000135 - Screws from the PS02-0003 - Foot Pump Plate located on the bottom of the PS02-1000 - Hand Wash Stand.
Line up the slotted holes on the bottom of the PJG3-0020 - PJG3 Gap Sink Bracket with those in the foot pump plate. Fasten the sink
bracket to the foot pump plate loosely until positioned in the mounting location using (2) PC-000142 - Hex Head Bolts with (2) PC-
000123 - Washers.
STEP 2: SINK DRAIN HOLE LOCATION
With a marker, mark the drain hole location for the sink drain hose approximately 9-3/4” in from the right side vertical rib and up
19-1/2” from the bottom edge of the rear wall panel. Using a 1-1/8” hole saw cut through the panel and into the tank. Push the
end of the CH063-036 - 5/8” x 36” Drain Hose through the drain hole (make sure the drain hose is routed through one of the molded-in
channels along the sink back).
STEP3: PS02-1000 SINK INSTALLATION
Place the sink into position against the rear wall panel with the left side of the sink  ush against the chassis tongue receiver and the
right side resting on top of the TU01-9160G - Left Skid Bracket TU01-0001GC - Trailer Chassis on the . Drive (2) PC-000156 - Self-Tapping
Screws through the holes in the side of the bracket into the frame of the trailer chassis. Tighten the hex head bolts on the bottom
of the sink (from Step 1 - the bracket to the foot pump plate). Using a 13/64” bit, drill into the two square recesses located near the top
of the sink (to the left and right of the spigot, making sure to drill into the wall panel). Fasten the top of the sink to the wall by placing
(2) PC-000175 - Screws (2) PC-000123 - Washers (2) PC-000123 - Washers (2) with into the holes just drilled from the outside with and
PC-000140 - Nylon Lock Nuts on the inside.
STEP 4: LS04-0001 SOAP DISPENSER INSTALLATION
Remove the top of the LS04-0001 - Soap Dispenser by placing your hands on both sides of the dispenser and pressing up on the
tabs of the lid. Remove the backing plate from the dispenser by pushing back on the tab at the top, and sliding the backing plate
down. Place the backing plate up against the rear wall panel (centered in the rib just above the sink and to the left of the spigot). Using
the top of the three mounting holes as a guide, drill three 13/64” holes into the wall panel. Rivet in place from the outside using (3)
PC-000102 - Rivets (3) PC-000106 - Washers with on the inside. Place the body of the soap dispenser on the backing plate and snap
the lid back on.
STEP 5: TD04-1000 PJ PAPER TOWEL INSTALLATION
Open up the TD04-1000 - Paper Towel Dispenser (for instructions see page 3). Place the dispenser up against the raised panel of the
rear wall just below the  y screens (centering as far left as possible). Using the mounting holes as a drill guide, drill four 13/64” holes
into the wall panel. Rivet in place using (4) PC-000102 - Rivets from the outside with on the inside. (4) PC-000106 - Washers

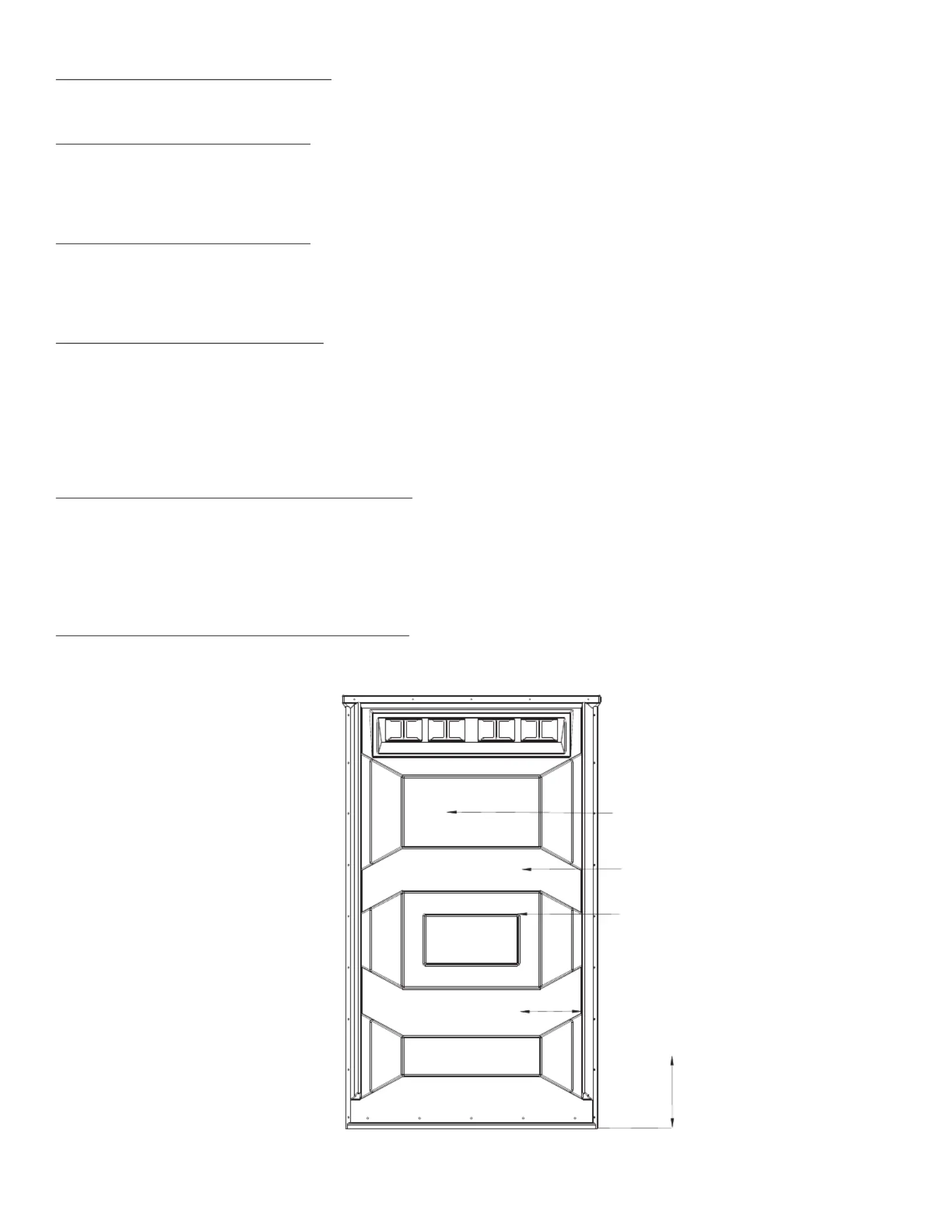

Assembly Instructions
Soap Dispenser
Paper Towel Dispenser
Top of Sink
Drill 1-1/8” Hole
for Drain Hose
Approx 19-1/2”
Drain Hose Hole
Approx 9-3/4”
