Side 1/8

SC1 Operations May 2014

Page 1 of 8

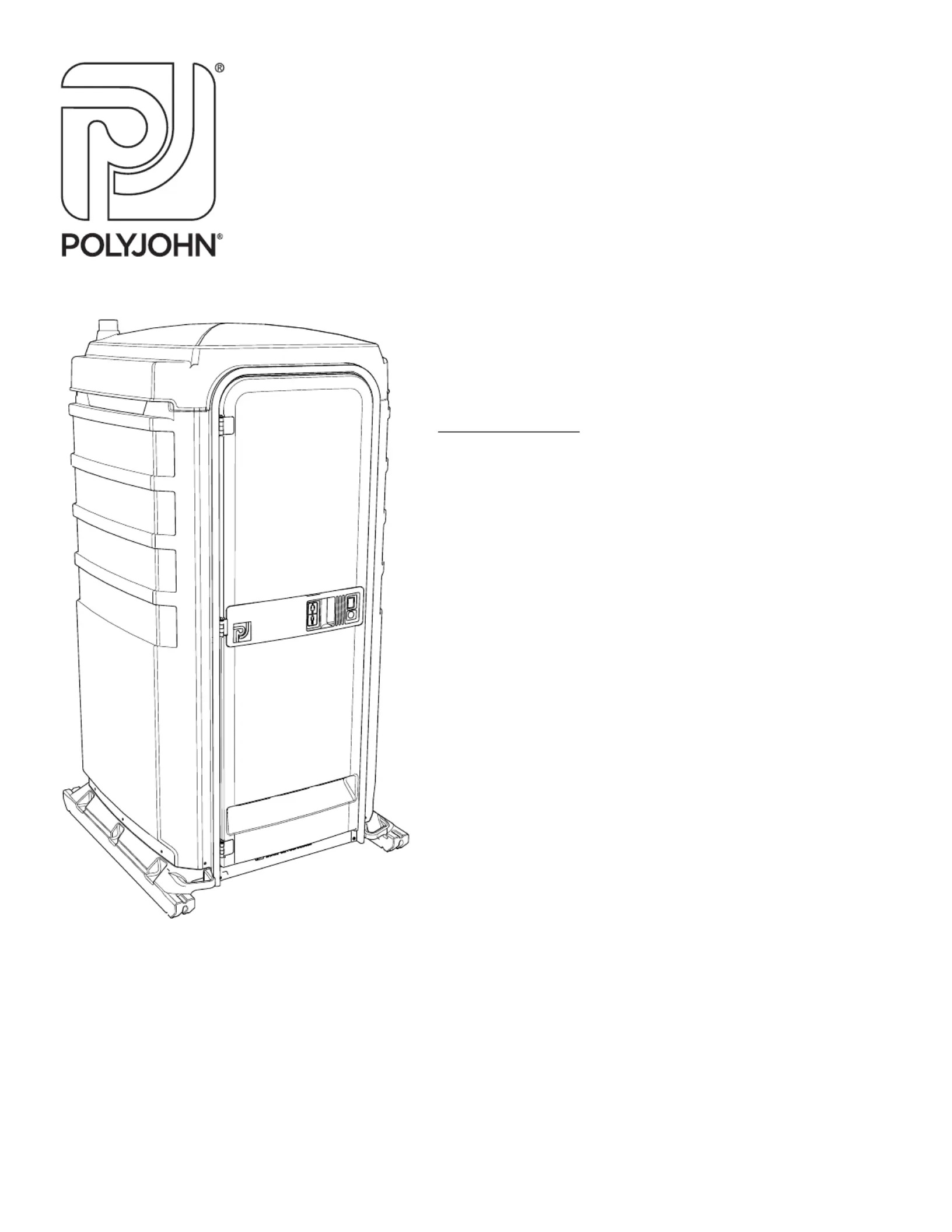

SC1-1000

City Mains

Operations Manual

Exterior Height 91 in 231 cm

Interior Height 83 in 211 cm

Exterior Width 47 in 119 cm

Interior Width 45.7 in 109 cm

Exterior Length 47 in 119 cm

Interior Length 43 in 116 cm

Weight 243 lb. 110 kg

Door Frame Height (ID) 75 in 191 cm

Door Frame Width (ID) 26 in 66 cm

Side Panel Decal Area 6 in X 37 in 15 cm X 94 cm

Door Decal Area 22.5 in X 29 in 57 cm X 74 cm

Seat Height 16.5 in 42 cm

Water Use Per Flush 3 gal 11.35 L

POLYJOHN

USA

PolyJohn Enterprises Corp.

2500 Gaspar Ave.

Whiting, IN 46394

Phone: 800-292-1305

Fax: 219-659-0625

www.polyjohn.com

info@polyjohn.com

POLYJOHN

WORLDWIDE

PolyJohn (UK) Ltd.

Equinox 1 Audby Lane

Wetherby, England LS22 7RD

Phone: 44 (0) 1937-583333

Fax: 44 (0) 1937-583322

sales@polyjohn.co.uk

POLYJOHN

CANADA

Rama Plastics

P.O. Box 2300

199 Forest Plain Rd.

Orillia, Ontario LV3 6S2

Phone: 800-465-9590

Fax: 705-325-8250

info@ramaplastics.ca

SPECIFICATIONS

DIMENSION IMPERIAL METRIC

PC-000490 T.P. Dispenser

PC-000760 Rod

PC-000205M Lock

(4) PC-000100 Rivet

(4) PC-000106 Washer

(2) FS1-0002* Side Panel

(10) PC-000192 Sems Screw

FS1-0062 Left Rear Extrusion

(9) PC-000104 Rivet

FS1-0061 Top Rear Extrusion

(5) PC-000104 Rivet

(3) SG1-0037 Inner Screen

(3) SG1-0038 Outer Screen

(6) PC-000102 Rivet

(6) PC-000106 Washer

FS1-0063 Right Rear Extrusion

(9) PC-000104 Rivet

FS1-0007* Roof Panel

(4) PC-000100 Rivet

(4) PC-000106 Washer

(4) PC-000121 Washer

PC-100455 Hatch

(8) PC-000104 Rivet

(8) PC-000106 Washer

SC1-0020C Base w/Vanity Complete

(2) SG1-0035 Large Screen

(2) PC-000102 Rivet

(2) PC-000106 Washer

TD04-1000 Towel Dispenser

(4) PC-000104 Rivet

(4) PC-000106 Washer

LS04-1000 Soap Dispenser

(3) PC-000102 Rivet

(3) PC-000106 Washer

FS3-0003* Front Assembly

(17) PC-000104 Rivet

(4) PC-000159 1/4-20 x 3-1/2” Bolt

(4) PC-000123 Washer

(4) PC-000140 Nylock Nut

-FS3-0060 Door Jamb

-PC-100787 Serial I.D. Plate

-(2) PC-000108 Rivet

-FS1-0005*C Complete Door

--FS1-0005* Fleet Door

--(3) PC-100170 Hinge Assembly

--(6) PC-000116 Rivet

--(3) PC-000160 5/16” x 3/4” Bolt

--(3) PC-000161 5/16” Flat Washer

--(3) SG1-0037 Inner Screen

--(3) SG1-0038 Outer Screen

--(6) PC-000104 Rivet

--(6) PC-000106 Washer

TM01-0003 Mirror

PC-000367 Push-In Fastener

SG1-0032 Retain Plate

FS1-0034* Door Panel Cover

(4) PC-000158 Screw

(2) PC-000147 Screw

SG1-0030 Slide Latch

SG1-0031C Slide Latch Cover Plate

SG1-0031 Slide Cover Plate

SA1-0017 Handle U Bolt

(2) PC-100134 Handle Screws

(2) PC-100796 Grommet

SC1-0004* Rear Panel

(4) PC-000192 Sems Screw

PC-000223 Hover Handle

(2) PC-000104 Rivet

PC-000800 Spring Assembly

Not Shown: PC-000181 Spring Clip

(2) PC-000104 Rivet

SC1-1000 City Mains Exploded Parts Diagram

SC1 Operations May 2014

Page 2 of 8
