Side 1/8

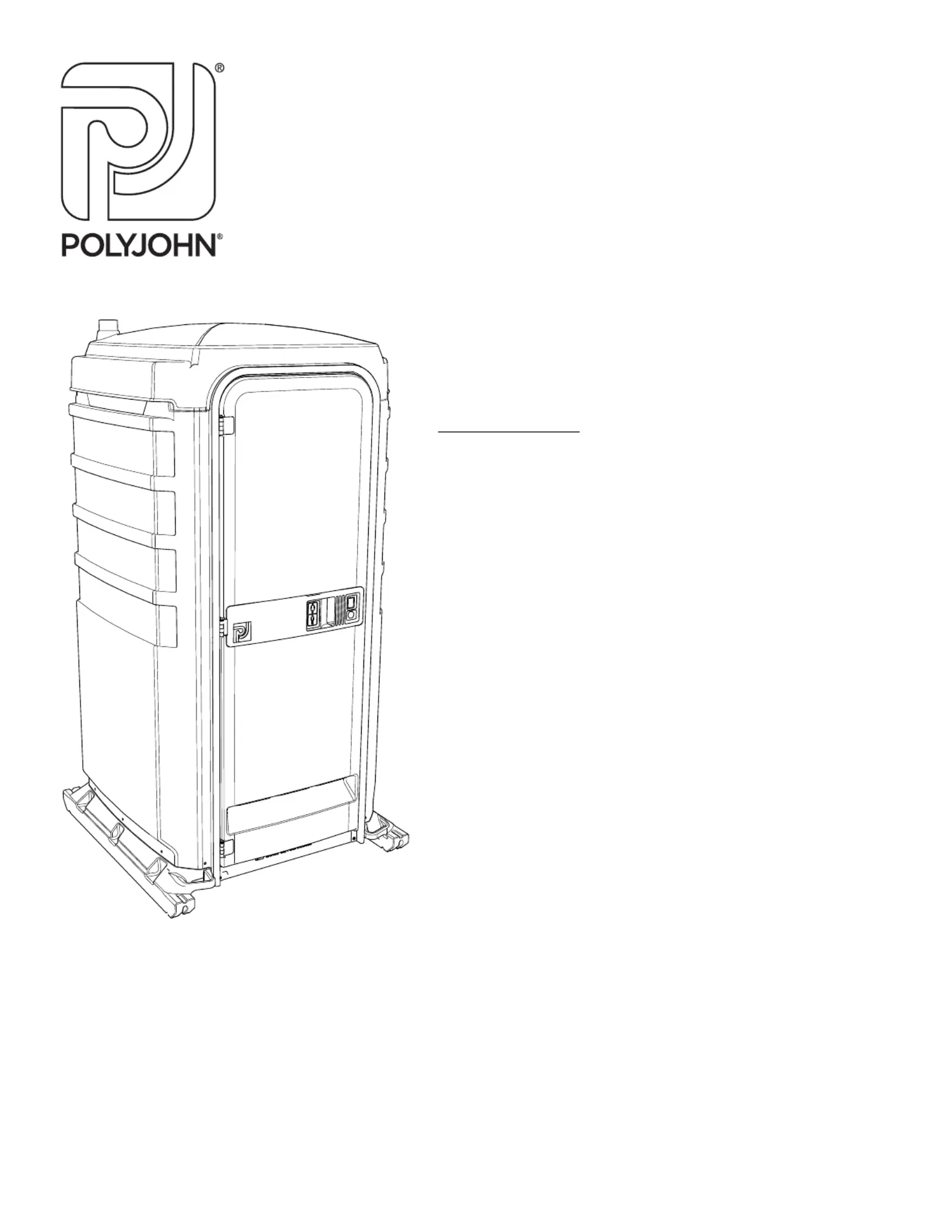

SC1 Operations May 2014
Page 1 of 8
SC1-1000
City Mains
Operations Manual
Exterior Height 91 in 231 cm
Interior Height 83 in 211 cm
Exterior Width 47 in 119 cm
Interior Width 45.7 in 109 cm
Exterior Length 47 in 119 cm
Interior Length 43 in 116 cm
Weight 243 lb. 110 kg
Door Frame Height (ID) 75 in 191 cm
Door Frame Width (ID) 26 in 66 cm
Side Panel Decal Area 6 in X 37 in 15 cm X 94 cm
Door Decal Area 22.5 in X 29 in 57 cm X 74 cm
Seat Height 16.5 in 42 cm
Water Use Per Flush 3 gal 11.35 L
POLYJOHN
USA
PolyJohn Enterprises Corp.
2500 Gaspar Ave.
Whiting, IN 46394
Phone: 800-292-1305
Fax: 219-659-0625
www.polyjohn.com
info@polyjohn.com
POLYJOHN
WORLDWIDE
PolyJohn (UK) Ltd.
Equinox 1 Audby Lane
Wetherby, England LS22 7RD
Phone: 44 (0) 1937-583333
Fax: 44 (0) 1937-583322
sales@polyjohn.co.uk
POLYJOHN
CANADA
Rama Plastics
P.O. Box 2300
199 Forest Plain Rd.
Orillia, Ontario LV3 6S2
Phone: 800-465-9590
Fax: 705-325-8250
info@ramaplastics.ca
SPECIFICATIONS
DIMENSION IMPERIAL METRIC
PC-000490 T.P. Dispenser
PC-000760 Rod
PC-000205M Lock
(4) PC-000100 Rivet
(4) PC-000106 Washer
(2) FS1-0002* Side Panel
(10) PC-000192 Sems Screw
FS1-0062 Left Rear Extrusion
(9) PC-000104 Rivet
FS1-0061 Top Rear Extrusion
(5) PC-000104 Rivet
(3) SG1-0037 Inner Screen
(3) SG1-0038 Outer Screen
(6) PC-000102 Rivet
(6) PC-000106 Washer
FS1-0063 Right Rear Extrusion
(9) PC-000104 Rivet
FS1-0007* Roof Panel
(4) PC-000100 Rivet
(4) PC-000106 Washer
(4) PC-000121 Washer
PC-100455 Hatch
(8) PC-000104 Rivet
(8) PC-000106 Washer
SC1-0020C Base w/Vanity Complete
(2) SG1-0035 Large Screen
(2) PC-000102 Rivet
(2) PC-000106 Washer
TD04-1000 Towel Dispenser
(4) PC-000104 Rivet
(4) PC-000106 Washer
LS04-1000 Soap Dispenser
(3) PC-000102 Rivet
(3) PC-000106 Washer
FS3-0003* Front Assembly
(17) PC-000104 Rivet
(4) PC-000159 1/4-20 x 3-1/2” Bolt
(4) PC-000123 Washer
(4) PC-000140 Nylock Nut
-FS3-0060 Door Jamb
-PC-100787 Serial I.D. Plate
-(2) PC-000108 Rivet
-FS1-0005*C Complete Door
--FS1-0005* Fleet Door
--(3) PC-100170 Hinge Assembly
--(6) PC-000116 Rivet
--(3) PC-000160 5/16” x 3/4” Bolt
--(3) PC-000161 5/16” Flat Washer
--(3) SG1-0037 Inner Screen
--(3) SG1-0038 Outer Screen
--(6) PC-000104 Rivet
--(6) PC-000106 Washer
TM01-0003 Mirror
PC-000367 Push-In Fastener
SG1-0032 Retain Plate
FS1-0034* Door Panel Cover
(4) PC-000158 Screw
(2) PC-000147 Screw
SG1-0030 Slide Latch
SG1-0031C Slide Latch Cover Plate
SG1-0031 Slide Cover Plate
SA1-0017 Handle U Bolt
(2) PC-100134 Handle Screws
(2) PC-100796 Grommet
SC1-0004* Rear Panel
(4) PC-000192 Sems Screw
PC-000223 Hover Handle
(2) PC-000104 Rivet
PC-000800 Spring Assembly
Not Shown: PC-000181 Spring Clip
(2) PC-000104 Rivet
SC1-1000 City Mains Exploded Parts Diagram
SC1 Operations May 2014
Page 2 of 8
