What s In The Box’

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo copying, recording, or otherwise, except as may be expressly permied by the applicable copyright -

statutes or in wring by the Publisher.

Astra 8 & 12 Camera Jib Crane

A s s e m b l y M a n u a l

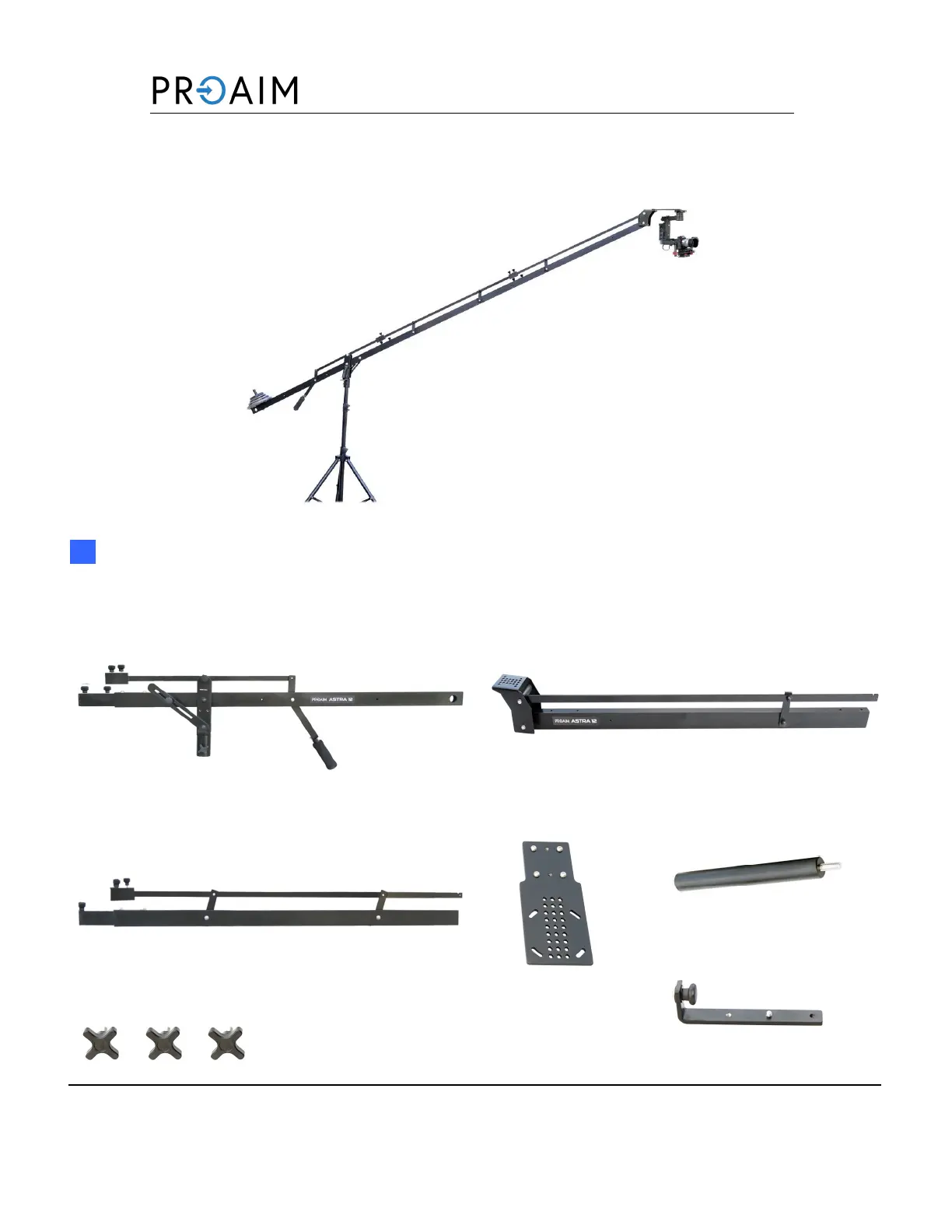

Astra comes with a back secon, a front secon with your

choice of camera mount, and vercal and horizontal

counterweight bars.

Camera Mount With Over Slung Mount.

Extension Secon -4

Extension Camera Plate

Vercal Counterweight Bar

LCD Mounng Bracket

Tightening knobs

Using Tripod Head

Remove the quick release plate from the tripod

head. Screw into the crane s mount, located on ’

the rear secon. 1/4”-20 & 3/8”-16 threads

available. Do not aempt to use the lt funcon

on the uid head with the crane aached.

 With the stand mount aached to the crane,

set it on top of the stand s main sha. Insert ’

the knob into the groove, and ghten to

secure.

 The rear secon has an interior connecng bar

extension out. This slides into the front secon

or extension. Tighten the knobs to secure the

secons together.

 Aer inserng the connecng bar, insert the

knob into the coupler and ghten knob into

the groove.

Mounng on Support Stand:

Assembly for 8 Astra Jib

Connecng the Jib secons

Astra Jib Setup

 Add the 4 extension secon to the rear

secon and secure properly. Next, aach the

main head secon to the extension secon.

Tighten the knobs to secure the secons

together.

Assembly for 12 Astra Jib

Extend your 8 crane to a 12 crane by adding the 4 extension.
