Provision-ISR Z-20IP-1(IR) Manual

Provision-ISR Overvågningskamera Z-20IP-1(IR)

Læs gratis den danske manual til Provision-ISR Z-20IP-1(IR) (81 sider) i kategorien Overvågningskamera. Denne vejledning er vurderet som hjælpsom af 18 personer og har en gennemsnitlig bedømmelse på 3.9 stjerner ud af 9.5 anmeldelser. Har du et spørgsmål om Provision-ISR Z-20IP-1(IR), eller vil du spørge andre brugere om produktet?

Download PDF

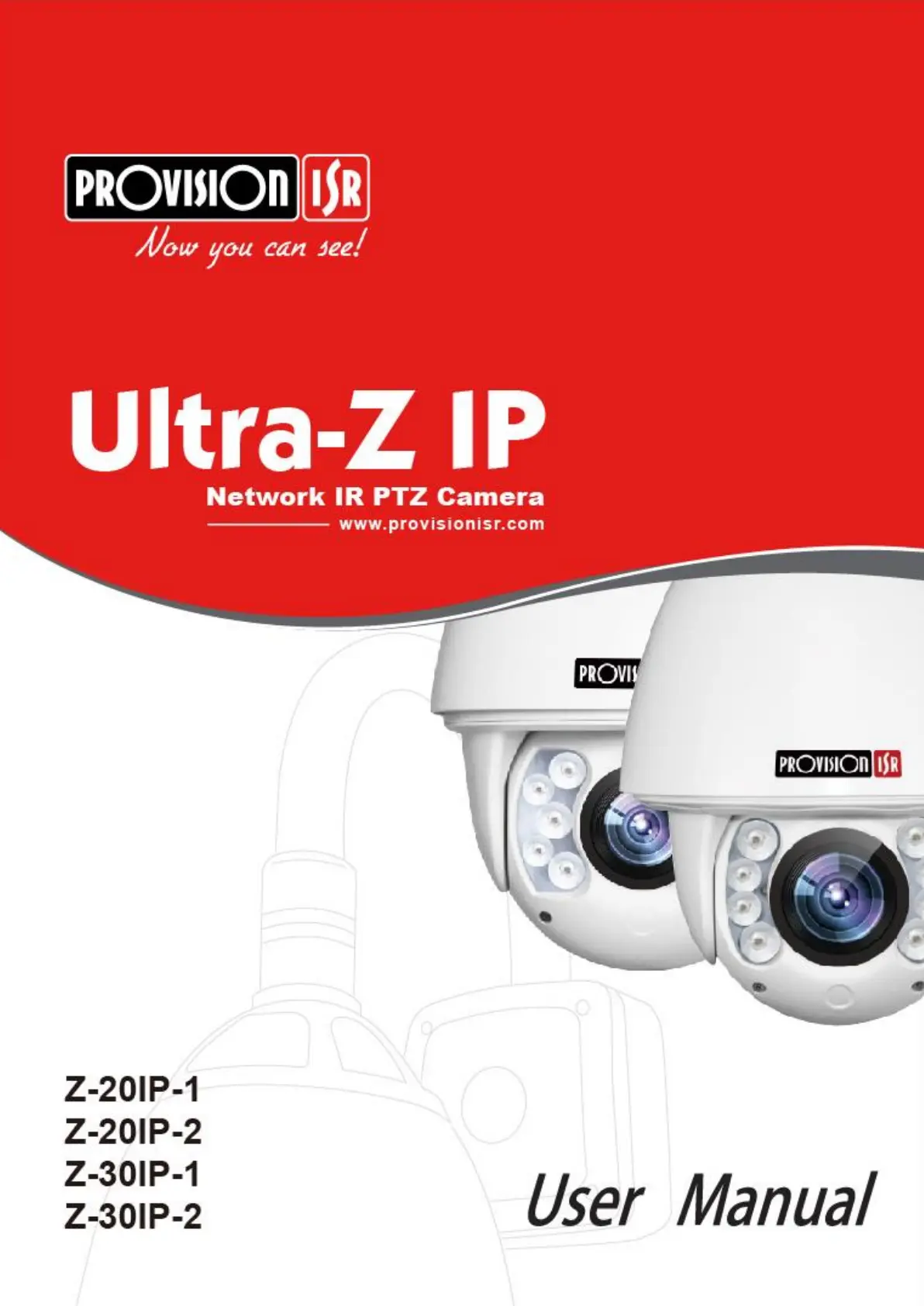

Side 1/81

Table of Contents

Chapter

w.......................................................................................................................................4

1.1 Functions............................................................................................................................ 4

Chapter

Network Connection

.....................................................................................................................

2.1 Setting the IP PTZ Camera over the LAN ............................................................................. 6

2.1.1 Wiring over the LAN ...................................................................................................... 6

2.1.2 Detecting and Changing the IP Address ......................................................................... 6

2.2 Setting the IP PTZ Camera over the W

N ........................................................................... 7

2.2.1 Static IP Connection...................................................................................................... 7

2.2.2 Dynamic IP Connection ................................................................................................. 7

Chapter

Access

to the Network Speed

..............................................................................................

3.1 Accessing by Web Browsers .............................................................................................. 9

3.2 Accessing by Client Software ............................................................................................. 9

Chapter

Live

iew

.....................................................................................................................................

4.1 Power-up Action ............................................................................................................... 11

4.2 Live View Page.................................................................................................................. 11

4.3 Starting Live

iew ............................................................................................................. 12

4.4 Recording and Capturing Pictures Manually ...................................................................... 13

4.5 Operating PTZ Control....................................................................................................... 14

4.5.1 PTZ Control Panel ......................................................................................................... 14

4.5.2 Setting / Calling a Preset ............................................................................................... 14

4.5.3 Setting / Calling a Patro

................................................................................................ 17

4.5.4 Setting / Calling a Pattern.............................................................................................. 18

4.6 Configuring Live View Parameters ..................................................................................... 19

Chapter

PTZ

..........................................................................................................................

5.1 Configuring Power Off Action............................................................................................ 20

5.2 Configuring Park Actions ................................................................................................... 20

Chapter

Speed Dome Configuration

........................................................................................................... 21

6.1 Configuring Local Parameters............................................................................................ 21

6.2 Configuring Time Settings ................................................................................................. 22

6.3 Configuring Network Settings............................................................................................ 24

6.3.1 Configuring TCP/IP Settings ............................................................................................24

6.3.2 Configuring Port Settings .............................................................................................. 26

6.3.3 Configuring PPPoE Settings ........................................................................................... 26

6.3.4 Configuring DDNS Settings ............................................................................................ 27

6.3.5 Configuring SNMP Settings ........................................................................................... 28

6.3.6 Configuring 802.1X Settings .......................................................................................... 29

6.3.7 Configuring QoS Settings............................................................................................... 30

6.3.8 Configuring FTP Settings ............................................................................................... 31

6.3.9 Configuring UPnP™ Set

ngs .......................................................................................... 32

Produkt Specifikationer

Mærke:	Provision-ISR
Kategori:	Overvågningskamera
Model:	Z-20IP-1(IR)
Kode for international beskyttelse (IP):	IP66
Type:	IP-sikkerhedskamera
Vekselstrømsindgangsspænding:	24 V
Bredde:	228 mm
Dybde:	354 mm
Højde:	341 mm
Vægt:	5800 g
Produktfarve:	Hvid
Wi-Fi:	Ingen
Formfaktor:	Kuppel
Understøttede videotilstande:	720p, 960p
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Ethernet LAN-porte (RJ-45):	1
Ethernet LAN:	Ja
Driftstemperatur (T-T):	-10 - 50 °C
Maksimal opløsning:	1280 x 720 pixel
Forbindelsesteknologi:	Ledningsført
Monteringstype:	Væg
Indbygget HDD:	Ingen
Video komprimeringsformater:	H.264, M-JPEG
Understøttet placering:	Indendørs & udendørs
Indbygget mikrofon:	Ja
Sensortype:	CMOS
Samlet antal megapixels:	1.3 MP
Lydsystem:	2-vejs
Optisk zoom:	20 x
Digital zoom:	12 x
Fokusindstilling:	1.6 - 4.7
Normal fokuseringsområde:	1 m
Autofokus:	Ja
Progressiv scanning:	Ja
Strøm over Ethernet (PoE):	Ingen
Bredt dynamikområde (WDR):	Ja
Dag/nat funktion:	Ja
Infrarød (IR) cut-off filter:	Ja
Minimumsbelysning:	0 Lux
Optisk sensorstørrelse:	1/3 "
Zoom kapacitet:	Ja
Nattesyn:	Ja
LED type:	IR
Antal kameraer:	1
Brændviddeområde:	3.5 - 97 mm
Kameraets lukkerhastighed:	1/25s ~ 1/10000 sek./side
Signal/støjforhold:	52 dB
Kamera lukker type:	Elektronisk
PTZ-kontrol:	Ja
Nattesyn, afstand:	150 m
RS-485-porte:	1
Objektivets synsvinkel, vandret:	58.3 °
Alarmindgang/-udgang:	Ja
