Side 1/4

6. Installing the Display

INSTALLATION MANUAL

LCD Ceiling Mount

PCTVM15

42"

MAX

75x75 100x100

200x100/200x200

(

)

RATE

ATE

ATE D

30kg

(66lbs)

RATED

7. Adjustment

Use the tilt adjusting knob to adjust your display to the desired angle then tighten it.

Maintenance

• Check that the bracket is secure and safe to use at regular intervals(at least every three months).

• Please contact your dealer if you have any questions.

Tighten all screws but do not over tighten.

Lift the display and match the holes on your display with the holes on the mount. Secure your display to

the mount by tightening screws.

Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.

TVTV

CAUTION: DO NOT EXCEE D

RATED LISTED WEIGHT. SERIOUS

INJURY OR PROPERTY DAMAGE

MAY OCCUR!

www.pyleaudio.com

M-A

M-B

M-E DM-

M-F M-G

M-G

DM-

M-F M-G

M-C

M-D M-F

or or

180°

-20°

+20°

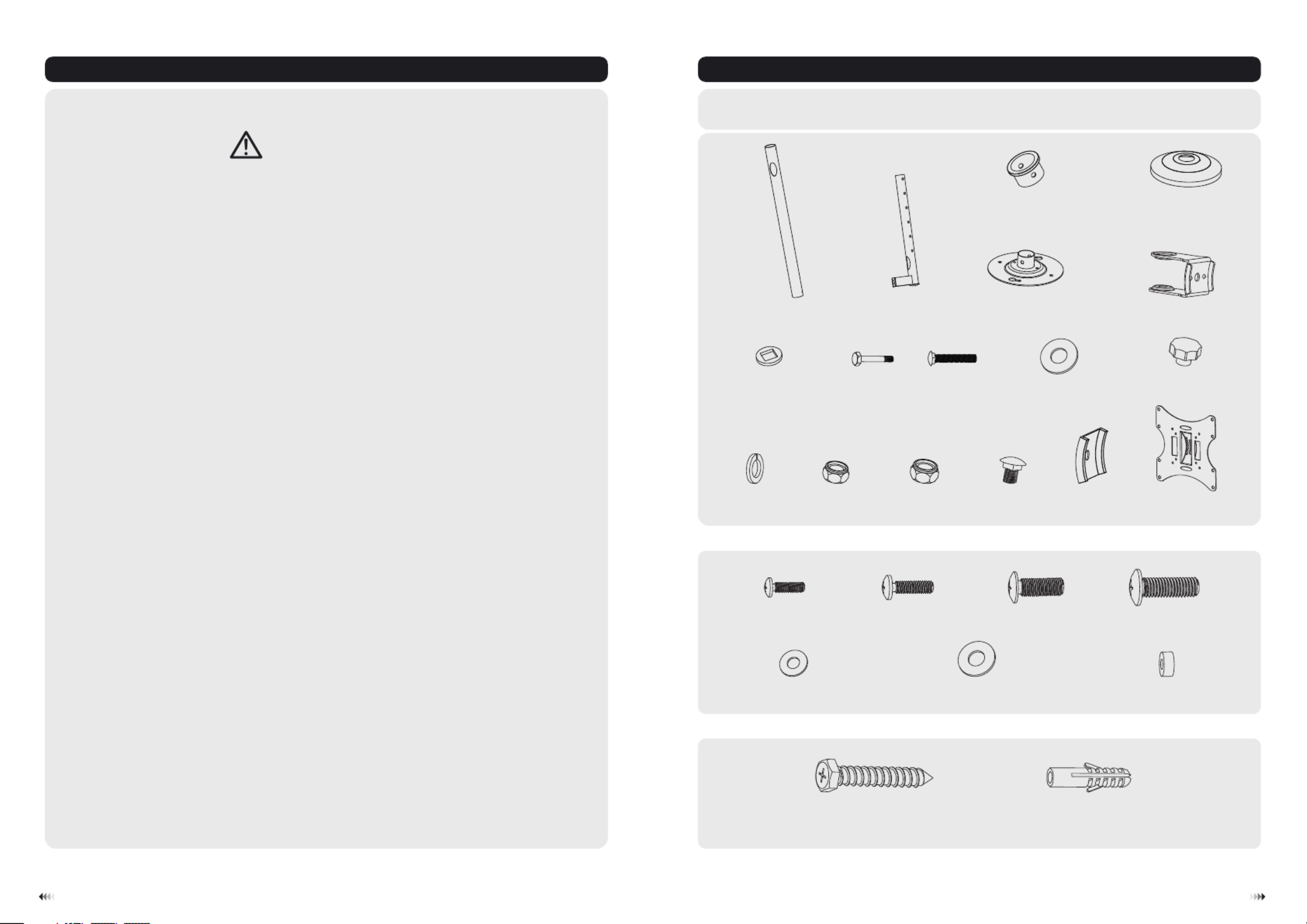

Component Checklist

IMPORTANT: Ensure that you have received all parts accord ing to the component checklist prior to installation.

If any parts are miss ing or faulty, telephone y our local distributor for a replacement.

Package M

Package W

concrete anchor

W-B

(x4)ST6.3x55 (x4)

W-A

D8 (x4)

M-F

washer D (x4)

M-E

5 washer small spacer

M-G

(x8)

M5x14

M-B

(x4) M6x14

M-C

(x4) M8x20

M-D

(x4)M4x14

M-A

(x4)

plastic cover

(x1)

grip holder (x1)

ceiling plate

(x1)

plastic bushing (x2)

outer column (x1)

Inner column

(x1)

M8 washer (x2)

M6x45(x3)

M8x45(x1)

M8 (x1)

plastic pad (x1)

M6 nut (x3)

M8 nut (x1)

washer (x1)

M8x20 (x1)

VESA plate

(x1)

D8 (x2)

washer

NOTE: Read the entire instruction manual before you start installation and assembly.

WARNING

• Do not begin the installation until you have read and understood all the instructions

and warnings contained in this installation sheet. If you have any questions

regarding any of the instructions or warnings, please contact your local distributor.

• This mounting bracket was designed to be installed and utilised ONLY as

specified in this manual. Improper installation of this product may cause damage

or serious injury.

• This product should only be installed by someone with good mechanical ability

who has basic building experience and fully understands this manual.

• Make sure that the supporting surface will safely support the combined weight of

the equipment and all attached hardware and components.

• If mounting to wooden joist ceiling, make sure that mounting screws are anchored

into the center of the joist. The use of a stud finder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position

the equipment.

• Tighten screws firmly, but do not over tighten. Over tightening can cause damage

to the items, This greatly reduces their holding power.

• This product is intended for indoor use only. Using this product outdoors could

lead to product failure and personal injury.

Produkt Specifikationer

Mærke:	Pyle
Kategori:	Mikrofon
Model:	PCTVM15
Vægt:	2550 g
Produktfarve:	Sort
Monteringstype:	Væg
Drejevinkel område:	0 - 180 °
Hældningsvinkelområde:	-20 - 20 °
Maksimal vægtkapacitet:	30 kg
Maksimal skærmstørrelse kompatibilitet:	42 "
Minimal skærmstørrelse kompatibilitet:	23 "
