Side 1/48

™

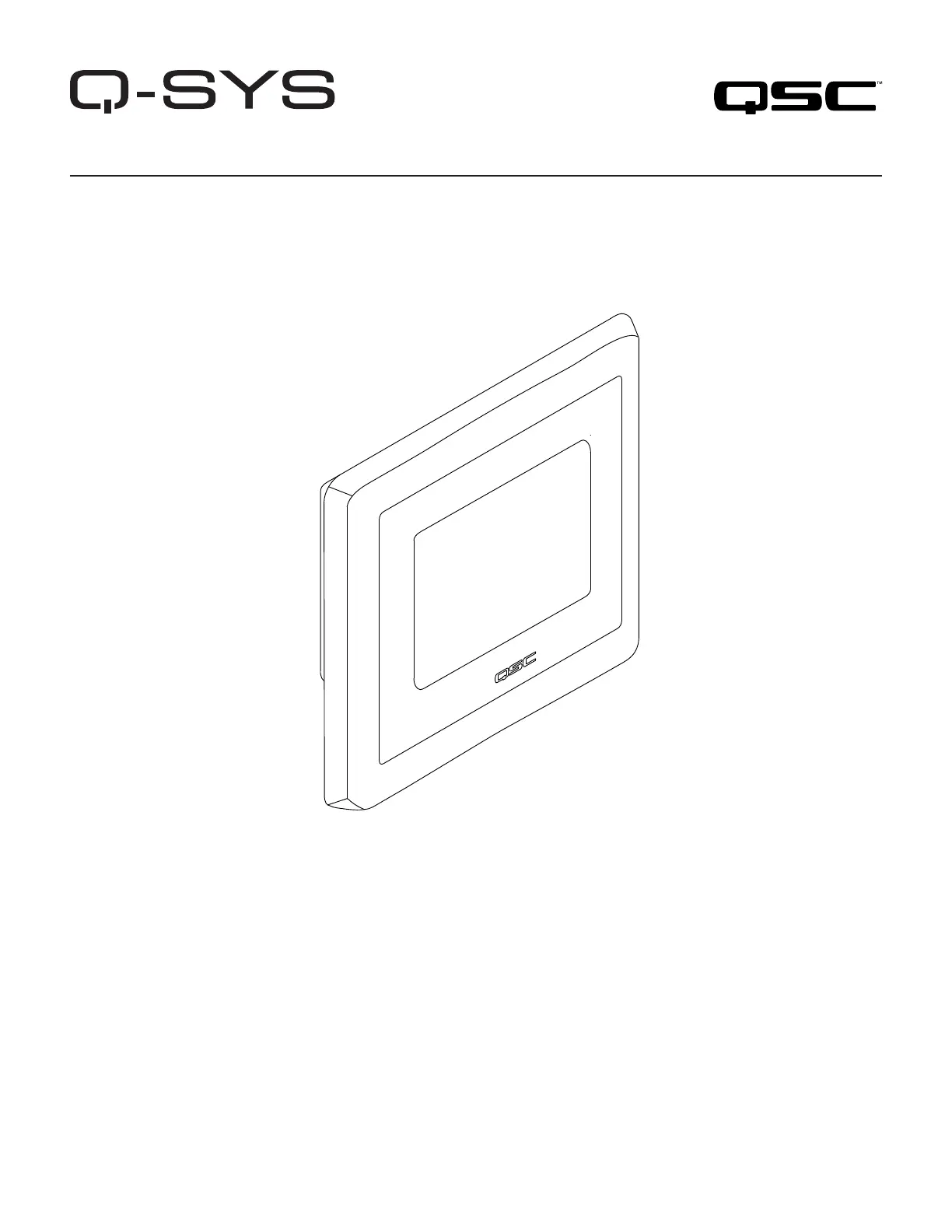

Touchscreen Hardware User Manual

TSC-3-WH – Networked Touchscreen Controller (White)

TSC-3-BK – Networked Touchscreen Controller (Black)

TD-000343-00-C

*TD-000343-00*

TD-000343-00-C

EXPLANATION OF TERMS AND SYMBOLS

The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death.

The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in

damage to the equipment that may not be covered under the warranty.

The term “IMPORTANT!” indicates instructions or information that are vital to the successful completion of the procedure.

The term “NOTE” is used to indicate additional useful information.

The intent of the lightning ﬂ ash with arrowhead symbol in a triangle is to alert the user to the presence of un-insulated “dangerous”

voltage within the product's enclosure that may be of sufﬁ cient magnitude to constitute a risk of electric shock to humans.

The intent of the exclamation point within an equilateral triangle is to alert the user to the presence of important safety, and operating

and maintenance instructions in this manual.

IMPORTANT SAFETY INSTRUCTIONS

WARNING!:

TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

– Maximum operating ambient temperature is 50°C (122°F).

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with a dry cloth, and as described in the "Cleaning the TSC-3 Touchscreen" on page 12.

• Install in accordance with the manufacturer's instructions and all federal, state, and local municipal codes.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁ ers) that produce heat.

• Only use attachments/accessories speciﬁ ed by the manufacturer.

• Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus has been damaged in any way, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Adhere to all applicable, local codes.

• Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.

Maintenance and Repair

WARNING!:

Advanced technology, e.g., the use of modern materials and powerful electronics, requires specially adapted

maintenance and repair methods. To avoid a danger of subsequent damage to the apparatus, injuries to persons and/or the

creation of additional safety hazards, all maintenance or repair work on the apparatus should be performed only by a QSC

authorized service station or an authorized QSC International Distributor. QSC is not responsible for any injury, harm or related

damages arising from any failure of the customer, owner or user of the apparatus to facilitate those repairs.
