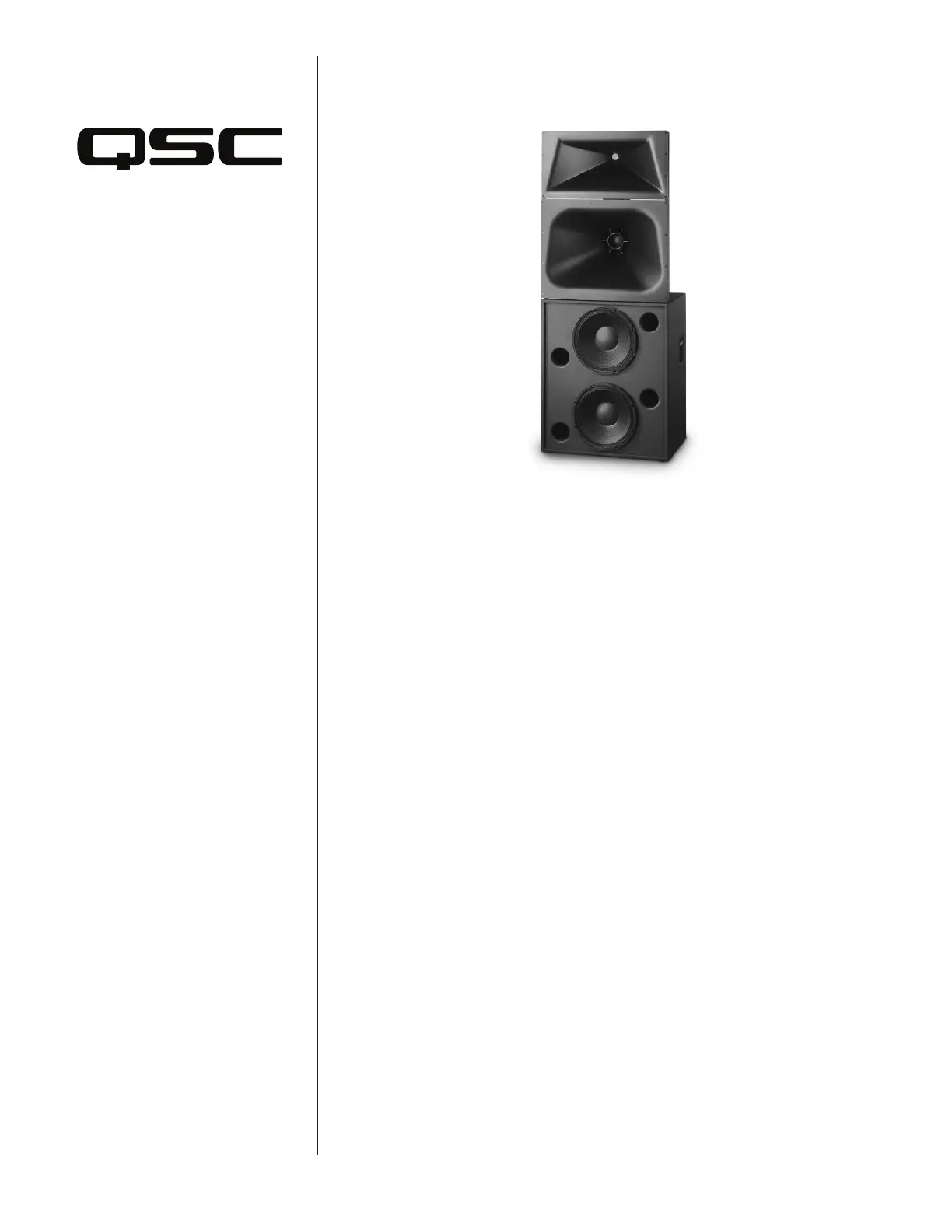

Developed specifically for the unique
requirements of professional motion
picture playback, the SC-423C extends
QSC’s commitment to the cinema market.
As a member of the DCS Digital Cinema
Speaker Series, the SC-423C is a 3-way,
selectable bi-or tri-amplified screen
channel loudspeaker system comprised of
two main units—the MH-1075C mid-high
frequency system and the LF-4215
low-frequency system.
The MH-1075C mid-high system features
a high output, horn loaded 10" midrange
cone driver and a 3" (75mm) titanium
diaphragm compression driver mounted
to an adjustable pan and tilt bracket. The
MH-1075C includes a driver protection
network and a passive crossover for
bi-amp operation. Power limiter circuitry
protects the high-frequency driver from
overpowering. The MH-1075C provides
extended frequency coverage for the
critical midrange band. A high power 10"
cone driver allows operation as low as
250 Hz and the advanced phase plug
coupling permits a crossover point of up
to 1800 Hz to the high-frequency horn.
This ensures that most of the dialog range
is reproduced by a single element, for
unmatched intelligibility.
The LF-4215 dual 15" (381 mm)
low-frequency enclosure is designed
specifically to address the extended
low-frequency response required for
cinema applications. The LF-4215 covers
the frequency range from 35 Hz to 250 Hz.
Close Coupled Woofers (CCW), with their
tight spacing between woofers, improves
coupling and keeps coverage angles wide
over a greater frequency range than more
widely spaced designs.
The SC-423C is designed for ease of
installation. The MH-1075C components
come pre-assembled to reduce field
assembly time. Three bolts are all that are
required to secure the MH-1075C to the
top of the LF-4215 enclosure.
Features
• 3-wayselectable,bi-or
tri-amplifiedscreenchannel
system
• MH-1075Cprovides90°
horizontalby+20°to-30°
verticalcoverage
• LF-4215isconstructedof
MDFandisheavilybraced
• Low-distortionwaveguides
providehighlyarticulate
dialogue
• Shallowdepth(20”)
facilitatesinstallation
SC-423C
Cinema Loudspeaker
System
SC-423C
®
SC-423CDetails
Specifications
SC-423C
Nominal Coverage 90° horizontal x +20 to -30° vertical
Frequency Range 32 Hz to 16 kHz (-6 dB)
Crossover Frequency 250 and 1700 Hz, 24 dB per octave
LF-4215 MH-1075C
Impedance 4Ω 8Ω
Sensitivity 1 watt /1 meter, half space 99.5 dB Bi-amp
105 dB
Tri-amp
MF 105 dB HF 107.5 dB
Maximum Input Power
1
8 hours of 6 dB crest factor IEC 268
noise spectrum
2 hours of 6 dB crest factor pink
noise, 50 Hz – 20 kHz, AES method
Recommended Amplifier Power
800 W RMS
1000 W RMS
1600 W RMS maximum
250 W RMS
2
passive mid-high
350 W RMS
800 W RMS maximum
275 W RMS 75 W RMS
Recommended Processing Subsonic filter below 30 Hz, > 18 dB per octave 4th order LR crossover at 250 and 1700 Hz via QSC processor
Connectors Barrier strip screw terminals accept up to #10 AWG stranded wire Barrier strip screw terminals accept up to #10 AWG stranded
wire
Transducers Two 15" (381mm) high efficiency, extended bass woofers featuring
4" copper voice coils
10- high efficiency mid range, 1.5" (38mm) exit, 3" titanium
diaphragm compression driver
Enclosure Quasi B4 alignment, ported enclosure with fully flared ports,
symmetrical port design, tuned to 36 Hz, constructed of MDF and
heavily braced. Features vandal resistant woofer mounting bolts
Tilt/Pan Bracket
±10° vertical tilt
±10° horizontal pan
Dimensions (HWD) 36" x 30" x 20.3" (470 mm x 762 mm x 516 mm) 39" x 30" x 20" (990 mm x 762 mm x 508 mm)
Weight – Shipping 167.5 lb (76 kg) 103 lb (47 kg)
System Weight 270.5 lb (123 kg)
Baffle Cut-Out 76" x 32"
1) Maximum input power tested in accordance with IEC 60268-5 recommendations, 50 Hz – 20 kHz band limiting, 6 dB signal crest factor.
2) Maximum input power tested in accordance with IEC 60268-5 recommendations, 500 Hz – 2 kHz band limiting, 6 dB signal crest factor.
