Qflash® CoPilot

QF91C (Canon)

QF91N (Nikon)

Shoe Mount Wireless Radio

Commander for Qflash 5d-R

and TRIO

Operating Instructions

IMPORTANT CAUTION –

Changes or modifications to this equipment could void your

authority to use this product under the equipment authorization

granted by the regulating agencies

Quantum Instruments Inc.

10 Commerce Drive, Hauppauge NY 11788-3968 USA

Tel: 1-631- -7400 Fax: 1-631-656-7410 656

www.qtm.com

P701

1 Introduction

Mount CoPilot to your camera hot shoe for simple, reliable wireless control

of remote flash units: CoPilot QF91N for Nikon, QF91C for Canon.

CoPIlot sends camera TTL signals to remote flashes to set and adjust

multi-flash lighting right from your camera position. CoPilot’s radio wireless

system works up to 300’ (100m) using the reliable FreeXwire system.

CoPilot controls the exposure of up to three independent Remote Groups of

flash units.

A Remote Group can consist of :

Quantum Trio

and / or

Qflash T5d-R with an FW8R or FW7Q receiver

and / or

Any non Quantum flash that can be triggered by a sync signal, with

A FreeXwire receiver.

A Remote Group may consist of any number of remote flash units. Each

Remoter Group receives its individual exposure setting according to the

setting on CoPilot mounted to your camera’s hot shoe.

Channel select

switch 0 - 7

USB connector

ACCY connector

for Qflash T5d-R

OFF

AF Auto –

Focus

Ratio / Manual

Power setting

control for Remote

R1, R2, R3

MAN TTL –

Mode switch for

Remote R1, R2, R3

2 Setting up the Remote Groups

Remote Group are designated , and Remote Groups can consist of any of the following: R1, R2 R3.

Quantum Trio set to ● Remote Group R1, R2, R3

Qflash T5d-R set to ● Wireless Group R1, R2. When used with

A FreeXwire FW8R or FW7Q receiver.

Any non Quantum flash connected to a FreeXwire FW8R or FW10w. ●

2.1 Set up a Quantum Trio as a remote flash

On Trio, press the Mode button,

on the Trio, then use the Left or

Right arrow buttons to select

Wireless Remote Group.

Press one of the soft keys

(under the display) to choose

R1, R2, R3. or

Press the RADIO softkey to set

the channel. There are eight

channels available, 0 through 7.

All remote flash units must be

set to the same channel number.

NOTE: There is no need to set the when using ZONES Wireless Remote Groups with the . Trio

2.2 Set up a Qflash T5d- as a remote flash R

Qflash T5s do not have internal radios. Connect a FreeXwire FW8R or FW7Q for remote control via CoPilot.

On Qflash T5, press the Mode button then use the Up or Down buttons to select , Wireless Remote Group 1 Wireless Remote Group 2or .

The Qflash T5d-R may display a message that it needs a signal from the Local flash to activate this mode. The message will disappear when

you set up the CoPilot

Set the channel on the FW8R or FW7Q. There are eight channels available, 0 through 7. Set the same channel for all remote flash units.

NOTE: On the FreeXwire receiver, set all zones to ON.

2.3 Using a Non Quantum flash as a remote

Connect flash unit to a FW8 or FW10w receiver. Set the channel on the receiver to the same channel set on CoPilot (Section 3). a

Use the switches to select the remote group. Zone 1 Remote Group R1, Zone 2 Remote Group R2, Zone 3 Remote Group ZONE ON = ON = ON =

R3.

NOTE When using a non Quantum flash the CoPilot will provide a sync signal to fire the flash, but will not control the exposure. The MAN-TTL :

mode switch on CoPilot for this Group must be set to . M

MODE

SET

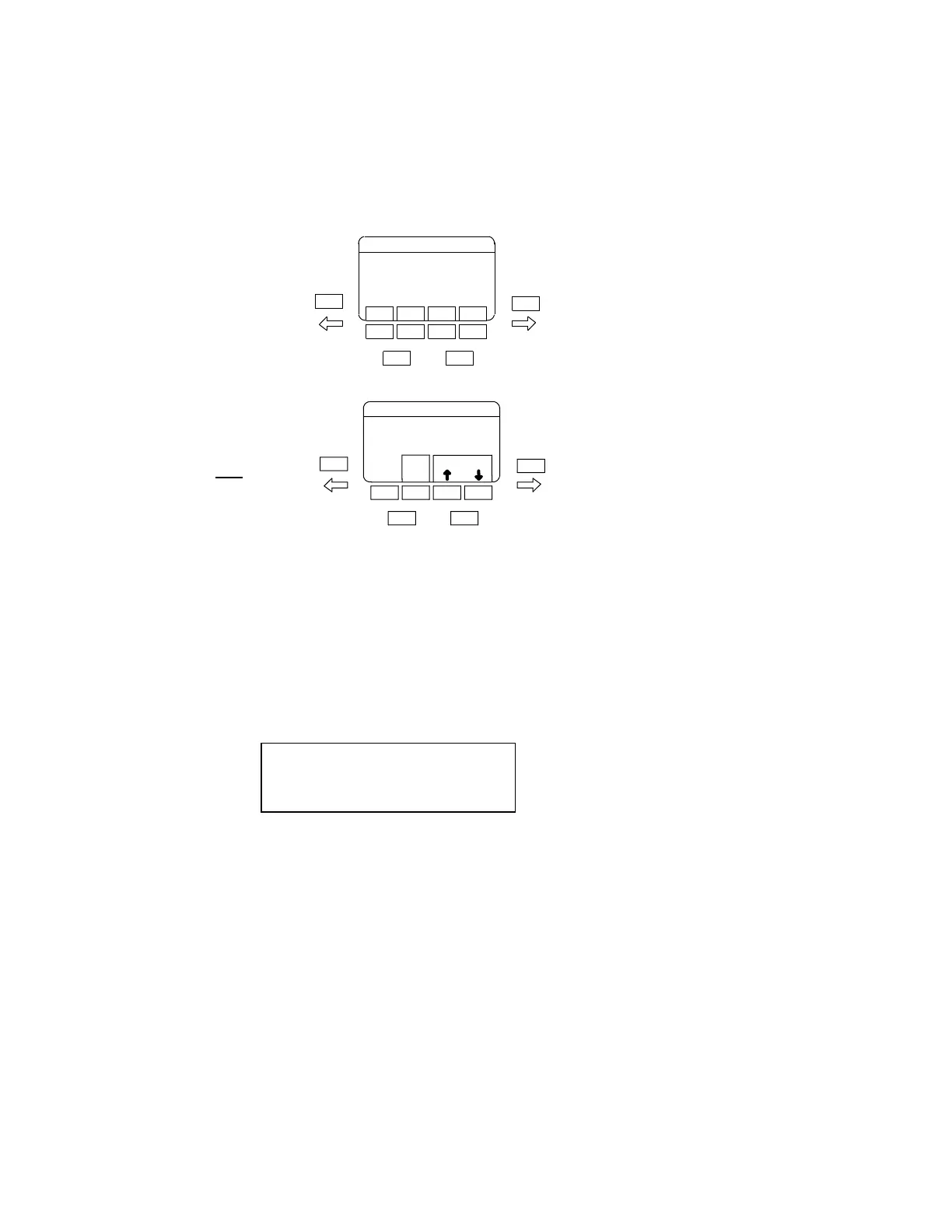

R G R EMOTE ROUP 1

A FUTO 5.6 7

FIRE OPT SAVE RADIO

MODE

/OK

SET

CH. 4

ZONES

RADIO OFF

OFF

SYNC

LINK

WIRELESS GROUP R1

TO ACTIVATE CONTROL FROM

LOCAL QFLASH TURN LOCAL

QFLASH OFF THEN ON
