www.radialeng.com
BigShot i/o
Owner’s Manual
True to the Music
Radial BigShot i/o users guide - Part #: R870 1125 10 / 03-2021
Subject to change without notice
8
69
7
10
3
BigShot i/o User GuideRadial Engineering
RADIAL LIMITED THREE YEAR
TRANSFERABLE WARRANTY
RADIAL ENGINEERING LTD. (“Radial”) warrants this product to be free from de-
fects in material and workmanship and will remedy any such defects free of charge
according to the terms of this warranty. Radial will repair or replace (at its option)
any defective component(s) of this product (excluding nish and wear and tear on
components under normal use) for a period of three (3) years from the original date
of purchase. In the event that a particular product is no longer available, Radial
reserves the right to replace the product with a similar product of equal or greater
value. To make a request or claim under this limited warranty, the product must be
returned prepaid in the original shipping container (or equivalent) to Radial or to an
authorized Radial repair center and you must assume the risk of loss or damage.
A copy of the original invoice showing date of purchase and the dealer name must
accompany any request for work to be performed under this limited and transferable
warranty. This limited warranty shall not apply if the product has been damaged due
to abuse, misuse,misapplication, accident or as a result of service or modication
by any other than an authorized Radial repair center.
THERE ARE NO EXPRESSED WARRANTIES OTHER THAN THOSE ON THE
FACE HEREOF AND DESCRIBED ABOVE. NO WARRANTIES WHETHER
EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE SHALL EXTEND BEYOND THE RESPECTIVE WARRANTY PERIOD
DESCRIBED ABOVE OF THREE YEARS. RADIAL SHALL NOT BE RESPONSIBLE
OR LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
OR LOSS ARISING FROM THE USE OF THIS PRODUCT. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS, WHICH MAY VARY DEPENDING ON WHERE YOU LIVE AND WHERE
THE PRODUCT WAS PURCHASED.
BigShot i/o User GuideRadial Engineering
1
2
3
4
INPUT-1 - ¼” jack for rst
instrument connection.
INPUT-2 - ¼” jack for second
instrument connection.
OUTPUT - ¼” jack connects
to amplier.
TUNER - ¼” jack connects
to tuner.
9VDC - power jack connec-
tion for power supply (for
LED’s only).
TUNER - switch determines
whether the TUNER output
is on all the time or only
when MUTE footswitch is
depressed.
8
9
7
5
TRIM - bypass switch for the TRIM
level control.
INPUT-2 LEVEL - control lets you
reduce the level of the instrument
connected to INPUT-2.
BRIGHT - three position switch
counteracts any effects from the
TRIM LEVEL control circuit and the
capacitive ltering effects from long
cables.
MUTE - footswitch with LED turns
the OUTPUT jack off for silent on-
stage tuning through the TUNER
output.
SELECT - footswitch with LED
indicator toggles between INPUT-1
and 2 to select the desired instru-
ment.
12
IMPORTANT NOTICE!
The Radial BigShot i/o is a passive switcher that is specically designed for use
with ampliers with proper electrical safety grounds that have been approved by
nationally recognized electrical authorities such as UL in the United States, CSA
in Canada and other similar bodies in countries around the world.
It is further understood that due to the unpredictable nature of connecting any
number of different ampliers and pedals together, using the BigShot i/o can
pose a potential for electric shock, and as such, the user is completely respon-
sible for any and all consequences as these are beyond our control.
This means that you are completely responsible to ensure the safe and proper
use of the BigShot i/o and to clearly understand that using the BigShot i/o
conrms you have taken full responsibility. If you are not 100% sure of your
actions, please consult a qualied technician for advice before using this device
or connecting any of your equipment to it.
CAUTION: PLEASE READ THE IMPORTANT NOTICE ON
THE BACK COVER BEFORE USING THE BIGSHOT i/o
FEATURES AND FUNCTIONS
6
45
11
10
11
Radial Engineering Ltd.
#1165 - 1845 Kingsway Ave,
Port Coquitlam BC V3C 1S9
Tel: 604-942-1001 • Fax: 604-942-1010
Email: info@radialeng.com
CONGRATULATIONS on your purchase of a Radial BigShot i/o. The BigShot
i/o is a foot controllable device that allows a musician to select between two in-
struments on stage. The BigShot i/o can select between an electric and acous-
tic guitar or between a passive 4-string bass and an active-5 string bass. This
is done by simply depressing a footswitch.
To make the transition as simple and effective as possible, an innovative LEV-
EL control is provided that only affects INPUT-2. This control allows the louder
of the two instruments to be tamed down so that both instruments play through
the same amp channel at the same relative volume. The LEVEL control may
be switched out of the signal path when not needed. Bright and easy to see
LED’s indicate the active input and mute status when the unit is connected to
a power supply.
To add versatility, a second output labeled TUNER allows a tuning device to be
connected for quiet on-stage tuning. The BigShot i/o is ideally suited for any
high impedance instrument such as guitars, basses and keyboards.

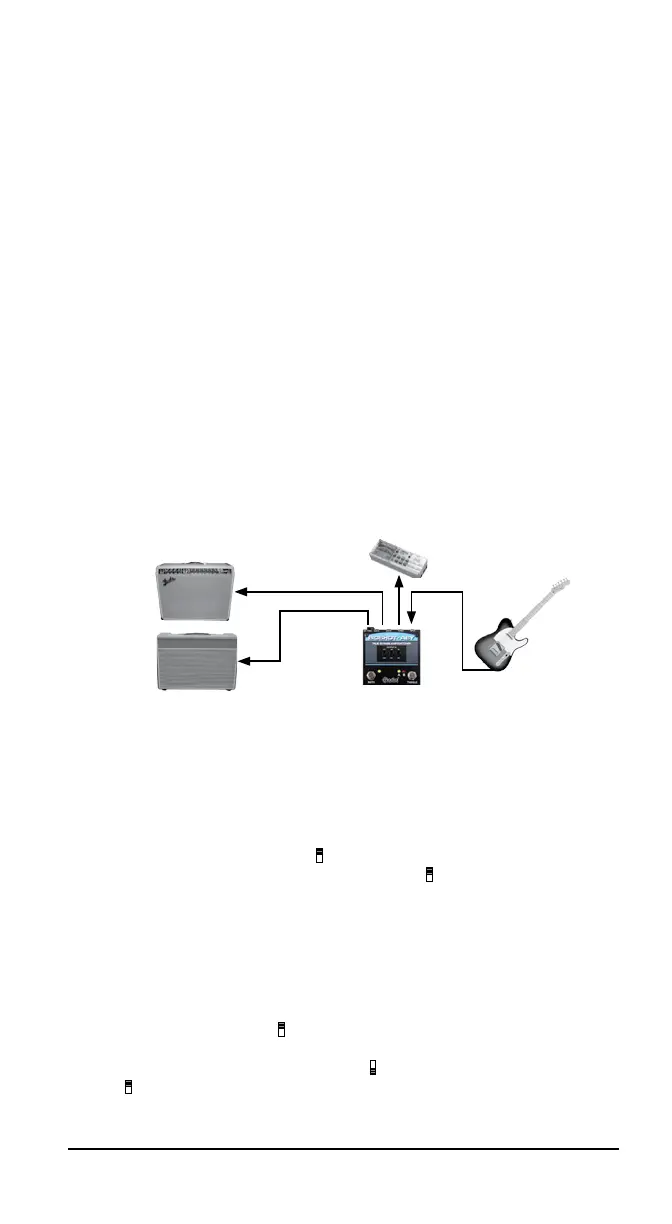

CONNECTING THE BIGSHOT I/O
To power the LED’s, the BigShot i/o requires an external 9VDC Boss style
power supply wired center pin negative. Before making any connections, con-
rm your amplier is turned off and the volume controls are turned all the way
down. This will reduce the possibility of problems should you have a short or
a bad connection.
Start by connecting your main guitar to INPUT-1 and your second guitar to
INPUT-2. Now connect the OUTPUT to your amplier. If you have a tuner, you
can connect it to the TUNER output.
Turn your amp on and test your setup at a low volume. By depressing the
SELECT footswitch, you will be able to toggle between guitars. By depressing
the MUTE footswitch, you will turn off the output for silent tuning. You are now
set to go!
BigShot i/o User GuideRadial Engineering BigShot i/o User GuideRadial Engineering BigShot i/o User GuideRadial Engineering
USING THE RADIAL BIGSHOT I/O
TRIM LEVEL
The BigShot i/o is equipped with an innovative feature called TRIM LEVEL.
By engaging the TRIM LEVEL control, you can reduce the level of the instru-
ment connected to INPUT-2 so that it matches the instrument connected to
INPUT-1. Using the TRIM LEVEL control to set a balanced level between two
instruments can make transitions quick and easy without having to go to the
amp and adjust the level each time.
TRIM LEVEL is designed primarily for situations when toggling between an in-
strument with passive pickups (such as a vintage Fender Precision bass) and
an instrument with active pickups (such as a modern 5 string bass). The active
bass will generally have much more output than the passive. The same logic
applies when toggling between an electric guitar with passive pickups and
an acoustic guitar with a built in preamp. The active acoustic guitar is much
louder than the passive electric. By reducing the output of the more powerful
instrument with the TRIM LEVEL control, toggling between instruments during
a hectic show is greatly simplied.
To use the TRIM LEVEL control, rst ensure the TRIM slider switch is in the on
position. Next connect the louder of your two instruments to INPUT-2. Strum
each guitar and use the SELECT footswitch to toggle between instruments.
Adjust the TRIM LEVEL control until the instrument levels match.
TRIM SWITCH
The TRIM LEVEL control would generally not be used if you are selecting
between two identical guitars, such as a backup guitar. It may be switched out
of the circuit using the TRIM slider switch.
BRIGHT SWITCH
This 3 position switch is designed to counteract any effects caused by the
TRIM LEVEL control and therefore only affects the instrument connected to
INPUT-2. As the BigShot i/o is passive, introducing a potentiometer into the
circuit could darken the tone in some cases. The BRIGHT switch will allow
you to compensate as needed. Note that the BRIGHT switch is only available
when the TRIM switch is set in the on position.
TUNER SWITCH
The TUNER slider switch works with the MUTE footswitch and controls how
the TUNER output jack behaves. In the down position, the TUNER output jack
is only active when the MUTE footswitch is depressed, this also mutes the
main OUTPUT for silent on-stage tuning. In the up position, the tuner output
remains on at all times regardless of whether the main OUTPUT is muted or
not. This allows on-the-y tuning.
MUTE FOOTSWITCH
The MUTE footswitch on the BigShot i/o always turns off the main OUTPUT
jack and stops your guitar signal from reaching the amplier.
SELECT FOOTSWITCH
The SELECT footswitch determines which input jack is active and toggles
between them.
FAQ
Besides guitar and bass, can the BigShot i/o be used with other instru-
ments?
Yes. The BigShot i/o will work for any high impedance signal including elec-
tronic instruments like keyboards and samplers. It will also work with dynamic
microphones that have a hi-Z ¼” cable. For low-Z balanced mics, use the
Radial HotShot ABi device which is designed to switch mic signals.
What is the advantage to turning the tuner output off?
Splitting the guitar signal to feed two inputs such as the tuner and amplier can
cause passive pickups to be loaded down. Loading will reduce the level of your
guitar signal and make it sound less punchy. The BigShots tuner mute feature
eliminates loading problems and has the benet of convenient silent tuning.
Can I use the tuner output to switch between amps like an ABY
switcher?
Yes, but be careful! Especially with older amps that do not have safety
grounds. These old amps are notorious for causing shocks! As such, we are
unable to recommend this practice due to legal responsibility. Please consult
a qualied technician should you wish to use your BigShot i/o in an application
it was not intended for.
I hear a slight clicking when I switch in effects. Is this normal?
Yes. The BigShot i/o is passive and the click occurs as the switch makes con-
tact. This is normal for passive devices like the i/o. The only switchers that do
not click are the types that employ photocells like the Tonebone Bassbone.
These units ramp up and down the signal to avoid the on-off click.
What is the difference between the BigShot i/o and the Tonebone
Bassbone?
Both allow you to select between two instruments but the BigShot i/o is passive
while the Bassbone is a preamp and employs active Class-A buffering. The
BigShot i/o is designed for those that prefer a direct guitar to amp connection.
The Bassbone is designed for those that need to run longer cables, insist on
eliminating all switching noises and do not want to deal with loading issues.
The i/o is also considerably more affordable!
I have two passive instruments. Which one do I connect to INPUT-2?
Even passive pickups can vary in the amount of signal they produce. Connect
the “louder” of the two instruments to INPUT-2 and use the TRIM LEVEL con-
trol to match levels between instruments. If necessary, the BRIGHT switch may
be employed to compensate for any treble loss as a result of the TRIM LEVEL
control. If your instruments are identical and no level matching is needed, the
TRIM switch should be in its off position.
I have two guitars, one going direct and another I use with a wireless.
How do I connect them to the BigShot i/o?
The wireless system will have a buffer or pre-amplier as part of its output
stage. This makes it very much like an active instrument. Connect the pas-
sive guitar to INPUT-1 for a true bypass connection to your amp. Connect the
wireless to INPUT-2 and use the TRIM LEVEL control to match levels between
instruments.
Passive
connects
Active instrument
connect
Tuner

Produkt Specifikationer

Mærke: Radial Engineering
Kategori: Ikke kategoriseret
Model: BigShot

Har du brug for hjælp?

Hvis du har brug for hjælp til Radial Engineering BigShot stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Radial Engineering Manualer

Radial Engineering

Radial Engineering JS3 Manual

20 Juli 2025
Radial Engineering

Radial Engineering Loopbone Manual

18 Juli 2025
Radial Engineering

Radial Engineering JS2 Manual

18 Juli 2025
Radial Engineering

Radial Engineering JR-5 Manual

18 Juli 2025
Radial Engineering

Radial Engineering JX62 Manual

17 Juli 2025
Radial Engineering

Radial Engineering North-Star Manual

17 Juli 2025
Radial Engineering

Radial Engineering PreMax Manual

15 Juli 2025
Radial Engineering

Radial Engineering Workhorse WR-8 Manual

14 Juli 2025
Radial Engineering

Radial Engineering SGI-44 Manual

14 Juli 2025
Radial Engineering

Radial Engineering Catapult Rack TX Manual

2 April 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Navman

Navman AUTO300 WIFI Manual

1 August 2025
Navman

Navman AUTO550 DUAL Manual

1 August 2025
Newline

Newline DV-15023H Manual

1 August 2025
Navman

Navman MiVue 720 Manual

1 August 2025
Etna

Etna HF2008 Manual

1 August 2025
Grundig

Grundig 40 VLE 7630 WP Manual

1 August 2025
Navman

Navman MiVue 600 DC Manual

1 August 2025
Navman

Navman MiVue 830DC Manual

1 August 2025
Navman

Navman MiVue 840 Manual

1 August 2025
Navman

Navman MiVue 880 DC Manual

1 August 2025
