JS3
3-Way Microphone Splitter
Users Guide
Radial Engineering Ltd.
1845 Kingsway Ave., Port Coquitlam, BC V3C 0H3, Canada
Tel: 604-942-1001 Fax: 604-942-1010
email: info@radialeng.com
Radial JS3 Users Guide V2.3 - Part #: R870 1060 00 / 05-2025
Copyright © 2010 Radial Engineering Ltd.
JS3 User Guide
Radial Engineering

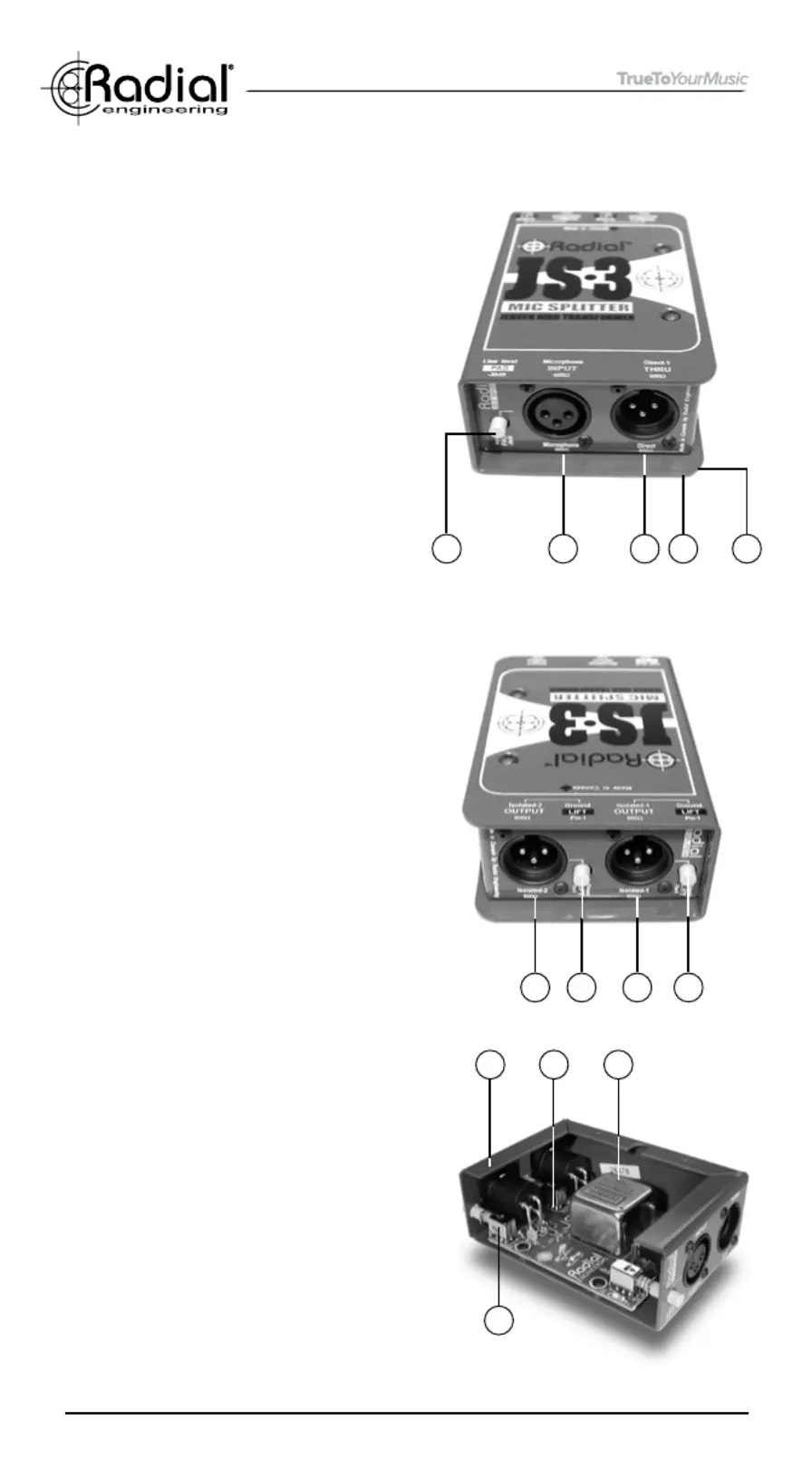

INPUT PANEL
1. -30dB PAD
Allows line-level sources to
connect to the JS3’s input.
2. Mic input
For low impedance microphone signals.
3. Direct-1 thru
Mic-level direct output will pass
phantom power to microphone.
4. Bookend design
14 gauge steel outer shell creates
protective zone around connectors
and switches.
5. Full-bottom no-slip pad
This provides electrical isolation
and plenty of "stay-put" friction to
keep the JS3 in one place.
OUTPUT PANEL
6. Isolated output-2
Mic-level transformer-isolated.
7. Ground lift (isolated-2)
Lifts the ground pin-1 on the
isolated-2 XLR output connector.
8. Isolated output-1
Mic-level transformer-isolated.
9. Ground lift (Isolated-1)
Lifts the ground pin-1 on the
isolated-1 XLR connector.
CONSTRUCTION
10. Steel I-beam enclosure eliminates
stress that could torque the PC board
and cause solder joint failure.
11. Military-grade double-sided PCB
with plated through-holes is bolted to
welded steel stando󰀨s.
12.Jensen transformer o󰀨ers
outstanding audio performance.
13. Sturdy PC mounted switches
are high-cycle rated for long life.
96 7 8
1 52 3 4
10 11 12
13
