SETTING UP THE J•RAK 8

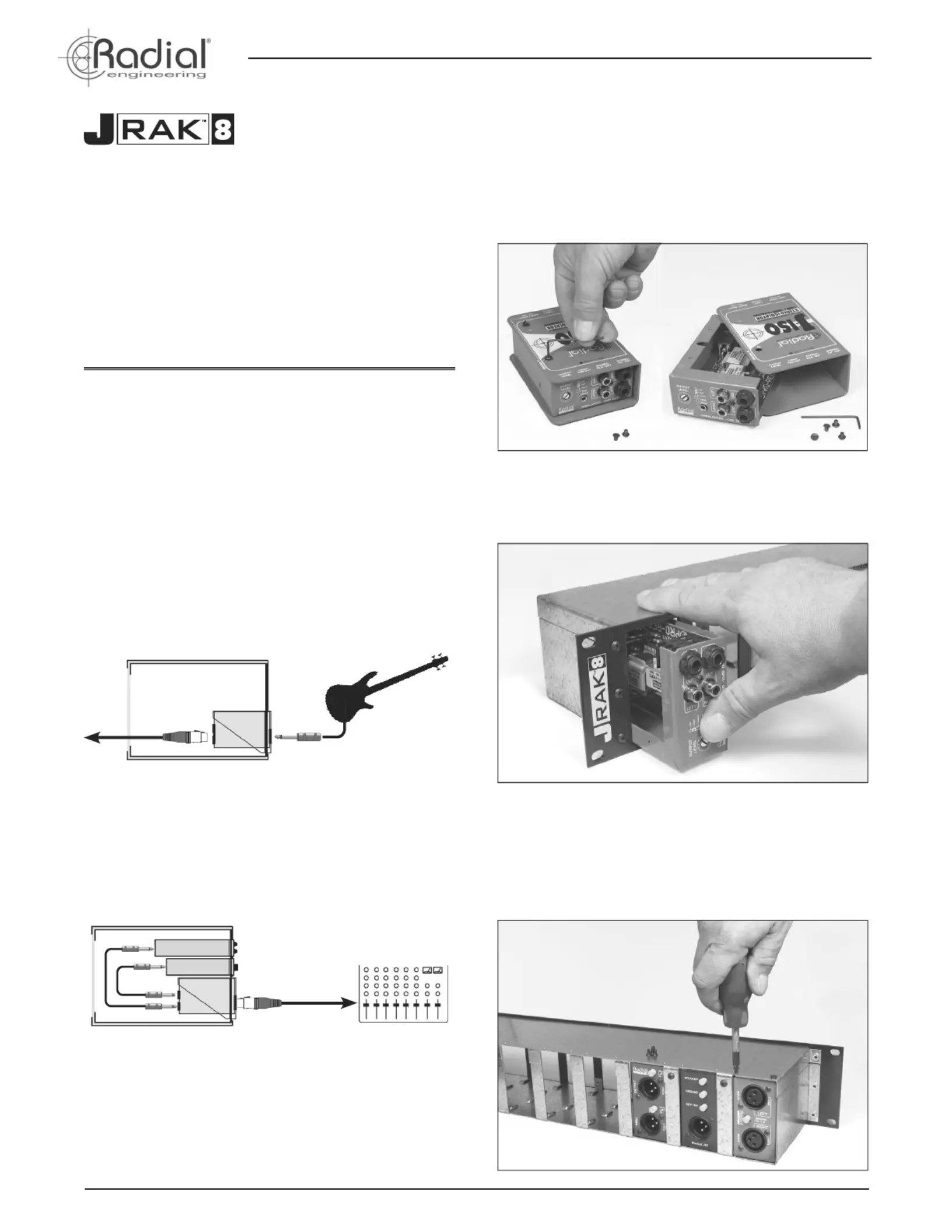

Step One: Remove the Shell

To begin, remove the protective outer ‘book-end’ shell from the Radial

product by unscrewing the four (4) hex #6/32 screws. A hex allen key

is provided for these screws. Do not discard the screws or shells.

Store them in a safe place in case you want to restore the product

to its original con guration.

Step Two: Load into Slot

With the outer shell removed, slide the enclosure into the front of the

J•Rak 8 slot. Ensure the open side is facing up as pictured below.

Step Three: Rear Screws

Once the enclosure is seated in the J•Rak 8 locate the two screw

holes for the slot on the top near the rear edge. Sixteen Philips head

screws are provided to secure enclosures in place. Insert two screws

per slot. Repeat the procedure for the other slots. The J•Rak 8 is now

ready to mount in your 19” rack.

Congratulations and thank you for purchasing the Radial J•Rak 8.

The J•Rak 8 is a 19” rack adapter that has been designed to work

with products like the Radial JDI, Radial J48 and the many other

Radial products that employ the same bookend designed enclosure.

Al hought t he J•Rak 8 is a st raigh orwardtf device, we invite you to t ake

a few moments to read through this manual and familiarize yourself

with this versatile product. Should you have any questions or com-

ments, please feel free to contact us by sending an email to info@

radialeng.com or browse our web site at www.radialeng.com for the

latest updates and applications.

Enjoy!

PRODUCT DESCRIPTION

The Radial J•Rak 8 requires two rack spaces (3 ½”) and allows up

to eight Radial products to be rack-mounted in a standard 19” rack.

The J•Rak 8 is designed to allow touring companies to make better

use of their DI box inventory by allowing stand-alone units to be

converted to rackmounted DIs for applications like keyboards. A wide

range of Radial interface and mic-splitter products are compatible

with the J•Rak 8 making it possible to quickly create a custom rack.

A strong advantage for the J•Rak 8 is that you get to choose what

connectors face front. Before you start loading up DIs take a minute

to consider how you will connect to them. Depending on your situa-

tion you may prefer to have the inputs face front. This would be best

for studio applications where instruments are often connected and

disconnected during a session.

GUITARS AND BASS The 1/4" inputs face front allowing

easy connection for instruments.

J•RAK

If you’re using the J•Rak 8 in a concert touring situation then you may

want the outputs to face front for quick connection to a microphone

snake. The J•Rak 8 lets you choose the orientation for each slot so

you may want to think about which arrangement is best for your setup.

KEYBOARD RACKS The XLR outputs face front for connection

to mic snakes and mixing consoles.

SYNTH 1

SYNTH 2

J•RAK

As with all Radial products, the J•Rak 8 features heavy-duty construc-

tion and a baked enamel  nish for years of trouble-free performance.

The J•Rak is also supported by the Radial 3-year transferable warranty

to protect against manufacturing defects.
