Side 1/6
www.radialeng.com
Radial Engineering Ltd.
1845 Kingsway Ave., Port Coquitlam, BC V3C 0H3, Canada
Tel: 604-942-1001 • Fax: 604-942-1010
email: info@radialeng.com
True to the Music
J+4
User Guide
Radial J+4 user guide - Part #: R870 1235 00 / 01-2024
Subject to change without notice, all rights reserved
Stereo -10dB Unbalanced to +4dB
Balanced Converter and Line Driver
®
5

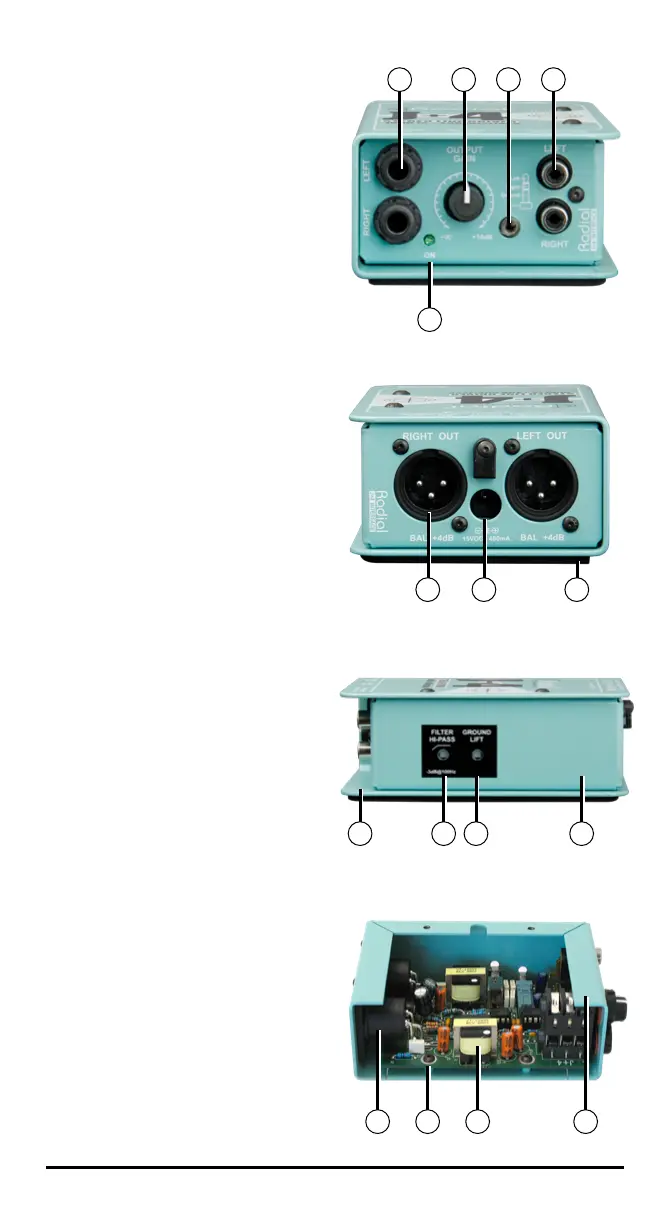

FEATURES
Input Panel
1. Stereo ¼" input jacks for -10dB
unbalanced sources like DJ mixers.
2. Level control sets the optimum
output level for the line driver.
3. Stereo 3.5mm input jack for -10dB
unbalanced sources like MP3 players
and laptops.
4. Stereo RCA input jacks for -10dB
unbalanced sources like CD and DVD
players.
5. LED power indicator illuminates
when the 15VDC power supply is
connected.
Output Panel
6. Left and right XLR jacks produce a
balanced +4dB line-level stereo signal.
AES standard pin-2 hot.
7. Power connection for the included
15VDC/400mA supply.
8. Rubber non-slip pad covers the
bottom and provides electrical and
mechanical isolation.
Side Panel
9. Book-end outer shell protects the
jacks and controls from damage.
10. Recessed high-pass lter switch.
Reduces low frequencies below
100Hz.
11. Recessed ground lift switch
disconnects pin-1 at the XLR to
eliminate hum and buzz caused by
ground loops.
12. Rugged baked enamel nish for
years of good looks.
Inside
13. All connectors are insulated from
chassis to reduce noise and crosstalk.
14. Double sided military spec PCB
with full ground plane for low noise.
15. Two custom designed Radial
isolation transformers eliminates noise
caused by ground loops.
16. 14-gauge inner I-beam frame
protects the PCB from torque and
prevents solder joint failure.
31 2 4
6 7 8
1110 12
13 14 15 16
9
Radial Engineering Ltd. J+4 User Guide
