True to the Music

www.radialeng.com

True to the Music

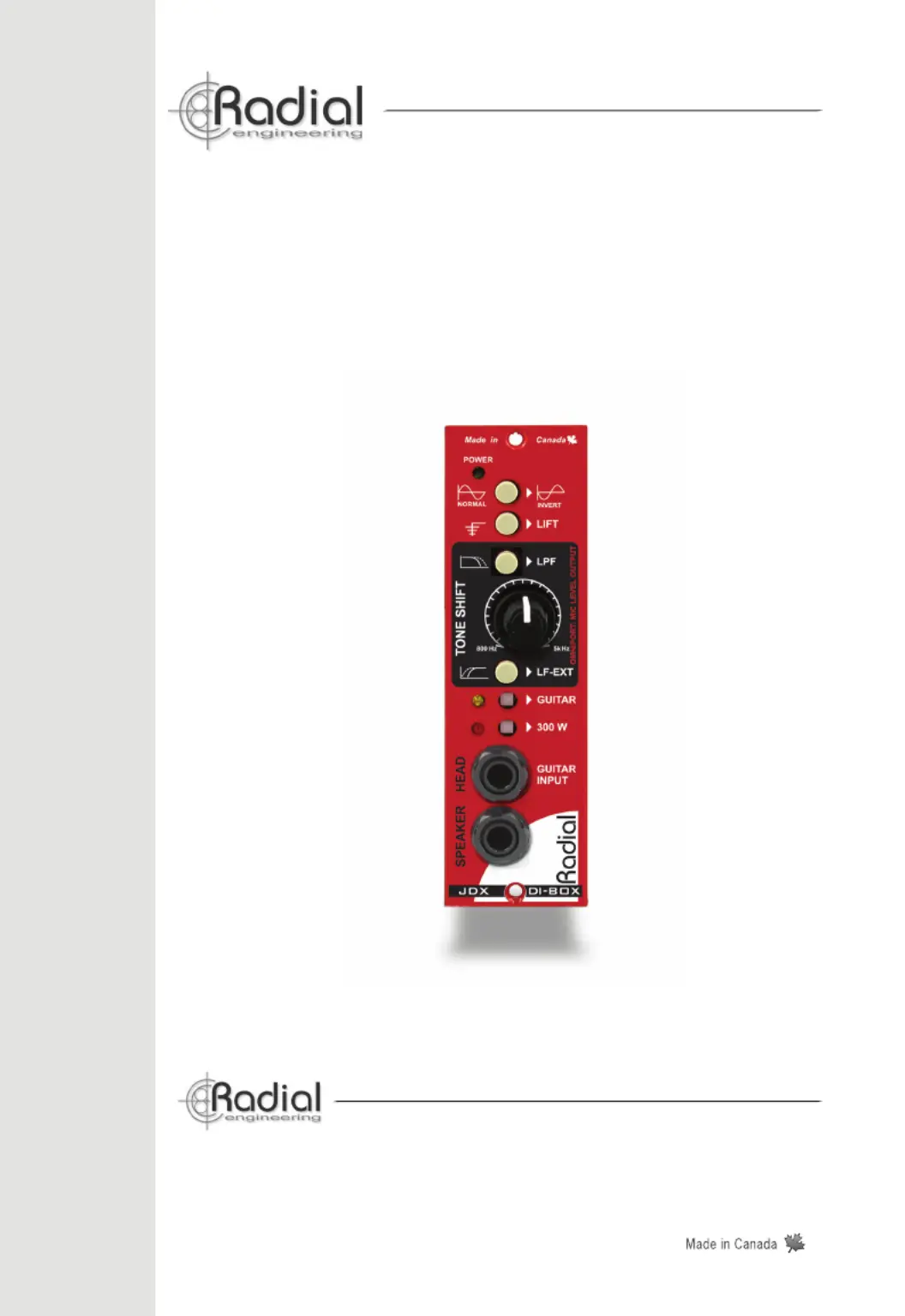

User Guide

JDX

™

500 Reactor

Amplifier Direct Box & Cabinet Emulator

500 Series Module

www.radialeng.com

Radial Engineering Ltd.

1588 Kebet Way, Port Coquitlam

British Columbia, Canada, V3C 5M5

tel: 604-942-1001 • fax: 604-942-1010

email: info@radialeng.com

WARNING NOTICE TO USER!

The Radial JDX 500 is not a load box. This means that if you are using it with a guitar

ampliﬁ er it must be connected to a speaker cabinet or some type of load box. Failure

to do so could result in damaging the JDX and your ampliﬁ er which of course would not

be covered under warranty. Always ensure you have proper cables and connections

have been checked. We recommend using high quality 12 gauge speaker cables.

Because the JDX 500 can also be used as a direct input from a guitar, we have

instituted a slow ﬂ ashing LED to let you know when you are in this mode. This safety

measure reminds you that you should not connect a guitar ampliﬁ er output to the JDX

when in guitar mode as this may damage the JDX.

Although preventative safety measures have been designed into Radial 500 series

products we strictly advise against hot-swapping modules or plugging and

unplugging them when the Workhorse or other 500 series rack is powered on. Hot

swapping can cause connection sparks at the card-edge connector that could send

damaging transients to other equipment. This also greatly reduces the life span of the

contacts. Damage due to hot swapping is not covered under warranty. There are no

user serviceable parts inside.

Radial

JDX

™

500 Reactor

User Guide

Table of Contents ......................................................Page

Feature Set .................................................................... 1

Overview ........................................................................ 2

Function Details ............................................................. 4

Getting Started ............................................................... 5

Amp Mode ...................................................................... 6

Guitar Mode ................................................................... 7

Re-amping and Other Applications ................................ 8

Speciﬁ cations ................................................................. 9

Block Diagram ................................................................ 9

Warranty ........................................................... Back cover

Congratulations and thank you for purchasing the Radial JDX 500 Reactor module. The

JDX is a unique 500 series ampliﬁ er interface designed to capture the dynamic relationship

between an ampliﬁ er and speaker cabinet while also offering direct instrument recording with

active speaker cabinet emulation.

This manual describes installing and operating your JDX 500 in the Radial Workhorse or

other 500 series module power racks. To take full advantage of the unique features that

have been incorporated into the JDX 500, please read through this manual before using

it. This user guide will give you a broader sense of the module’s capabilities. If you have

questions that are not covered in this manual, please visit the FAQ section on our website.

This is where we post answers to questions from users. If you cannot ﬁ nd the answer to your

question please feel free to send an email to info@radialeng.com and we will do our very

best to respond as quickly as possible.

The JDX 500, one small step for audio engineering, one huge leap for tone fanatics!
