True to the Music

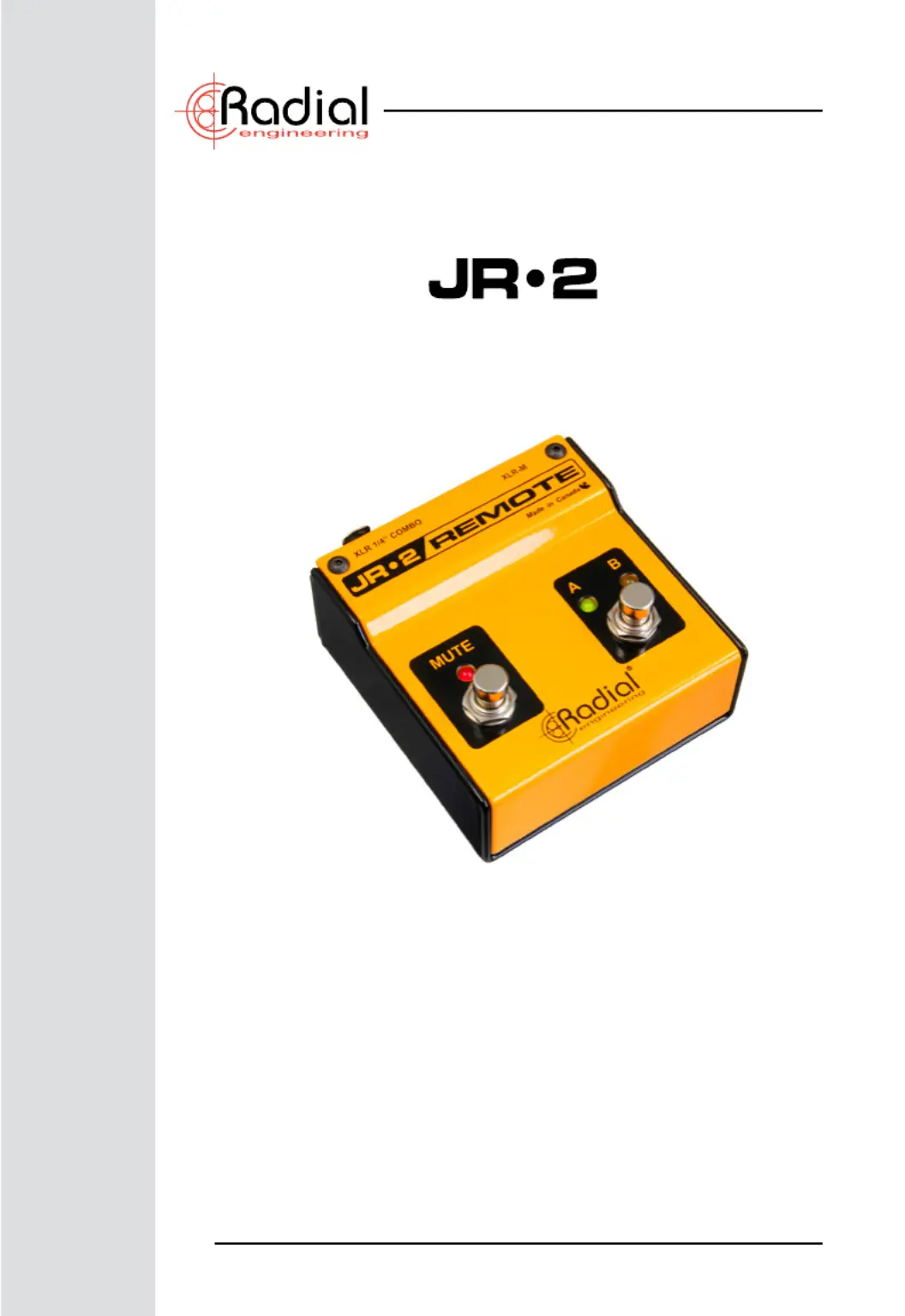

USER GUIDE

REMOTE

FOO TSWIT CH

Radial Engineering Ltd.

1845 Kingsway Ave., Port Coquitlam, BC V3C 1S9, Canada

tel: 604-942-1001 • fax: 604-942-1010

info@radialeng.com

Radial Engineering Ltd.

JR•2™ Remote Footswitch

True to the Music

FEATURE SET

INTRODUCTION

Thank you for purchasing the Radial JR•2 footswitch. This handy device can be used to

remotely control various Radial devices such as the Firey tube direct box or SW8 backing

track switcher. Please take a few moments to read this short manual and familiarize yourself

with the various functions. This will help you get the most out of the JR•2 as you explore its

uses. Should you have a question that is not covered in this manual, we invite you to send

us an email at info@radialeng.com and we will do our very best to reply in short order.

OVERVIEW

The Radial JR•2 is a remote footswitch equipped with two footswitches that enable you to

control various functions depending on the device that is connected. The left footswitch

is designated as MUTE while the right footswitch is designated as A or B. Above each

footswitch are a series of status LEDs. These are used to provide local visual feedback when

controlling a remote device. The JR•2 derives its power from the Radial device that is being

controlled, thus eliminating the need for a local power supply or batteries. Connecting to and

from the JR•2 is done using a balanced cable with either XLR or TRS connectors.

1. MUTE: Used to turn off the output from

the remotely controlled device.

2. MUTE LED: Illuminates when the mute

footswitch is depressed.

3. AB SELECT: Generally used to toggle

between two sets of inputs or outputs,

depending on the remotely controlled

device that is in use.

4. AB LEDs: Provides local visual status

of the remotely controlled device.

5. YELLOW TOP: Highly visible color

designed to be easy to see on dark

stages.

6. BLACK CASING: Designed to

be ‘invisible’ form the audience’s

perspective.

7. XLR-M: Used to connect to remote

device, provides alternate connection

for XLR-female cable.

8. COMBO: Used to connect to remote

device, provides locking connection for

¼" TRS or XLR-male terminated cable.

9. 14 GAUGE STEEL: Heavy duty

construction for years of trouble-free

use.

1 5 6 832 4 97
