SUBMIX

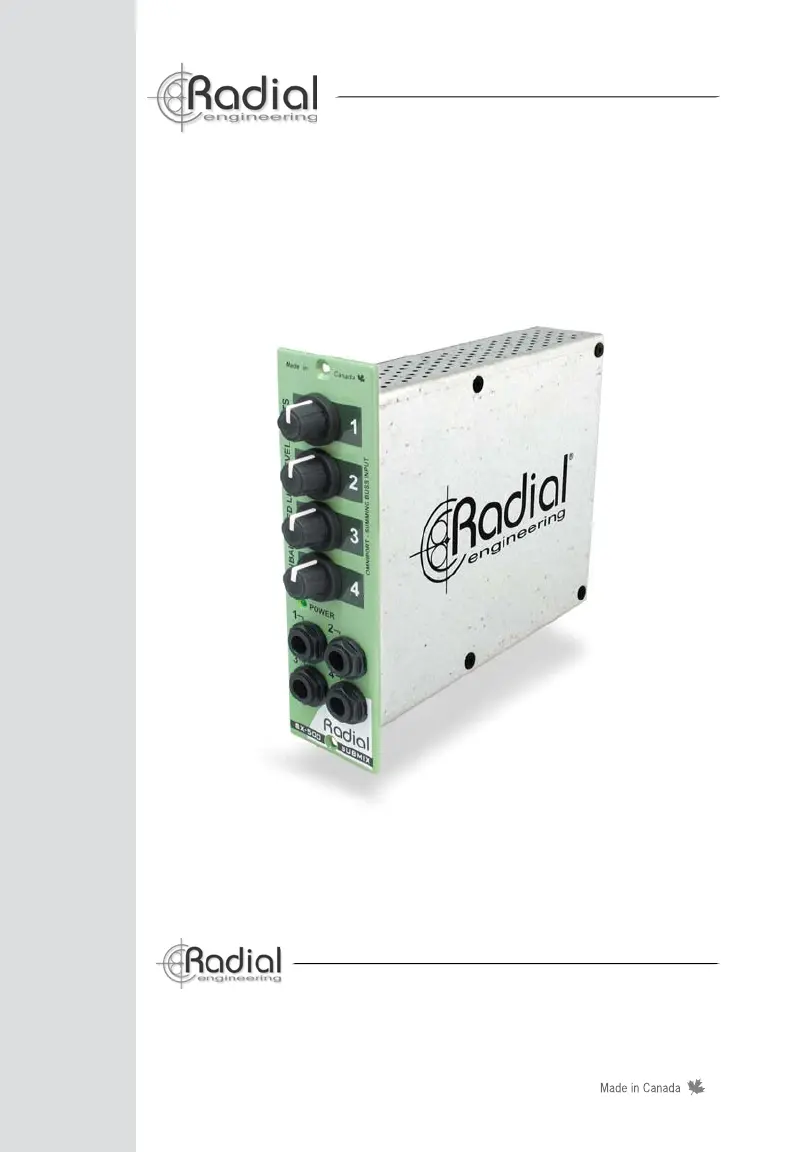

500 Series 4x1 Line Mixer
™
Table of Contents Page
Overview.......................................................................................................................1
Features .......................................................................................................................2
Making Connections .....................................................................................................3
Ominiport ......................................................................................................................3
Using the Submix in mono............................................................................................4
Combining Submix modules for more channels ...........................................................5
Using the Submix modules in stereo ............................................................................6
Specifi cations ...............................................................................................................7
Block diagram ...............................................................................................................7
Radial limited warranty ..................................................................................Back Cover
Congratulations on your purchase of the Radial Submix, an innovative 500 series module
that lets you mix 4 line level sources such as keyboards, drum machines, effects returns,
computers and just about any other audio source together inside any 500 series rack.
Should you fi nd yourself asking a question that is not addressed, we invite you to view the
Submix FAQ page on our web site. This is where we post the latest hints and of course
questions from users. If you still do not fi nd what you are looking for, feel free to send an
email to info@radialeng.com and we will do our very best to respond to you in short order.
Now get ready to start connecting more cables and wires... cause this is what audio engineers
love to do most!
WARNING NOTICE TO USER!
Although preventative safety measures have been designed into Radial 500 series
products we strictly advise against hot swapping modules or plugging and
unplugging them when the Workhorse or other 500 series rack is powered on. Hot
swapping can cause connection sparks at the card-edge connector that could send
damaging transients to other equipment. This also greatly reduces the life span of the
contacts. Damage due to hot swapping is not covered under warranty. There are no
user serviceable parts inside.
