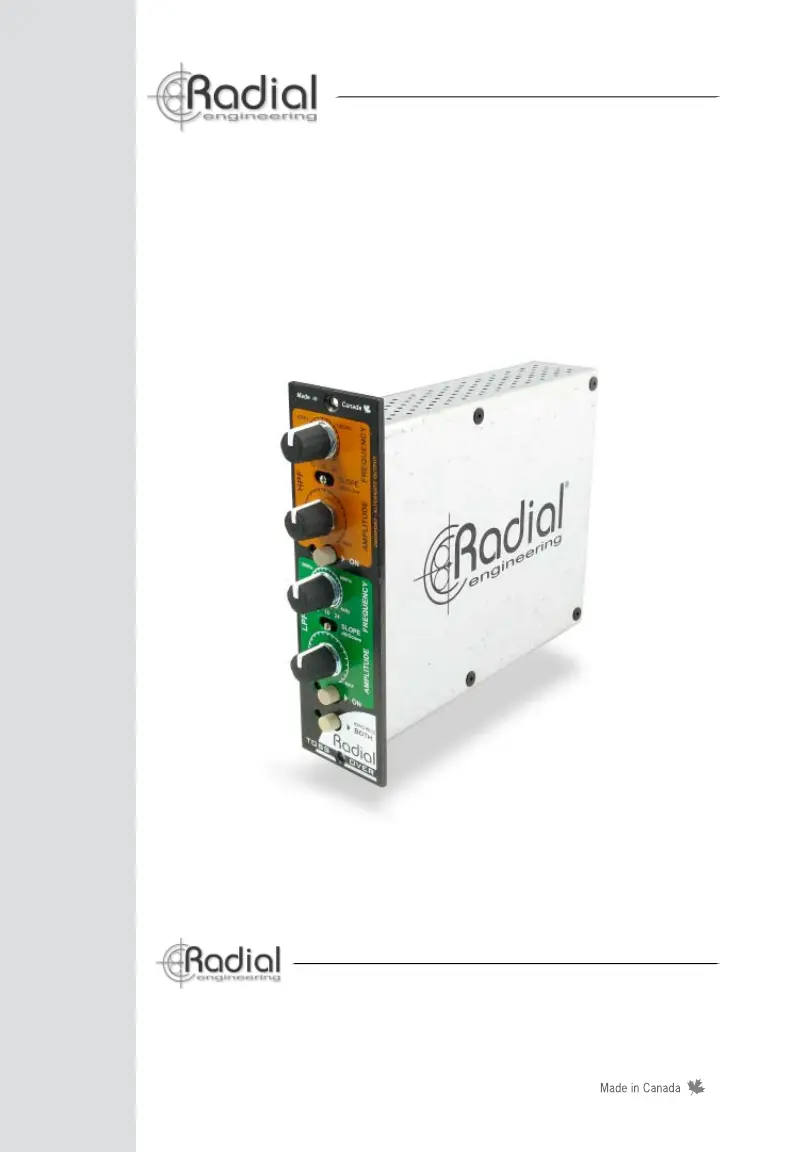

TOSSOVER
500 Series
Frequency Divider
™
Table of Contents Page
Overview.......................................................................................................................1
Features .......................................................................................................................2
Getting Started & Connections .....................................................................................3
Using the Filters............................................................................................................4
Applications ..................................................................................................................5
Specifi cations ...............................................................................................................7
Block diagram ...............................................................................................................7
Radial limited warranty ..................................................................................Back Cover
Congratulations on your purchase of the Radial Tossover™ - a frequency divider and band-
pass fi lter designed for 500 series power racks. Although the Tossover is intuitive and easy
to use, we recommend that you take a few minutes to read this short manual to make sure
you take full advantage of the many features that are built in.
Should you fi nd yourself asking a question that is not addressed, we invite you to view the
Tossover FAQ page on our web site. This is where we post the latest hints and of course
questions from users. If you still do not fi nd what you are looking for, feel free to send an
email to info@radialeng.com and we will do our very best to respond to you in short order.
Now get ready to divide and conquer audio like Napoleon!
WARNING NOTICE TO USER!
Although preventative safety measures have been designed into Radial 500 series
products we strictly advise against hot swapping modules or plugging and
unplugging them when the Workhorse or other 500 series rack is powered on. Hot
swapping can cause connection sparks at the card-edge connector that could send
damaging transients to other equipment. This also greatly reduces the life span of the
contacts. Damage due to hot swapping is not covered under warranty. There are no
user serviceable parts inside.
