Side 1/4

Manual-1

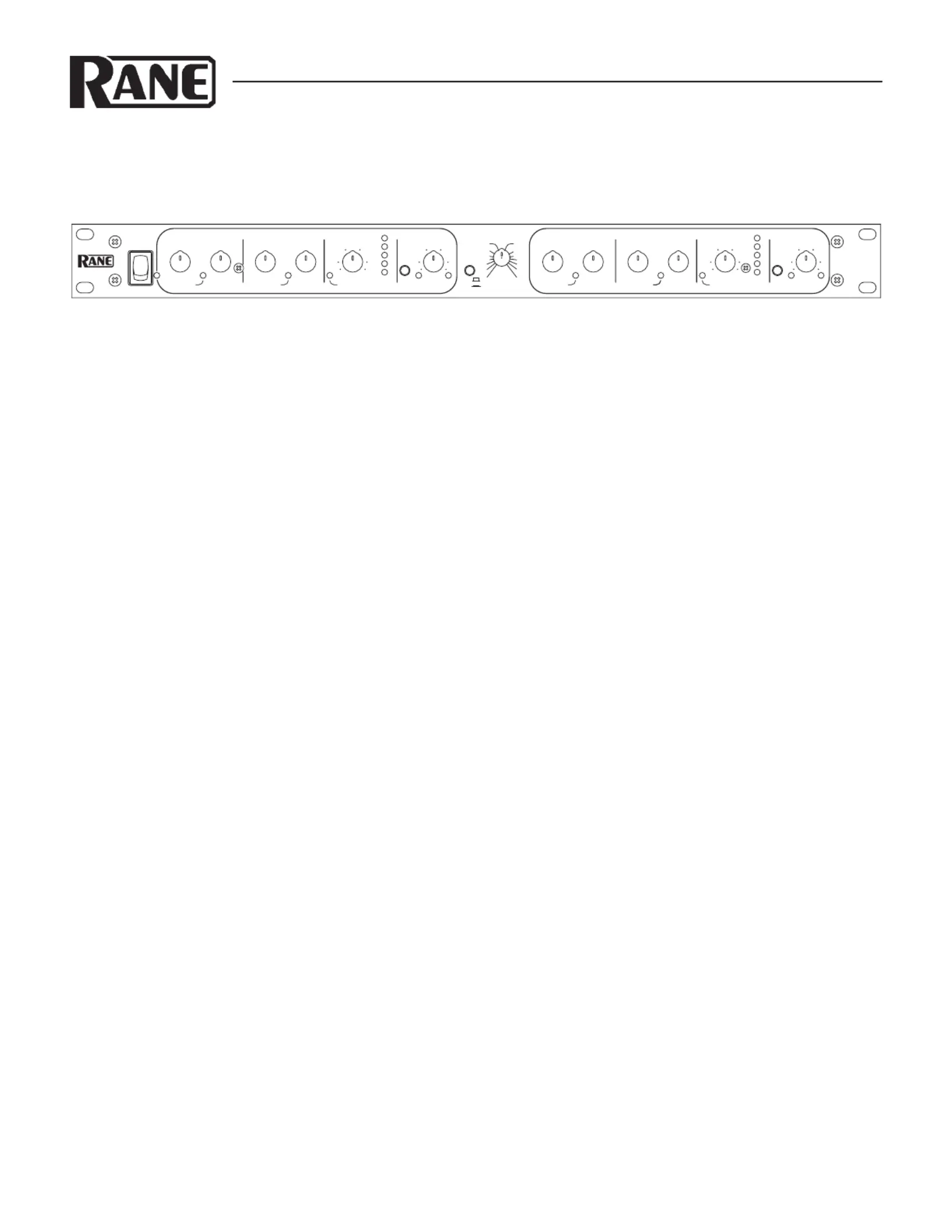

DC 24

DYNAMIC CONTROLLER

OPERATORS MANUAL

DC 24 CONNECTION

Placing the DC 24 within the chain of events in your system

varies slightly depending on application. If you are assembling

a sound reinforcement system, the DC 24 would typically be

placed between the equalizer (you do use one, don’t you?) and

the active crossover, or the power ampliﬁer if passive crossovers

(or the DC 24 crossover) are used.

In recording applications, the DC 24 may be used in con-

junction with insert loops on the mixing console or in series

with the outputs en route to the recorder. Most consoles allow

headphone monitoring of the processed signal if the device is

connected to the inserts. A most useful feature. If the DC 24 is

used on mixdown, it may be connected to the output of the mul

tichannel recorder or again on inserts of the mixdown console.

Many recording situations require that the DC 24 be con-

nected to the patch bay in the system so it may be easily moved

from one signal location to another. is call should be made

based upon the requirements of the application.

Wiring of this and all components should follow the Sound

System Interconnection RaneNote included in this manual. is

note details standard wiring conventions which should be used

to prevent noise and distortion. Also see the Chassis ground

point on page Manual-3.

QUICK START

Shredded, this document makes excellent packing material. In its present form, it makes interesting and useful reading. If you

run out of patience quickly, at least read this part to make sure you don’t exterminate everything in a two mile radius by doing some-

thing wrong.

In a nutshell, to use the DC 24 as a conventional dual channel compressor/limiter, ensure that the CROSSOVER ENGAGE

switch on the rear is in its position. Attach one or two channels of inputs and outputs to the respective connectors on the rear. out

With all , all the way and the controls in you have an expensive RATIOS down LIMITER THRESHOLD up LEVEL center-detent

patch cord. Make sure the BYPASS GATE COMPRESSOR switches are and set the out and for the desired ratios and thresholds.

Turning the down decreases the level at which limiting occurs. e LIMITER THRESHOLD GATES COMPRESSORS and may

both be activated by the source material applied to Channel 1 if the DUAL/SLAVE switch is pressed . is is a normal condition in

for true stereo program material.

To use the DC 24 's crossover bandsplit mode, be sure the rear panel switch is . Connect the input to CROSSOVER ENGAGE in

CH 1/CROSSOVER IN OUTPUTS SEPARATE. With the rear panel switch set to , split outputs are available at the CH 1/LOW

OUT CH 2/HIGH/COMBINE OUT OUTPUTS COMBINE CH 2/HIGH/COM- and jacks. With the switch at , use only the

BINE OUT jack for a mono sum of high and low channels.

NEVER CONNECT ANYTHING EXCEPT AN RS 1 OR OTHER APPROVED RANE AC POWER SUPPLY TO THE

THING THAT LOOKS LIKE A TELEPHONE JACK ON THE REAR OF THE DC 24. is is an AC input and requires some

special attention if you do not have an operational power supply like the one that was originally packed with your unit.EXACTLY

WEAR PARTS: is product contains no wear parts.

DC 24

THRESHOLD THRESHOLDRATIO THRESHOLD RATIO SIG LEVEL OL

BYPASS

MODE

FREQUENCY

POWER

COMPRESSOR CH 1 OUTPUTLIMITER CROSSOVER

GAIN

REDUCTION

THRESHOLD THRESHOLDRATIO THRESHOLD RATIO SIG LEVEL OL

BYPASS

GATE / EXPANDERGATE / EXPANDER COMPRESSOR CH 2 OUTPUTLIMITER

GAIN

REDUCTION

LOW

(:1) (:1)

SLAVE

DUAL

DYNAMIC

CONTROLLER

-50 10

-40

-30

-20

-10

1 1

01 10

1.1

1.2

1.4

1.6

-6

-40

-30

-20

+12-12

+6-6

HIGH

(:1) (:1)

200

100

150

125

400

800

1.2k

+20-20

-6 +6

+20-20

-6 +6

+12-12

-10

20-48

1 1

-50 10

-40

-30

-20

-10

(:1)

1 1

1.1

1.2

1.4

1.6

-40

-30

-20

-10

20-48

Manual-2

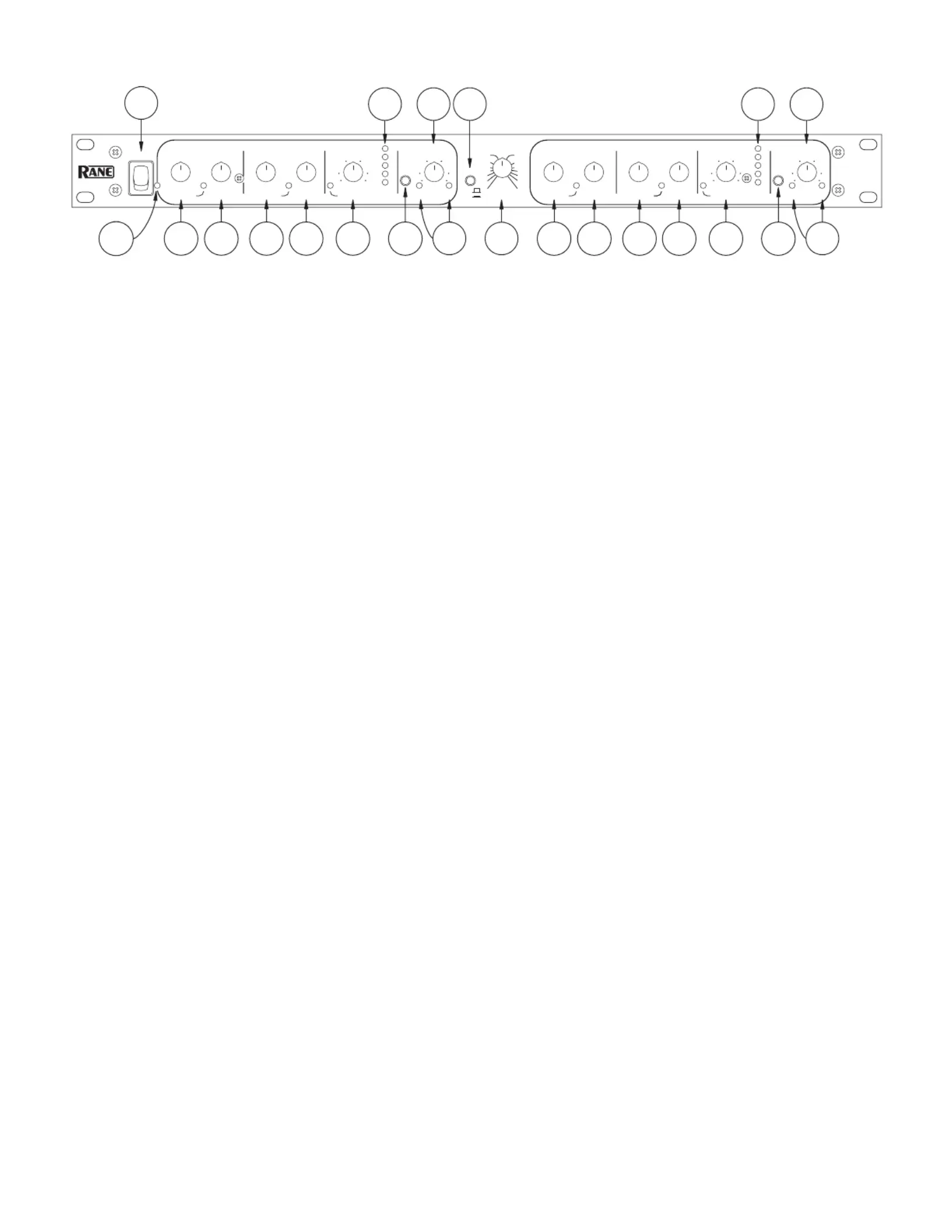

FRONT PANEL DESCRIPTION

1 POWER switch: It has been a tradition at Rane Corporation to say something clever about the POWER switch on all its prod-

ucts. Certain government restrictions now eliminate our option of continuing this tradition. Pity.

2 POWER indicator LED: is solid-state yellow illumination device lights up to let the operator know Item 1 (above) is working

and the thing is plugged in.

3 GATE / EXPANDER THRESHOLD control: allows the operator to set the input level below which the Gate/Expander oper-

ates. e LED illuminates yellow any time the input signal falls below the threshold level set by this control.

4 GATE / EXPANDER RATIO control: determines the Ratio to be applied to the Gate/Expander function. Increased clockwise

rotation increases the circuit slope. e full counter-clockwise position disables the Gate/Expander.

5 COMPRESSOR THRESHOLD control: determines above what input level the Compressor functions. Full clockwise rotation

disables the Compressor entirely. e LED illuminates yellow any time the input signal exceeds the threshold level set by this

control.

6 COMPRESSIOR RATIO control: determines the slope of the Compressor once it has exceeded the indicated threshold. Full

counter-clockwise rotation of the RATIO control disables all Compressor activity.

7 LIMITER THRESHOLD control: determines above what level the Servo Locked Limiter™ functions. Full clockwise rotation

of this knob disables all Limiter activity. e LED illuminates red any time the input exceeds the LIMITER THRESHOLD set-

ting.

8 GAIN REDUCTION meter: indicates the amount of reduction, below unity, being applied to the audio signal by the VCA.

9 BYPASS switch: When pressed , this channel in the DC 24 is is hard-wire Bypassed. Each channel may be individually By-in

passed for comparison and alignment purposes. See OPERATING INSTRUCTIONS on page Manual-4.

0 OUTPUT LEVEL control: increases or decreases the output gain of each channel by 12 dB. In the center detent, gain will be

unity. (NOTE: Channel 2 OUTPUT LEVEL controls overall output in COMBINE mode.)

q SIGnal present LED: illuminates any time the input signal exceeds approximately -40 dBu.

e illuminates any time the output exceeds a level equal to -4 dB below the clipping level. OverLoad LED:

w DUAL / SLAVE mode switch: In the (SLAVE) position, this switch causes both channels’ Gate, Compressor and Limiters to in

act together, i.e., they are “slaved.” All controls for both channels remain active, so independent settings are still possible; how-

ever, whenever a signal in one channel exceeds its settings, then channels change by the same amount. In the (DUAL) both out

position, both channels operate independently.

e CROSSOVER FREQUENCY control: is rotary control selects the crossover frequency. What did you think?

9 11

DC 24

THRESHOLD THRESHOLDRATIO THRESHOLD RATIO SIG LEVEL OL

BYPASS

MODE

FREQUENC

POWER

GATE COMPRESSOR CH 1 OUTPUTLIMITER CROSSOVER

GAIN

REDUCTION

THRESHOLD THRESHOLDRATIO THRESHOLD RATIO SIG LEVEL OL

BYPASS

GATE COMPRESSOR CH 2 OUTPUTLIMITER

GAIN

REDUCTION

LOW

EXPANDER

(:1) (:1)

SLAV

DUA

DYNAMI

CONTROLLE

-50 10

-40

-30

-20

-10

1 1

01 10

-6

-40

-30

-20

+12-12

+6-6

HIGH

EXPANDER

(:1) (:1)

200

100

150

125

400

800

1.2k

+20-20

-6 +6

+20-20

-6 +6

+12-12

-10

20-48

1 1

-50 1

-4

-3

-20

-1

(:1)

1 10

-4

-3

-2

-1

20-48
