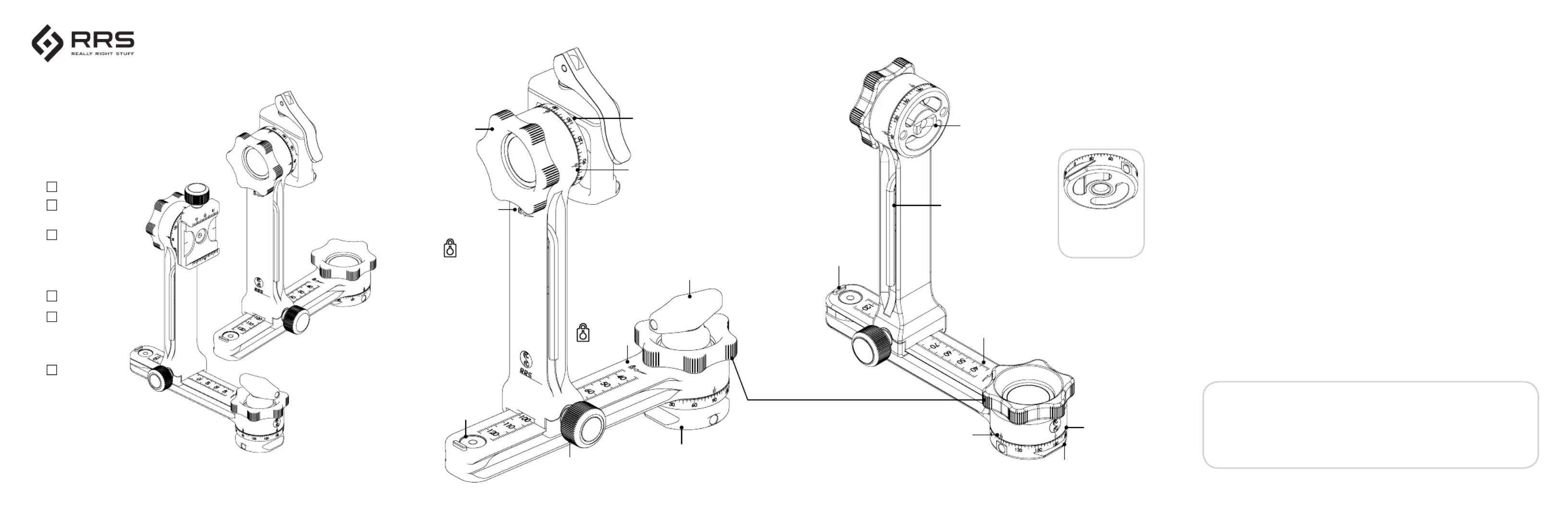

PG-01 PANO-
GIMBAL HEAD
SPECIFICATIONS:
Load Capacity ............................................................................. 8 pounds / 3.6kg
Mounting socket ............................................................centered 3/8”-16 in base
PG-01 with PG-01 with LEVELING BASE FLAT BASE
Tilt axis is laser engraved
in 2.5° increments from
0-360°; scale is lasered in 30°
Pan axis is laser
engraved in 2.5°
increments from
0-360°; scale is
lasered in 30°
Pan Lock Knob
Flat Base with dovetail
fits any RRS-style clamp.
Three index marks in 90°
intervals aid in repeatable
positioning.
Tilt face with anti-twist boss,
centered ¼”-20 socket, two
M5 sockets spaced 30mm on
center.
Integral tool
storage for 5/32”
hex key.
Horizontal Bar is lasered in 1mm increments
from 35mm to 125mm relative to center
of pan axis; scale is lasered in 10mm
Three index marks in 90°
intervals aid in repeatable
positioning.
Rotate Knob
in direction of
Lock Symbol to
lock tilt
axis.
Tilt Lock
Knob
15mm bullseye
level aids
in precision
leveling.
Leveling Base
Lock Lever
Integral
safety
stop helps
prevent
accidental
release.
Leveling Base with
dovetail fits any
RRS-style clamp.
Vertical Arm
Position Lock Knob
NODAL SLIDE
MPR-CL
CLAMP
B2-40 LR
B2- ASm
PG-01
PG-01 VA
PG-01 HB with
Flat Base
PG-01 HB with
Leveling Base
GUARANTEE
ALL REALLY RIGHT STUFF BRAND PRODUCTS ARE GUARANTEED TO
THE ORIGINAL PURCHASER TO BE FREE OF DEFECTS IN MATERIALS OR
WORKMANSHIP FOR FIVE (5) YE ARS FROM THE DATE OF PURCHA SE.
PRODUCTS WILL BE REPAIRED OR REPLACED AT OUR OPTION.
Both models
feature 3/8”-16
mounting socket
in base.
® , ™, © 1990-2017 Really Right Stuff, Inc. All rights reserved.
Rotate Knob
in direction of
Lock Symbol to
lock pan
axis.
MAINTENANCE
GENERAL CARE
The components are finished with a protective anodized plating that
protects them from corrosion and mild abrasion. It does not protect from
scraping against or dropping on rocks/concrete/etc. Note that the Tilt,
Pan, and Leveling Base lock knobs are captive; they can be completely not
removed if you continue to unscrew them. e recommend storing the PG-01 W
in our optional OpTech® Large padded pouch.
Cleaning
If the PG-01 is fouled, dry dust and dirt can be blown off and/or wiped off
with a soft cloth. If contaminated by salt water, the unit should be fully
disassembled, cleaned with fresh water, thoroughly dried, then greased
where necessary before re-assembly. Do not disassemble in the field
where you are prone to lose small parts.
LUBRICATION
Grease is applied at the factory to all knob threads, and also to the conical
rings inside the pan and tilt mechanisms. If unit is disassembled for cleaning,
apply a light coat of silicone grease to these clean surfaces during re-assembly.
PG-01 VA
PG-01 VA
PG-01 with
Flat Base
Shown with B2-40 LR clamp. Shown with no clamp installed.
PG-01 with
Leveling Base
1146 Farmhouse Lane, San Luis Obispo, CA 93401 USA
1-805-528-6321 | 1-888-777-5557
www.ReallyRightStu.com

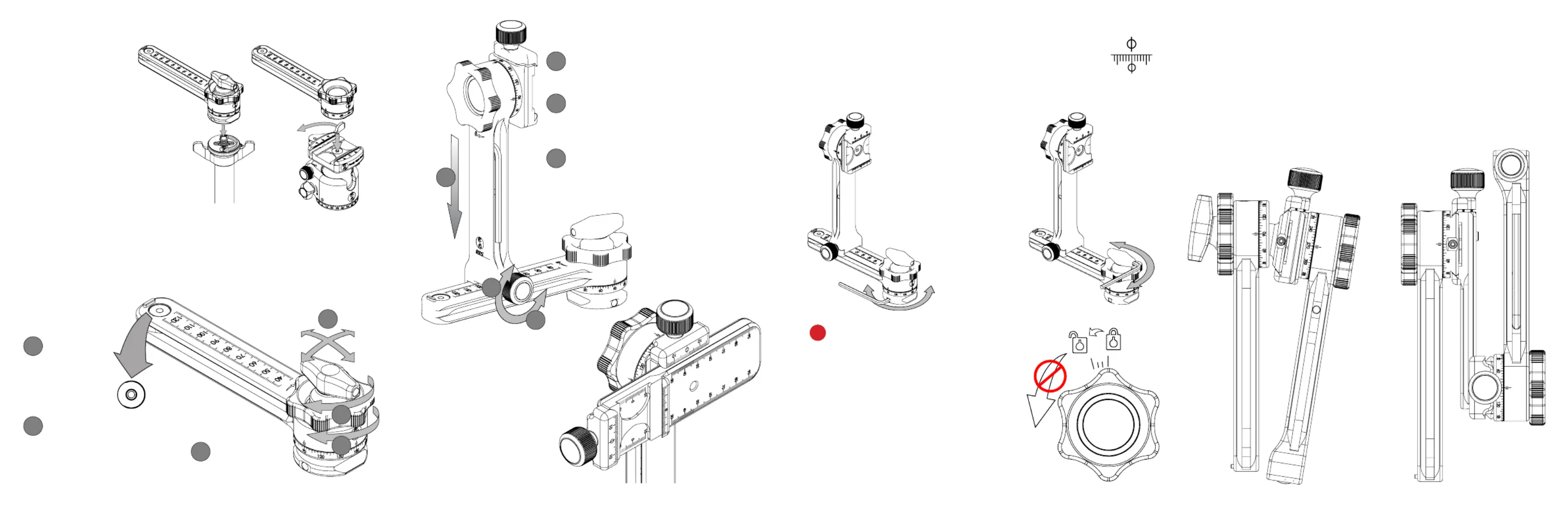

INSTALL HORIZONTAL BASE
• Install onto any
tripod with a 3/8”-16
stud.
• Or, use dovetail base and
mount in any RRS-style clamp.
OPTIONAL:
APPLY TORQUE
The Pan Base & Leveling Base
can be more firmly tightened
by using the included hex key.
Install hex key into the hole to
apply more torque. To loosen,
apply counterclockwise
force to the hex key
(this can aid in
removing the head
from a tripod).
LEVELING
PG-01 with Flat Base
Since Leveling Base is not included, level the ballhead or tripod.
PG-01 with Leveling Base
Follow steps below.
MOUNT NODAL SLIDE
Mount your Nodal Slide into the clamp
on the Vertical Arm.
Align the No-Parallax Point for your
camera/lens combination with the
centering index mark on the
clamp jaw. See our website for
tutorials on finding the No-
Parallax Point.
HOW TO PACK
Without Nodal Slide
Store PG-01 components as a single
unit to prevent damage. Secure the
dovetail base of the Horizontal Base
into the clamp on the Vertical Arm.
Add our optional OpTech® Large
pouch for convenient storage.
With Nodal Slide
Store PG-01 components as a single
unit to prevent damage. Secure the
dovetail base of the Horizontal Base
into the clamp on the Nodal Slide.
Then secure the dovetail rail of the
Nodal Slide into the clamp on the
Vertical Arm. Store
in pouch.
MOUNT CAMERA
Mount your camera (must have RRS-style quick-release plate) into
clamp on the Nodal Slide. Align centering index mark on plate with
centering index mark on the clamp jaw. Securely tighten clamp.
PAN/TILT KNOBS IN USE
DO NOT OVER-LOOSEN YOUR PAN OR TILT KNOBS.
When Pan or Tilt is fully locked, turn the Lock
Knob only 15° to fully unlock. If you over-
loosen the Lock Knobs, there will be play
between the Pan/Tilt mechanisms and the
arms.
When shooting panoramas with your PG-01, we
recommend that you lock both the Pan & Tilt for
each shot.
INSTALL VERTICAL ARM
2
3
1
Lock Pan
Lock Knob
1
Open clamp jaw of Vertical Arm Position
Knob; this knob is captive, do not force.
2
Mount the Vertical Arm from above. You
cannot slide the Vertical Arm onto the end of
the Horizontal Bar due to the Safety Stop.
3
Tighten Vertical Arm clamp.
2
Adjust Leveling Base until
bubble is centered within the
black circle.
3
Lock Leveling
Base Lever
1
3
1
15°
!
2
