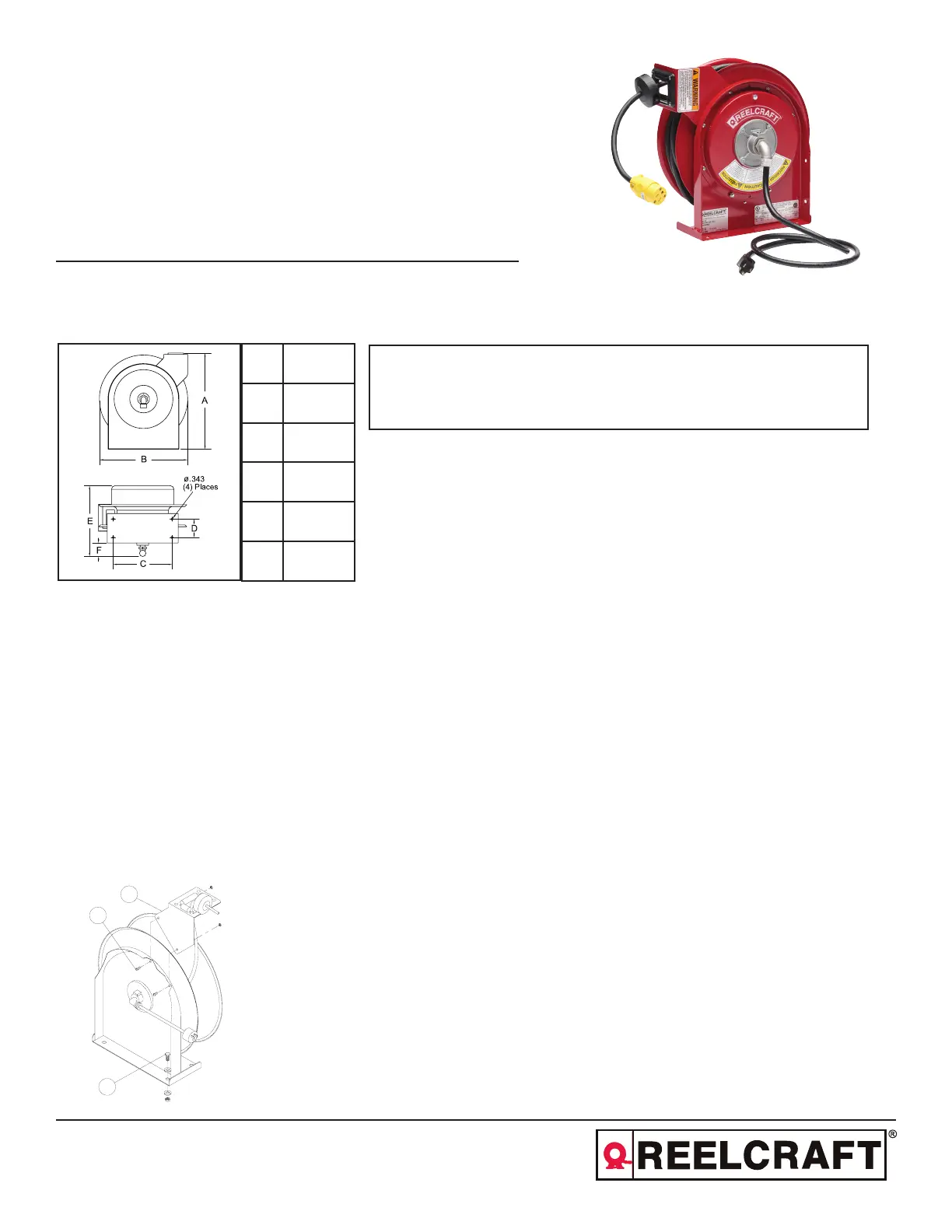

Side 1/7

Operating Instructions

Series L 4000 Spring Driven Cord Reels

Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725

Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605

Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com

Form# 542-290 Rev: 10/2024

WARNING: Even low voltage can cause irreparable damage or death!

Exercise extreme caution while operating or servicing this equipment.

IMPORTANT

Read this manual carefully before installing, operating or

servicing this equipment.

A 13 1/4”

B 12 5/8”

C 8”

D 2 1/2”

E 9 3/8”

F 1 3/4”

Dimensions

Personal injury and/or equipment damage may

result if proper safety precautions are not

observed.

• Ensure that only a qualified electrician

installs/services this equipment.

• Ensure that power supply voltage does not

exceed maximum voltage rating of reel.

• Ensure that reel is properly installed before

connecting to power supply.

• All cord reels with flying leads must be hard

wired to ensure proper function.

• Ensure that all electrical power is removed

from reel before servicing.

• A high-tension spring assembly is

contained within the reel. Exercise extreme

caution.

• Check for frayed and/or broken wires before

each use. Pull electrical cord from reel by

grasping the electrical cord itself, not the

work device.

• If an electrical malfunction should occur,

remove power from reel immediately.

• Ensure that reel, electrical cord, and

equipment being serviced are properly

grounded. Use an ohmmeter to check

ground continuity.

• If reel ceases to unwind or rewind, remove

power immediately. Do not pull or jerk on

electrical cord!

• Treat and respect the reel as any other piece

of machinery, observing all common safety

practices.

Mounting

CAUTION: Unless reel was specified differently

when ordering, maximum installation height

is 16 feet. Do not exceed this distance. Ensure

that only a qualified electrician installs/services

this equipment. Installation of GFCI cord reels

should be performed by a qualified and licensed

professional in accordance with building codes

and applicable NEC standards.

1. Unpack and inspect reel for damage. Turn

by hand to check for smooth operation.

Check for completeness.

2. Configure reel for top, side or bottom-

wind (bottom-wind for constant tension

reels only) electrical cord dispensing by

removing bolts (1), securing guide arm

bracket (2). Determine new guide arm

location and remove corresponding bolts.

Position guide arm bracket to reel and

replace bolts.

3. Position reel on floor, wall, or ceiling.

Secure into place, using four (customer

supplied) screws or bolts (3).

Safety Precautions

Installation Instructions

L 4035 163 3-RP L 4545 123 3A-RP L 4545 123 7AC L 4035 163 10

L 4050 163 3 L 4545 123 3AC L 4545 123 7B L 4050 163 10

L 4050 163 3-RP L 4545 123 3B L 4545 123 7Q L 4545 123 X

L 4545 123 3 L 4545 123 7 L 4050 163 9 L 4050 163 X

L 4545 123 3-RP L 4525 123 7A L 4545 123 9 L 4500

L 4545 123 3A L 4545 123 7A L 4545 123 9G
