Names of Tonearm parts

Names of Tonearm partsNames of Tonearm parts

Introduction

IntroductionIntroduction

Designed using the latest 3D CAD & CAM technology,

the new RB330 is the culmination of more than 35 years

of tonearm design experience. Featuring a brand

new bearing housing and our latest tonearm tube

designed using intelligent redistribution of mass, ensure

this arm will exhibit fewer points of possible resonance.

Extreme stability with almost friction free movement

from the new high precision, horizontal and vertical

bearing assemblies guarantees to gather more

information from your vinyl than ever before. The

RB330 offers a new bias assembly, re designed stiffer -

vertical bearing housing, integrated arm clip and an

improved spring housing with easier to read numbers.

You will also find Rega made new low capacitance

phono cables terminated with high specification

Neutrik plugs.

Arm balancin

Arm balancinArm balancing and setup

g and setup

g and setupg and setup

With the cartridge correctly mounted and with the

stylus guard removed, ensure that the tracking force

dial and bias adjustment are set to zero. Adjust the

balance weight until the arm is floating with the stylus “ ”

approximately 1mm clear of the record. It is

Note:

Note:Note:

normal for the arm to swing back towards the arm clip

position even with the bias set at zero. Therefore it is

advisable to gently hold the arm bearing carrier (just

below the tracking dial) thus preventing horizontal

movement during the balancing procedure.

Applying t

Applying tApplying tracking pres

racking pres

racking presracking pressure

sure

suresure

Once the arm is balanced, rotate the tracking force

adjustment dial to the required tracking force.

Numbers to are marked on the dial. If in doubt, ‘0’ ‘3’

it is usually advisable to use a tracking force that

corresponds with the upper limits of the cartridge

manufacturer s range.’

Applying

Applying Applying Anti

Anti

Anti Anti Skatin

Skatin

Skatin Skating (bias) adjust

g (bias) adjust

g (bias) adjustg (bias) adjustment

ment

mentment

Set the bias adjustment slider located to the same

figure as the cartridge tracking force pressure quoted

by your cartridge manufacturer. This is not critical

Note

NoteNote:

: :

and a figure between 1.5 & 2.0 will normally be suitable

for most moving magnet cartridges.

Your arm is now balanced, setup and ready to use. If

you have any doubts regarding installation or setup

please contact your official Rega dealer who will be

able to carry out the work for you. Thank you for

purchasing this Rega product and we wish you many

hours of musical enjoyment.

www

wwwwww.r

.r.rega.co.uk

ega.co.uk

ega.co.ukega.co.uk

Made in England

RBRB330

330

330 330 T

TTONEARM

ONEARM

ONEARMONEARM

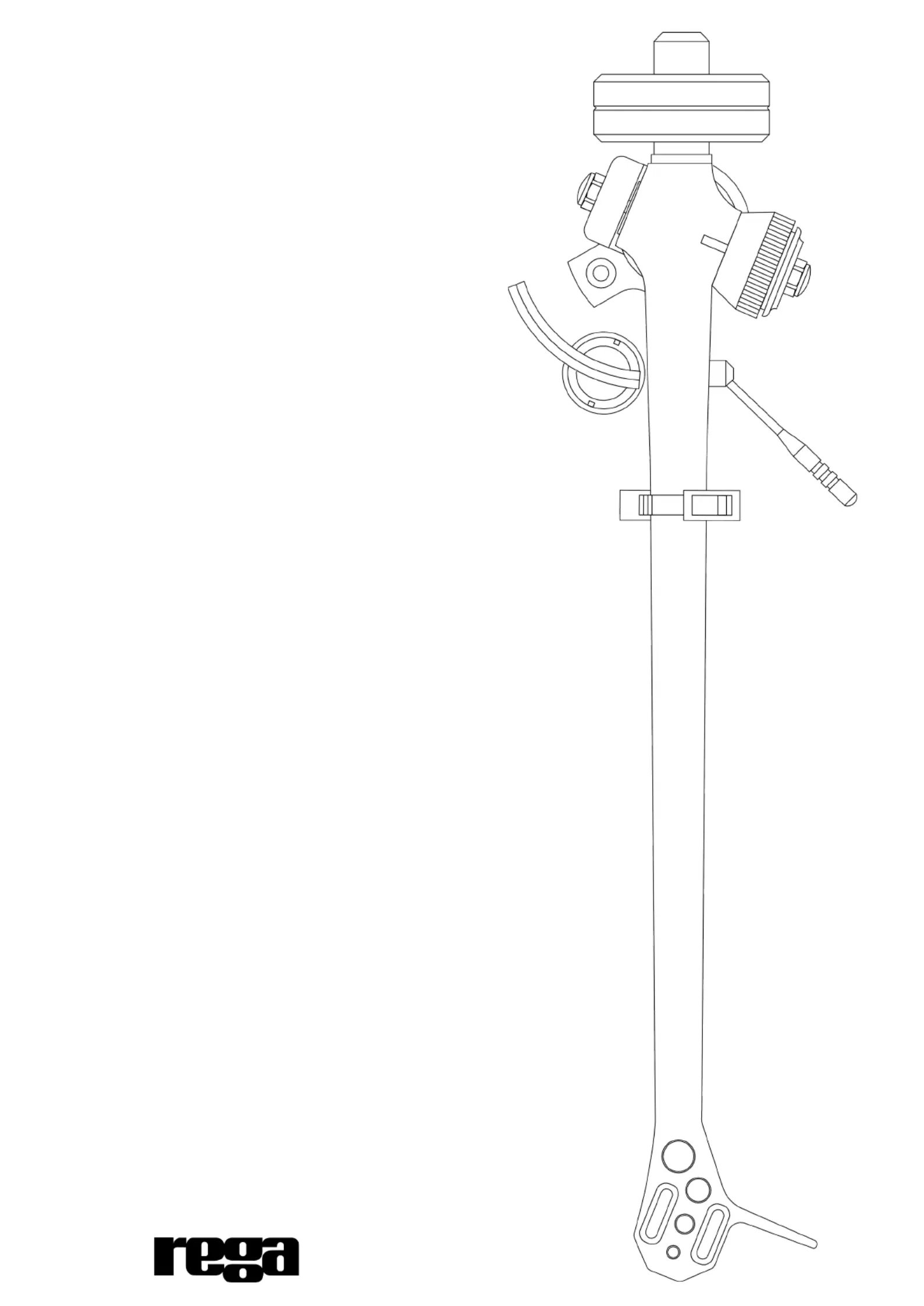

Protractor &

arm mounting

data included.

Cueing

Platform

Tracking

Dial

Headshell

Finger lift

Arm Clip

Cueing device

lift/lower handle

Balance

Weight

Bias adjustment

Fitting your Tonearm

Fitting your Tonearm Fitting your Tonearm

The will directly replace any other Rega tonearm

RB330

RB330 RB330

that currently uses the 3 point mounting without any

modification. If fitting to another manufacturers

product or an older Rega turntable (with the single

point nut fixing), the supplied template should be used

as a guide to ensure correct position and alignment.

With so many variants in turntable models it is important

to contact your turntable manufacturer if in any doubt

before making any holes in plinths or arm boards.

Before attempting to fit the arm to the turntable,

RBRB330

330

330 330

it is important to ensure that there is sufficient

clearance beneath the turntable and that the arm

does not hit the lid, top or sides. Having checked that

there is sufficient clearance in all directions (including

the maximum potential arm movement horizontal and

vertical) the next step is to find the position of the

centre of the arm mounting hole. The easiest way to do

this will be to use the arm mounting template supplied.

Arm mounting temp

Arm mounting tempArm mounting template guide

late guide

late guidelate guide

The supplied template is for mounting Rega three point

fixing arms to other manufacturers turntables. N.B

protractor for cartridge alignment is also printed on

the same template.

1. 1. The template should be kept flat and not bent. The

distance between the centre of the spindle and the

centre of the arm hole is critical and must be 222mm.

This template will help you check your positioning

before you attempt fitting and drilling.

3. 3. Position the other end of the template so that the

clearance arc is within the rear and side edges of the

turntable base (and the lid when closed). Also check

that there is at least 250mm clearance from the centre

of the hole to the inside front of the turntable.

4. 4. Use a long pointed probe such as a needle and

push it through the arm hole centre on the template. ‘ ’

Keep the needle perpendicular to the template and

mark the position of centre on the turntable.

5. 5. Having marked the centre, check again that if the

arm is placed in this position it will clear the under side

of the turntable and the lid. Also, check that the arm is

in a satisfactory position to ensure easy operation and

that the position is pleasing aesthetically. When you are

certain that the arm hole centre is in its correct position

(exactly 222mm from the record centre), you can drill

the required arm hole.

6. 6. The arm mounting pillar requires a diameter of 25mm

which will provide adequate clearance for accurate

fitting. You can then drill the three screw mounting

holes as illustrated on the template. Make sure the arm

is straight and the holes are correctly aligned before

drilling.

7. 7. With the holes drilled, you are now ready to fit the

arm to the turntable. Ensure that you also follow the

turntable manufacturer s instructions regarding arm ’

fitting. Each individual turntable manufacturer may

have different requirements regarding positioning of

the arm signal lead.

RB330 Instructions
