Side 1/4
1
Keep information for further reference!
Für weiteren Gebrauch aufbewahren!
Gardez ces instructions pour des utilisations
ultérieurs!
¡Conservar para su uso posterior!
www.reloop.com
Reloop Trademark
Global Distribution GmbH & Co. KG
Schuckertstr. 28
48153 Muenster / Germany
© 2021

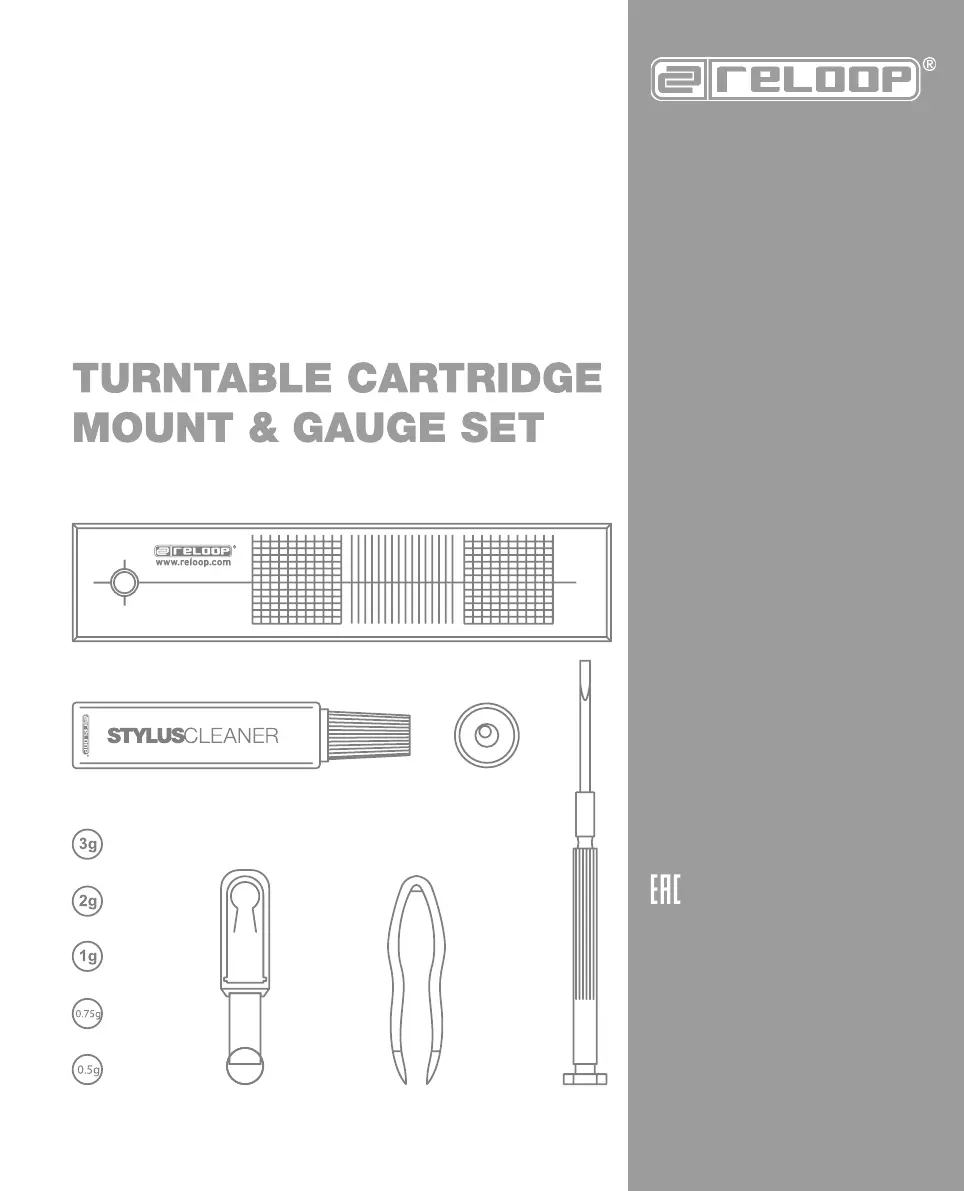

OPERATION MANUAL
REV. 1.0
2
ENGLISH
SAFETY INSTRUCTIONS
STYLUS CLEANING FLUID:
COMPOSITION / COMPONENTS INFORMATION
99.50 % Isopropyl-Alcohol (I.P.A.)
CAS: 67-63-0
0.50 % Polyamide + Silicon Dioxide (Antistatic & Lubricant Agent)
CAS: 15468-32-3
DANGERS IDENTIFICATION
Emergency overview: Colorless Liquid.
Eye: May cause pain and slight (temporary) irritation.
Skin: Prolonged or repeated exposure may cause skin irritation.
FIRST AID MEASURES
Eye: mmediately wash with plenty of water for at least 15 minutes.
Skin: Flush skin with water and soap.
STOCKAGE AND MANIPULATION
Stockage:
Keep Container closed, keep away from re and explosives.
Manipulation:
Avoid contact with eye, avoid prolonged or repeated contact with skin.
TOXICOLOGY INFORMATION
Non toxic.
ENVIREMENTAL INFORMATION
Non toxic.
TRANSPORTATION INFORMATION
United Nation Number (NU. No.): 1219
Hazard Classication: 3
Flammable Liquid
Hazard Label: 3
MANUAL
MIRRORED SME ALIGNMENT TOOL
The mirrored SME alignment tool allows precise alignment of the
cartridge in the pick-up arm for ultimate precision in record grove
tracking. Lower tracking error leads to better playback quality.
METHOD OF USE:
Place the SME alignment tool over the xed platter using the center
spindle and turn it in direction of pick-up arm.
Checkpoint „B“ - Cartridge Angle
1. Move the alignment tool and the pick-up arm until the needle of
the cartridge points precisely at point „B“. Check if the side edges
of the cartridge are running parallel to the imprinted lines of the
SME alignment tool.
If so go to point 3
2. In case the edges are not running parallel, the cartridge needs to
be moved sideways in the headshell, until the edges are parallel to
the imprinted lines of the SME alignment tool.
Checkpoint „A“ - stylus overhang
3. The same procedure is being held at checkpoint „A“. The
cartridge is only to be moved forward or backward in the long holes
of the headshell, until it’s parallel to the imprinted lines. Compare
and adjust Checkpoint “A” and “B” until the cartridge is parallel to
the imprinted lines of the SME alignment tool in both points.
4. Once the cartridge is in desired position, tighten the screws
carefully with the included metal screwdriver. Check the alignment
in both points again. If the calibrations points are still correct the
alignment is completed.
4.762.60
INCREASE OVERHANG
4.762.60
DECREASE OVERHANG
4.762.60
