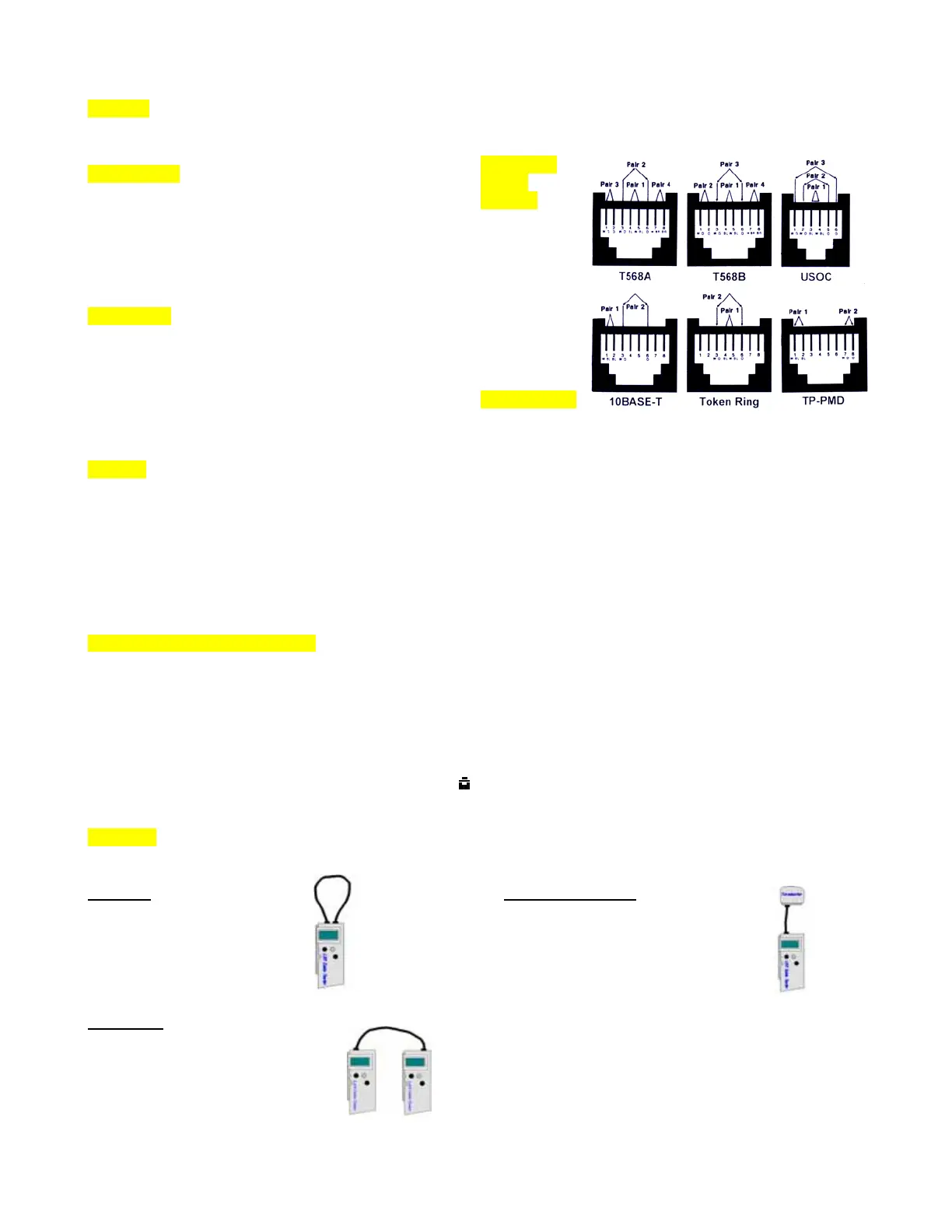

LAN Cable Tester With LCT

User's Guide

Welcome

Thank you for purchasing this LAN Cable Tester Series product. Whether you are a contractor installing LAN cabling as a profession or simply a small

office administrator caring for a LAN, we hope that you will find this product both useful and rewarding.

Specifications

• LCD Display: 2 lines by 12 characters with LED back light

• Connectors: RJ-45 (8P8C) jacks with shield

• Control keys: MODE/SEL, ESC, and ENTER buttons

• Power: 9V dry cell battery.

• Size: 15.0(H) x 6.5(W) x 3.5(D) cm

• Weight: 180g net

Cable Types

Unshielded Twisted Pair (UTP 100Ω, Cat 3,4 & 5)

Foil screened Twisted Pair (FTP 100Ω and 120Ω, Cat 3,4 & 5)

Shielded Twisted Pair (STP 150Ω IBM Type 1&6)

RG-58 Coaxial cable (LCT400 ONLY)

Recognized

Wiring

Schemes

10(100)Base-T

Token Ring

TP-PMD

AT&T 258A

EIA/TIA-568A/B

USOC

10(100)Base/HUB

BNC/10Base-2

plus 4 User Defined

Cable Locator

Cable location may be accomplished by using multiple RP-T terminators.

The RP-T locators incorporate factory set I.D. numbers and are available in

ID’s from 1 to 16.

Features

• Hand-held and easy to operate.

• Easy to read LCD display, with back light.

• Easy to diagnose RJ-45 cables (and BNC types with LCT400) with preset

wiring schemes.

• Easy to read cable status, verify cable continuity: open, short, and

mismatches.

• Scan pin assignment.

• Automatic cable identification. (Cable type search.)

• Standard pin configurations and four(4) user defined cable wirings

memorized in CPU.

• Can save user defined cable directly after testing.

• Tests for both shielded and unshielded cable types.

• Review the captured pin assignment and failure status.

• Maximum testing length is up to 3000 feet.

• Identify and trace the other end’s ID. (with up to 16 individual ID RP-T)

• Battery low indicator.

• Auto power-off function.

Automatic Power Saving Features

The LAN CABLE TESTER has built in power management features intended to extend battery life. By far, the LCD back light is the most power hungry

component in the LAN CABLE TESTER. Use of the LCD back light should therefore be limited to low ambient light applications. The back light may be

toggled ON/OFF by simultaneously pressing the MODE/SEL and ESC function keys. If there is no further menu selection or function testing within thirty

(30) seconds, the back light will be automatically extinguished. Additional power management functions include both a “sleep” mode and an auto “power

off” mode. If there is not any key activity for three (3) minutes, the unit will automatically enter “sleep” mode. All interface circuitry and the LCD display

will be powered down. In this mode the unit draws very little power. Pressing any key will cause the unit to “wake up” to a full functioning state. However,

if there is no key activity for ten (10) minutes, the unit will automatically “power off”. To recover from the “power off” mode, the unit must have its power

switch cycled OFF and then ON. In the “power off” mode the power usage is close to nil. This feature is especially useful if the unit is inadvertently left

powered on. The battery should be replaced when the battery low icon ( ) on the LCD display becomes visible during normal use of the LAN

CABLE TESTER . Additionally, if a low battery is swapped within 1 minute with a new one, the user defined memory contents will be retained. Just

remember to turn the unit OFF before swapping the battery.

Operation

← Connection: The LAN CABLE TESTER is capable of testing cables in any one of four modes.

Local Test mode is accomplished

by connecting both ends of the

cable under test to the LAN

CABLE TESTER OUT and

LOOPBACK IN ports. Local unit

displays an ID equal to zero.

Remote Test mode uses two (2)

LAN CABLE TESTER units,

with the cable connected between

one unit’s OUT and the other

unit’s LOOPBACK IN. Remote

unit displays an ID equal to zero.

Terminator Loopback mode uses the

supplied terminator ID block connected

at the remote end of the cable, while the

other end of the cable is connected to the

LAN CABLE TESTER OUT.

Operation (continued)

Turn power switch on: Following initial power on of the LAN CABLE TESTER, the unit will display the startup logo with back light for 3 seconds,

then will display the top menu for “cable test”.

 LAN CABLE TESTER startup menu

C T C U N I O N

L C T . . v 1 . 0

 LAN CABLE TESTER test menu

ODE SEL:

cable tes t

Battery

Low

Icon

 ∗ Press “ENTER” to test the cable.

o 1 2 3 4 5 6 7 8 G

i 3 6 1 4 5 2 7 8

Type

 Results Displayed

100BASE/ H U B

UTP i d : 1

Use MODE/SEL to toggle between cable pin out screen and result display, press ESC back to test menu.

Cable testing: During any mode of cable testing, the first screen display will show the top line out and bottom line in of connections 1 through 8 plus G

(shield) as they are scanned. Following this screen page will be the cable identification information. If at least one wire pair is not connected, the display

will read “NO CONNECT”. A shorted cable will read “SHORT”. A question mark in the pin out display indicates a short. An unknown is not in the

standard known pin outs or in the user defined memory.

User Defined cable: The User Define function allows you to describe your own custom cable pin out which will be entered into the cable identification

database and saved in the CPU memory. This custom pin out will remain available as long as a fresh battery is in the unit. Two methods are available for

defining a cable. The first method is manual entry, while the second uses an "UNKNOWN" cable as the pin out source. First the manual method. From

the very top of the LAN CABLE TESTER menu (just after power on is completed) select the USER DEF menu by pressing the MODE/SEL button (step

no. 1 to 2). The MODE/SEL button will now move the cursor to select one of four (4) user memory locations (step no. 3). Press ENTER to select the

memory location that the cursor is on. The define cable display will show (step no. 4).

 LAN CABLE TESTER test menu

O D E S E L :

c a b l e t e s t

 LAN CABLE TESTER user defined menu

O D E S E L :

u s e r d e f i n e d

 LAN CABLE TESTER User Def display (4 locations)

U S E R D E F .

# 1 / 2 / 3 / 4

 LAN CABLE TESTER Define cable display

o 1 2 3 4 5 6 7 8 G

Use the ENTER key to set digits 1 to 8, G or blank (not connected), then press MODE/SEL to move to the next space.

When completed, press ESC.(step no. 5 to 6)

 LAN CABLE TESTER defined pin out

o 1 2 3 4 5 6 7 8 G

i 3 4 1 2 6 5 7 8

 LAN CABLE TESTER Save to User Defined

Confirmation display

S A V E T O U S E R

D E F . # 2 ?

To save your definition, ∗ press ENTER. To exit without saving, ∗ press ESC. The alternate method is to save the "Unknown" type.

U N K N O

N D E F .

U T P i d : 1

SAVE TO USER

DEF. ?

U S E R D E F .

# 1 / 2 / 3 / 4

Select the location with MODE/SEL and then press ENTER to save. Press ESC anytime to exit.

Cable Fault Indication Examples:

O D E S E L :

c a b l e t e s t

o 12345678G

i 11345678

C A B L E S H O R T

i d:1

In the above example, Pin 1 and Pin 2 were found to be shorted.

O D E S E L :

c a b l e t e s t

o 12345678G

N O C O N N E C T

In the second example, if at least one pair of wires is not connected, the test result will show as "NO CONNECT".

41RP-170300-000

empty

Pin Out

Terminator

ID No.

UTP, FTP or COAX

MODE/SEL

∗

ENTER

MODE/SEL

to location 1~4 then ENTER

defined

pin out

∗

ENTER

∗

MODE/SEL

ESC out

∗ ENTER
