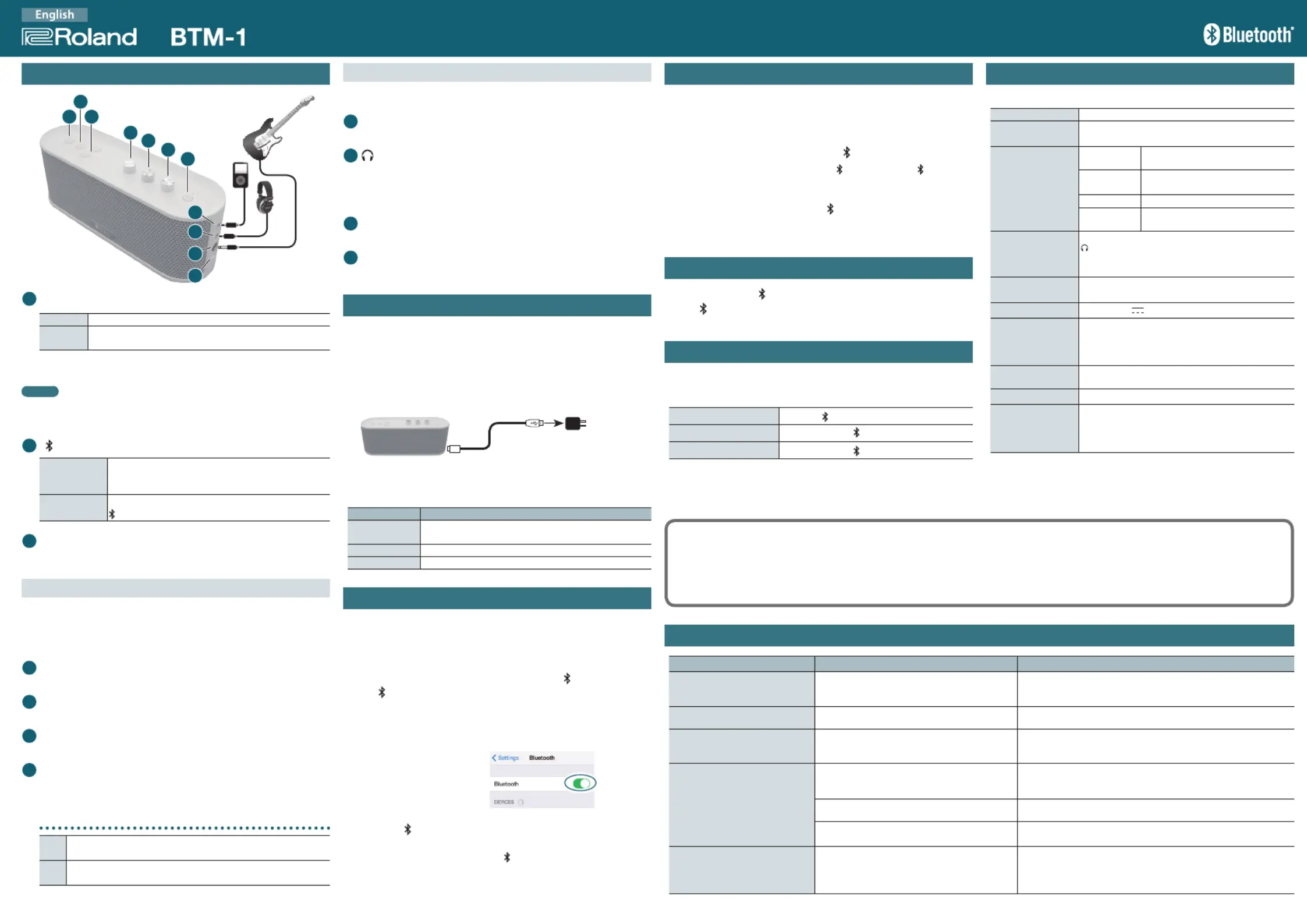

Bluetooth Speaker

Owner’s Manual

Before using this unit, carefully read “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (separate sheet).

After reading, keep the document(s) where it will be available for immediate reference.

Panel Description

[POWER] button/indicator

Power on Hold down the button until the POWER indicator is lit.

Power o

Hold down the button until the POWER indicator blinks

three times.

* The POWER indicator shows the state of the rechargeable battery.

&see “Charging.”

MEMO

The power of this unit automatically turns o if no audio input/

playback for approximately 15 minutes (Auto O function).

* To restore power, turn the power on again.

[ ] (Bluetooth) button/indicator

Bluetooth: On

Hold down the button for two seconds.

When the power turns on, the Bluetooth function will

be on.

Bluetooth: O

Hold down the button for two seconds.

indicator blinks three times unlit0

VOLUME [+] [−] buttons

Adjusts the overall volume.

Playing the Guitar

These controls adjust the sound of the guitar that’s connected to the

INPUT jack.

* Do not charge the unit while a guitar is connected. Noise might be

heard in the audio if you do so.

[GAIN] knob

Adjusts the overdrive’s gain (amount of distortion).

[TONE] knob

Adjusts the color of the guitar sound.

[LEVEL] knob

Adjusts the volume of the guitar sound.

[FX] button/indicator

Turns delay on (indicator: lit)/o. Each time you press the button, the

setting alternates on/o (default: o).

Reference gain for overdrive (default: high)

High

Hold down the [FX] button and press the VOLUME [+] button.

FX indicator blinks three times

Low

Hold down the [FX] button and press the VOLUME [−] button.

FX indicator blinks three times

Connectors

* To prevent malfunction and equipment failure, always turn down the

volume, and turn o all the units before making any connections.

AUX IN jack

Connect your audio player or audio device.

(Phones) jack

Connect your headphones.

* Use headphones that have a 3-pole plug. If you use headphones

that have a 4-pole plug (such as headphones equipped with remote

control), the audio might not play back correctly.

INPUT jack

Connect your guitar.

CHARGE port

This port is for charging.

Charging

Before using this unit for the rst time, connect the included USB cable

to the rear panel CHARGE connector and charge it.

* Use a standard USB AC adaptor (5 V/2 A or higher is recommended)

for charging.

* Charge the device using the included USB cable. Do not use the

included USB cable with any other device.

AC outlet

USB AC adaptor

(commercially available)

USB cable for charging

(included)

While this unit is in use, the POWER indicator shows the status of the

rechargeable battery.

* If charging is completed when the power is o, the indicator is unlit.

Indicator Explanation

Lit

Remaining battery capacity is more than half, or charging

is complete

Blinking slowly

Charging

Blinking quickly

Charge the unit

Registering a Bluetooth Device (Pairing)

Here’s the procedure for registering this unit with the Bluetooth device

that you want to connect (e.g., a smartphone).

* The following steps are one possible example. For details, refer to the

owner’s manual of your Bluetooth device.

1. With this unit powered-on, hold down the [ ] button until

the

indicator blinks rapidly.

This unit enters pairing mode, and begins pairing.

2. Turn on the Bluetooth function of your Bluetooth device, and

place it near this unit.

Example) In the case of iPhone

3. While the indicator is blinking, select “Roland BTM-1” that

appears in the Bluetooth device screen of your Bluetooth device.

When pairing succeeds, this unit’s

indicator is lit.

Connecting an Already-Paired Bluetooth Device

1. Turn on the power of this unit. If the Bluetooth function is o,

turn on the Bluetooth function.

If an already-paired Bluetooth device whose Bluetooth function is on

is located nearby, it is automatically connected.

When connection succeeds, this unit’s

indicator is lit.

* If you can’t connect, hold down the [

] button until the indicator

blinks, and then select “Roland BTM-1” that appears in the Bluetooth

device screen.

2. To disconnect, hold down the [ ] button for two seconds

to turn o the Bluetooth function, or turn o the Bluetooth

function of the Bluetooth device.

Deleting a Previously-Paired Registration

1. Hold down the [ ] button for seven seconds.

The indicator blinks six times then blinks rapidly; the 0

registration is deleted.

Playing Back Music

You can play back music by operating your Bluetooth device, and if your

Bluetooth device supports AVRCP, you can also perform operations such

as play/stop from this unit.

Play/pause

Press the [

] button once.

Skip to the next song

Rapidly press the [

] button twice.

Skip to the previous song

Rapidly press the [

] button three times.

Main Specications

Roland BTM-1: Bluetooth Speaker with Guitar Amplier Function

Rated Power Output 4 W + 4 W

Speaker

5 cm (2 inches) x 2

Passive radiator x 2

Bluetooth

technology

Bluetooth Ver 4.0

Transmitting

power

Specication Power Class 2 (Line of

sight range 10 m (30 ft)

Prole support

A2DP, AVRCP

Codec

SBC (Support to the content

protection of the SCMS-T method)

Connectors

AUX IN jack (Stereo miniature phone type)

(Phones) jack (Stereo miniature phone type)

INPUT jack (1/4-inch phone type)

CHARGE port (USB micro-B type)

Power Supply

Lithium-ion battery

Supplied from the CHARGE port

Current Draw Max. 2 A (5 V

)

Continuous

playback time using

the battery

Approx. 6 hours (Audio playback of the Bluetooth

connection)

* These gures will vary depending on the actual

conditions of use.

Dimensions

264 (W) x 78 (D) x100 (H) mm

10-7/16 (W) x 3-1/8 (D) x 3-15/16 (H) inches

Weight 920 g / 2 lbs 1 oz

Accessories

Owner’s Manual

USB cable for charging the BTM-1 (*1)

*1: Use a standard USB AC adaptor (5 V/2 A or higher is

recommended) for charging.

* This document explains the specications of the product at the time that the

document was issued. For the latest information, refer to the Roland website.

Troubleshooting

Problem Items to check Action

POWER indicator does not light

even when you press the [POWER]

button

Did you charge this unit before using it? Charge this unit using the included USB cable.

Bluetooth sound is interrupted /

Noise is heard

Could you be using the unit near a microwave oven

or a wireless device such as a Wi-Fi router?

Move the unit as far as possible away from microwave ovens or

wireless devices such as Wi-Fi routers.

This unit does not appear in the

Bluetooth device list of your

Bluetooth device.

Did pairing occur successfully?

Perform pairing as described in “Registering a Bluetooth Device

(Pairing).”

Can’t connect via Bluetooth

Could this unit and the Bluetooth device be too

far apart?

This unit can connect with a Bluetooth device within a maximum line-

of-sight distance of 10 m (30 ft).

Move this unit and the Bluetooth device closer to each other.

If this unit is visible as a device in the Bluetooth

settings of the Bluetooth device

Delete the device registration for this unit, and then perform pairing

once again.

If this unit is not visible as a device

Turn the Bluetooth function of the Bluetooth device o and then on

again; then begin pairing from this unit to pair the devices once again.

Too much feedback from the guitar Could the guitar be too close to this unit?

If acoustic feedback occurs when a guitar is connected:

5Change the distance or angle of this unit relative to the guitar.

5Use the VOLUME [+] [–] buttons or the [LEVEL] knob to adjust the

volume.

This product is equipped with a lithium-ion battery.

Even if you do not use this product for an extended period of time, you should charge it once every three months to prevent the internal lithium-ion battery

from degrading.

Ambient temperature range during charging: 5–35 °C

However, in order to take full advantage of the rechargeable lithium-ion battery’s performance, we recommend that you charge it in a temperature range of

10–30 °C.
