Attention

1. Do not overload the tripod.

2. Always tighten the center column lock if you use the tripod.

3. For your safety do not let the product touch any electric objects,

high voltage equipment and superactive chemicals.

4. Only use standard lubricant when necessary.

Cleaning

After using the tripod in water, sand or dust, please clean it carefully.

Therefore expand all legs and use a dry cloth to clean the tripod. If

it is completely wet, let it dry completely. If you have used it in salt

water or sand you should also clean and rinse it with fresh water.

ENGLISH

Center Column

To adjust the height of the center column loosen the center

column lock by turning it counter clockwise, move the center

column up or down to your desired height. Finally lock the center

column position by turning the center column lock clockwise.

Furthermore you can unscrew the hook at the bottom part of the

center column to insert it the other way round. This position is

used in macro photography.

Anti-rotate screw

If you have attached a ball head on the tripod you can ﬁrmly ﬁx

it by using the anti-rotate screw. With this function the ball head

cannot screw of by accident. Use the wrench to screw the anti-

rotate screw inside the plate. Please make sure that the ball head

is ﬁxed, but that the panoramic function can still be used. If the

anti-rotate screw is too tight, the panorama function of the ball

head might be blocked. If this is the case please unscrew the anti-

rotate screw a bit, until the panorama function is working well

again.

Hidden Hook

This hook can be used to put a counterweight onto the tripod.

This can be a sand bag, carry bag or others and it will increase the

stability of the tripod.

Silicone grip

Leg length adjustment

To adjust the leg length rotate clockwise the rubber feet totally.

Then you can pull out the leg completely. Finally please lock the

leg length by rotating it counter clockwise. Please note the leg

length can be locked at any position.

Instruction Manual Rollei City Traveler XL Tripod

Thank you for choosing this Rollei product. Please read the manual

carefully before you use this travel tripod.

The tripods of the City Traveler Series are made out of Carbon.

Therefore they are leightweight and due to there compact design,

these tripods are ideal for using them on your next city trip. City

Traveler tripods are especially designed for DSLM and DSLR cameras

and support them excellently.

Angle Adjustment

To change the leg angle press the angle adjustment knob down. Then you are able to change the leg‘s position. There are three lock-in

position on the leg angle adjustment. If you have put the leg up and then lower it down the leg angle adjustment will automatically go into

the lock-in positions. To put the tripod into the folded length, you need to put the leg to the top by folding it by 180°. Therefore press the

leg angle adjustment knob down and while you have pressed it push the leg to the top.

180° reverse folding

4 25–16 mm 42 cm 156 cm 23 cm 840 g 8 kg

1 2

11 12

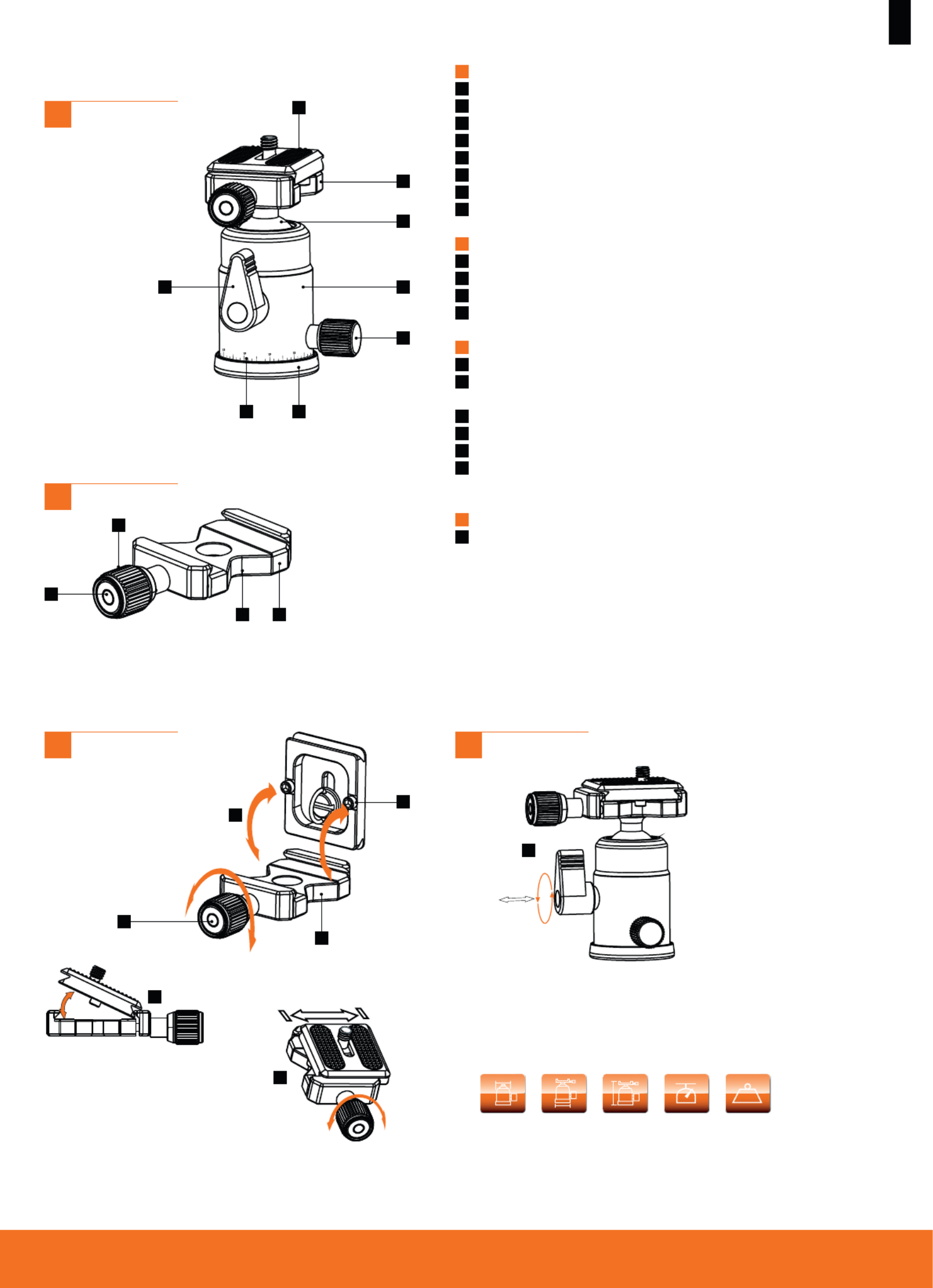

Construction

Quick release plate

Platform

Ball

Ball housing

Ball head locking knob

Base locking knob

Base

Scale

Parts Name

Vertical spirit level

Platform locking knob

Anti-slip groove

Platform

How to install the quick release plate

Locking knob

Align the quick releaseplate in regard to the anti-slip screw and

anti-slip groove.

Anti-slip groove

Anti-slip screw

Align the quick release plate

Make sure that the quick release plate is well positioned and lock the

knob again.

Ball Head Locking Knob

To move the ball of the head loosen the ball head locking knob.

Then you can put the ball in the position you need. Then lock the

knob again. If the knob is locked but the top of the screw is in your

way, you can simply pull it up and adjust the position of the screw

and put it back. The screw itself will not be loosen by this operation.

Technical Speciﬁcation

Loosen

Lock

stop

Loosen

Lock

Ball Head

4.3 cm 4 cm 8.5 cm 275 g 8 kg
