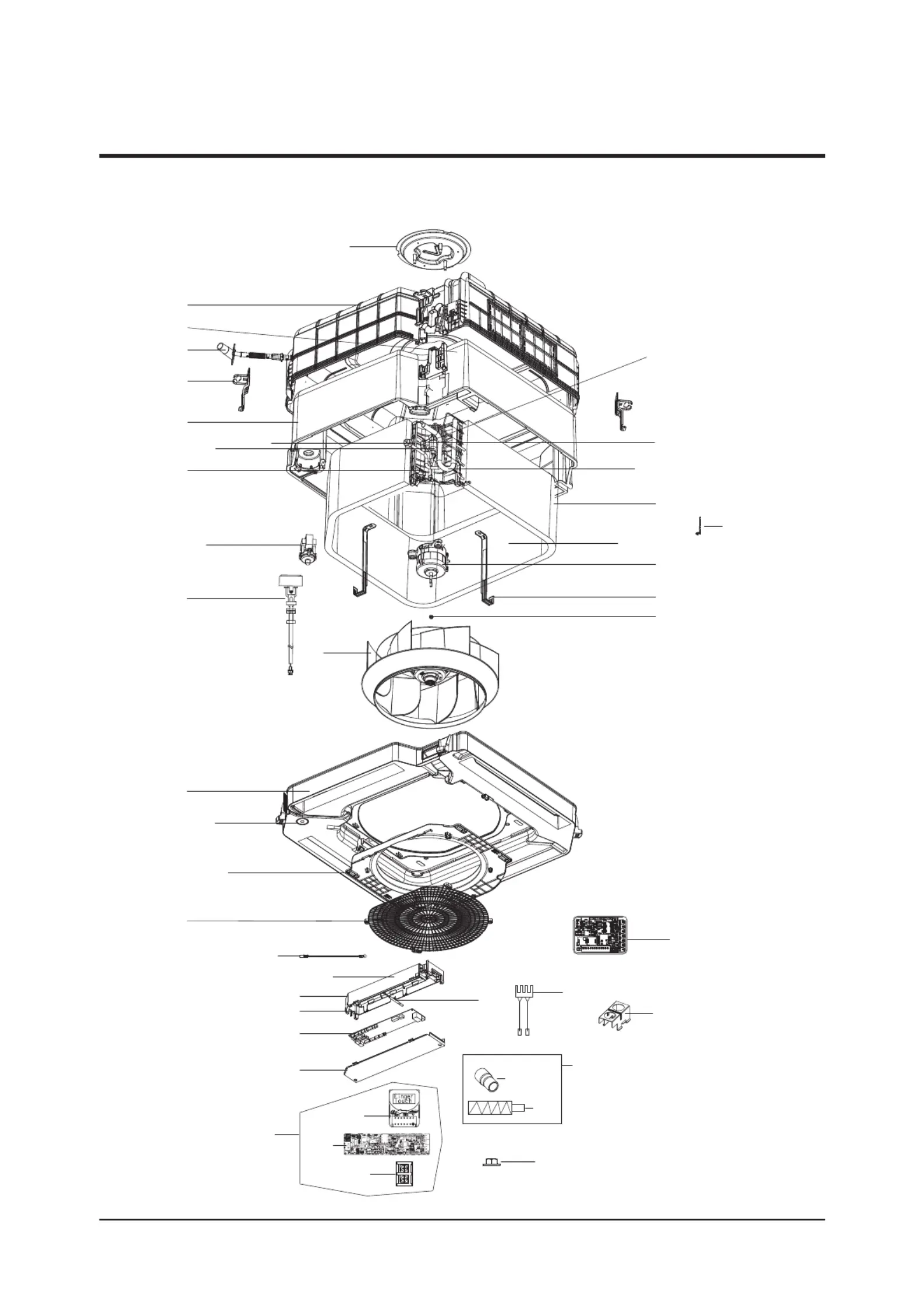

Exploded Views and Parts List
No. Code No. Description Specication SA/SNAQ’TY
1 DB90-07260A ASSY BRACKET-MOTOR ASSY 1 SA
2 DB90-07315A ASSY CASE-CABI IN LRG ASSY 1 SA
3 DB90-07317A ASSY COVER-PIPE ASSY 1 SA
4 DB94-03582B ASSY DRAIN-SOCKET ASSY 1 SA
5 DB61-05259A PLATE-HANGER GI-SGCC,1.6 4 SA
6 DB63-03160A CUSHION-CABI IN EPS,T1.0,PKF-303XS,WHITE 1 SNA
7 DB61-05277A CASE-PARTITION EVAP HIPS,T2,BLACK,PH-88 1 SNA
8 DB94-04236B ASSY DRAIN-PUMP ASSY 1 SA
8-1 DB31-00649C PUMP DRAIN 400cc/min,PBT,1200mm,UL3266,L650,PVC,V-0 1 SA
9 DB95-04462D SWITCH FLOAT 70mm,2.5mm,660mm 1 SA
10 DB96-23379A ASSY EVAP-UNIT ASSY 1 SNA
10-1 DB96-14482D ASSY EVAP ASSY 1 SA
10-1-1 DB96-17729B ASSY TUBE EVAP OUT ASSY 1 SNA
10-1-2 DB96-17987B ASSY TUBE EVAP IN ASSY 1 SNA
10-1-2-1 DB60-30010B FASTENER-NUT FLARE BRASS 1 SA
10-2 DB81-00635A SPRING ETC-SENSOR STS304,ID2.5,OD4.5,L44,T0.3,W2 2 SA
11 DB31-00577A MOTOR FAN FMC9731SSB 1 SA
12 DB61-05281A HOLDER-EVAP STS430,T0.6,W21.8,L256.2 2 SA
13 DB94-03502A ASSY FAN TURBO ASSY 1 SA
14 DB94-03581A ASSY DRAIN PAN ASSY 1 SA
14-1 DB67-01271A RUBBER-CAP DRAIN SOCKET EPDM,GRAY BLUE 1 SA
15 DB90-07318A ASSY CASE-BELL MOUTH ASSY 1 SA
15-1 DB61-05271A CASE-BELL MOUTH HIPS,VICTORY DARK GRAY,PH-88 1 SC
16 DB63-03161A COVER-SAFETY ABS,VICTORY GRAY,HF-0690M 1 SA
17 DB93-16150A ASSY CONTROL IN ASSY 1 SNA
17-1 DB61-05270A PLATE-CASE CONTROL GI-SGCC,T0.7,92.6,378.3 1 SA
17-2 DB93-08805D ASSY 1 SAASSY CONNECTOR WIRE-EARTH
18 DB61-05269A CASE CONTROL-IN ABS,94.1,384,BLACK,UL94 5V,VE-0858 1 SA
19 DB92-02783A ASSY PCB MAIN ASSY 1 SNA
20 DB61-05266A PLATE-COVER CONTROL GI-SGCC,0.5 1 SA
21 DB95-05009A ASSY 1 SAASSY THERMISTOR IN-ROOM
22 DB95-05011E ASSY 1 SAASSY THERMISTOR IN
23 DB97-31261K ASSY ACCESSORY ASSY 1 SA
23-1 DB94-06964B ASSY DRAIN HOSE ASSY 1 SNA
23-2 DB61-06904A HOLDER-HOSE PVC,T3.5,BLACK,P-1000 1 SA
24 DB60-00406A FASTENER-NUT FLANGE SWRCH10A 1 SA
25 DB92-02829A ASSY KIT ASSY 1 SA
25-1 DB92-04020A ASSY PCB SUB ASSY 1 SA
25-2 DB92-02783A ASSY PCB MAIN ASSY 1 SNA
25-2-1 DB37-00026A TERMINAL BLOCK MELAMINE,300V,30A,28x19x21mm,D4,2P 1 SA
26 DB60-00462A FASTENER-NUT WASHER ZPC 3 SA
27 DB61-05788A BRACKET-CONDUIT SGCC-M,T1,30,64 1 SA
28 DB92-02793A ASSY FUNCTION ASSY 1 SA
29 DB60-00150A SCREW-SPECIAL HWH,M4,L26,ZPC(WHT),SWRCH18A 2 SA
30 DB62-11474A VALVE GEAR EXPAN BRASS,4.0mm,2000,500mm 1 SNA
