DG68-01303A-01
Electric Range
Installation manual
Anti-tip device
WARNING
To reduce the risk of tipping the appliance, the appliance must be secured by properly installed anti-tip devices packed with the appliance.
A. A child or adult can tip the range and be killed.
B. Install the anti-tip device to the structure and/or the range at rear right (or rear left) of the range bottom.
C. Engage the range to the anti-tip device by leveling leg at rear right (or rear left) of the range bottom.
D. Re-engage the anti-tip device if the range is moved.
E. See installation instructions for details.
F. Failure to do so can result in death or serious burns to children or adults.
About this manual
READ THESE INSTRUCTIONS COMPLETELY AND CAREFULLY.
Important note to the installer
• Read all instructions contained in these installation instructions before installing the range.
• Remove all packing materials from the oven compartments before connecting the electrical supply to the range.
• Observe all governing codes and ordinances.
• Save for the local electrical inspector’s use.
• Be sure to leave these instructions with the consumer.
Important note to the consumer
Keep these instructions for the local electrical inspector’s use.
• As when using any appliance generating heat, there are certain safety precautions you should follow.
• Be sure your range is installed and grounded properly by a qualied installer or service technician.
• For the range to ventilate properly, make sure the range’s vents are not blocked or covered, and that there is enough clearance at the top,
back, sides, and underneath the range. The vents allow the necessary exhaust for the range to operate properly with correct combustion
and get the good cooking result.
• Make sure the wall coverings around the range can withstand the heat generated by the range.
• To eliminate the need to reach over the surface elements, avoid having cabinet storage space above the cooktop.
• The range should not be placed on a base.
For your safety
WARNING
• If the information in this manual is not followed exactly, a re or electrical shock may result causing property damage, personal injury, or
death.
• Before beginning the installation, switch the power off at the service panel and lock the service disconnecting switch to prevent power
from being switched on accidentally. When the service disconnecting switch cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
• This appliance must be properly grounded.
Install NE63T8911 AA DG68-01303A-01 EN+CFR.indb 1
1 - English

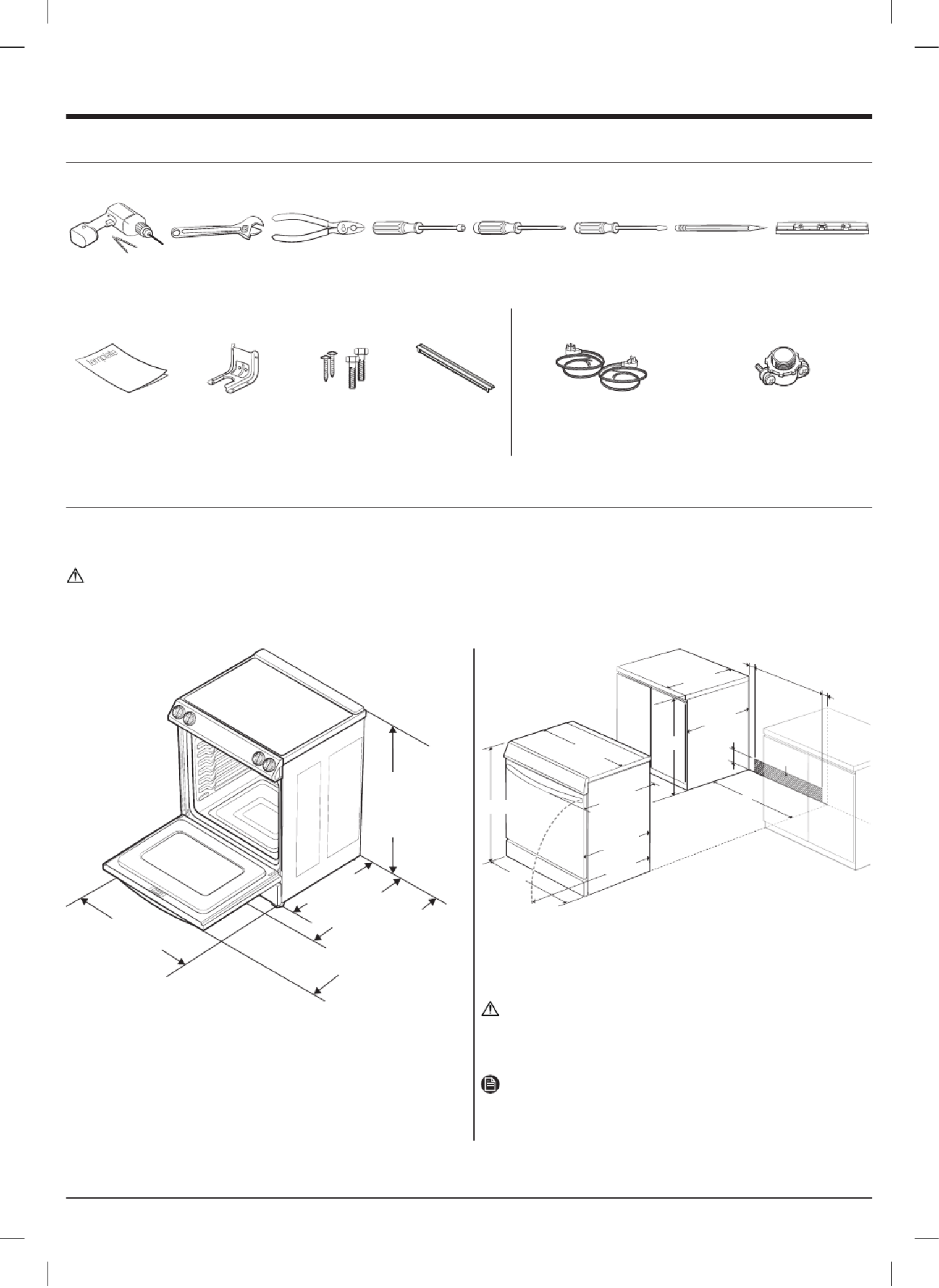

Preparing to install the range
Prepare tools & Parts
The tools you will need
Drill Adjustable
Wrench
Pliers 1⁄4" Nut Driver Phillips
Screwdriver
Flat
Screwdriver
Pencil Level
What’s included with your range Additional materials you may need
Anti-tip Bracket
Template
Anti-Tip Bracket Screws
(short:2 ea,
long:2 ea)
Filler Kit 4-Wire Cord or 3-Wire Cord
(UL Approved 40 or 50 AMP)
Strain Relief
(For Conduit Installation Only)
Checking the installation site
Clearances and dimensions
To install the range, refer to the following gure.
CAUTION
This range has been designed to comply with the maximum allowable wood cabinet temperatures of 194 °F. Make sure the wall covering,
countertops, and cabinets around the range can withstand the heat (up to 194 °F) generated by the range. If not, discoloration, delamination, or
melting may occur.
36 in
(914.4 mm) Min.
363/ 4 in
(933.45 mm) Max.
2915/16 in
(761.0 mm)
26
7/16 in
(671.7 mm)
28
11
/
16
in
(728.6 mm)
With handle
49
1
/
4
in (1250.3 mm)
Door fully open
A
B
36"-363⁄ "4
2915⁄ "16
293⁄ "4
2811⁄ "16
267⁄ "16
491⁄ "4
25"
24"
6"
357⁄ "8
24"
3"
3"
A. Cabinet opening min 30" (76.2 cm)
B. Acceptable electrical outlet area
IMPORTANT: If your cabinets are over 363
⁄4" high, you must install this
range on a hard, heat resistant support that raises the surface of the
range so that it is about even with the countertop.
CAUTION
You must use the rear ller kit to install the range in a freestanding
cutout cabinet. For more information, see “Optional rearller kit” as
shown below.
NOTE
If you install the product in a kitchen island, you must maintain
minimum 21/2" from cutout to back edge of the countertop and
minimum 3" from cutout to side edges of the countertop.
Install NE63T8911 AA DG68-01303A-01 EN+CFR.indb 1
