yFor the best picture and audio quality, connect digital devices using
yIf you connect an external device to the TV that uses an older version
of HDMI, the video and audio may not work. If this occurs, ask the
manufacturer of the device about the HDMI version and, if it is out of
date, request an upgrade.
y
may not display or a connection error may occur.
yPC/DVI AUDIO IN input is not supported.
yFor an HDMI to DVI cable connection, you must use the HDMI IN 2
yConnecting through the HDMI cable may not be supported
yIf an HDMI to DVI cable is connected to the HDMI IN 2 (DVI) port,
yFor Set-top box connection using HDMI cable, we highly
recommend you to connect the HDMI IN 1 (STB) port.

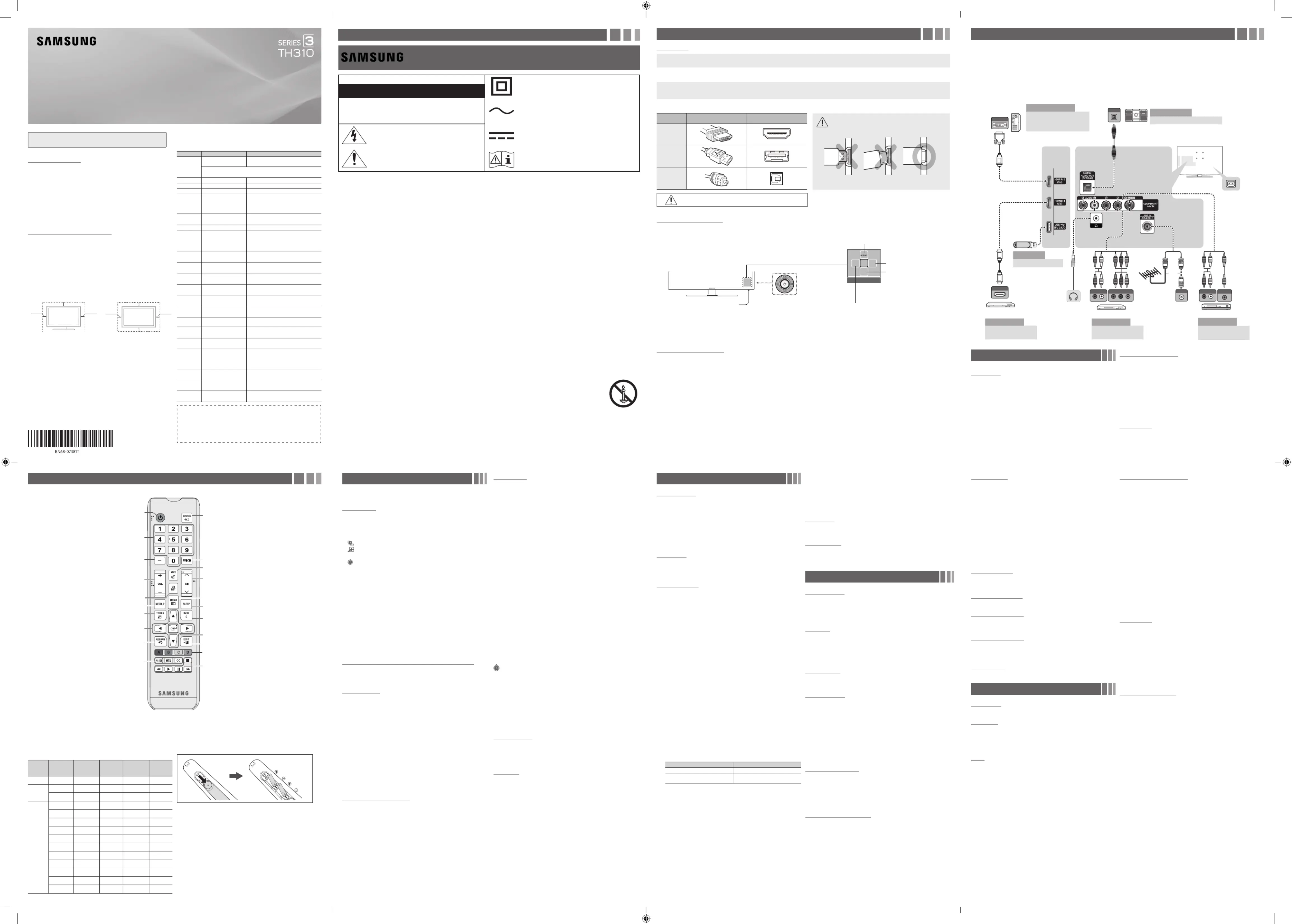

TV Rear PanelTV Side Panel
Using an HDMI Cable or an
HDMI to DVI Cable. Use the
Blu-ray player / DVD /cable box / sat box
y
yWarranty Card / Regulatory Guide
Input Cables (Sold Separately)
✎Make sure you have the correct cable before plugging it in. Illustrations of common plugs and jacks are shown below.
Cable Plugs Ports/Jacks Do not plug in opposite or wrong direction. It could
Do not plug cables in upside down. Be sure to check the orientation
of the plug before plugging it in.
TV Controller (Panel Key)
The TV’s Controller, a small joy stick like button on the rear right side of the TV, lets you control the TV without the remote control.
The image is drawn by facing
the front side of the TV.
✎
✎When selecting the function by moving the controller to the up/down/left/right directions, be sure not to press the controller. If you press it
first, you cannot operate it to move the up/down/left/right directions.
Plug & Play (Initial Setup)
Press the POWER button. is available only when the Input source is set to TV. Set the initial setup following instructions that the TV Plug & Play
✎
✎Learn where the function buttons are on your remote. Especially note , POWER SOURCE CH MENU TOOLS CH LIST RETURN EXIT, VOL, , , , , and .
according to the directions on the TV's
Use these buttons according to the
directions on the TV's screen.
Displays information on the TV screen.
Shuts off the TV automatically after a
Displays the main on-screen menu.
Cuts off the sound temporarily.
Returns to the previous channel.
Displays and selects the available video
PIC SIZE: Changes the picture size.
MTS: Changes a program's audio to stereo,
CC: Controls the caption decoder and
displays captions on the screen.
Returns to the previous menu.
Moves the cursor, selects the on-screen
menu items, and changes the values seen
Displays frequently used functions.
Displays the channel list on the screen.
Selects additional digital channels being
broadcast by the same digital station. For
Press to access channels directly.
Enter
Add, delete or set Favorite channels and use the program guide
for digital broadcasts. Select a channel in the , All Channels Added
Channels Programmed, Favorite or screen by pressing the ▲/▼
buttons, and pressing the ENTER
button. Then you can watch the
All Channels: Shows all currently available channels.
Added Channels: Shows all added channels.
Favorite: Shows all favorite channels.
Programmed: Shows all currently reserved programs.
✎Using the remote control buttons with the Channel List
x Zoom
x Select
channels and press the Yellow button to set all the selected
channels at the same time. The
mark appears to the left of
Tools Channel List
Channel Status Display icons
: A channel set as a Favorite.
: A program currently being broadcast.
Antenna (Switch to Cable / Switch to Air
Before your television can begin memorizing the available channels,
you must specify the type of signal source that is connected to the TV
Air or a Cable
When selecting the Cable TV system: Selects the cable system.
STD HRC IRC, and identify various types of cable TV systems.
Contact your local cable company to identify the type of cable
system that exists in your particular area. At this point, the signal
source has been selected.
✎After all the available channels are stored, it starts to remove
scrambled channels. The Auto Program menu then reappears.
button to stop the channel store during Auto
How to Stop Auto Programming
2. A message will ask Stop Auto Program?. Select Yes by pressing the
Auto Program is
button to stop the Clear Scrambled Channel.
✎This function is only available in mode.Cable
Set each channel using the Channel List
items may differ depending on the channel status.
Add / Delete: Delete or add a channel to display the channels you
✎All deleted channels will be shown on the menu.All Channels
✎A gray-colored channel indicates the channel has been deleted.
✎The menu only appears for deleted channels.Add
✎Delete a channel from the Added Channels or Favorite menu in
Add to Favorite / Delete from Favorite
watch frequently as Favorites.
Timer Viewing: You can set a desired channel to be displayed
automatically at the set time; even when you are watching another
✎
✎Reserved programs will be displayed in the menu.Programmed
✎When a digital channel is selected, press the ► Next Program
button to view the digital program. If you select the ENTER
Schedule Timer
Channel Name Edit
Select All: Select all the channels in the channel list.
Deselect All: Deselect all the selected channels.
✎You can only select when one or more channels Deselect All
Auto Program: Scans for a channel automatically and stores in the
OChannel List Programmed → →
You can view, modify or delete a show you have reserved to watch.
Change Info: Change a show you have reserved to watch.
Cancel Schedules: Cancel a show you have reserved to watch.
Information
Select All / Deselect All: You can select or deselect all channels in
Change the channel mode directly between and Added Channels
✎The Favorite Channels is enabled only when you set Add to
this is done automatically during the search and store operation. If the
✎Fine tuned channels that have been saved are marked with an
asterisk “*” on the right-hand side of the channel number in the
✎To reset the fine-tuning, select Reset.
Select your preferred picture type.
✎When connecting a PC, you can only select and .Entertain Standard
Dynamic: Suitable for a bright room.
Standard: Suitable for a normal environment.
Movie: Suitable for watching movies in a dark room.
Entertain: Suitable for watching movies and games.
✎
Backlight / Contrast / Brightness / Sharpness / Color
Your television has several setting options for picture quality control.
✎When connecting a PC, you can only make changes to , Backlight
Contrast Brightness Sharpness, and .
When connecting a PC, you can only make changes to the Color
Tone Size HDMI Black Level, , and .
✎Warm will be deactivated when the picture mode is .Dynamic
Size: Your cable box/satellite receiver may have its own set of screen
✎
16:9
Zoom1
Zoom2
Wide Fit
4:3
✎
displayed on the left, right and center of the screen may cause
Screen Fit
Custom
✎
✎Settings can be adjusted and stored for each external device you
have connected to an input on the TV.
✎Picture Sizes available by Input Source:
Input Source Picture Size
16:9, Zoom1, Zoom2, 4:3
16:9, Wide Fit, 4:3, Screen Fit
Digital Clean View: If the broadcast signal received by your TV is
weak, you can activate the Digital Clean View feature to reduce any
static and ghosting that may appear on the screen.
✎When the signal is weak, try other options until the best picture
HDMI Black Level: Selects the black level on the screen to adjust the
✎Available only in HDMI
Film Mode
signals from all sources and adjusts the picture for optimum quality.
✎
Motion Lighting (Off / On): Reduce power consumption by brightness
✎Available in mode only.Standard
Resets your current picture mode to its default settings.
Reset Picture Mode: Returns all picture values in the currently
selected mode to the default settings.
Standard: Selects the normal sound mode.
Music: Emphasizes music over voices.
Movie: Provides the best sound for movies.
Clear Voice: Emphasizes voices over other sounds.
Balance L/R: Adjusts the balance between the right and left speaker.
100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment):
Reset: Resets the equalizer to its default settings.
Automatically adjusts the volume level when you change video sources
or content so the level remains the same.
A sound echo may occur due to a difference in decoding speed between
the main speaker and the audio receiver. In this case, set the TV to
✎When Speaker Select External Speaker is set to , the volume and
MUTE buttons will not operate and the sound settings will be
✎When Speaker Select External Speaker is set to .
xTV Speaker External Speaker
✎When Speaker Select TV Speaker is set to .
xTV Speaker External Speaker
✎If there is no video signal, both speakers will be mute.
Digital-TV broadcasts are capable of simultaneous transmission of
✎You can only select a language from among the ones being
Mono: Choose for channels that are broadcasting in mono or if you
Stereo: Choose for channels that are broadcasting in stereo.
SAP: Choose to listen to the Separate Audio Program, which is
usually a foreign-language translation.
✎Depending on the program being broadcast, you can listen to
digital audio signal when you connect the digital audio jack on the back
of the TV to a digital audio in jack on a receiver or home theater.
Audio Format (PCM/Dolby Digital/DTS): You can select the Digital
format may differ depending on the input source.
✎By connecting the TV to a receiver or home theater with Dolby
DigitalDolby Digital, you can
Audio Delay: Lets you correct timing mismatches between the audio
track and the video when you are watching the TV and listening to
digital audio output from the TV through an external device such as
an AV receiver. When you select Audio Delay, a slider appears. Use
the left and right arrow buttons to adjust the slider. Press ENTER
Adds verbal description to the main audio to help the visually impaired.
Set Dolby Digital compression mode.
Specify the TV's installation type. Choose between Wall Mount and
Stand to optimize the TV's Sound automatically.
HDMI Audio Format (PCM/Bitstream): Set the audio input signal
format suitable for the external device connected to the TV's HDMI
Reset All: Resets all sound settings to the factory defaults.
Lets you re-run the Plug & Play initial setup procedure.
✎Choose between , , and .English Español Français
The current time will appear every time you press the button.INFO
Clock: Setting the clock is for using various timer features of the TV.
✎If you disconnect the power cord, you have to set the clock again.
Clock Mode: Set the current time manually or automatically.
Clock Set Month Year Hour Minute am/pm: Set the , Day, , , and .
✎Available only when Clock Mode Manual is set to .
Time Zone: Select your time zone.
DST
✎DST and function is only available when the Time Zone Clock
✎To cancel the Sleep Timer Off, select .
Timer 1 / Timer 2 / Timer 3
Three different on / off timer settings can be made. You must set the
On Time / Off Time: Set the hour, minute, am/pm and Activate /
Volume: Set the desired volume level.
Contents On Time: When the
- TV/USB: Select TV or USB
- : Displays the current antenna source.Antenna
- : Select the desired channel.Channel
- Music/Photo
✎The maximum displayed number of files, including sub folders,
✎The media may not be playing smoothly when using the device
Repeat Once: Select , Everyday, , , Mon~Fri Mon~Sat Sat~Sun or
Manual to set at you convenience. If you select , you can set Manual
up the day you want to activate the timer.
When connecting to a game console such as PlayStation™ or Xbox™,
you can enjoy a more realistic gaming experience by selecting the
✎Precautions and limitations for game mode
xTo disconnect the game console and connect another external
device, set in the setup menu.Game Mode to Off
xIf you display the TV menu in , the screen shakes Game Mode
xGame Mode is not available when the input source is set to . TV
xAfter connecting the game console, set . Game Mode to On
Unfortunately, you may notice reduced picture quality.
The Program Rating Lock feature automatically locks out programs
restrictions are set up or changed.
✎Program Rating Lock HDMI Component is not available in or mode.
✎
Program Rating Lock: You can block rated TV Programs.
TV Parental Guidelines: You can block TV programs depending on
their rating. This function allows you to control what your children
MPAA Rating: You can block movies depending on their MPAA rating.
a rating system that provides parents or guardians with advanced
Canadian English: You can block TV programs depending on their
Canadian French: You can block TV programs depending on their
Downloadable U.S. Rating: Parental restriction information can be
used while watching DTV channels.
Change PIN
Enter New PIN
in Conrm New PIN
✎
POWER
→ → MUTE → → → POWER
Changing the Input Source
Use to select TV or an external input source such as a DVD player / Blu-
ray player / cable box / STB satellite receiver.
1. Press the SOURCE button.
2. Select a desired external input source.
TV / AV / Component / HDMI1 / HDMI2/DVI
✎You can only choose external devices that are connected to the TV.
In the Source List, connected inputs will be highlighted.
access Edit Name, press the TOOLS button in Source List
device connected to the input jacks to make your input source selection
✎When connecting a PC to the HDMI IN 2(DVI) port with HDMI cable,
you should set the TV to mode under .PC Edit Name
✎When connecting a PC to the HDMI IN 2(DVI) port with HDMI to DVI
cable, you should set the TV to mode under .DVI PC Edit Name
✎When connecting an AV devices to the HDMI IN 2(DVI) port with
HDMI to DVI cable, you should set the TV to mode under DVI Edit
You can see detailed information about the connected external device.
Important Safety Instructions
Warning! Important Safety Instructions
(Please read the Safety Instructions before using your TV.)
Class II product: This symbol indicates that a safety
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
AC voltage: Rated voltage marked with this symbol is AC
This symbol indicates that high voltage is present
inside. It is dangerous to make any kind of contact
with any internal part of this product.
DC voltage: Rated voltage marked with this symbol is DC
This symbol indicates that this product has included
important literature concerning operation and
Caution. Consult instructions for use: This symbol instructs
the user to consult the user manual for further safety
The slots and openings in the cabinet and in the back or bottom are provided
for necessary ventilation. To ensure reliable operation of this apparatus
and to protect it from overheating, these slots and openings must never be
−
built-in cabinet, unless proper ventilation is provided.
−Do not place this apparatus near or over a radiator or heat register, or
where it is exposed to direct sunlight.
−
washbowl, kitchen sink, or laundry tub, in a wet basement, or near a
contact an authorized dealer immediately.
This apparatus uses batteries. In your community, there might be
environmental regulations that require you to dispose of these batteries
properly. Please contact your local authorities for disposal or recycling
Do not overload wall outlets, extension cords, or adaptors beyond their
Power-supply cords should be placed so that they are not likely to be walked
on or pinched by items placed upon or against them. Pay particular attention
to cords at the plug end, at wall outlets, and at the point where they exit from
To protect this apparatus from a lightning storm, or when left unattended
and unused for long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent damage to the set
due to lightning and power line surges.
Before connecting the AC power cord to the DC adaptor outlet, make sure
that the voltage designation of the DC adaptor corresponds to the local
cause a danger of electric shock.
the power cord from a wall outlet, always pull on the power cord's plug.
If this apparatus does not operate normally - in particular, if there are any
unusual sounds or smells coming from it - unplug it immediately and contact
an authorized dealer or service center.
Be sure to pull the power plug out of the outlet if the TV is to remain unused
−Accumulated dust can cause an electric shock, an electric leakage, or a
the insulation to deteriorate.
Be sure to contact an authorized Samsung service center for information
if you intend to install your TV in a location with heavy dust, high or low
hours a day such as in an airport, a train station, etc. Failure to do so may lead
to serious damage to your TV.
Use only a properly grounded plug and wall outlet.
−An improper ground may cause electric shock or equipment damage.
To turn off this apparatus completely, disconnect it from the wall outlet. To
ensure you can unplug this apparatus quickly if necessary, make sure that the
wall outlet and power plug are readily accessible.
Do not drop or strike the product. If the product is damaged, disconnect the
power cord and contact a Samsung service center.
To clean this apparatus, unplug the power cord from the wall outlet and
wipe the product with a soft, dry cloth. Do not use any chemicals such as
wax, benzene, alcohol, thinners, insecticide, air fresheners, lubricants, or
detergents. These chemicals can damage the appearance of the TV or erase
the printing on the product.
Do not expose this apparatus to dripping or splashing.
Do not short-circuit, disassemble, or overheat the batteries.
There is danger of an explosion if you replace the batteries used in the
remote with the wrong type of battery. Replace only with the same or
Use care when touching the TV after it has been on for some time. Some parts
can be warm to the touch.
State of California Proposition 65 Warning
−: This product contains chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
Figures and illustrations in this User Manual are provided for reference only and
may be changed without notice.
ghosting of LED screen, which will affect image quality. To reduce risk of this effect,
please follow below recommendations:
yAvoid displaying the same TV channel for long periods.
yAlways try to display any image on full screen, use TV set picture format menu for
yReduce brightness and contrast values to minimum required to achieve desired
picture quality, exceeded values may speed up the burnout process.
yFrequently use all TV features designed to reduce image retention and screen
burnout, refer to proper user manual section for details.
Securing the Installation Space
ensure proper ventilation.
the internal temperature of the product.
✎When using a stand or wall-mount, use parts provided by Samsung Electronics
If you use parts provided by another manufacturer, it may result in a problem
with the product or an injury due to the product falling.
✎The appearance may differ depending on the product.
✎Be careful when you contact the TV because some parts can be somewhat hot.
Installation with a stand. Installation with a wall-mount.
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact
Country Customer Care Center
www.samsung.com/mx/support
www.samsung.com.ar
URUGUAY www.samsung.com/uy
PARAGUAY www.samsung.com/py
www.samsung.com/br/support
CHILE
www.samsung.com/cl/support
www.samsung.com/cl/support
www.samsung.com/co/support
GUATEMALA
PERU
www.samsung.com/pe/support
Display Modes (HDMI/DVI Input)
IBM -/+
-/-
-/-
-/-
-/-
-/-
+/+
+/+
+/+
-/-
-/-
+/+
+/+
+/+
Installing batteries (Battery size: AAA)
Bright light may affect the performance of the remote control.
The Color and shape may vary depending on the model.
✎The button names above may differ from the actual names.
✎Some buttons on the remote control may not be available.
✎This remote control has Braille points on the Power, Channel, Volume, and Enter buttons and can be used by visually impaired persons.
