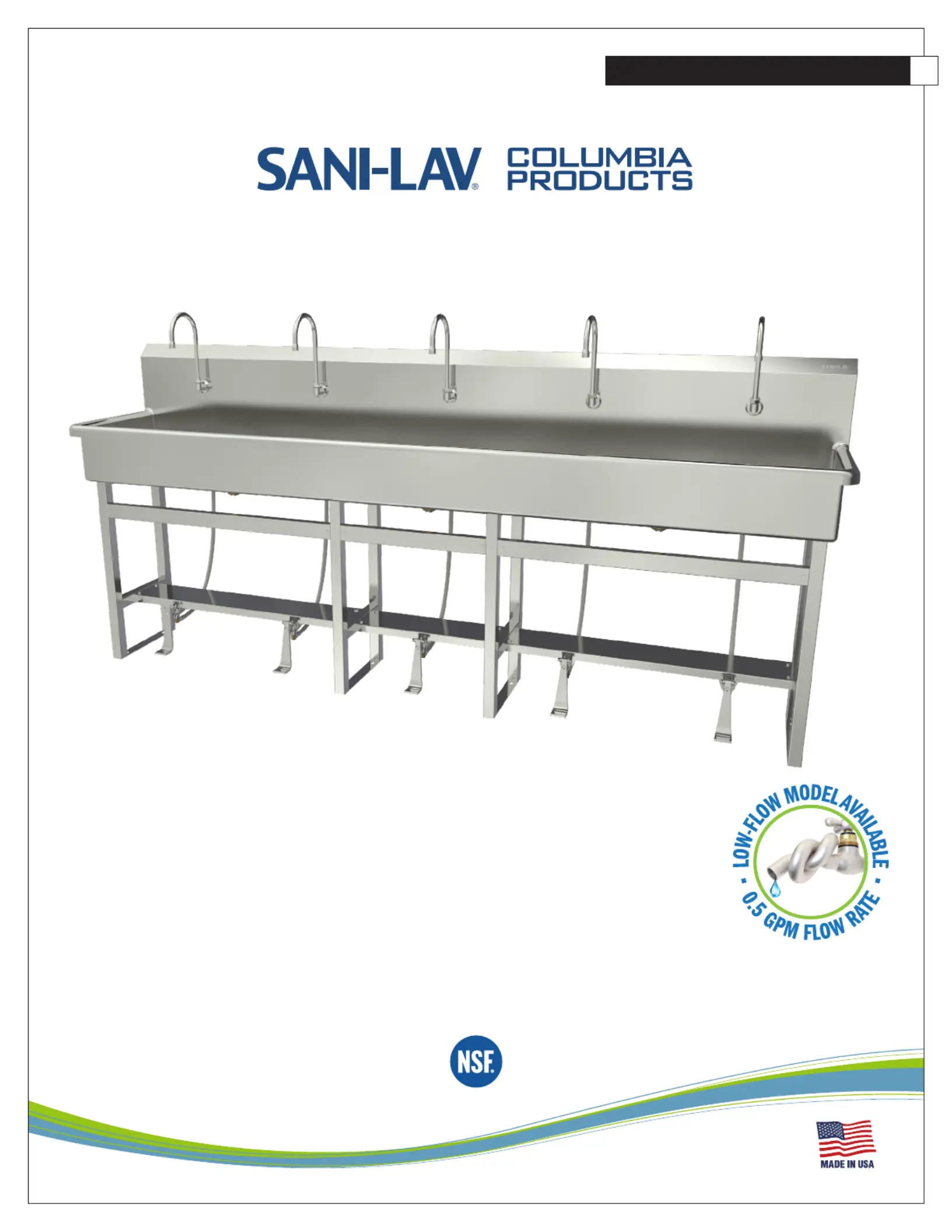

H A N D S - F R E E F L O O R M O U N T W A S H S TAT I O N

Columbia does not recommend use with harsh chemicals.

Product Compliance

NSF/ANSI 2 Food Equipment, NSF/ANSI 372 Low-Lead

Operating Manual for -Person Hands-Free Floor Mount 5

Stainless Steel Wash Station

Models 510F1 and 510F1-0.5

of Domestic and Foreign Parts

C O L U M B I A S P E C I F I C AT I O N S

H A N D S - F R E E F L O O R M O U N T W A S H S TAT I O N

800.626.2117 columbiasinks.com info@columbiasinks.com

Parts List

(1) Floor mount wash station

(1) Leg assembly set

(18) Nuts, bolts and washers for leg assembly

(8) Nuts and washers for connecting sink to leg assembly

(5) Single foot pedal valve

(10) Valve mounting nuts

(5) Swivel gooseneck spout with aerator

(5) Connecting tube for valve to spout connection

(10) Fittings, brass, 0.375” male compression and 0.375” male NPT

(5) Mixing check valve

(3) Strainer assembly with basket

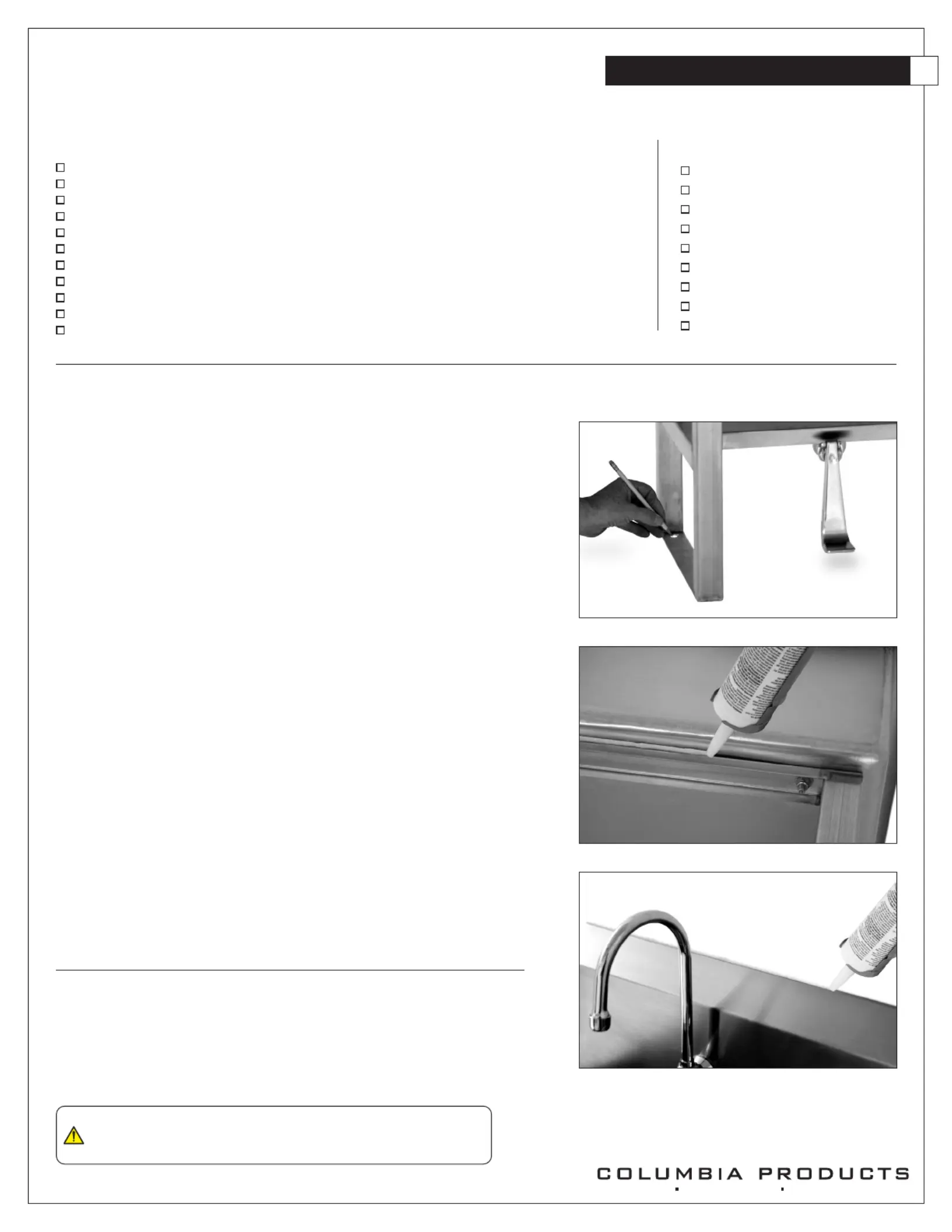

Installation Instructions

Step 1

1. 2 and 3-Person models require leg assembly.

2. Place wash station sink on leg assembly and secure with hardware (provided).

3. Establish sink location.

4. Mark the floor where the four holes are at the base as shown in illustration A.

5. Drill holes as required for mounting hardware. (Hardware not included).

Step 2

1. Install spout assembly to the sink.

2. Install elbow fitting (provided) to the spout assembly.

3. Connect one side of the supply line (provided) to the spout assembly.

4. Install strainer assembly.

Step 3

1. Install mixing check valve and elbow fitting to valve.

2. Install foot pedal valves under the leg assembly cross bar if not mounted already.

3. Attach connecting tube from the spout to the foot pedal valve.

Step 4

1. Secure wash station to floor.

2. Connect waste line to strainer assembly.

3. Connect water supplies (hot and cold) to the mixing check valve.

Step 5

1. Remove aerator from the spout assembly and flush water line by pressing pedal for 30

seconds.

2. Check connections for leaks. Replace aerator onto the spout assembly.

3. Seal gap between bowl and leg assembly as shown in illustration B.

4. When mounting against wall, we recommend sealing top of backsplash to wall as shown in

illustration C.

Tools Required

Tape measure

Adjustable wrench

Drill motor and drill bits

Pipe wrench

Level

Safety glasses

Screw drivers: phillips and standard

Pencil

Socket wrench

WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds),

Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects

or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

NOTE: Lead content originates from Brass components in valves and faucets and is certied under

NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.

Notice for California Consumers

Go to for more information on replacement parts and installation videos.columbiasinks.com

Illustration A

Illustration B

Illustration C
