Side 1/251

VPC-HD1010EX

VPC-HD1010

VPC-HD1010GX

INSTRUCTION MANUAL

Digital Movie Camera

Please read these instructions carefully before using the camera.

Make sure to read and understand the separate booklet “SAFETY MANUAL”.

Keep this manual in a safe place for later reference.

Important note

This manual explains how to safely operate the VPC-HD1010EX,

VPC-HD1010 and VPC-HD1010GX.

Any information regarding only one of these products will be labeled as such.

iEnglish

Warning

TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

FOR AMERICAN USERS

The following advisory is included in accordance with the laws of the State of

California (USA):

WARNING:

This product contains chemicals, including lead, known to the State of

California to cause cancer, birth defects or other reproductive harm. Wash

hands after handling.

iThis equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

hReorient or relocate the receiving antenna.

hIncrease the separation between the equipment and receiver.

hConnect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

hConsult the dealer or an experienced radio/TV technician for help.

iChanges or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

Declaration of Conformity

Model number: VPC-HD1010

Trade Name: SANYO

Responsible party: SANYO FISHER COMPANY

Address: 21605 Plummer Street, Chatsworth, California 91311

Telephone No.: (818) 998-7322

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interfer-

ence that may cause undesired operation.

English ii

FOR CANADIAN USERS

iThis Class B digital apparatus complies with Canadian ICES-003.

FOR EU USERS

Note:

iThis symbol mark and recycle system apply only to EU

countries and do not apply to countries in other areas of

the world.

Your SANYO product is designed and manufactured with

high quality materials and components which can be

recycled and reused.

This symbol means that electrical and electronic

equipment, at their end-of-life, should be disposed of

separately from your household waste.

Please dispose of this equipment at your local community

waste collection/recycling centre.

In the European Union there are separate collection

systems for used electrical and electronic products.

Please help us to conserve the environment we live in!

FOR RUSSIAN USERS

This product certified by official certification company

which is authorized by Russian Federation.

SANYO FISHER Sales (Europe) GmbH

Stahlgruberring 4, D-81829 München, Germany

SANYO Electric Co., Ltd.

1-1, Sanyo-cho, Daito City, Osaka 574-8534, Japan

iii English

Symbols used in this manual

HINT Points giving some extended instructions or special points to pay

attention to.

CAUTION Points that require special attention.

(page xx) Refer to the page indicated for detailed information.

You may find the answers to questions or problems concerning camera

operation in the sections “COMMONLY ASKED QUESTIONS” (page 194)

and “TROUBLESHOOTING” (page 202).

English iv

SHOOT, PLAY BACK AND SAVE

Preparing the camera

1 Insert the SD Memory Card.

hAn SD Memory Card is not included with your camera. Please

purchase a commercially sold card.

hIn this manual, the SD Memory Card is referred to as the “card”.

2 Connect the AC adaptor to the camera.

Card slot cover Card slot

SD Memory Card

DC IN terminal

Supplied AC adaptor

To power outlet

DC IN terminal cover

vEnglish

SHOOT, PLAY BACK AND SAVE

Before capturing those important shots, be sure to first take a

test shot to confirm that your camera is set up and ready to go

Sanyo declines any claim for compensation for recorded contents etc. in case

of photographing or recording failure due to a chance camera or card flaw.

Shooting

1 Set the REC/PLAY switch

to REC.

2 Press the ON/OFF button

for at least 1 second to turn

the camera on.

If the screen to set the date

and time appears, press

the MENU button 2 times

to cancel it.

For how to set the date

and time, see page 43.

3 Record.

To record a video clip:

Press the [ ] button to

begin recording a video

clip.

Press the [ ] button

again to end the recording.

To take a photo:

Press the [ ] button.

A still image is captured.

362 00:05:08

F1.8

1/14

362 00:05:08

F1.8

1/14

ON/OFF button

[ ] button

Monitor

REC/PLAY switch

Set to REC

English vi

Playback

When you are finished using the camera...

Press the ON/OFF button for at least 1 second to turn the camera off.

Set the REC/PLAY switch

to PLAY.

The display changes to

the Playback Screen and

the image that was just

captured is shown.

Toggle the SET button to

the left or right to display

the image you wish to see.

Video clips are indicated

by a video clip pattern

along the left and right

sides of the screen.

Press the SET button to

start video clip playback.

<To return to the shooting

mode>

Set the REC/PLAY switch

to REC.

PLAY

SAVE

SET button

<Example: After recording a

video clip>

REC/PLAY switch

Set to PLAY

Video clip pattern

vii English

SHOOT, PLAY BACK AND SAVE

Burn your recorded video clips onto a DVD

(Windows Vista)

Using the supplied CD-ROM (Sanyo Software Pack), you can store your

captured images on a DVD. Detailed information about the Sanyo

Software Pack can be found on page 4 in the Sanyo Software Pack

INSTRUCTION MANUAL.

Install application programs

1 Set the supplied CD-ROM in your computer’s DVD drive.

hThe installation window opens.

2 Click on [Nero 8 Essentials].

hAfter clicking on an application program, follow the instructions shown

on the monitor to install the program.

3 In the installation window, click on [Finish] and remove the CD-ROM

from the computer’s DVD drive.

hWhen the installation window closes, a dialog box to connect to the

website introducing Kodak’s online service appears. Check the [No

thanks!] option button, and then click on the [OK] button.

English viii

Connect your camera to a computer

Connect your camera to a computer, and copy the desired files to the

computer.

1 Use the supplied dedicated USB interface cable to connect your

camera to the computer.

2 Turn on the camera.

hThe USB Connection Screen appears on the camera’s monitor.

OKCANCEL

USB CONNECTION

CANCEL

PRINTER

COMPUTER

Dedicated USB

interface cable

To USB connector

on the computer

Supplied dedicated USB

interface cable

i nInsert the plug with the [ ]

mark facing up.

To power outlet

To USB terminal on

the docking station

ix English

SHOOT, PLAY BACK AND SAVE

3 Select “COMPUTER”, and press the SET button.

hThe screen to select the computer connection mode appears.

4 Select “CARD READER”, and press the SET button.

hThe message [Found New Hardware] appears in the task tray,

showing that the camera is recognized as a drive.

hThe card is recognized (mounted) as a disk, and the [XACTI (E:)] icon

appears in the [My Computer] window.

* The drive name (E:) may be different on your computer.

5 Copy the files from the card to the computer’s hard disk.

hThe data recorded with your camera are stored in the following folder.

You can specify the folder on the hard disk to which to copy the files.

XACTI (E:)\DCIM\****SANYO

(**** represents numbers [page 11 in the Sanyo Software Pack

INSTRUCTION MANUAL]).

* The drive name (E:) may be different on your computer.

English x

Burn video clips onto a DVD (For Windows Vista

users)

Here’s how to write your recorded data onto a DVD in the mpeg2 format. For

information on other operations, please see the Help file for Nero Vision. To

access the Nero Vision Help file, click the [?] button on the Nero Vision start

screen.

1 Insert a blank DVD in your computer’s DVD drive.

2 Click the Start button, and point to [All Programs] → [Nero 8] and

click on [Nero Vision Essentials].

hNero Vision starts up, and the start screen appears.

xi English

SHOOT, PLAY BACK AND SAVE

3 Under the “What would you like to do?” heading, point to [Make

DVD] and click on [DVD-video].

hThe Hints window opens, in which you can find an explanation of each

screen.

hFrom the [Show hints when moving to page] menu in the Hints window

select [Disable].

4 Click the [Close] button.

hThe screen to make a DVD-video opens.

hClick the [Back] button.

English xii

5 Under the “What would you like to do?” heading, click [Add video

files].

hThe window to select files to burn to DVD opens.

6 Click on a file to burn to DVD.

hClick on the files while holding down the [Ctrl] key.

7 Click the [Open] button.

hThe selected files are shown in the “Content” field.

xiii English

SHOOT, PLAY BACK AND SAVE

hWhen you double-click a file in the “Content” field, the window to play

the file appears. Click the [Next] button when you want to return to the

previous window.

1Right-click on the file in the “Content” field that you wish to deselect.

hA pulldown menu appears.

2Click [Remove].

hThe selected file is removed from the “Content” field.

8 Click the [Next] button.

hThe window to edit the disk menu appears.

English xiv

9 Click on one of the designs under “Templates”, and then click the

[Next] button.

hA preview of the selected design is shown.

xv English

SHOOT, PLAY BACK AND SAVE

10 Click the [Next] button.

hThe window to configure the DVD burn setup opens.

English xvi

11 Click the [Burn] button.

hDisk writing begins.

hThe process status is shown in the “Recording progress” field.

hWhen the burn process is completed, a screen asking if you would like

to save a log file of the burn process appears.

12 Click the [Yes] button.

hEnter a name for the log file.

13 Click the [Save] button.

hA screen for you to indicate the next operation appears.

xvii English

SHOOT, PLAY BACK AND SAVE

14 Click the [Finish] button.

hA screen asking if you would like to save the project appears.

15 Click the [Yes] button.

hEnter a name for the project file.

16 Click the [Save] button.

hNero Vision Essentials ends.

English xviii

How was that? The convenient accessories not only let you immediately view

images captured with the camera, but you can also upload images to your

computer and create your original DVDs. Read the following explanations to

find out how you can fully enjoy your camera’s digital movie feature.

1English

CONTENTS

QUICK SEARCH BY OPERATION ............ ..................... ....................... 6

CHECKING THE INCLUDED ACCESSORIES .................................... 11

How to use the accessories .......................................................... 13

Separately sold accessories ......................................................... 15

Media cards that can be used with this camera ............................ 16

What “card” means in this manual ................................................ 16

GETTING THE MOST OUT OF YOUR CAMERA ............................... 17

High-quality images with “Full High Definition*” ............................ 17

Includes SIMPLE mode for quick-and-easy operation .................. 18

Image stabilizer for sharp pictures ................................................ 18

Sharp face shots ........................................................................... 19

Xacti Library feature ...................................................................... 19

Lots of accessories for optimal use of your captured images ....... 20

SYSTEM MAP ..................................................................................... 21



 SETUP

PARTS NAMES ................................................................................... 22

Camera ......................................................................................... 22

Docking station ............................................................................. 25

Remote control unit ....................................................................... 26

INSTALLING THE CARD ..................................................................... 27

PREPARING THE DOCKING STATION ............................................. 29

PREPARING THE REMOTE CONTROL UNIT ................................... 30

Prepare the battery ....................................................................... 30

How to use the remote control unit ............................................... 31

PREPARING THE POWER ................................................................. 33

Charging the battery pack ............................................................. 33

When using a power outlet ........................................................... 37

About recharging .......................................................................... 39

Warning concerning battery pack temperature ............................. 39

TURNING THE CAMERA ON AND OFF ............................................. 40

Turning on the camera .................................................................. 40

Turning on the camera when the power save (sleep) mode is

active ........................................................................................ 41

Turning off the camera .................................................................. 41

DATE AND TIME SETTING ................................................................. 43

SWITCHING BETWEEN THE SHOOTING MODE AND PLAYBACK

MODE .............................................................................................. 46

English 2

SIMPLE MODE/NORMAL MODE .........................................................47

About the SIMPLE mode and NORMAL mode .............................47

Switching between the SIMPLE and NORMAL modes .................48

Accessing/exiting the SIMPLE/NORMAL Mode Menu Screen ......49

Overview of the SIMPLE Mode Setting Screen .............................55

Overview of the NORMAL Mode Setting Screen ..........................59

FIELD OF VIEW ...................................................................................67



 SIMPLE

SHOOTING

BEFORE TAKING PICTURES .............................................................68

For best results ..............................................................................68

Using the autofocus .......................................................................69

Select the recording size ...............................................................71

Select the focus setting .................................................................72

Hints for taking pictures .................................................................73

VIDEO CLIP RECORDING ...................................................................74

SHOOTING SINGLE SHOTS ...............................................................75

Using the flash ...............................................................................77

SHOOT A STILL IMAGE WHILE RECORDING A VIDEO CLIP ..........79

MACRO-PHOTOGRAPHY (ZOOM) .....................................................81

PLAYBACK

SHOOTING AND PLAYBACK WITH THE REMOTE CONTROL

UNIT .................................................................................................82

PLAYING BACK VIDEO CLIPS AND STILL IMAGES ..........................83

How to save one frame from a video clip as a still image .............85

SLIDESHOW PLAYBACK ....................................................................86

PLAYBACK VOLUME ...........................................................................87

DELETING FILES .................................................................................88

PLAYBACK MODES .............................................................................90

9-image display playback ..............................................................90

Selecting the playback folder ........................................................91

Magnifying (zooming in) the image ...............................................92



 NORMAL

SHOOTING

RECORDING SIZE ...............................................................................93

Movies ...........................................................................................93

Still images ................... ........... ..................... .......... .......................94

Sequential shots ............................................................................95

Audio recording .............................................................................96

SCENE SELECT ..................................................................................99

FILTERS .............................................................................................101

3English

CONTENTS

FLASH OPERATION ......................................................................... 102

SELF-TIMER ...................................................................................... 103

MOTION COMPENSATION (IMAGE STABILIZER) .......................... 105

Compensate for camera shake when recording movies ............. 105

Compensate for camera shake when shooting still images ........ 105

FOCUS RANGE ................................................................................. 107

How to use the manual focus ..................................................... 108

FOCUS MODE ................................................................................... 109

LIGHT-MEASURING MODE SETTING ............................................. 110

ISO SENSITIVITY .............................................................................. 111

WHITE BALANCE .............................................................................. 113

EXPOSURE SETTING ...................................................................... 114

FACE CHASER ................................................................................. 116

PHOTO WIDE D-RANGE .................................................................. 117

HIGH SENSITIVITY MODE ............................................................... 119

DIGITAL ZOOM SETTING ................................................................. 120

EXPOSURE COMPENSATION ......................................................... 121

PLAYBACK

SLIDESHOW PLAYBACK ................................................................. 122

FILE PROTECT ................................................................................. 124

PRINTING INSTRUCTIONS .............................................................. 125

Display the Printing Instructions Screen ..................................... 125

Specifying date imprinting and print quantities ........................... 127

Index print ................................................................................... 129

Clearing all the printing instructions ............................................ 130

ROTATE STILL IMAGE ..................................................................... 131

REDUCE STILL IMAGE SIZE (RESIZE) ........................................... 132

CORRECTING THE CONTRAST ...................................................... 133

EDITING VIDEO CLIPS ..................................................................... 135

Procedure to cut (extract) a portion of a video clip ..................... 135

Procedure to join video clips ....................................................... 136

Video clip cutting (extracting) ...................................................... 137

Joining video clips ....................................................................... 140

DISPLAYING FILE PROPERTIES (INFORMATION SCREEN) ........ 143



 OPTION SETTINGS

DISPLAY THE OPTION SETTING MENU ......................................... 144

SCREEN DISPLAY ............................................................................ 145

SELECT THE STARTUP DISPLAY ................................................... 146

OPERATION SOUNDS ............. .......... ..................... ........... .............. 147

POST-VIEW DISPLAY SETTING ...................................................... 149

English 4

SPECIFY A FOLDER TO SAVE FILES ..............................................150

ASSIGN SET BUTTON FUNCTIONS ................................................151

NOISE-REDUCTION FUNCTION ................... ..................... ..............153

ADJUST THE IMAGE QUALITY .........................................................155

FLICKER-REDUCTION ......................................................................156

MONITOR BRIGHTNESS ..................................................................157

ADJUST THE VOLUME OF AN EXTERNAL MICROPHONE ............158

SCREEN LANGUAGE ........................................................................159

TV OUTPUT SETTING .......................................................................160

POWER SAVE FUNCTION ................ .......... ..................... ........... ......165

FILE NO. MEMORY ............................................................................167

FORMATTING A CARD .....................................................................170

RESETTING THE CAMERA SETTINGS ............................................172

CHECKING THE REMAINING CARD MEMORY ...............................173

Checking the remaining number of images and

video recording time ................................................................173

For audio recordings ...................................................................173

CHECKING THE REMAINING BATTERY PACK CHARGE ..............175



 OTHER DEVICES AND CONNECTIONS

CONNECTING TO A TV

CONNECTING TO A STANDARD VIDEO INPUT TERMINAL ..........177

ENJOY HIGHER IMAGE QUALITY ....................................................178

Connect to the S-VIDEO terminal ...............................................178

Connect to the 480p/720p/1080i terminal ...................................179

Connecting to the HDMI terminal ................................................180

PLAYING BACK ON A TV ..................................................................181

Xacti Library ........................................................................................182

CONNECTING TO A PRINTER

PictBridge MODE ................................................................................183

PRINTING ...........................................................................................185

Printing selected images .............................................................185

Printing all images .......................................................................187

Making an index print ..................................................................188

Printing images according to printing instructions

(requested images) .................................................................189

Changing the printer settings ......................................................190

OTHER CONNECTIONS

CONNECTING A MICROPHONE/HEADPHONES ............................192

SHOE MOUNT ...................................................................................193

5English

CONTENTS



 APPENDICES

COMMONLY ASKED QUESTIONS ................................................... 194

TROUBLESHOOTING ....................................................................... 202

Camera ....................................................................................... 202

Docking station ........................................................................... 212

Notes regarding the Scene Select feature and filters ................. 214

SPECIFICATIONS ............................................................................. 216

Camera ....................................................................................... 216

Camera connectors .................................................................... 220

Battery life ................................................................................... 221

Possible No. of Images/Possible Shooting Time/

Possible Recording Time ....................................................... 222

Docking station ........................................................................... 223

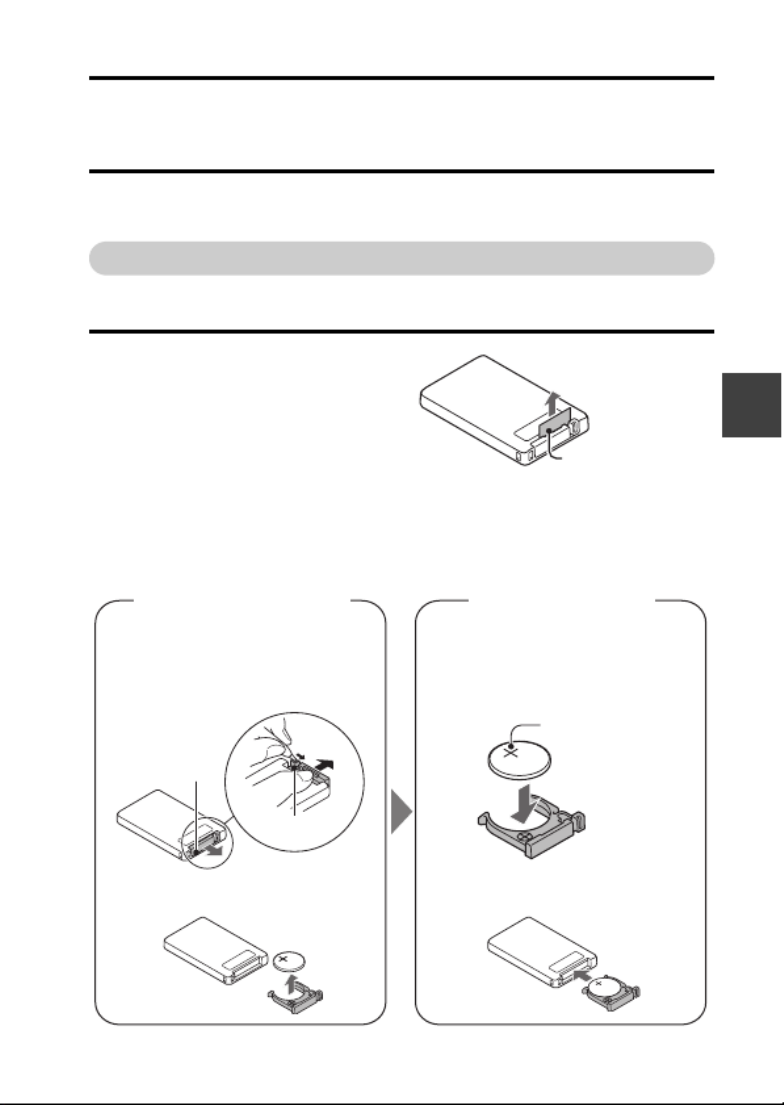

Remote control unit ..................................................................... 223

Concerning the multi-indicator and blue LED indicator ............... 224

Supplied AC adaptor ................................................................... 225

Supplied Li-ion battery pack ....................................................... 225

Others ......................................................................................... 226

Before capturing those important shots, be sure to first take

a test shot to comfirm that your camera is set up and

ready to go ............................................................................. 227

HINTS FOR TAKING PICTURES ...................................................... 228

English 6

QUICK SEARCH BY OPERATION

Your camera has an abundance of convenient features and functions. From

creating precisely the photo you want, to viewing images using various

techniques, you can locate the exact operation for your purposes in the

following table.

Shooting/recording

Basic operation Convenient functions Additional functions

Getting started

shooting/recording

• “VIDEO CLIP

RECORDING” on

page 74

• “SHOOTING SINGLE

SHOTS” on page 75

• “Sequential shots” on

page 95

• “Audio recording” on

page 96

Log the date and time

of your photos

• “DATE AND TIME

SETTING” on page 43

Zoom in on the

subject

• “MACRO-

PHOTOGRAPHY

(ZOOM)” on page 81

Close-up

photography

• “Select the focus setting”

(super macro mode) on

page 72

• “FOCUS RANGE” (super

macro mode) on

page 107

For more accurate

focus

• “How to use the manual

focus” (manual focus) on

page 108

Set the focus to a

narrow range

• “FOCUS MODE” on

page 109

Reduce noise when

recording

• “NOISE-REDUCTION

FUNCTION” on page 153

Optimize the photo

quality

• “Select the recording

size” on page 71

• “RECORDING SIZE” on

page 93

Reduce video clip flicker

• “FLICKER-REDUCTION” on page 156

Set the camera’s color/contrast

characteristics

• “ADJUST THE IMAGE QUALITY” on page 155

Capture fast-moving subjects

• “SCENE SELECT” (sports mode) on page 99

Suppress camera shake effect

• “Compensate for camera shake when recording movies” on page 105

• “Compensate for camera shake when shooting still images” on page 105

Shoot in dark conditions

• “EXPOSURE COMPENSATION” on page 121

• “Using the flash” on page 77

• “FLASH OPERATION” on page 102

• “SCENE SELECT” (night view portrait mode/fireworks mode/lamp mode) on page 99

Increase the camera’s sensitivity

• “ISO SENSITIVITY” on page 111

• “HIGH SENSITIVITY MODE” on page 119

7English

QUICK SEARCH BY OPERATION

Photographing people

• “SCENE SELECT” (portrait mode/night view portrait mode) on page 99

• “FILTERS” (cosmetic filter) on page 101

• “Using the flash” (red-eye reduction) on page 77

• “FLASH OPERATION” (red-eye reduction) on page 102

Sharp face shots

• “FACE CHASER” on page 116

Simplified operation for shooting/playback

• “SIMPLE MODE/NORMAL MODE” on page 47

Photographing landscapes

• “SCENE SELECT” (landscape mode) on page 99

Take a self-photo

• “SELF-TIMER” on page 103

Make images lighter

or darker

• “EXPOSURE

COMPENSATION” on

page 121

• “HIGH SENSITIVITY

MODE” on page 119

Measure the

brightness of a

specific area

• “LIGHT-MEASURING

MODE SETTING” on

page 110

Adjust the camera’s

sensitivity

• “ISO SENSITIVITY” on

page 111

For a more precise

exposure setting

• “EXPOSURE SETTING”

(manual exposure

control) on page 114

Change the color of

the images

• “FILTERS” (monochrome

filter/sepia filter) on

page 101

Make white appear

natural

• “WHITE BALANCE” on

page 113

Shooting/recording

Basic operation Convenient functions Additional functions

English 8

Playback

Basic operation Convenient functions Additional functions

Getting started

viewing images

• “PLAYING BACK VIDEO

CLIPS AND STILL

IMAGES” on page 83

Adjust the speaker

volume

• “PLAYBACK VOLUME”

on page 87

Search for image/

audio files

• “9-image display

playback” on page 90

• “Selecting the playback

folder” on page 91

Magnify an image

• “Magnifying (zooming in)

the image” on page 92

Change the angle of

view

• “ROTATE STILL IMAGE”

on page 131

• “Audio playback” on

page 97

Adjust the speaker volume

• “PLAYBACK VOLUME” on page 87

Continuous playback

• “SLIDESHOW PLAYBACK” on page 86 and 122

Adjust the monitor brightness

• “MONITOR BRIGHTNESS” on page 157

Playback on a TV

• “PLAYING BACK ON A TV” on page 181

Set the TV system

• “TV OUTPUT SETTING” on page 160

How to use Xacti Library

• “Xacti Library” on page 182

9English

QUICK SEARCH BY OPERATION

File managing/processing

Basic operation Convenient functions Additional functions

Search for image/audio files

• “9-image display playback” on page 90

• “Selecting the playback folder” on page 91

Delete files

• “DELETING FILES” on

page 88

Protect files from accidental erasure

• “FILE PROTECT” on page 124

Format a card

• “FORMATTING A CARD” on page 170

Delete a part of a video clip and join video clips

• “EDITING VIDEO CLIPS” on page 135

Specify the number of prints, index print, and date imprint

• “PRINTING INSTRUCTIONS” on page 125

View the settings that were in effect when the image/audio files were

recorded

• “DISPLAYING FILE PROPERTIES (INFORMATION SCREEN)” on page 143

English 10

Using with a computer

Basic operation Convenient functions Additional functions

Use the camera as a card reader

• “USING AS A CARD READER” on page 8 in the Sanyo Software Pack

INSTRUCTION MANUAL

Copy files from your

camera to a computer

• “Connect your camera to

a computer” on page viii

Using with Windows Vista

• “CONNECTING IN THE MTP MODE” on page 15 in the

Sanyo Software Pack INSTRUCTION MANUAL

Burn files copied to the computer onto a DVD

• “Burn your recorded video clips onto a DVD (Windows Vista)” on page vii

Playback

• “About video clip files recorded with this camera” on page 13 in the Sanyo Software

Pack INSTRUCTION MANUAL

Using as a webcam

• “Using as a PC camera” on page 16 in the Sanyo Software Pack INSTRUCTION

MANUAL

Record an image of the computer screen

• “SCREEN CAPTURE” on page 19 in the Sanyo Software Pack INSTRUCTION

MANUAL

11 English

CHECKING THE INCLUDED ACCESSORIES

ii i

iiSoft case (page 14): 1 Handstrap (page 13): 1

ii Sanyo Software Pack

(CD-ROM) (page 4 in the

Sanyo Software Pack

INSTRUCTION MANUAL): 1

ii Li-ion battery pack (page 34):

ii Docking station (pages 25

and 29): 1

ii Dedicated S-AV interface

cable (pages 177 and 178): 1

ii Dedicated USB interface

cable (page 6 in the Sanyo

Software Pack INSTRUCTION

MANUAL): 1

ii Dedicated component cable

(page 179): 1

ii HDMI cable (page 180): 1

Included with model

VPC-HD1010EX. Not included

with other models.

ii AC adaptor and power cord

(pages 29, 37 and 38): 1

English 12

ii Remote control unit

(pages 26, 30 to 32 and 82): 1

ii i

iiLens cap (page 13): 1 Dedicated USB converter

cable: 1

hFor use with the Xacti Library

feature

ii Microphone connection cable

(page 192): 1

ii Cores: (4)

ii Xacti Library Instruction

Manual

ii “SAFETY MANUAL”

(safety precautions booklet)

Please read this booklet

carefully before using the

camera.

ii Quick Guide

Included with model

VPC-HD1010GX. Not included

with other models.

FOR CALIFORNIA, U.S.A. ONLY

Perchlorate Material - special

handling may apply.

The lithium battery used in this

camera contains perchlorate

material, which may require

special handling. See

www.dtsc.ca.gov/hazardouswaste/

perchlorate.

13 English

CHECKING THE INCLUDED ACCESSORIES

How to use the accessories

kk Handstrap

kk Lens cap

1 2

3 4

51Depress

2Pull

English 14

kk Soft case

15 English

CHECKING THE INCLUDED ACCESSORIES

Separately sold accessories

ii HDMI cable VCP-HDMI01

Cable for connecting to the HDMI terminal on the docking station.

ii Lithium-ion Battery Charger VAR-L50

Battery charger for the supplied or separately sold lithium-ion battery pack

(DB-L50A).

ii Lithium-ion Battery DB-L50

Same model as the supplied lithium-ion battery pack.

ii Wide Conversion Lens VCP-L07W

Expand your camera’s wide-angle range.

ii Tele Conversion Lens VCP-L16T

Make distant objects appear closer.

ii Semi Fish-eye Lens VCP-L04F

For wide-angle shots close to the fisheye lens.

ii Wireless microphone HM-W300

Record sound from the stereo microphone located at a distance from the

camera.

ii Strap VCP-S02H

Attach the handstrap to your camera.

Recommended accessory

ii External microphone (Product code: 645 056 9692)

The recommended stereo microphone for this camera.

English 16

Media cards that can be used with this camera

The type of card that can be inserted into and used with this camera is:

iSD Memory Card

iSDHC Memory Card

What “card” means in this manual

iIn this manual, SD Memory Cards and SDHC Memory Cards that can be

used in this digital camera are referred to as “card”.

17 English

GETTING THE MOST OUT OF YOUR

CAMERA

Your digital movie camera can record video clips in Full High Definition*. It

includes an operation mode that lets even novice shutterbugs record and play

back without getting flustered, as well as software with which you can easily

create your original DVDs. In addition, it comes with the “Xacti Library” feature

for saving recorded data to hard disk and managing files without using a

computer.

High-quality images with “Full High

Definition*” (pages 71 and 93)

Your camera can capture full high definition (full HD) 1920 × 1080-pixel,

60 fields/s video clips. Also, the H.264/MPEG-4 AVC standard is used for

formatting video files. You get both compact file size and high picture quality

in one high-performance camera.

* “Full High Definition” by SANYO Digital Movie Camera signifies recording at

a resolution of 1920 pixels horizontally ×1080 pixels vertically (when

recording in the ! mode).

English 18

Includes SIMPLE mode for quick-and-easy

operation (page 47)

Select from two shooting/playback modes: the “SIMPLE mode” for users new

to the camera, and the “NORMAL mode” for full use of all the camera’s many

features and functions.

Example:

Image stabilizer for sharp pictures (page 105)

Your camera can compensate for the camera shake that results in blurry

images when you try to capture a fast-moving subject or zoom in on a

subject. Image stabilizer functions for both video clip recording and still image

shots are on board.

OKEXIT

Select movie and

photo size

RECORDING MENU

MOVIE


SCENE SELECT

FILTER

FLASH

SELF-TIMER

OKEXIT

19 English

GETTING THE MOST OUT OF YOUR CAMERA

Sharp face shots (page 116)

Your camera is equipped with a face recognition feature which detects the

subject’s face even when slightly lit from behind or in dim surroundings and

automatically adjusts the focus and brightness to compensate. Now those

otherwise perfect photos that are marred by shadowed faces can be

minimized.

Xacti Library feature (page 182)

The Xacti Library feature feature allows you to save files recorded with your

camera to a large-capacity hard disk without using a computer and play them

back on your TV. No computer operation is involved. You can view full high-

definition images right on your TV screen.

English 20

Lots of accessories for optimal use of your

captured images (pages 21 and 4 in the Sanyo

Software Pack INSTRUCTION MANUAL)

Use the accessory cables to view images on a TV or computer. Or

connect the camera directly to a printer to make prints of your photos.

And with the software in the supplied CD-ROM (Sanyo Software Pack),

you can create your original DVDs and CDs.

21 English

SYSTEM MAP

You can connect the camera to various devices to expand its capabilities.

Remote control

unit

Printer

Battery charger

(optional)

Separately sold or commercially

available SD Memory Card

AC adaptor

(supplied)

Computer

Docking station

i Card reader

i DPOF-compatible printer

i Photo shop

Hard disc

English 22

SETUP

PARTS NAMES

Camera

Front

Strap holder

Flash button [?]

Flash

i Extends when the flash button [?]

is pressed.

Remote control

sensor

Lens

Flash unit

Battery cover lock

Shoe cover

Battery cover

Mic/headphones teminal

cover [MIC/ ]

Monitor unit

Stereo

microphone

23 English

PARTS NAMES

English 24

SETUP

Rear

Bottom

Multi-indicator

[ ] button

Zoom switch

MENU button

Card slot cover

Monitor

SET button

Tripod stand hole

SIMPLE/NORMAL

switch

Blue LED indicator

Docking station terminal

ON/OFF button

Speaker

PHOTO VIEW button

DC IN terminal cover

REC/PLAY switch

25 English

PARTS NAMES

Docking station

Front

Rear

Operation mode button

DC IN terminal

USB terminal

COMPONENT/AV terminal

HDMI terminal

Docking station terminal

English 26

SETUP

Remote control unit

1 [ ] button

2 [ ] button

3 Works the same as pushing

zoom switch toward the

[W] ([P]) side

4 Works the same as pushing

zoom switch toward the

[T] ([]]) side

5 SET button

6 Works the same as toggling

SET button to the left

7 MENU button

8 Works the same as toggling

SET button up

9 Works the same as toggling

SET button to the right

0 Works the same as toggling

SET button down

A ON/OFF button

h Works only when the camera

is set in the docking station.

1 [ ] button

2 [ ] button

3 Works the same as pushing

zoom switch toward the

[W] ([P]) side

4 Works the same as pushing

zoom switch toward the

[T] ([]]) side

5 SET button

6 Works the same as toggling

SET button to the left

7 MENU button

8 Works the same as toggling

SET button up

9 Works the same as toggling

SET button to the right

0 Works the same as toggling

SET button down

A ON/OFF button

h Works only when the camera

is set in the docking station.

;

27 English

INSTALLING THE CARD

Be sure to format a newly purchased card or one that was used in another

device before using it in your camera (page 170). If an unformatted card is

used, the card itself may become unusable.

1 Open the card slot cover, and

insert the card in the card slot.

2 Insert the card all the way in.

h Firmly insert the card until it

clicks into place.

3 Close the card slot cover.

Card slot cover

Card slot

SD Memory Card

English 28

SETUP

h To remove the card, press it in, and then release. The card will

protrude slightly, and you can then pull it out.

CAUTION

Do not attempt to forcibly remove the card

i Doing so may damage the card or the stored files.

If the multi-indicator is flashing red...

i Never remove the card when the multi-indicator is flashing red, as doing so

may result in loss of files stored in the card.

29 English

PREPARING THE DOCKING

STATION

The supplied docking station is used to connect your camera to a computer,

printer or TV, as well as to charge the battery pack installed in the camera.

1 Connect the docking station to a power outlet.

h Use the supplied AC adaptor and power cord.

Docking

station

To power outlet

Supplied AC adaptor

Power cord

English 30

SETUP

PREPARING THE REMOTE

CONTROL UNIT

The remote control unit can be used to take pictures and play them back with

the camera.

Prepare the battery

A battery is already installed in the remote control unit at the time of

purchase.

1 Pull out the battery insulating

sheet.

hThe remote control unit

becomes operable when the

insulating sheet is removed.

Replacing the remote control unit battery

Follow the procedure below to replace the CR2025 battery used in the remote

control unit approximately every year (differing depending on the amount of

use).

Insulating sheet

Insert a new batteryRemove the old battery

1Pull out the battery slot.

hWhile pressing the tab, pull

the battery slot out.

Battery slot

2Remove the battery.

tab

1Insert a new battery.

hFirst wipe the battery with a

clean, dry cloth, and insert it

with the (+) mark facing up.

(+) mark

2Re-insert the battery slot.

31 English

PREPARING THE REMOTE CONTROL UNIT

How to use the remote control unit

The remote control unit can be used at an angle that is displaced 15

degrees horizontally from the remote control sensor on the front of the

camera, at a distance of up to 7 meters (22.97 ft.). When operating the

remote control unit, remove any object that may obstruct the path

between it and the remote control sensor.

CAUTION

iIf the remote control unit is operated in sunlight or under inverter lighting,

the remote control receiving range may become shorter. This is a

characteristic of the infrared remote control unit and is not a defect. To

avoid this malfunction when operating the remote control unit, take care to

shield the remote control sensor from strong light.

15˚

At a distance of

up to 7 meters

(22.97 ft.)

Infrared emitter

Remote control sensor

To power

outlet

English 32

SETUP

Changing the remote control code

The remote control unit will also work with other Sanyo cameras that

can be operated by infrared remote control. When more than one

camera is present, it is recommended to change the remote control

code to ensure that only the intended camera operates when the remote

control unit is used. The remote control code is set to “RC CODE 1” at

the time of purchase.

<Changing the remote control code from “RC CODE 1” to “RC

CODE 2”>

1 Aim the infrared emitter at the remote control sensor on the docking

station.

2 Simultaneously press the MENU button and the [ ] button for at

least 3 seconds.

3 Press a button on the remote control unit and check that the camera

is receiving correctly.

hThe remote control codes are retained even if the batteries in the

remote control unit or camera are replaced.

hIf the remote control codes for the remote control unit and the camera

and do not match, the remote control unit cannot be used to operate

the camera.

1 Aim the infrared emitter at the remote control sensor on the docking

station.

2 Simultaneously press the MENU button and the [ ] button for at

least 3 seconds.

33 English

PREPARING THE POWER

Please charge the supplied battery pack before using it. Power to the camera

can also be supplied from a power outlet if the docking station or the AC

adaptor is used.

Charging the battery pack

1 While pressing the battery

cover lock, slide it (1), and

pull out the battery cover

toward the bottom of the

camera (2).

hThe battery cover comes off.

Battery cover

lock

Battery cover

English 34

SETUP

2 Insert the battery pack.

hTake care that it is positioned

correctly.

3 Replace the battery cover.

hRaise the edge of the battery

pack to remove it.

4 Prepare the docking station

(page 29).

Battery pack

35 English

PREPARING THE POWER

5 Close the camera’s monitor unit,

and set the camera in the docking

station.

hSet the camera securely, making

sure that the camera is correctly

oriented in relation to the terminal

contacts in the docking station.

hCharging begins when the camera

is set in the docking station.

hDuring charging, the multi-

indicator is lit red. When charging

is completed, the indicator turns

off.

hIf the multi-indicator flashes red, it

indicates that the battery pack is

defective or the camera is not

correctly set in the docking station.

Reset the camera correctly in the

docking station.

hThe charging time is approx.

200 minutes.

hThe AC adaptor (supplied) can be

connected to the camera’s DC IN

terminal to charge the battery.

Multi-indicator

Docking station terminal

English 36

SETUP

CAUTION

Using the camera when it is set in the docking station...

iYou can photograph and view images while the camera is set in the

docking station.

Do not charge the battery pack immediately after the camera has been

in continuous use for a long time

iThe battery pack becomes hot when the camera is used continuously for a

long time. If you attempt to charge the battery pack in this state, the multi-

indicator may flash red and it may not be possible to charge the battery

pack. Wait until the battery pack has cooled down before attempting to

charge it.

Does the battery pack appear swollen?

iThe lithium-ion battery used in this camera may expand slightly when

stored in a hot environment or repeatedly used, but this is not a safety

hazard.

HINT

About the internal backup battery

iThis camera’s internal battery serves to maintain the date and time

settings, as well as the shooting settings. The backup battery will be fully

charged when the battery pack is kept in the camera continuously for about

2 days. In the fully charged state, the backup battery will maintain the

camera settings for about 7 days.

When not using the camera for a long time, remove the battery pack

iA small amount of power is still used even if the camera is turned off, and it

is therefore recommended that the battery pack be removed from the

camera if it is not going to be used for a long time. Note that when the

battery pack is removed for a long period, the time and date settings may

be cleared. Before using your camera again, be sure to confirm that the

camera settings are correct.

To prolong the life of the battery pack

iAlthough the battery pack is an expendable item, you can maximize the life

of the battery by heeding the following suggestions.

hDo not leave the battery under the hot summer sun or exposed to other

high-temperature environments.

hDo not continually recharge the battery when it is already fully charged.

After fully charging it once, for example, use it for a while to partially

discharge it before recharging it again.

hWhen the battery is not to be used for a long time, if possible store the

partially charged (not fully charged) battery in a cool environment.

37 English

PREPARING THE POWER

When using a power outlet

Power to the camera can be supplied from a power outlet if the docking

station or the AC adaptor is used.

Using the AC adaptor

Supplied AC

adaptor

DC IN terminal cover

DC IN terminal

To power outlet

Power cord

English 38

SETUP

Using the docking station

Use the supplied AC adaptor and power cord to connect the docking station

to a power outlet, and set the camera in the docking station.

Docking

station

To power outlet

Supplied AC adaptor

Power cord

39 English

PREPARING THE POWER

About recharging

Recharging takes place only when the camera is turned off, or when the

power save function or the sleep function has been activated. Recharging

does not take place when the camera is in the shooting mode or playback

mode.

Warning concerning battery pack temperature

iIf the battery pack in the camera becomes too hot, a blinking temperature

warning icon \ will appear on the monitor. If the blinking icon does

appear, the camera should be turned off as soon as possible and the

battery pack allowed to cool before the camera is turned on again.

iNote that the camera will turn off automatically if it continues to be used

with the battery pack temperature elevated.

iIf you attempt to turn on the camera when the battery pack temperature is

too high, the temperature warning icon will blink and the camera will not

turn on.

English 40

SETUP

TURNING THE CAMERA ON AND

OFF

Turning on the camera

1 Set the REC/PLAY switch.

To shoot pictures:

Set to REC.

To play back images:

Set to PLAY.

2 Open the monitor unit.

3 Press the ON/OFF button for

at least 1 second.

hThe camera turns on.

hIf the date and time have not

been set, the screen to set

the date and time is shown

on the monitor.

Monitor unit

Monitor

ON/OFF button

REC/PLAY switch

Recording Playback

41 English

TURNING THE CAMERA ON AND OFF

Turning on the camera when the power save

(sleep) mode is active

In order to preserve battery pack power, the power save (sleep) function

will automatically turn off the camera after 1 minute of no use during

shooting, or 5 minutes of no use during playback (factory-preset

setting).

i When the power save mode is active, you can restore the power by any of

the following methods:

hh Move the REC/PLAY switch.

hh Press the ON/OFF button.

hh Press the [ ] or [ ] button.

hh Press the SET or MENU button.

hh Push the zoom switch.

hh Move the SIMPLE/NORMAL switch.

hh Press the PHOTO VIEW button.

* When the MENU button is used to turn on the camera, the screen to set

the operation sounds (page 148) appears.

i After the power save mode has been active for about 1 hour, the camera

will switch to the standby mode. In this case, you can restore the power by

pressing the ON/OFF button, or by closing and then opening the monitor

unit.

i When the AC adaptor is connected, the power save mode will become

active about 10 minutes after the camera is turned on (factory-preset

setting).

i The user can specify the time elapsed before the power save mode is

activated (page 165).

i When the camera is connected to a computer or printer, the power save

mode becomes active after about 12 hours.

Turning off the camera

1 Press the ON/OFF button for at least 1 second.

h The camera turns off.

English 42

SETUP

HINT

To immediately activate the power save mode

iPress the ON/OFF button briefly to active the power save function.

About the standby mode

iTo turn off the camera only briefly, you can close the monitor unit to put the

camera in the standby mode. The standby mode uses almost no power.

When the monitor unit is opened again, the camera turns on immediately

and you are ready to shoot or view images without any delay.

If the date and time setting has been completed (page 43)

iThe current time is shown on the monitor when the REC/PLAY switch is set

to REC and the camera is turned on.

CAUTION

If the K icon appears...

iWhen a picture is taken, the date and time it was captured are recorded

with it. If the date and time settings have not been completed (page 43),

the date and time cannot be recorded with the captured images. For this

reason, immediately after the camera is turned on, the “Set date and time”

reminder briefly appears, after which the K icon is shown on the

Shooting Screen. To have the date and time recorded with the images,

please complete this setting before capturing images.

43 English

DATE AND TIME SETTING

The camera will record the date and time an image or audio recording is

taken so that you can display them during playback. Therefore, before

capturing images, make sure the correct date and time are set.

* To correct the date and time setting, please see under HINT on page 45.

Example: To set the clock to 7:30 p.m. on December 24, 2008

1 Turn on the camera (page 40),

and press the SET button.

hThe Clock Set Screen appears.

hFollow the procedures below to

enable or disable the date

display during playback, to set

the display format for the date,

and to set the date and time.

hTo display the Recording or

Playback Screen, press the

MENU button 2 times.

2 Set the date.

1Select “DATE”.

2Press the SET button.

hThe Set Date Screen

appears.

3Set the date to “2008/12/24”.

hThe date is set in the

following order: Set the year

→ → Set the month Set the

day.

hToggle the SET button left or

right to select year, month or

day. Toggle the SET button up

or down to increase or

decrease the number.

4Press the SET button.

CLOCK SET

DATE

TIME

DISP

2008/06/01

00:00

Y / M / D

CLOCK SET

DATE

2008/12/24

English 44

SETUP

3 Set the clock.

1Select “TIME”.

2Press the SET button.

hThe Set Time Screen

appears.

3Set the time to “19:30”.

hThe time is set in the

following order: Set the hour

→ Set the minute.

hA 24-hour clock is used for

the time display.

4Press the SET button.

4 Set the order in which the date is

displayed during playback.

1Select “DISP”.

2Press the SET button.

hThe Set Date Format Screen

appears.

3Toggle the SET button up or

down.

hToggle the SET button up to

change the displayed date

order as follows:

Toggle the SET button down to change it in the reverse order.

4Press the SET button.

19:30

TIME

CLOCK SET

DISP Y / M / D

Y / M / D → M / D / Y → D / M / Y

45 English

DATE AND TIME SETTING

5 Press the MENU button.

hThe date and time setting is completed.

hTo display the Recording or Playback Screen, press the MENU button.

HINT

iUnder normal conditions, while the battery pack is being replaced, an

internal battery will maintain the date and time settings. However, there is a

small chance the settings may be lost (the backup will last for about

7 days). It is recommended to check that the date and time settings are still

correct after replacing the battery pack and before shooting or recording of

any type (follow step 1).

To correct the date and time settings

1Turn on the camera.

2Display the Option Setting Menu [1] (page 144).

3Select “CLOCK SET” and press the SET button.

hThe screen to set the date and time appears.

hThe current date and time settings are shown.

4Select the line you wish to change, and make the correction.

English 46

SETUP

SWITCHING BETWEEN THE SHOOTING

MODE AND PLAYBACK MODE

Switch between the shooting mode (for recording) and the playback mode (for

viewing your recorded images).

1 Turn on the camera (page 40).

362 00:05:08

F1.8

1/30

362 00:05:08

F1.8

1/30

2008.12.24

PLAY

SAVE

2 Set the REC/PLAY switch to the

desired mode.

For recording:

Set it to REC.

For playback:

Set it to PLAY.

REC/PLAY button

<Example of the shooting

mode>

<Example of the playback

mode>

Shooting

mode

Playback

mode

47 English

SIMPLE MODE/NORMAL MODE

About the SIMPLE mode and NORMAL mode

The “SIMPLE mode” comprises only those functions that are most often used

and necessary to operate the camera, while the “NORMAL mode” enables

full use of all the camera’s many functions. Select the mode that is suitable for

your purposes.

SET

OKEXITOKEXIT

RECORDING MENU 1

MOVIE


SCENE SELECT

FILTER

FLASH

SELF-TIMER

Select movie and

photo size

<NORMAL Mode Setting

Screen>

<SIMPLE Mode Setting

Screen>

English 48

SETUP

Switching between the SIMPLE and NORMAL

modes

Use the SIMPLE/NORMAL switch, located next to the monitor, to switch

between the SIMPLE and NORMAL modes.

1 Set the SIMPLE/NORMAL switch to the desired mode.

SIMPLE mode:

Set it to SIMPLE.

NORMAL mode:

Set it to NORMAL.

SIMPLE/NORMAL switch

SIMPLE mode NORMAL mode

49 English

SIMPLE MODE/NORMAL MODE

Accessing/exiting the SIMPLE/NORMAL Mode

Menu Screen

1 Set the camera to the shooting or playback mode.

hUse the REC/PLAY switch to select the shooting mode or playback

mode.

To access the Shooting Menu:

Set the switch to REC.

To access the Playback Menu:

Set the switch to PLAY.

PLAY

362 00:05:08

F1.8

1/30

362 00:05:08

F1.8

1/30

PLAY

2008.12.24

SAVE

REC/PLAY switch

Shooting mode Playback mode

English 50

SETUP

2 Set the camera to the SIMPLE mode or NORMAL mode.

hUse the SIMPLE/NORMAL switch to select the desired mode.

To select the SIMPLE mode:

Set the switch to SIMPLE.

To select the NORMAL mode:

Set the switch to NORMAL.

362 00:05:08

F1.8

1/30

362 00:05:08

F1.8

1/30

443

443 00:05:16

00:05:16

SIMPLE/NORMAL switch

SIMPLE mode NORMAL mode

<Example: NORMAL Mode

Shooting Screen>

<Example: SIMPLE Mode

Shooting Screen>

51 English

SIMPLE MODE/NORMAL MODE

3 Press the MENU button.

hThe Menu Screen for the mode you selected in steps 1 and 2 appears

on the monitor.

Display the SIMPLE Mode Setting Menu → go to page 52, step 4.

Display the NORMAL Mode Setting Menu → go to page 53, step 4.

hTo cancel the Menu Screen, press the MENU button.

OKEXIT

Select movie and

photo size

OKEXIT

RECORDING MENU

MOVIE


SCENE SELECT

FILTER

FLASH

SELF-TIMER

MENU button

<Example: NORMAL Mode

Shooting Menu>

<Example: SIMPLE Mode

Shooting Menu>

English 52

SETUP

To access the SIMPLE Mode Setting Menu Screen

4 Toggle the SET button up or down to select the item you wish to

change, and press the SET button.

hThe Setting Screen for the selected item appears.

OKEXIT

Select movie and

photo size

OKEXIT

To keep in HDTV size

HDTV size

3.5M [16:9]

Select an item to change

Description of selected item

53 English

SIMPLE MODE/NORMAL MODE

To access a NORMAL Mode Setting Menu

4 Toggle the SET button up or down to select a tab.

hThe Menu Screen for the selected tab appears.

5 Toggle the SET button to the right.

RECORDING MENU

MOVIE


SCENE SELECT

FILTER

FLASH

SELF-TIMER

EXIT OK

Tab

RECORDING MENU 1

MOVIE


SCENE SELECT

FILTER

FLASH

SELF-TIMER

EXIT OK

English 54

SETUP

6 Toggle the SET button up or down to select the item you wish to

change, and press the SET button.

hThe Setting Screen for the selected item appears.

hTo return to the Menu Screen, press the MENU button.

HINT

About the applicable mode indicator

iThis indicator shows the shooting mode(s) for which the selected setting is

effective.

: This setting is effective during still image shooting.

: This setting is effective during video clip recording.

: This setting is effective during still image shooting and video clip

recording.

OKEXIT

3264×2448

2288×1712

2496×1408 [16:9]

1920×1080 [16:9]

RECORDING MENU 1

MOVIE


SCENE SELECT

FILTER

FLASH

SELF-TIMER


Select an item to change

Applicable mode

55 English

SIMPLE MODE/NORMAL MODE

Overview of the SIMPLE Mode Setting Screen

SIMPLE Mode Shooting Menu

OKEXIT

Select movie and

photo size

English 56

SETUP

1Recording size (page 71)

hSelect the video clip size to

record.

2Focus range (page 72)

hSelect the focus range that

corresponds to the distance to

the subject.

3Flash (page 77)

hSpecify how the flash will

operate.

4Remaining battery power

indication (page 175)

: The recorded video clip size

will be 1920 ×1080 pixels, and

the captured still image size

will be 2496 ×1408 (16:9)

pixels.

: The video clip size will be

640 ×480 pixels, and the still

image size will be 2288 ×1712

(4:3) pixels.

: The video clip size will be

320 ×240 pixels, and the still

image size will be 640 ×480

(4:3) pixels.

7: The camera automatically

focuses on the subject

within a range of 10 cm

(3.94 in.) to infinity

(normal).

8: The camera focuses on a

subject within a range of

1 cm (0.39 in.) to 1.0 m

(3.28 ft.) (super macro).

9: The camera detects the

subject brightness and

uses the flash only when

necessary.

:: The flash operates with

every image captured

regardless of the

conditions.

;: The flash does not operate

even in dark situations.

<: The camera detects the

subject brightness and

uses the flash only when

required. At this time the

flash operates in a manner

that reduces the red

reflection (“red-eye”) in the

subject’s eyes.

57 English

SIMPLE MODE/NORMAL MODE

SIMPLE Mode Playback Menu

Start slideshow

English 58

SETUP

1 Slideshow (page 86)

h Specify the slideshow settings

and play the slideshow.

2 Playback volume (page 87)

h Adjust the volume for video

clip and audio file playback.

3 Delete (page 88)

h Delete files.

4 Remaining battery power

indication (page 175)

59 English

SIMPLE MODE/NORMAL MODE

Overview of the NORMAL Mode Setting Screen

NORMAL Mode Shooting Menu

<Tab 1>

RECORDING MENU 1

MOVIE


SCENE SELECT

FILTER

FLASH

SELF-TIMER

OKEXIT

English 60

SETUP

1 Video clip settings (page 93)

2 Still image settings (page 94)

3 Scene select (page 99)

4 Filter (page 101)

5 Flash (page 102)

6 Self-timer (page 103)

7 Remaining battery power

(page 175)

!: Record at 1920 × 1080

pixels, 60 fields/s.

Y: Record at 1920 × 1080

pixels, 30 fps.

": Record at 1280 × 720

pixels, 60 fps.

&: Record at 1280 × 720

pixels, 30 fps.

(: Record at 640 × 480 pixels,

60 fps.

): Record at 640 × 480 pixels,

30 fps

X: Record at 448 × 336 pixels,

300 fps

l: Record at 320 × 240 pixels,

30 fps.

<: Make an audio recording.

J: Image size is 3264 × 2448

pixels.

M: Image size is 2288 × 1712

pixels (low compression).

L: Image size is 2288 × 1712

pixels (normal

compression).

*: Image size is 2496 × 1408

pixels (16:9 aspect ratio).

+: Image size is 1920 × 1080

pixels (16:9 aspect ratio).

G: Image size is 1600 × 1200

pixels.

,: Image size is 1280 × 720

pixels (16:9 aspect ratio).

[: Image size is 640 × 480

pixels.

c: Image size is 2288 × 1712

pixels.

=: Full auto setting

a: Sports mode

>: Portrait mode

+: Landscape mode

/: Night view portrait mode

k: Snow & beach mode

+: Fireworks mode

Q: Lamp mode

&: No filter

%: Cosmetic filter

W: Monochrome filter

,: Sepia filter

k: The camera will detect the

subject brightness and use

the flash only when

necessary.

m: The flash will operate with

every image captured

regardless of the

conditions.

l: The flash will not operate

even in dark situations.

n: The camera will detect the

subject brightness and use

the flash only when

required. At this time the

flash will operate in a

manner that reduces the

red reflection (“red-eye”) in

the subject’s eyes.

N: Self-timer is off.

y: Shooting begins 2 seconds

after the [ ] or [ ]

button is pressed.

x: Shooting begins

10 seconds after the [ ]

or [ ] button is pressed.

61 English

SIMPLE MODE/NORMAL MODE

<Tab 2>

OKEXIT

RECORDING MENU

MOVIE STABILIZER

PHOTO STABILIZER

FOCUS

FOCUS MODE

EXP MEASURE

ISO

English 62

SETUP

1 Movie stabilizer (page 105)

h Compensate for camera shake

during video clip recording.

2 Photo stabilizer (page 105)

h Compensate for camera shake

during still image shooting.

3 Focus range (page 107)

h Select the focus range that

corresponds to the distance to

the subject.

4 Focus area (page 109)

5 Light-measuring mode

(page 110)

6 ISO sensitivity (page 111)

* The indicated ISO value is the

standard output sensitivity.

7 Remaining battery power

(page 175)

\: Record with image

stabilizer on.

]: Record without image

stabilizer.

\: Shoot with image stabilizer

on.

]: Shoot without image

stabilizer.

-: The camera automatically

focuses on the subject

within a range of 10 cm

(3.94 in.) to infinity (total

range).

*: The camera automatically

focuses on the subject with

a range of 80 cm (31.50 in.)

to infinity (normal).

-: The focus can be set

manually.

+: The camera focuses on the

subject within a range of

1 cm (0.39 in.) to 1.0 m

(3.28 ft.) (super macro).

B: 9-point range finder focus

C: Spot focus

X: Multi-section light

measuring

W: Center-weighted light

measuring

Y: Spot light-measuring

=: Sensitivity is set

automatically (video clip

recording: ISO 50 to 1000;

still image shooting: ISO 50

to 200)

*: Sets sensitivity to ISO 50

u: Sets sensitivity to ISO 100

v: Sets sensitivity to ISO 200

w: Sets sensitivity to ISO 400

6: Sets sensitivity to ISO 800

-: Sets sensitivity to ISO 1600

z: Sets sensitivity to ISO 3200

(video clip recording:

ISO 1600)

63 English

SIMPLE MODE/NORMAL MODE

<Tab 3>

SET

RECORDING MENU

WHITE BALANCE

EXPOSURE

FACE CHASER

PHOTO WIDE-D

HIGH SENSITIVITY

DIGITAL ZOOM

OKEXIT

English 64

SETUP

1 White balance (page 113)

2 Exposure (page 114)

3 Face chaser (page 116)

4 Photo wide D-range

(page 117)

5 High sensitivity mode

(page 119)

6 Digital zoom (page 120)

7 Remaining battery power

indication (page 175)

=: White balance is

automatically adjusted

depending on the ambient

lighting (auto).

r : For shooting in sunny

conditions (fair)

o: For shooting in overcast

conditions (cloudy)

p: For shooting under

fluorescent lighting

(fluorescent)

q: For shooting under

incandescent lighting

(incandescent)

^: For setting the most

accurate white balance

(one push)

@: The exposure is set

automatically.

T: Set the shutter speed

manually.

g: Set the aperture manually.

H: Set the aperture and

shutter speed manually.

-: Enable face chaser.

.: Disable face chaser.

/: Enable wide D-range

shooting.

0: Disable wide D-range

shooting.

1: Increased sensitivity

2: Normal sensitivity

Q: Enable the digital zoom.

B: Disable the digital zoom.

65 English

SIMPLE MODE/NORMAL MODE

NORMAL Mode Playback Menu

<Tab 1>

1 Slideshow (page 122)

h Specify the slideshow settings

and play the slideshow.

2 Playback volume (page 87)

h Adjust the volume for video

clip and audio file playback.

3 Protect (page 124)

h File protect setting (delete

prohibited)

4 Delete (page 88)

h Delete files.

5 Printing instructions

(page 125)

h Specify the printing

instructions (DPOF settings).

6 Rotate (page 131)

h Rotate a still image.

7 Remaining battery power

(page 175)

PLAYBACK MENU

SLIDESHOW

PLAY VOLUME

PROTECT

DELETE

PRINT INSTRUCTIONS

ROTATE

SET

OKEXIT

English 66

SETUP

<Tab 2>

1 Resize (page 132)

h Reduce the resolution of a still

image.

2 Contrast correction

(page 133)

h Correct the contrast in the

image.

3 Video clip edit (page 135)

h Edit video clips.

4 Select folder (page 91)

h Select a folder to play back.

5 Remaining battery power

indication (page 175)

SET

OKEXIT

PLAYBACK MENU

RESIZE

EDIT VIDEO

CONTRAST CORRECT

SELECT FOLDER

67 English

FIELD OF VIEW

You can select whether to display either the Photo View Shooting Screen or

the Movie View Shooting Screen. The field of view is easier to see when the

Shooting Screen for the specific shooting mode is selected.

* The PHOTO VIEW button is disabled when the camera ia connected to a

TV.

PHOTO VIEW button

Movie view

Photo view

Press

Video clip recording area

English 68

SIMPLE/SHOOTING

SIMPLE

SHOOTING

SIMPLE/SHOOTING

BEFORE TAKING PICTURES

For best results

Hold the camera securely, keeping your elbows close to your body and

making sure the camera is stable.

Make sure that the lens and flash are not blocked by your fingers or the

handstrap.

Correct hold Incorrect hold

A finger is blocking the

lens or flash.

Example 1:

Grip the camera by wrapping

the fingers of the right hand,

from the little finger to the

middle finger, around the

camera, and hook the index

finger above the lens.

Example 2:

Grip the camera by wrapping

the fingers of the right hand,

from the little finger to the

index finger, around the

camera.

69 English

BEFORE TAKING PICTURES

Using the autofocus

The autofocus will work in almost all situations; however, there are

certain conditions that may cause the autofocus function to not work

properly. If the autofocus function is not working properly, set the focus

range to capture images (page 72).

kk Conditions that may cause incorrect focus

The following examples are some of the situations where the autofocus

function may not work.

ii Subjects with low contrast, very

bright subjects at the center of the

image or dark subjects or locations

Use the focus-lock function to lock the

focus on an object with contrast at the

same distance as the desired subject.

ii Subjects without vertical lines

Use the focus-lock function to lock the

focus while framing the subject

vertically, then re-orient the camera to

compose a horizontally framed image.

English 70

SIMPLE/SHOOTING

The following examples are some of the situations where the autofocus

function may work, but not as desired.

ii When both near and far objects are

present

Use the focus-lock function to lock the

focus on an object at the same distance

as the desired subject, then reposition

the camera to compose the picture.

ii Fast-moving subjects

Use the focus-lock function to lock the

focus on an object at the same distance

as the desired subject, then reposition

the camera to compose the picture.

HINT

i Images captured in the still image shooting mode can be rotated when

they are played back (page 131).

i When the [ ] button is pressed halfway, the image in the monitor may

waver vertically. This is the result of internal image processing and is not a

malfunction. This wavering is not recorded and will not affect your images

in any way.

i When the optical zoom is used or when the autofocus is operating, the

image may appear to waver, but this is not a malfunction.

71 English

BEFORE TAKING PICTURES

Select the recording size

The larger the image size (number of pixels), the better the image quality will

be, but the file size will also be larger. Select the image quality that is correct

for the intended purpose.

1 Display the SIMPLE Mode Shooting Menu (page 49), select the

recording size setting, and press the SET button.

2 Select the desired video clip recording size, and press the SET

button.

h This completes the recording size setting.

4: The recorded video clip size will be 1920 × 1080 pixels, and the

captured still image size will be 2496 × 1408 (16:9) pixels.

b: The video clip size will be 640 × 480 pixels, and the still image size

will be 2288 × 1712 (4:3) pixels.

6: The video clip size will be 320 × 240 pixels, and the still image size

will be 640 × 480 (4:3) pixels.

To keep in HDTV size

HDTV size

3.5M [16:9]

SET

OKEXIT

English 72

SIMPLE/SHOOTING

Select the focus setting

Select the focus range corresponding to the distance between the camera

and the subject.

1 Display the SIMPLE Mode Shooting Menu (page 49), select the focus

setting, and press the SET button.

2 Select the desired focus range, and press the SET button.

h This completes the focus range setting.

7: The camera automatically focuses on the subject within a range of

80 cm (31.50 in.) to infinity (normal).

8: The camera focuses on a subject within a range of 1 cm (0.39 in.) to

1.0 m (3.28 ft.) (super macro).

OKEXIT

All ranges

Automatic focus

(people, landscape, etc.)

73 English

BEFORE TAKING PICTURES

Hints for taking pictures

Muting the operation sounds

i The audio guidance that sounds when you operate the camera can be

muted (page 147).

Where are the image and audio files saved?

i All the image and sound files are recorded on the card installed in the

camera.

Taking pictures in backlight conditions...

i When taking pictures with the light coming from behind the subject, due to

the characteristics of the lens, ghost patterns (flare phenomenon) may

appear in the captured image. In this situation, it is recommended that you

avoid taking pictures with the subject lit from behind.

While the image files are being recorded...

i While the multi-indicator is flashing red, the image files are being written to

the memory, during which time it is not possible to capture another image.

Another image can be captured after the flashing red indicator turns off.

However, even when the multi-indicator is flashing red, depending on the

camera’s internal memory remaining capacity, in some cases the next

image can be captured about 2 seconds after shooting.

Checking the last image shot (instant review)

i After shooting a picture, you can immediately view it by pressing the SET

button once.

i During instant review of a video clip, normal play, fast reverse play, reverse

frame-by-frame play and pause are available (page 84).

i If you wish to delete the image (for a video clip, it must be in the pause or

stop mode), toggle the SET button up to access the delete function.

i You can view other images while the instant review display is showing by

toggling the SET button to the left or right.

i Cancel the instant review display by toggling the SET button down.

English 74

SIMPLE/SHOOTING

VIDEO CLIP RECORDING

1 Turn on the camera

(page 40), and set it to the

shooting mode (page 46).

2 Press the [ ] button.

h Recording begins.

h It is not necessary to

keep the [ ] button

pressed while shooting.

h When the remaining

recording time available

for the currently recording

clip becomes little, a

countdown of the

remaining recording time

appears on the display.

3 End the recording.

h Press the [ ] button

again to stop recording.

Full-HD

REC 00:00:09

REC 00:00:09 5

555

Available recording time

remaining

[ ] button

Recording time

75 English

SHOOTING SINGLE SHOTS

Capture a still image (single-shot).

1 Turn on the camera (page 40),

and set it to the shooting mode

(page 46).

2 Press the [ ] button.

1 Press the [ ] button

halfway.

h The autofocus operates,

and the image is focused

(focus lock).

2 Continue to gently press

the [ ] button all the

way.

h The shutter releases and

the image is captured.

h You can view the captured

image on the monitor by

keeping the [ ] button

depressed when you

capture the image.

F1.8

1/30

F1.8

1/30

Target mark

Shutter speed

Aperture

[ ] button

1 2

English 76

SIMPLE/SHOOTING

HINT

Adjusting the monitor brightness

i While the Shooting Screen is active, you can quickly access the screen for

adjusting the brightness of the monitor (page 157) by pressing the MENU

button for at least 1 second.

What is the camera focusing on?

i A target mark & on the monitor

shows the area the camera is

focusing on.

i The camera automatically

determines the correct focus by

measuring from 9 different focus

points within the shooting area. If the

target mark is at a position that is

different from the point you wish to

focus on, you can refocus, for

example, by changing the shooting

angle.

i The large target mark appears when

the camera focuses on a wide area

in the center of the screen.

The focus and exposure can be locked

i By assigning an operation shortcut to the SET button (page 151), you can

set the autofocus or the exposure to a fixed setting. When the exposure

setting is fixed, the P icon appears on the monitor; when the autofocus

setting is fixed, the p icon appears on the monitor.

i When the focus range (page 72) setting or scene select setting is changed,

the focus lock is released.

The shutter speed and aperture are displayed

i The shutter speed and aperture settings are shown on the Shooting

Screen. You can use them as a reference when shooting.

If the camera shake icon > appears...

i During still image shooting, if the shutter speed is slow and the possibility

that the image may be blurred due to camera shake becomes high, the

camera shake icon may appear on the monitor. In this case, use a tripod to

stabilize the camera when shooting, or set the flash operation mode to

automatic (page 77).

i When shooting with the scene select function set to the fireworks +

mode, the camera shake icon always appears, but this is normal.

F1.8

1/30

Shutter speed

Aperture

Target mark

Camera shake icon

77 English

SHOOTING SINGLE SHOTS

Using the flash

The flash is not only used for photographing under dark conditions, but is also

convenient for example when the subject is in shadow or lit from behind. Your

camera is equipped with four flash modes: red-eye reduction, auto flash,

forced flash, and no flash. Select the flash mode that is suitable for the

shooting conditions. The flash is available only when shooting single-shot still

images.

1 Press the m button to open the

flash unit.

h The flash unit opens.

2 Display the SIMPLE Mode Shooting Menu (page 49), select the flash

setting, and press the SET button.

h The screen to select the flash operation appears.

9: The camera detects the subject brightness and uses the flash only

when necessary.

:: The flash operates with every image captured regardless of the

conditions.

;: The flash does not operate even in dark situations.

<: The camera detects the subject brightness and uses the flash only

when required. At this time the flash operates in a manner that

reduces the red reflection (“red-eye”) in the subject’s eyes.

OKEXIT

Auto

Flash automatically

English 78

SIMPLE/SHOOTING

3 Select the desired flash operation, and press the SET button.

h This completes the flash operation setting.

4 Press the [ ] button to take the picture.

CAUTION

Do not touch the flash unit when shooting

i The flash unit becomes very hot and may cause a burn. Avoid touching the

flash unit when shooting.

HINT

i The flash cannot be used during video clip recording.

i By assigning an operation shortcut to the SET button (page 151), you can

change the flash mode from the Shooting Screen (in the NORMAL mode).

79 English

SHOOT A STILL IMAGE WHILE

RECORDING A VIDEO CLIP

You can capture a still image (a single-shot) while recording a video clip.

1 Turn on the camera

(page 40), and set it to the

shooting mode (page 46).

2 Press the [ ] button.

3 When you see a scene

you’d like to capture as a

still image. press the

[ ] button.

4 Press the [ ] button to

end the video clip

recording.

Full-HD

REC 00:00:09

[ ] button

English 80

SIMPLE/SHOOTING

HINT

i When shooting a still image while recording a video clip, the flash does not

operate.

i The photo stabilizer (page 105) is inoperative.

i When the remaining video recording time becomes approximately

50 seconds, it will no longer be possible to capture a still image while

recording a video clip. The exact remaining recording time at which this

occurs will differ depending on the subject and on the video clip mode

setting (page 93). If you intend to capture a still image while recording a

video clip, it is suggested that you take note of the remaining video

recording time.

About the recording size of still images

i The size of a still image captured during video clip recording depends on

the video clip recording size.

Video clip recording size setting Still image recording size

Y+ (16:9)

&, (16:9)

(

)

[ (4:3)

81 English

MACRO-PHOTOGRAPHY (ZOOM)

Your camera has two zoom functions: optical zoom and digital zoom.

1 Point the camera lens at the

subject.

2 Push the zoom switch toward

[T/]] or [W/P] to compose

the desired image.

[T/]]: Zoom in on the subject.

[W/P]: Zoom out.

h When the zoom switch is

pushed, the zoom bar appears

on the monitor.

h When moving the optical

zoom, push the zoom switch

lightly to zoom slowly, and

press more strongly to zoom

quickly.

h When the optical zoom factor

is at maximum, zooming stops

temporarily. When the zoom

switch is pushed toward the

[T/]] side again, the mode

changes to the digital zoom

mode and zooming continues.

3 Take the picture.

For video clip recording, see page 74.

For shooting single shots, see page 75.

For shooting sequential shots, see page 95.

Zoom switch

Zoom bar

Monitor

When both

optical and digital

zoom are enabled

Digital zoom (yellow)

Optical zoom

When optical

zoom only is

enabled

Magnification

Pointer

English 82

SIMPLE/PLAYBACK

PLAYBACK

SIMPLE/PLAYBACK

SHOOTING AND PLAYBACK WITH

THE REMOTE CONTROL UNIT

The remote control sensor on your camera makes it possible to capture

images and play them back using the supplied remote control unit.

1 Prepare the remote control unit (page 30).

2 Turn the camera on, and set the REC/PLAY switch to REC or PLAY.

h Set the REC/PLAY switch to REC for shooting, or to PLAY for

playback.

3 Aim the remote control unit at the camera’s remote control sensor.

h Open the monitor unit.

4 Press the buttons on the remote control unit to operate the camera

(page 26).

83 English

PLAYING BACK VIDEO CLIPS AND

STILL IMAGES

1 Set the camera to the playback mode (page 46).

2 Toggle the SET button to the left or right to display the image you

wish to play back.

h Video clips are indicated by a video clip pattern along the left and right

sides of the screen.

3 For a video clip, press the SET button.

h Playback begins.

2008.12.24

PLAY

SAVE

SET button

<Example: After capturing

a still image>

<Example: After recording

a video clip>

Video clip

pattern

English 84

SIMPLE/PLAYBACK

HINT

If the a appears on the playback Screen...

ii The a icon appears when playing back a file that was saved in segments

(page 97). Although playback of these multiple files is continuous, there is

a slight pause at the point where the files are joined.

To do this... Do this

Normal forward playback Press the SET button.

Stop playback During playback, toggle the SET button down.

Pause

During playback, press the SET button or

toggle the SET button up.

During accelerated playback, toggle the SET

button up.

To play back

one image

at a time

(single-

frame step)

During forward

playback

After pausing playback, toggle the SET button

to the right.

During reverse

playback

After pausing playback, toggle the SET button

to the left.

Slow

playback

During forward

playback

After pausing playback, press and hold the

SET button to the right.

During reverse

playback

After pausing playback, press and hold the

SET button to the left.

accelerate

playback

Forward

playback

During forward playback, toggle the SET

button to the right.

* The playback speed changes each time the

SET button is toggled to the right, as follows:

Normal playback → → → → 2× 5× 10× 15×

Toggle the SET button to the left to resume

normal playback speed.

Reverse

playback

During forward playback, toggle the SET

button to the left.

* The playback speed changes each time the

SET button is toggled to the left, as follows:

15× ← 10× ← 5×

Toggle the SET button to the right to resume

normal playback speed.

Return to normal playback

speed Press the SET button.

Adjusting the volume

Louder: During playback, push the zoom

switch toward the [T] side.

Softer: During playback, push the zoom

switch toward the [W] side.

85 English

PLAYING BACK VIDEO CLIPS AND STILL IMAGES

How to save one frame from a video clip as a

still image

1 Play back the video clip. Pause the playback at the point you wish to

“snap” a photo.

2 Press the [ ] button.

h The screen to select the aspect ratio of the still image appears. Select

the desired aspect ratio, and press the [ ] button. Note, however,

that if the video clip aspect ratio is 4:3, you cannot select 16:9.

HINT

The file for a video clip is very large

i Therefore, be aware that if the video clip is uploaded to a computer to be

played back, the computer may not be able to play back the video fast

enough, making it appear jerky. (The video will always be displayed

properly on the monitor or a television.)

i Depending on the card, shooting may end even before the possible

shooting time indicated.

Display the video clip playback point

i During video clip playback, press the MENU button for at least 1 second to

display a bar showing the current playback point in the video clip.

i Press the MENU button for about 1 second to cancel the bar.

CAUTION

During video clip playback, the sound of a motor is audible...

i During recording, the sound of the optical zoom movement or autofocus

movement was recorded. This is not a malfunction.

If no audio is heard...

i The audio is not played back when the video clip is played back in the

frame-by-frame, fast playback or reverse playback mode.

English 86

SIMPLE/PLAYBACK

SLIDESHOW PLAYBACK

You can play back files in succession with the “slideshow playback” feature.

1 Display the SIMPLE Mode

Playback Menu (page 49), select

the slideshow setting, and press

the SET button.

2 Select the type of file to play back,

and press the SET button.

h Slideshow playback begins.

h To stop slideshow playback, press

the SET button or MENU button.

HINT

About the slideshow settings

i During slideshow playback, the BGM that was set for the slideshow from

the NORMAL Mode Playback Menu is played. To change the BGM, display

the NORMAL Mode Playback Menu and change the BGM setting for the

SLIDESHOW (page 122).

i For slideshows played in the SIMPLE mode, the transition effect is fixed at

FADE and the transition interval is fixed at 2 SEC.

=: Play back all files.

3: Play back video clips and audio

files.

c: Play back still image files.

SLIDESHOW


MOVIE

ALL

START

87 English

PLAYBACK VOLUME

Adjust the playback volume for video clips and audio files.

1 Display the SIMPLE Mode

Playback Menu (page 49), select

“Adjust playback volume”, and

press the SET button.

h The volume control bar appears.

2 Toggle the SET button to the left

or right to set the volume, and

press the SET button.

h The playback volume is set, and

the display returns to the SIMPLE

Mode Playback Menu.

HINT

The volume can be adjusted during playback

i During video clip or audio file playback, if you move the zoom switch, the

volume control bar will appear, allowing you to adjust the volume.

In the NORMAL mode

i When you select “PLAY VOLUME” from the NORMAL Mode Playback

Menu and press the SET button, the volume control bar appears.

PLAY VOLUME

VOLUME SETTING

English 88

SIMPLE/PLAYBACK

DELETING FILES

You can delete files if you no longer need them. You can delete the files one

at a time, or all at once.

1 Display the SIMPLE Mode

Playback Menu (page 49), select

“Delete file”, and press the SET

button.

DELETE SINGLE:

Deletes one file at a time.

DELETE ALL:

Deletes all files.

2 Select the desired delete mode, and press the SET button.

h The Delete Confirmation Screen appears.

h Toggle the SET button to the left or right to select the file you wish to

delete.

h There is no confirmation screen when deleting single files. Please

make sure that the displayed image is one you wish to delete.

h Toggle the SET button to the left or right to confirm the files to delete.

DELETE

DELETE ALL

DELETE SINGLE

89 English

DELETING FILES

3 Select “DELETE”, and press the SET button.

h The currently displayed file is deleted.

h To delete other files, select the files, select “DELETE” and press the

SET button.

h The Delete Confirmation Screen again appears. To delete the files,

select “YES”, and press the SET button. When file delete is

completed, “No image” is shown.

HINT

In the NORMAL mode

i When you select “DELETE” from the NORMAL Mode Playback Menu and

press the SET button, the Delete Screen appears.

CAUTION

i Files that are protected from accidental delete cannot be deleted. To delete

protected files, set the protect setting for the files to off (page 124), and

then follow the file delete procedure.

English 90

SIMPLE/PLAYBACK

PLAYBACK MODES

9-image display playback

1 Display the image you wish to

play back.

2 Push the zoom switch toward

the [W/ ] side.P

h The 9-image display appears.

3 Select the image to play back.

h Toggle the SET button up,

down, left or right to move the

orange frame to the desired

image, and press the SET

button.

Instead of pressing the SET

button, you can push the

zoom switch toward the

[T/]] side to show the

image full screen.

h If the zoom switch is pushed

toward the [W/P] side while

the 9-image display is shown,

the display changes to the

screen to select the playback

folder (page 91).

100

0002

0003

0001

0005

0006

0004

0008

0009

0007

100

0002 00030001

0005 00060004

0008 00090007

SET button

Folder number

Zoom switch

Audio file

Still image

Orange frame

Image number

Video

clip

91 English

PLAYBACK MODES

Selecting the playback folder

If the card contains multiple folders, you can select from which folder you

would like to play back.

1 Display the Playback Screen.

2 Push the zoom switch toward the

[W/P] side 2 times.

h The screen to select the playback

folder appears.

h If the zoom switch is pushed toward

the [T/]] side, the camera

changes to the 9-image display

(page 90).

3 Toggle the SET button to the left or

right to move the orange frame to the

desired folder, and press the SET

button.

h The files in the selected folder are

displayed in the Playback Screen.

HINT

In the NORMAL mode

i When you select “SELECT FOLDER” from the NORMAL Mode Playback

Menu and press the SET button, the screen to select the playback folder

appears.

101 102

104 105103

100

FOLDER : 100SANYO

English 92

SIMPLE/PLAYBACK

Magnifying (zooming in) the image

1 Display the image that you want to magnify.

h For a video clip, pause playback at the place you want to magnify.

2 Push the zoom switch toward the

[T/]] side.

h Magnification is enabled.

h The image is magnified, and the

central portion of image is

displayed.

h Toggle the SET button to view

different parts of the magnified

image.

To magnify:

Magnification increases each time the

zoom switch is pushed toward the

[T/]] side.

To return to normal size:

Magnification decreases each time the

zoom switch is pushed toward the

[W/P] side.

h Press the SET button to return to the

normal (100%) view.

HINT

The magnified portion of the image can be saved as a separate image

i Press the [ ] button. The magnified portion is saved as a new still

image.

100%

MOVE

SAVE

121%

93 English

NORMAL

SHOOTING

NORMAL/SHOOTING

RECORDING SIZE

The image quality of video clips and still images is determined by the

recording size (number of pixels). The larger the recording size, the better the

image quality will be, but the file size will also be larger. Select the recording

size that is correct for the intended purpose.

Movies

You can record video clips in either the HD mode (16:9 horizontal to vertical

aspect ratio) or the SD mode (4:3 aspect ratio). In addition, the higher the

frame rate number, the smoother playback will be. However, as with the

recording size, the file size is also proportionately larger, using up more

memory. This menu is also used when making audio recordings.

1 Display the NORMAL Mode Shooting Menu (page 49), select

“MOVIE”, and press the SET button.

2 Select the desired recording size, and press the SET button.

h This completes the recording size setting.

!: Record video clips at 1920 × 1080 pixels, 60 fields/s.

Y: Record video clips at 1920 × 1080 pixels, 30 fps.

": Record video clips at 1280 × 720 pixels, 60 fps.

&: Record video clips at 1280 × 720 pixels, 30 fps.

(: Record video clips at 640 × 480 pixels, 60 fps.

): Record video clips at 640 × 480 pixels, 30 fps.

X: Record video clips at 448 × 336 pixels, 300 fps.

(High-speed recording: only the video data is recorded; the audio

data is not recorded.)

l: Record video clips at 320 × 240 pixels, 30 fps.

<: Make an audio recording (voice memo).

English 94

NORMAL/SHOOTING

CAUTION

When editing video clips...

i In order for video clips to be joined, they must have been photographed in

the same mode.

i Video clips that were photographed in different modes cannot be joined.

Restrictions when X is set

i When the camera is connected to a TV, the image is shown on the camera

monitor in the shooting mode, and on the TV in the playback mode.

i When the [ ] button is pressed, a video clip is recorded for about 10

seconds. Recording cannot be discontinued even if the [ ] button is

pressed again.

i The following recording functions are not available.

Capturing a still image during video clip recording

Zoom

Image stabilizer

Scene select (fixed at =)

Manual exposure

Face chaser recording

High sensitivity mode recording

i If the AE lock setting is active, it is canceled when the X setting is set.

Still images

For still images, you can select either the 4:3 or 16:9 horizontal to vertical

aspect ratio. This menu is also used for shooting sequential shots.

1 Display the NORMAL Mode Shooting Menu (page 49), select

“PHOTO”, and press the SET button.

2 Select the desired recording size, and press the SET button.

h This completes the recording size setting.

J: Image size is 3264 × 2448 pixels.

M: Image size is 2288 × 1712 pixels (low compression).

L: Image size is 2288 × 1712 pixels (normal compression).

*: Image size is 2496 × 1408 pixels (16:9 ratio).

+: Image size is 1920 × 1080 pixels (16:9 ratio).

G: Image size is 1600 × 1200 pixels.

,: Image size is 1280 × 720 pixels (16:9 ratio).

[: Image size is 640 × 480 pixels.

c: Image size is 2288 × 1712 pixels.

95 English

RECORDING SIZE

Sequential shots

1 Display the NORMAL Mode Shooting Menu (page 49), select

“PHOTO”, and press the SET button.

2 Select c, and press the SET button.

3 Press the [ ] button.

h Shooting begins. Shooting continues as long as the [ ] button is

kept pressed.

HINT

i The maximum number of images in a sequential shots sequence is about

About the focus when shooting sequential shots

i When sequential shots are captured, the autofocus operates when the

[ ] button is pressed halfway, fixing the focus.

Can the flash be used?

i The flash does not operate when shooting sequential shots.

97 English

RECORDING SIZE

3 Press the [ ] button.

h Audio recording begins. During

recording, < appears in the

monitor. It is not necessary to

continue pressing the [ ]

button while recording.

4 End the recording.

h Press the [ ] button again to stop recording.

HINT

You can capture a still image during an audio recording

i Press the [ ] button during audio recording to capture a [ still image.

About files saved in segments

i If the continuous recording time of a voice memo exceeds about 13 hours,

or of a video clip whose resolution setting is l exceeds about 5 hours

30 minutes, the recorded file is saved once, and the recording continues in

a new file. When recording a video clip whose resolution setting is other

than l, and the file size exceeds 4 GB, the recorded file is saved once,

and the recording continues in a new file. (These 4 GB segments are

automatically created. The recording session continues until you stop

recording, but video clip or voice memo recording is temporarily interrupted

while the file is being saved.)

Audio playback

1 Display the desired audio file.

REC00:00:06

Length of recording

PLAY

00:00:00

2008.12.24

English 98

NORMAL/SHOOTING

2 Play back the recording.

CAUTION

If no audio is heard...

i The audio is not played back when the audio recording is played back in

the fast playback or fast reverse mode.

To do this... Do this

Normal

playback

Start

playback Press the SET button.

Pause Press the SET button.

Toggle the SET button up.

Stop

playback Toggle the SET button down.

Fast

forward/

fast reverse

Fast

forward

During playback, toggle the SET button to

the right.

Each time the SET button is toggled to the

right, the speed increases. If the SET

button is toggled to the left during fast

forward, the speed decreases.

Fast

reverse

During playback, toggle the SET button to

the left.

Each time the SET button is toggled to the

left, the speed increases. If the SET button

is toggled to the right during fast reverse,

the speed decreases.

Pause Toggle the SET button up.

Return to

normal

playback

Press the SET button.

Volume

adjustment

Louder During playback, push the zoom switch

toward the [T/]] side.

Softer During playback, push the zoom switch

toward the [W/P] side.

99 English

SCENE SELECT

You can select from various preset settings (aperture, shutter speed, etc.) for

specific shooting conditions.

1 Display the NORMAL Mode Shooting Menu (page 49), select

“SCENE SELECT”, and press the SET button.

m: Available n: Not available

Scene

setting Features

Shooting mode setting

Single-

shot

Sequential

shots Video clip

Auto

The camera makes the

optimum settings. mmm

Sports

Capture a split-second

image of a fast-moving

subject.

mmm

Portrait

Enhance the three-

dimensional feel of the

subject by blurring the

background.

mmm

Landscape

For beautiful shots of

distant scenery. mmm

Night view

portrait

Photograph the subject

while keeping the

background night

scenery.

m n m

Snow &

beach

For photographing bright

scenes, such as on a ski

slope or at the beach.

mmm

Fireworks

For capturing fireworks at

night. m n m

Lamp

Photograph in low-light

conditions m n m

English 102

NORMAL/SHOOTING

FLASH OPERATION

1 Press the m button to open the

flash unit.

h The flash unit opens.

2 Display the NORMAL Mode Shooting Menu (page 49), select

“FLASH”, and press the SET button.

3 Select the desired flash operation, and press the SET button.

h This completes the flash operation setting.

4 Press the [ ] button to capture the image.

HINT

i The flash works only when shooting single-shot still images.

k: The camera detects the subject brightness and uses the flash only

when necessary.

m: The flash operates with every image captured, regardless of the

subject brightness.

l: The flash does not operate even in dark surroundings.

n: The camera detects the subject brightness, and if it determines that

the flash is necessary, a pre-flash is emitted, after which the actual

flash is emitted as the image is captured. This has the effect of

minimizing the red reflection (“red-eye”) in the subject’s eyes.

103 English

SELF-TIMER

1 Display the NORMAL Mode Shooting Menu (page 49), select “SELF-

TIMER”, and press the SET button.

2 Select the desired icon, and press the SET button.

h This completes the self-timer setting.

3 Take the picture.

N: Turns off the self-timer function.

y: The image is captured about 2 seconds after the [ ] button or

[ ] button is pressed.

x: The image is captured about 10 seconds after the [ ] button or

[ ] button is pressed.

111 English

ISO SENSITIVITY

With the initial settings, the ISO sensitivity is automatically set according to

the brightness of the subject. However, the ISO sensitivity can be set to a

fixed setting.

1 Display the NORMAL Mode Shooting Menu (page 49), select “ISO”,

and press the SET button.

*The indicated ISO value is the standard output sensitivity.

2 Select the desired icon, and press the SET button.

h This completes the ISO sensitivity setting.

=: The ISO sensitivity is set automatically (video clip recording: ISO 50

to 1000; still image shooting: ISO 50 to 200).

*: Sets sensitivity to ISO 50.

u: Sets sensitivity to ISO 100.

v: Sets sensitivity to ISO 200.

w: Sets sensitivity to ISO 400.

6: Sets sensitivity to ISO 800.

-: Sets sensitivity to ISO 1600.

z: Sets sensitivity to ISO 3200 (video clip recording: ISO 1600).

Produkt Specifikationer

Mærke:	Sanyo
Kategori:	Videokamera
Model:	Xacti VPC-HD1010GX

Har du brug for hjælp?

Hvis du har brug for hjælp til Sanyo Xacti VPC-HD1010GX stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Videokamera Sanyo Manualer

Sanyo Xacti VPC-SH1GX Manual

16 August 2024

Sanyo Xacti VPC-TH1EX Manual

16 August 2024

Sanyo VPC-TH1 Manual

14 August 2024

Sanyo Xacti VPC-CG100TA Manual

11 August 2024

Sanyo Xacti VPC-CA9GX Manual

10 August 2024

Sanyo Xacti VPC-C5E Manual

8 August 2024

Sanyo Xacti VPC-CG10EX Manual

3 August 2024

Sanyo VPC-CG20EXBK Manual

3 August 2024

Sanyo Xacti VPC-TH1GX Manual

2 August 2024

Sanyo Xacti VPC-CG21EX Manual

2 August 2024

Videokamera Manualer

Nyeste Videokamera Manualer

Panasonic HC-X1600 Manual

3 April 2025

Tactacam Reveal Pro 3.0 Manual

14 Marts 2025

Tactacam REVEAL X 3.0 Manual

14 Marts 2025

PCE Instruments PCE-DHM 2 Manual

14 Marts 2025

Easypix GoXtreme Vision+ Manual

13 Marts 2025

Mio MiSentry 12T Manual

12 Marts 2025

Mio MiVue M820WD Manual

12 Marts 2025

Mio MiVue 955WD Manual

12 Marts 2025

Navitel MSR300 GPS Manual

27 Februar 2025

Voigtländer Bessa III W Manual

25 Februar 2025
