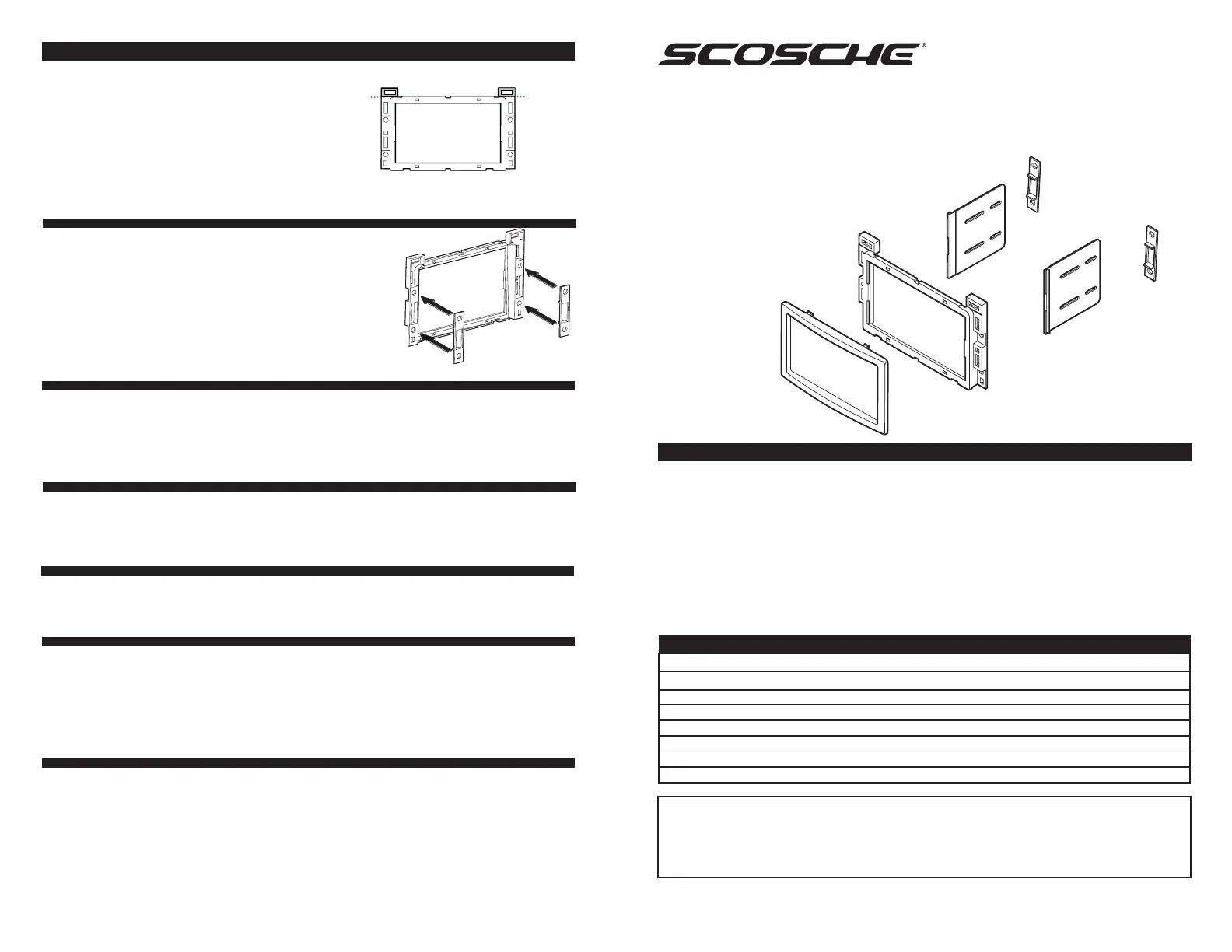

5908L

BRACKET

6024

TRIM

RING

6023

MOUNTING

PANEL

5908R

BRACKET

GM1599BGM1599B

GM1599B

IN-DASH INSTALLATION KIT FOR

2004-UP CHEVROLET; 2005-UP PONTIAC;

2006-UP SATURN

SI 08/06-GM1587B (3000003)

If you have any further questions call: TECH HELP 1-800-621-3695x3

LIABILITY DISCLAIMER

This instruction booklet is based on carefully documented data and research of automobile dash disassembly, wire

harness/codes and information pertaining to installation of this kit in the listed vehicles. Manufacturer cannot be held

responsible for discrepancies/inconsistencies that may occur due to the automobile manufacturing changes or options,

or damage that may occur in the automobile during the installation of components while using this booklet.

2006 SCOSCHE INDUSTRIES, INC.

RADIO REMOVAL

HARNESS / ANTENNA APPLICATION CHART

INTRODUCTION / PRELIMINARY

Thank you for purchasing the Scosche GM1599B Kit. This Kit was manufactured with the highest of quality

standards.

CAUTION: DISCONNECT YOUR VEHICLE'S NEGATIVE BATTERY TERMINAL BEFORE THE

INSTALLATION TO HELP PREVENT ELECTRICAL DAMAGE. WE RECOMMEND THE USE OF A

VOLT/OHM METER OVER A TEST LIGHT TO CHECK WIRING. A TEST LIGHT OR GROUNDED

WIRE PROBE CAN CAUSE DAMAGE TO THE VEHICLE'S COMPUTER AND/OR DIAGNOSTIC

SYSTEMS. AVOID ALL FACTORY AIR BAG WIRING - AIR BAGS CAN ACCIDENTALLY DEPLOY

CAUSING SERIOUS INJURY OR DEATH.

NOTES:

• See your vehicle's instructions for any special tools your installation might require.

• Read all instructions accompanying your car stereo/cassette player for proper wiring and mounting

instructions.

CUT LINE

VEHICLE ANTENNA ADAPTER HARNESS

2005 Chevrolet Equinox / 2006 Pontiac Torrent / MDA-1 DCGM16B

2005-Up Chevrolet Cobalt MDA-1 GM13B

2004-Up Chevrolet Malibu / Maxx MDA-1 GM13B

2005-Up Pontiac G6 MDA-1 GM13B

2006 Chevrolet HHR CRA TBA

2006 Pontiac Solstice CRA TBA

2006 Saturn Ion CRA GM17B

CHEVROLET

2006-UP HHR

2005-UP COLBALT

2005-UP EQUINOX

2004-UP MALIBU

2004-UP MALIBU MAXX

PONTIAC

2006-UP SOLSTICE

2006-UP TORRENT

2005-UP G6

SATURN

2006-UP ION

2006 CHEVROLET HHR

1. Using a panel removal tool, remove panel surrounding window

controls in center console.

2. Extract (2) 7mm screws from behind window control panel.

3. Using a panel removal tool, unsnap trim bezel that surrounds the shifter.

4. Using a panel removal tool, unsnap the rest of the lower console

surrounding shifter.

5. Using a panel removal tool, unsnap dash bezel that surrounds the factory

and HVAC controls. Lift away, disconnect, and remove.

6. Extract (8) 7mm screws securing HVAC controls and factory radio. Lift away,

disconnect, and remove.

KIT MODIFICATION:

1. Cut along notches to remove the shaded part on kit, for panel to fit for this application.

CUT LINE

REMOVE TABS AT CUT LINE

2005-UP CHEVROLET COBALT

1. Open glove box. Using a panel removal tool, carefully unsnap dash trim bezel, lift away and remove.

2. Using a panel removal tool, unsnap driver knee panel, lift away, disconnect and remove.

3. Using a panel removal tool, unsnap dash trim bezel on right side of steering wheel, lift away, disconnect and remove.

4. Using a panel removal tool, unsnap dash bezel, lift away and remove.

5. Extract (4) 7mm hex bolts securing radio, lift away, disconnect and remove.

2005-UP CHEVROLET EQUINOX

2006 PONTIAC TORRENT

1. Unsnap dash surrounding radio, A/C and shifter. Disconnect and remove.

2. Remove (4) 9/32" bolts securing radio. Disconnect and remove.

2006 PONTIAC SOLSTICE

1. Using a panel removal tool, pry, unsnap and remove the cover plate from behind the center console handle located on the

right side of the console.

2. Extract (2) 10mm bolts securing the handle.

3. Using a panel removal tool, unsnap the dash bezel surrounding the radio.

4. Lift away, disconnect and remove dash bezel.

5. Remove (4) screws securing the factory radio to the dash, lift away, disconnect and remove.

2004-UP CHEVROLET MALIBU

2004-UP CHEVROLET MALIBU MAXX

1. Open glovebox, remove (8) 9/32"a screws from the inside glove box, and remove trim above glove box using a panel removal

tool.

2. Pop off side panel next to door and remove two screws. Remove glove box.

3. Remove trim below key hole.

4. Remove (2) 9/32" screws from under drivers dash panel.

5. Remove side panel from drivers dash using a panel removal tool, and remove (2) 9/32" screws.

6. Drivers side under dash can now be removed.

7. Using a panel removal tool, remove radio dash bezel.

8. Remove (2) 9/32" screws holding A/C controls and remove A/C controls.

9. Remove (4) 9/32" screws holding radio to dash. Disconect and remove radio.

2005-UP PONTIAC G6

1. Open glove box, remove (7) 9/32" screws from the inside glove box.

2. Pop off side panel next to door and remove (2) screws. Remove glove box.

3. Remove (3) 9/32" screws from under driver’s dash panel.

4. Remove side panel from driver’s dash using a panel removal tool. Remove (2) 9/32" screws from behind.

5. Driver’s side under dash can now be removed.

6. Using a panel removal tool, remove radio dash bezel.

7. Remove (2) 9/32" screws holding A/C controls and remove A/C controls.

8. Remove (4) 9/32" screws holding radio to dash. Disconnect and remove radio.

ILLUSTRATION "B"

ILLUSTRATION "C"

2006-UP SATURN ION

1. Using a panel removal tool, remove the trim around the shifter.

2. Using a panel removal tool, remove the top panel of the center console that

surrounds the shifter and cup holders.

3. Using a panel removal tool, remove the front dash panel that surrounds

the radio and top A/C vents. Disconnect and remove. (WARNING: DON'T

TURN ON THE IGNITION WITH THE PASSANGER AIRBAG LIGHT

PLUG DISCONNECTED. THIS WILL FLAG AN AIRBAG LIGHT CODE).

4. Extract (4) 9/32" bolts securing the radio to the dash. Disconnect and remove.

KIT MODIFICATION:

1. Cut along notches to remove the shaded part on kit, for panel to fit for this application.

(USE ILLUSTRATION "B" AND "C".)

SPACERS
